Fitness flux in SARS-CoV-2 and seasonal influenza H3N2




Trevor Bedford

Fred Hutchinson Cancer Center / Howard Hughes Medical Institute
3 Mar 2025
CEPR Seminar
London School of Hygiene and Tropical Medicine

Genetic relationships of globally sampled SARS-CoV-2 from 2020 to present

Rapid displacement of existing diversity by emerging variants

Mutations in S1 domain of spike protein driving displacement

SARS-CoV-2 evolution fast relative to previous endemic viruses

This talk

  • Frequency dynamics and fitness estimation
  • Evolutionary forecasting
  • Fitness flux
  • Mutational fitness effects

Frequency dynamics and fitness estimation

Population genetic expectation of variant frequency under selection

$x' = \frac{x \, (1+s)}{x \, (1+s) + (1-x)}$ for frequency $x$ over one generation with selective advantage $s$

$x(t) = \frac{x_0 \, (1+s)^t}{x_0 \, (1+s)^t + (1-x_0)}$ for initial frequency $x_0$ over $t$ generations

Trajectories are linear once logit transformed via $\mathrm{log}(\frac{x}{1 - x})$

Consistent frequency dynamics in logit space (BA.2 Mar 2022)

Consistent frequency dynamics in logit space (JN.1 Dec 2023)

Multinomial logistic regression

Multinomial logistic regression across $n$ variants models the probability of a virus sampled at time $t$ belonging to variant $i$ as

$$\mathrm{Pr}(X = i) = x_i(t) = \frac{p_i \, \mathrm{exp}(f_i \, t)}{\sum_j p_j \, \mathrm{exp}(f_j \, t) }$$

with $2n$ parameters consisting of $p_i$ the frequency of variant $i$ at initial timepoint and $f_i$ the growth rate or fitness of variant $i$.

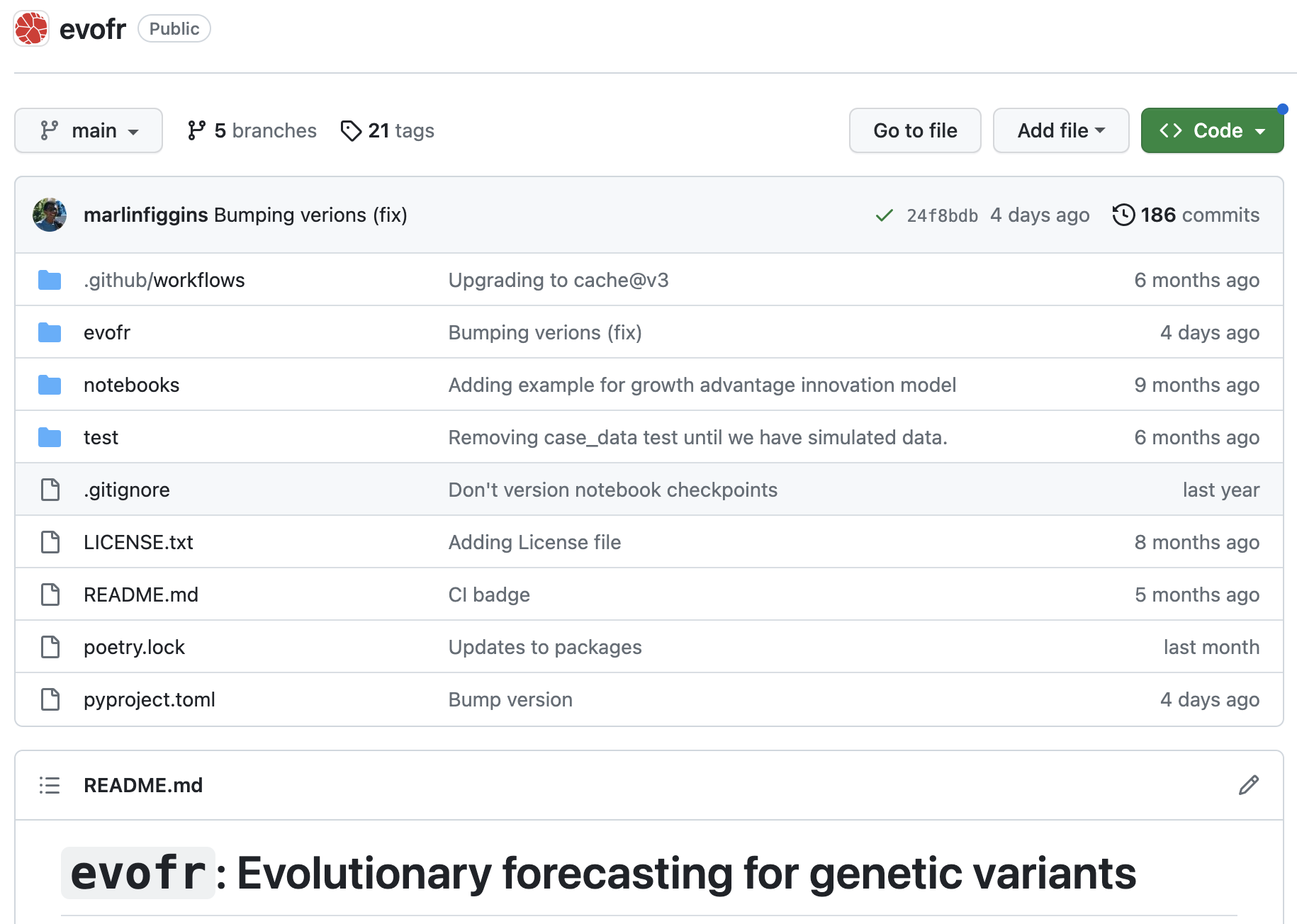

Various flavors of MLR implemented in evofr package

 location variant date        sequences
 Japan    22B     2023-02-10  242
 Japan    22B     2023-02-11  56
 Japan    22B     2023-02-12  70
 Japan    22E     2023-02-10  80
 Japan    22E     2023-02-11  21
 Japan    22E     2023-02-12  27
 USA      22B     2023-02-10  41
 USA      22B     2023-02-11  23
 USA      22B     2023-02-12  23
 USA      22E     2023-02-10  368
 USA      22E     2023-02-11  236
 USA      22E     2023-02-12  246
 ...


Multinomial logistic regression fits variant frequencies well

Original VOC viruses had substantially increased transmissibility

Evolutionary forecasting

Clade and lineage forecasts continuously updated at nextstrain.org

Rapid sweep of JN.1 over Dec to Jan 2024

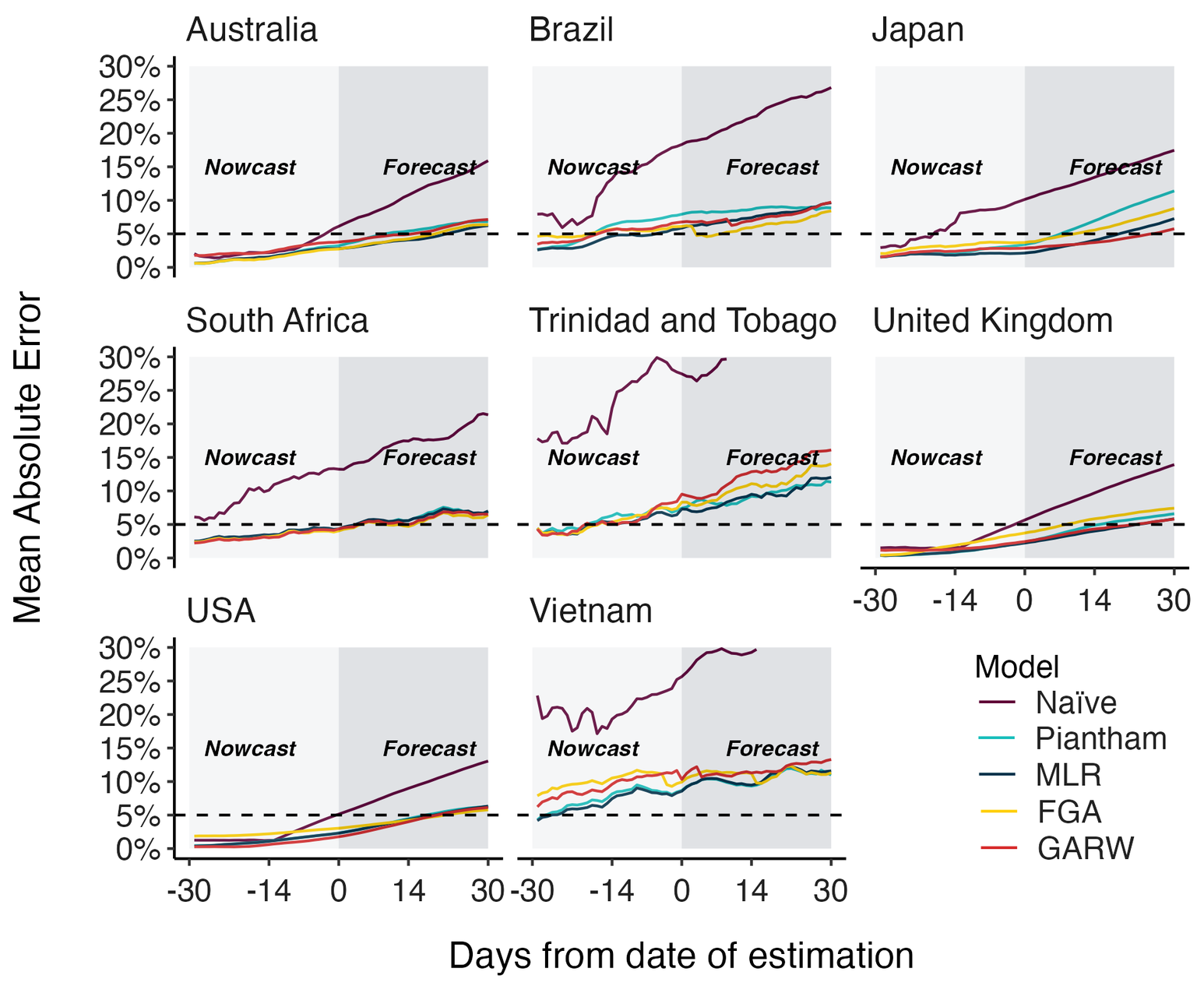

Assessing MLR models for short-term frequency forecasting

Retrospective projections twice monthly during 2022

+30 day short-term forecasts across different countries

MLR models generate accurate short-term forecasts

30 days out, countries range from 5 to 15% mean absolute error

Correlates with data availability (median number of sequences available from the previous 30 days):

USA
~45k sequences
Australia
~4k sequences
South Africa
170 sequences
Vietnam
30 sequences

Fitness flux

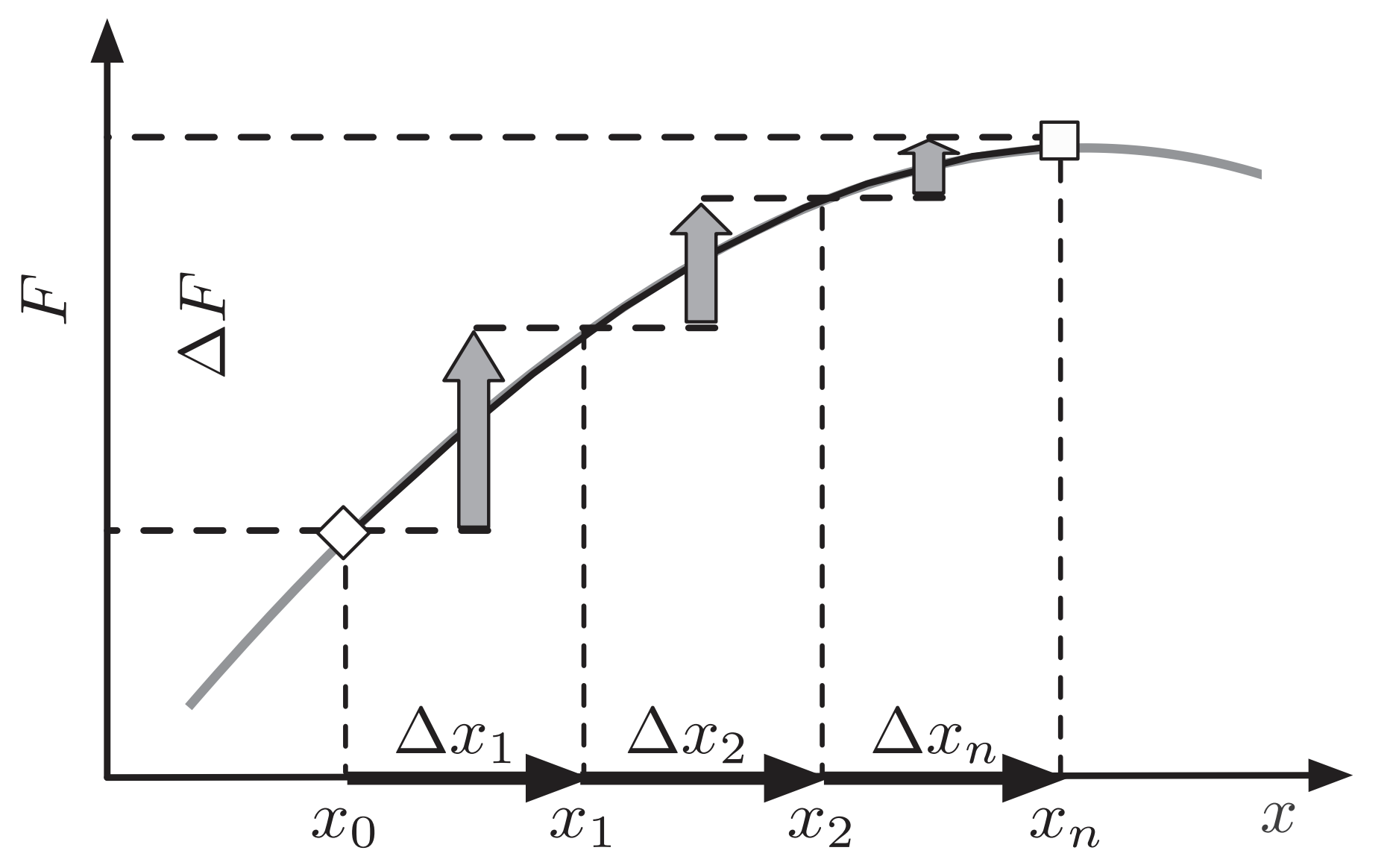

Fitness flux is the rate of change of fitness across the population

Fitness flux $\phi(t) = \left( \sum_i \Delta x_i \, f_i \right) / \Delta t$

With constant variant fitness, fitness flux equals the rate of change of mean population fitness

Mean population fitness $\bar{f}(t) = \sum_i x_i(t) \, f_i$           Fitness flux $\phi(t) = \Delta \bar{f}(t) / \Delta t$

Defining terms

Mean population fitness $\bar{f}(t) = \sum_i x_i(t) \, f_i$
Variance in fitness across population $\mathrm{Var}[f(t)] = \sum_i x_i(t) \, (f_i - \bar{f}(t))^2$
Velocity of mean population fitness $\psi(t) = \Delta \bar{f}(t) / \Delta t$
Fitness flux $\phi(t) = \left( \sum_i \Delta x_i \, f_i \right) / \Delta t$

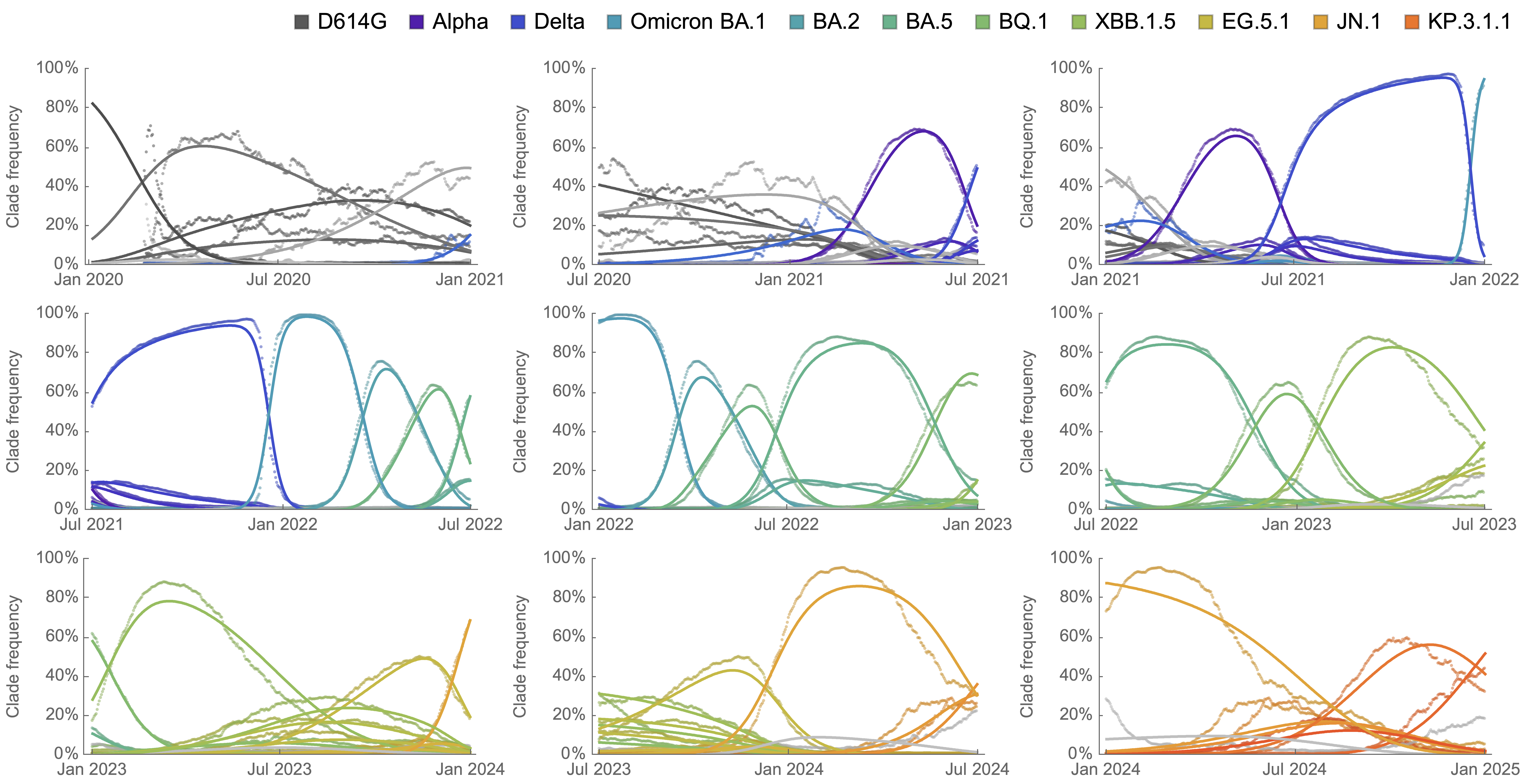

Clade-level frequency dynamics and MLR fits in sliding windows

Constant clade fitness within each window, USA data only, ignores within-clade fitness variation

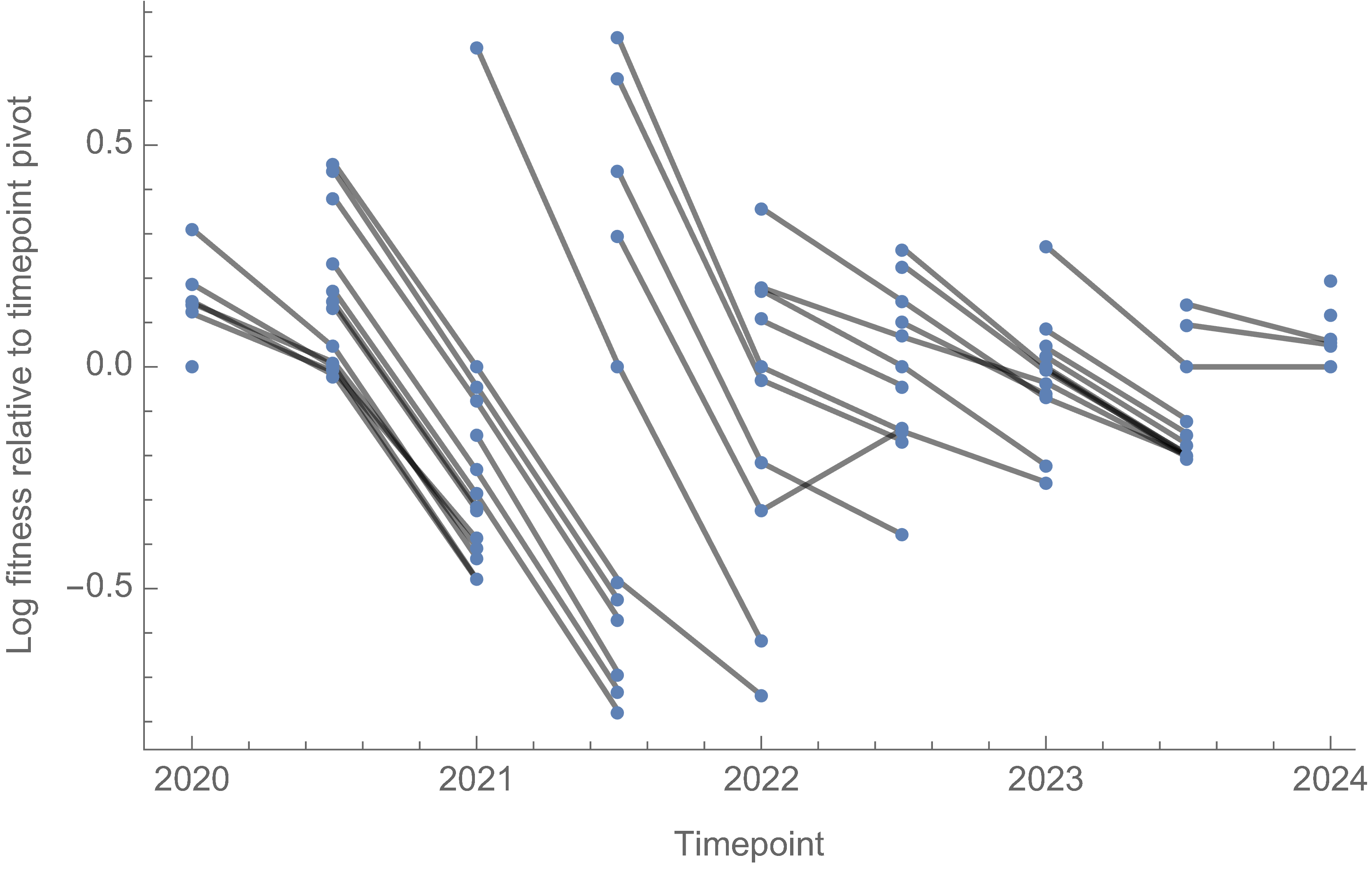

Fitness within each window is to an arbitrary baseline variant

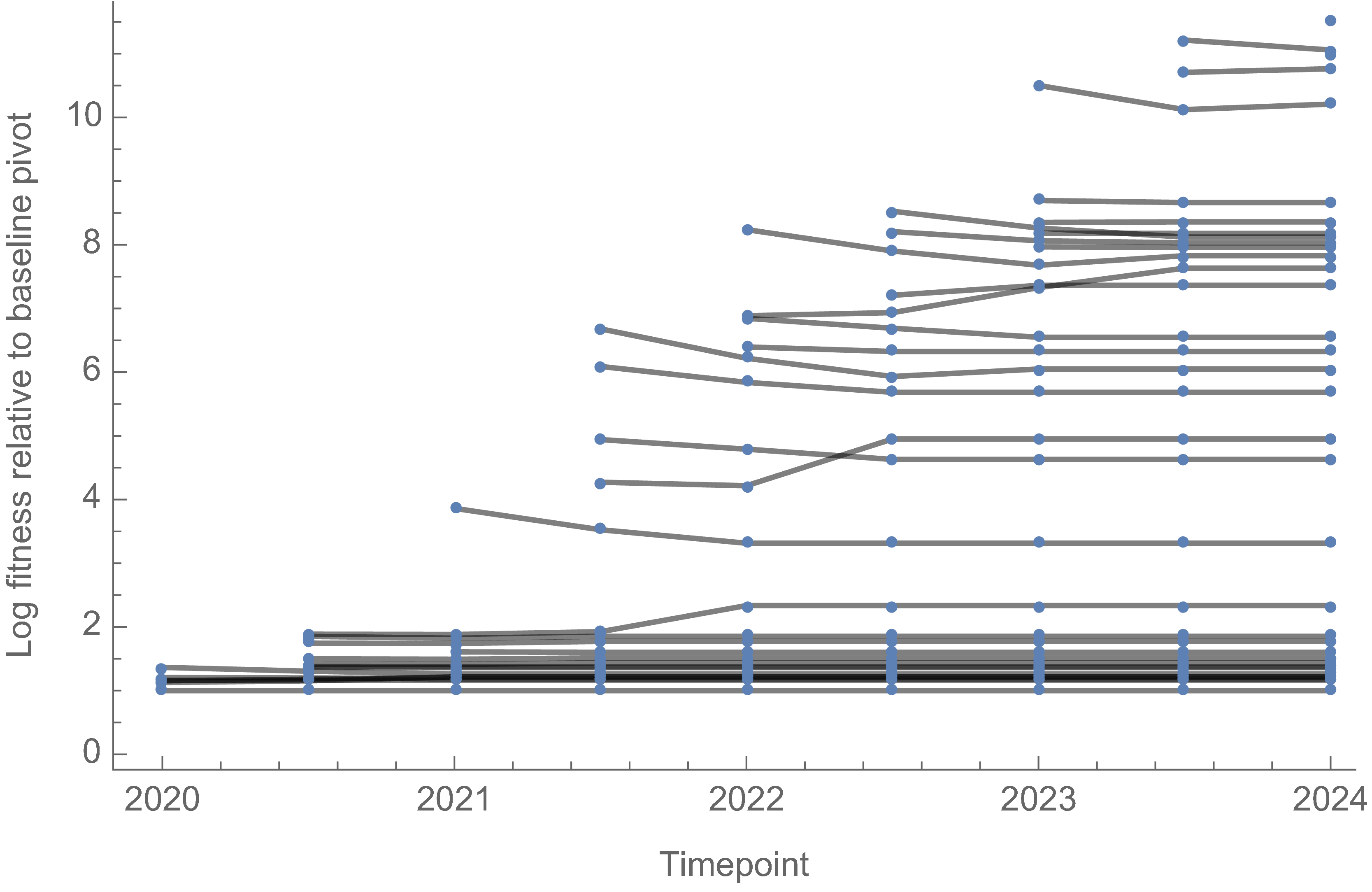

However, we can use ratio of variant fitnesses between adjacent timepoints to scaffold a combined set of fitness values

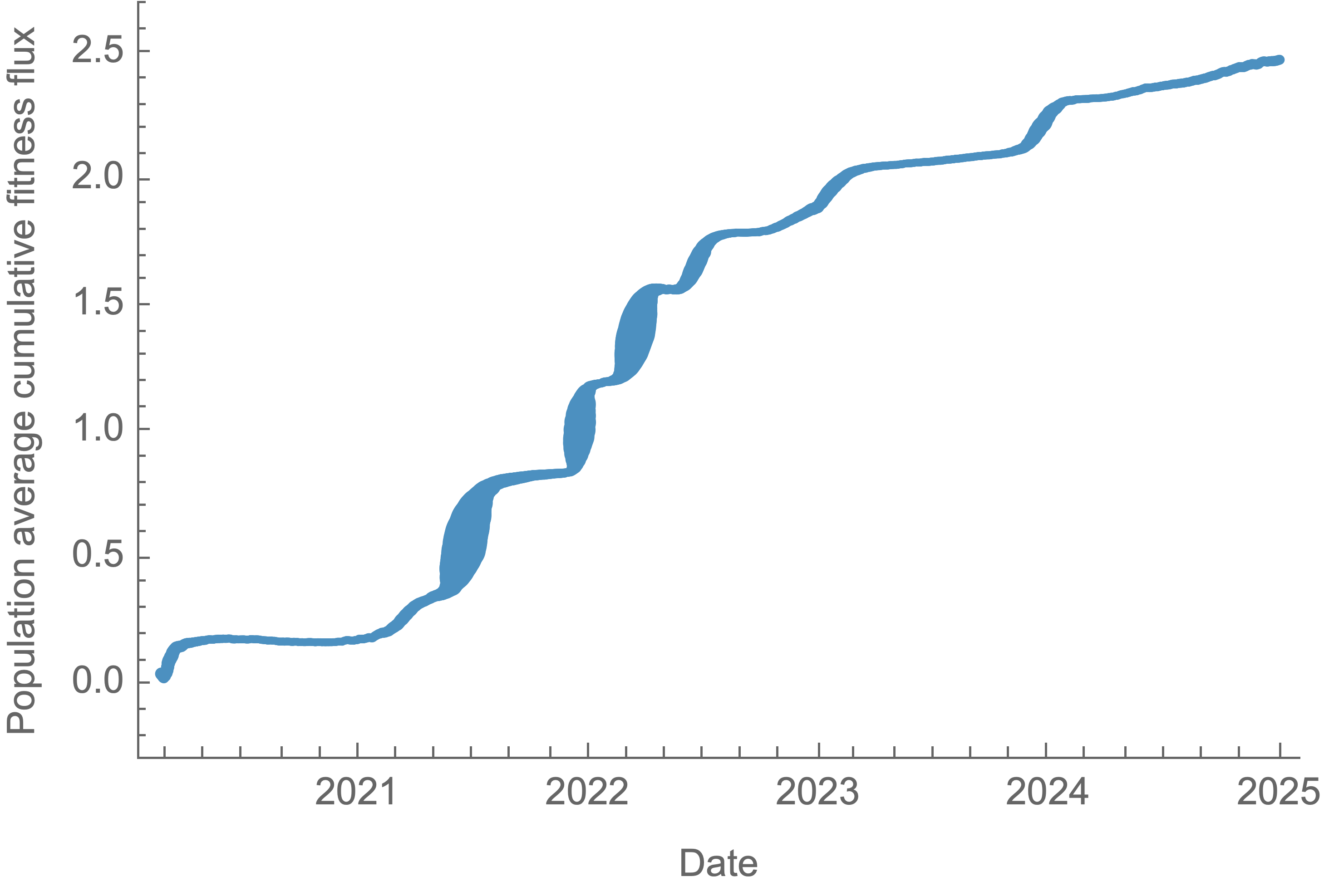

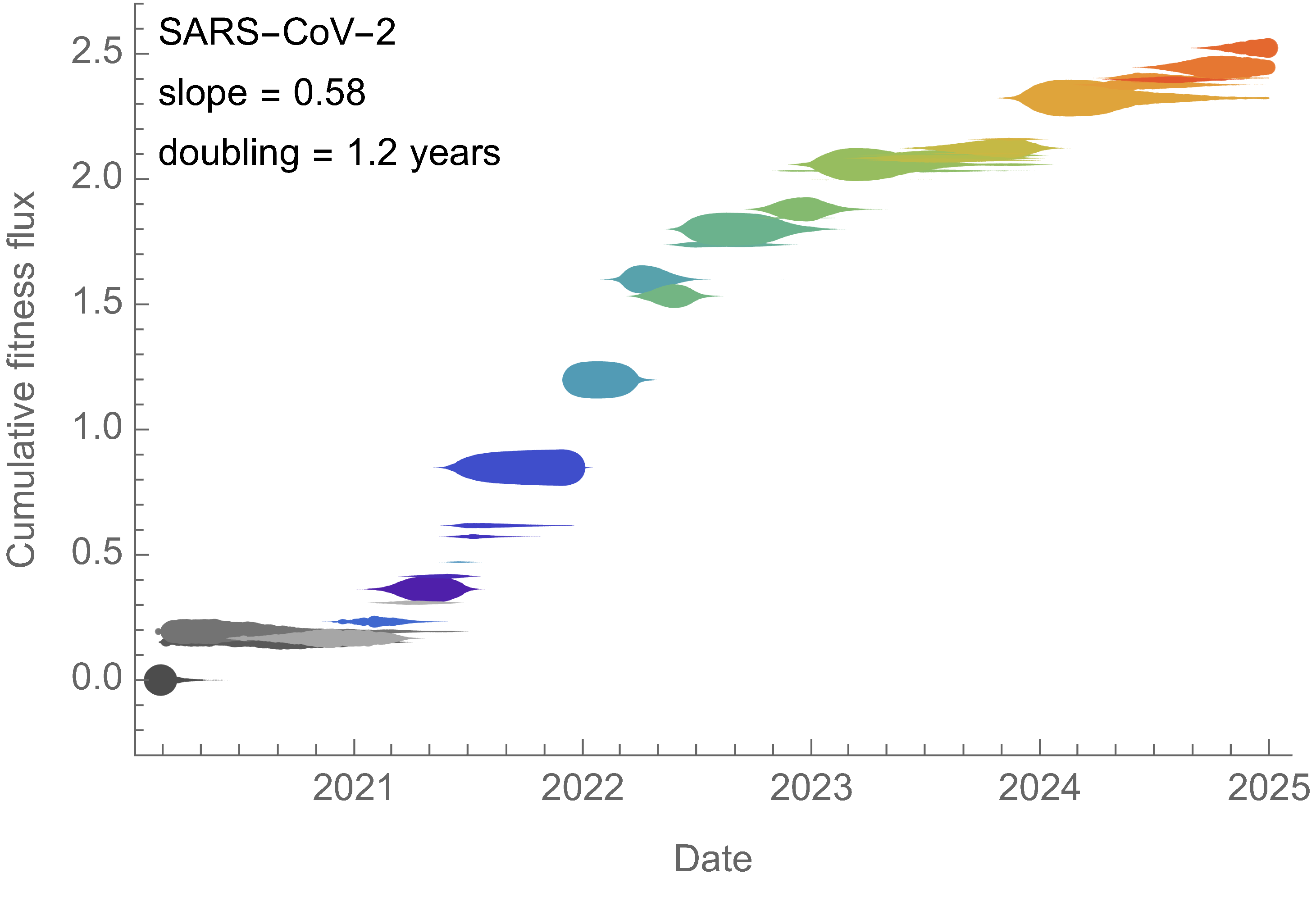

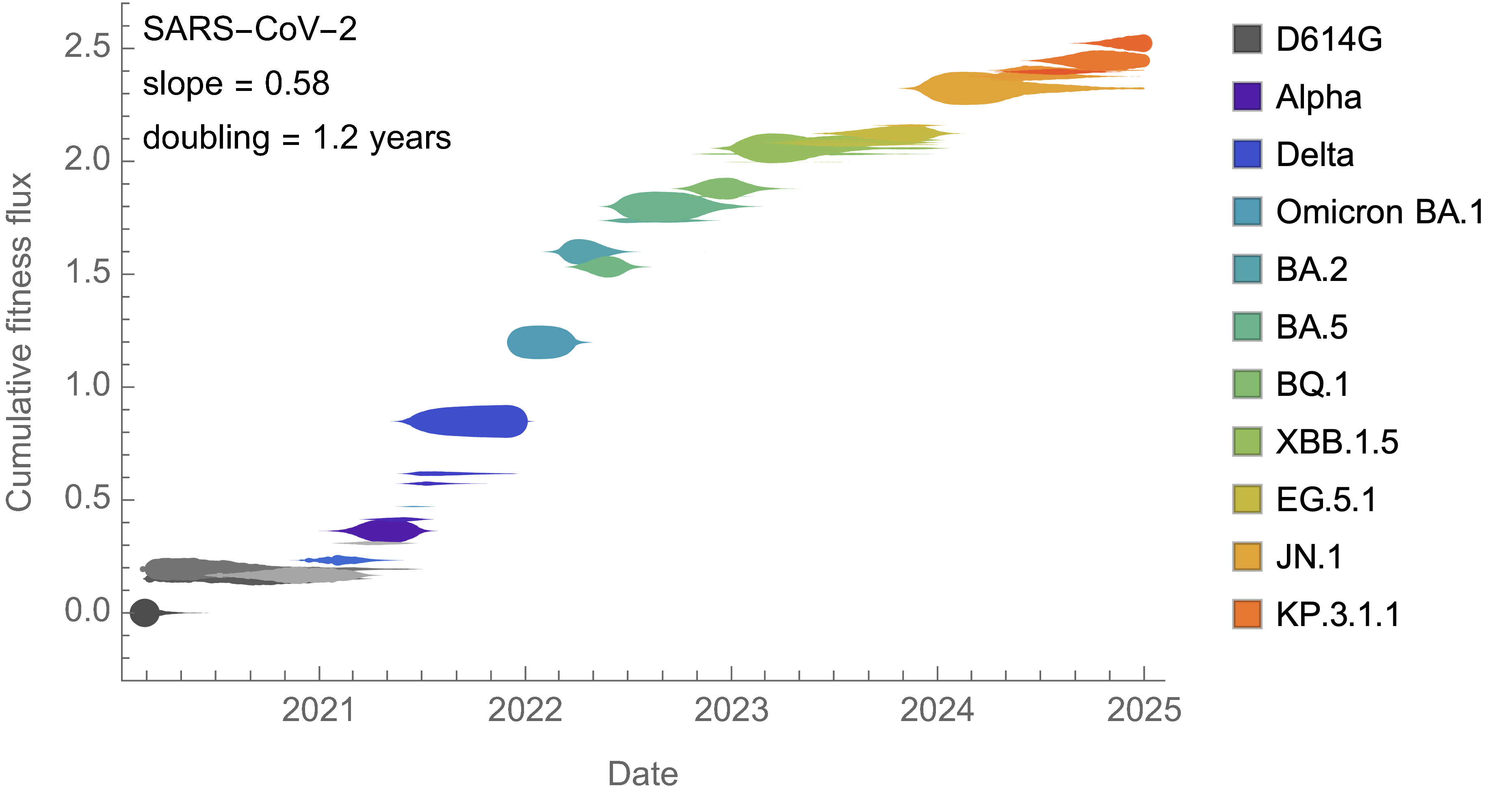

SAR-CoV-2 roughly doubled in fitness every year

Line thickness is proportional to variant frequency, 36 total variants

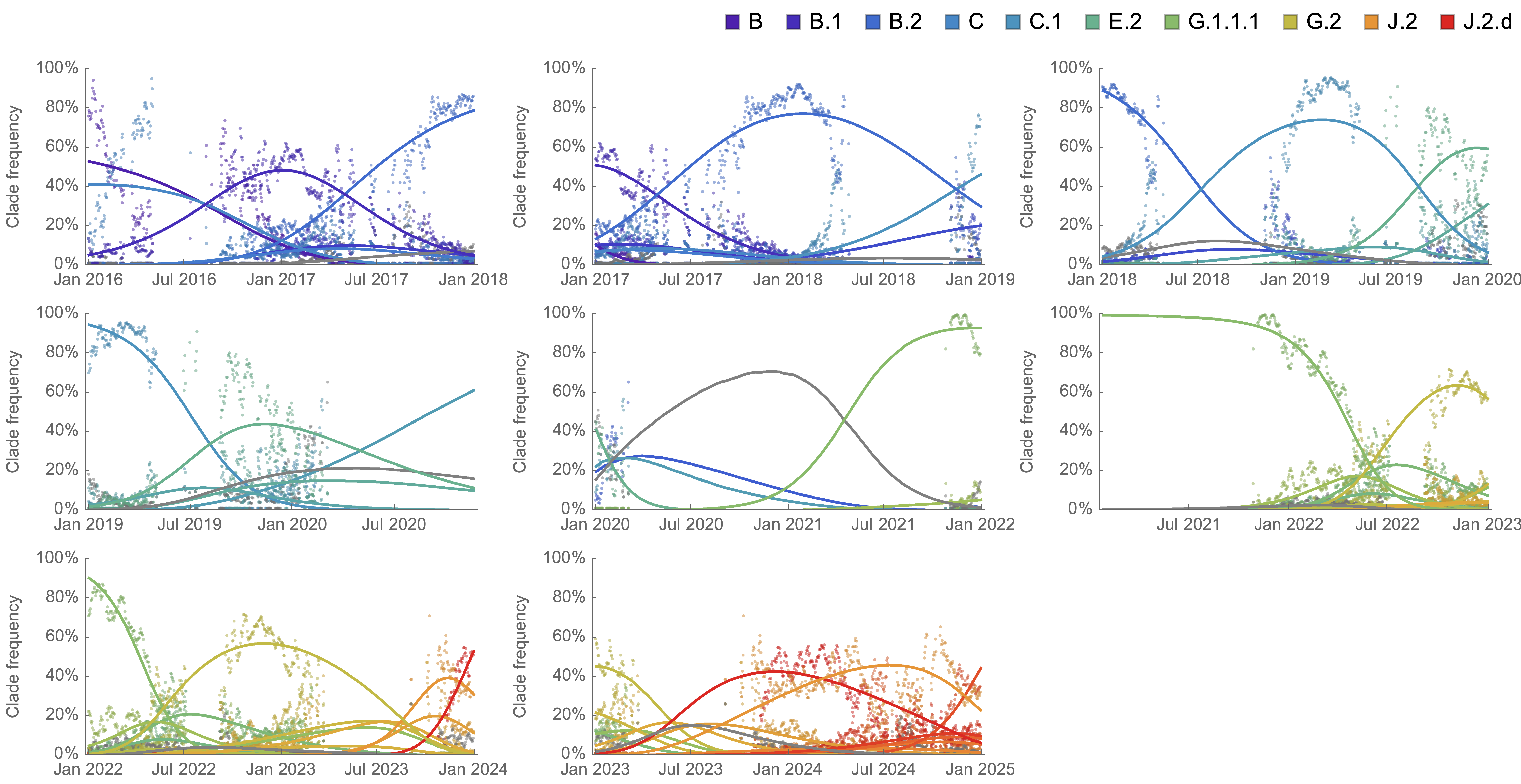

Analogous frequency dynamics and MLR fits for H3N2

Constant clade fitness within each window, USA data only, ignores within-clade fitness variation

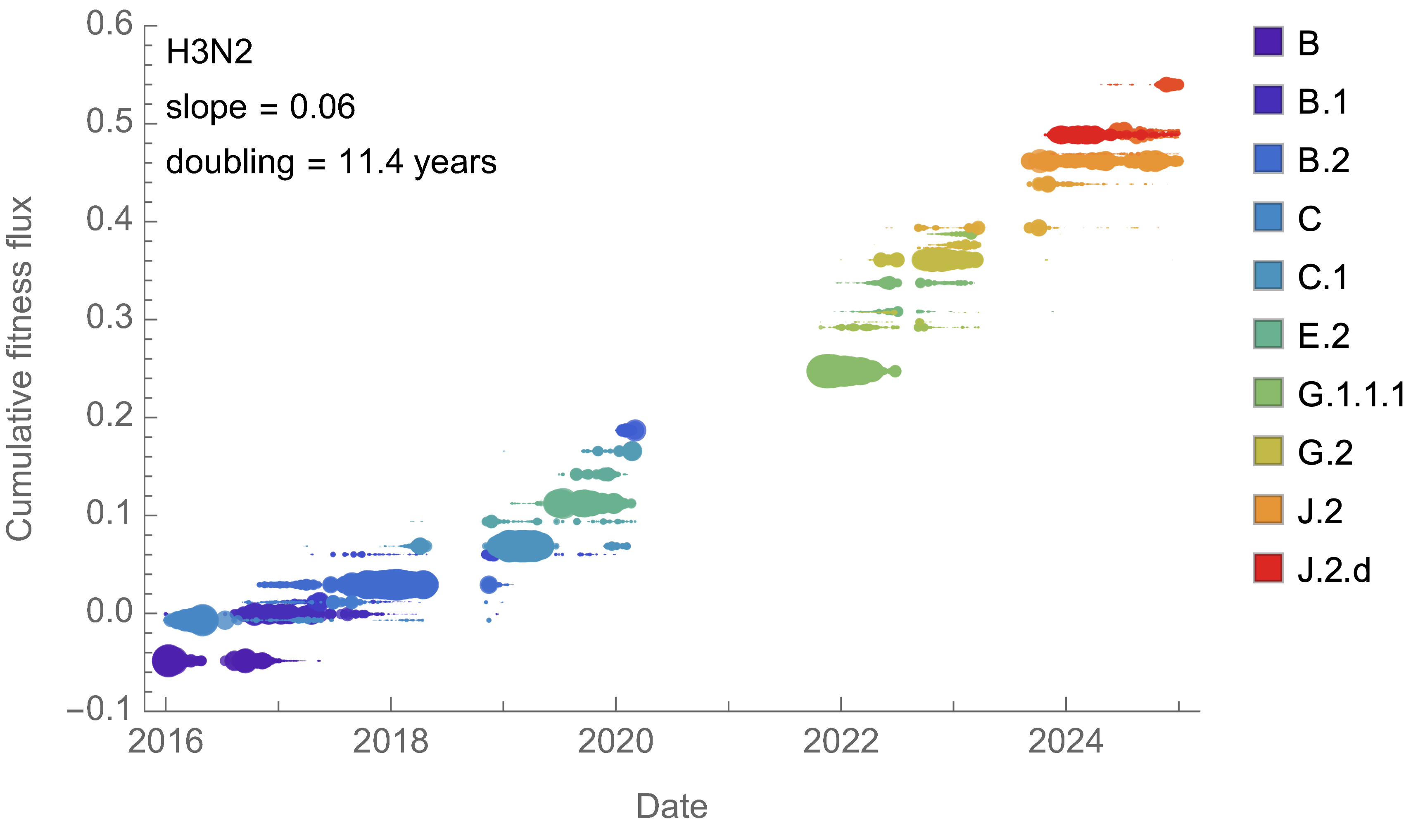

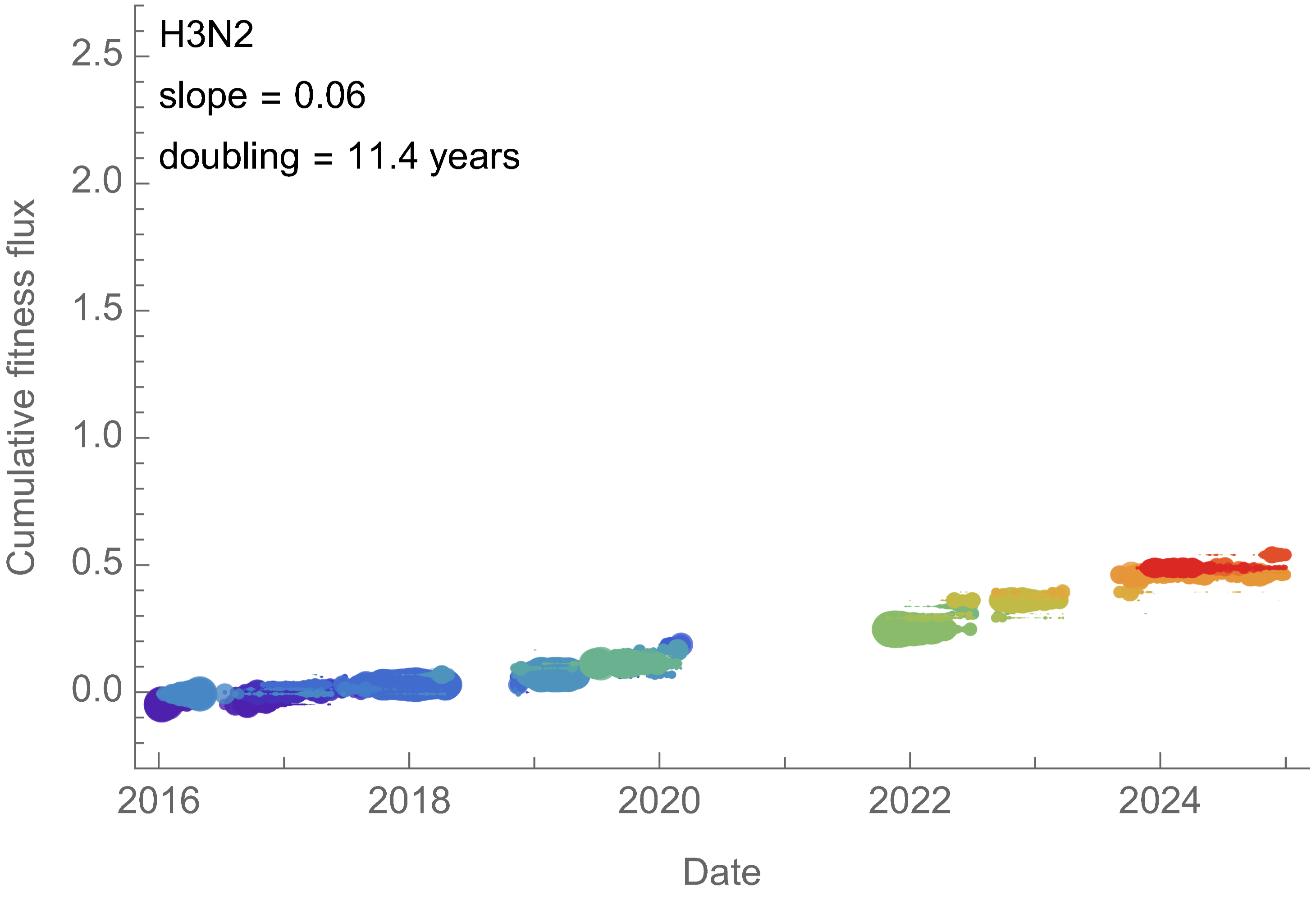

H3N2 roughly doubled in fitness every 10 years

Line thickness is proportional to variant frequency, 32 total variants

Dramatically faster fitness flux of SARS-CoV-2

Traveling fitness waves

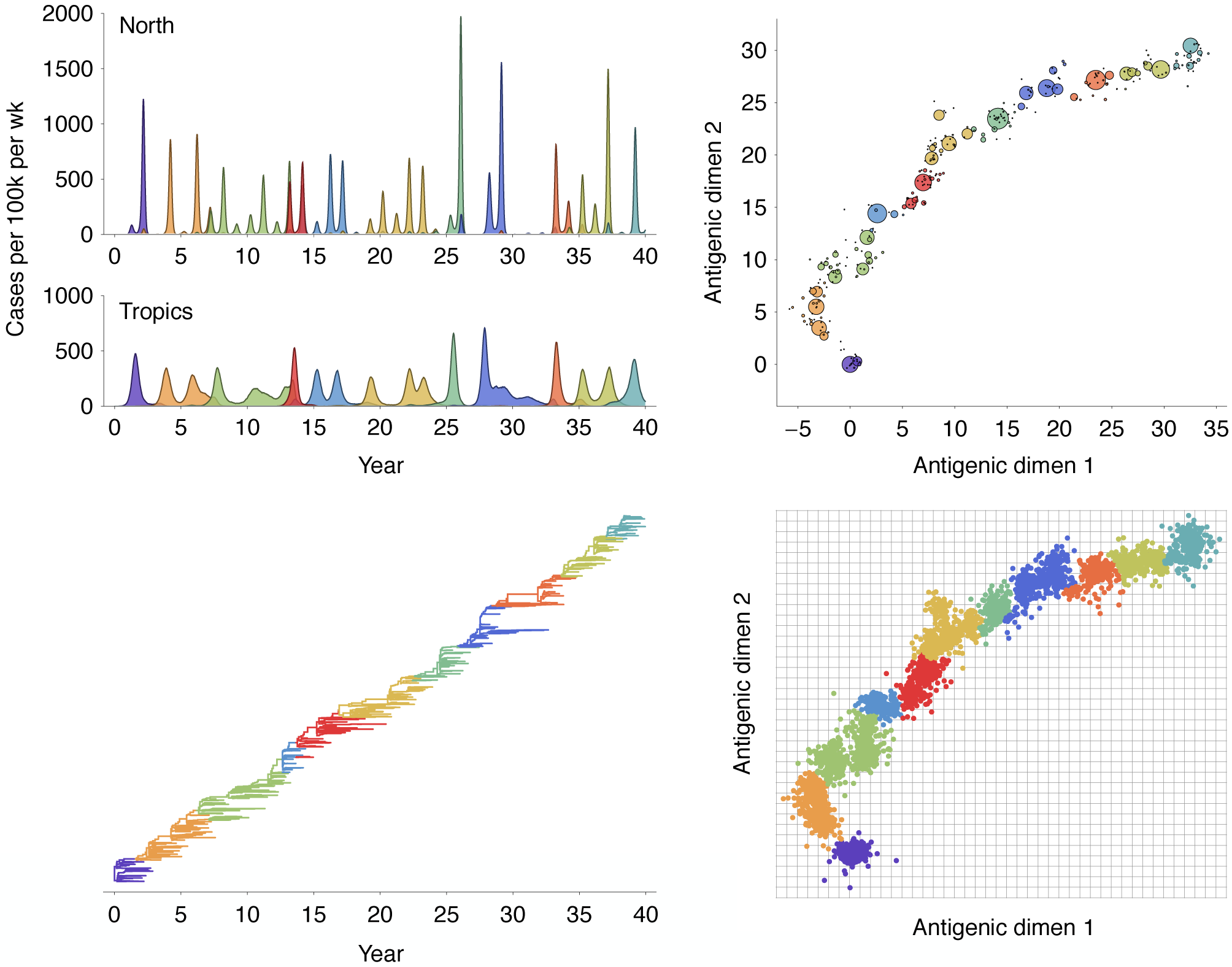

Multistrain models produce traveling waves in antigenic space

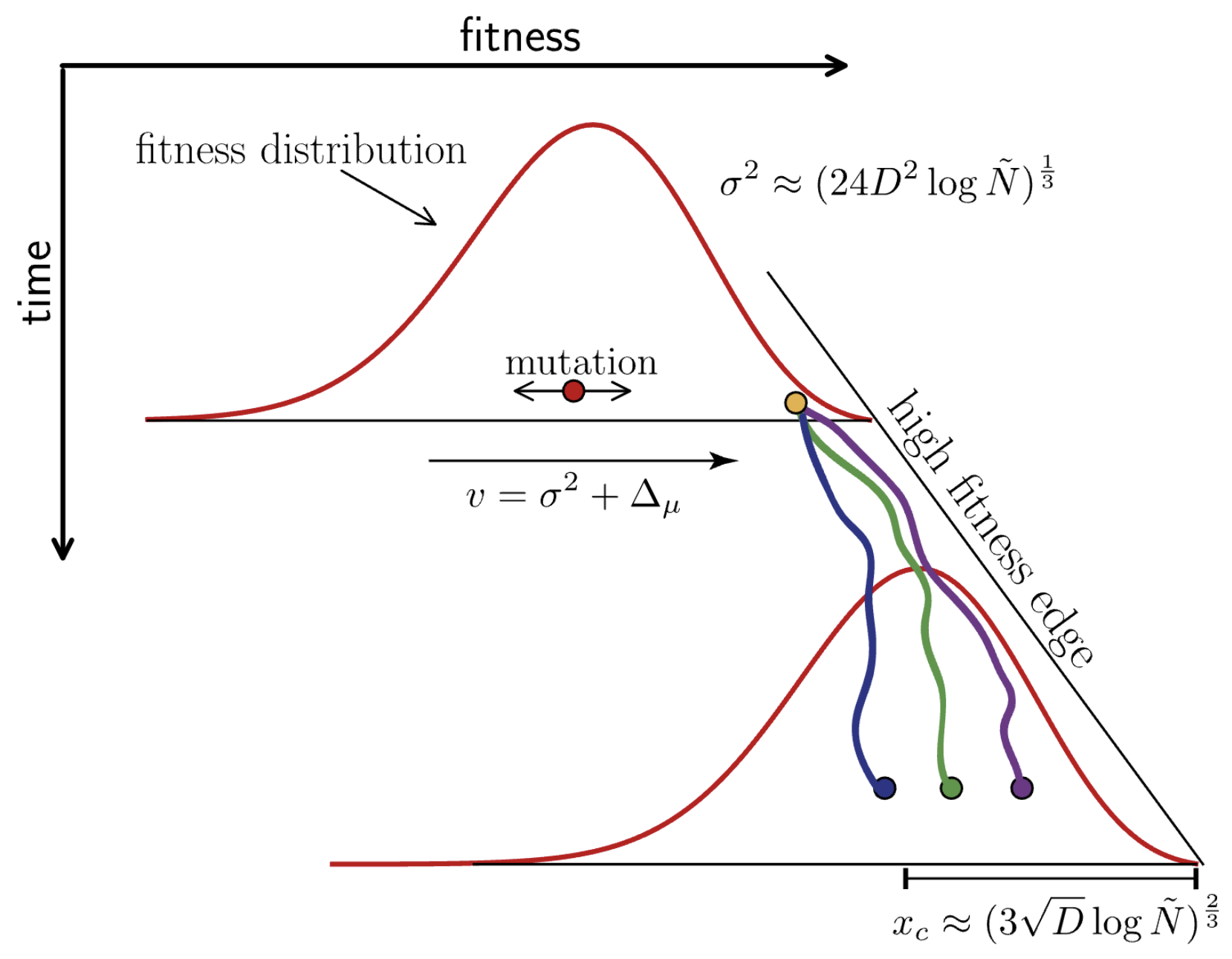

Many mutations of small effect create traveling fitness waves

Richard Neher and others have analytically characterized these waves

Diffusion constant $D = \mu \, \langle \delta^2 \rangle/2$, where the average $\langle \ldots \rangle$ is over the distribution of mutational effects $K(\delta)$

Using empirical frequencies and MLR fitness to characterize fitness wave

SARS-CoV-2

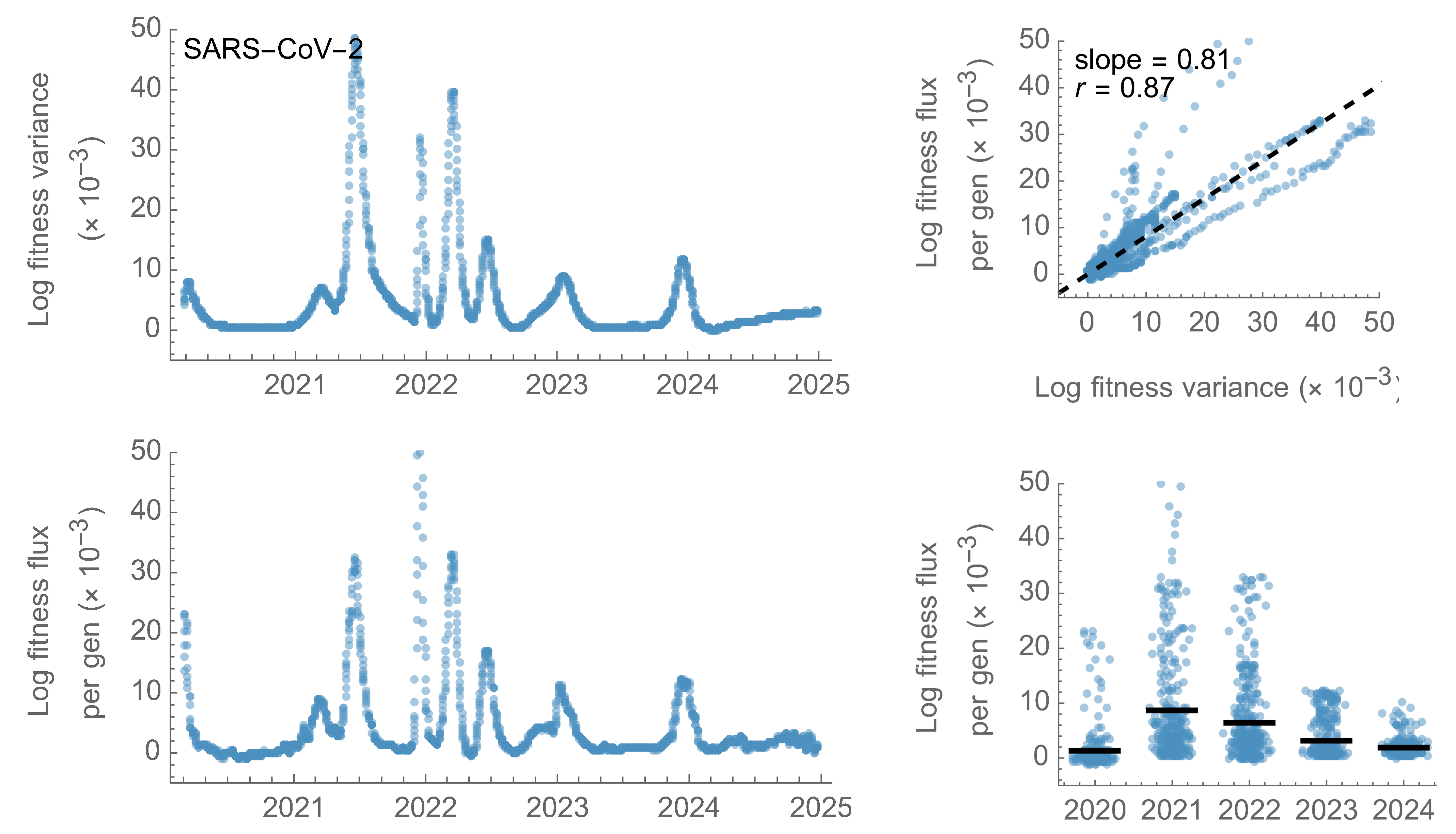

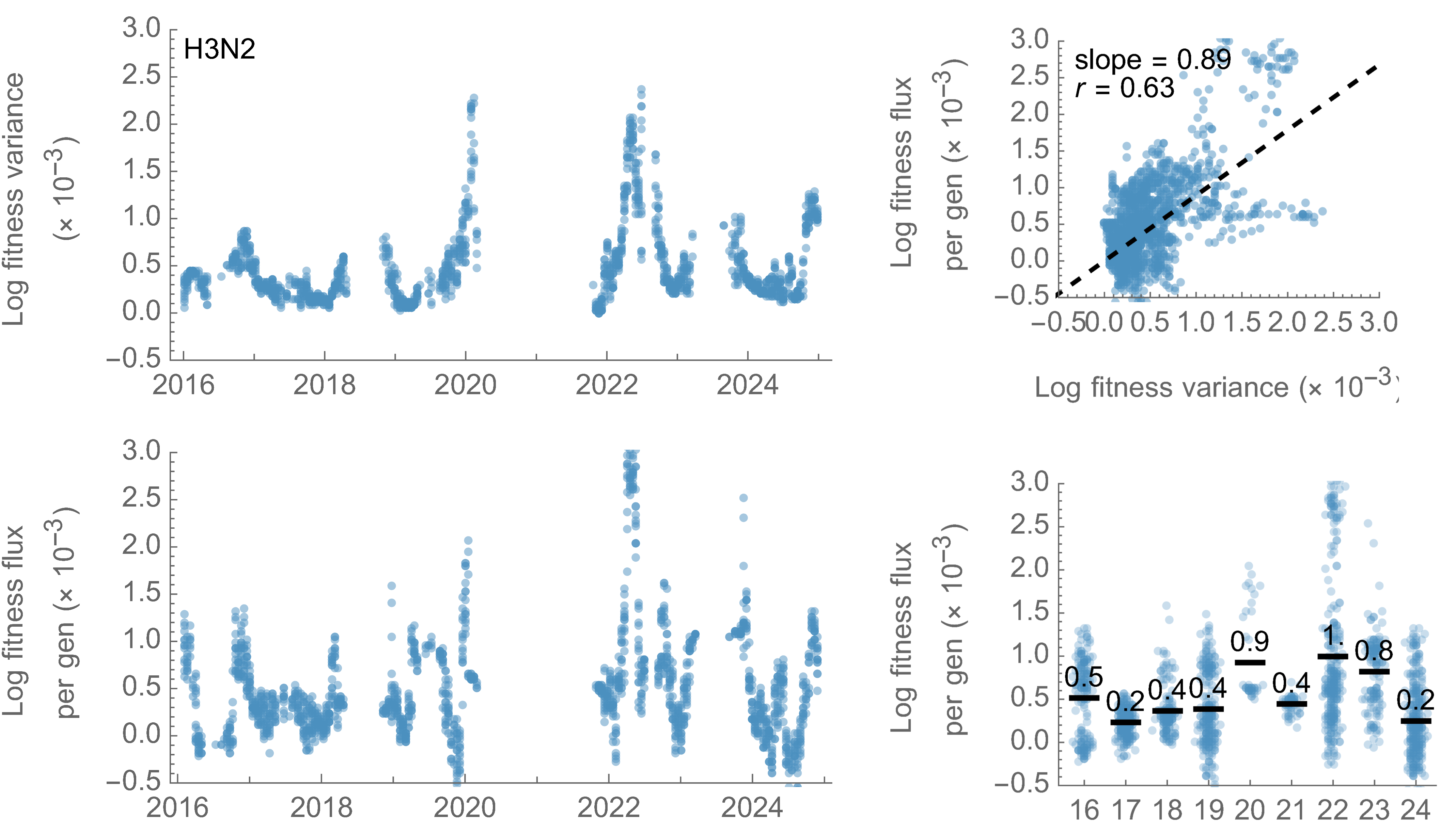

Fitness variance correlates well with fitness flux

Fitness variance correlates well with fitness flux

This is a specific example of Fisher's fundemental theorem

"The rate of increase in fitness of any organism at any time is equal to
its genetic variance in fitness at that time," ie $$\frac{d\bar{f}}{dt} = Var(f)$$

Fisher. 1930.

Fitness flux drives infection incidence

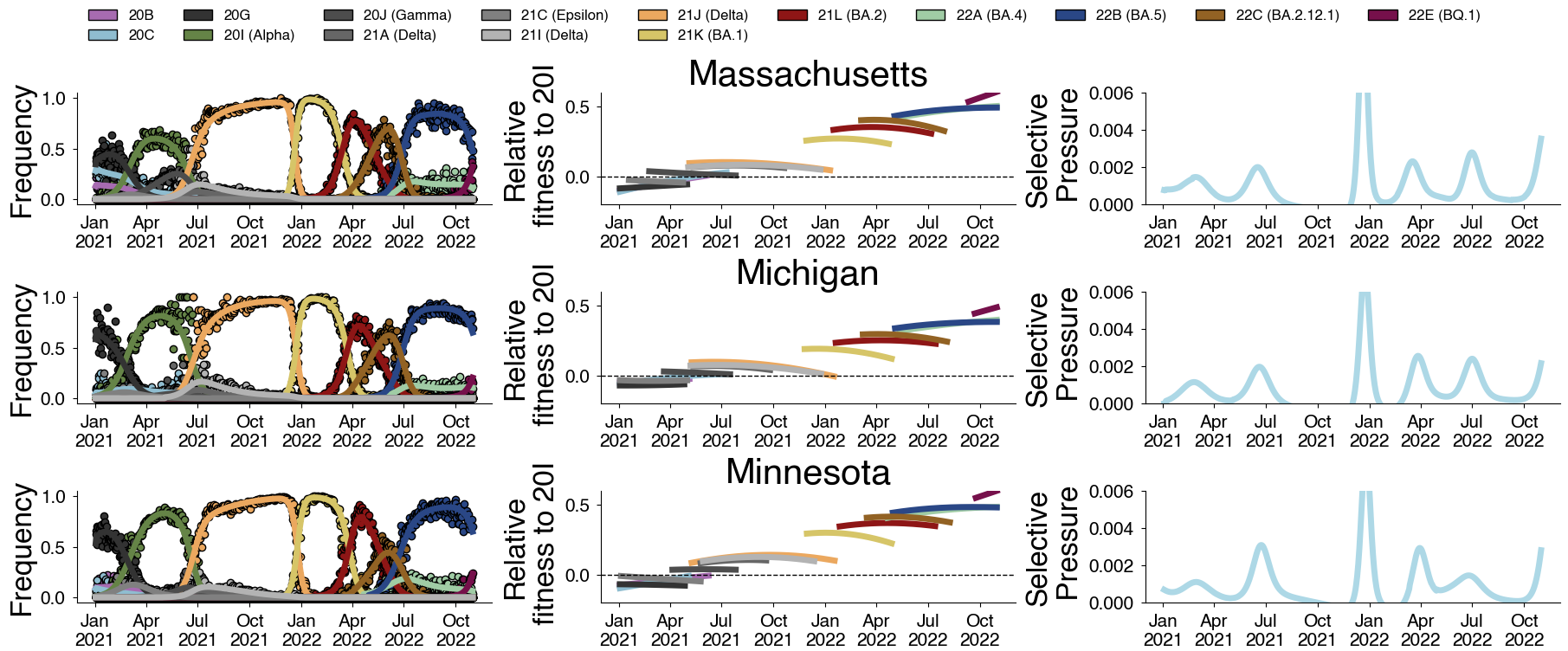

Selective pressure metric

$$\psi(t) = \Delta \bar{f}(t) / \Delta t = \mathbb{E}_{x(t)} \left[ \frac{d f_i}{d t}\right] + \mathbb{V}_{x(t)}[f_{i}]$$

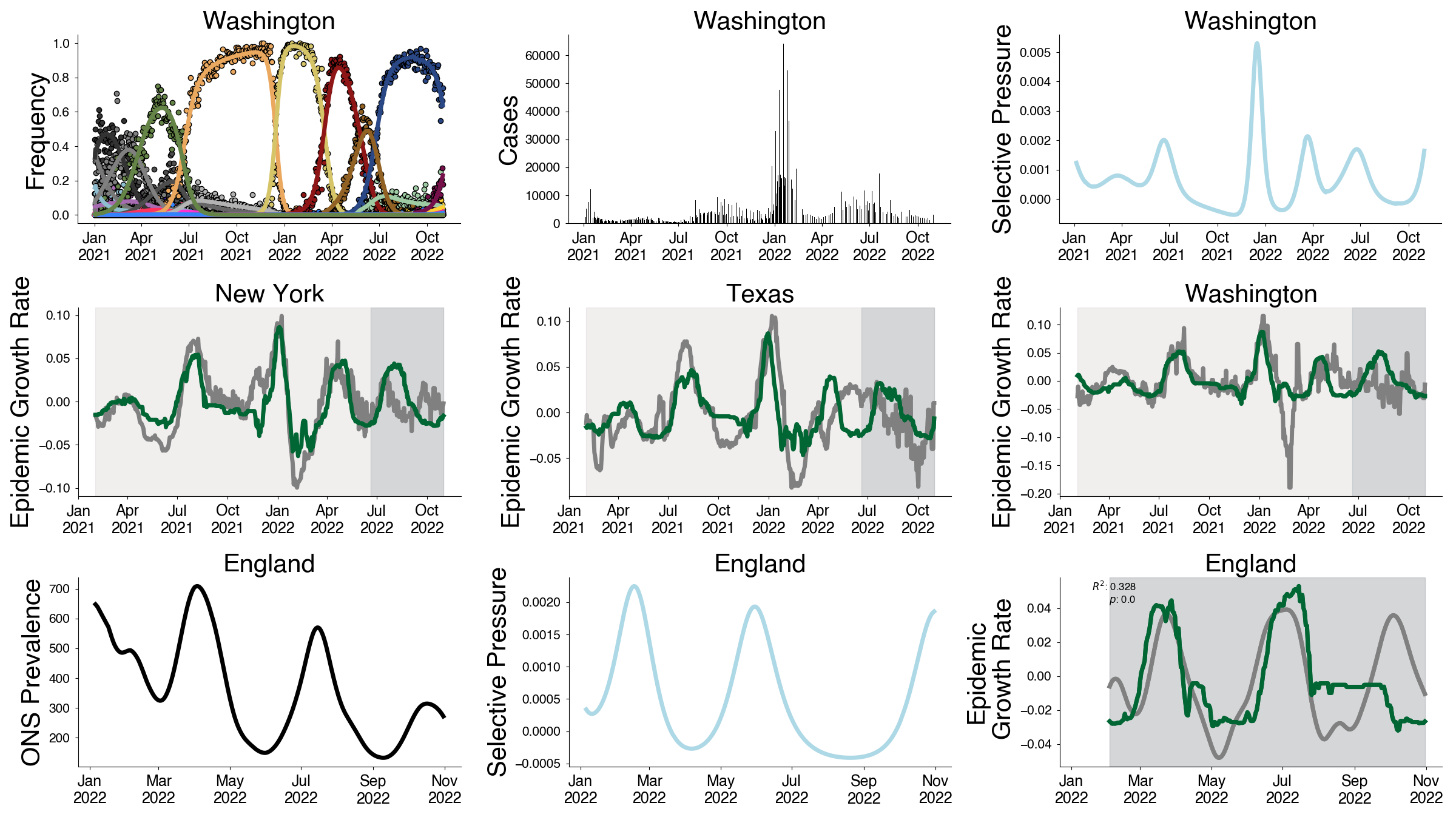

Selective pressure predicts epidemic growth rate

Mutational fitness effects

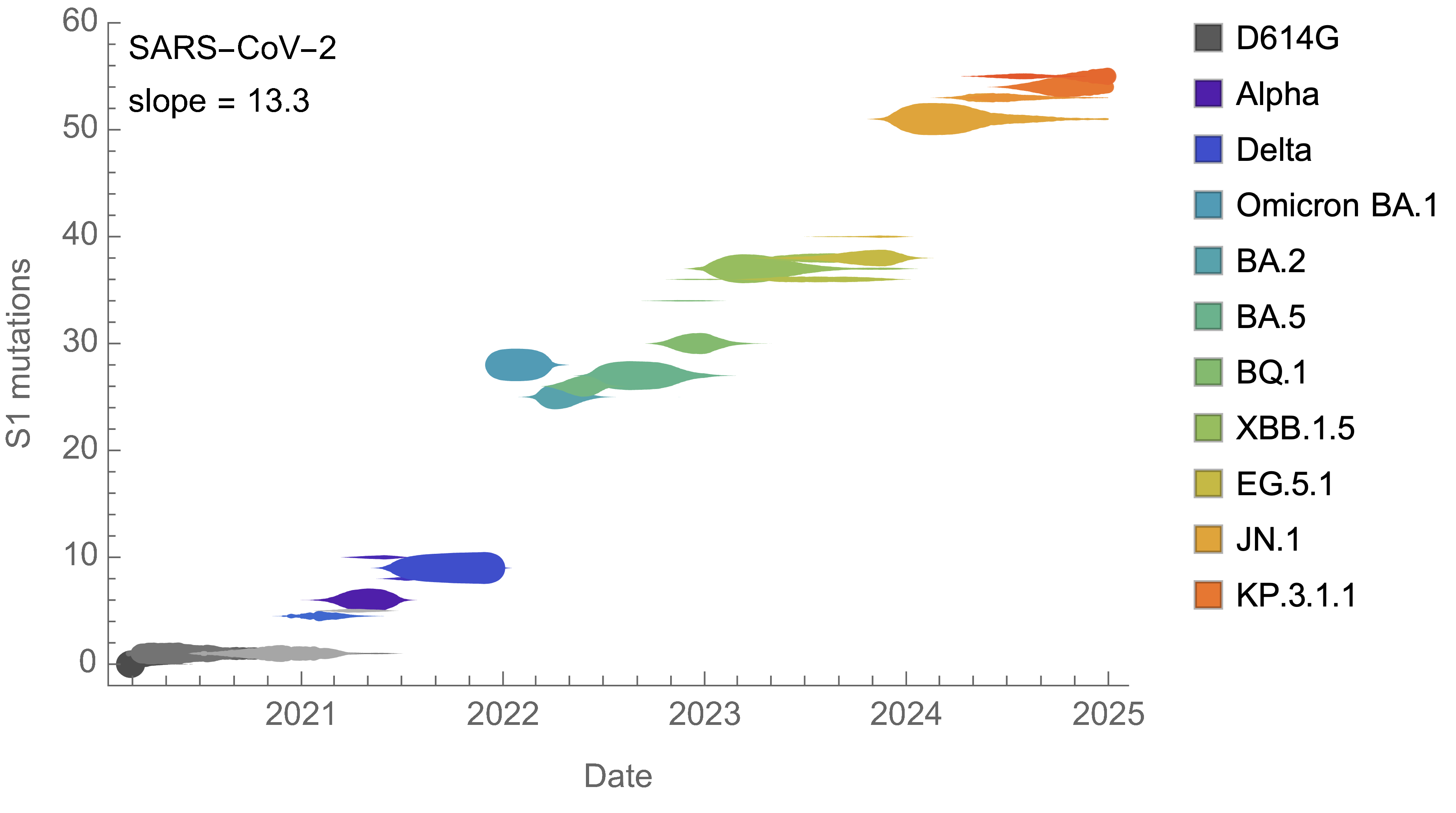

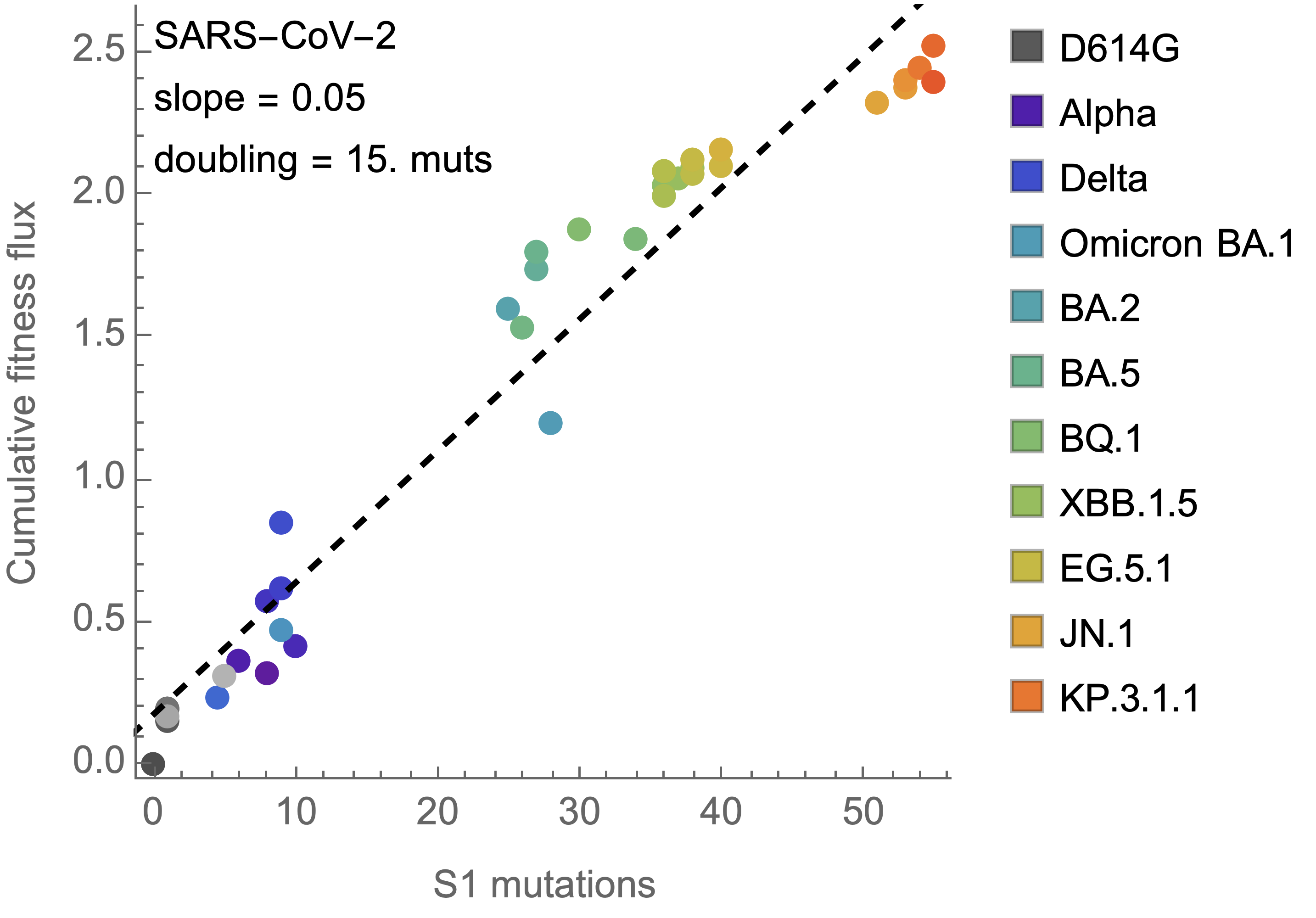

On average, SARS-CoV-2 accumulated 13-14 spike S1 mutations every year

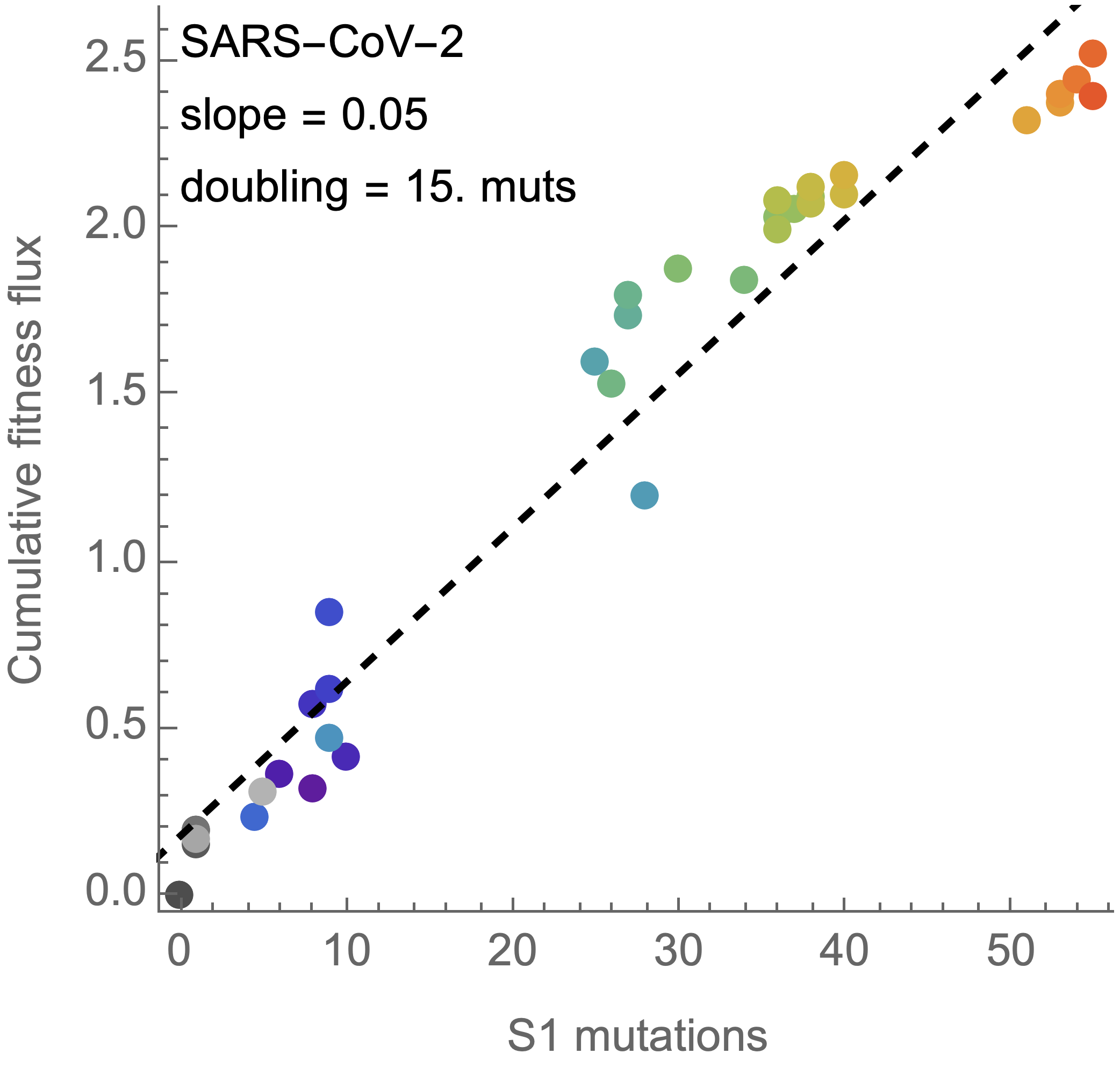

15 mutations to spike S1 resulted in a doubling of fitness

Again, we see a substantial difference with influenza H3N2

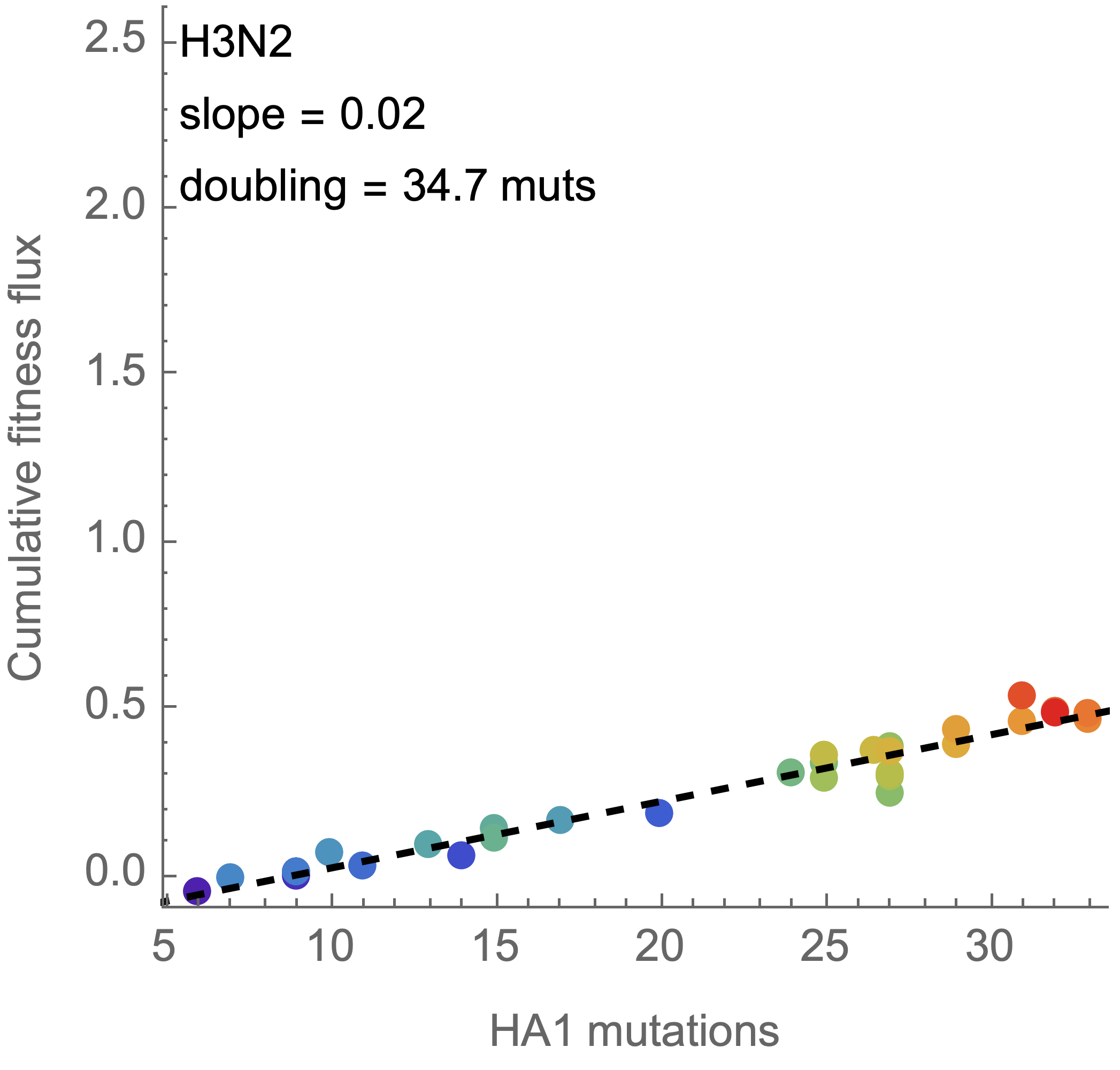

Fitness effects of fixed mutations are ~0.05 for SARS-CoV-2 and ~0.02 for H3N2

Switch to analyzing differences between parent/child lineages

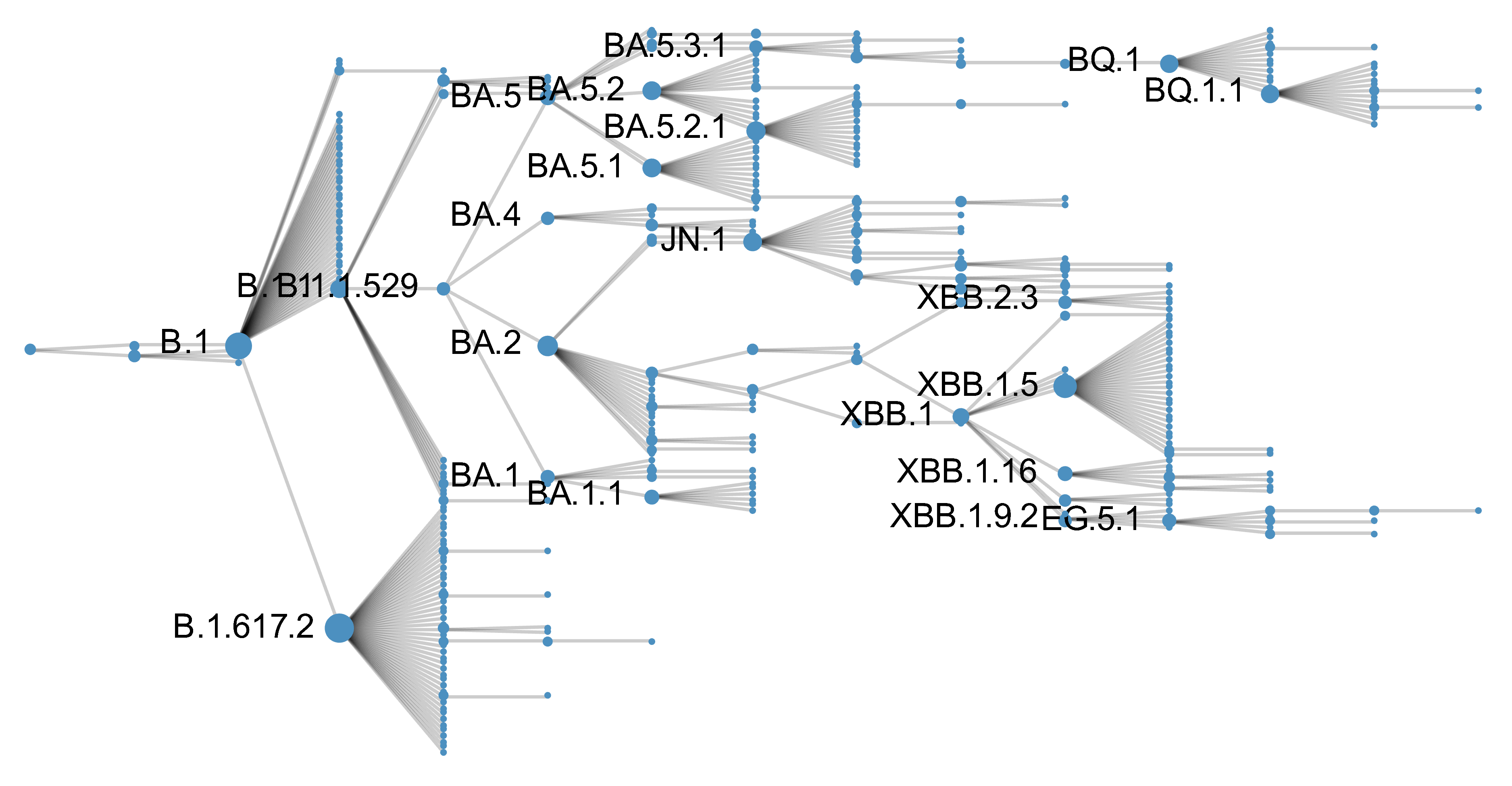

Collapsed to 367 Pango lineages with at least 1000 sequence counts in the US

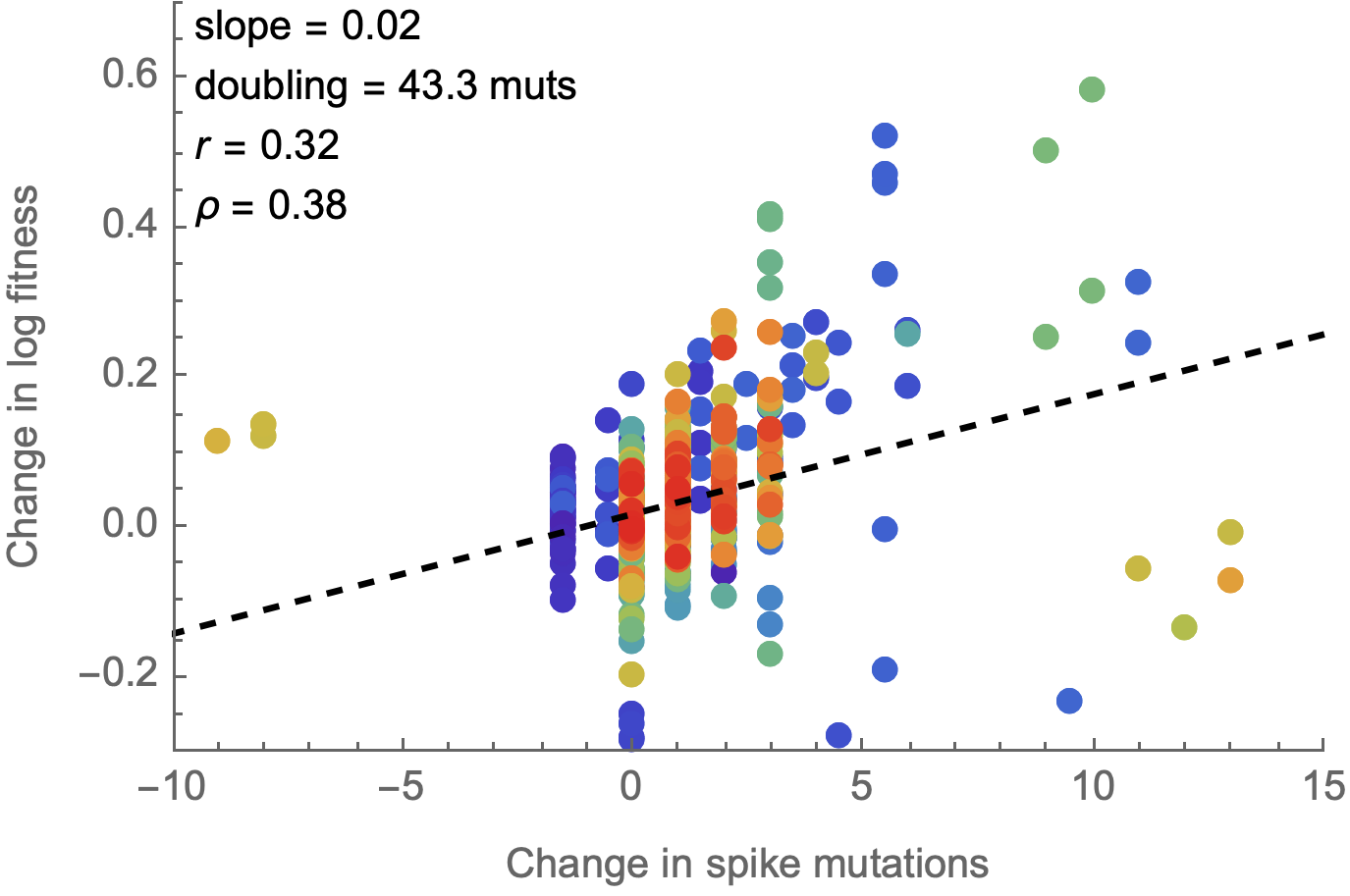

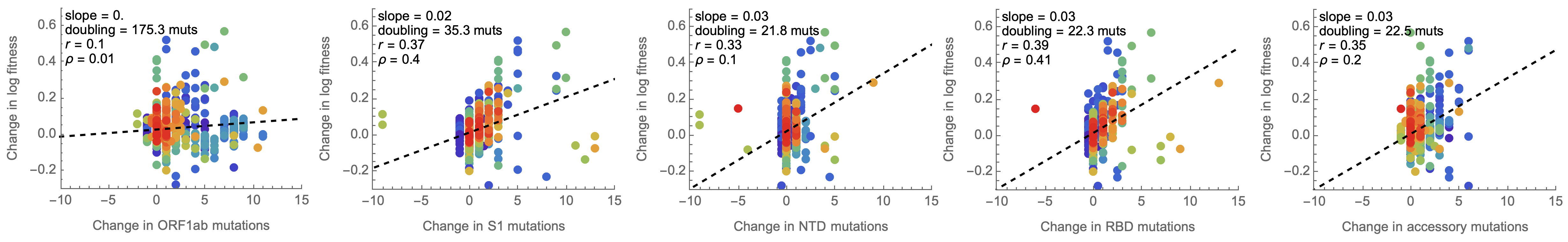

Most Pango branches have 0-1 spike mutations and change log fitness by ±0.1

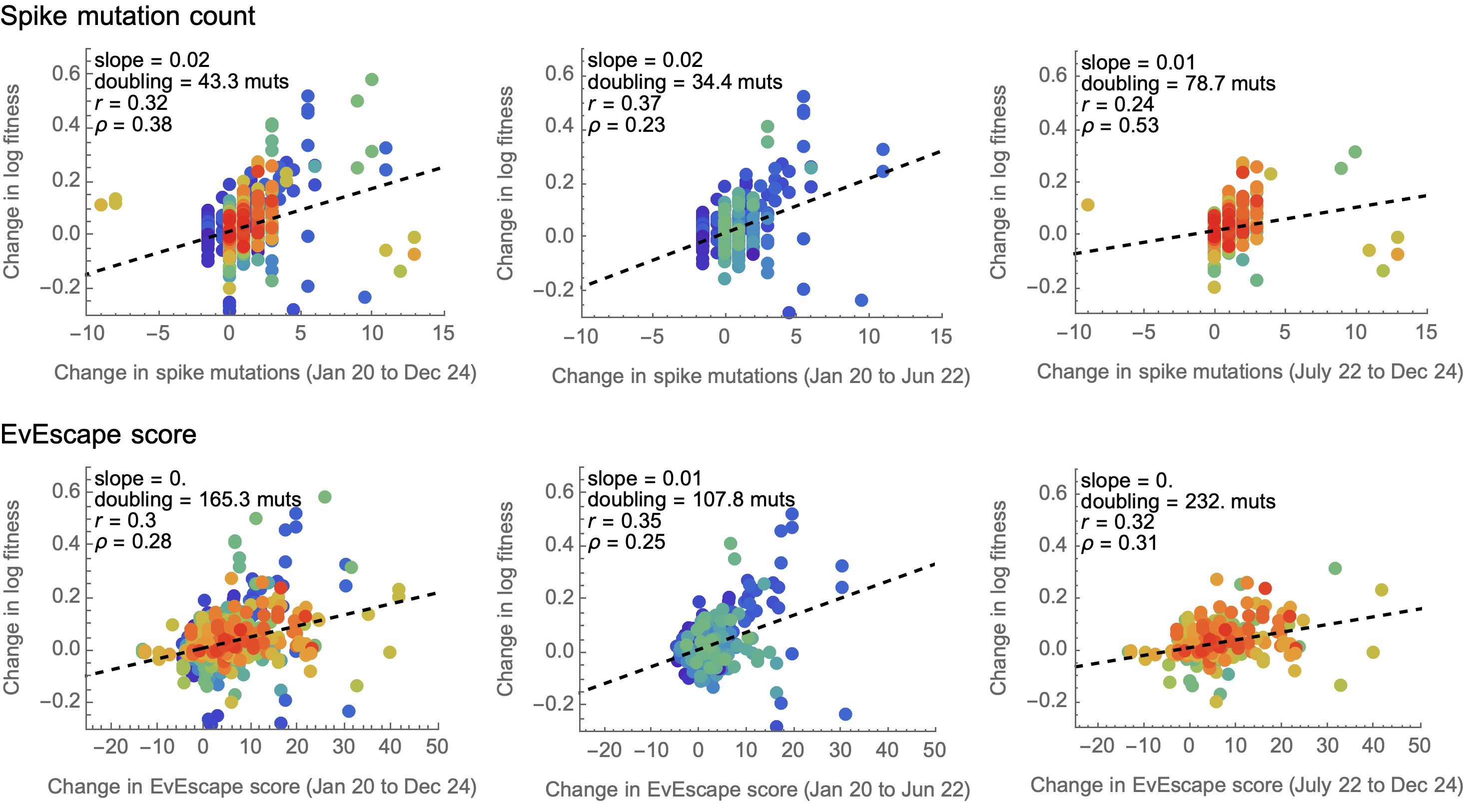

Spike mutations tend to increase fitness

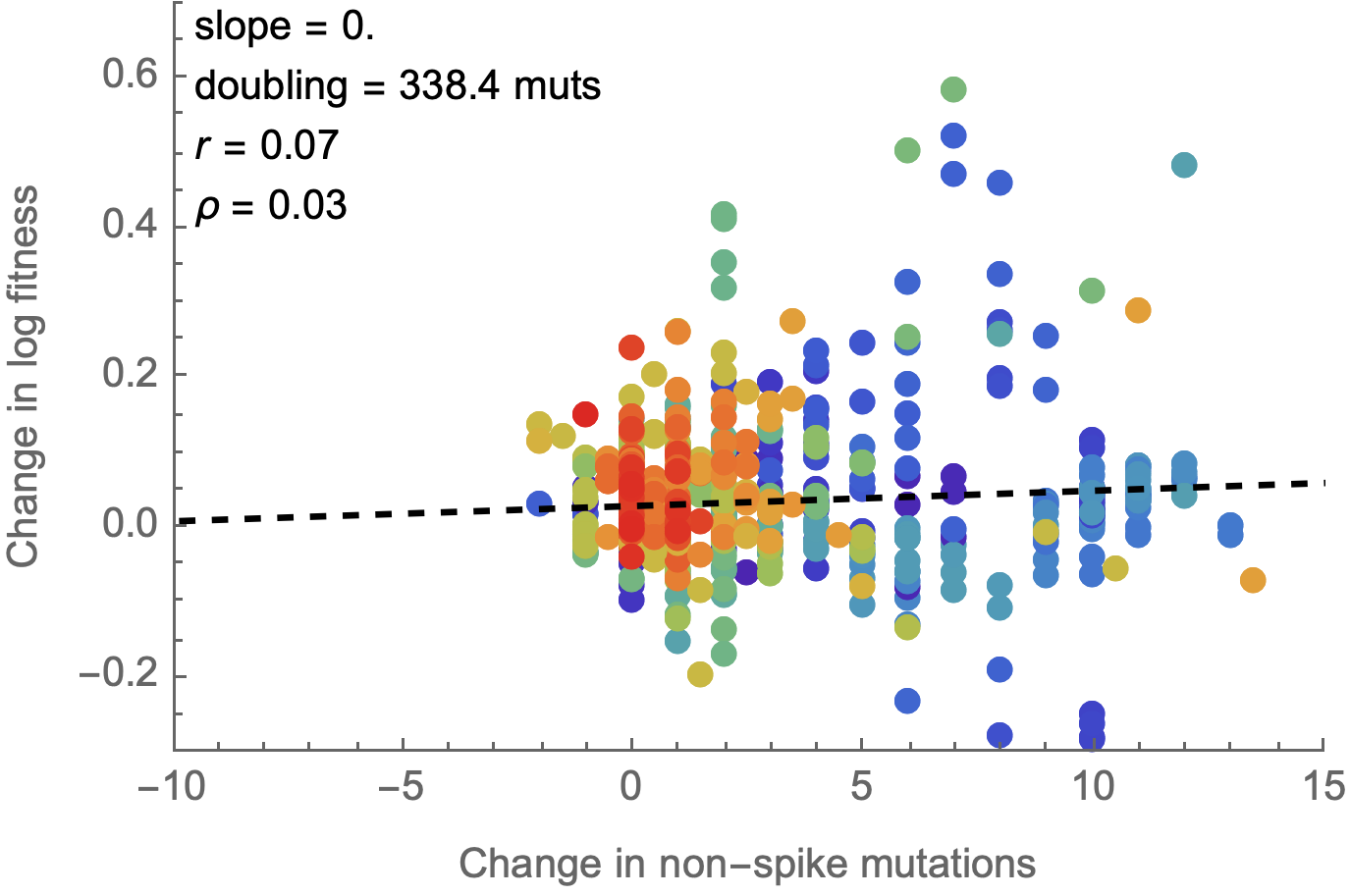

Non-spike mutations do not impact fitness on average

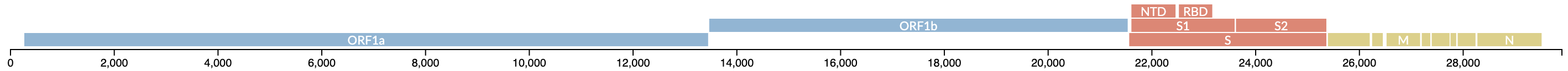

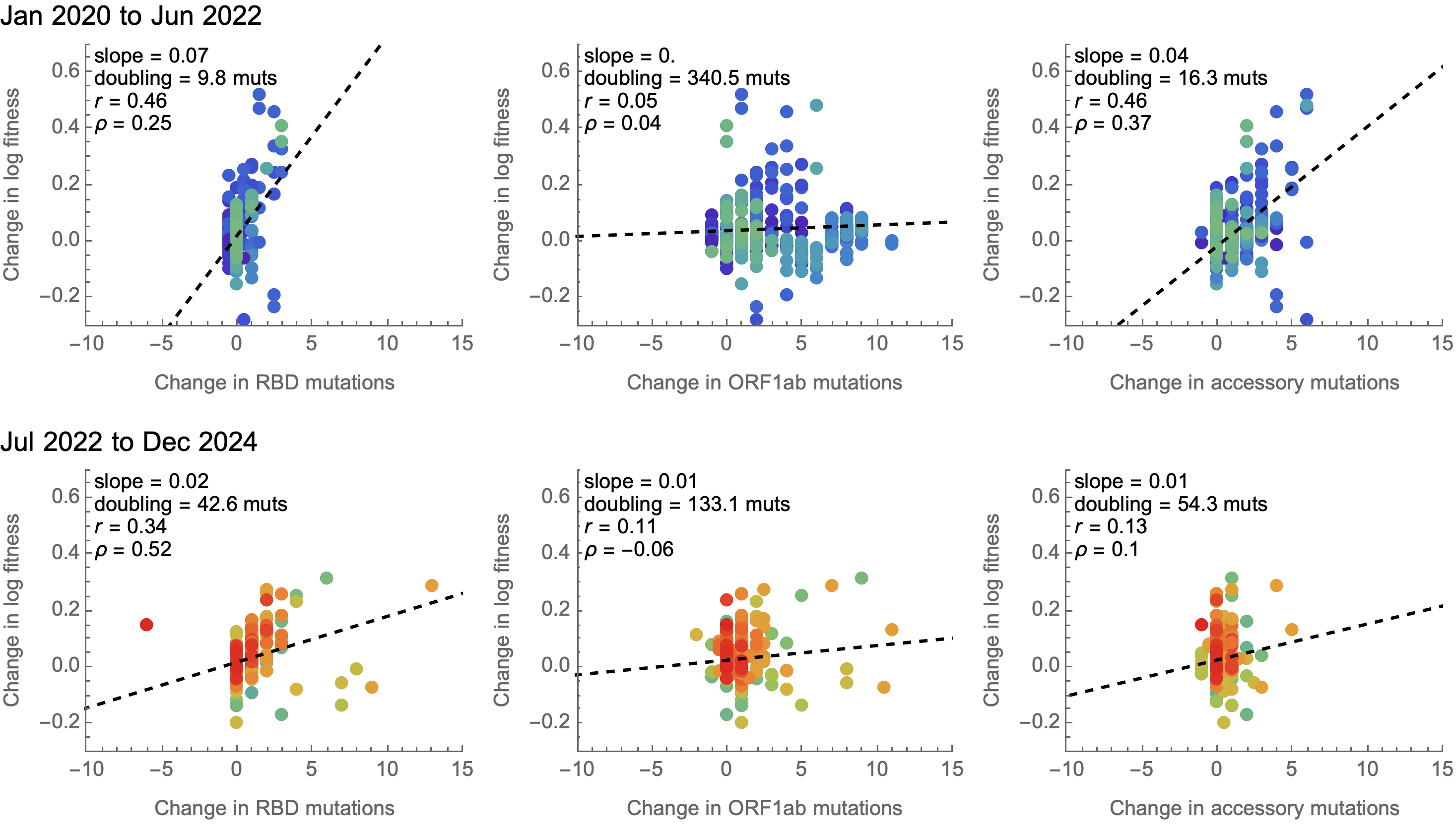

Looking across the genome shows that spike is the focus for positive selection, but accessory genes have some signal

Some attentuation of fitness effects over time

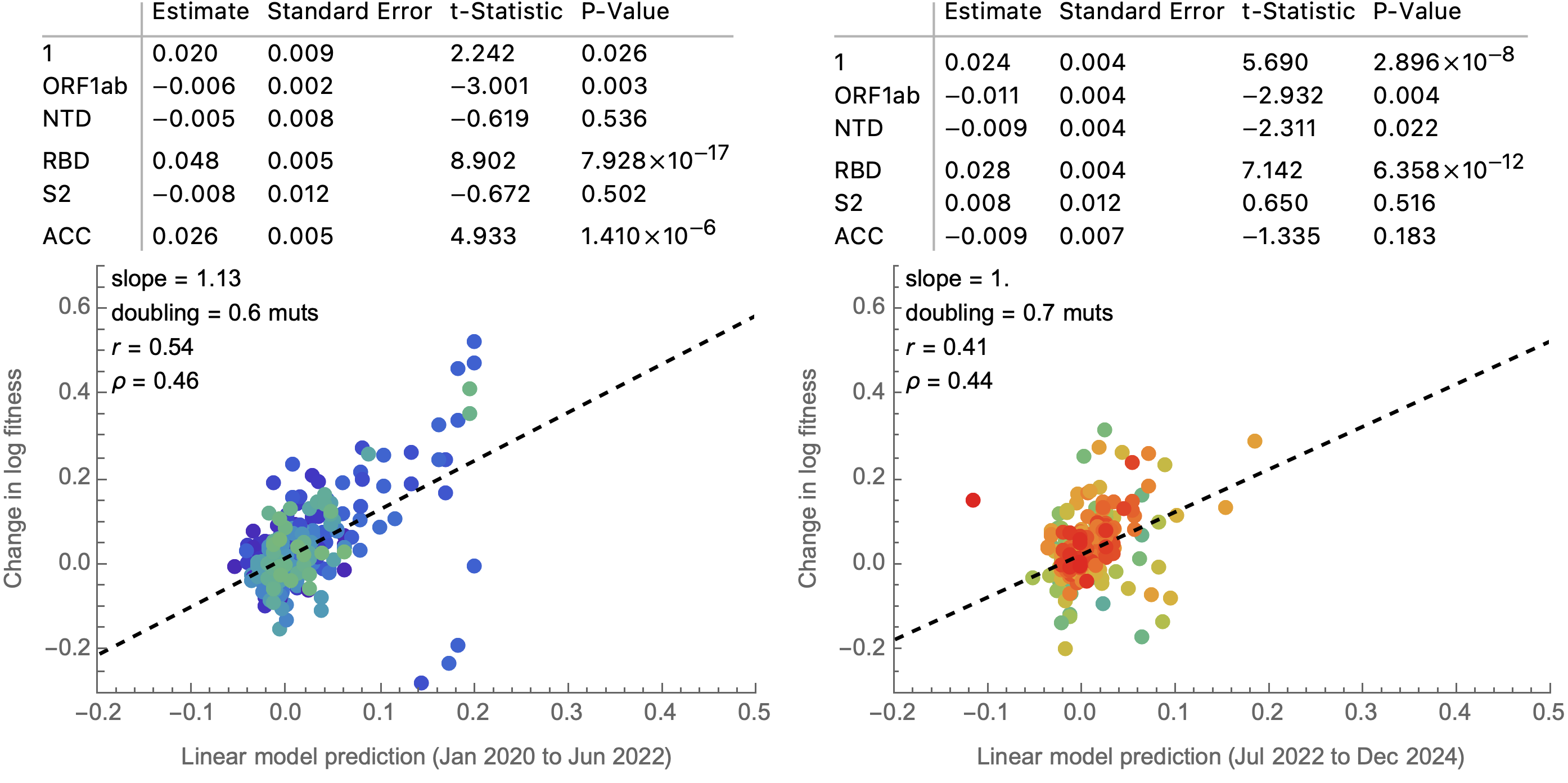

Framework to compare predictors of fitness

Simple linear model to combine predictors into a fitness estimate

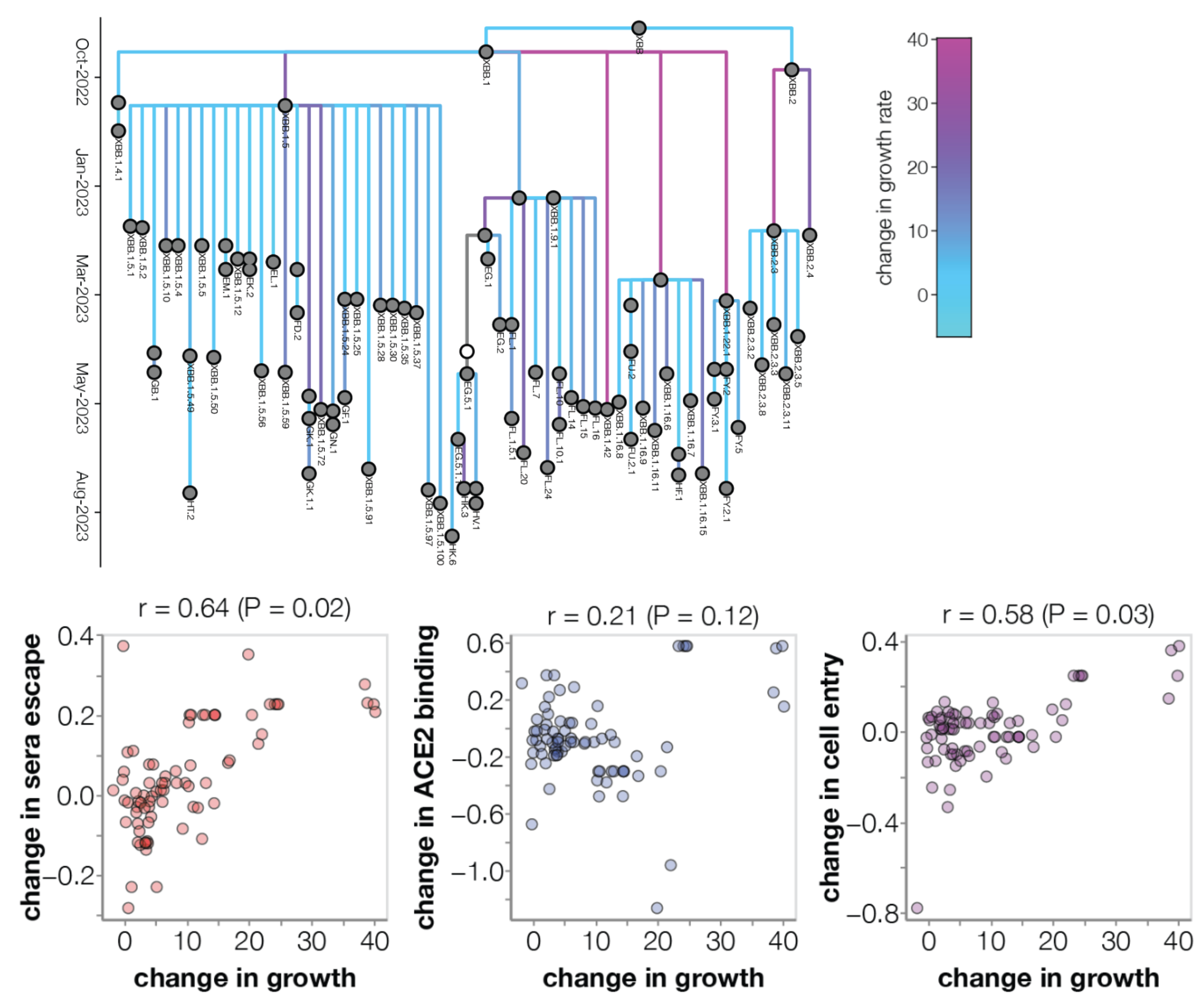

Ongoing work by Bloom Lab to conduct high-throughput experimental measurements of ACE2 binding and immune escape

Prediction of variant fitness from empirical priors

Rather than estimate variant specific fitness $f_i$ directly, instead parameterize the "innovation" in fitness in going from parent lineage $p$ to child lineage $i$ as $\delta_i = (f_i - f_p)$.

Compare a non-informative model of $$\delta_i = (f_i - f_p) \sim \mathrm{Normal}(0, \sigma)$$ to a model where each "innovation" value has an informed prior based on a linear combination of predictors such as ACE2 binding, immune escape and spike mutations, where $z_k$ represents the value of predictor $k$ $$\delta_i = (f_i - f_p) \sim \mathrm{Normal}\left(\sum_k \beta_k \, z_k, \sigma\right)$$

Figgins et al. In prep.

Still need approaches that explicitly model mutations and emergence of novel lineages

Acknowledgements

Seasonal influenza and SARS-CoV-2 genomics: Data producers from all over the world, GISAID

Nextstrain: Richard Neher, Ivan Aksamentov, John SJ Anderson, Kim Andrews, Jennifer Chang, James Hadfield, Emma Hodcroft, John Huddleston, Jover Lee, Victor Lin, Cornelius Roemer, Thomas Sibley

MLR and fitness modeling: Marlin Figgins, Eslam Abousamra, Jover Lee, James Hadfield, John Huddleston, Philippa Steinberg, Jesse Bloom, Cornelius Roemer, Richard Neher

Bedford Lab: John Huddleston, James Hadfield, Katie Kistler, Thomas Sibley, Jover Lee, Miguel Paredes, Marlin Figgins, Victor Lin, Jennifer Chang, Nashwa Ahmed, Cécile Tran Kiem, Kim Andrews, Cristian Ovaduic, Philippa Steinberg, Jacob Dodds, John SJ Anderson Nobuaki Masaki Amin Bemanian
