Tracking and forecasting epidemic spread through viral genome sequencing




Trevor Bedford (@trvrb)
10 Oct 2019
BioHub Seminar Series
BioHub

Slides at: bedford.io/talks

We work at the interface of virology, evolution and epidemiology

Sequencing to reconstruct pathogen spread

Epidemic process

Sample some individuals

Sequence and determine phylogeny

Sequence and determine phylogeny

Localized Middle Eastern MERS-CoV phylogeny

Regional West African Ebola phylogeny

Global influenza phylogeny

Phylogenetic tracking has the capacity to revolutionize epidemiology

Outline

  • Analysis of Ebola epidemic spread in West Africa
  • Nextstrain platform for real-time phylodynamics
  • Actionable genomic epidemiology for Ebola in the DRC
  • Seasonal influenza evolution and vaccine strain selection
  • Forecasting influenza strain turnover

Ebola

Ebola epidemic of 2014-2016 was unprecedented in scope

Ebola epidemic in West Africa

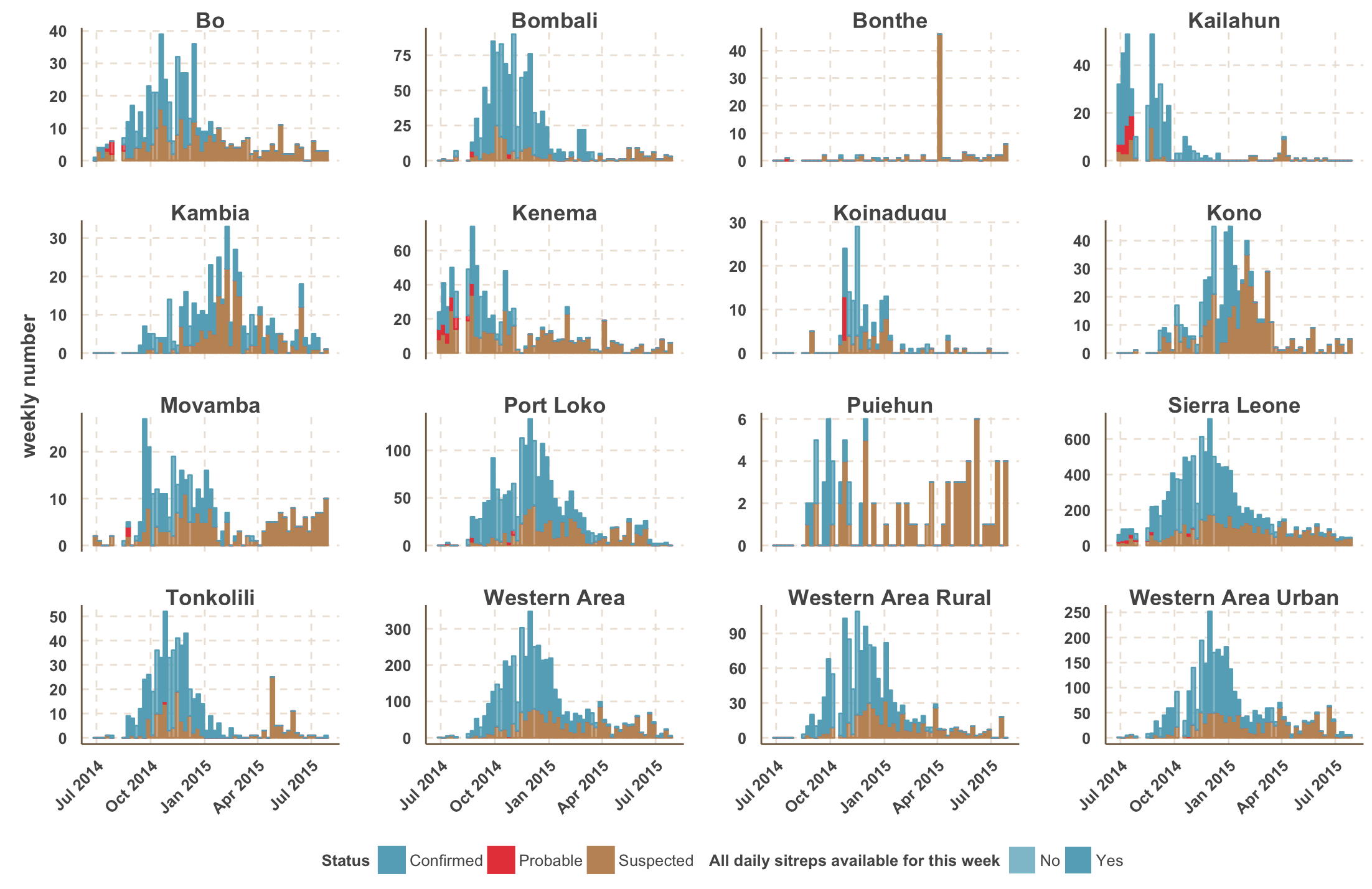

Ebola epidemic within Sierra Leone

Virus genomes reveal factors that spread and sustained the Ebola epidemic

with Gytis Dudas, Andrew Rambaut, Luiz Carvalho, Marc Suchard, Philippe Lemey,
and many others

Sequencing of 1610 Ebola virus genomes collected during the 2013-2016 West African epidemic

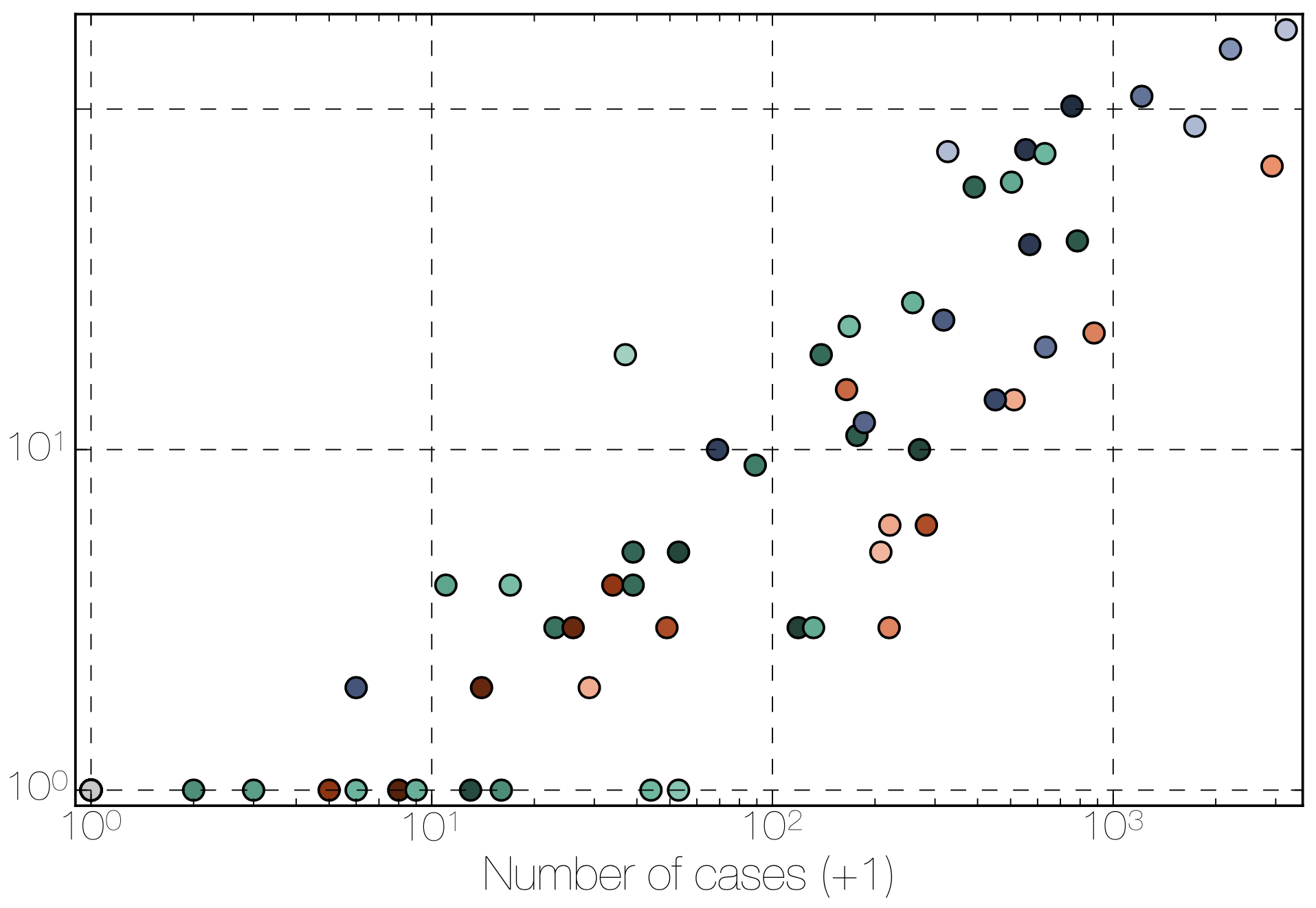

Sequenced genomes were representative of spatiotemporal diversity

Phylogenetic reconstruction of epidemic

Tracking migration events

Factors influencing migration rates

Effect of borders on migration rates

Spatial structure at the country level

Substantial mixing at the regional level

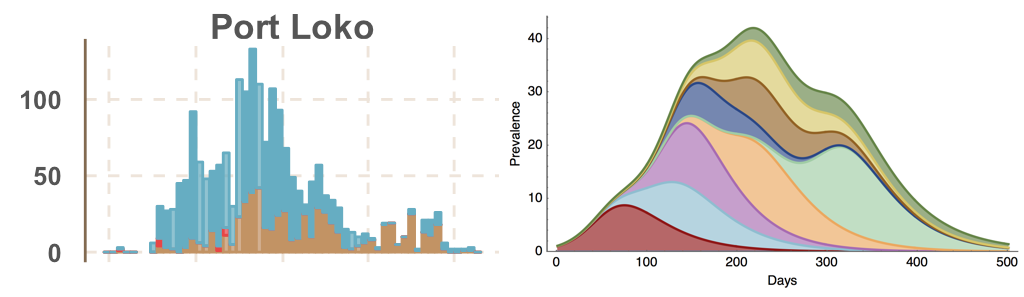

Each introduction results in a minor outbreak

Regional outbreaks due to multiple introductions

Regional outbreaks due to multiple introductions

Ebola spread in West Africa followed a gravity model with moderate slowing by international borders, in which spread is driven by short-lived migratory clusters

Actionable inferences

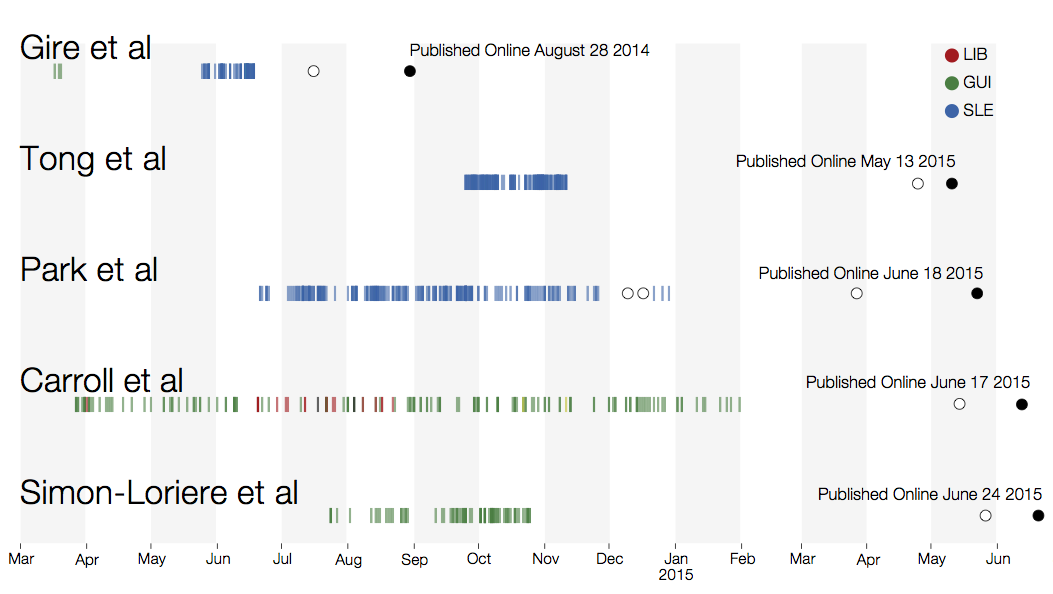

Genomic analyses were mostly done in a retrospective manner

Dudas and Rambaut 2016

Key challenges to making genomic epidemiology actionable

  • Timely analysis and sharing of results critical
  • Dissemination must be scalable
  • Integrate many data sources
  • Results must be easily interpretable and queryable

Nextstrain

Project to conduct real-time molecular epidemiology and evolutionary analysis of emerging epidemics


with Richard Neher, James Hadfield, Emma Hodcroft, Thomas Sibley, John Huddleston, Louise Moncla, Misja Ilcisin, Kairsten Fay, Jover Lee, Allison Black, Colin Megill, Sidney Bell, Barney Potter, Charlton Callender

Nextstrain architecture

All code open source at github.com/nextstrain

Two central aims: (1) rapid and flexible phylodynamic analysis and
(2) interactive visualization

Rapid build pipeline for 1600 Ebola genomes

  • Align with MAFFT (34 min)
  • Build ML tree with RAxML (54 min)
  • Temporally resolve tree and geographic ancestry with TreeTime (16 min)
  • Total pipeline (1 hr 46 min)

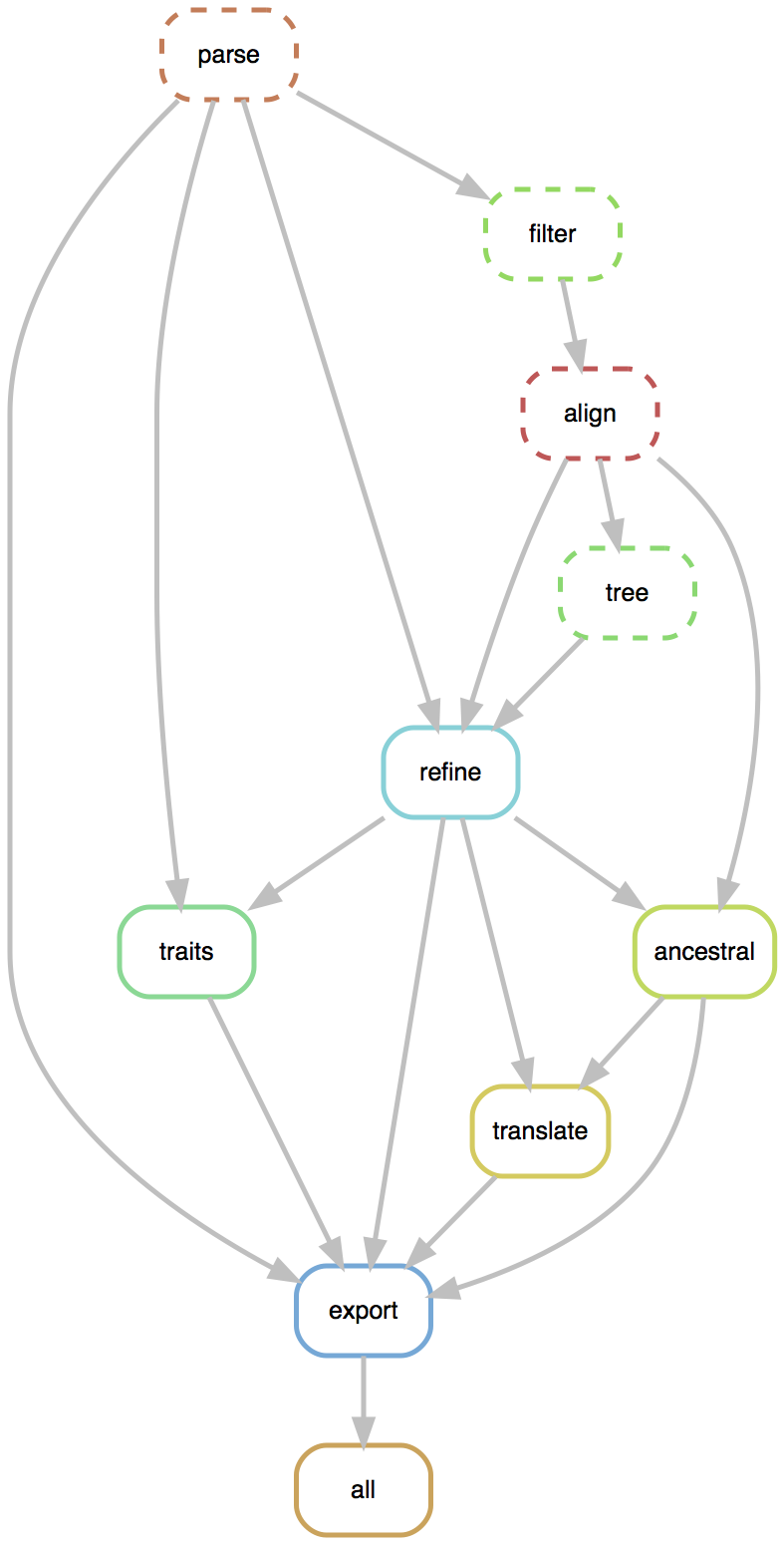

Flexible pipelines constructed through command line modules

  • Modules called via augur filter, augur tree, augur traits, etc...
  • Designed to be composable across pathogen builds
  • Defined pipeline, making steps obvious
  • Provides dependency graph for fast recomputation
  • Pathogen-specific repos give users an obvious foundation to build from

Nextstrain is two things

  • a bioinformatics toolkit and visualization app, which can be used for a broad range of datasets
  • a collection of real-time pathogen analyses kept up-to-date on the website nextstrain.org

nextstrain.org

Rapid on-the-ground sequencing in Makeni, Sierra Leone













"Community" builds to promote frictionless sharing of results

  • Attempting to write us out of the picture
  • JSON outputs uploaded to github.com/czbiohub/dengue, would be available at nextstrain.org/community/czbiohub/dengue
  • Used now for a variety of pathogens including Lassa in Nigeria, global RSV and cassava virus

Ongoing DRC outbreak

Genomic epidemiology applied to North Kivu Ebola outbreak

with Placide Mbala-Kingebeni, Eddy Kinganda Lusamaki, Catherine Pratt, Mike Wiley, James Hadfield, Allison Black, Jean-Jacques Muyembe Tamfum, Steve Ahuka-Mundeke, Daniel Mukadi, Gustavo Palacios, Amadou Sall, Ousmane Faye, Eric Delaporte, Martine Peeters and many others

Nextstrain is being used to track North Kivu outbreak

Allison Black (PhD student) and James Hadfield (postdoc) working with scientists at the INRB. Goal is to provide training in bioinformatics, Nextstrain and genomic epidemiology.

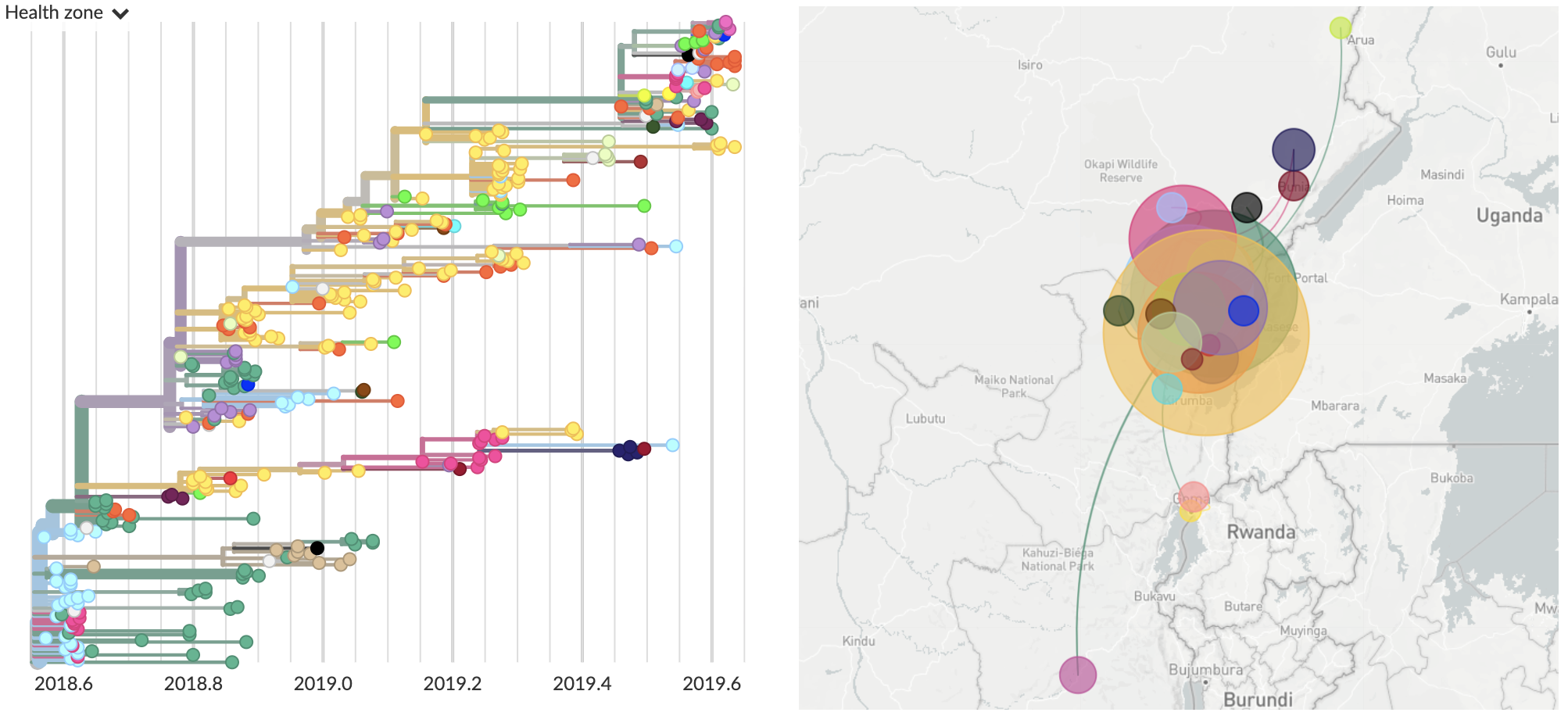

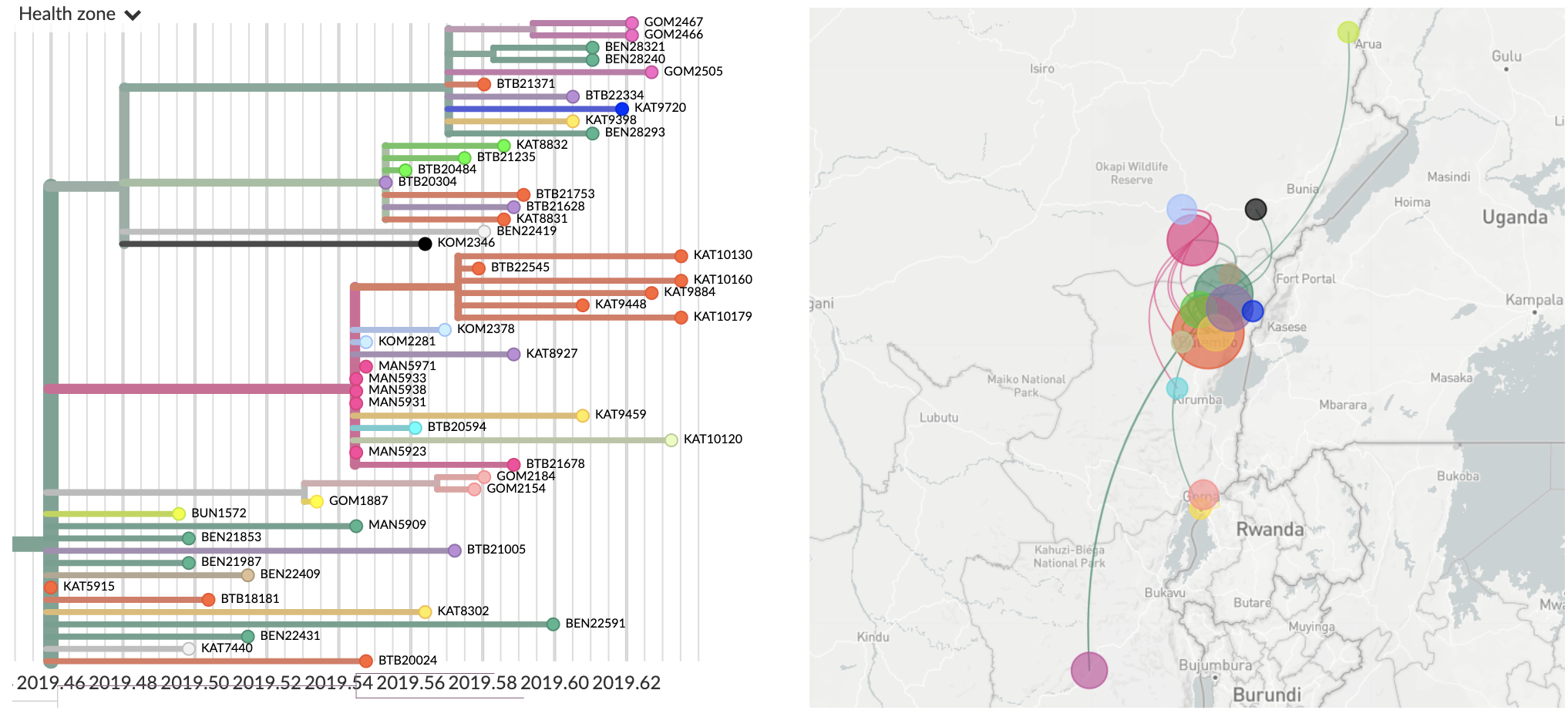

View of current genomic data

Current dataset:

  • 376 full genomes sequenced (15% of confirmed cases)
  • Most recent sequenced virus collected Sep 12 (4 weeks ago)

Often (but not always) need specific actionable pieces of information rather than large-scale understanding. For Ebola outbreak response, I believe this needs to revolve around contact tracing.

Superspreader event in June

Using narratives to walk through specific transmission inferences

  • We're rolling out new narratives functionality in Nextstrain
  • These are Markdown posts that allow you to pair narrative text to visualization state
  • Made possible through an early decision to embed visualization state in URL
  • Example narrative for Ebola in the DRC here: nextstrain.org/narratives/inrb-ebola-example-sit-rep

Tracking seasonal influenza virus evolution

Population turnover of A/H3N2 influenza is extremely rapid

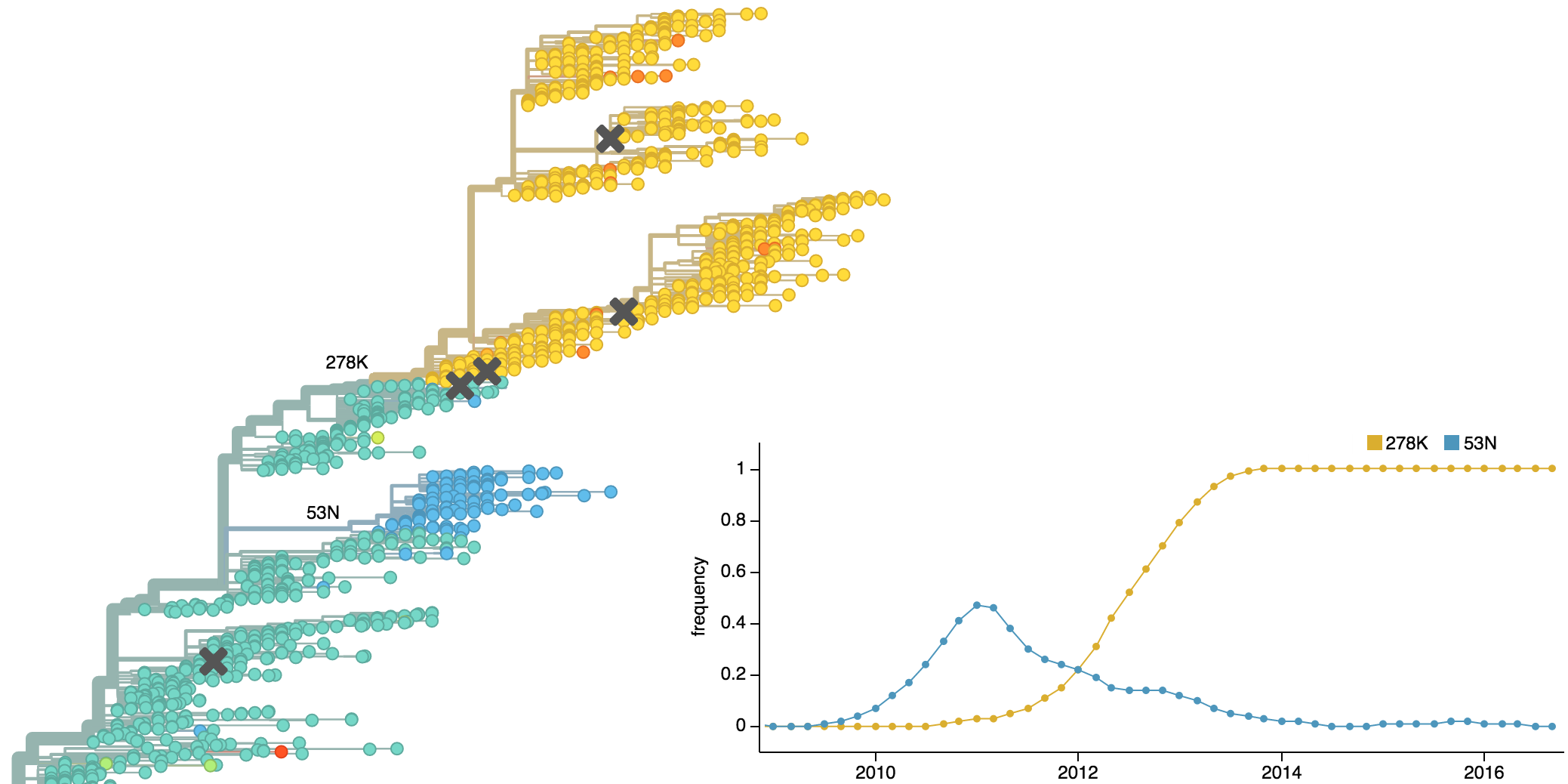

Clades emerge, die out and take over

Clades show rapid turnover

Dynamics driven by antigenic drift

Drift necessitates vaccine updates

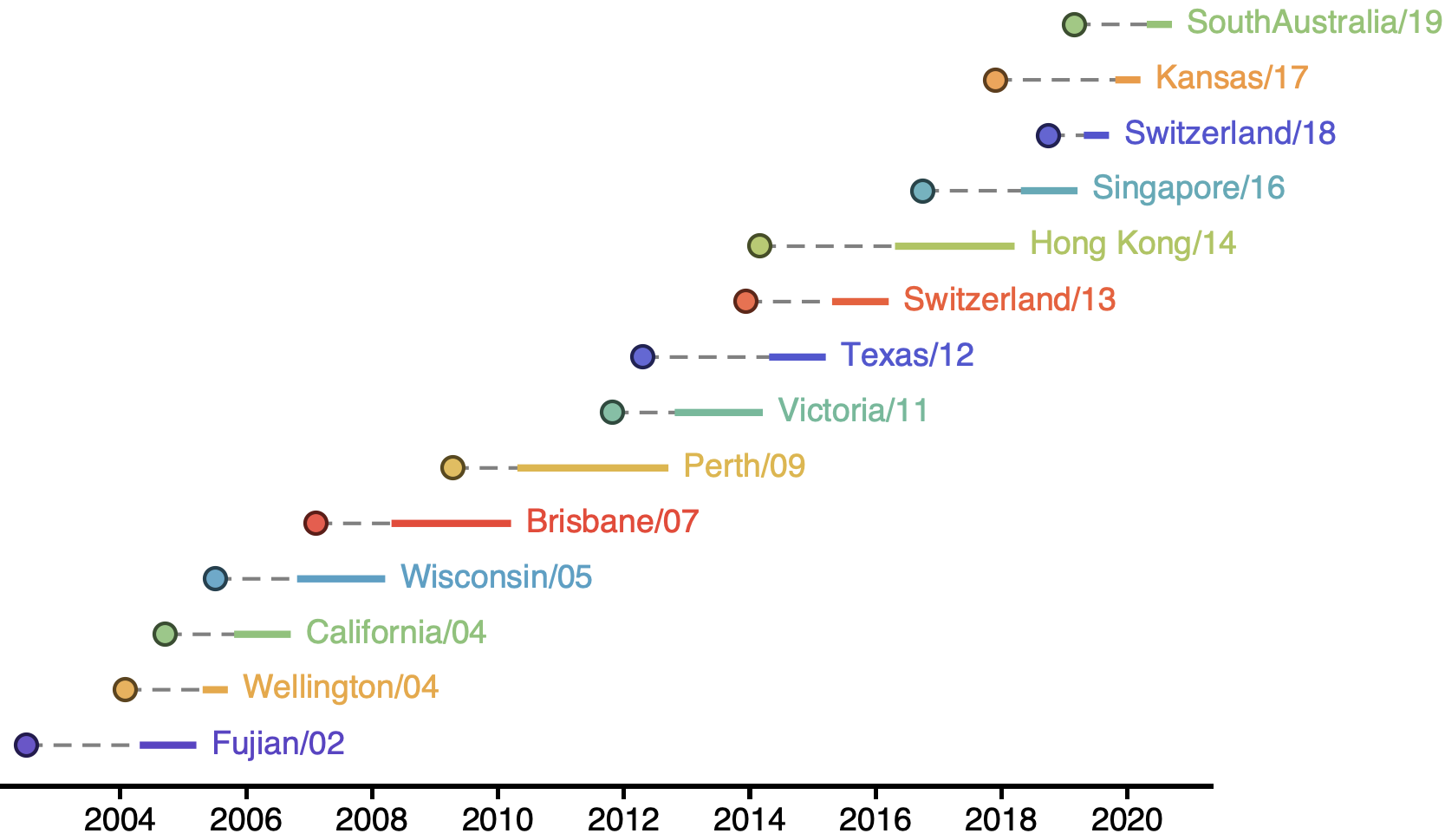

H3N2 vaccine updates occur every ~2 years

Vaccine strain selection by WHO

Working with Richard Neher, we decided to tackle this head on and build something that:

  1. Charts behavior of specific strains
  2. Can be kept continually up to date

Nextflu

Project to provide a real-time view of the evolving influenza population

Made possible by rapid and open sharing of WHO GISRS data through GISAID database

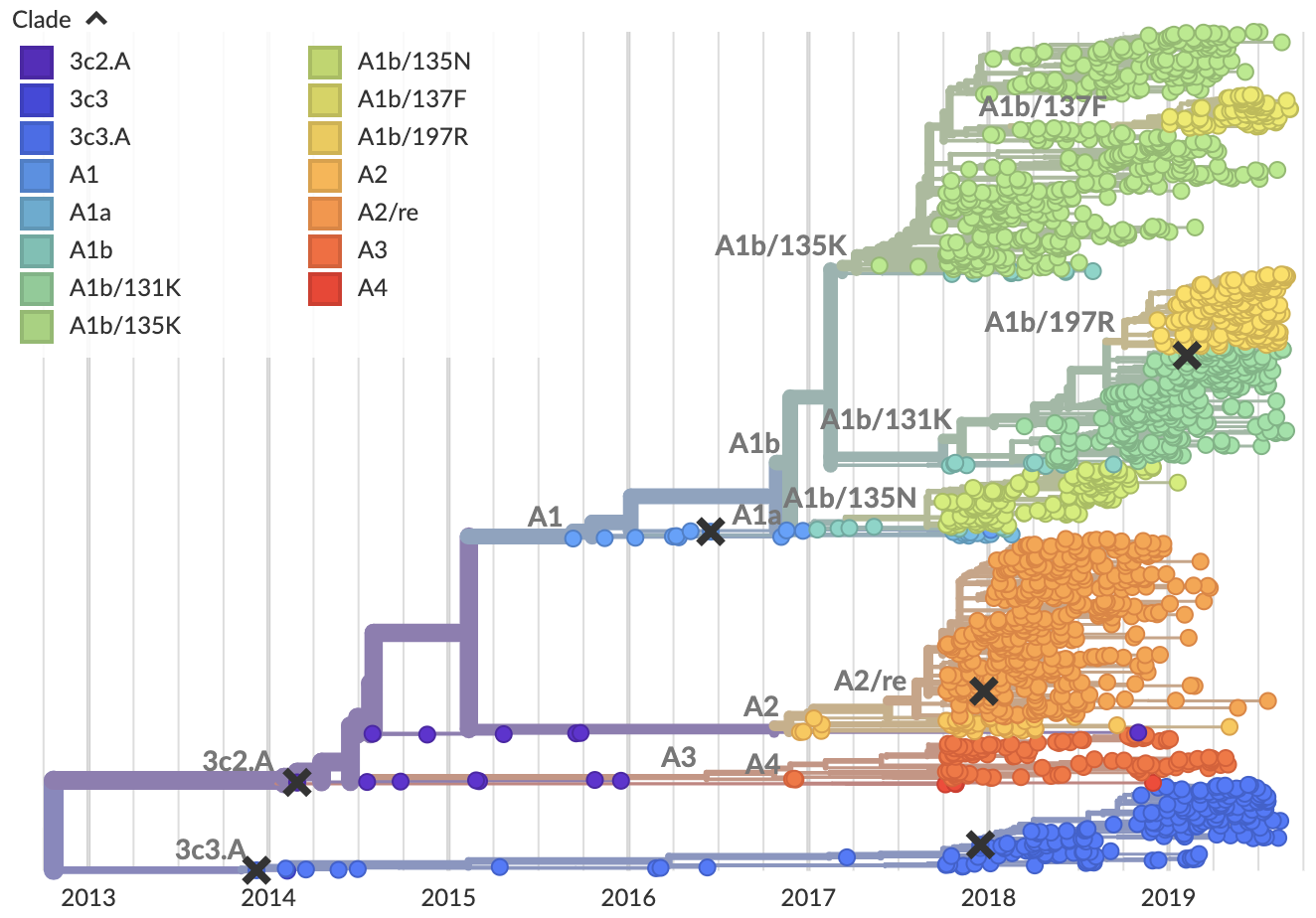

Current view of H3N2 from nextstrain.org/flu

Clade frequencies show recent rise of A1b/197R viruses

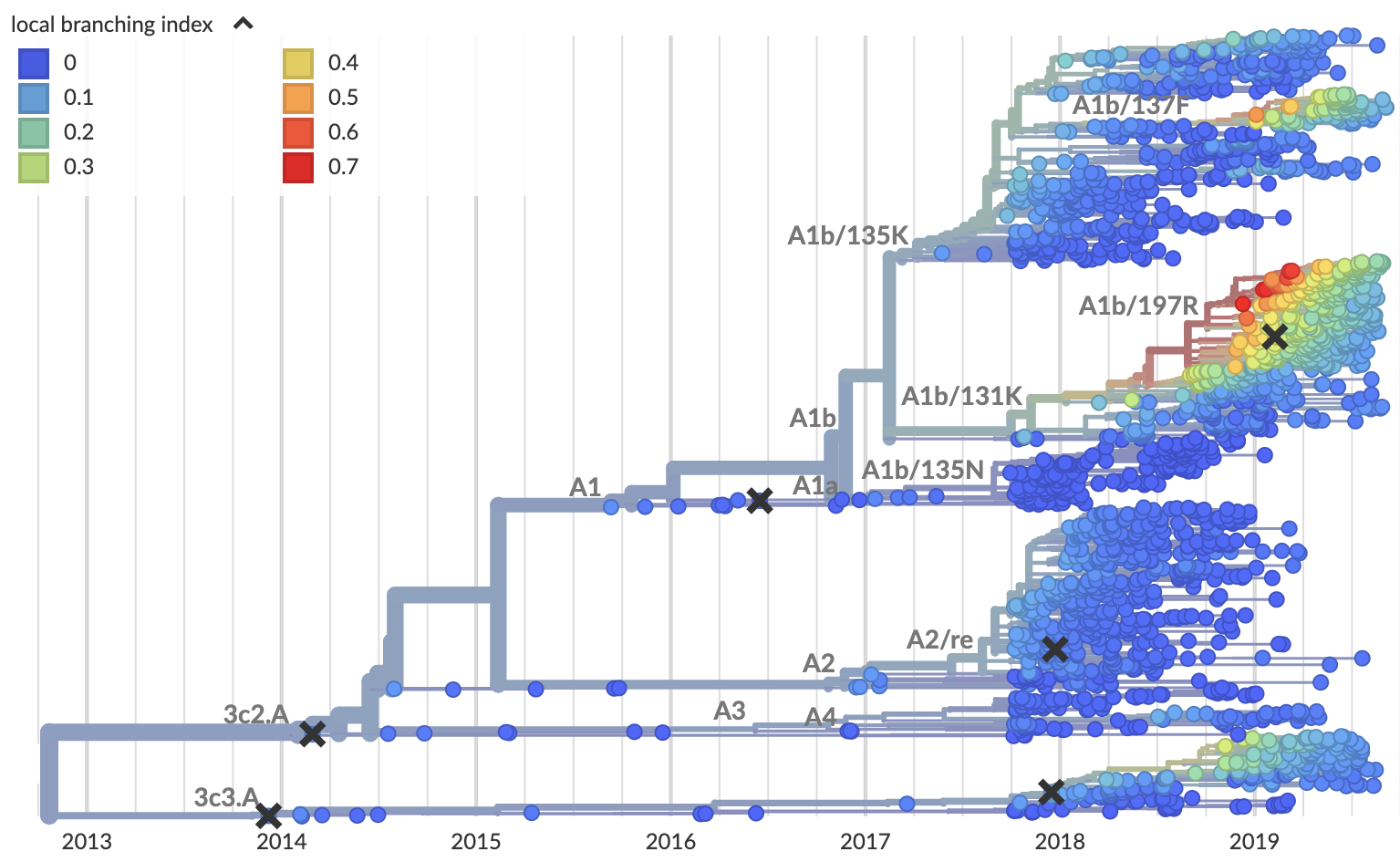

Local branching index (LBI) also points to A1b/197R as the most rapidly spreading clade

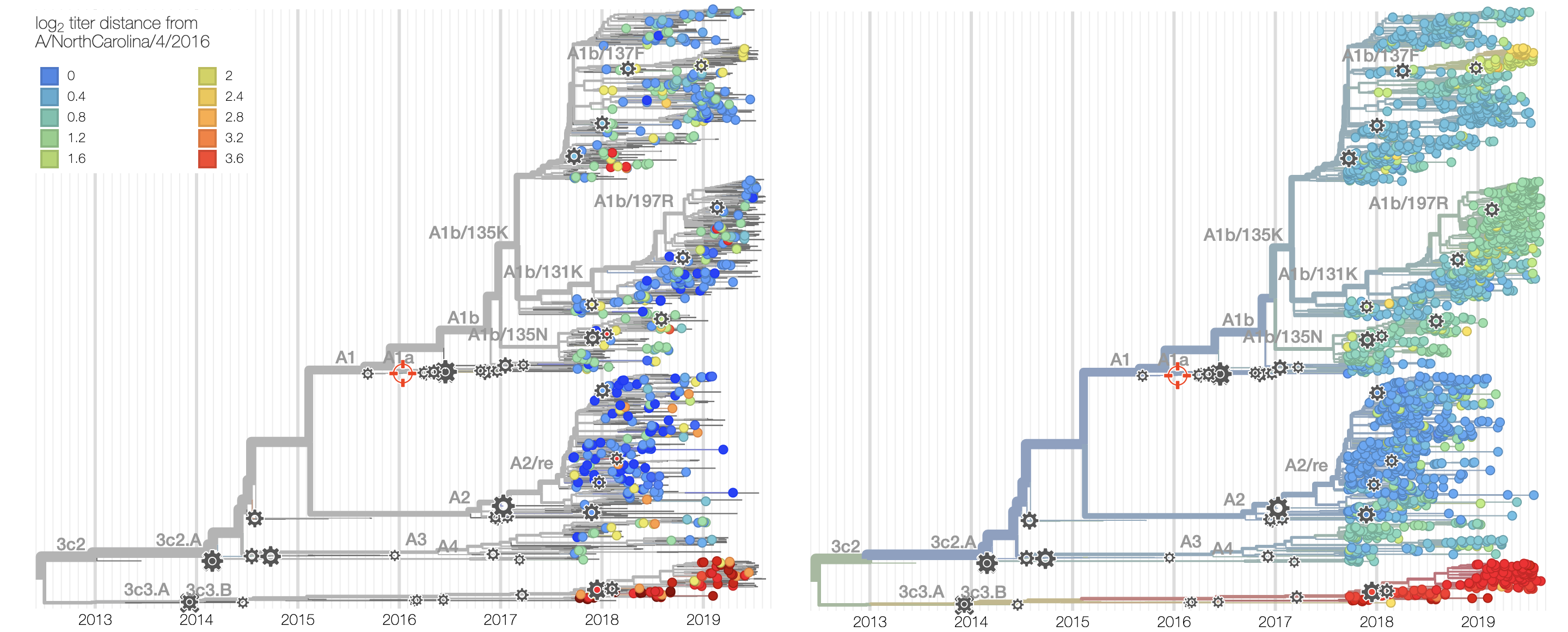

Serological assay data indicates largely similar antigenic phenotypes in A1b viruses

Forecasting seasonal influenza A/H3N2 evolution

with John Huddleston and Richard Neher

Fitness models project strain frequencies

Future frequency $x_i(t+\Delta t)$ of strain $i$ derives from strain fitness $f_i$ and present day frequency $x_i(t)$, such that

$$\hat{x}_i(t+\Delta t) = x_i(t) \, \mathrm{exp}(f_i \, \Delta t)$$

Total strain frequencies at each timepoint are normalized. This captures clonal interference between competing lineages.

Two inputs

  • Estimate of present-day strain frequencies $x(t)$
  • Estimate of present-day strain fitnesses $f$

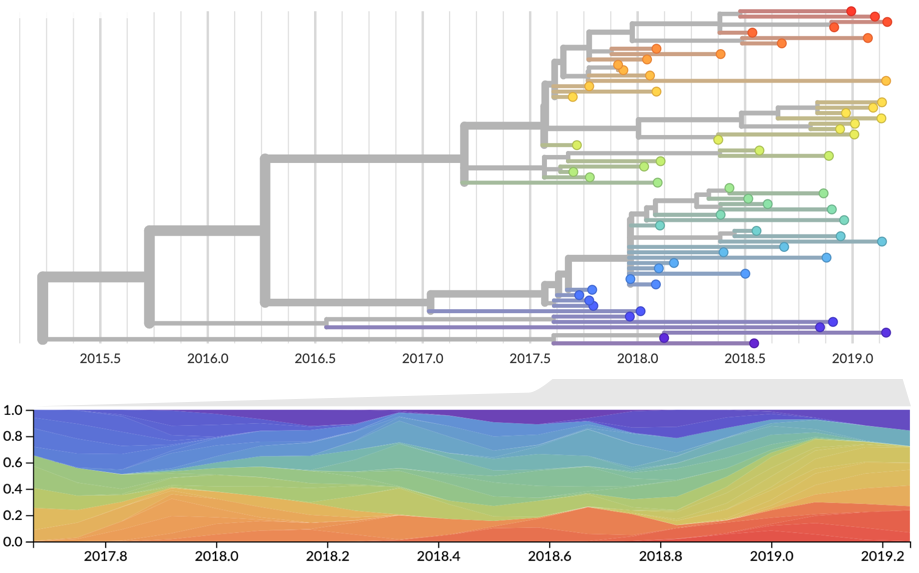

Strain frequency estimated via region-weighted KDE

Strain fitness estimated from viral attributes

The fitness $f$ of strain $i$ is estimated as

$$\hat{f}_i = \beta^\mathrm{A} \, f_i^\mathrm{A} + \beta^\mathrm{B} \, f_i^\mathrm{B} + \ldots$$

where $f^A$, $f^B$, etc... are different standardized viral attributes and $\beta^A$, $\beta^B$, etc... coefficients are trained based on historical evolution


Antigenic drift Intrinsic fitness Recent growth
epitope mutations non-epitope mutations local branching index
HI titers DMS data (via Bloom lab) delta frequency

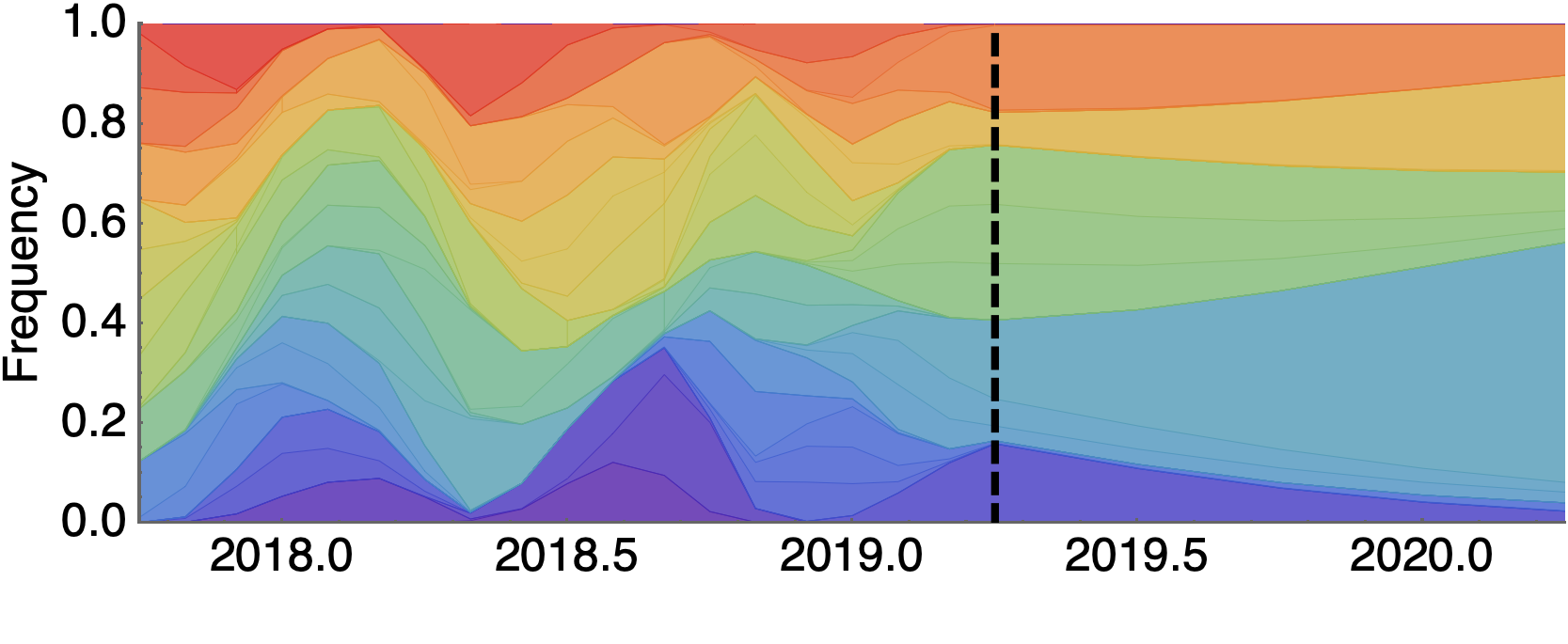

Future population depends on frequency and fitness

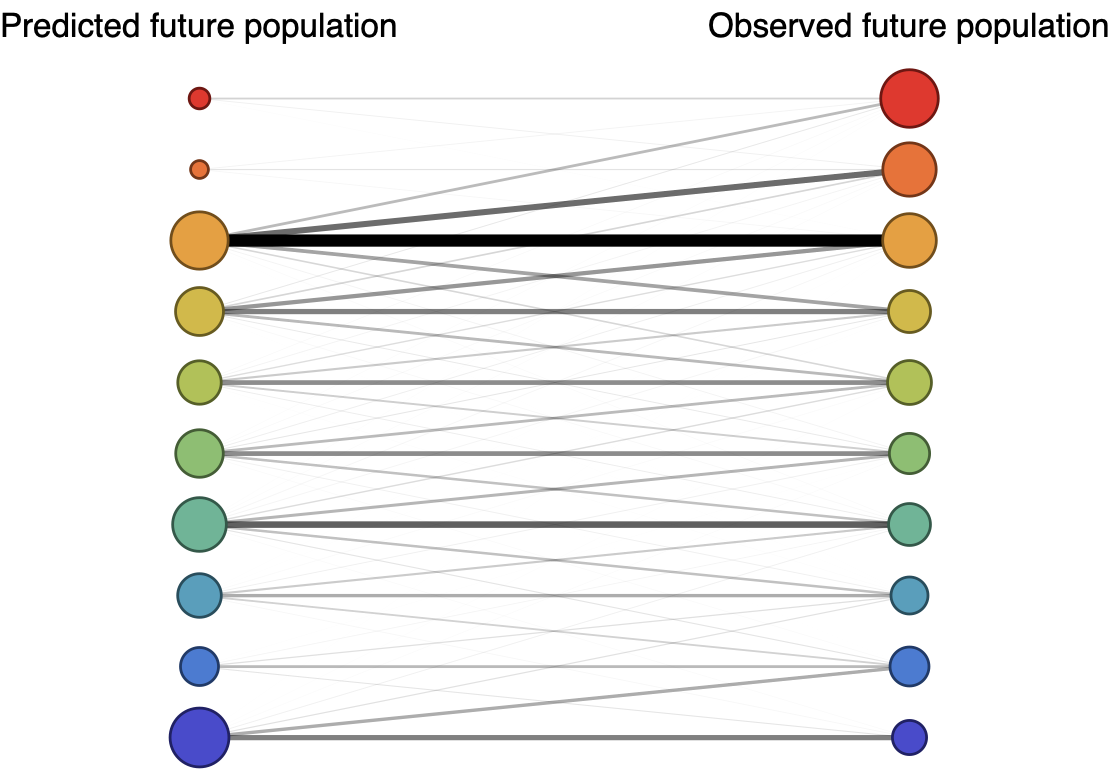

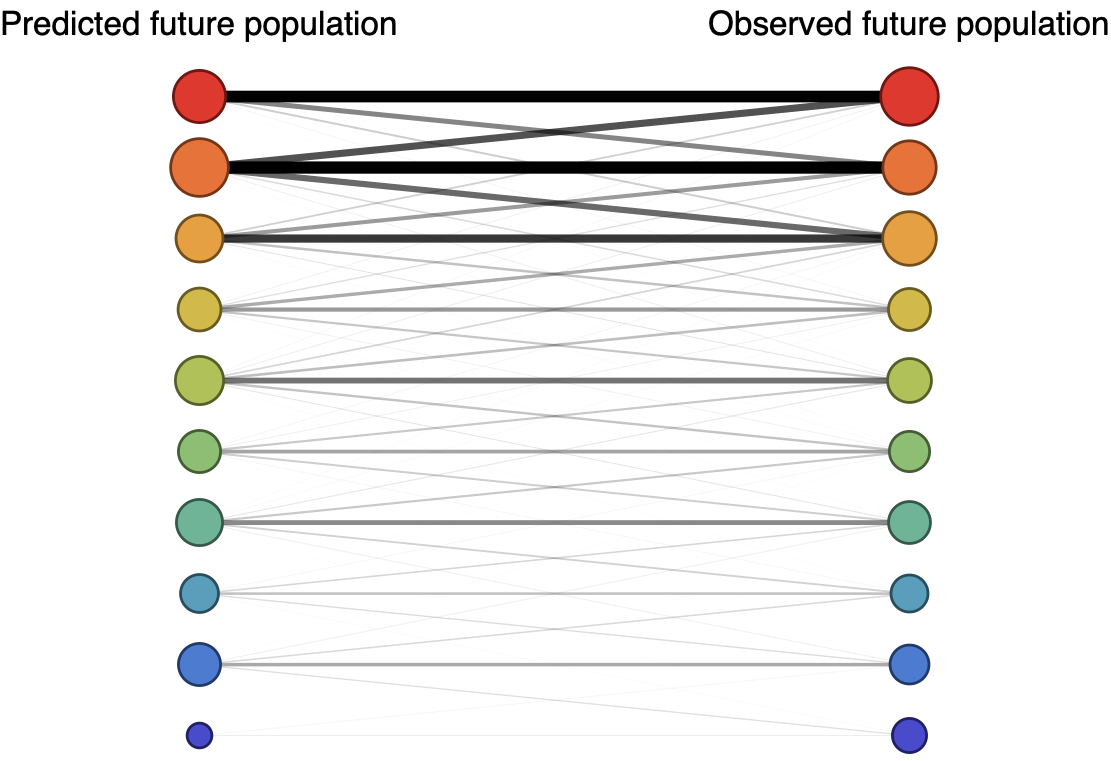

Forecast assessed based on weighted distance match to observed future population

Forecast assessed based on weighted distance match to observed future population

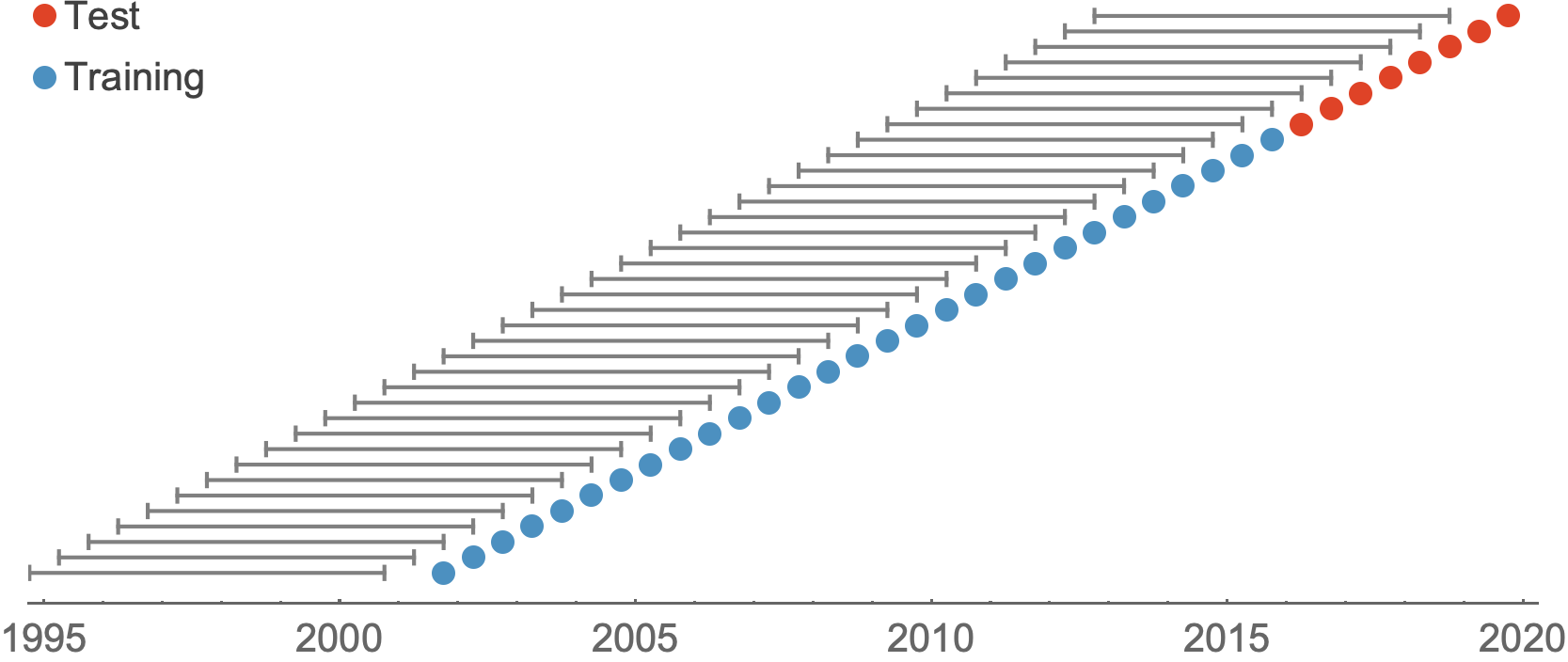

Train in 6-year sliding windows from 1995 to 2015 with most recent years held out as test

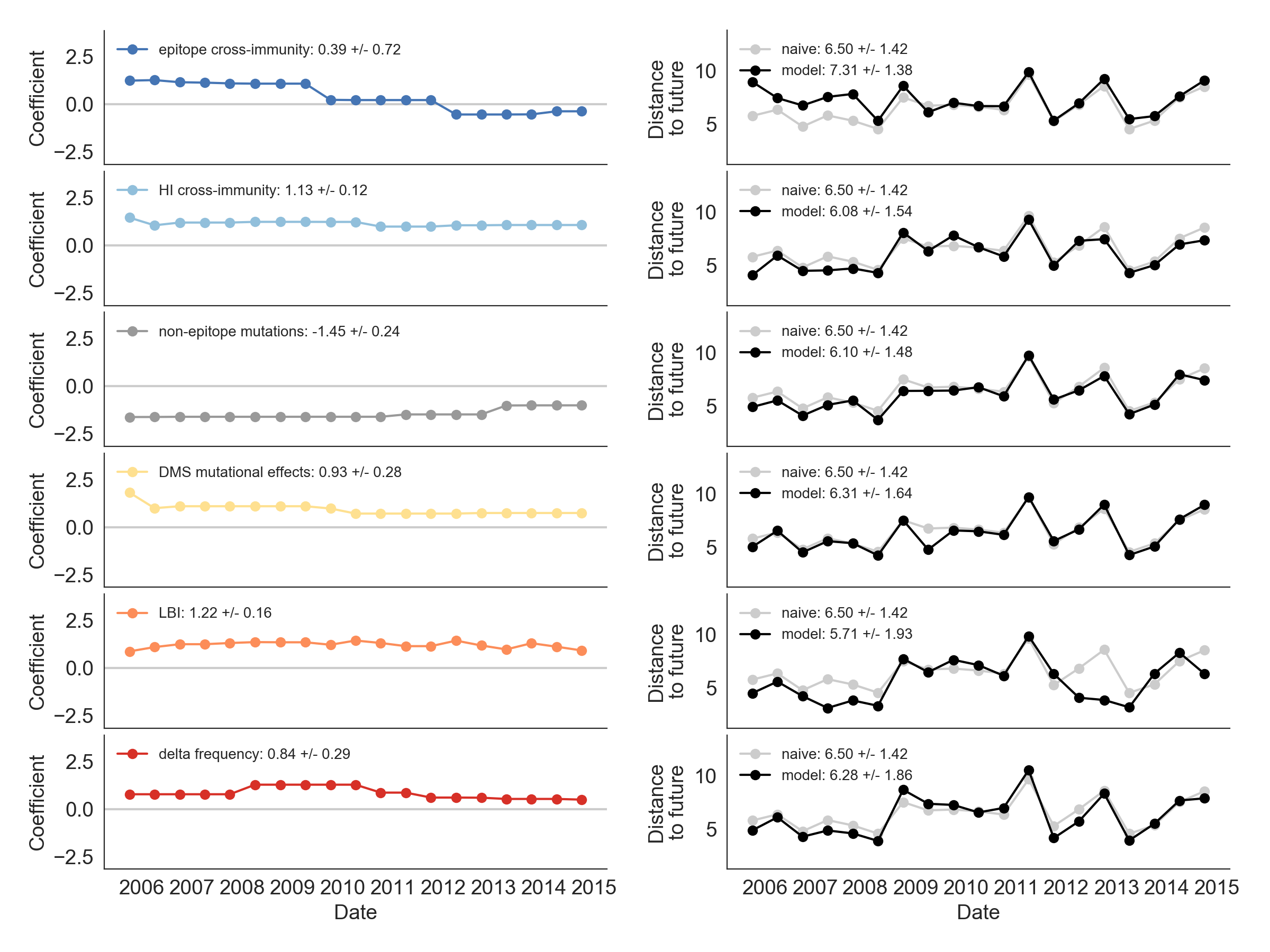

Single predictors favor HI drift, non-epitope fitness and local branching index

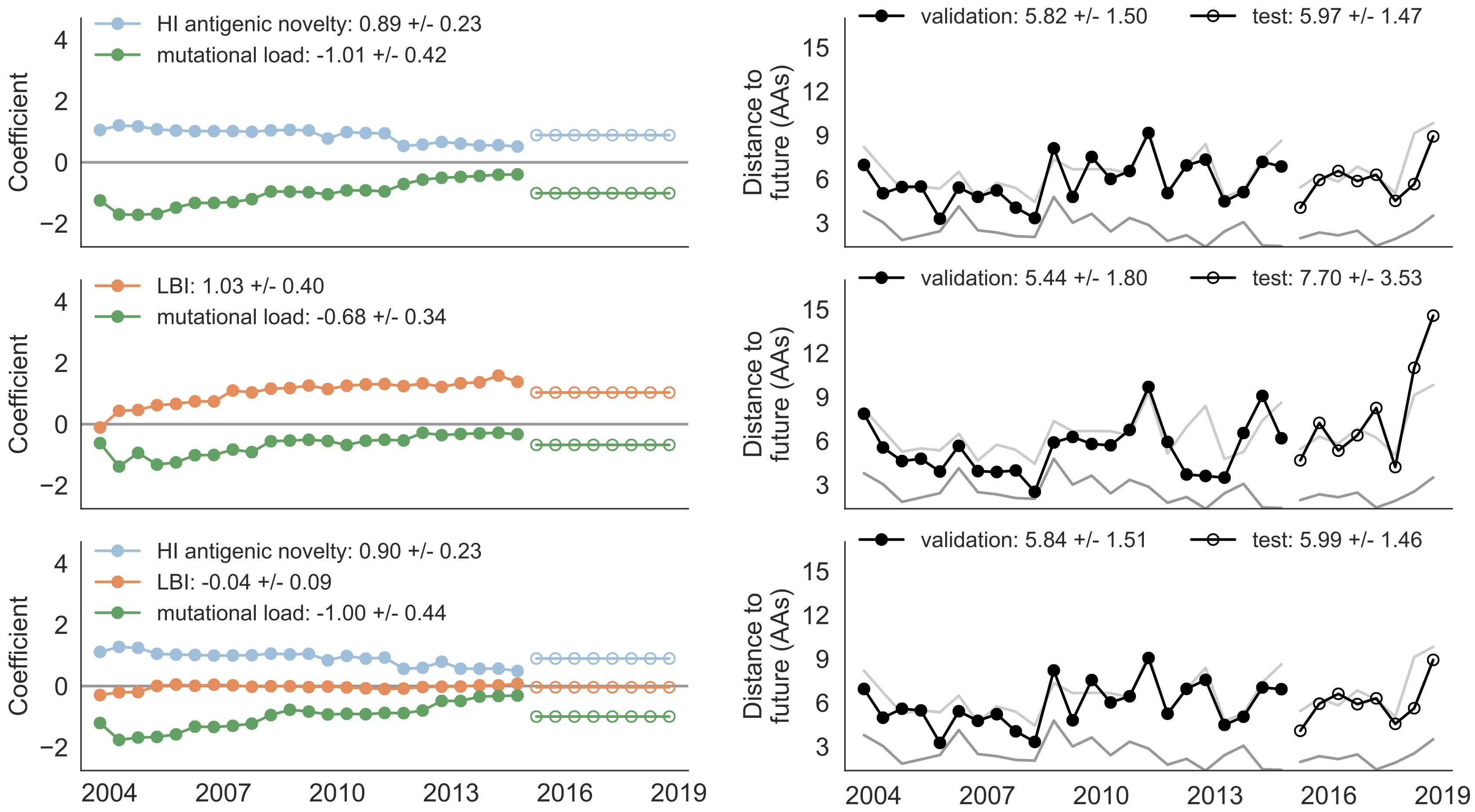

Composite models suggest a combination of local branching index and non-epitope fitness

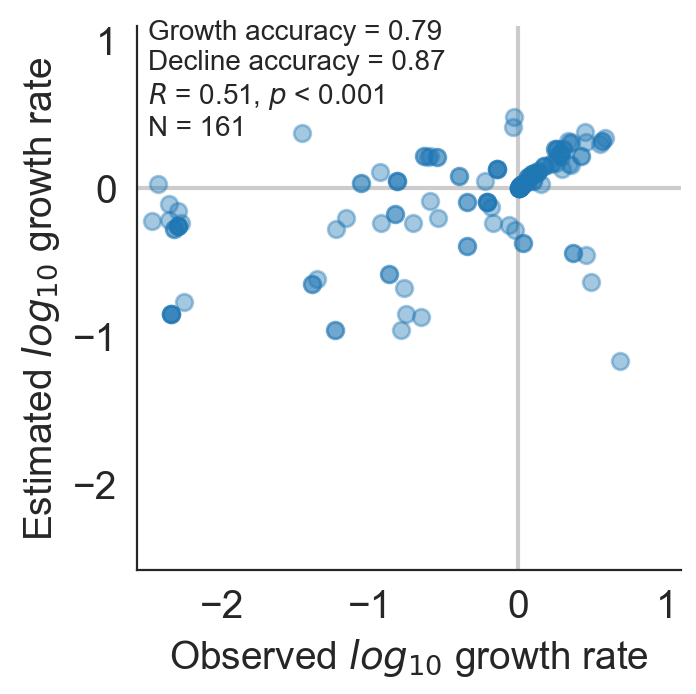

Model successfully predicts clade growth

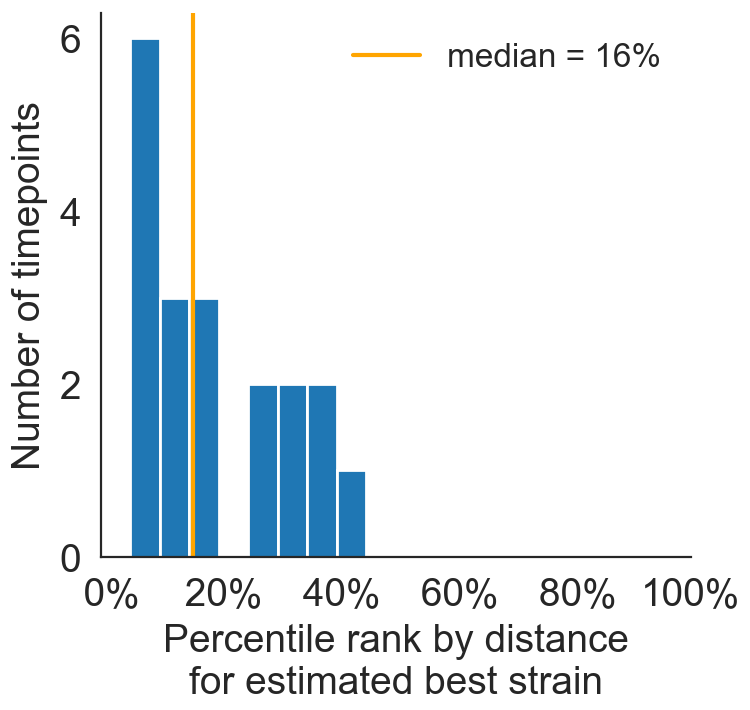

Best pick from model is generally close to best possible retrospective pick

Forecast from current virus population

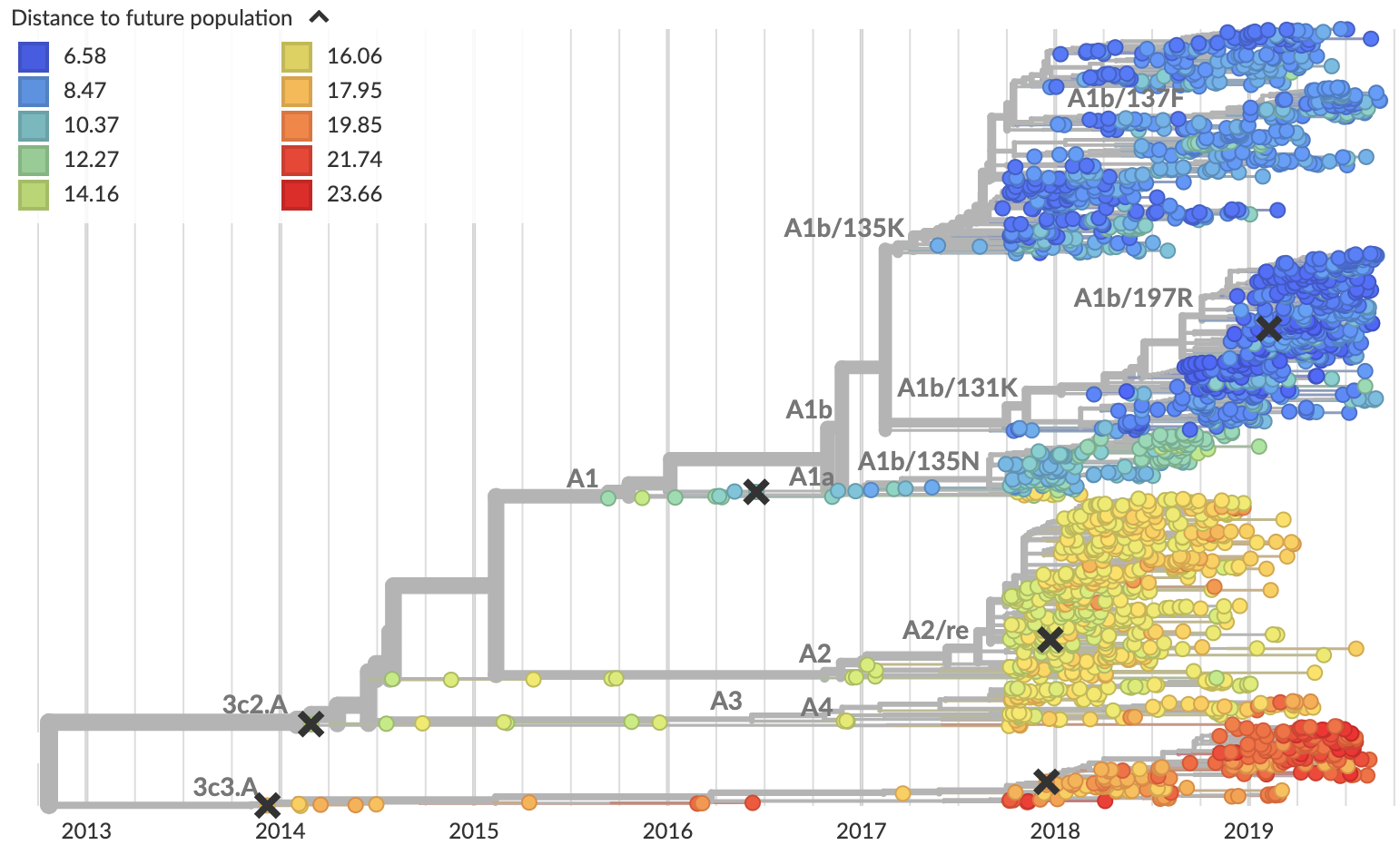

Predicted sequence match of circulating strains to future population

These forecasts are now rolled out live to nextstrain.org/flu

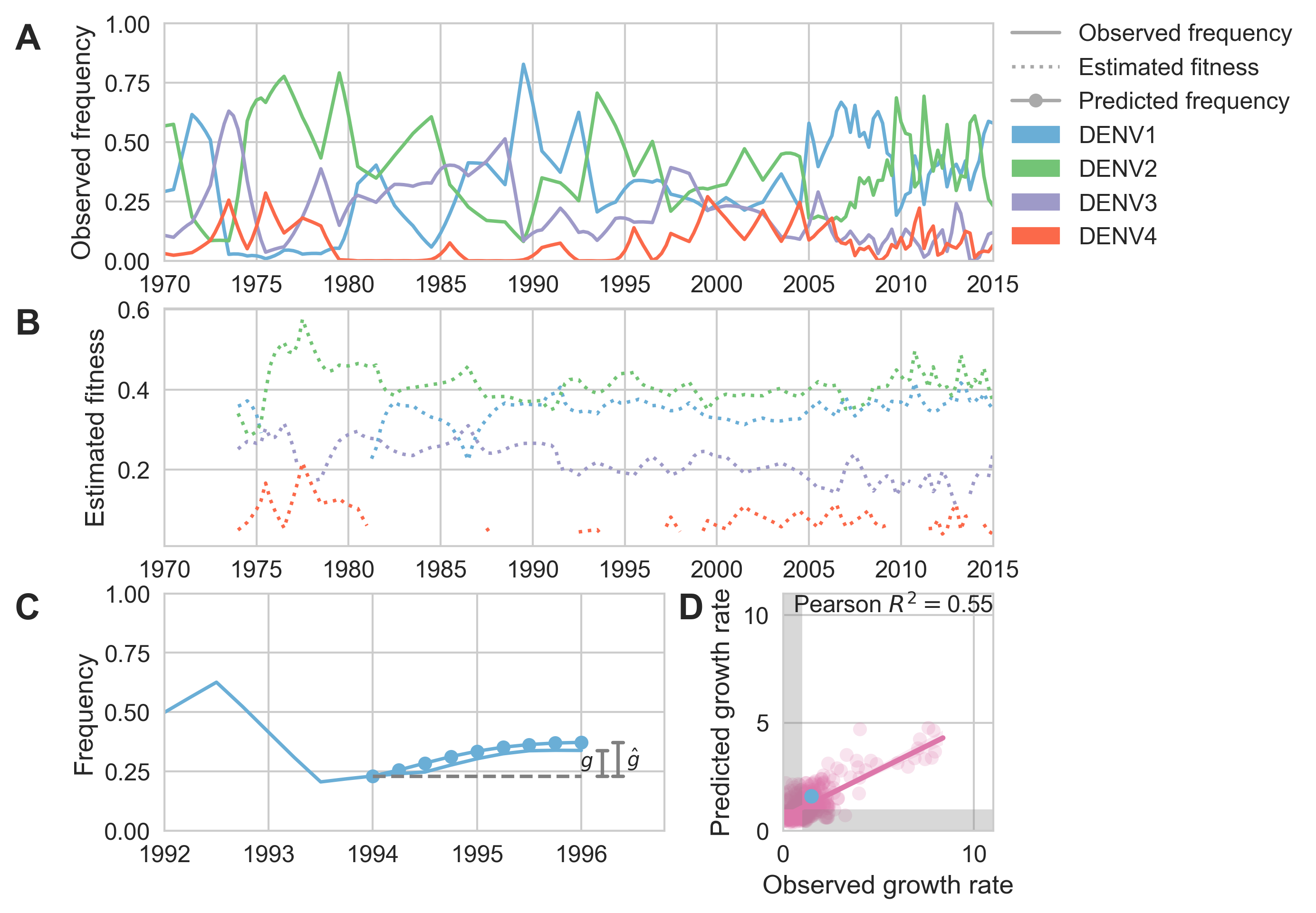

The same machinery can be applied to other viruses, like Sidney's work here on dengue

This work relies on rapid and open sharing of pathogen genomic data.

All Nextstrain code is entirely open source and intended to be used by the community. We've been working hard on improving documentation at nextstrain.org/docs. You're most welcome to kick the tires.
