Tracking and forecasting SARSCoV2 variant spread
Trevor Bedford (@trvrb)
Fred Hutchinson Cancer Center / Howard Hughes Medical Institute
30 Sep 2022
HB Friday Faculty Talk
Fred Hutch
1. SARSCoV2 evolution
2. Variant frequency dynamics
3. Emerging variants
4. Seasonality and nearterm circulation
5. Continued work on forecasting

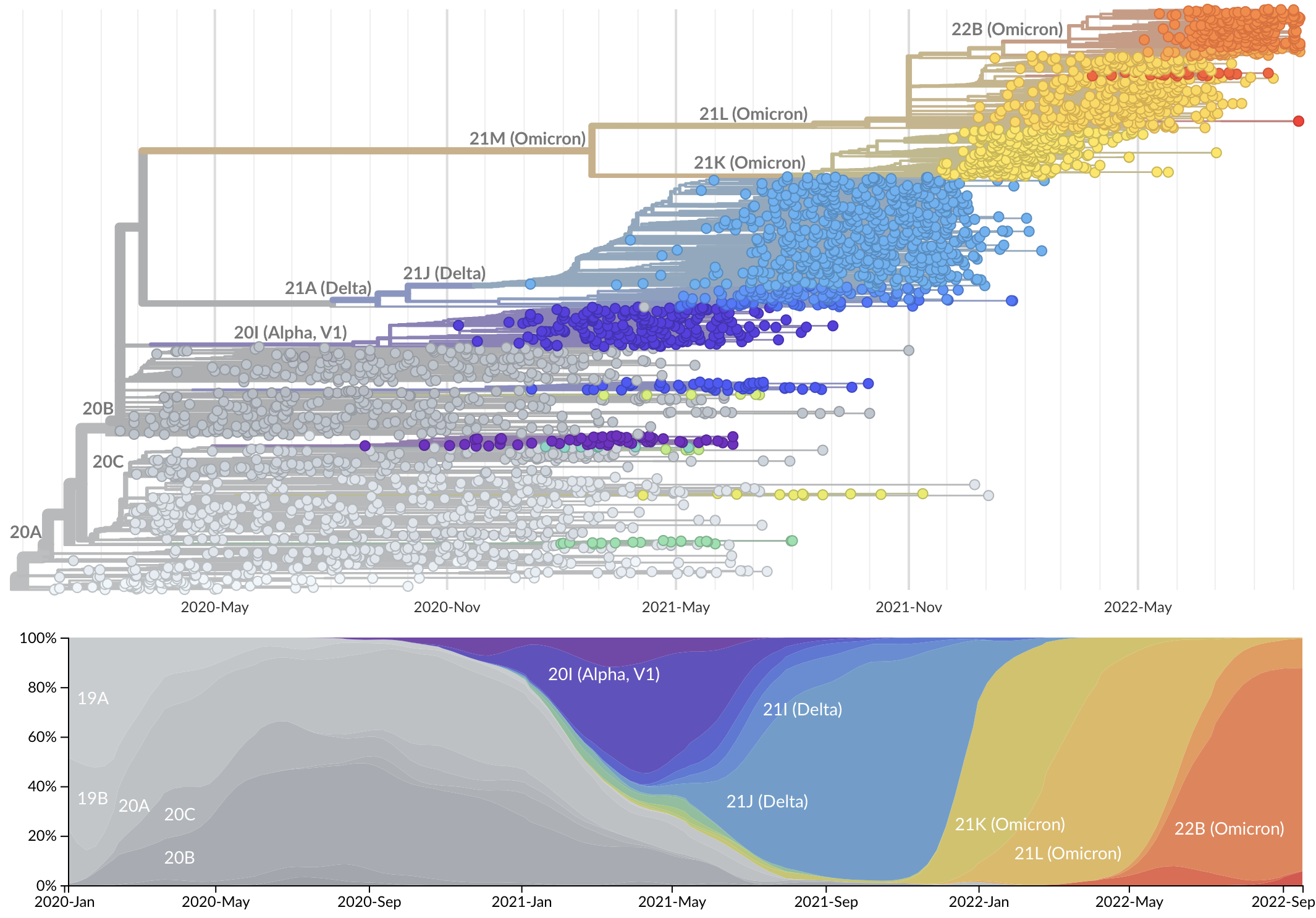

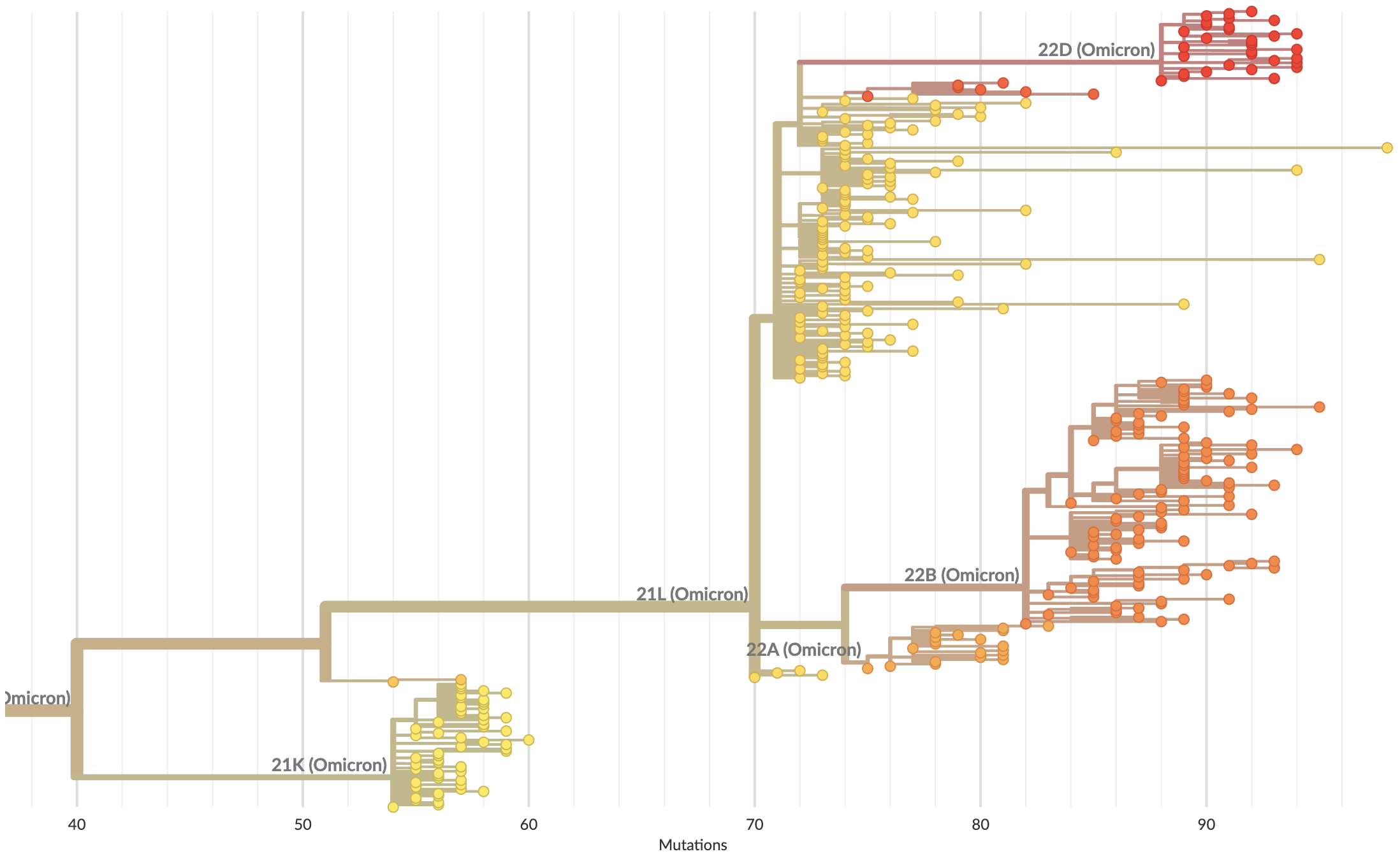

Rapid displacement of existing diversity by emerging variants

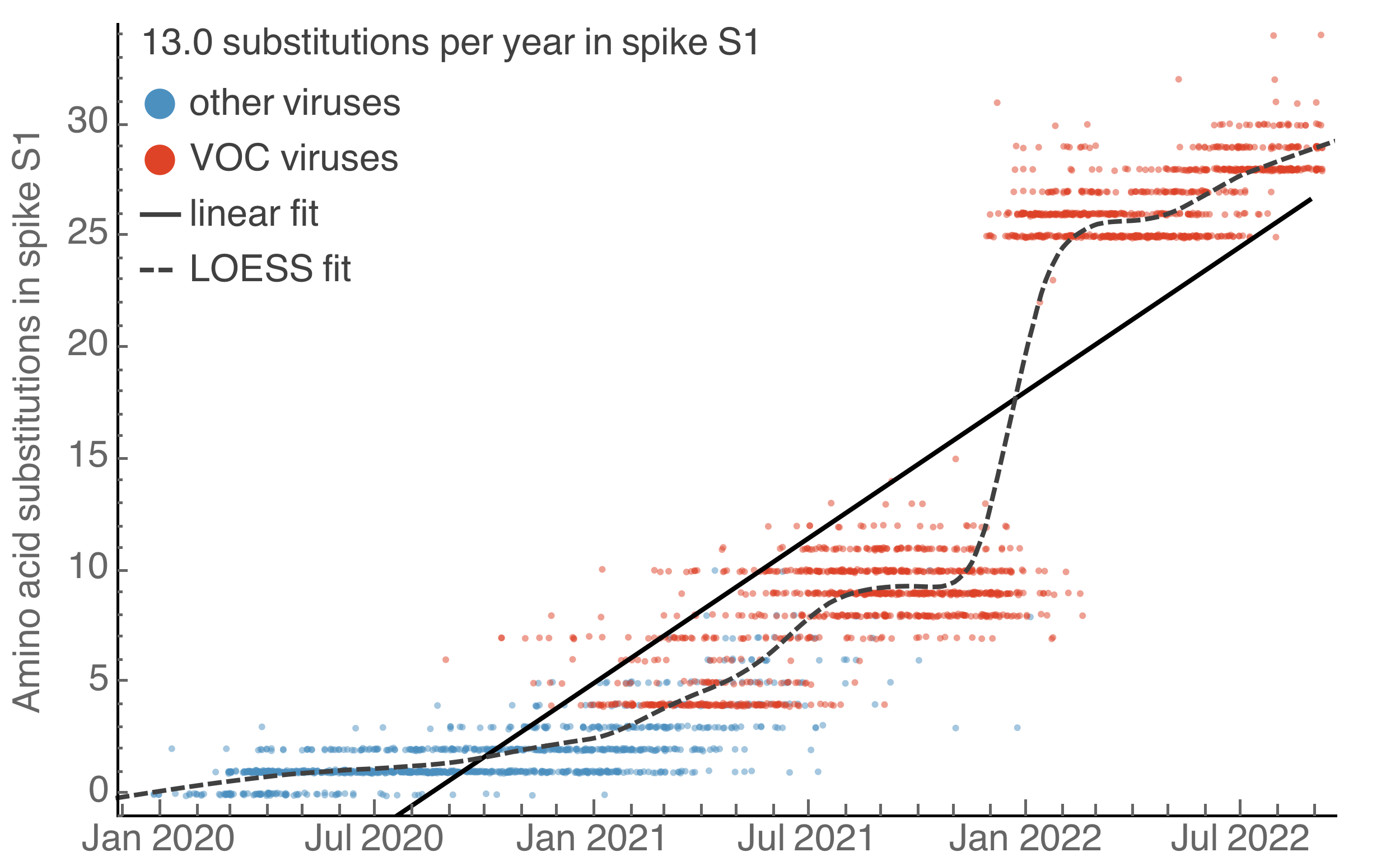

S1 evolved at a rate of 13 amino acid changes per year since pandemic start

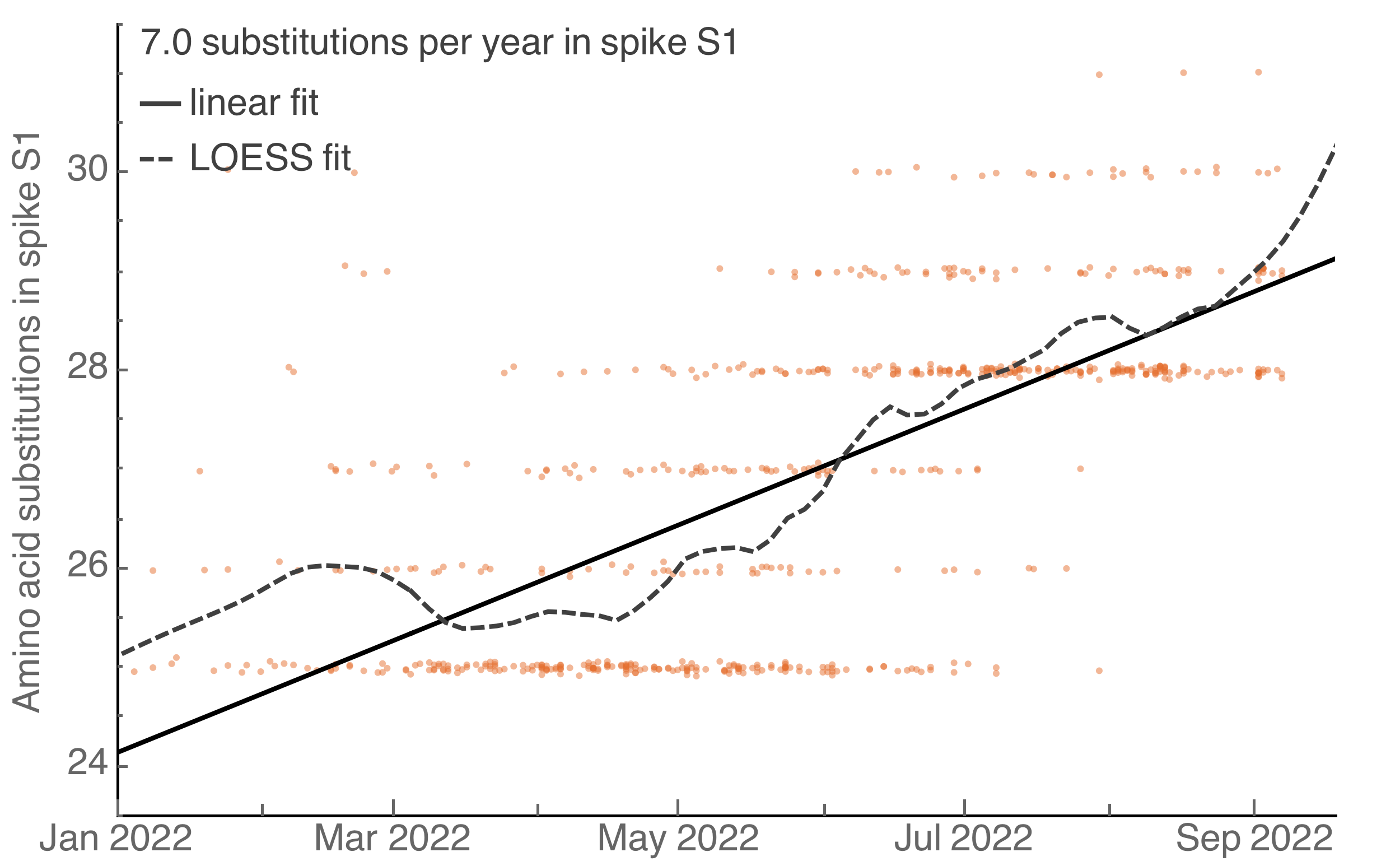

Continued rapid accumulation from BA.2 onwards with 7 amino acid changes per year
S1 evolution remarkably fast relative to seasonal influenza
Continued escape from neutralization by existing population immunity
Variant frequency dynamics
Population genetic expectation of variant frequency under selection
$x' = \frac{x \, (1+s)}{x \, (1+s) + (1x)}$ for frequency $x$ over one generation with selective advantage $s$
$x(t) = \frac{x_0 \, (1+s)^t}{x_0 \, (1+s)^t + (1x_0)}$ for initial frequency $x_0$ over $t$ generations
Trajectories are linear once logit transformed via $\mathrm{log}(\frac{x}{1  x})$

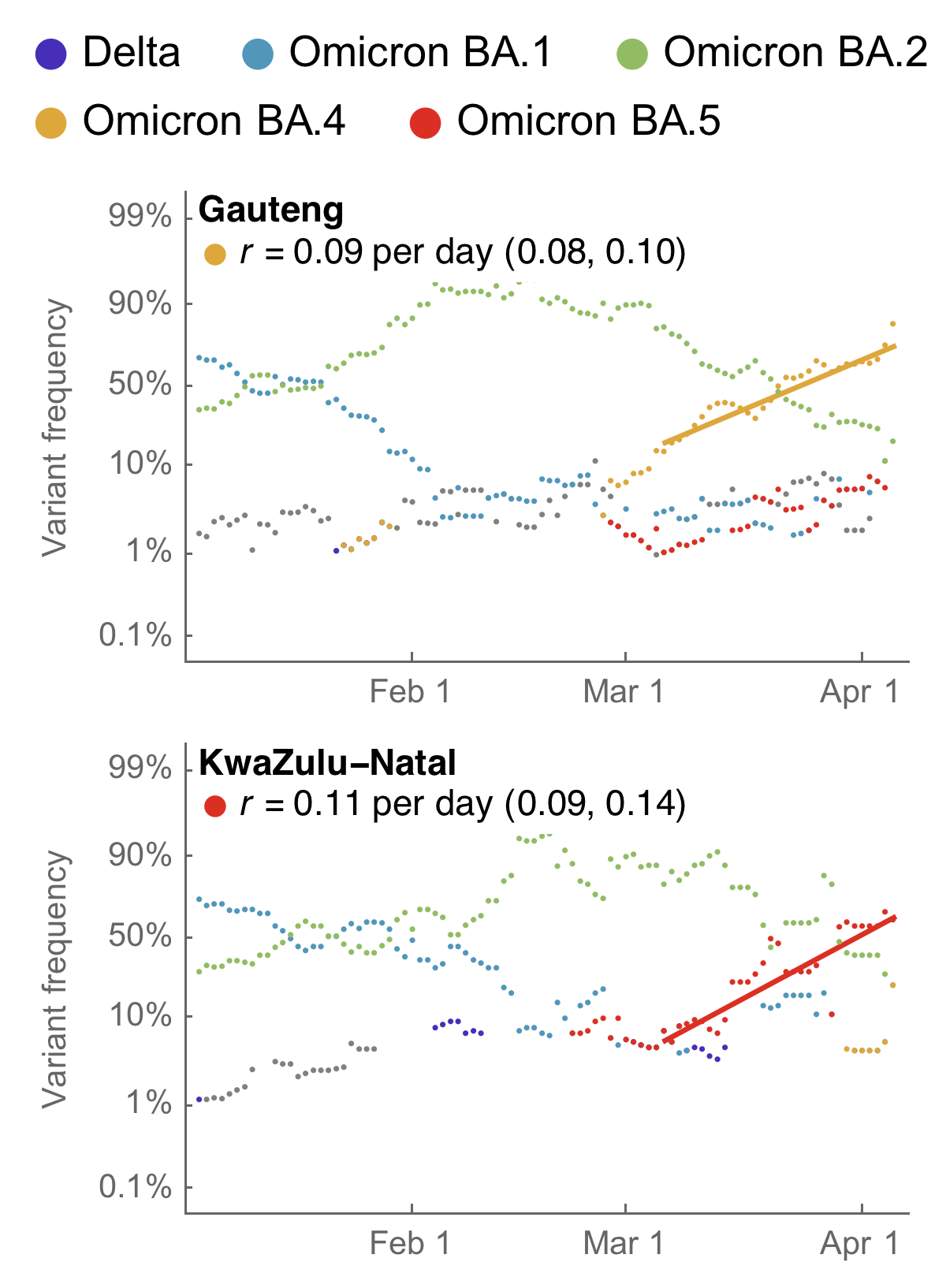

Variants show consistent frequency dynamics in logit space
Variants show consistent frequency dynamics in logit space
Multinomial logistic regression
Multinomial logistic regression models the probability of a virus sampled at time $t$ belonging to
variant $i$ as
$$\mathrm{Pr}(X = i) = x_i(t) = \frac{p_i \, \mathrm{exp}(f_i \, t)}{\sum_{1 \le j \le n} p_j \, \mathrm{exp}(f_j \, t) }$$
where the model has $2n$ parameters consisting of $p_i$ the frequency of variant $i$ at initial timepoint
and $f_i$ the growth rate or fitness of variant $i$ for $n$ variants.
The model is fit to minimize "log loss" of predicted variant vs observed variant across observations in
dataset.
Multinomial logistic regression fits variant frequencies well
Consistent fitness advantage of BA.5 across countries
Despite similar rates of displacement, BA.5 epidemics vary
Despite similar rates of displacement, BA.5 epidemics vary
These differences can be explained by consistent growth advantage of BA.5, but different baseline Rt across countries

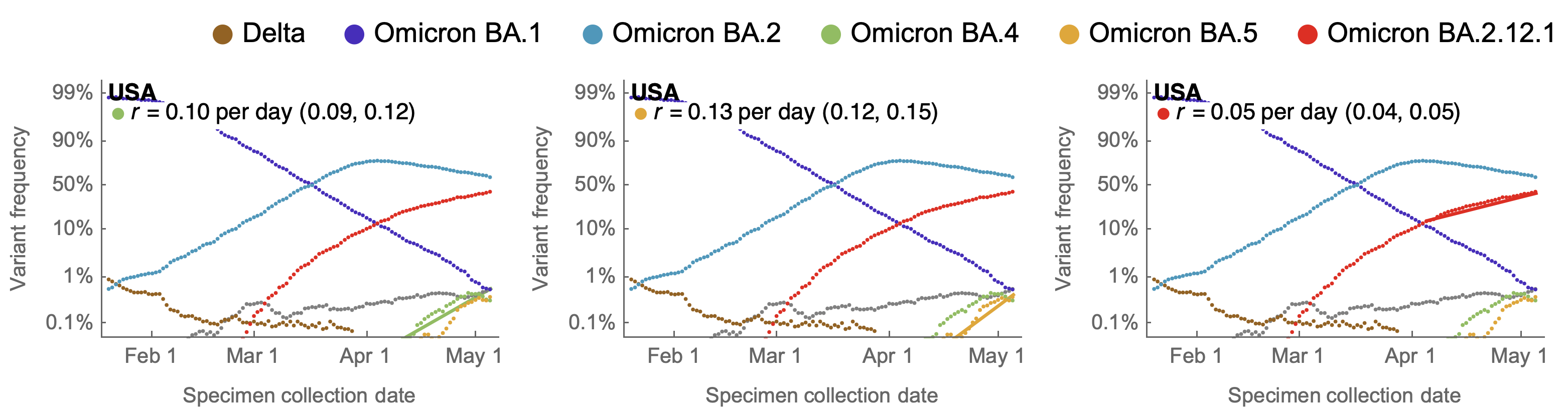

May 17: fitness advantage of BA.4/BA.5 clear even though rare
Multinomial logistic regression should work well for SARSCoV2 prediction, except emergence of new
variants limits prediction horizon
Over 350 Pango lineages designated in 2022
Emerging sublineages within BA.2.75 focusing on BA.2.75.2 and emerging lineages within BA.5
focusing on BA.5.3.1.1.1.1.1 ie BQ.1

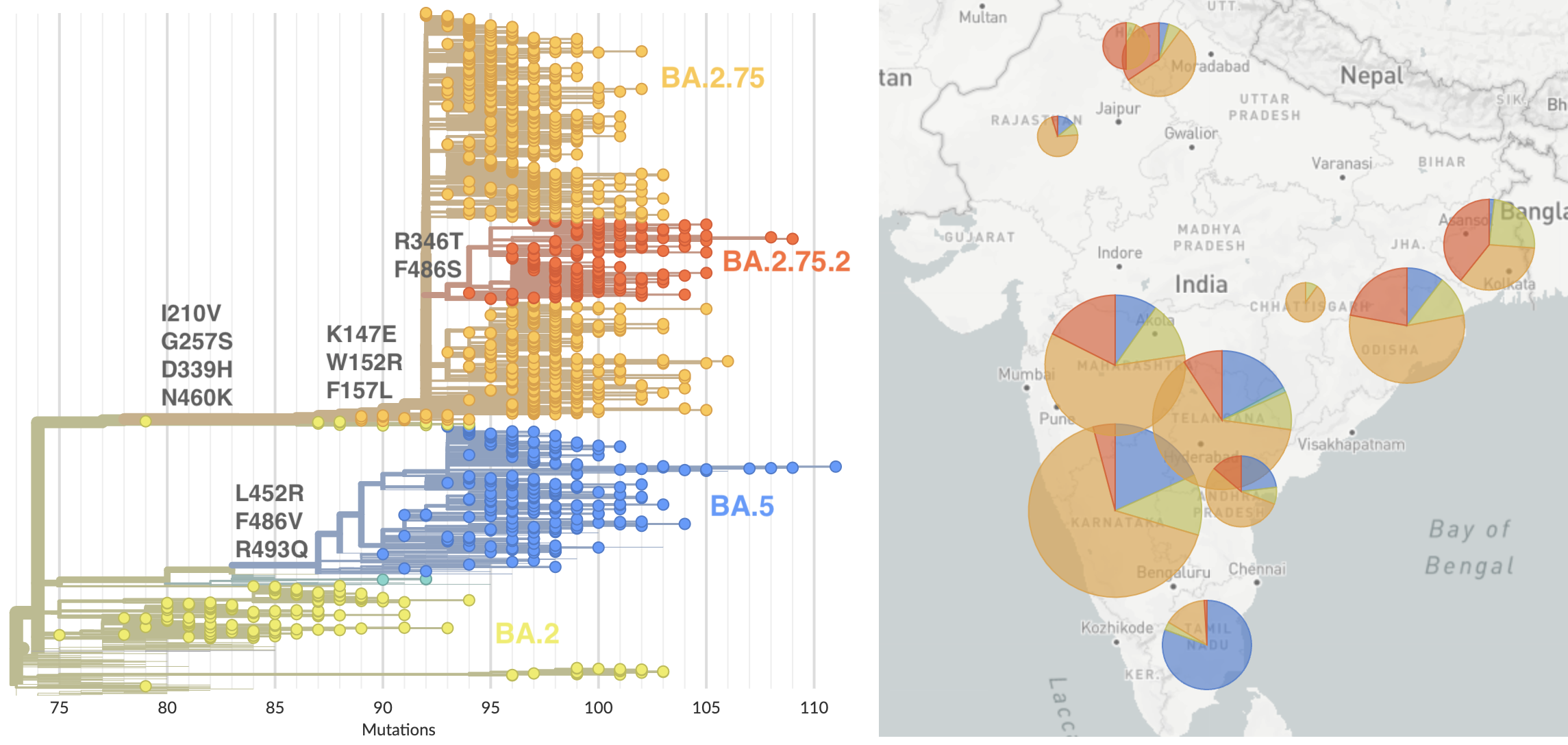

BA.2.75 and sublineage BA.2.75.2 emerging from India

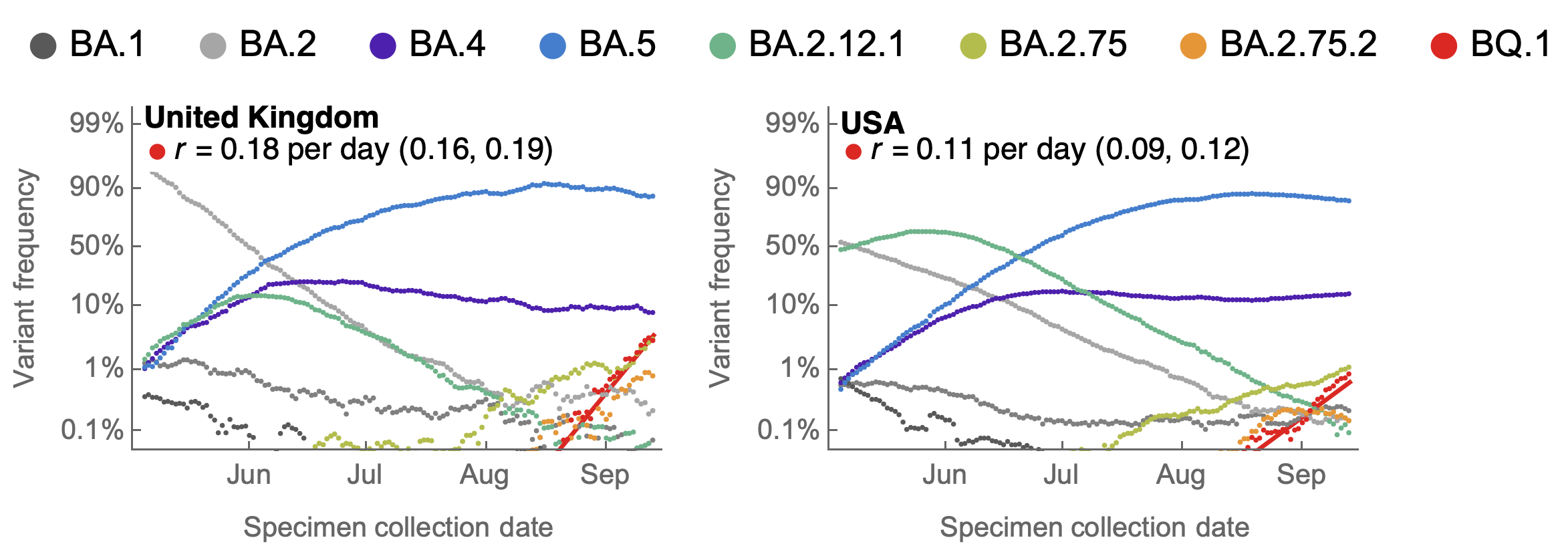

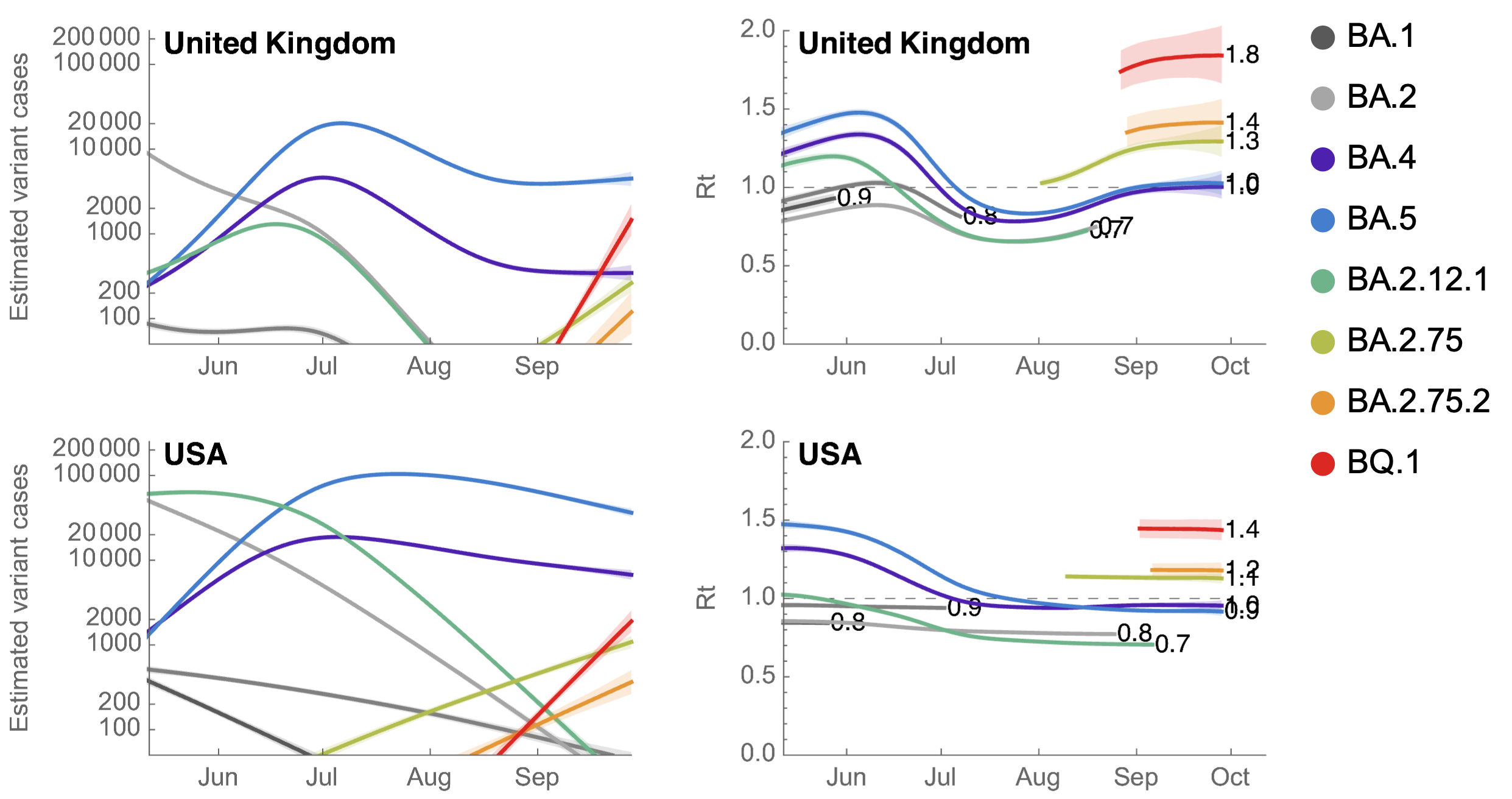

BA.2.75.2 and BQ.1 show selective advantage in UK and US
BA.2.75.2 has R346T and F486S on top of BA.2.75 and BQ.1 has K444T, N460K on top of BA.5

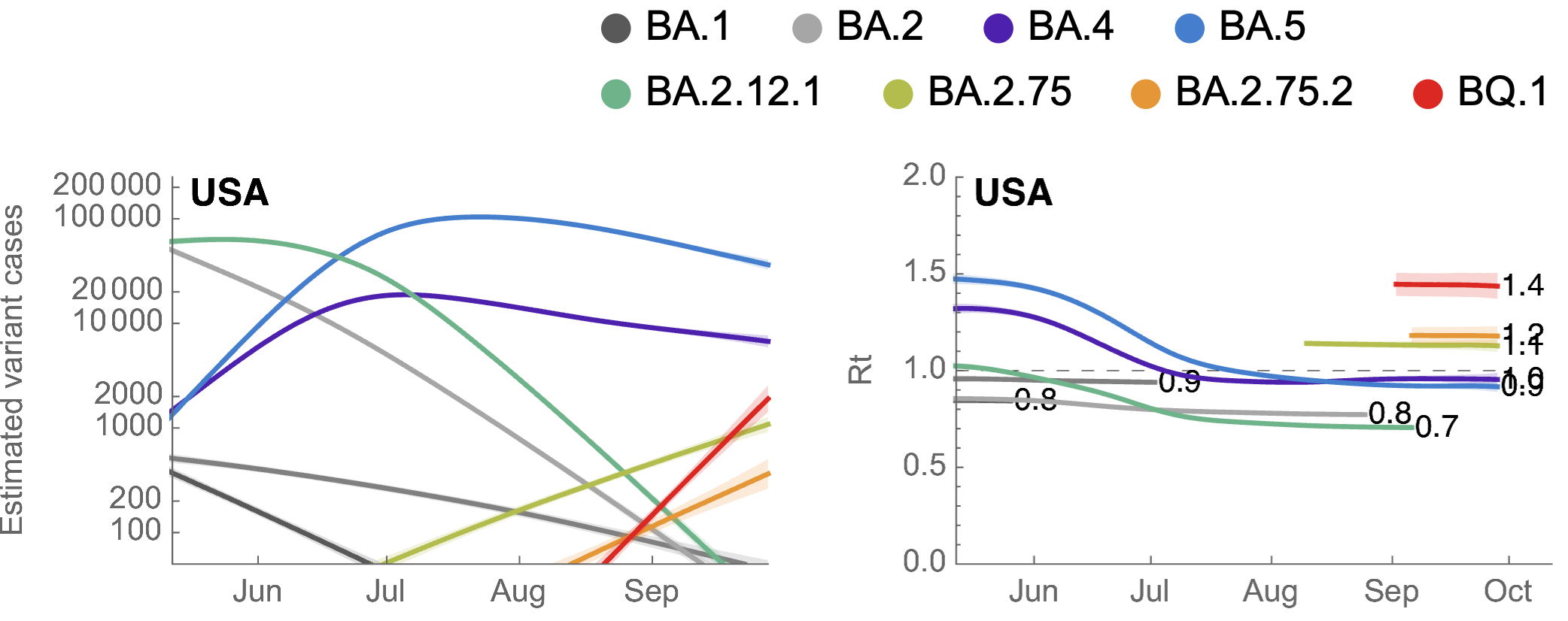

BQ.1 has Rt in the US of ~1.4, approaching that of BA.5 in May

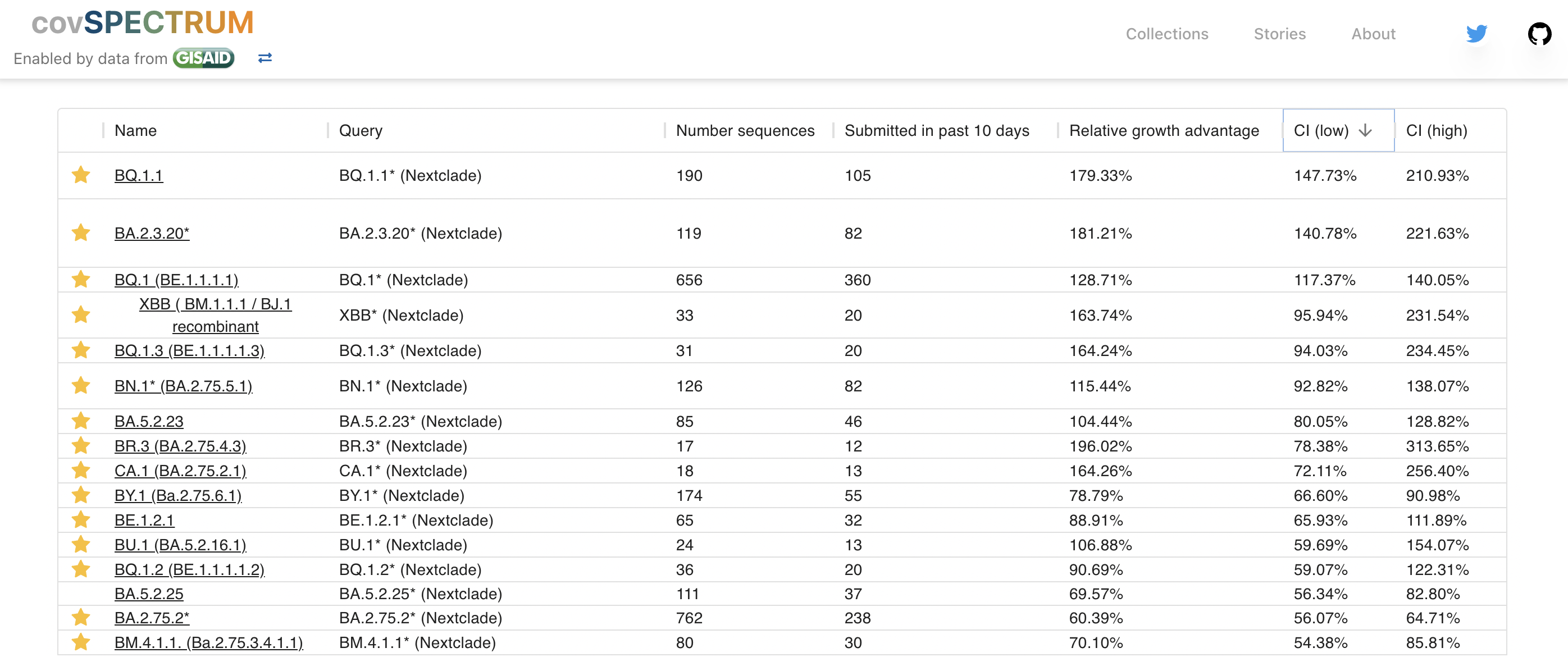

However, multiple low frequency Pango lineages that may compete with BA.2.75.2 and BQ.1
Seasonality and nearterm circulation
Seasonality clearly evidence in 20202021 winter epidemic

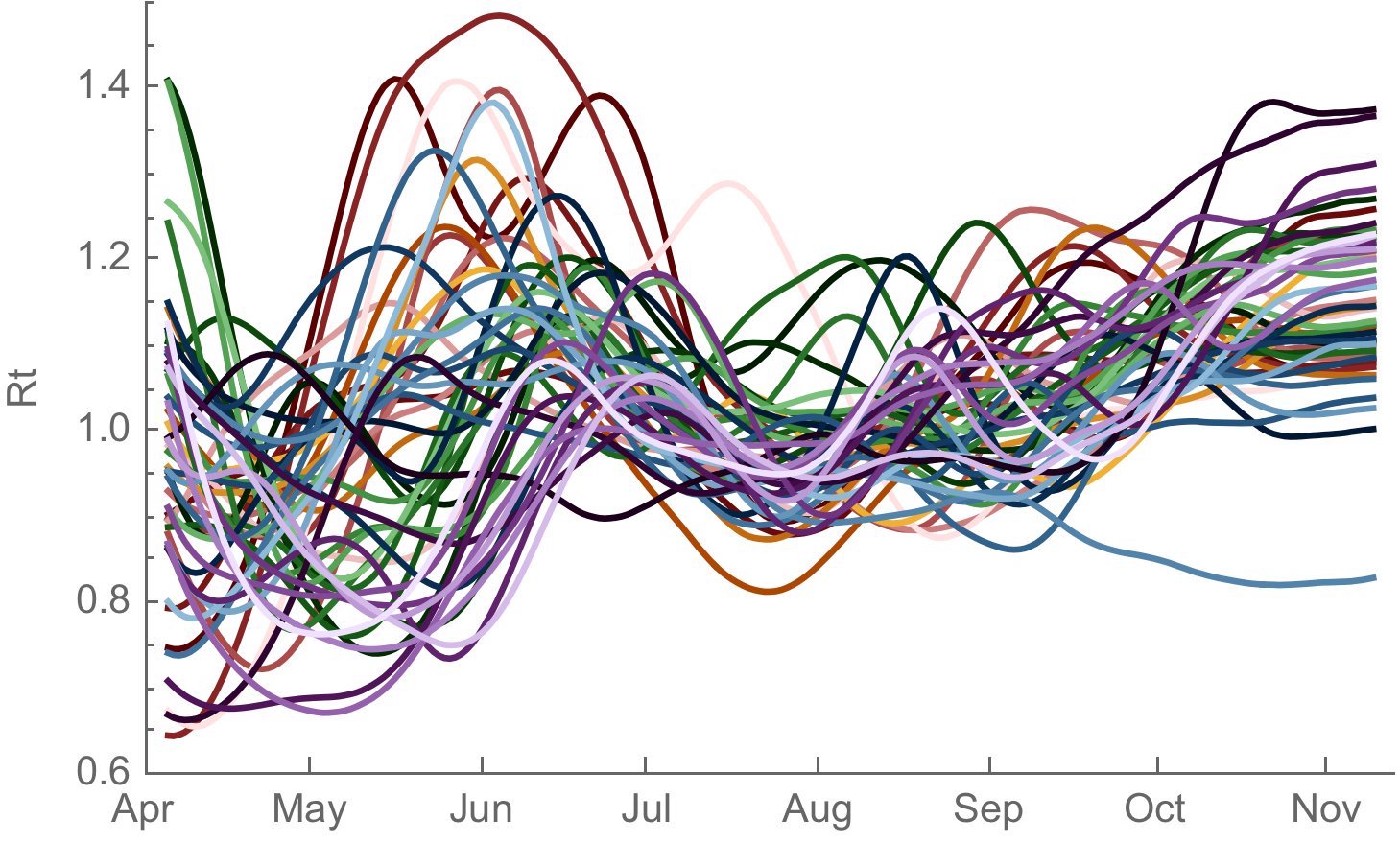

Rt analysis suggests a ~30% transmission advantage going from Aug 2020 to Nov 2020
Data from rt.live
Seasonality alone unlikely to drive BA.5 epidemic, but seasonality + novel variants will likely drive epidemics

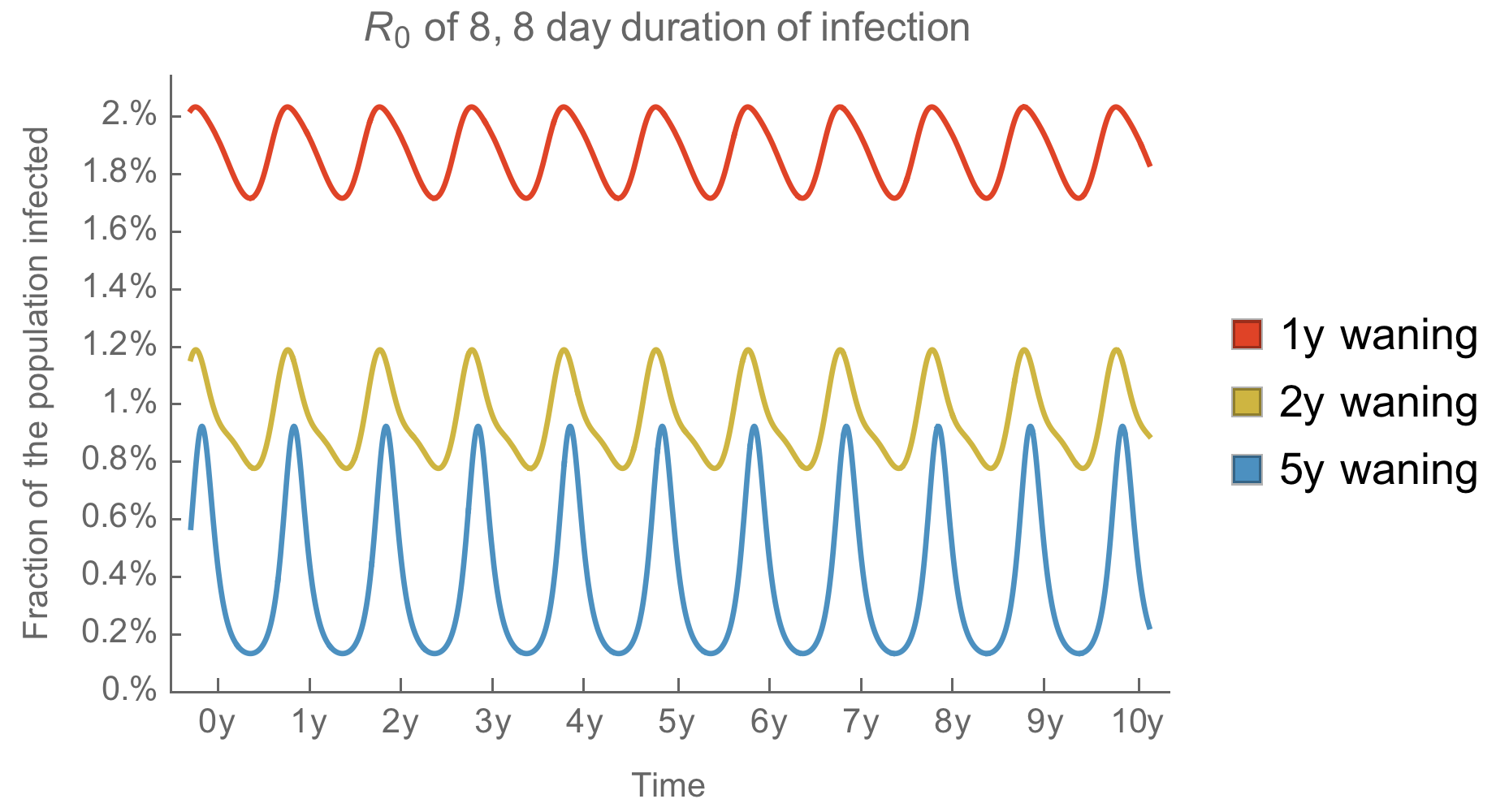

Generally, we expect faster antigenic drift to smooth summer vs winter circulation
Heading into fall, we very roughly have:

40% of the population with BA.2, BA.4, BA.5 in Mar 1 to Sep 15 (16.3M confirmed cases
and 8x underreporting)

40% of the population with BA.1 infection in Jan/Feb (24.1M confirmed cases and
5x underreporting)

20% of the population vaccinated, boosted or with preOmicron infection
Continued work on forecasting

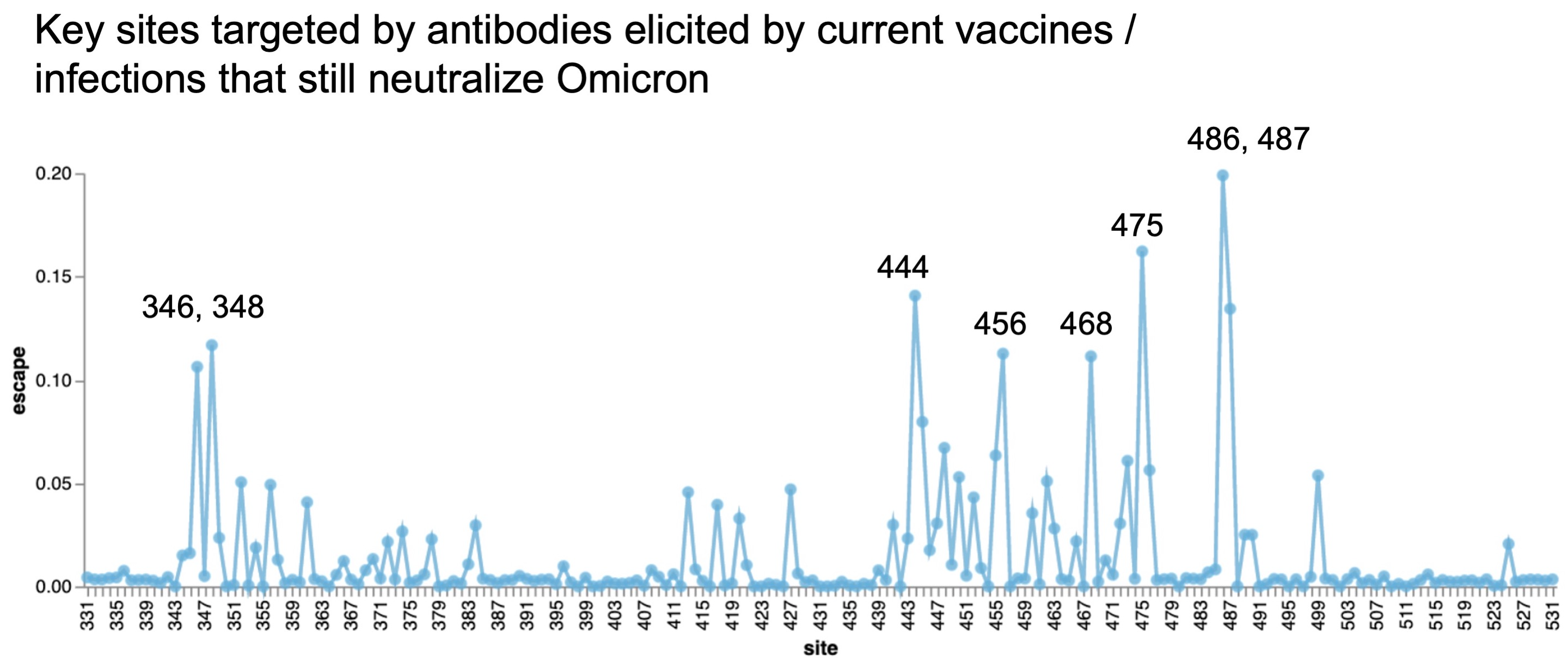

Could we predict the spread of new mutations using DMS data?
Perhaps this worked for 486V in BA.4/BA.5

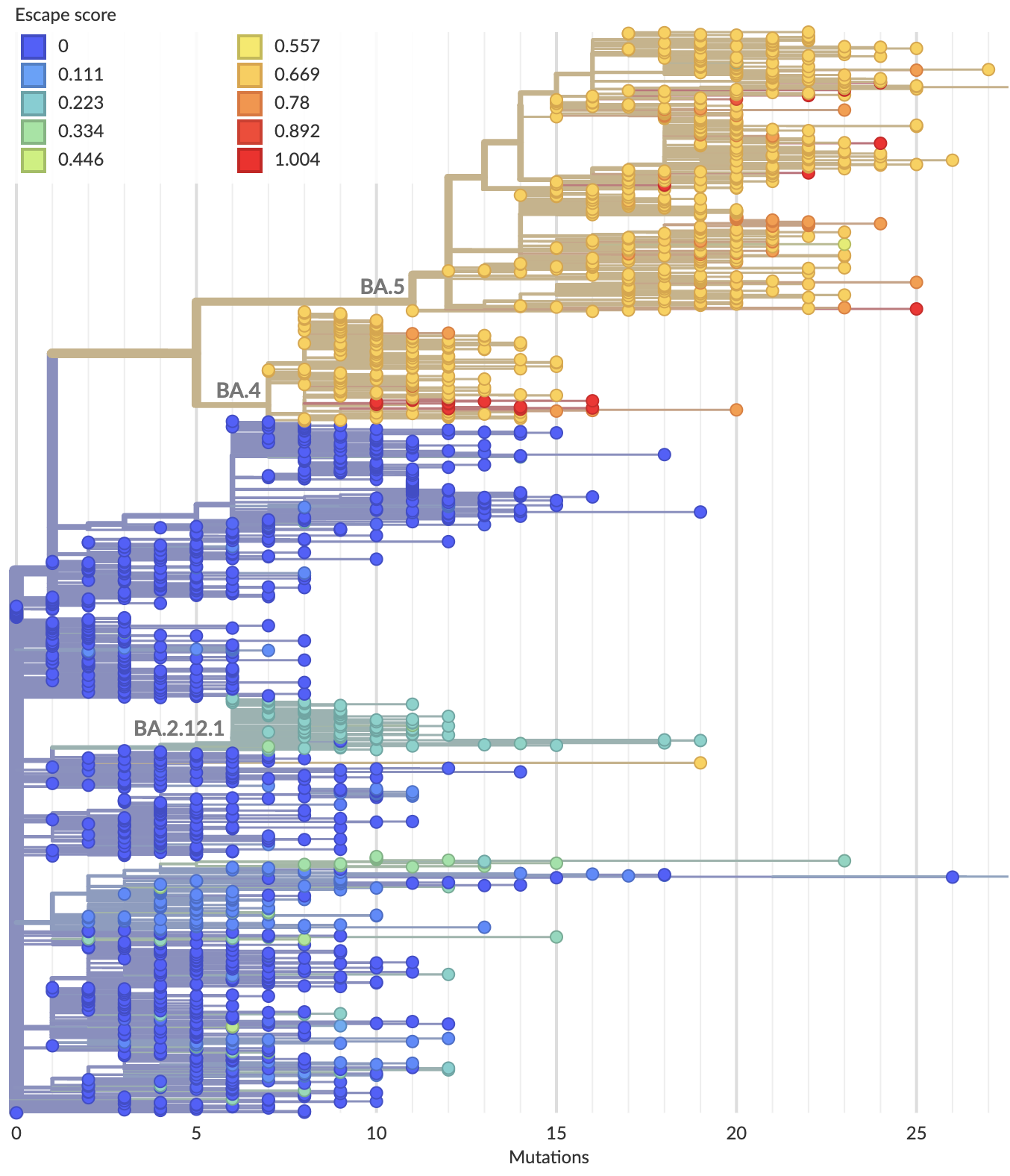

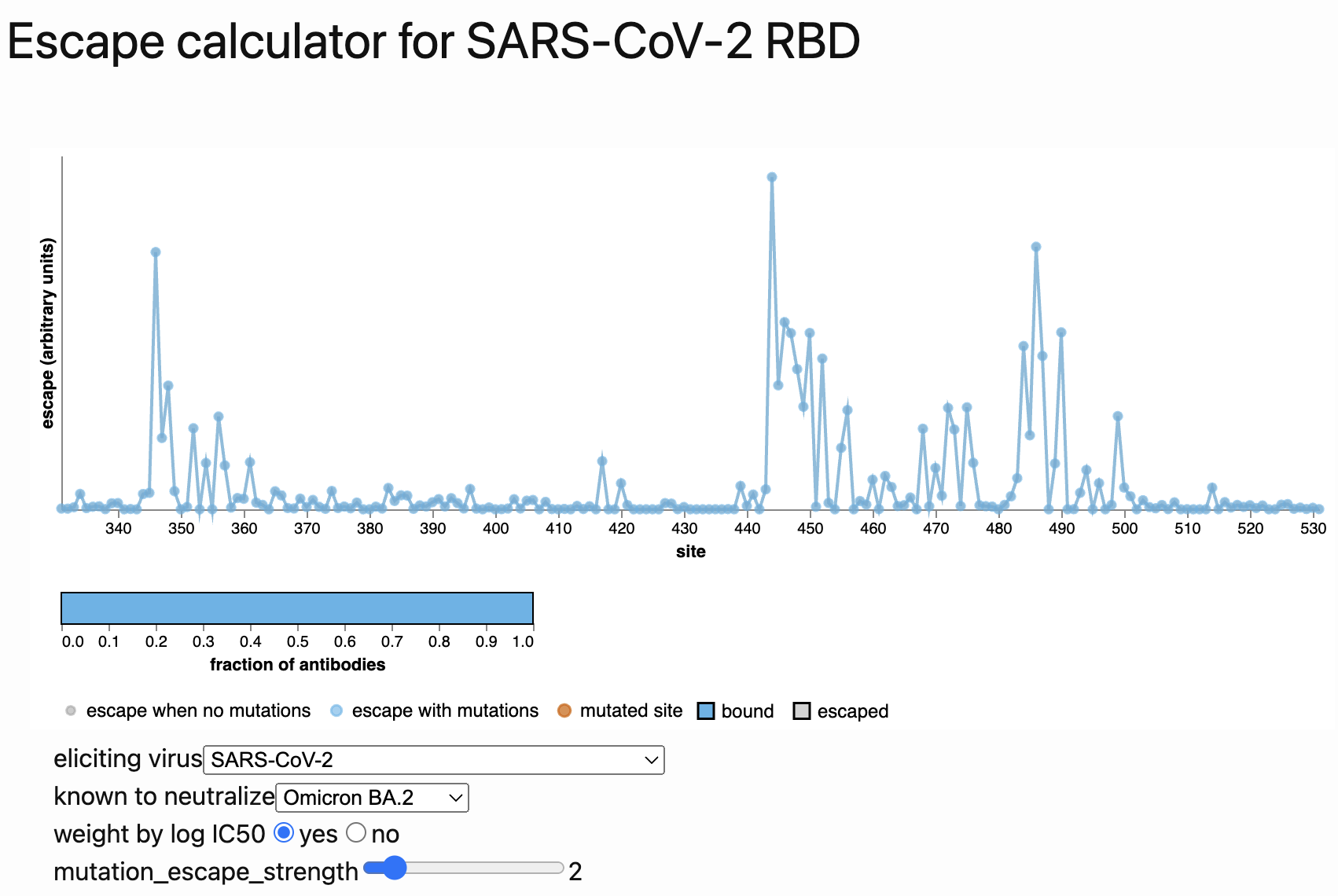

Now working from Jesse's calculator using panel of monoclonals known to neutralize BA.2

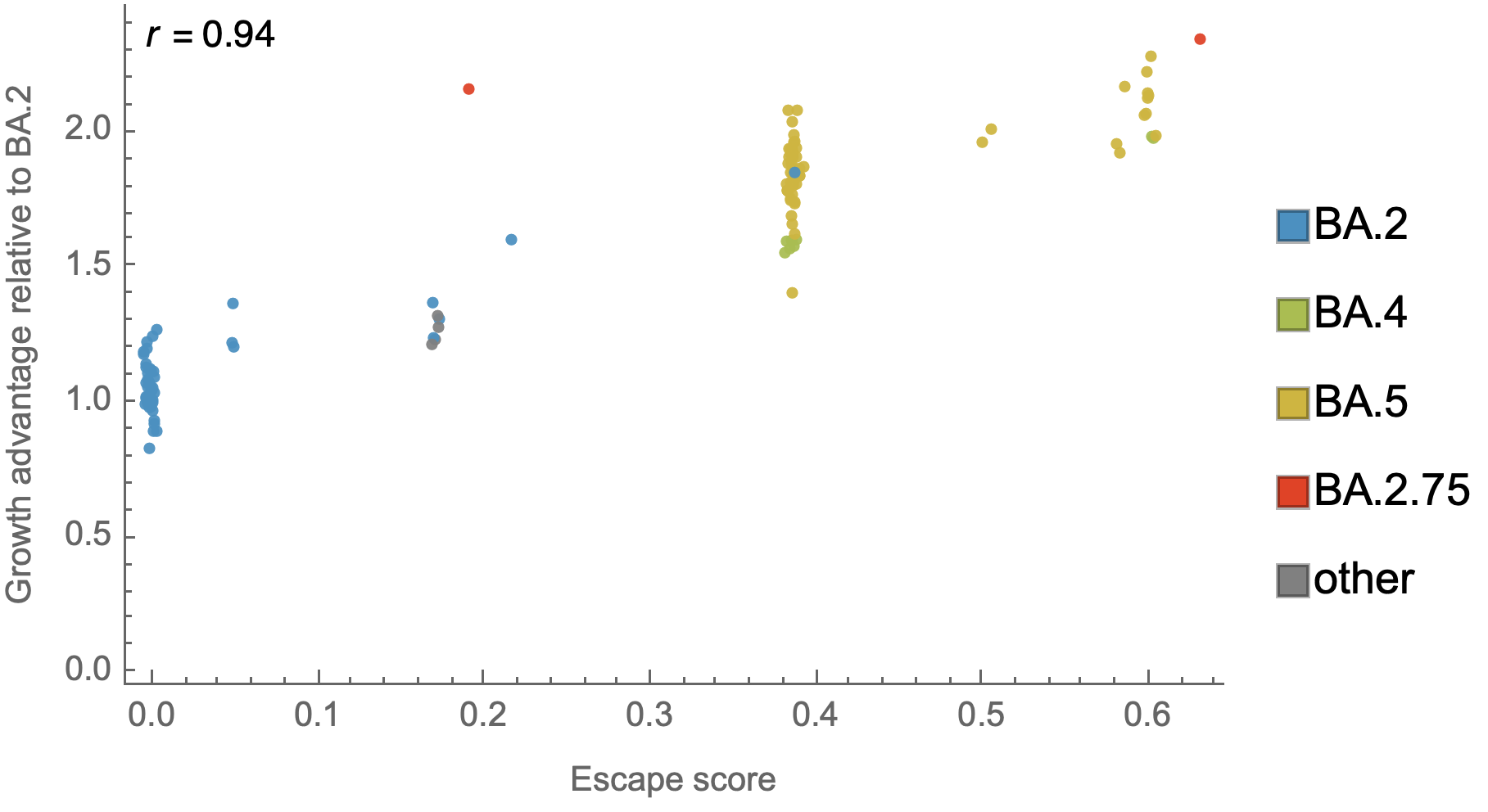

Proofofprinciple that we can use immune escape to predict lineage fitness
Acknowledgements
SARSCoV2 genomic epi: Data producers from all over the world, GISAID and the Nextstrain team
Bedford Lab:
John Huddleston,
James Hadfield,
Katie Kistler,
Maya Lewinsohn,
Thomas Sibley,
Jover Lee,
Cassia Wagner,
Miguel Paredes,
Nicola MÃ¼ller,
Marlin Figgins,
Denisse Sequeira,
Victor Lin,
Jennifer Chang,
Allison Li,
Eslam Abousamra,
Donna Modrell,
Nashwa Ahmed
