Evolutionary dynamics of SARS-CoV-2




Trevor Bedford (@trvrb)
Associate Professor, Fred Hutchinson Cancer Research Center
22 Mar 2021
Comp Bio Faculty Lunch
Fred Hutch

Slides at: bedford.io/talks

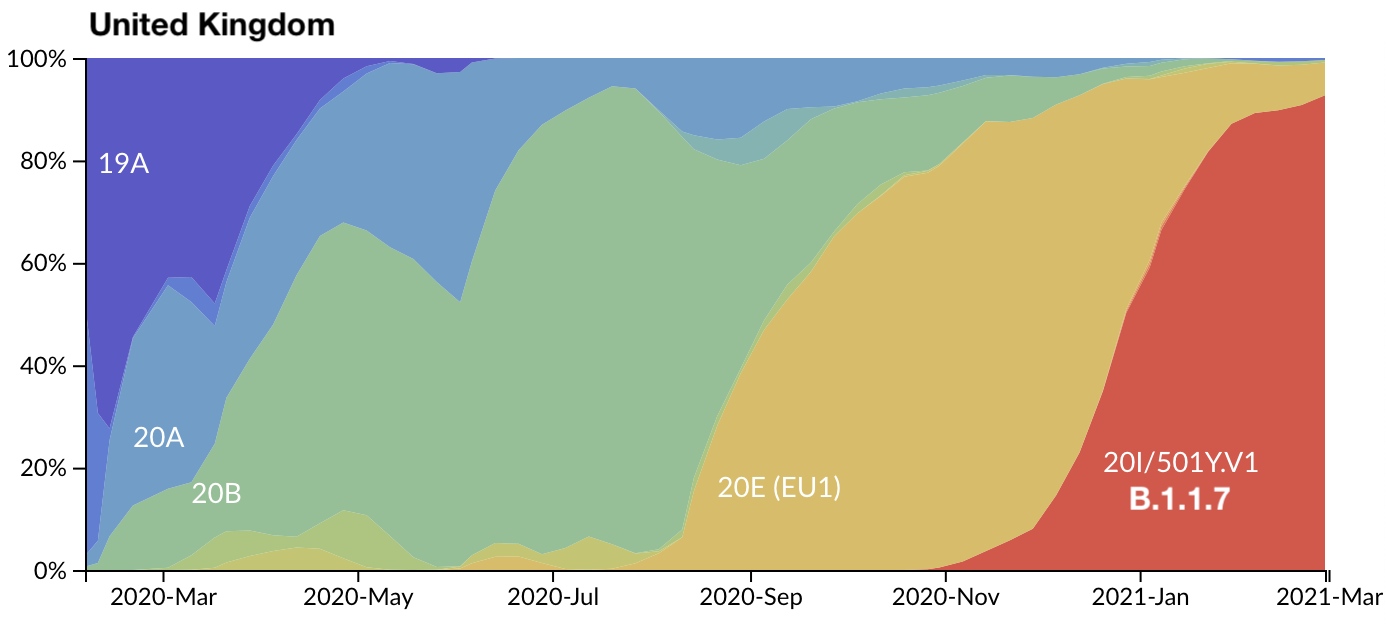

Rapid replacement of existing diversity by lineage B.1.1.7

1. Real-time tracking of SARS-CoV-2 evolution

2. Emergence of variants of concern

3. Current circulation patterns

4. Expectations for antigenic evolution

5. Scale of genomic surveillance required

Real-time tracking of SARS-CoV-2 evolution

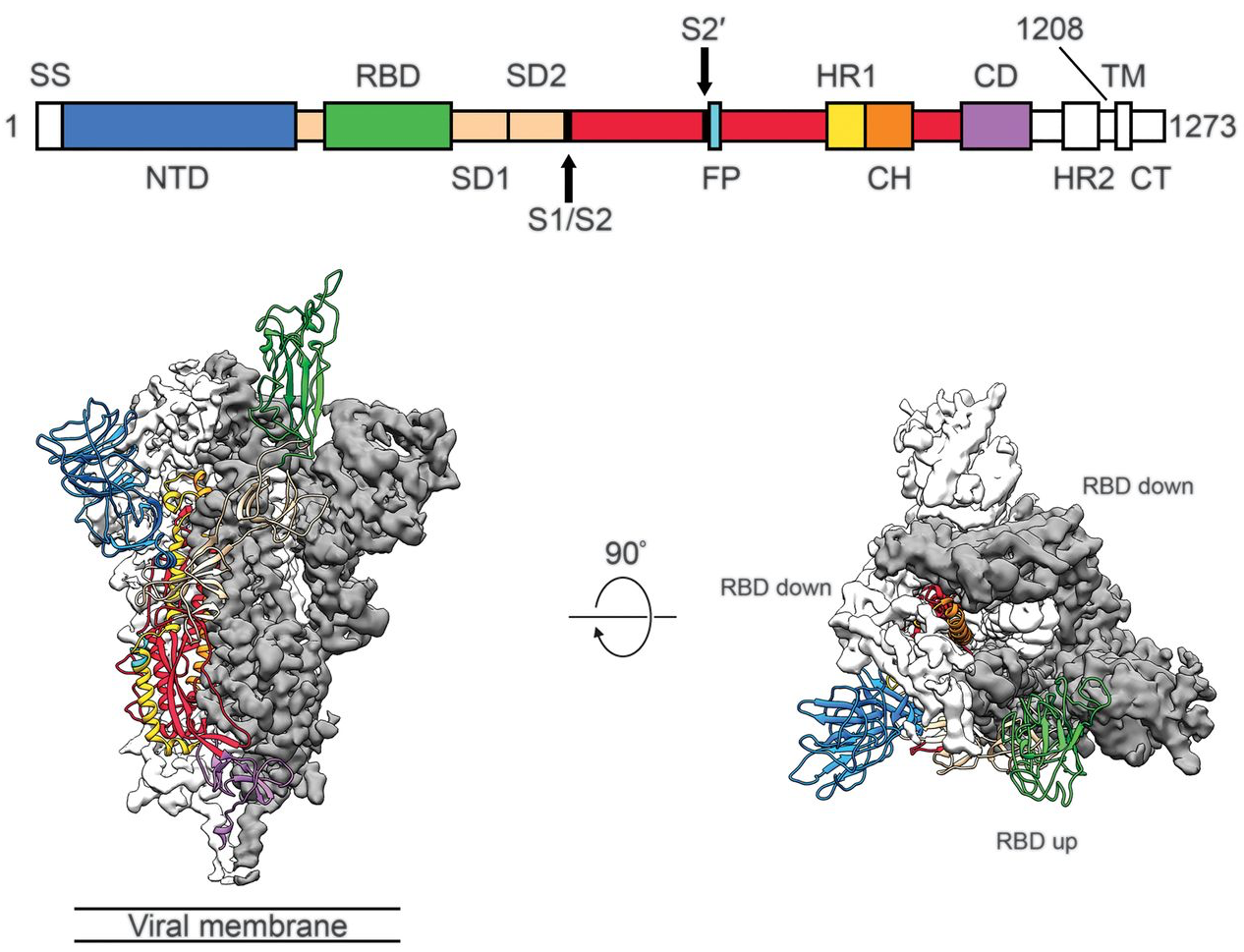

Spike protein is critical for cell invasion by the virus and is the primary target for human immune response

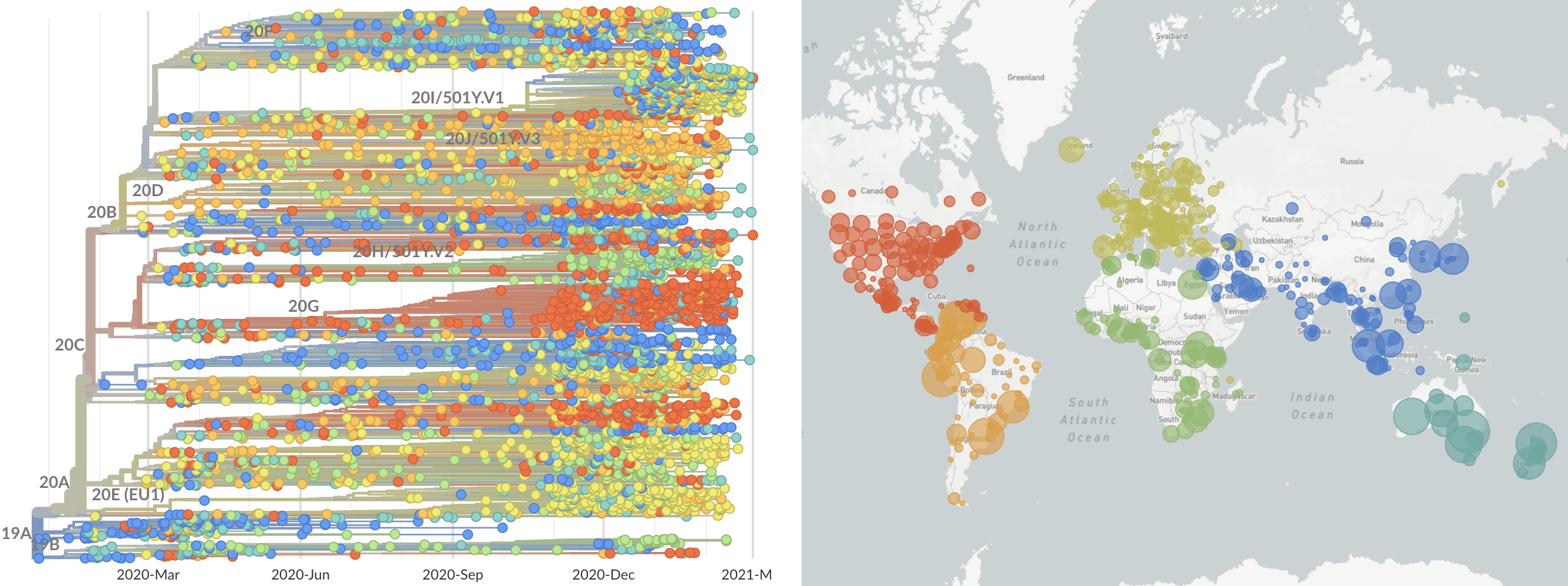

Over 800k SARS-CoV-2 genomes shared to GISAID and evolution tracked in real-time at nextstrain.org

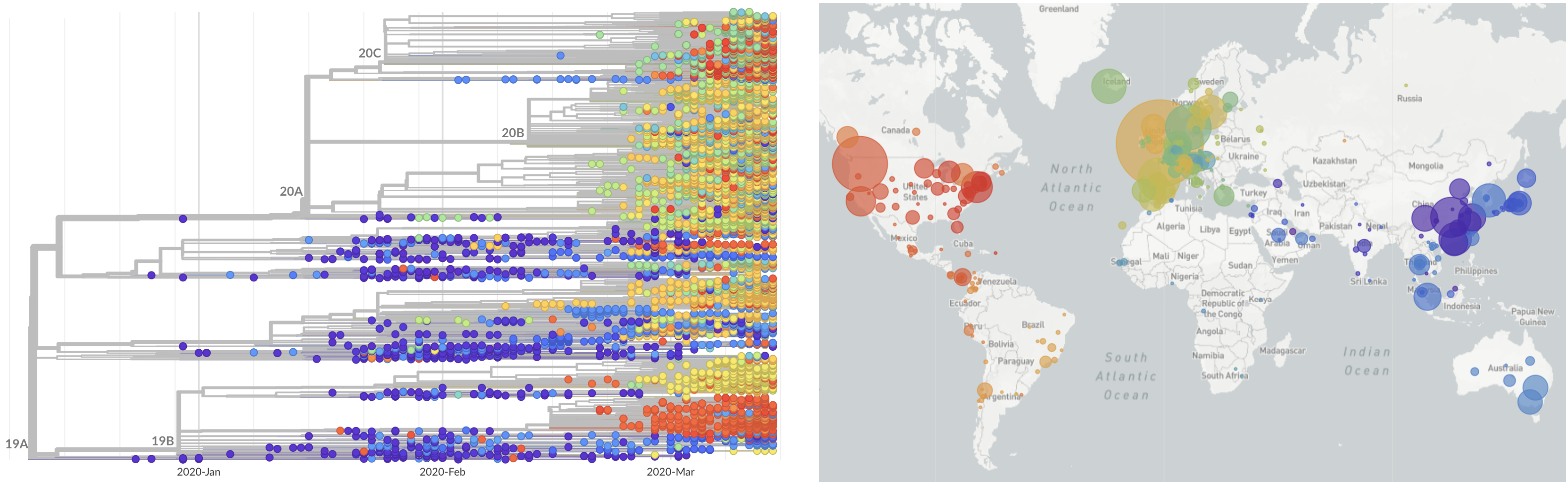

SARS-CoV-2 lineages establish globally in February and March

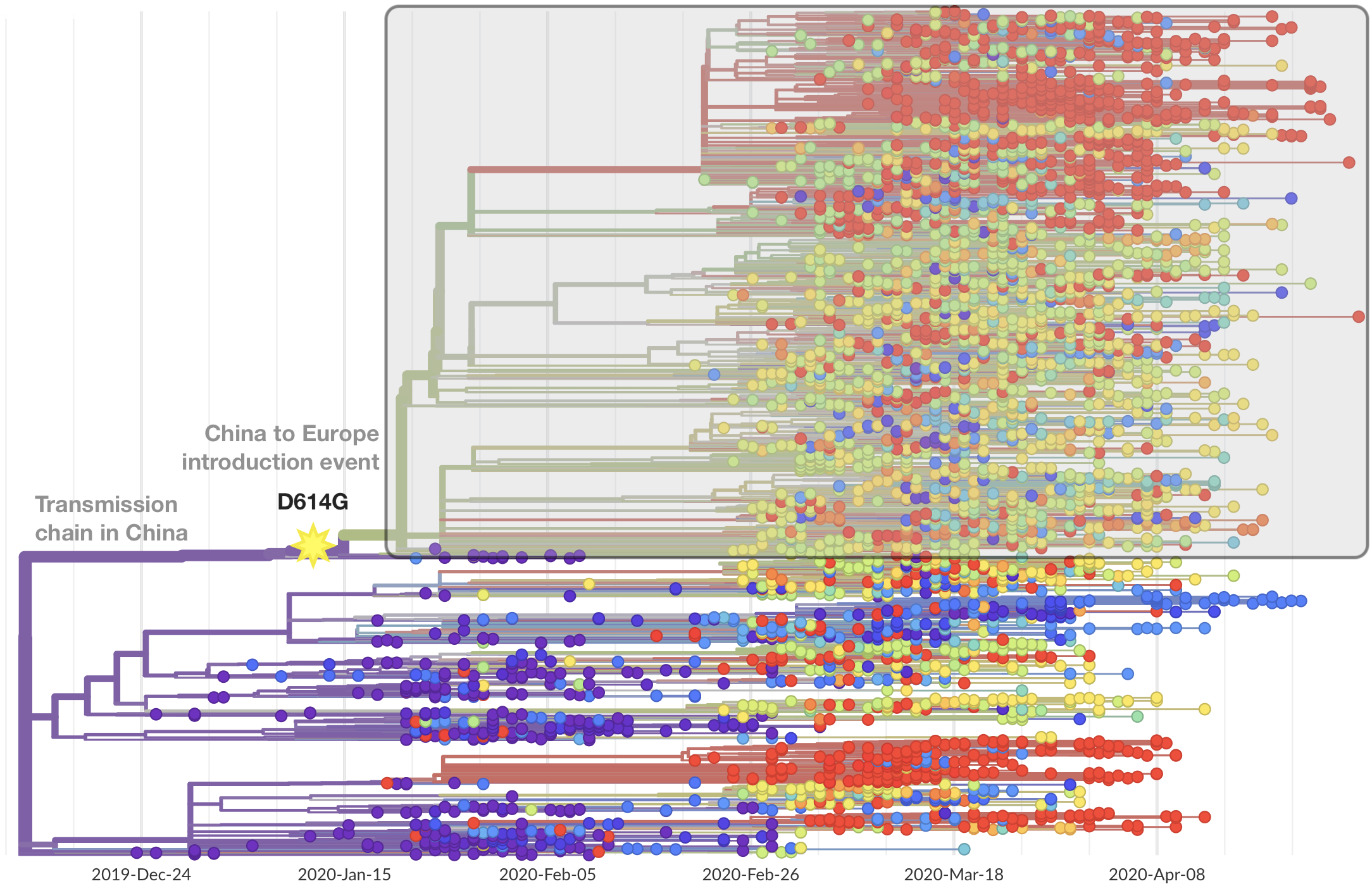

Limited early mutations like D614G spread globally during initial wave

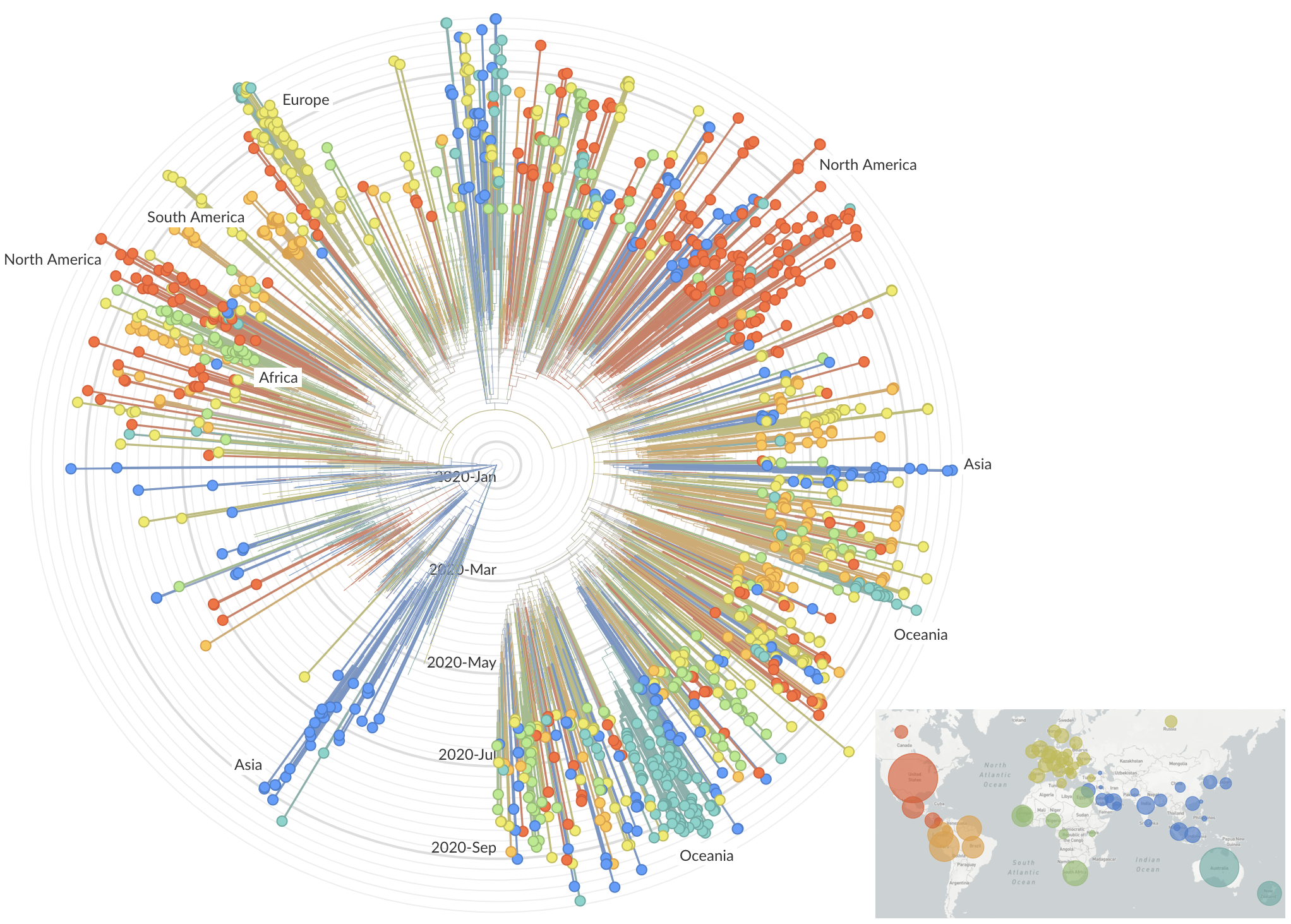

After initial wave, with mitigation
efforts and decreased travel,
regional clades emerge

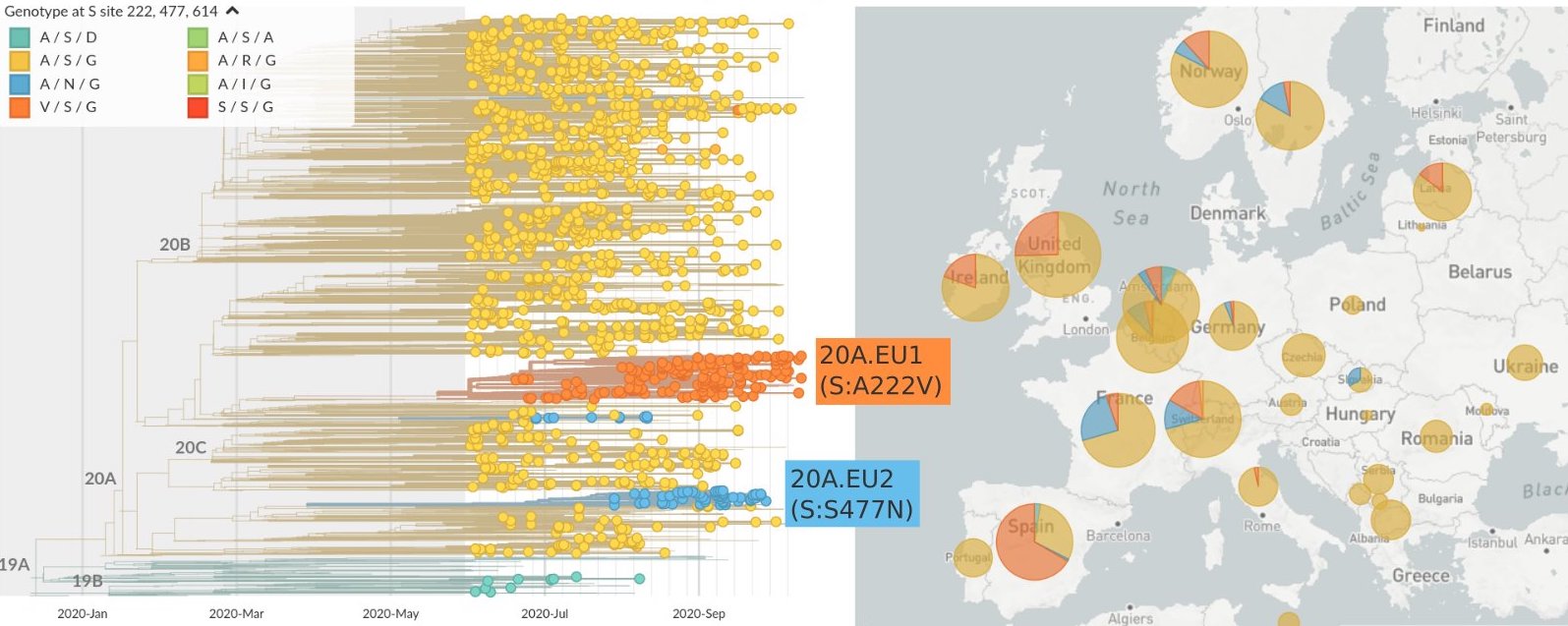

Summer and fall mutations were confined to regional dominance

Emergence of variants of concern

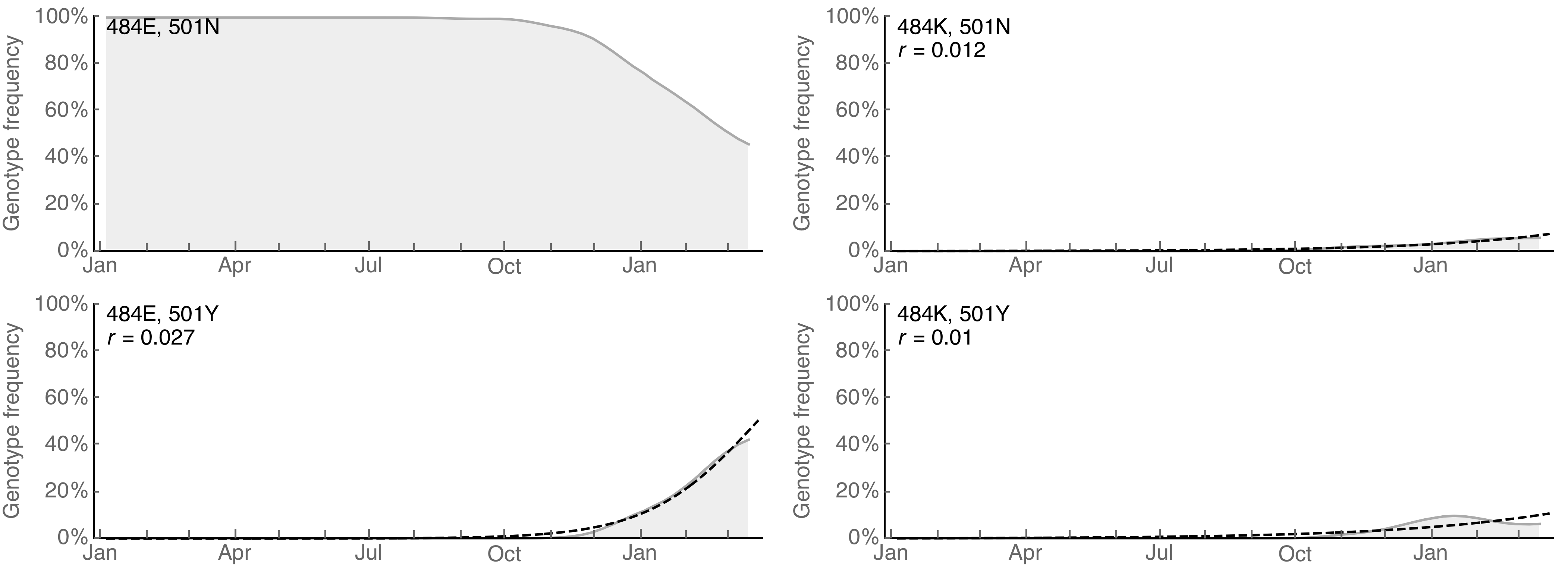

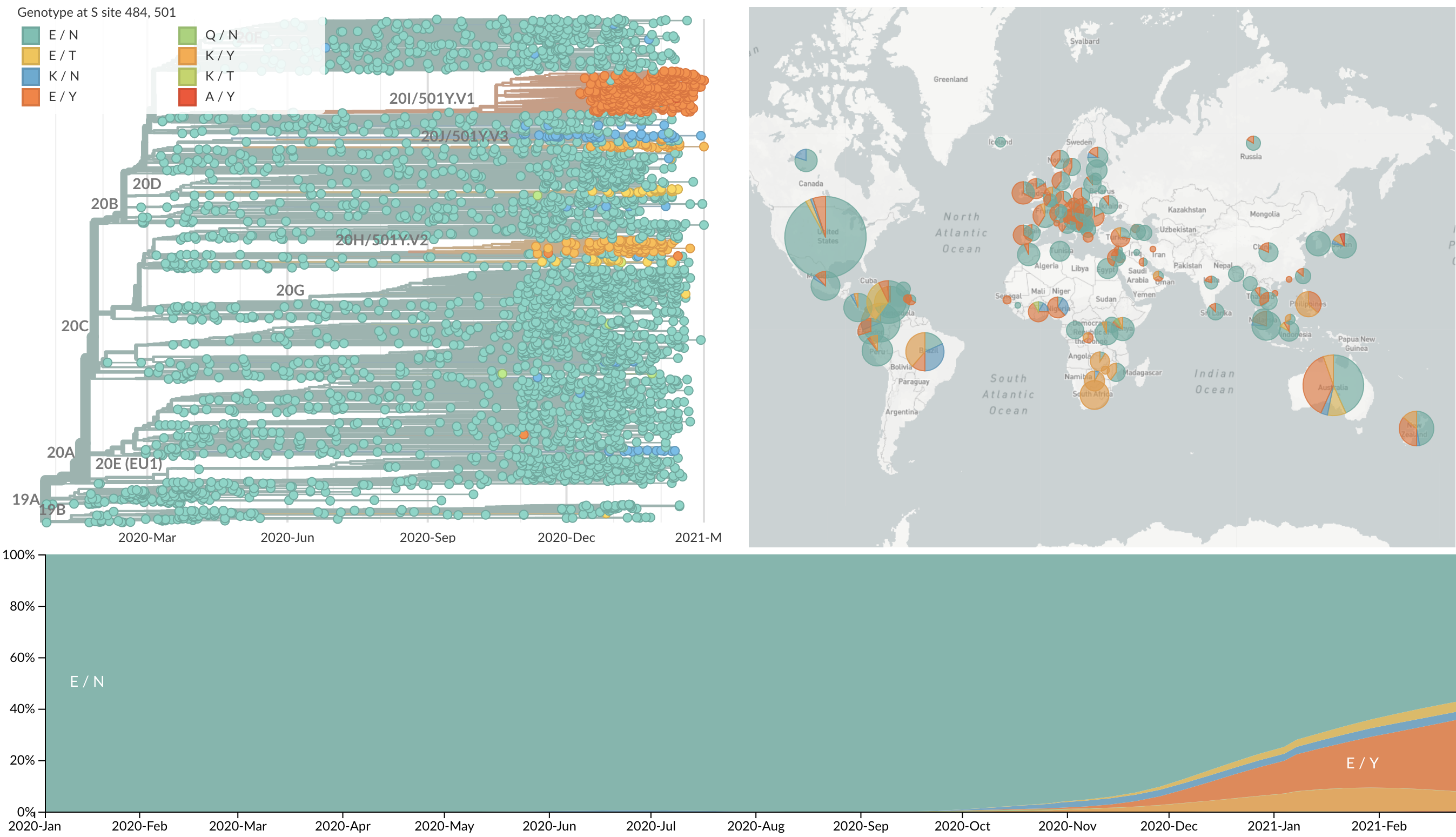

484K and 501Y repeatedly emerging across the world

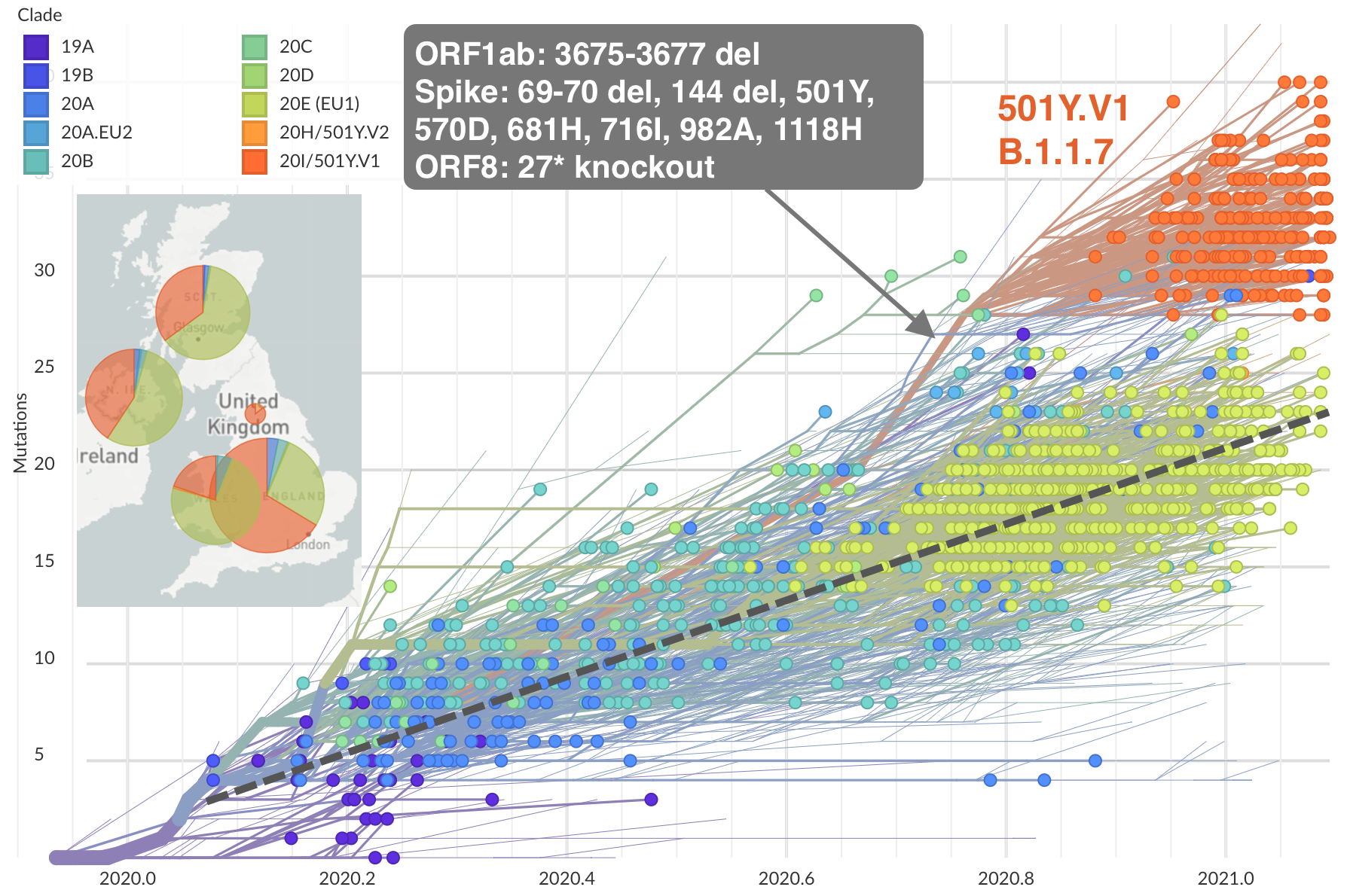

Emergence of 501Y.V1 (B.1.1.7) in the UK

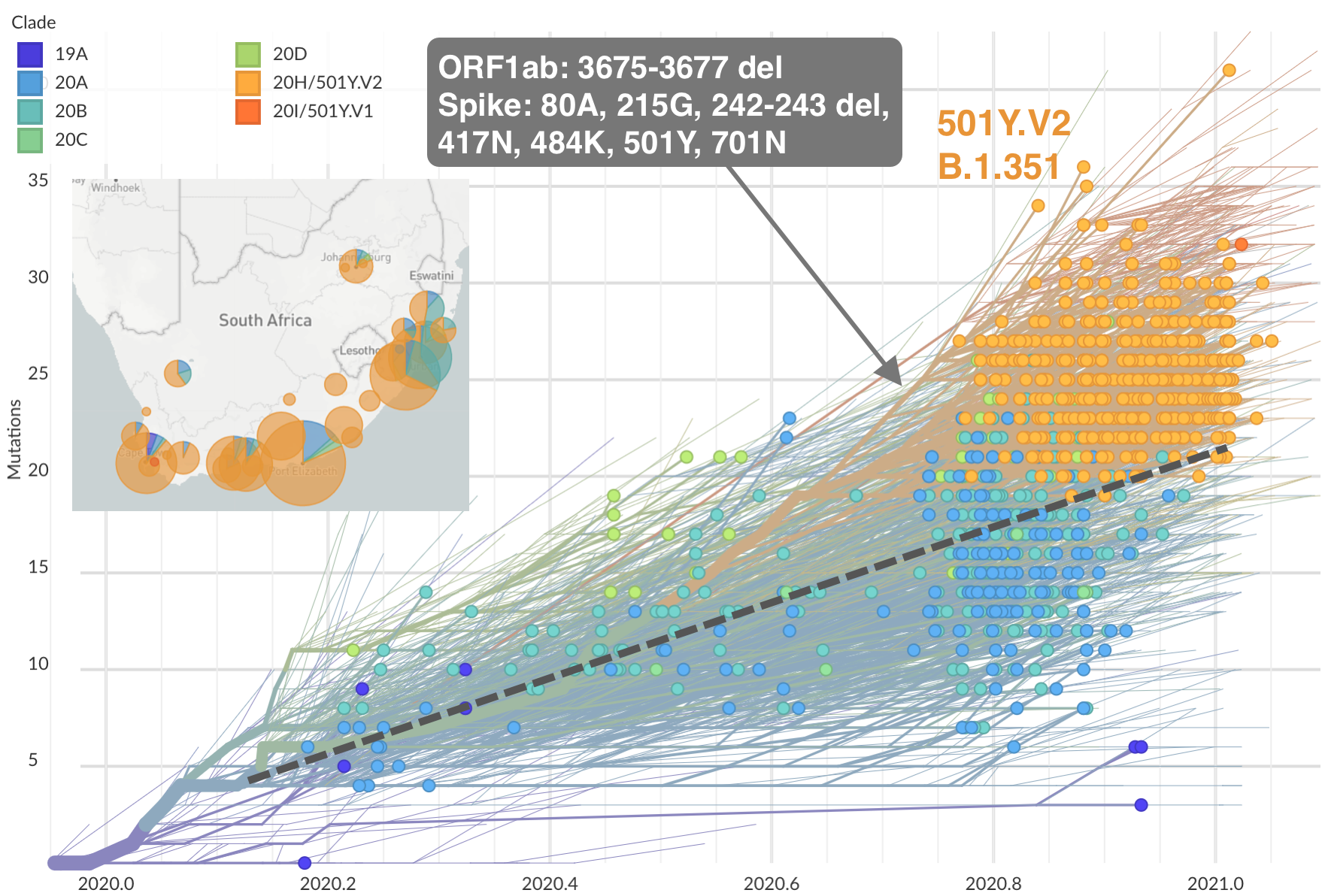

Emergence of 501Y.V2 (B.1.351) in the South Africa

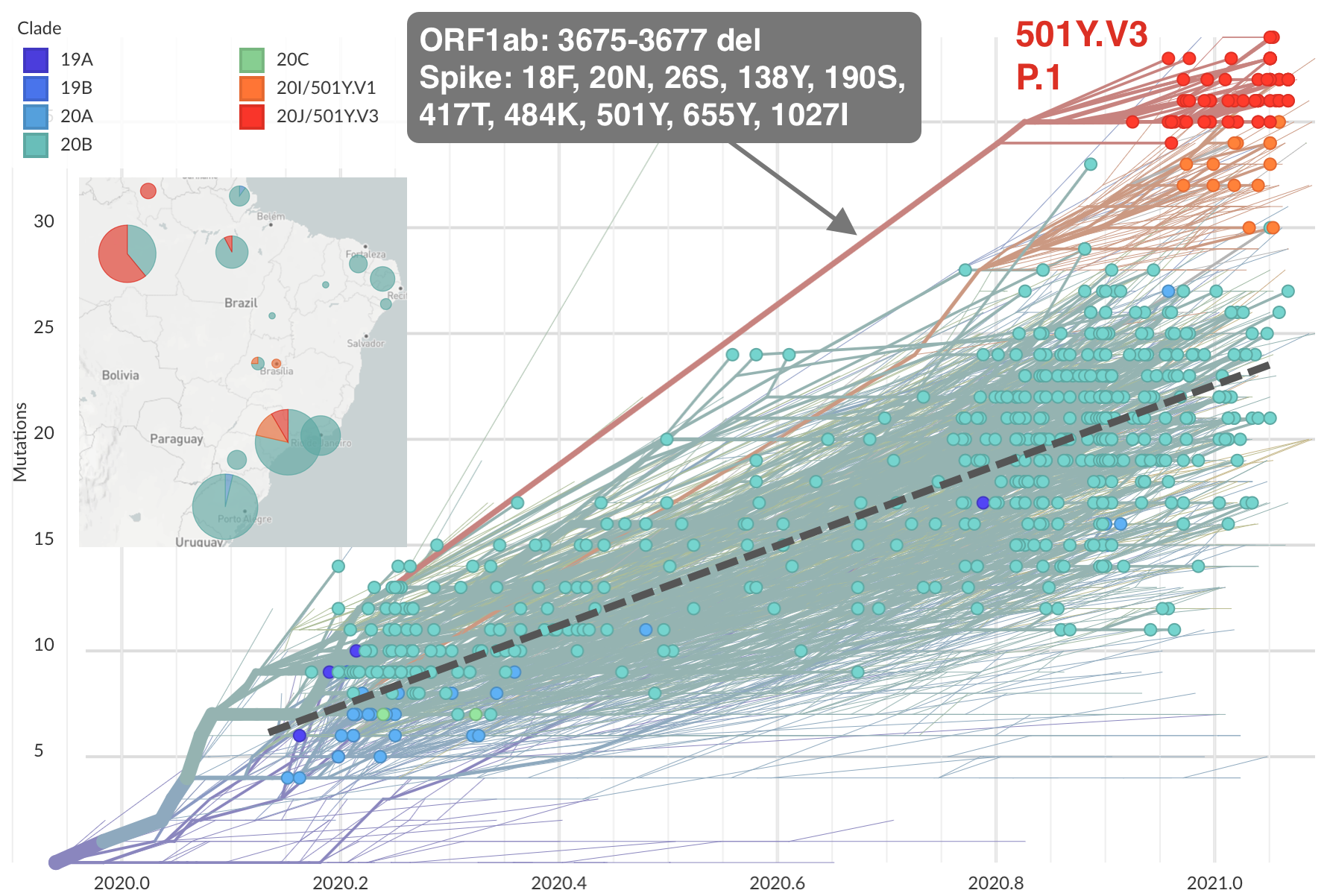

Emergence of 501Y.V3 (P.1) in the Brazil

Working hypothesis of within-host evolution occurring during prolonged infection, driven by natural selection for immune escape.

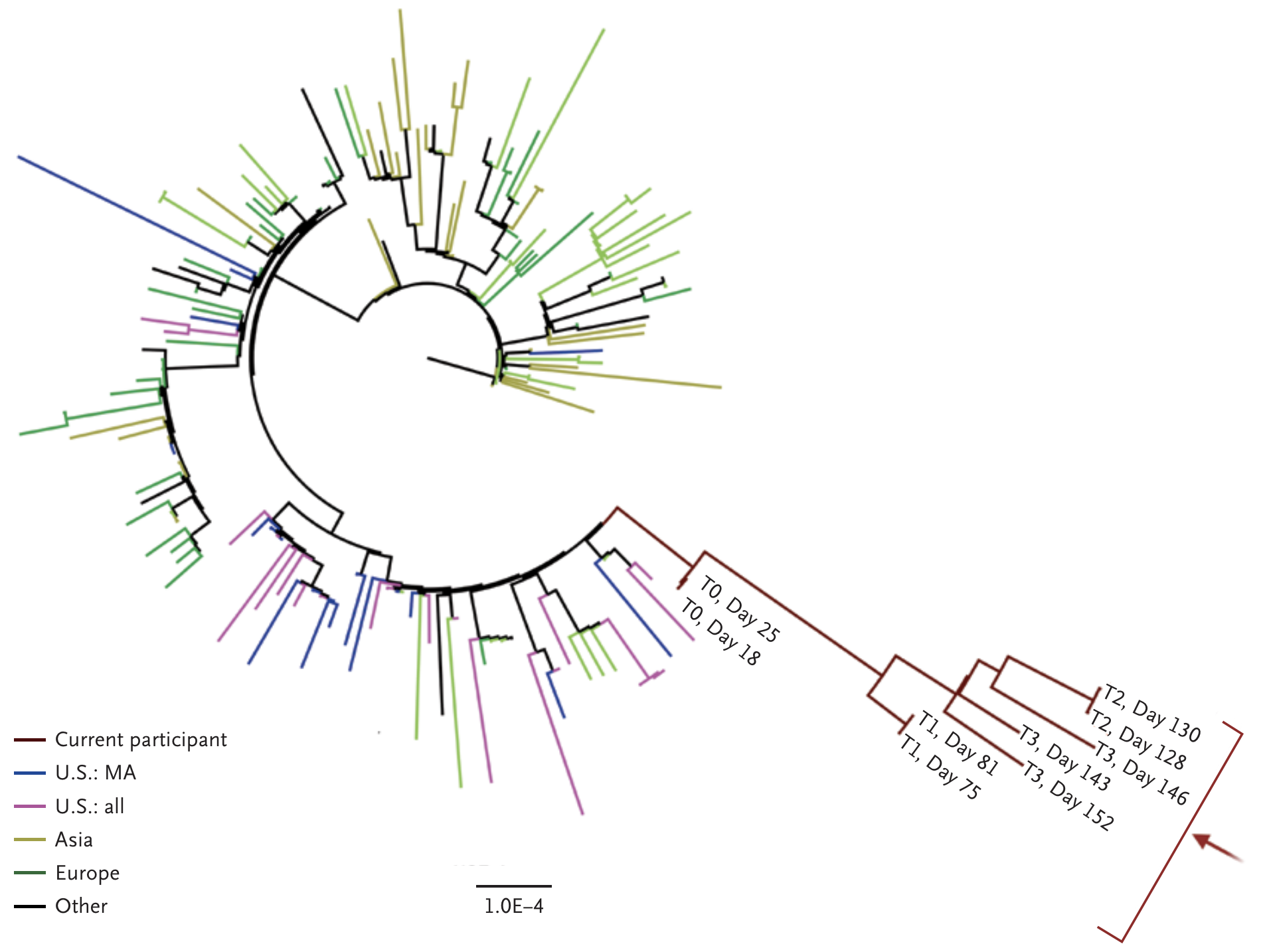

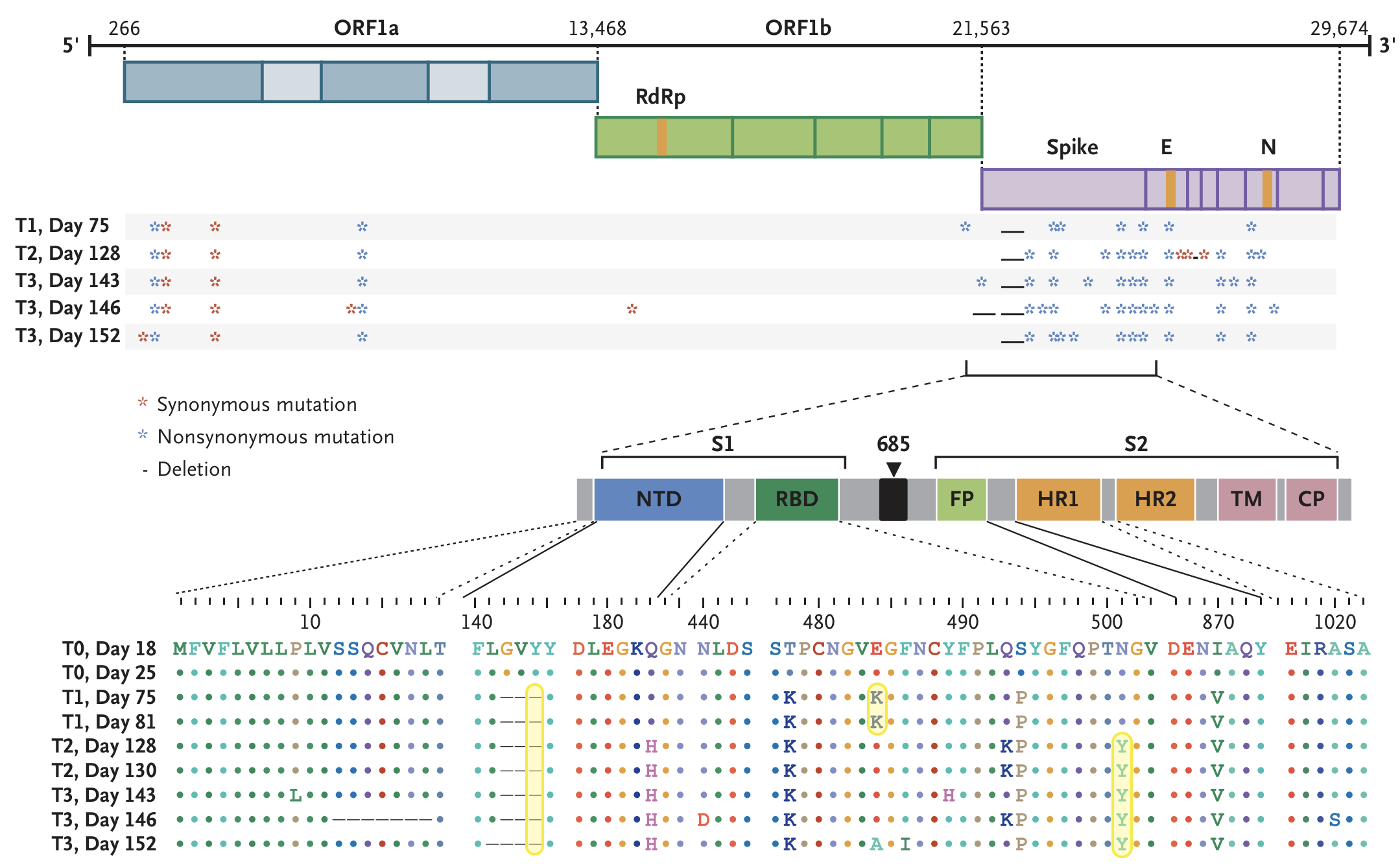

Rapid within-host evolution during persistent infection

484K and 501Y observed during this evolution

Current circulation patterns

VOCs are growing in frequency with B.1.1.7 leading the curve

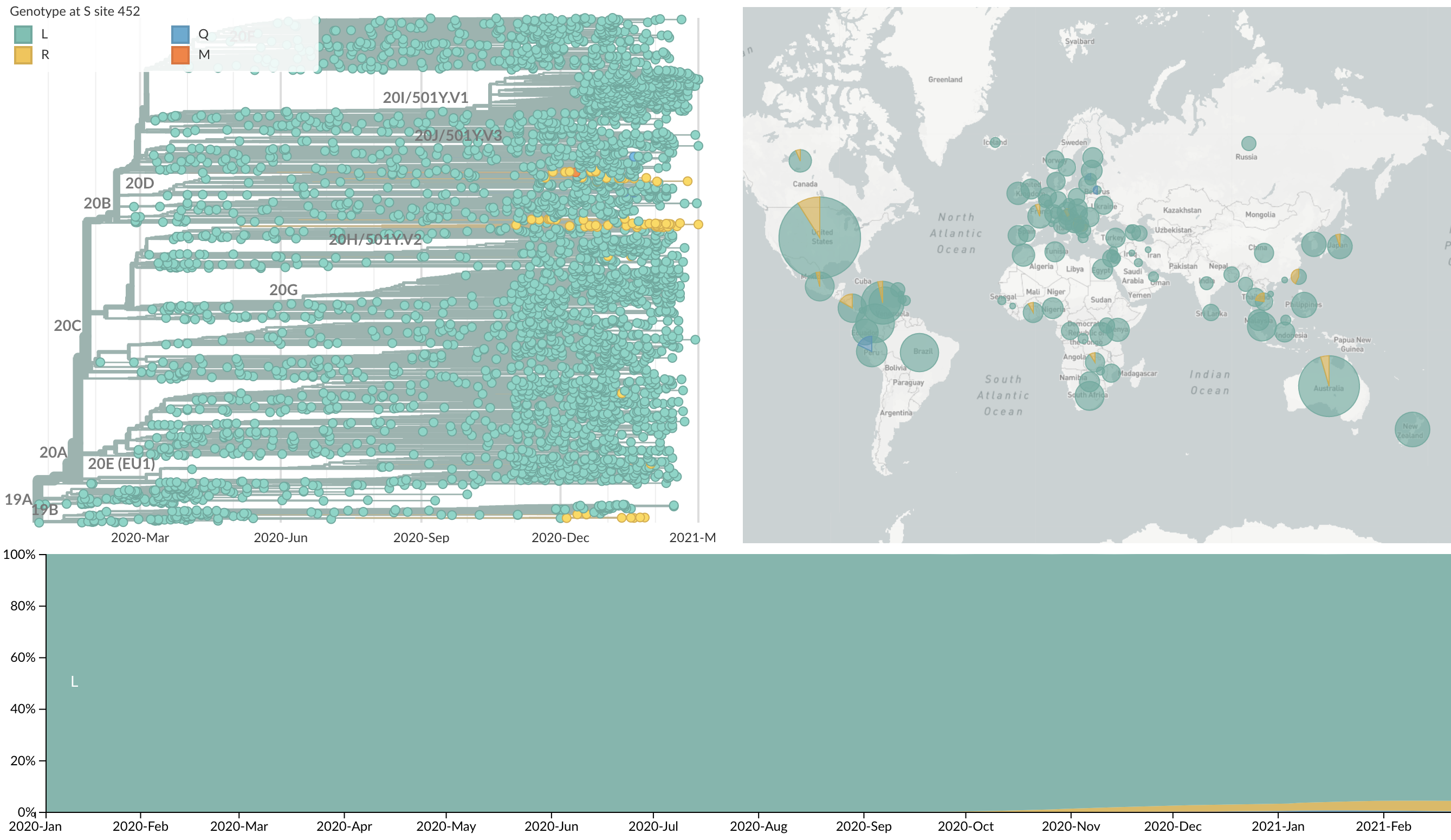

Repeated convergent evolution across sites in spike (452R)

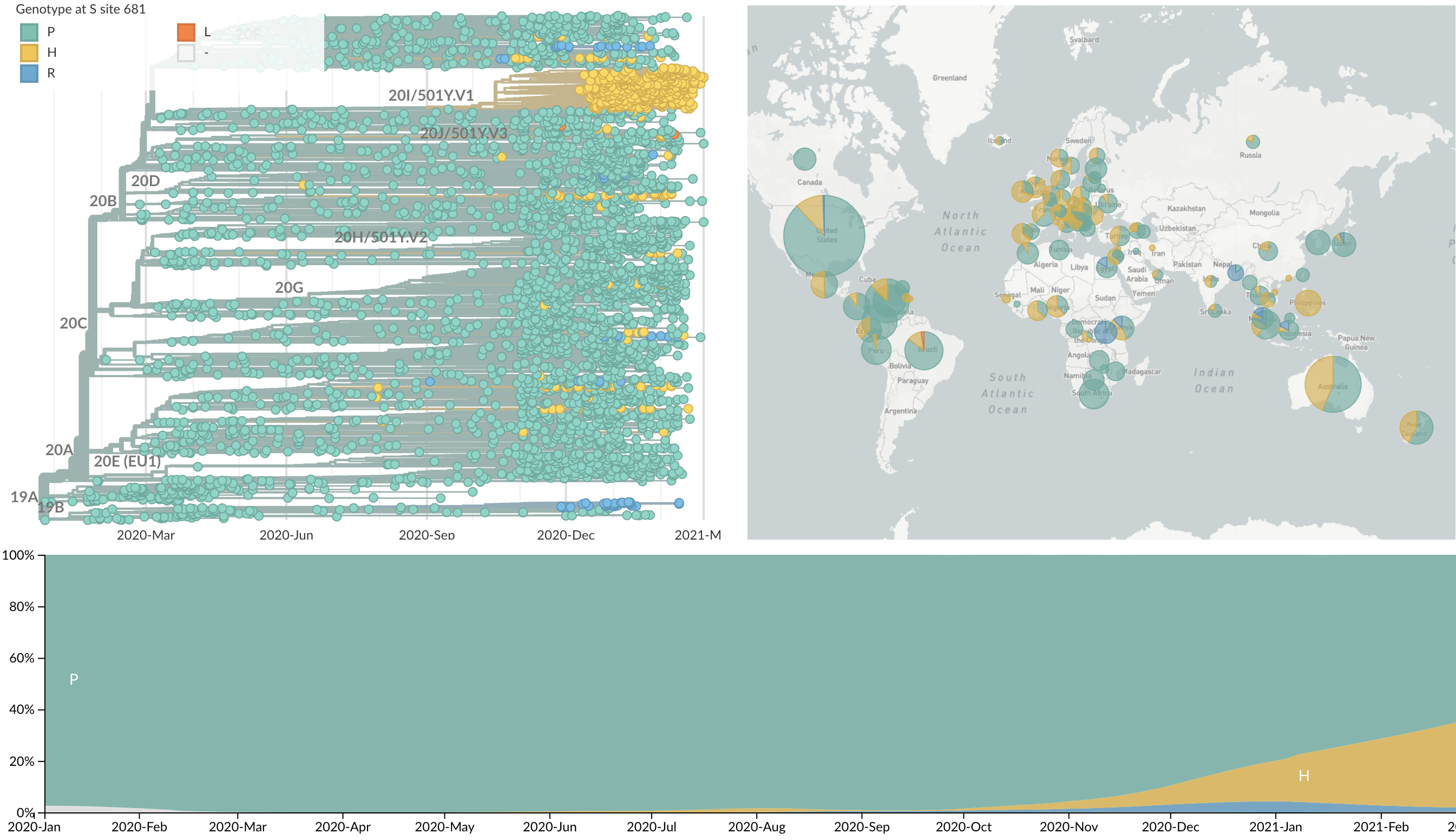

Repeated convergent evolution across sites in spike (681H)

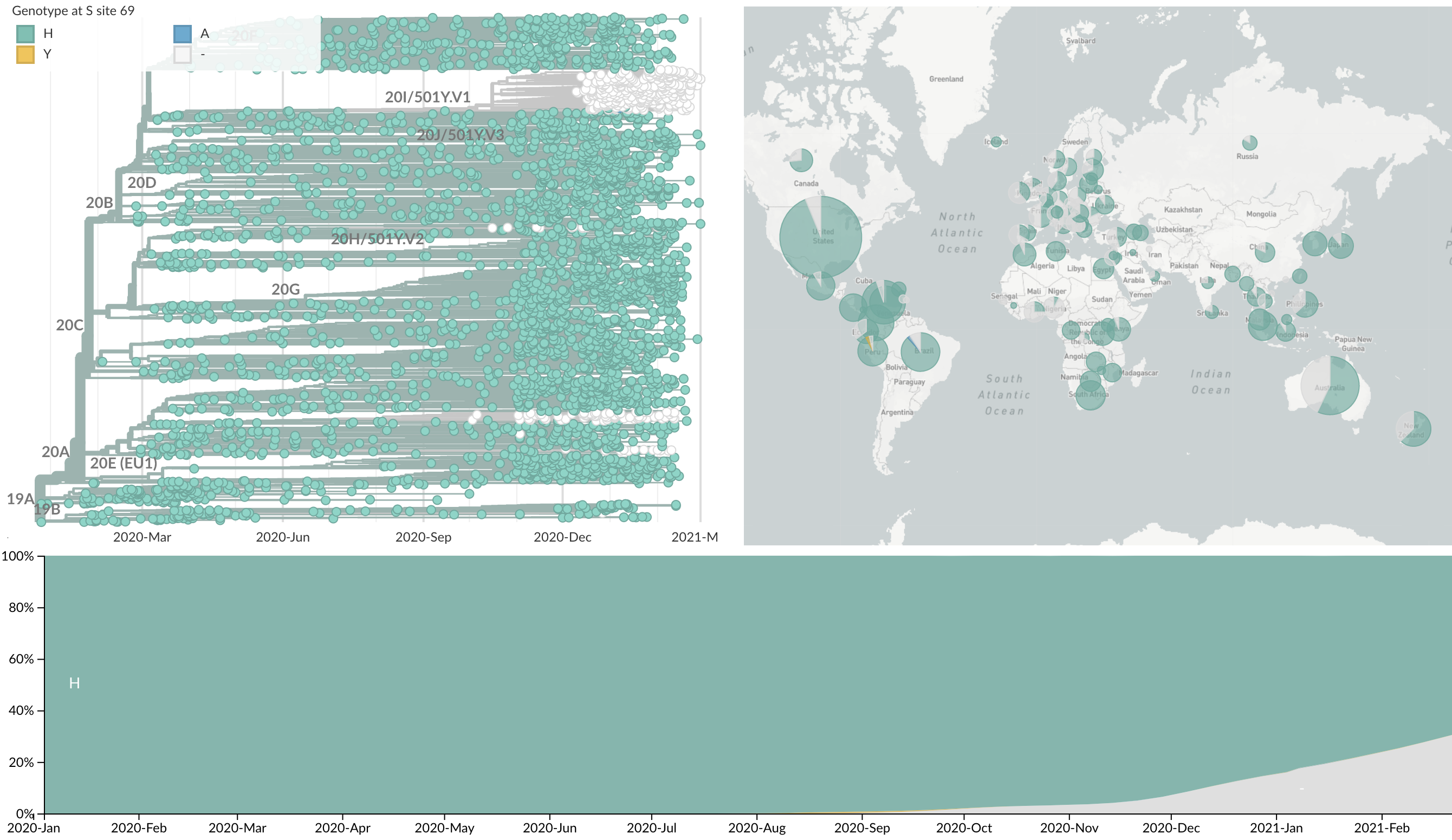

Repeated convergent evolution across sites in spike (69del)

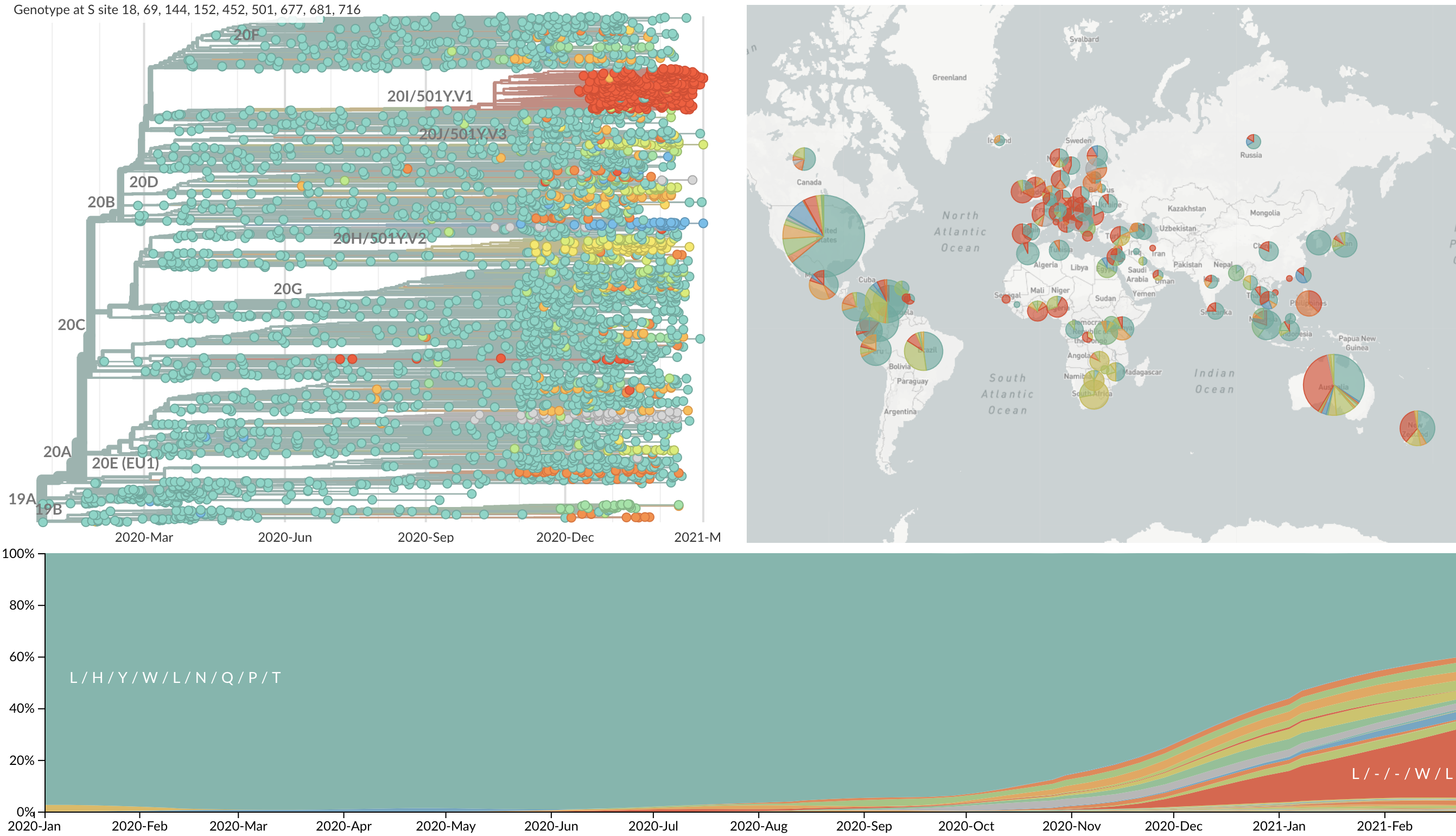

Repeated convergent evolution across sites in spike (combined)

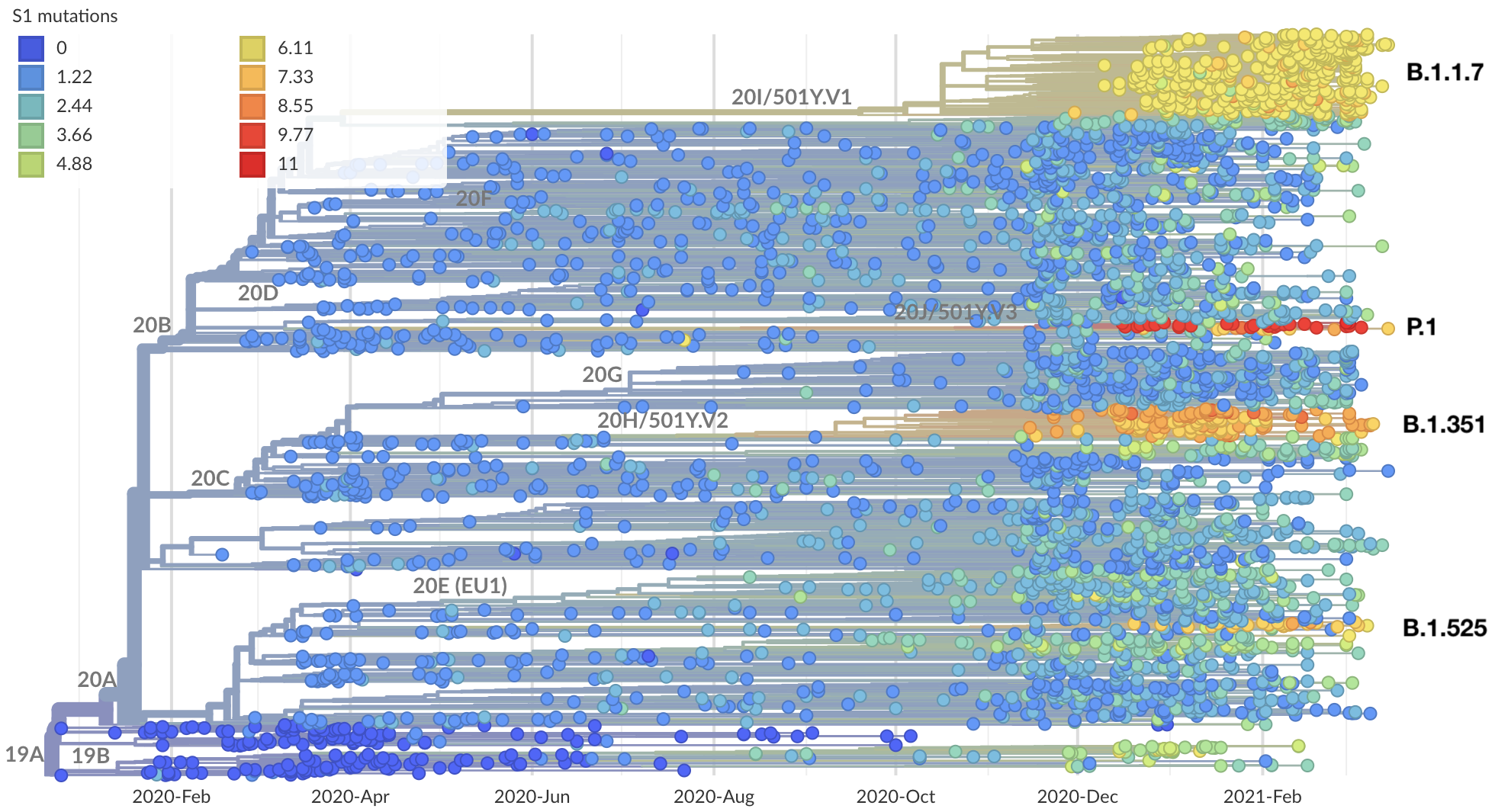

Certain viruses with substantial S1 divergence

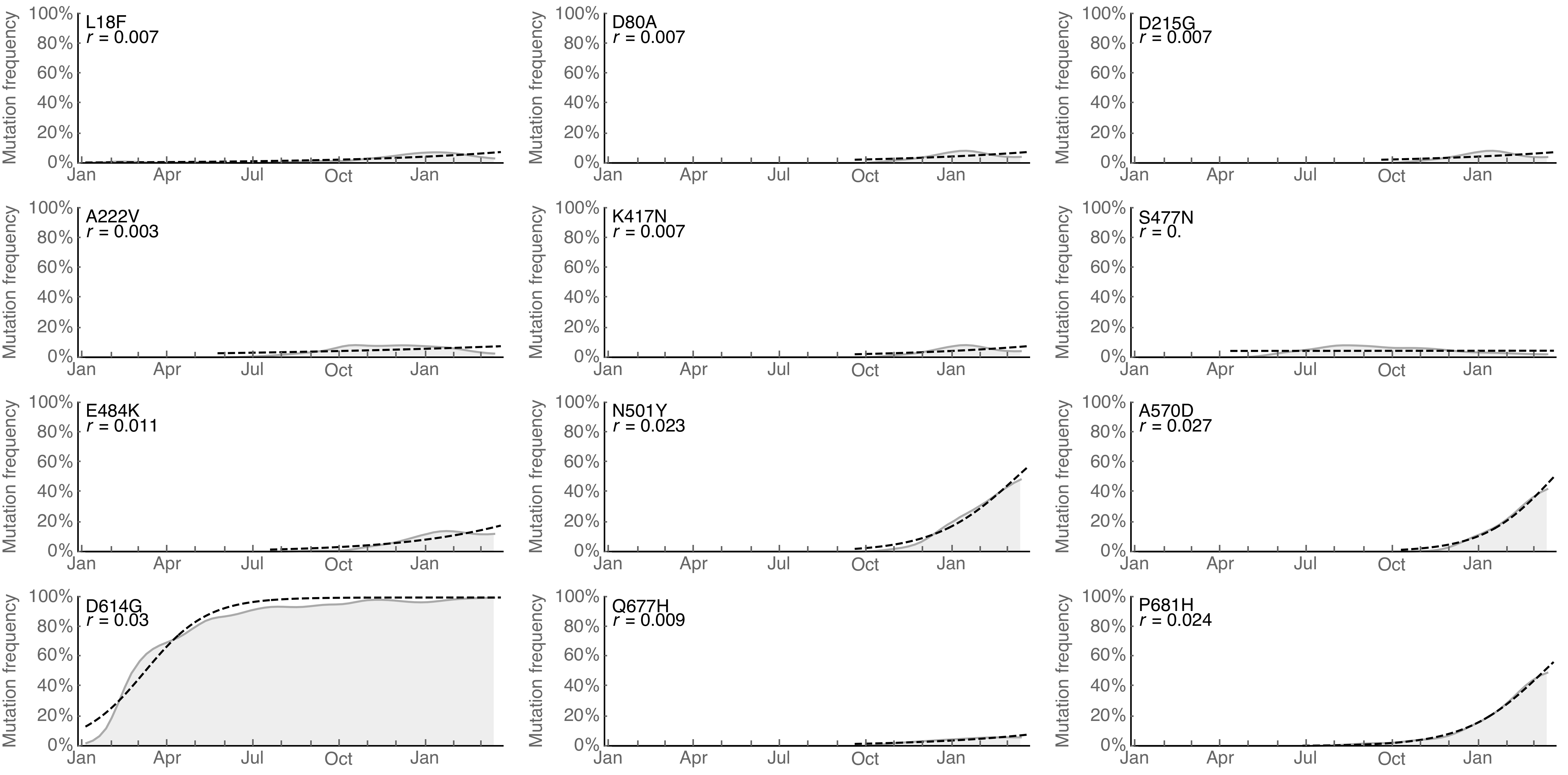

Particular mutations increasing globally

Interested in how constellations behave

Expectations for antigenic evolution

Up to December, my expectation was evolution as seen in seasonal coronaviruses

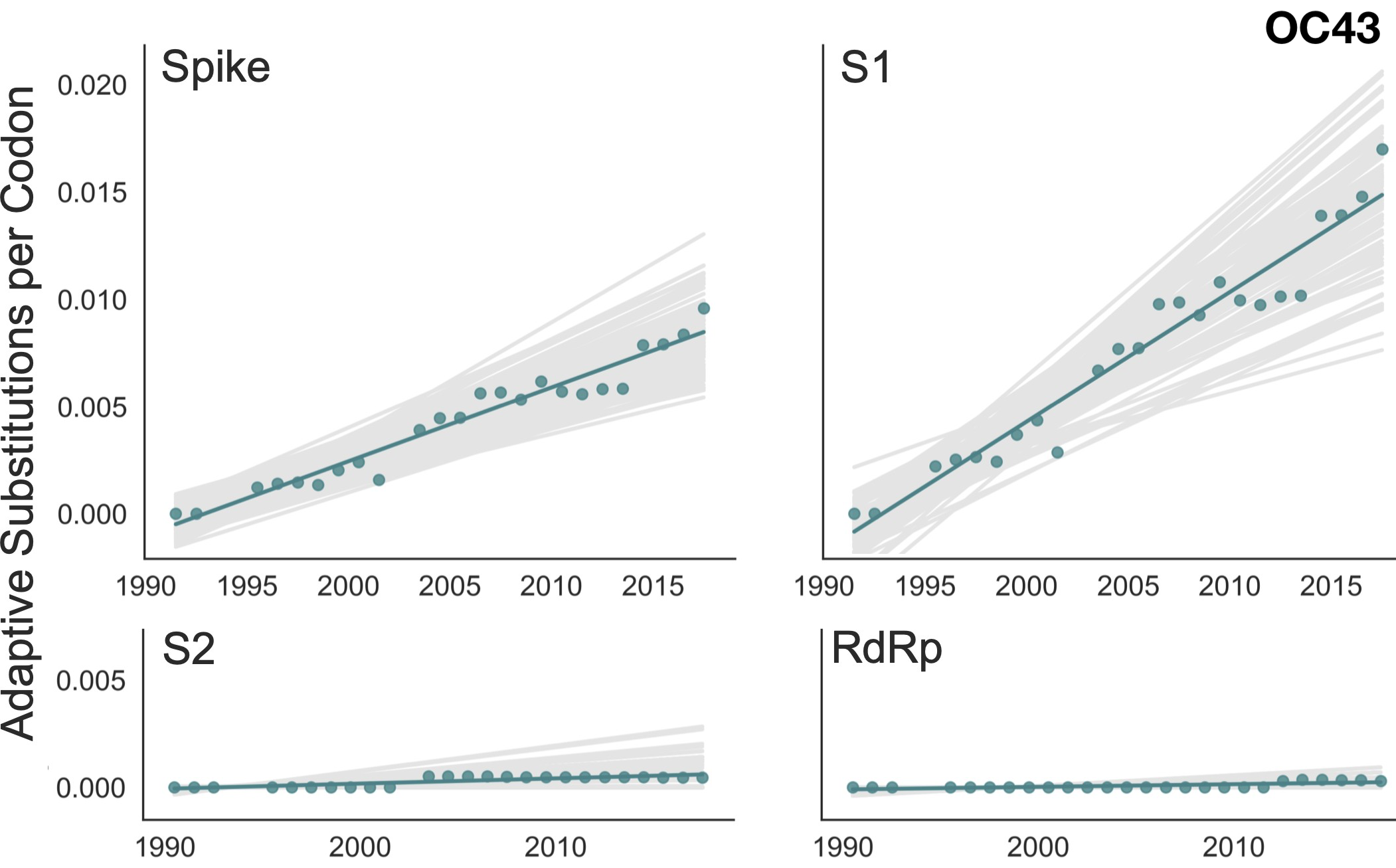

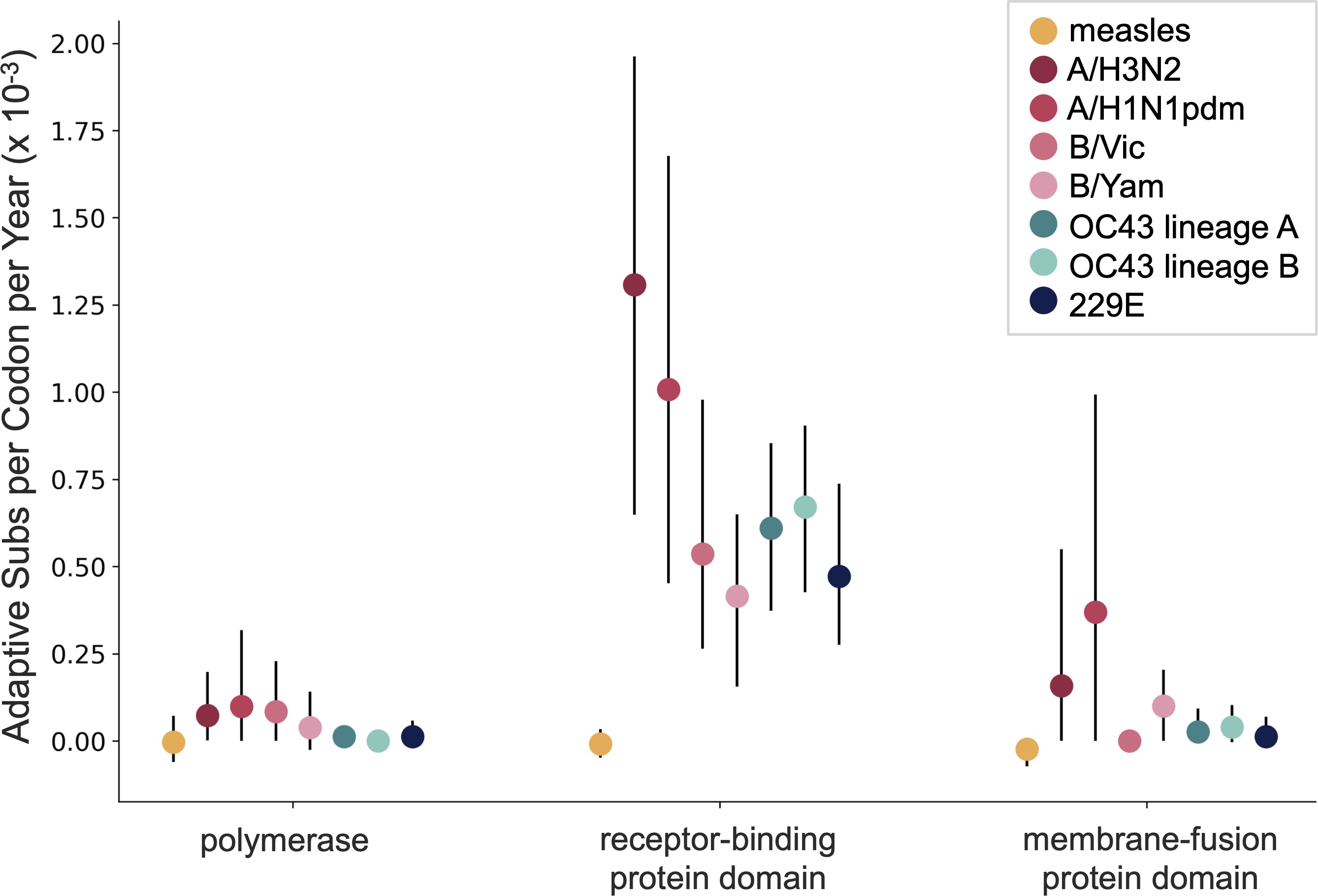

OC43 and 229E show flu B-like rates of adaptive evolution in S1

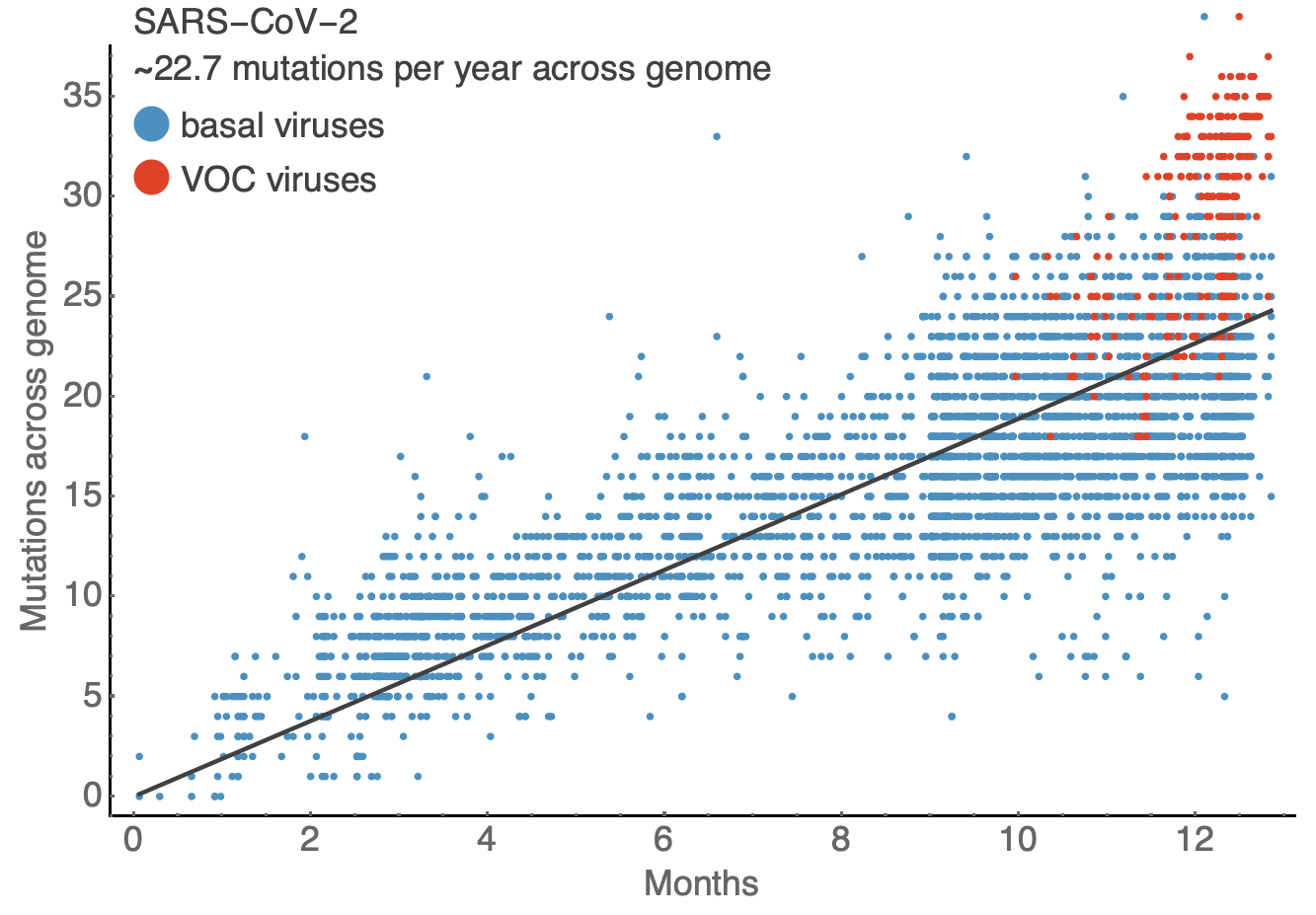

~23 mutations per year across SARS-CoV-2 genome

Substantial increase in spike S1 amino acid substitutions in VOCs

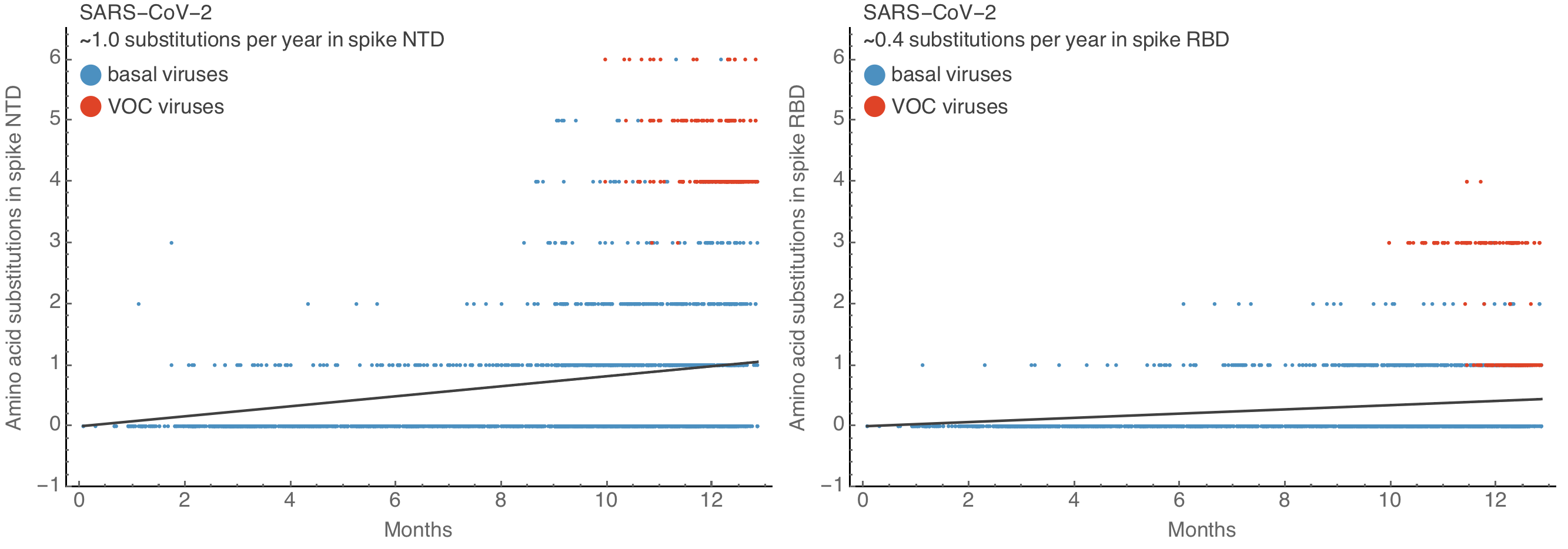

Accumulation of substitutions faster in NTD than RBD

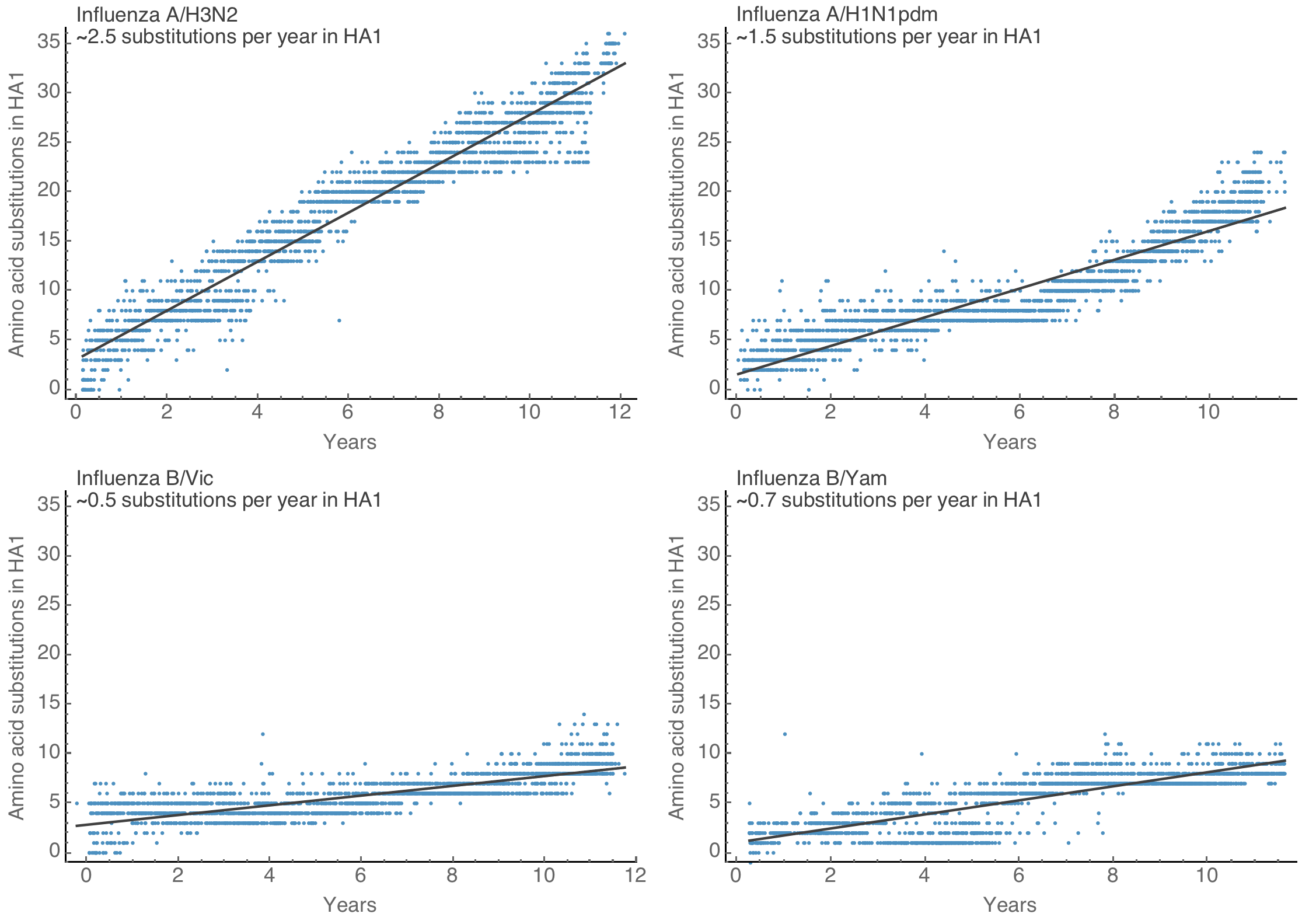

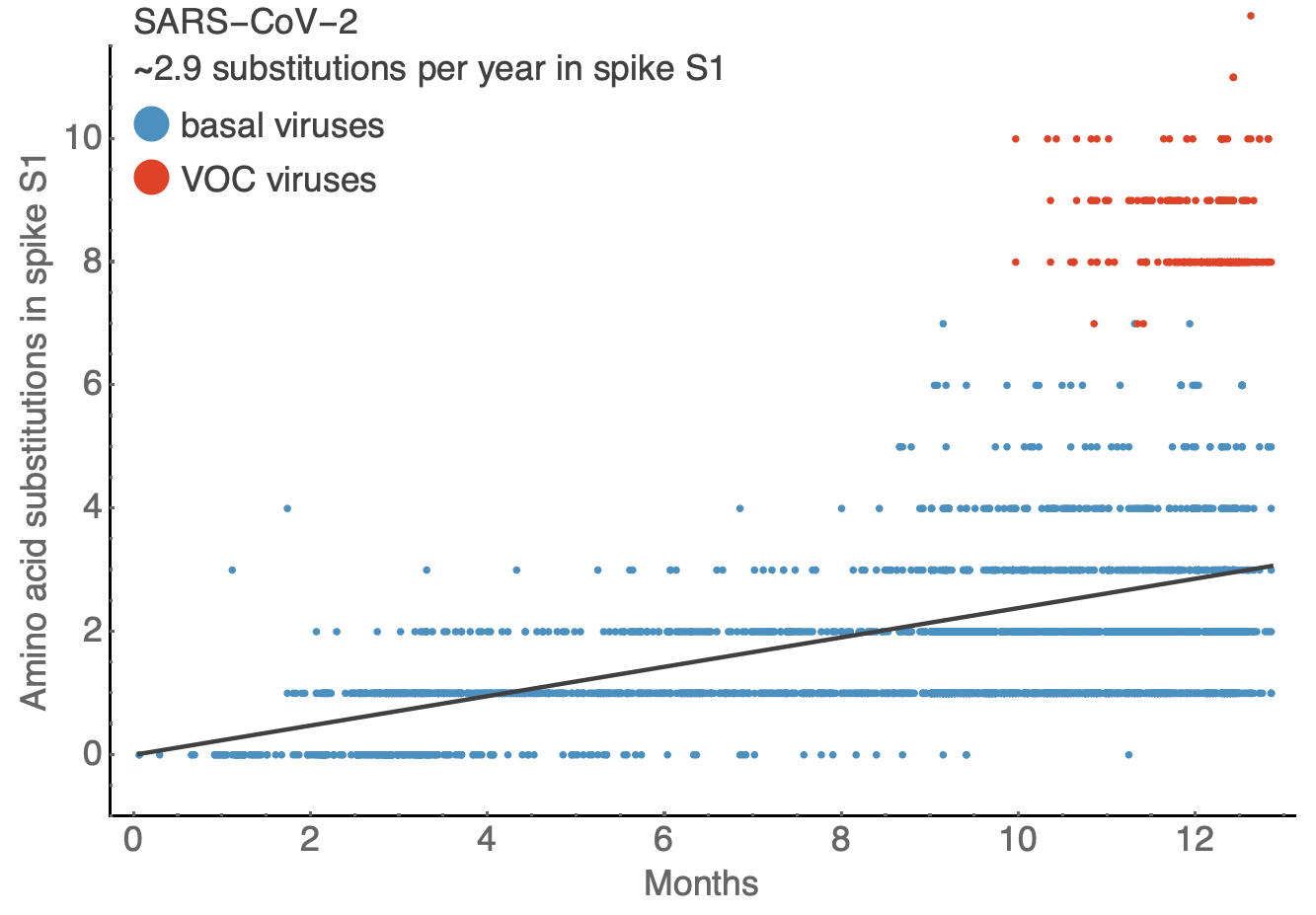

Spike S1 rate of 2.9 subs per year similar to rate in HA1 of flu A

Influenza H3N2 drifts at ~1 two-fold HI dilution per year

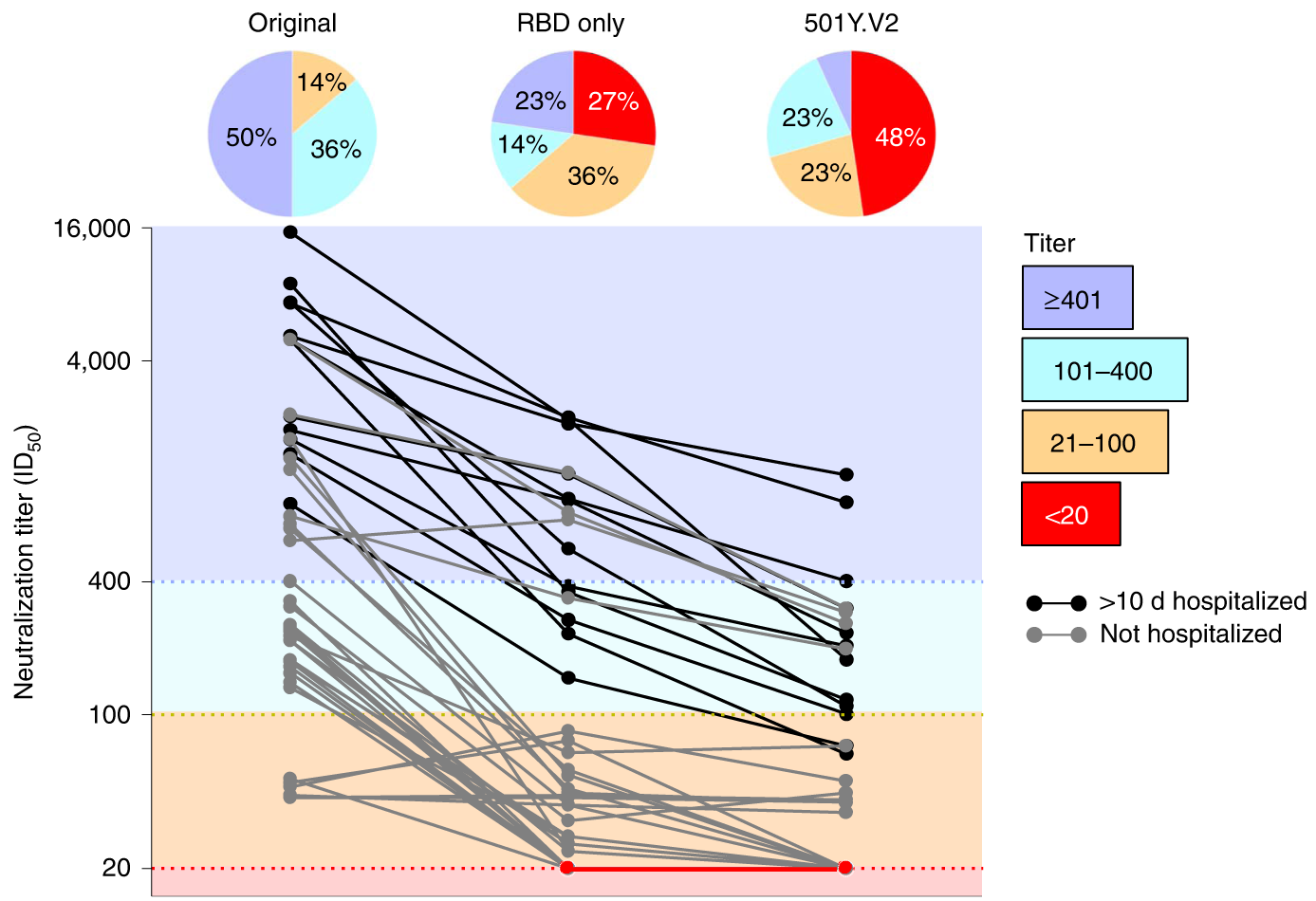

501Y.V2 shows an ~8-fold drop in neutralization titer, equivalent to ~3 years of H3N2 evolution

Genomic surveillance

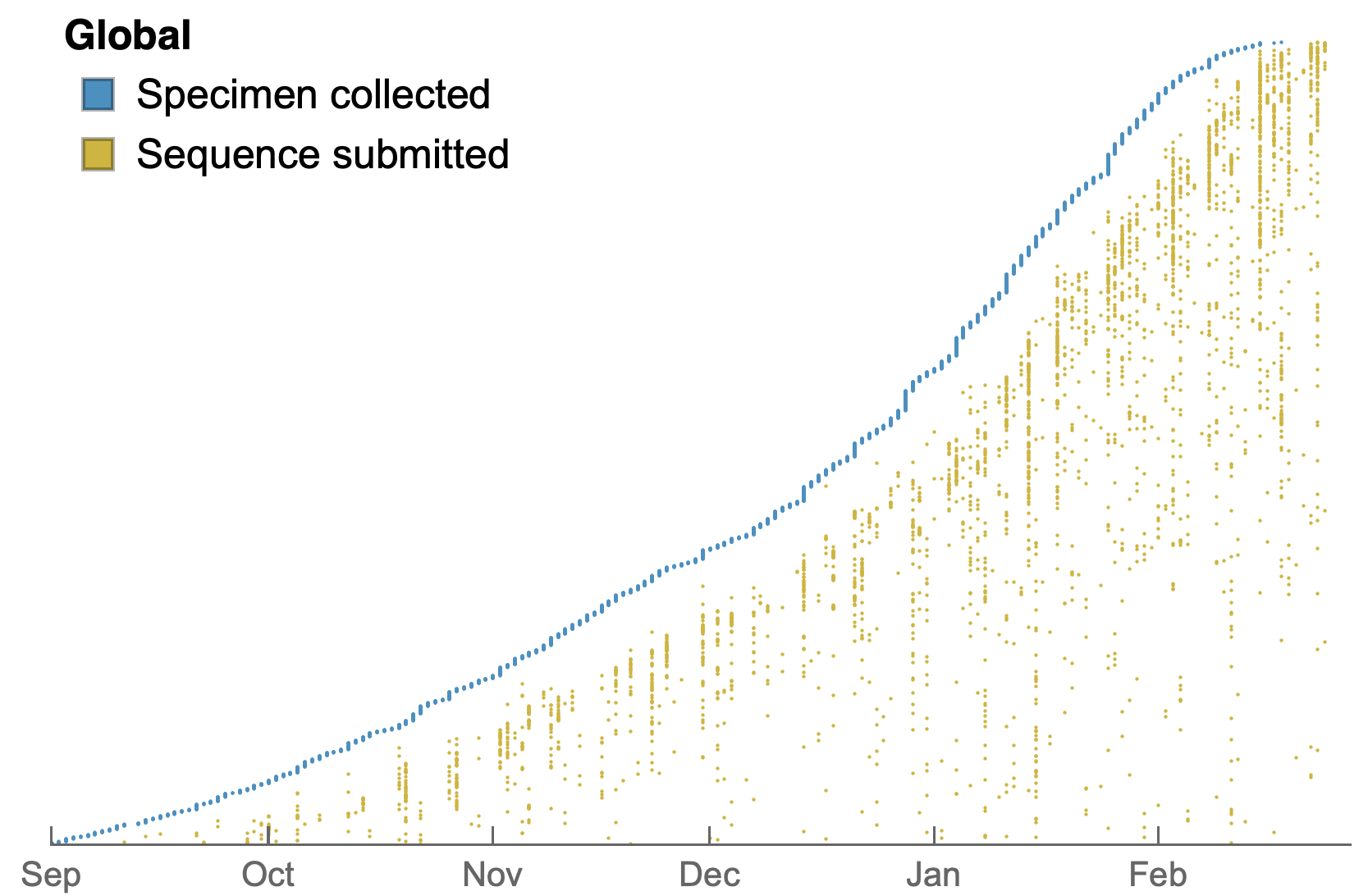

Sequences generated and shared at an unprecedented pace with 185k genomes shared in Feb 2021 alone

Data from gisaid.org

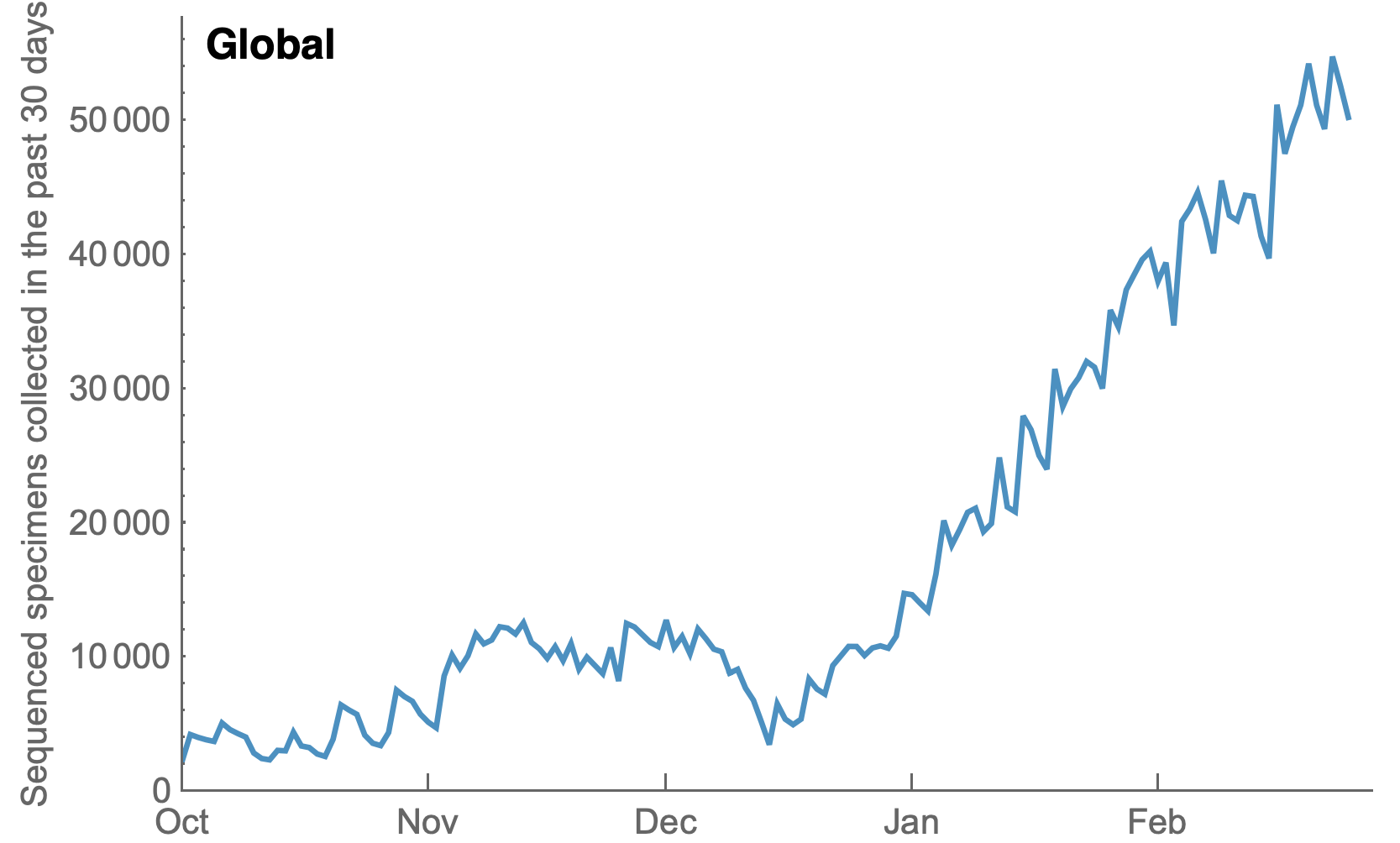

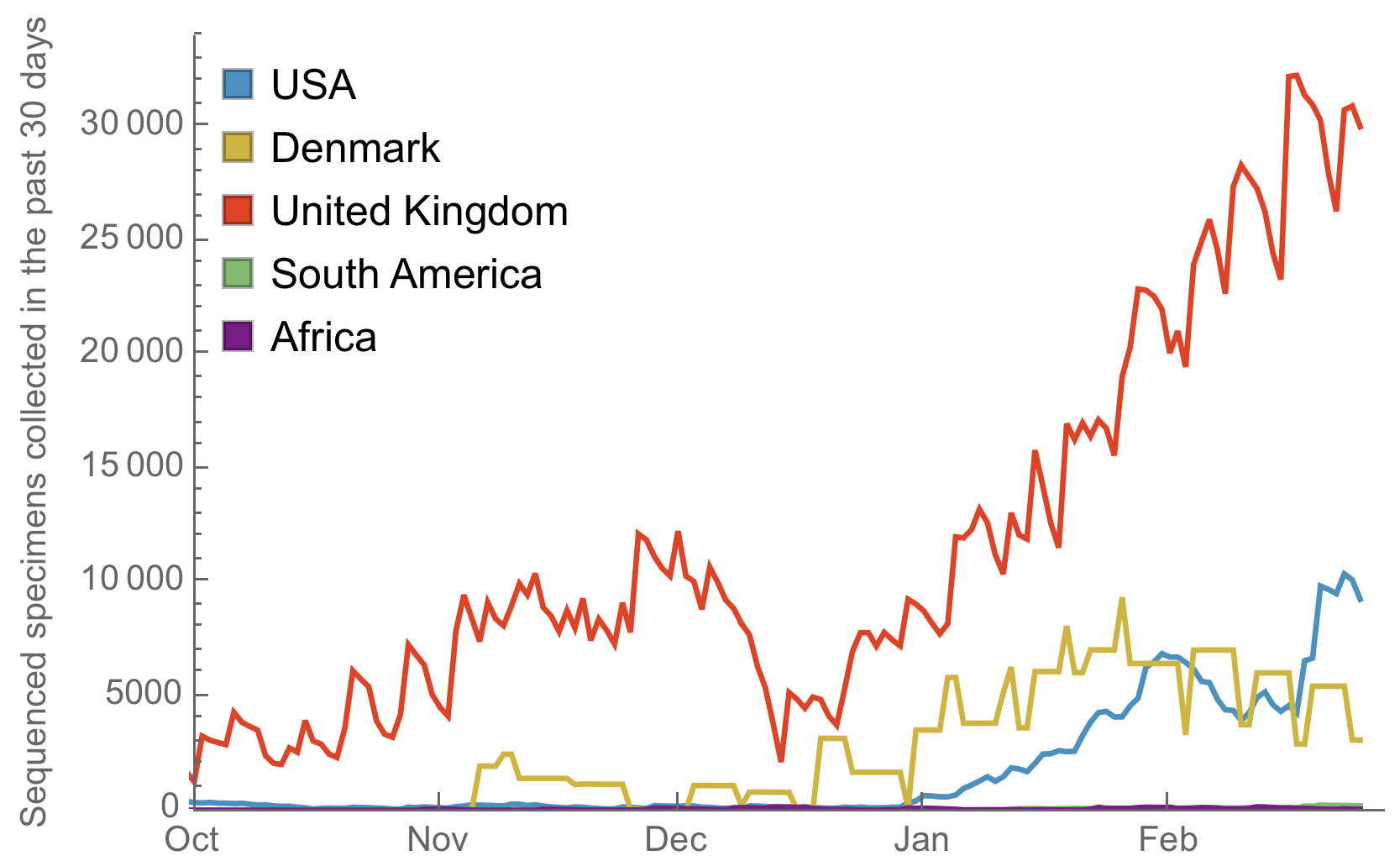

My favorite metric is number of sequences available from samples collected in the past 30 days

Data from gisaid.org

Front-runners of the UK, Denmark and the US have dramatically increased throughput, but other regions lag

Data from gisaid.org

If the goal is early detection of emerging variants to lay groundwork for vaccine updates, another 1000 genomes per month would be far more valuable from South America or Africa than 1000 more genomes from the US or the UK

Aim for rapid turnaround of recent samples rather than volume

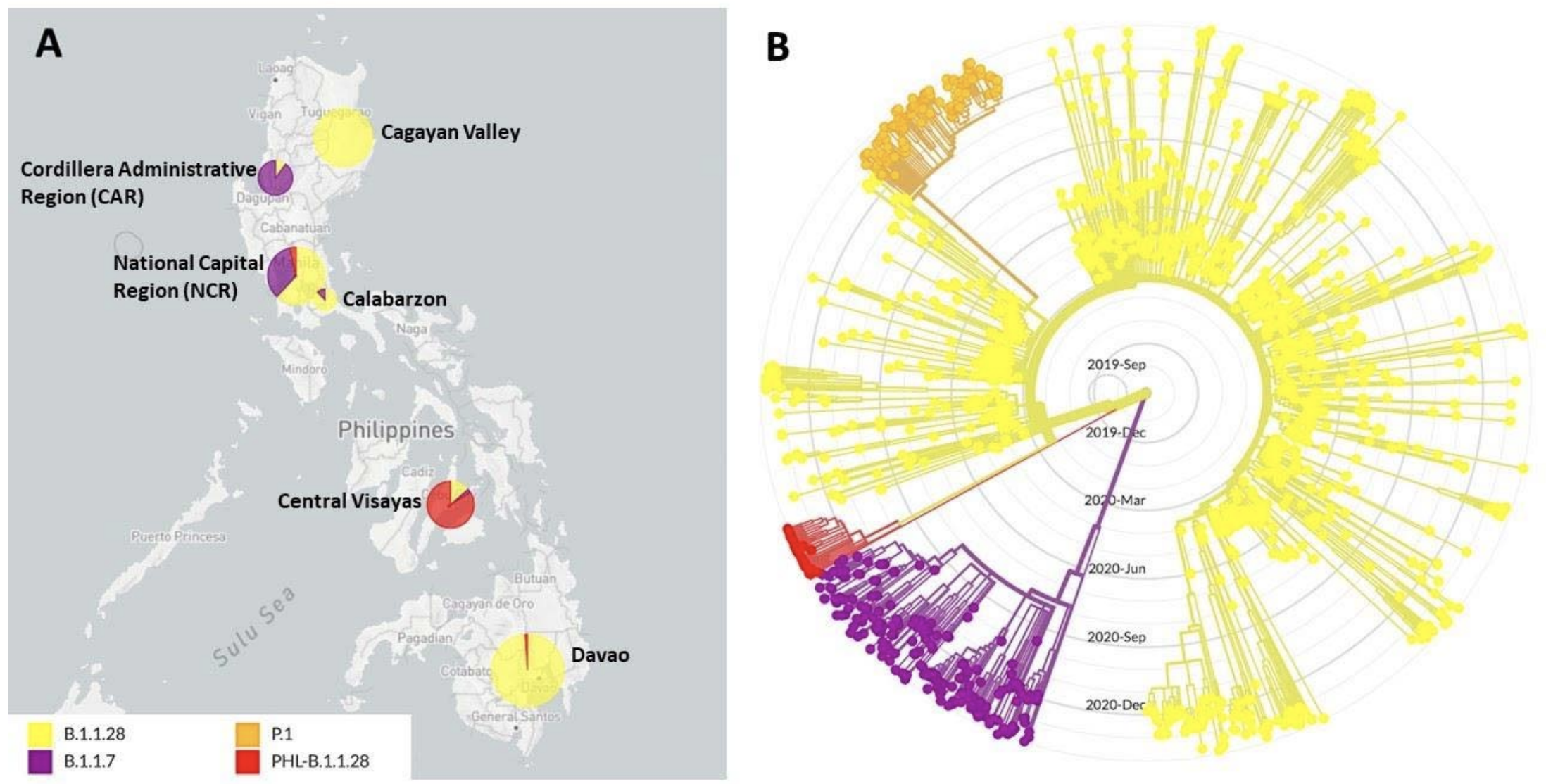

Important variant bearing 141-143del, 484K, 501Y and 681H detected in the Philippines

Generally, I suspect we're looking at a data-rich version of the influenza strain selection process

  1. mRNA vaccines allow faster turnarounds and may push for more regional strategies
  2. Work directly from human serological data rather than naive animals
  3. Multiple valencies possible, clinical trials should be conducted now comparing regimens
