Evolutionary dynamics of SARS-CoV-2
Trevor Bedford (@trvrb)
Associate Professor, Fred Hutchinson Cancer Research Center
3 Mar 2021
AGBT General Meeting
Slides at: bedford.io/talks
Rapid replacement of existing diversity by lineage B.1.1.7
1. Real-time tracking of SARS-CoV-2 evolution
2. Emergence of variants of concern
3. Current circulation patterns
4. Expectations for antigenic evolution
5. Scale of genomic surveillance
Real-time tracking of SARS-CoV-2 evolution
Spike protein is critical for cell invasion by the virus and is the primary target for human immune response
Over 600k SARS-CoV-2 genomes shared to GISAID and evolution tracked in real-time at nextstrain.org
SARS-CoV-2 lineages establish globally in February and March
Limited early mutations like D614G spread globally during initial wave
After initial wave, with mitigation
efforts and decreased travel,
regional clades emerge
Summer and fall mutations were confined to regional dominance
Emergence of variants of concern
484K and 501Y repeatedly emerging across the world
Emergence of 501Y.V1 (B.1.1.7) in the UK
Emergence of 501Y.V2 (B.1.351) in the South Africa
Emergence of 501Y.V3 (P.1) in the Brazil
Substantial convergent evolution
Working hypothesis of within-host evolution occurring during prolonged infection, driven by natural selection for immune escape.
Rapid within-host evolution during persistent infection
484K and 501Y observed during this evolution
Current circulation patterns
VOCs are growing in frequency with B.1.1.7 leading the curve

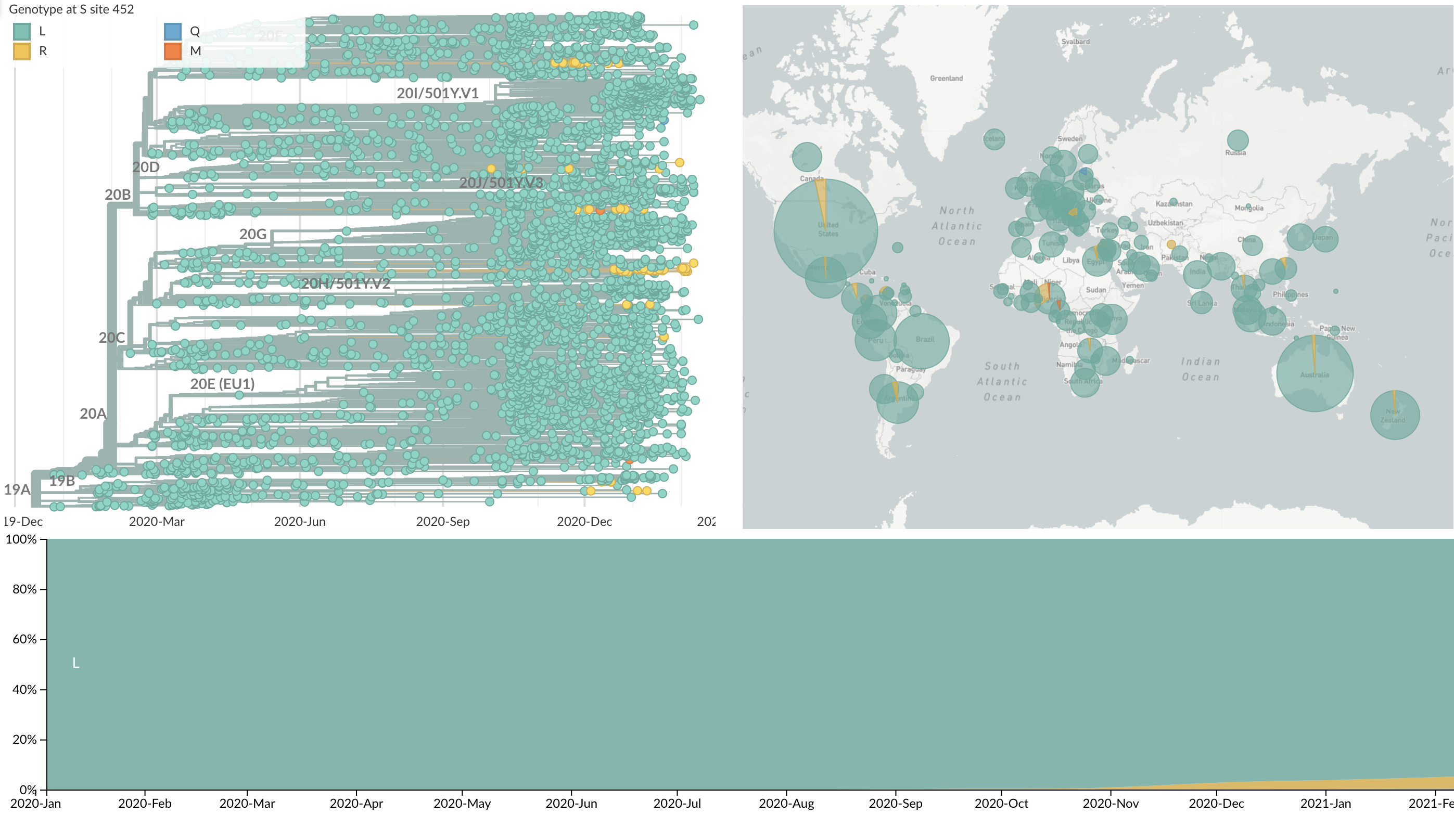

Repeated convergent evolution across sites in spike (452R)

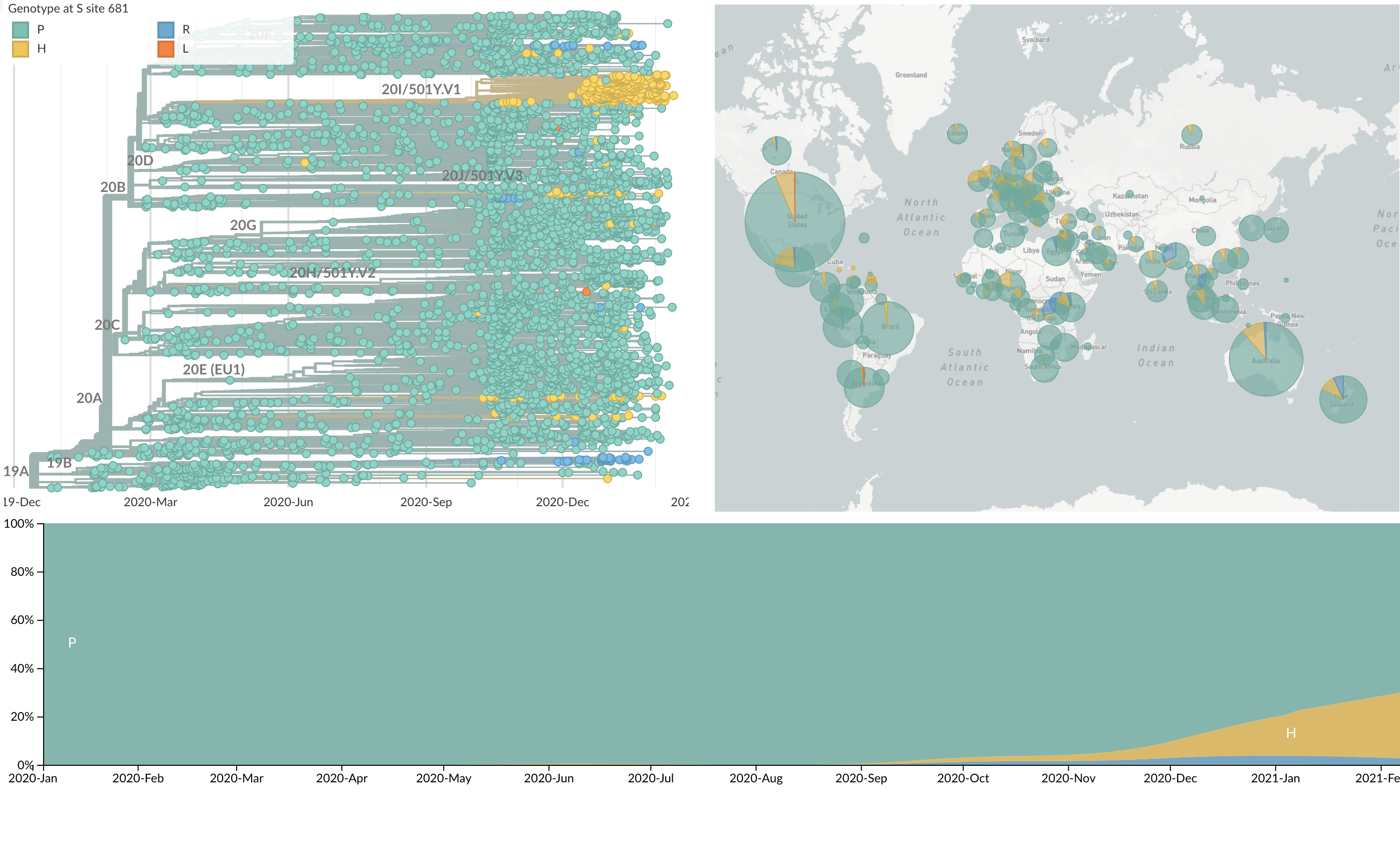

Repeated convergent evolution across sites in spike (681H)

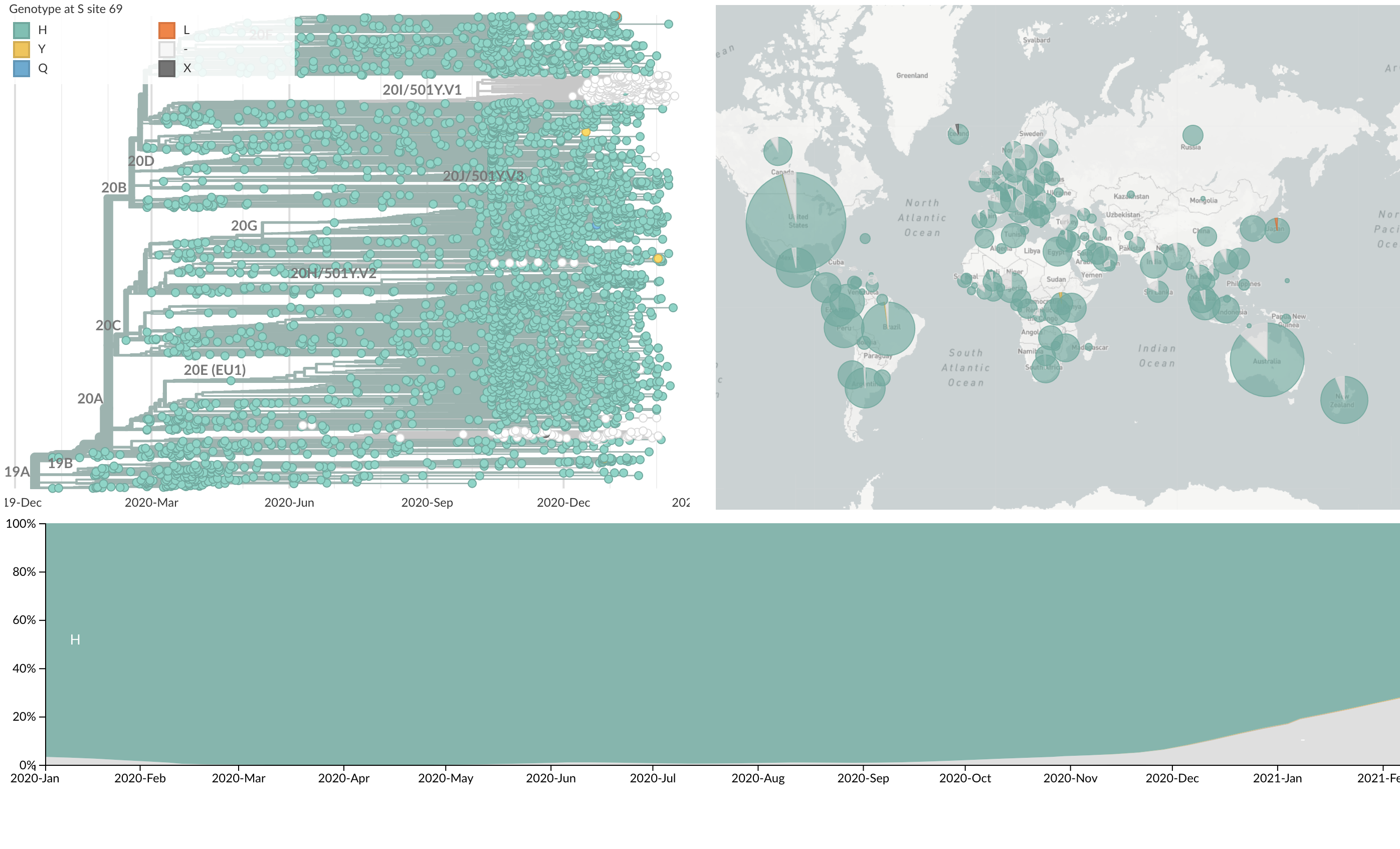

Repeated convergent evolution across sites in spike (69del)

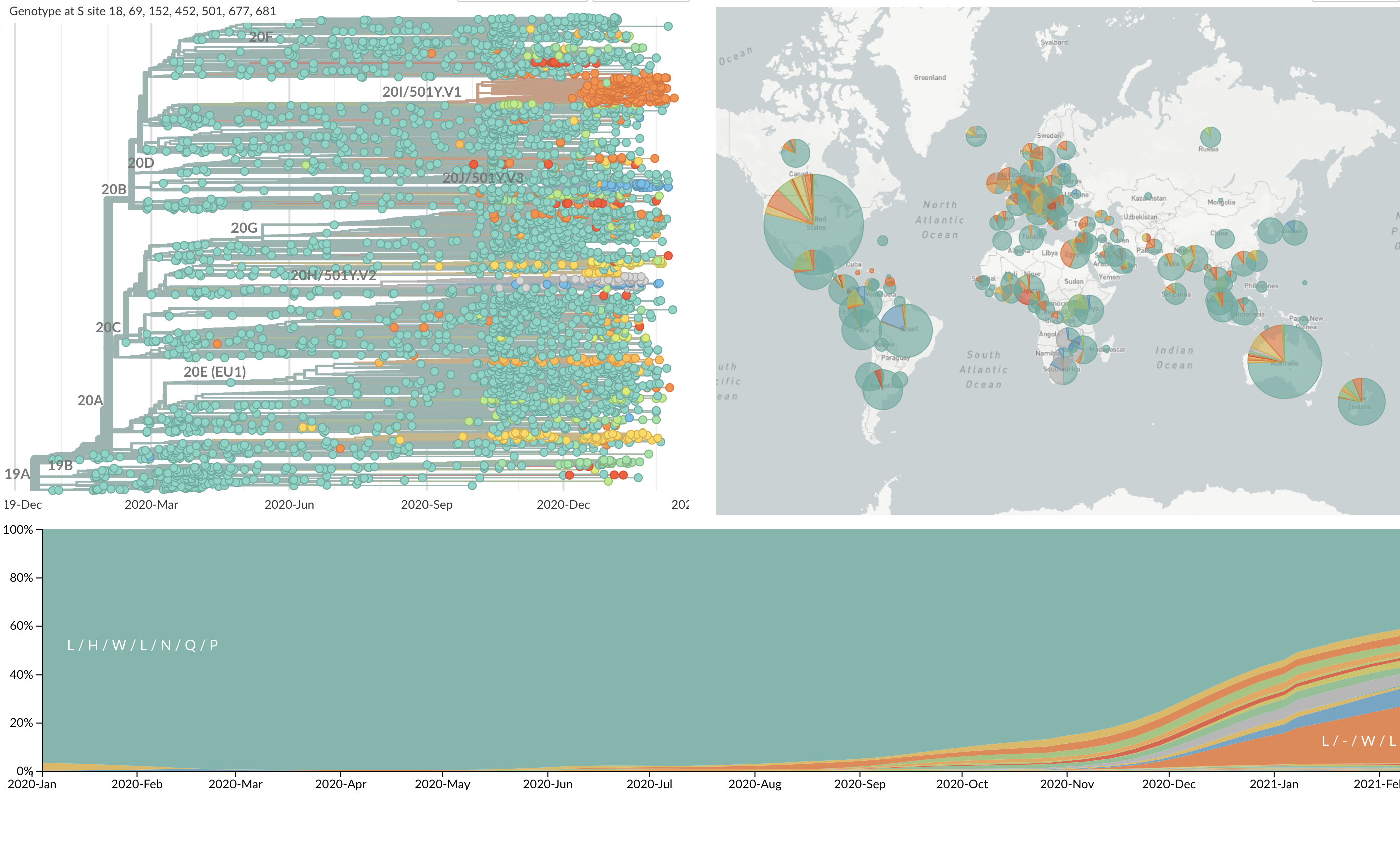

Repeated convergent evolution across sites in spike (combined)
Expectations for antigenic evolution
Up to December, my expectation was evolution as seen in seasonal coronaviruses
OC43 and 229E show flu B-like rates of adaptive evolution in S1
~23 mutations per year across SARS-CoV-2 genome
Substantial increase in spike S1 amino acid substitutions in VOCs
Accumulation of substitutions faster in NTD than RBD
Spike S1 rate of 2.9 subs per year similar to rate in HA1 of flu A
Influenza H3N2 drifts at ~1 two-fold HI dilution per year
SARS-CoV-2 VOCs have evolved ~10 amino acid sites in S1 in just over a year. This is rapid even for influenza A. 501Y.V2 shows an ~8-fold drop in neutralization titer, equivalent to ~3 years of H3N2 evolution.
Genomic surveillance
Sequences generated and shared at an unprecedented pace with 125k genomes shared in Jan 2021 alone
Data from gisaid.org
My favorite metric is number of sequences available from samples collected in the past 30 days
Data from gisaid.org
Front-runners of the UK, Denmark and the US have dramatically increased throughput, but other regions lag
Data from gisaid.org
If the goal is early detection of emerging variants to lay groundwork for vaccine updates, another 1000 genomes per month would be far more valuable from South America or Africa than 1000 more genomes from the US or the UK
Generally, I suspect we're looking at a data-rich version of the influenza strain selection process
- mRNA vaccines allow faster turnarounds and may push for more regional strategies
- Work directly from human serological data rather than naive animals
- Multiple valencies possible, clinical trials should be conducted now comparing regimens
Acknowledgements
SARS-CoV-2 genomic epi: Data producers from all over the world, GISAID and the Nextstrain team
Bedford Lab:
Alli Black,
John Huddleston,
James Hadfield,
Katie Kistler,
Louise Moncla,
Maya Lewinsohn,
Thomas Sibley,
Jover Lee,
Kairsten Fay,
Misja Ilcisin,
Cassia Wagner,
Miguel Paredes,
Nicola Müller,
Marlin Figgins,
Eli Harkins
