Nextstrain Workshop

Trevor Bedford (@trvrb)
27 Mar 2019
AMD Training

Sequencing to reconstruct pathogen spread

Epidemic process

Sample some individuals

Sequence and determine phylogeny

Sequence and determine phylogeny

Pathogen genomes may reveal:

  • Evolution of new adaptive variants
  • Epidemic origins
  • Patterns of geographic spread
  • Animal-to-human spillover
  • Transmission chains

Influenza: Forecasting spread of new variants for vaccine strain selection

Zika: Uncovering origins of the epidemic in the Americas

Ebola: Revealing spatial spread and persistence in West Africa

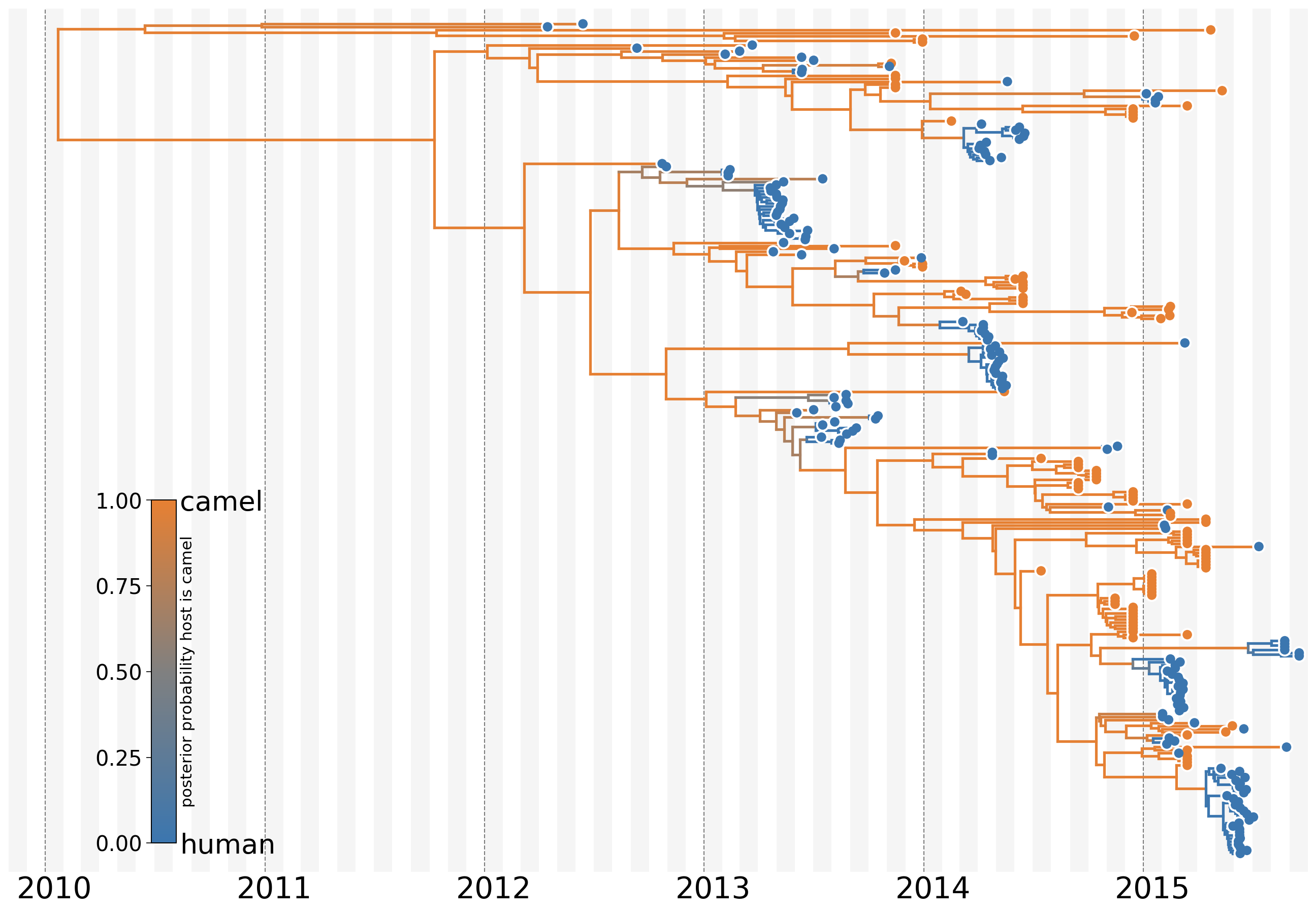

MERS: Quantifying camel-to-human spillover

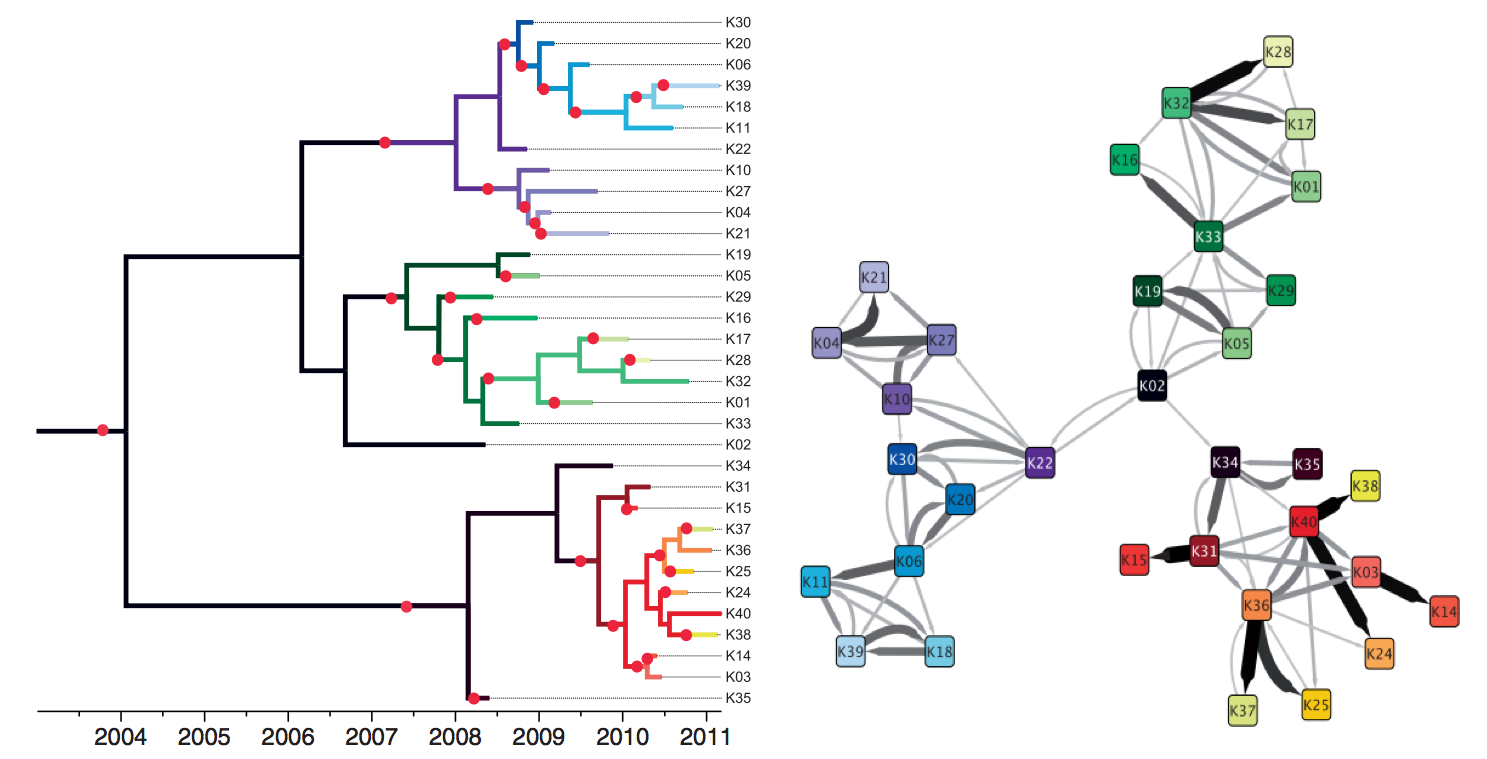

TB: Tracking individual transmission chains

Actionable inferences

Genomic analyses are mostly done in a retrospective manner

Dudas and Rambaut 2016

Key challenges to making genomic epidemiology actionable

  • Timely analysis and sharing of results critical
  • Dissemination must be scalable
  • Integrate many data sources
  • Results must be easily interpretable and queryable


Project to conduct real-time molecular epidemiology and evolutionary analysis of emerging epidemics

with Richard Neher, James Hadfield, Emma Hodcroft, Tom Sibley,
John Huddleston, Colin Megill, Sidney Bell, Barney Potter,
Charlton Callender

Nextstrain is two things

  • a bioinformatics toolkit and visualization app, which can be used for a broad range of datasets
  • a collection of real-time pathogen analyses kept up-to-date on the website

Nextstrain architecture

All code open source at

Two central aims: (1) rapid and flexible phylodynamic analysis and
(2) interactive visualization


Rethink database of virus and titer data

  • Harmonizes data from different sources
  • Integrates different types of data (serology, sequences, case details)
  • Provides an interface for downstream analysis


Build scripts to align sequences, build trees and annotate

  • Flexible build scripts to incorporate different viruses and analyses
  • Constructs time-resolved phylogenies
  • Annotates with geographic transitions and mutation events

Example augur pipeline for 1600 Ebola genomes

  • Align with MAFFT (34 min)
  • Build ML tree with RAxML (54 min)
  • Temporally resolve tree and geographic ancestry with TreeTime (16 min)
  • Total pipeline (1 hr 46 min)

Pipeline consists of Unix-like command line modules

  • Modules called via augur filter, augur tree, augur traits, etc...
  • Designed to be composable across pathogen builds
  • Uses Snakemake to define a pipeline, making steps obvious
  • Provides depedency graph for fast recomputation
  • Pathogen-specific repos give users an obvious foundation to build off of


Web visualization of resulting trees

  • Interactive data exploration and filtering
  • Framework through React / D3
  • Connects phylogeny, geography and genotypes

Demo focusing on visualization features

Todays' workshop

  • Brief background on phylodynamics
  • Focus of running augur and constructing snakefiles
  • Running auspice

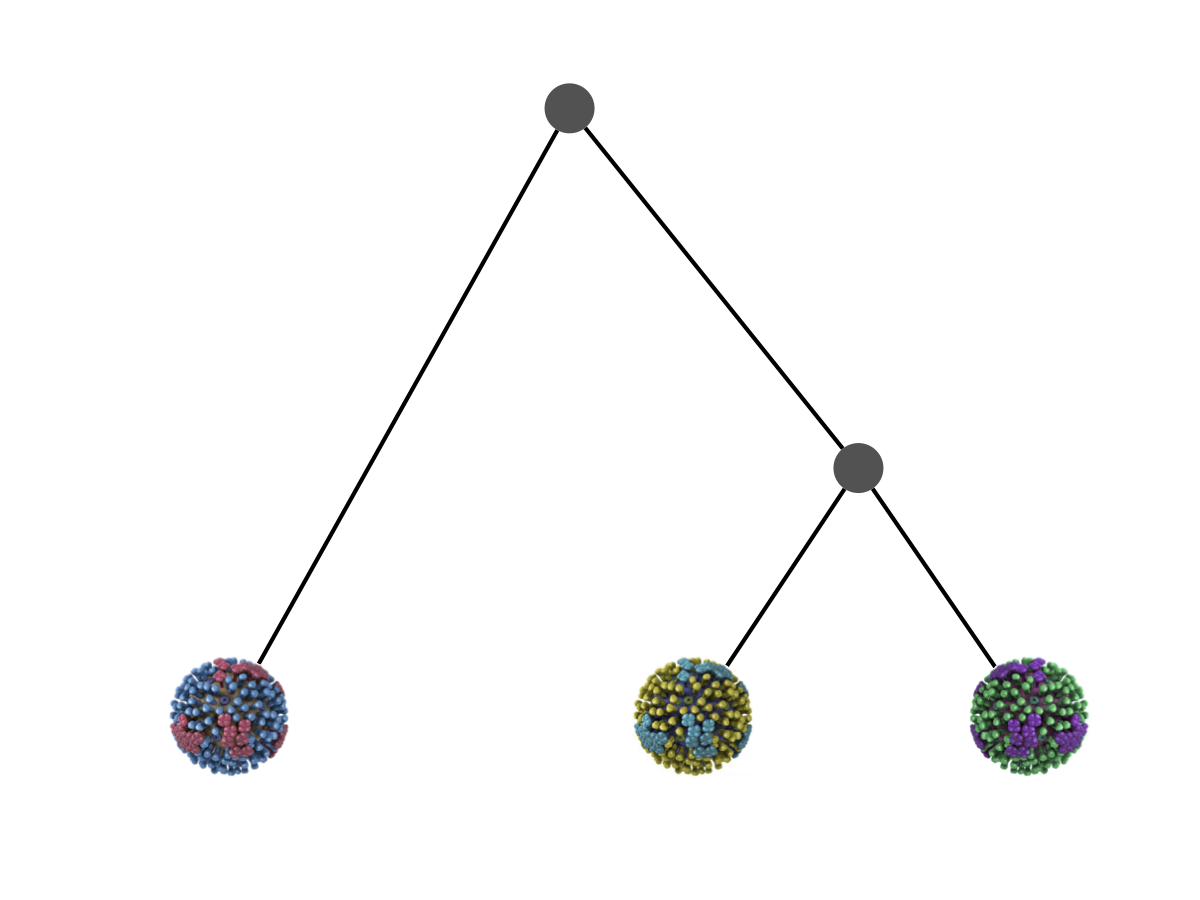

Phylogeny describes evolutionary relationships

Phylogeny is usually a hypothesis based on characteristics of sampled taxa

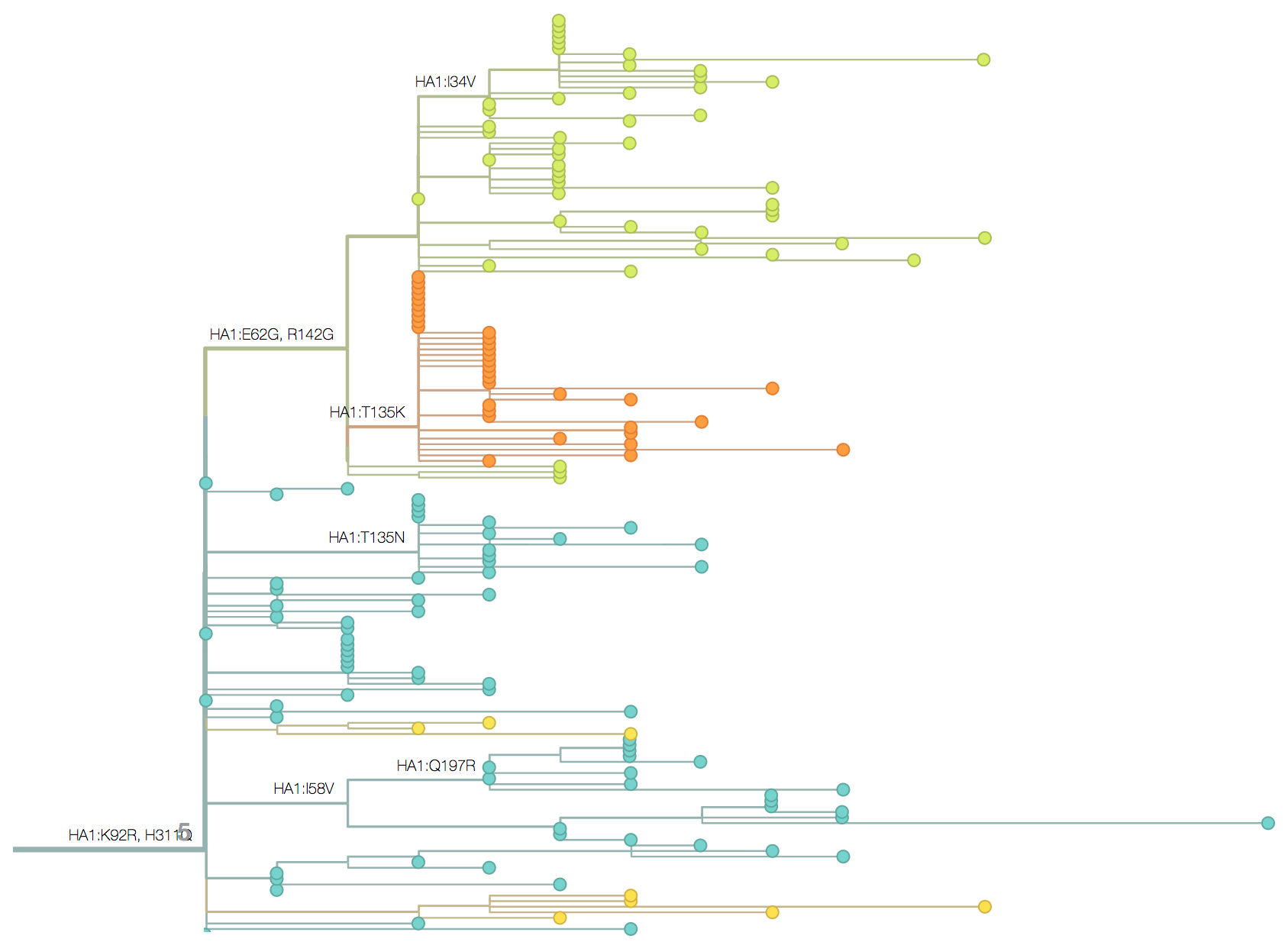

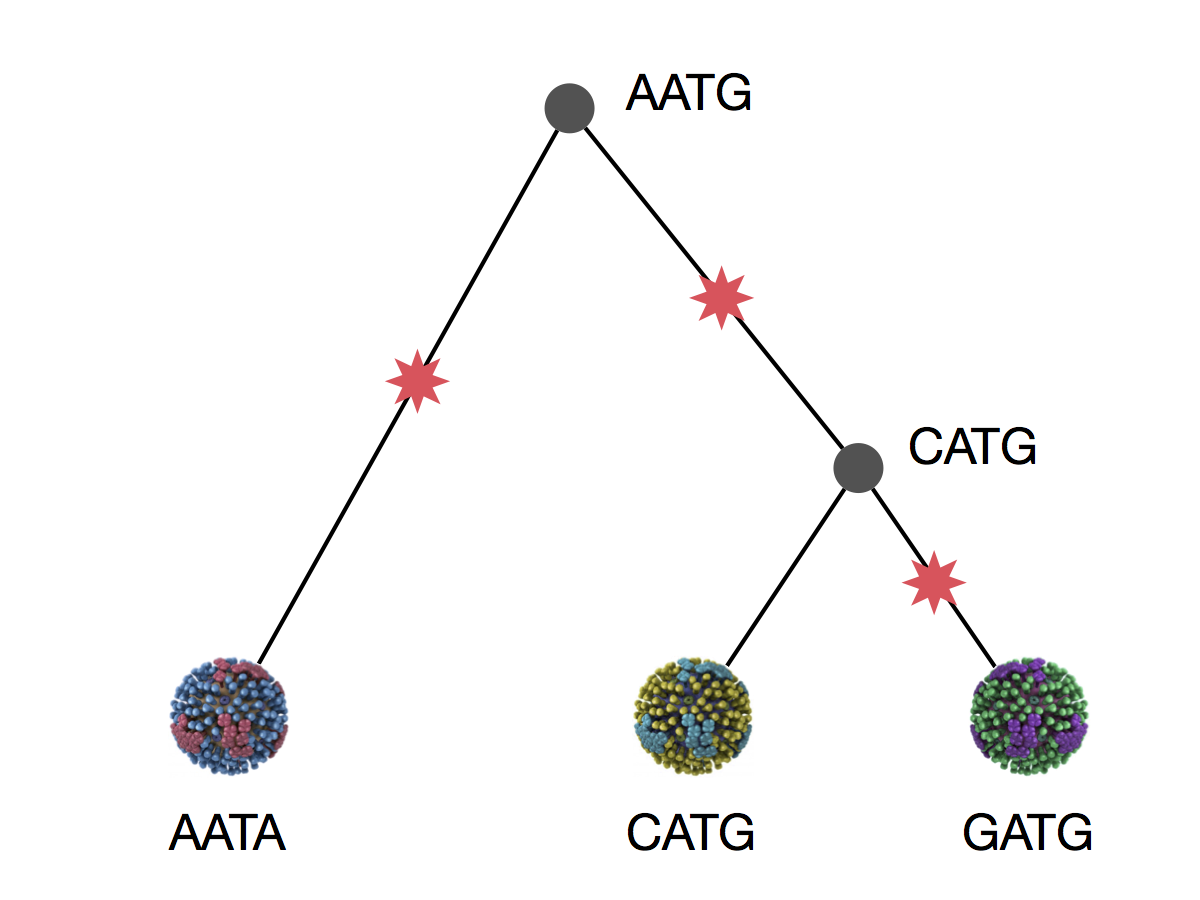

Phylogeny implies a series of mutational events leading to observed tip states

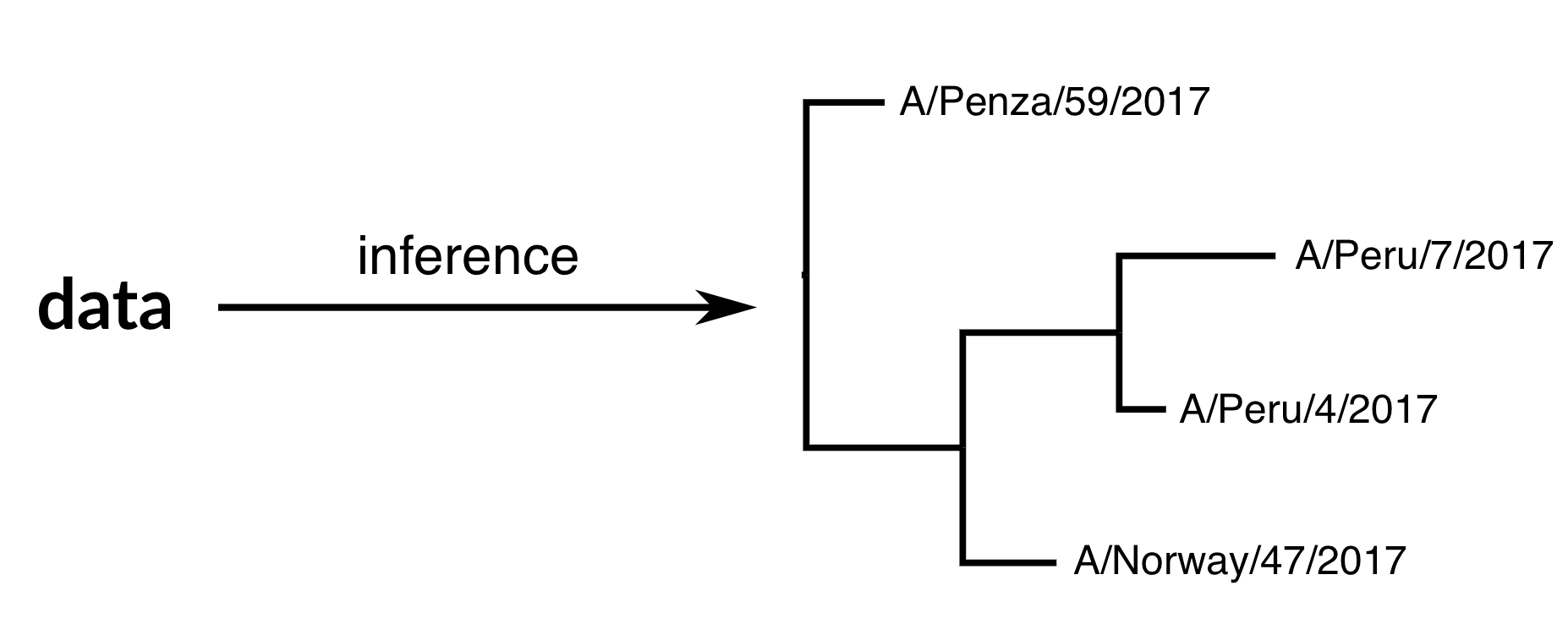

Phylogenetic inference

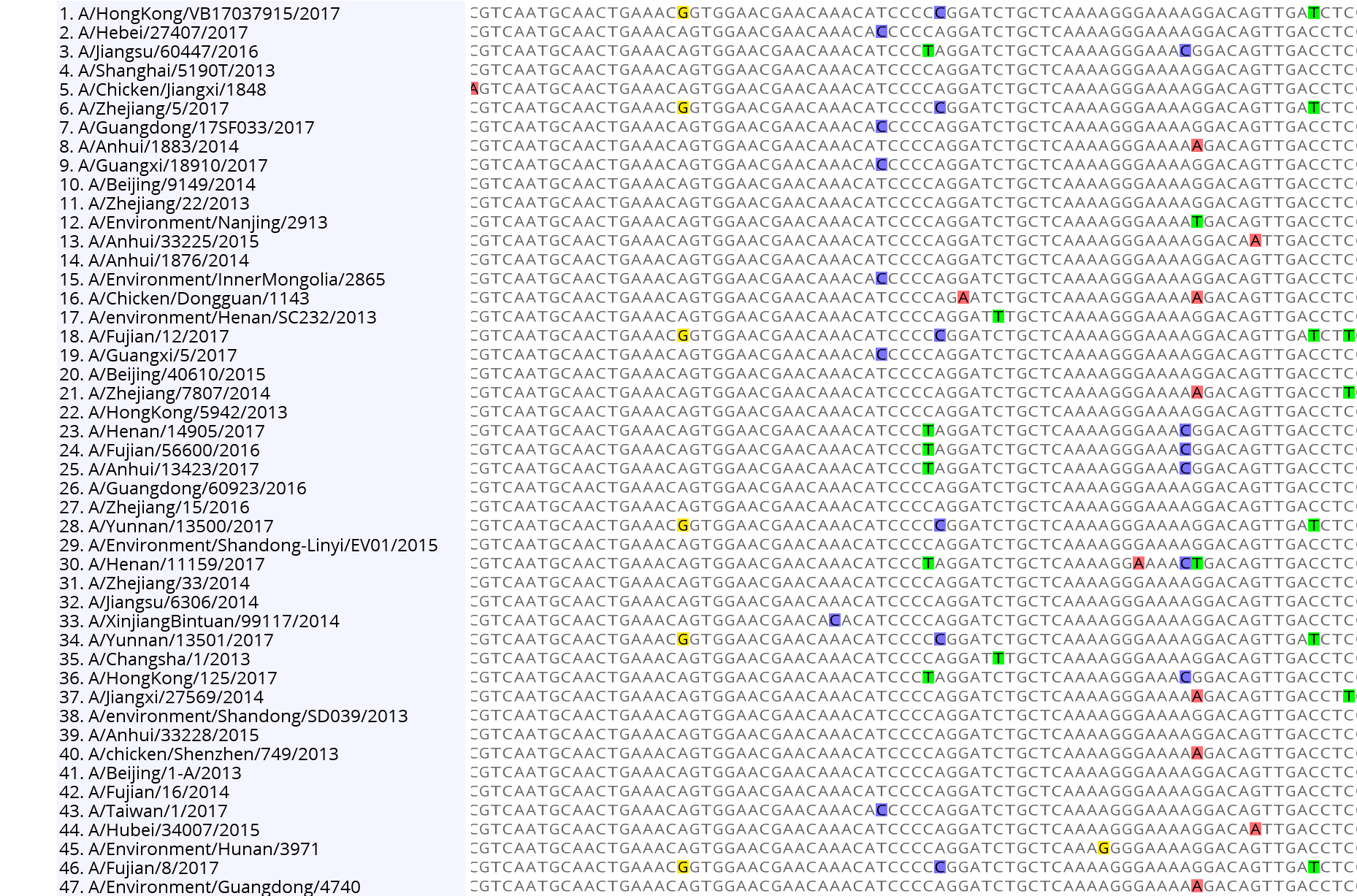

"Data" is generally a sequence alignment

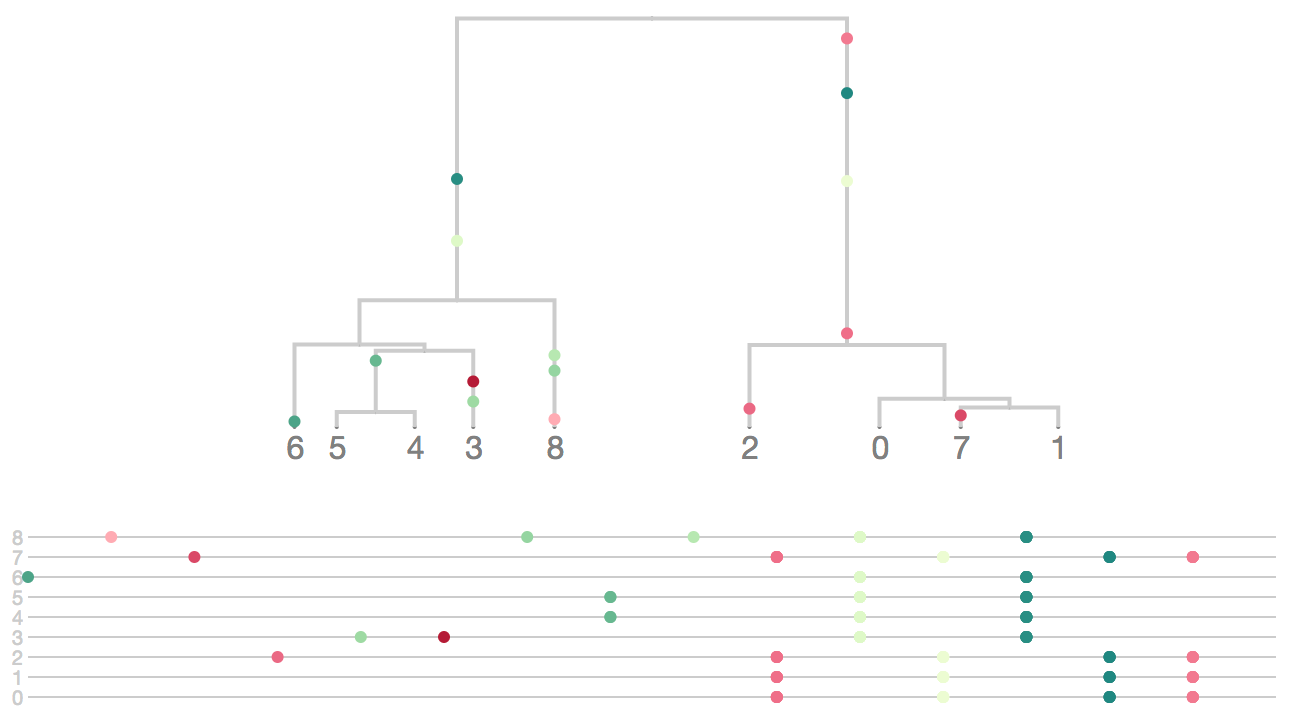

Phylogeny structures site patterns

Tree space is vast

There are (2n-3)!! rooted trees for n taxa

  • 3 taxa: 3 trees
  • 5 taxa: 105 trees
  • 10 taxa: 34,459,425 trees
  • 20 taxa: 8.2 × 1021 trees
  • 50 taxa: 2.8 × 1076 trees
  • 100 taxa: 3.3 × 10184 trees

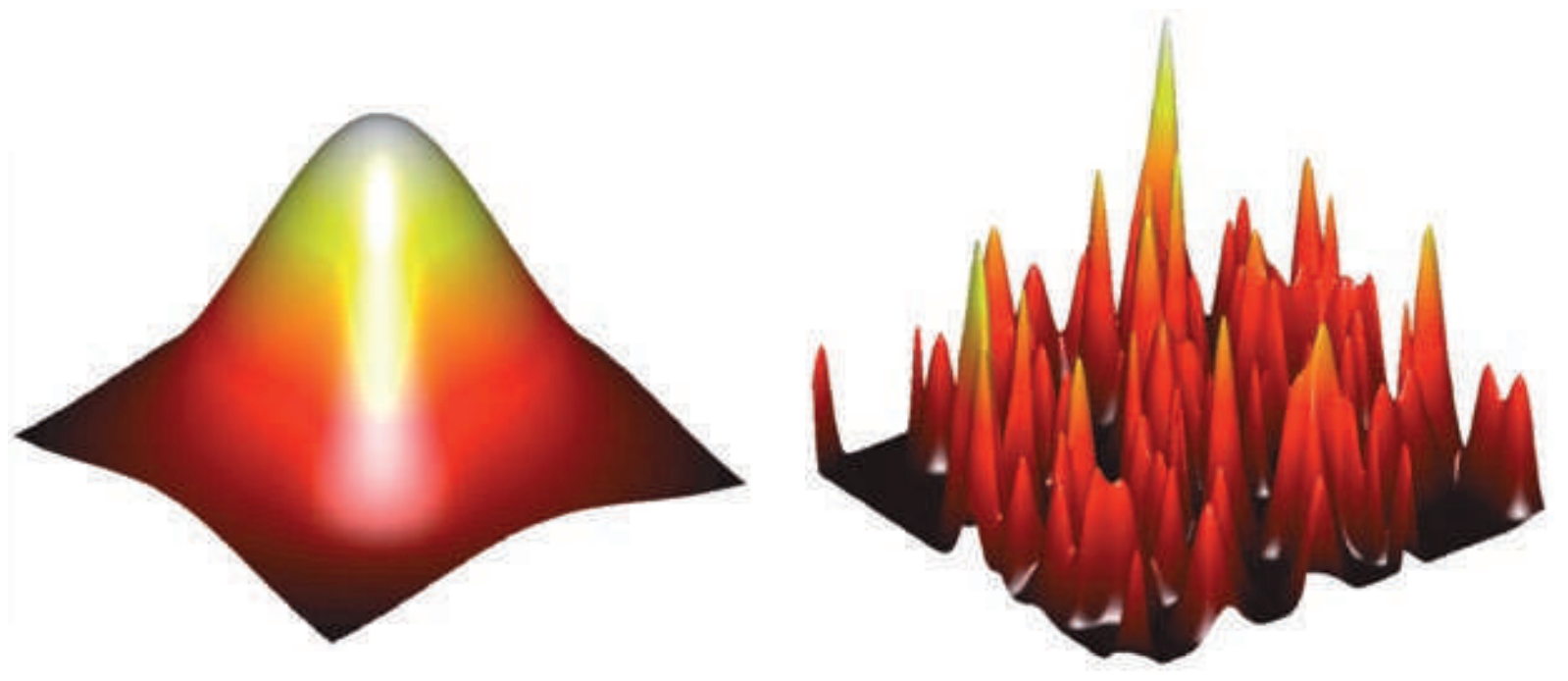

Solution space is rugged

Types of phylogenetic inference methods

  • Distance-based (neighbor-joining, fast, heuristic)
  • Parsimony (fast, "model-free")
  • Maximum likelihood (infers model of mutation, accurate, examples: FastTree, RAxML)
  • Bayesian (like ML, but requires prior, produces estimates of uncertainty, examples: MrBayes, BEAST)

Inference is a tree topology, branch lengths and ancestral states

Molecular clocks and dated phylogenies

Mutations tend to accumulate in a clock-like fashion

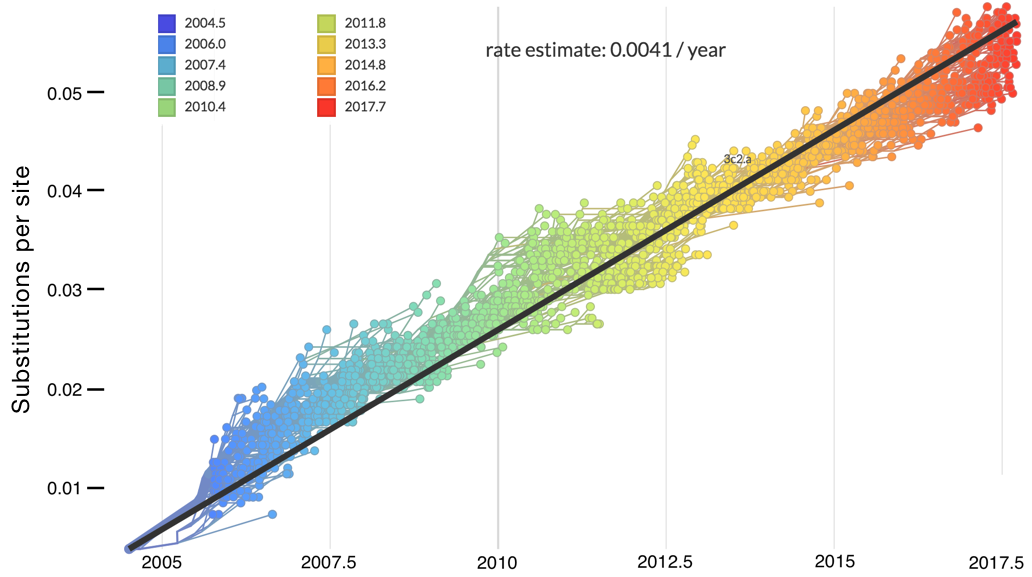

"Root-to-tip" plots show temporal signal

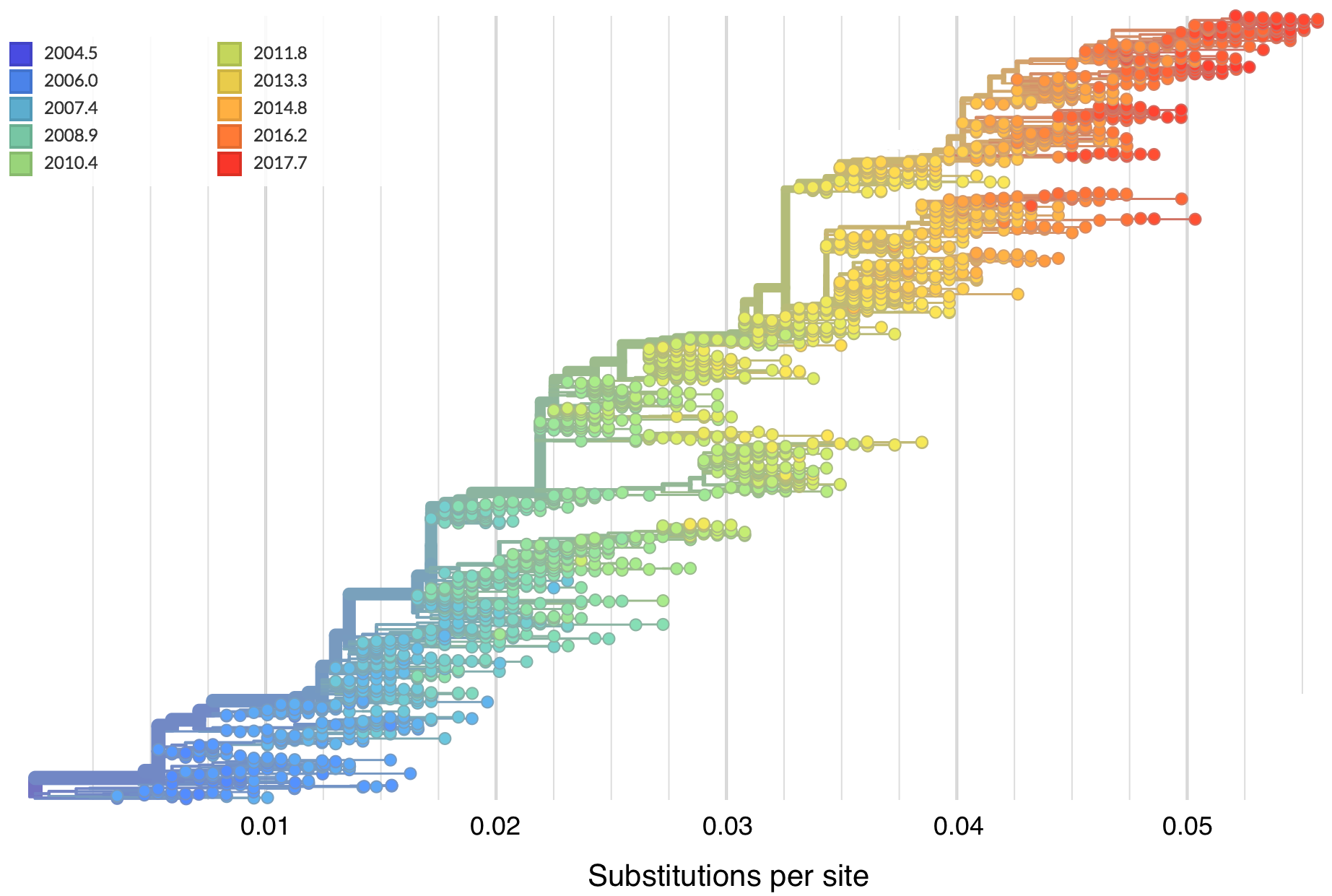

Allows conversion between branch length and time

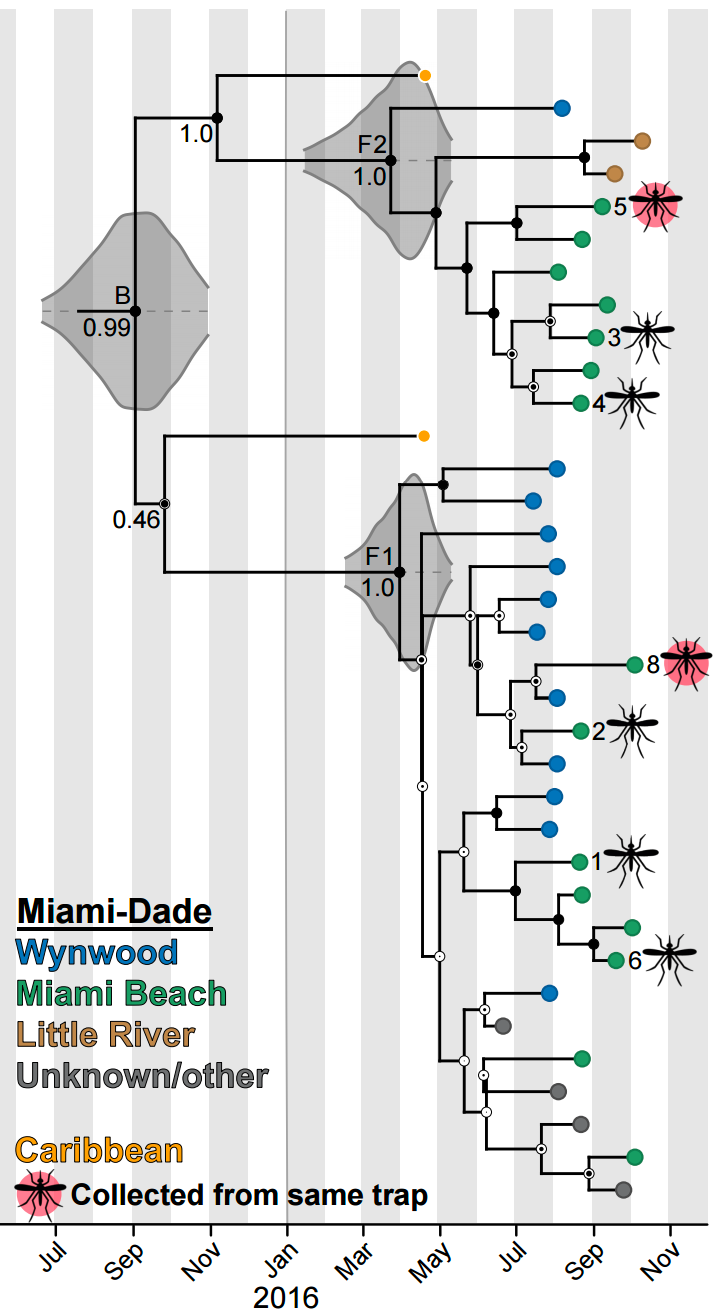

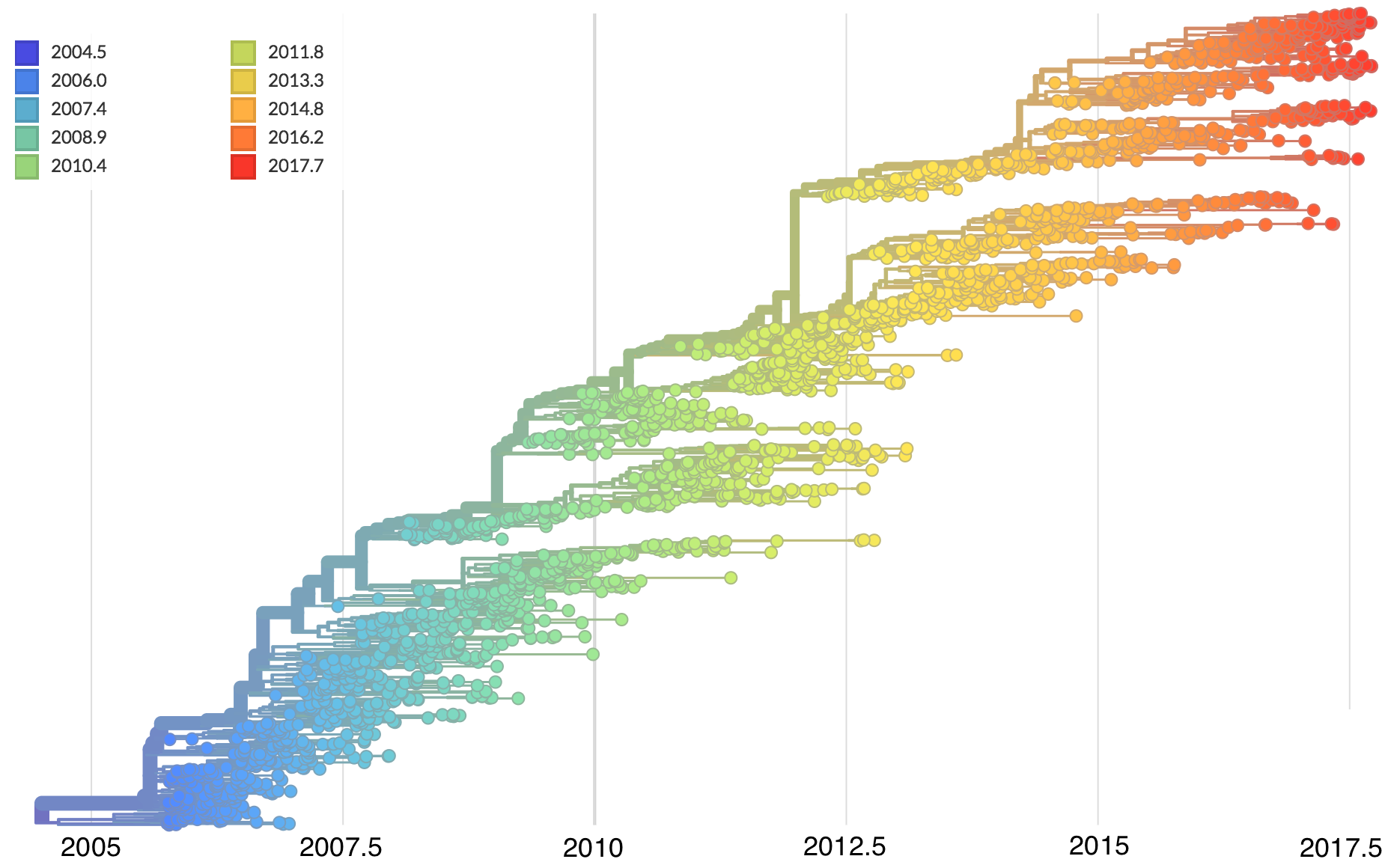

Dated phylogenies provide real-world context

Inference of discrete traits

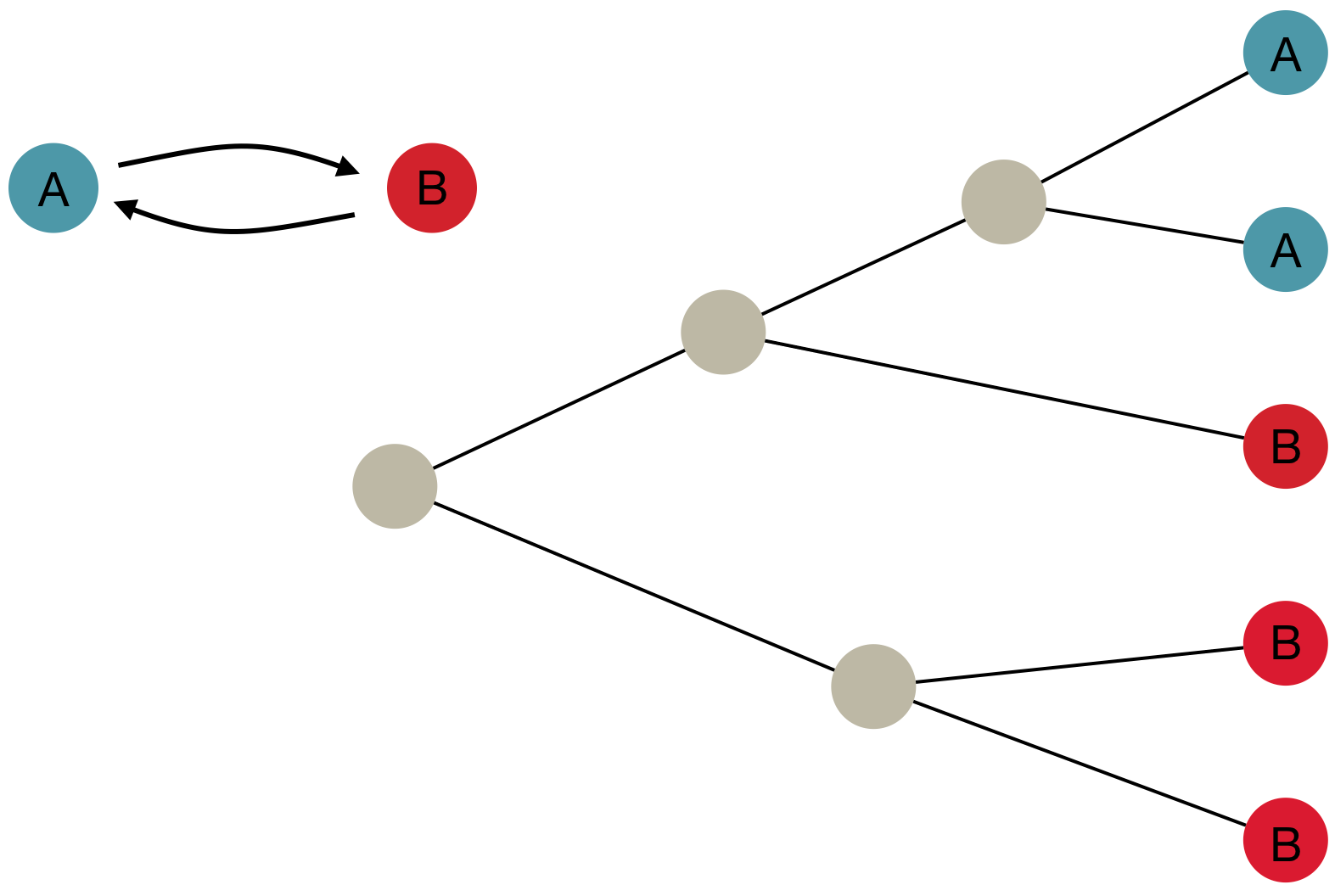

"Data" is a phylogeny and tip states

States include nucleotides, amino acids, geo locations, hosts, etc...

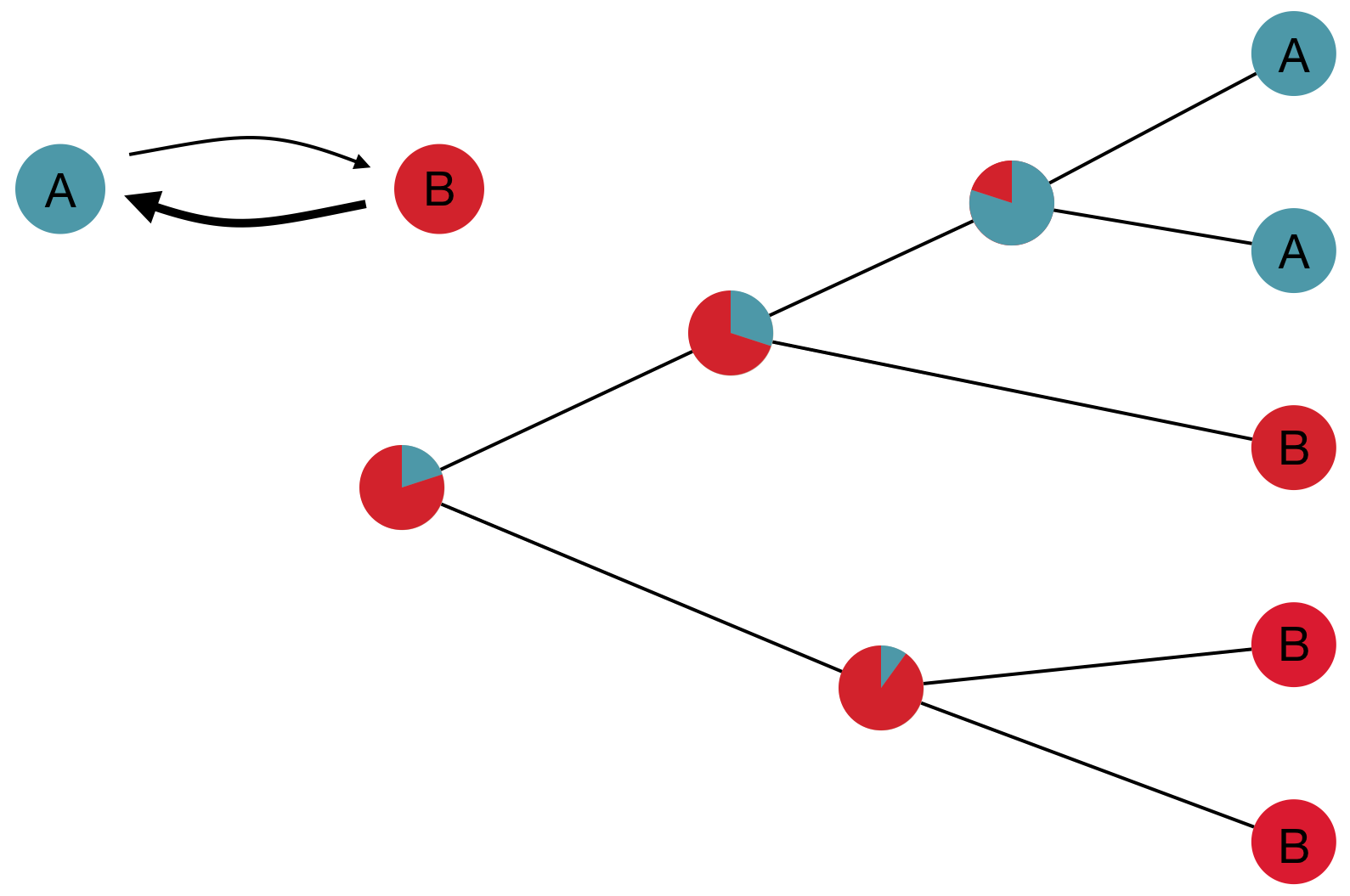

Model infers transition matrix and ancestral states

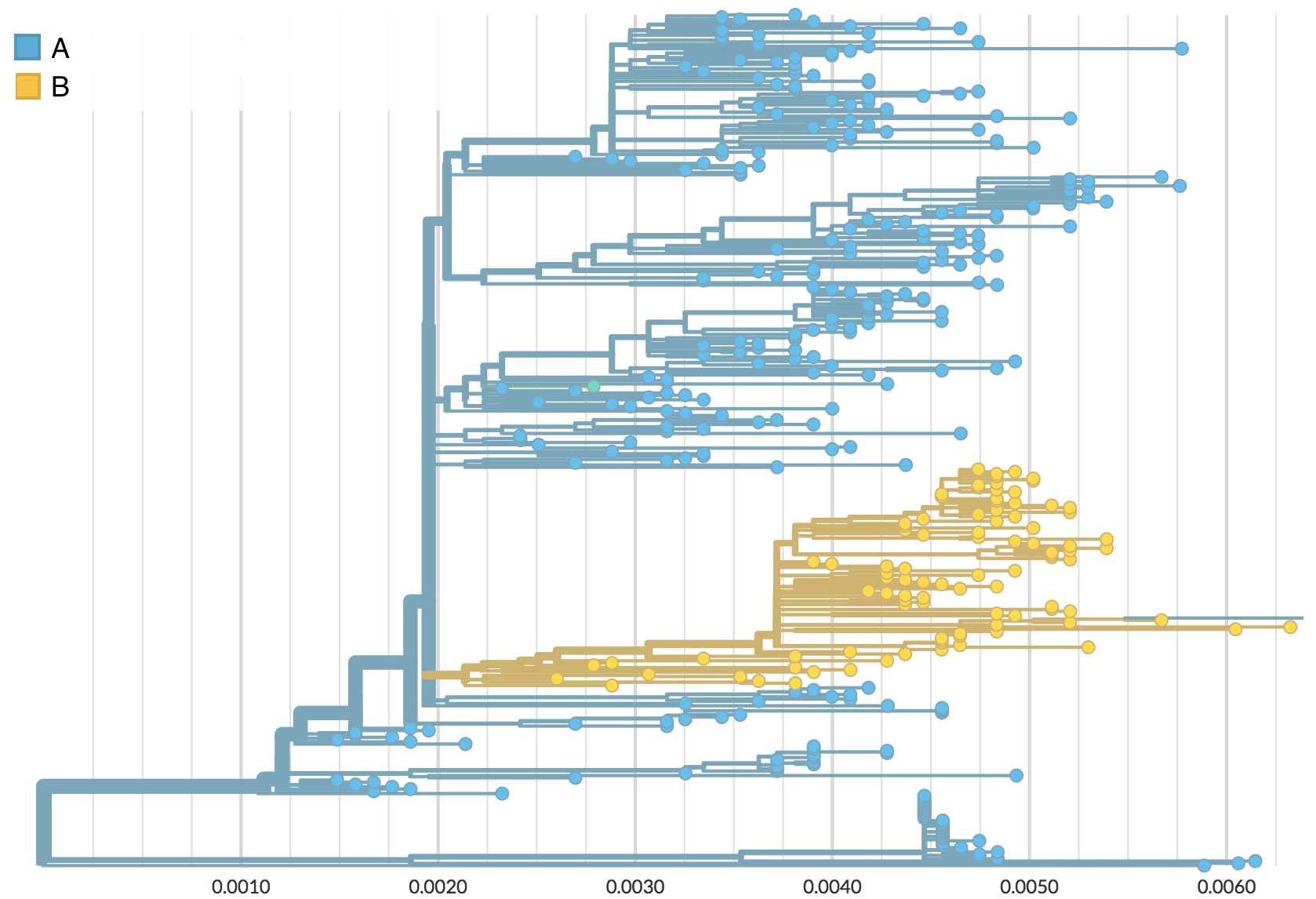

Rare transitions, short branches and many taxa increase confidence

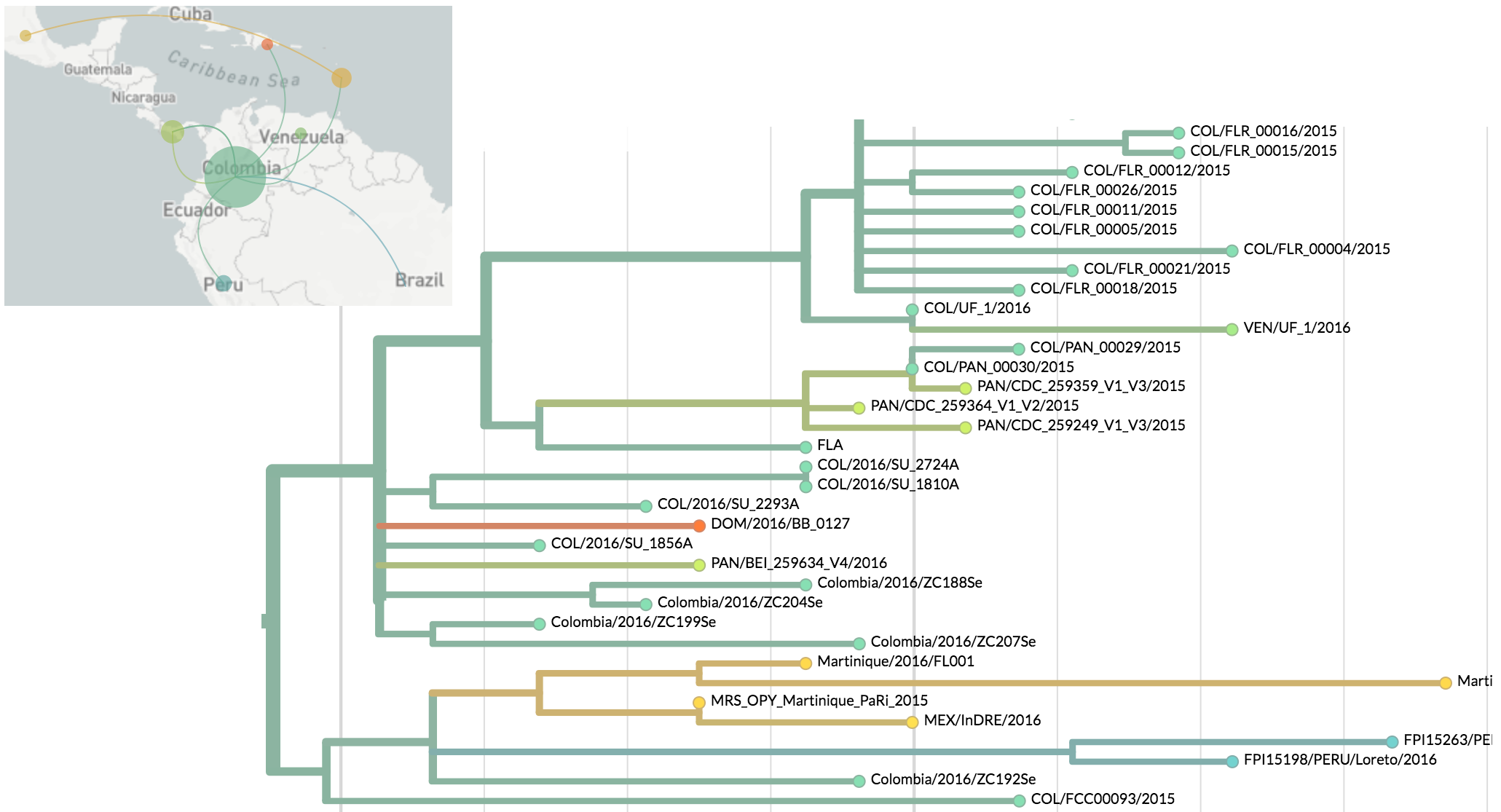

Nesting patterns are informative

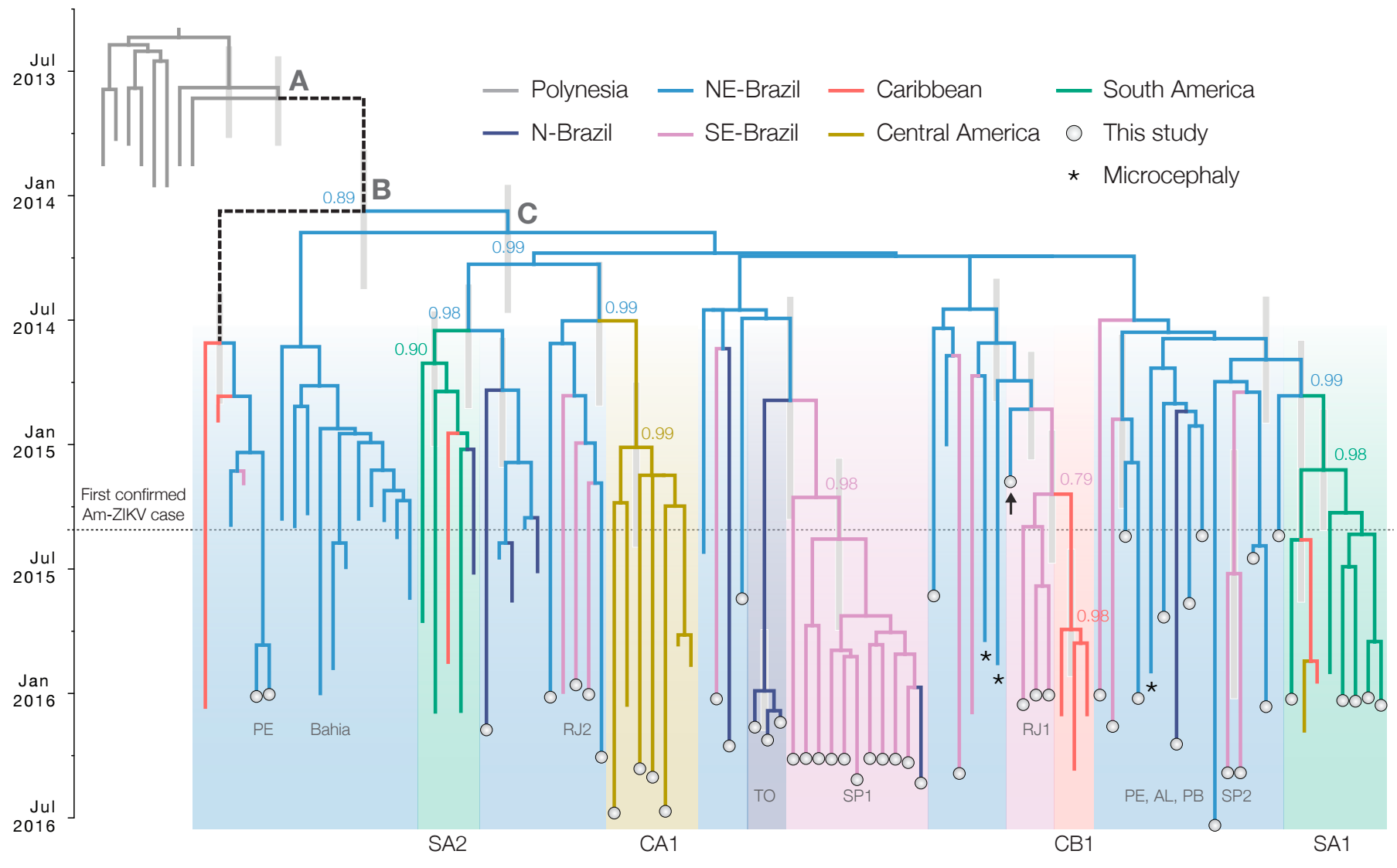

Zika phylogeny infers an origin in northeast Brazil


Bedford Lab: Alli Black, John Huddleston, Barney Potter, James Hadfield,
Louise Moncla, Tom Sibley, Maya Lewinsohn, Katie Kistler

Nextstrain: Richard Neher, James Hadfield, Emma Hodcroft, Tom Sibley, John Huddleston, Sidney Bell, Barney Potter, Colin Megill, Charlton Callender
