Genomic tracking of SARS-CoV-2 evolution and spread
Trevor Bedford (@trvrb)
Associate Professor, Fred Hutchinson Cancer Research Center
22 Jul 2020
AACR Virtual Meeting: COVID-19 and Cancer
Slides at: bedford.io/talks
Disclosure Information
AACR Virtual Meeting: COVID-19 and Cancer, Trevor Bedford
I have the following financial relationships to disclose:
- Grant/Research support from: NIH, Pew Charitable Trusts, Wellcome Trust, HHMI, BMGF
I will not discuss off label use and/or investigational use in my presentation.
Significant fog of war. Genomic approaches offer orthogonal data source to understand the pandemic.
Epidemic process
Sample some individuals
Sequence and determine phylogeny
Sequence and determine phylogeny
Jan 11: First five genomes showed that the outbreak was caused by a novel SARS-like coronavirus
Jan 19: First 12 genomes from Wuhan and Bangkok lack genetic diversity
Single introduction into the human population between Nov 15 and Dec 15 and human-to-human epidemic spread from this point forward
😧
Spent the week of Jan 20 alerting public health officials, and since then have aimed to keep nextstrain.org up-to-date
Nextstrain
Project to conduct real-time genomic epidemiology and evolutionary analysis of emerging epidemics
with
Richard Neher,
James Hadfield,
Emma Hodcroft,
Thomas Sibley,
John Huddleston,
Louise Moncla,
Cassia Wagner,
Miguel Paredes,
Misja Ilcisin,
Kairsten Fay,
Jover Lee,
Allison Black,
Colin Megill,
Sidney Bell,
Barney Potter,
Charlton Callender

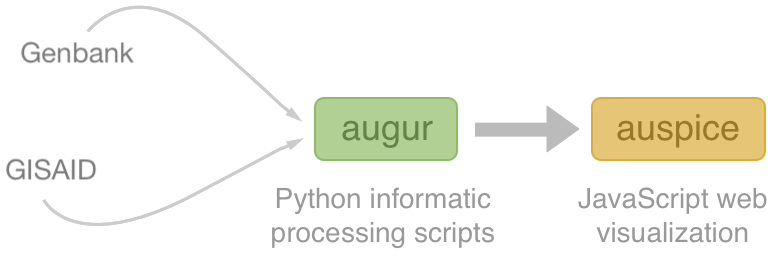

Nextstrain architecture
All code open source at github.com/nextstrain
Two central aims: (1) rapid and flexible phylodynamic analysis and
(2) interactive visualization
Rapid build pipeline for 3000 SARS-CoV-2 genomes (timings are for a laptop)
- Align with MAFFT (~20 min)
- Build ML tree with IQTREE (~40 min)
- Temporally resolve tree and geographic ancestry with TreeTime (~50 min)
- Total pipeline (~2 hr)
Current data flow for SARS-CoV-2
- Labs contribute directly to GISAID (now have >63k full genomes)
- Nextstrain pulls a complete dataset from GISAID every 24 hours
- This triggers an automatic rebuild on Amazon Web Services
- We manually update new lat/longs, etc...
- We push this build online to nextstrain.org and tweet the update from @nextstrain
Dec/Jan: Emergence from Wuhan in ~Nov 2019
Jan/Feb: Spread within China and seeding elsewhere
Feb/Mar: Epidemic spread within North America and Europe
Mar/Apr: Decreasing transmission with social distancing

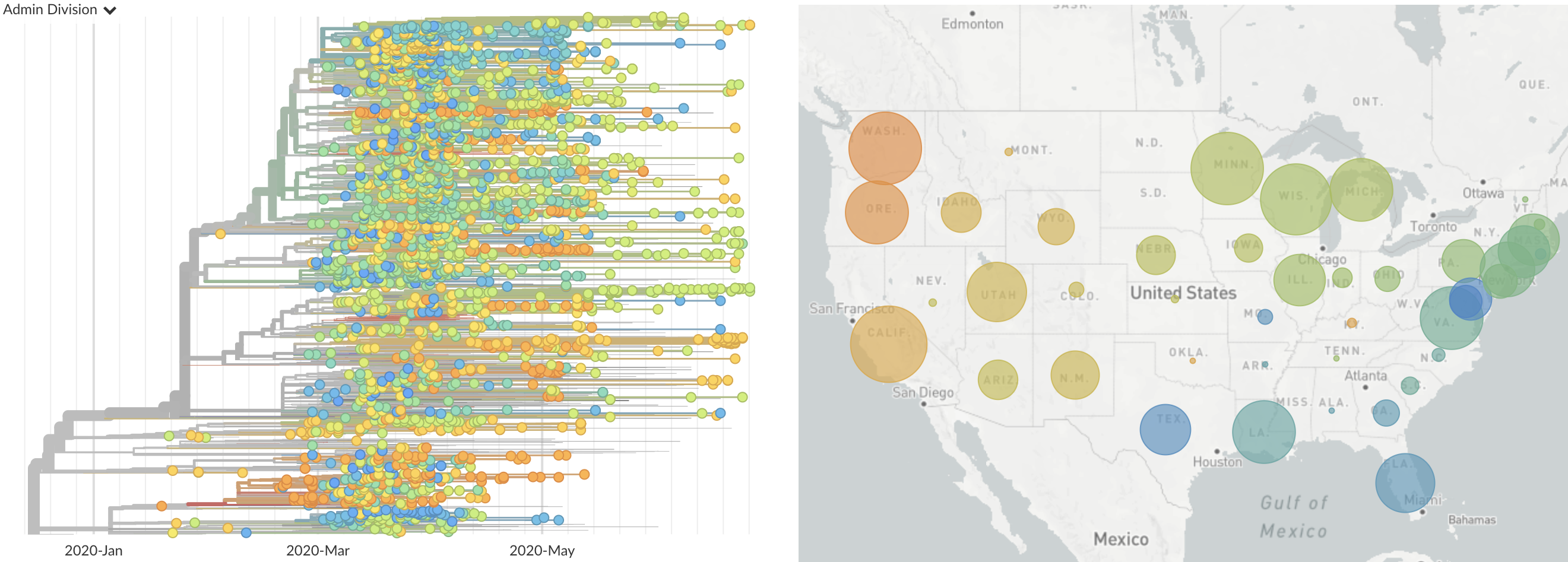

Epidemic in the USA was introduced from China in late Jan and from Europe during Feb

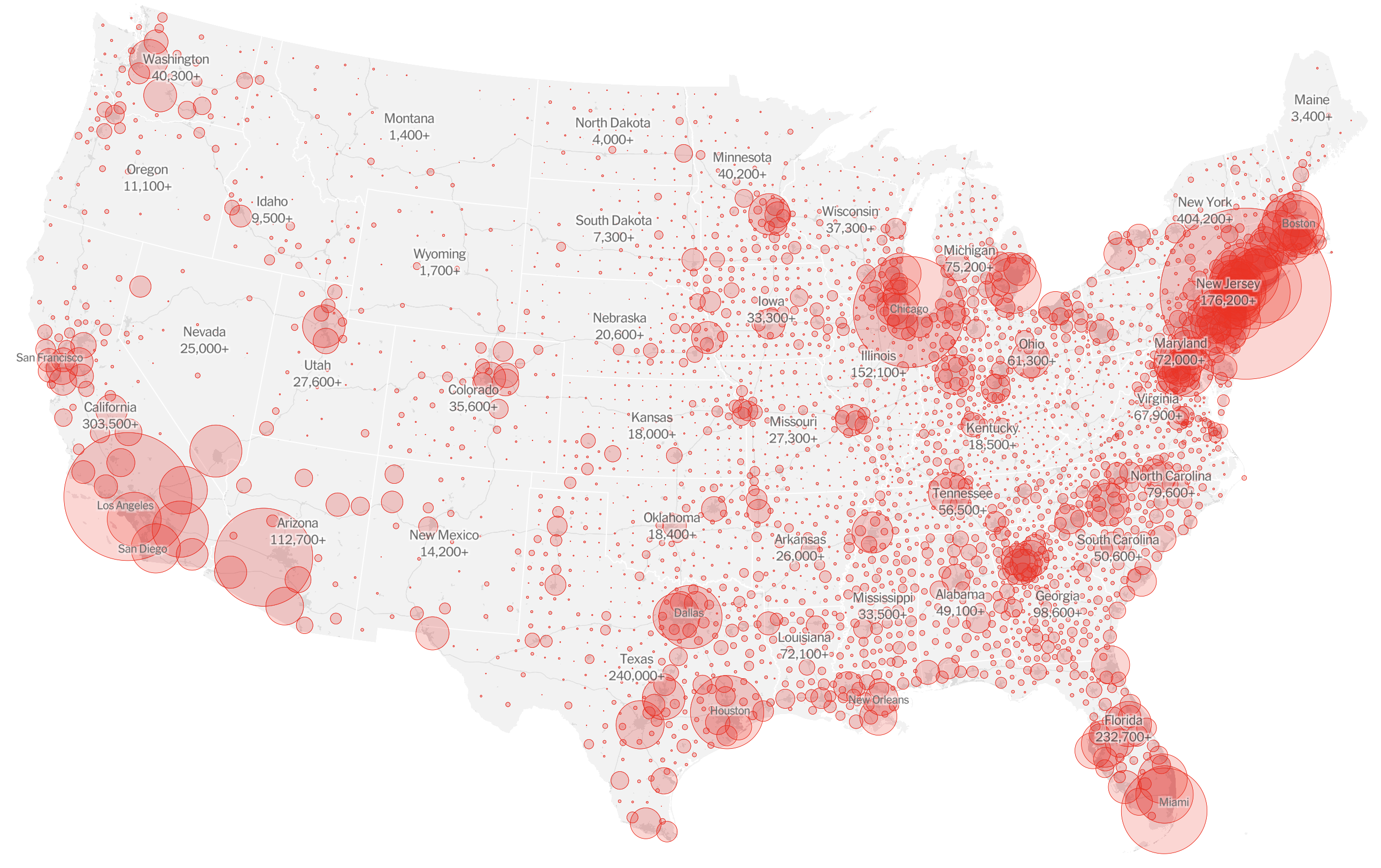

Once in the US, virus spread rapidly

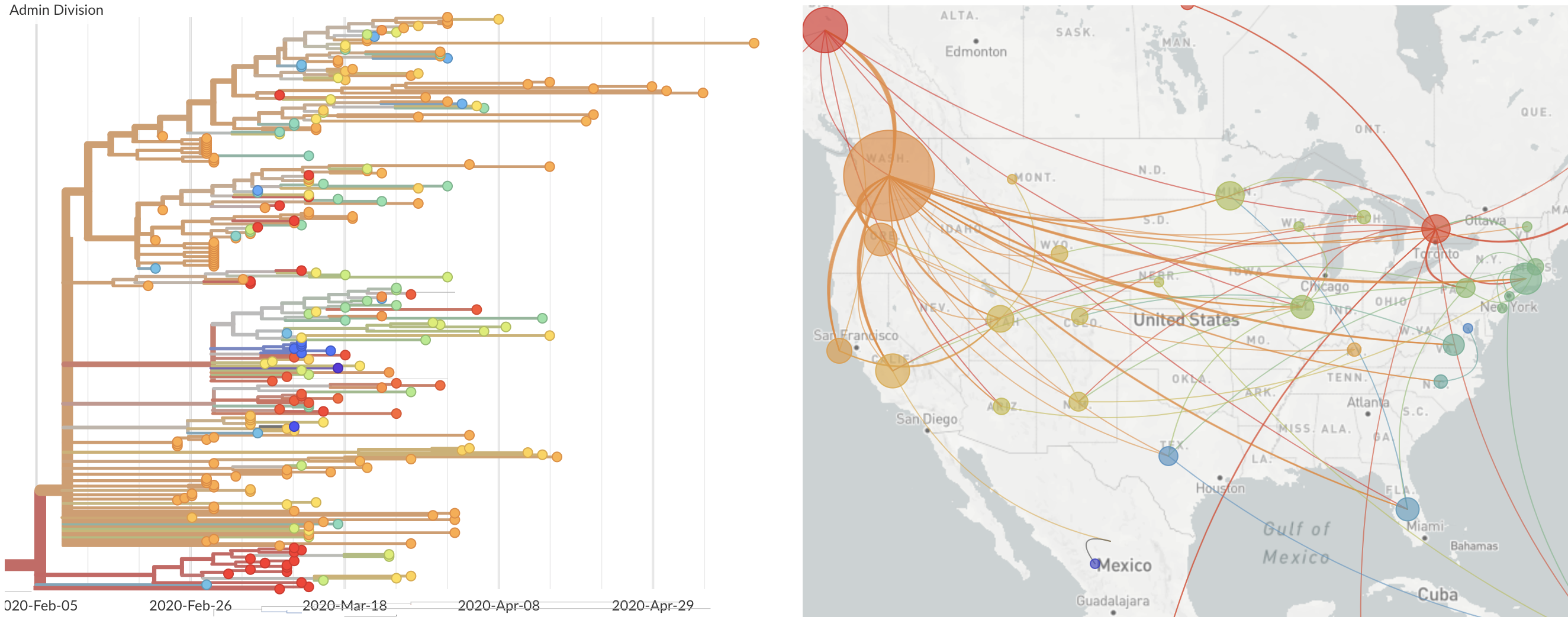

Single introduction at the beginning of Feb quickly shows up throughout the country
Sequencing immediately useful for epidemiological understanding, but selection and functional impacts should also be studied
Significant interest in spike mutation D614G
This mutation occurred in the initial European introduction
D614G is prevalent throughout Europe and mixed in US and Australia
D614G is increasing in frequency across states in US and Australia
D614G is increasing in frequency across states in US and Australia
The success of D614G can be explained by either:
- D614G is more transmissible and has higher $R_0$
- founder effects and epidemiological confounding

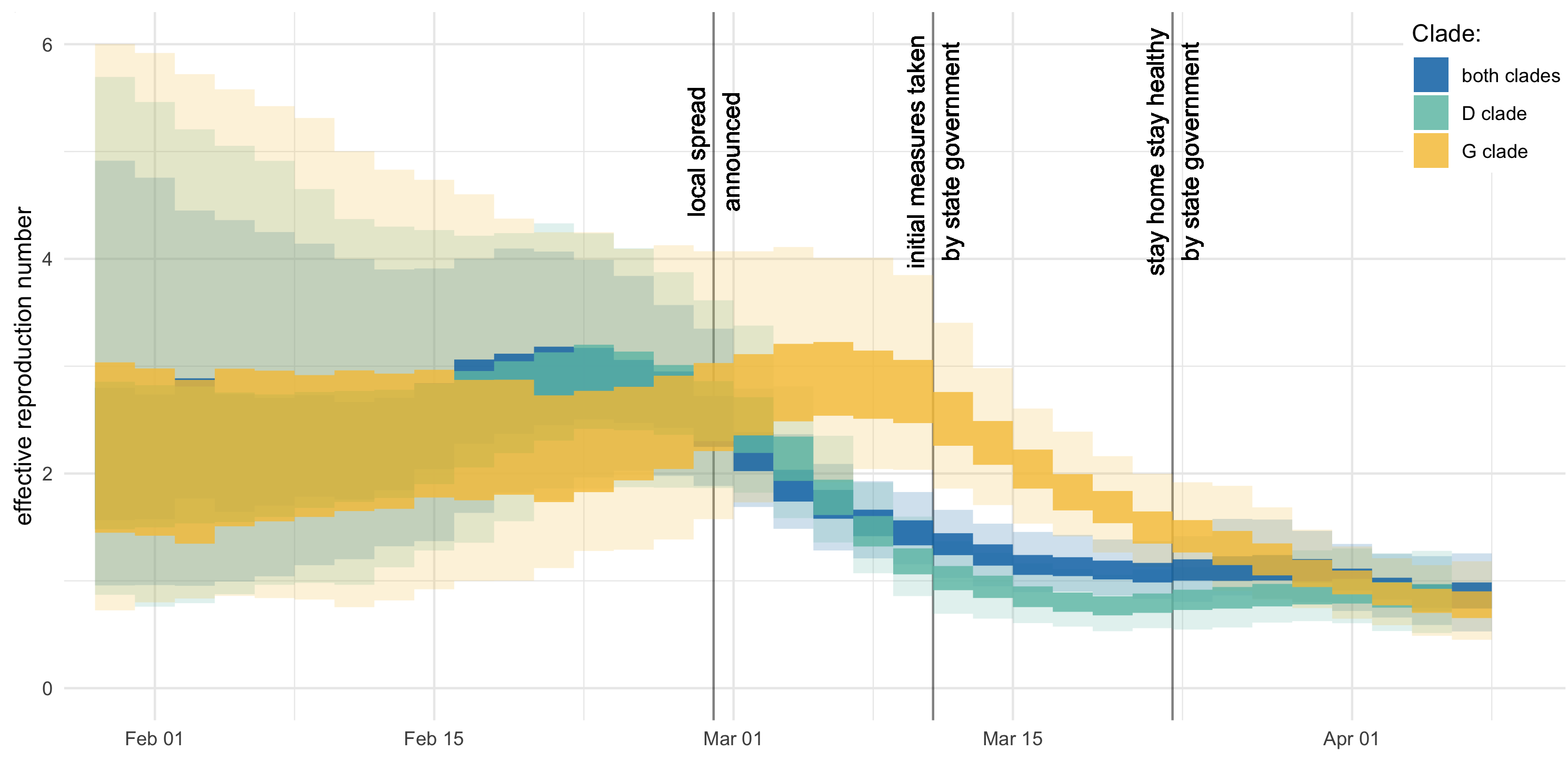

Additional evidence from Ct values of clinical specimens
Sheffield, UK Seattle, USA

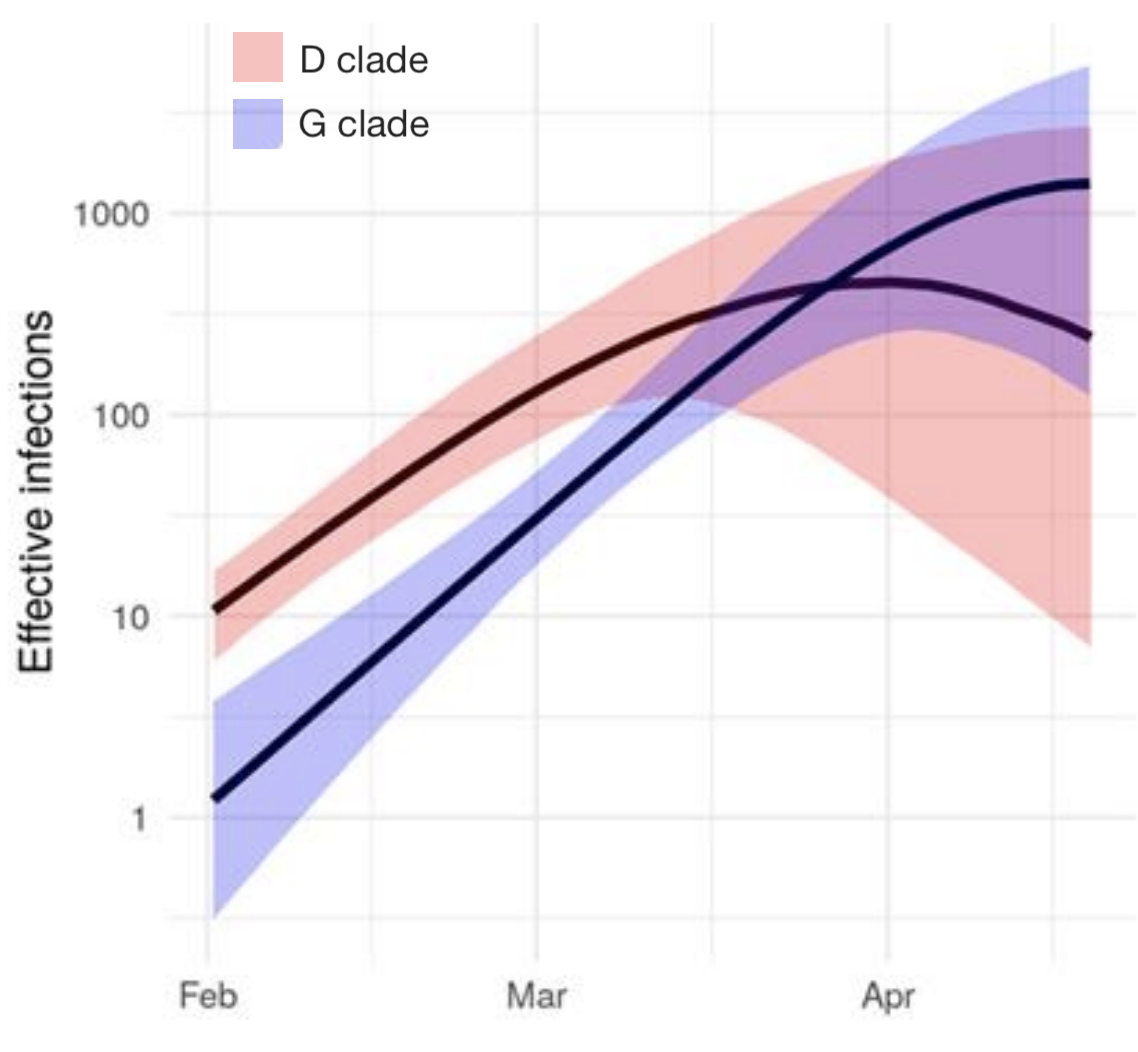

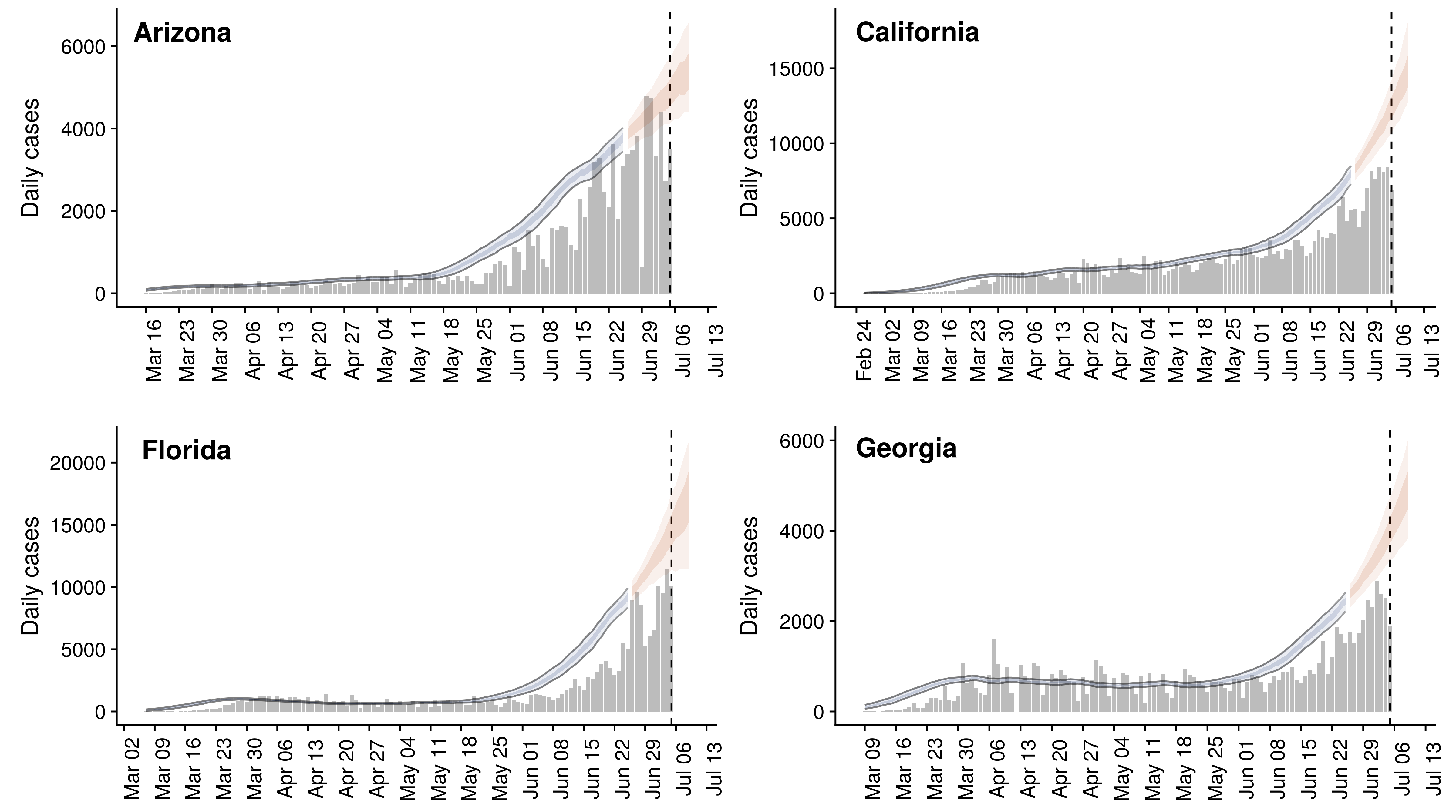

Further phylodynamic models
UK Washington State
Moving forward
- Better methods for large datasets
- Distinguishing endogenous spread from importations
- Tying genomic epidemiology together with richer epi data to better understand local transmission
- Incorporating within-host variation to improve phylogenetic resolution
- Integrating clinical data to look for mutations that impact clinical outcomes
Acknowledgements
Genomic epi: Data producers from all over the world, GISAID and the Nextstrain team
Bedford Lab:
Alli Black,
John Huddleston,
James Hadfield,
Katie Kistler,
Louise Moncla,
Maya Lewinsohn,
Thomas Sibley,
Jover Lee,
Kairsten Fay,
Misja Ilcisin,
Cassia Wagner,
Miguel Paredes,
Nicola Müller,
Marlin Figgins,
Eli Harkins
