Data rich phylodynamics


Trevor Bedford

Fred Hutchinson Cancer Center / Howard Hughes Medical Institute
9 Jul 2024
The Halloran Symposium
Fred Hutchinson Cancer Center
Slides at:

Genomic epidemiology in emerging outbreaks

Three key insights provided by genomic epi during COVID-19 pandemic

  1. Rapid human-to-human spread in Wuhan beyond initial market outbreak
  2. Extensive local transmission while testing was rare
  3. Identification of variants of concern and mapping of increased transmission rates

Jan 11: First five genomes showed a novel SARS-like coronavirus

Initially thought clustering due to epi investigation of linked cases at Huanan seafood market

Data from CAMS, China CDC, Fudan University, WIV; Figure from

Jan 19: First 12 genomes from Wuhan (blue) and Bangkok (red) showed lack of genetic diversity

Data from CAMS, China CDC, Fudan University, Hubei CDC, Thai MOPH, WIV; Figure from

Jan 23: Introduction into the human population between Nov 15 and Dec 15 and subsequent rapid human-to-human spread

Rapid global epidemic spread from China

Epidemic in the USA was introduced from China in late Jan and from Europe during Feb

Early sequencing provided best estimate of extent of local outbreak

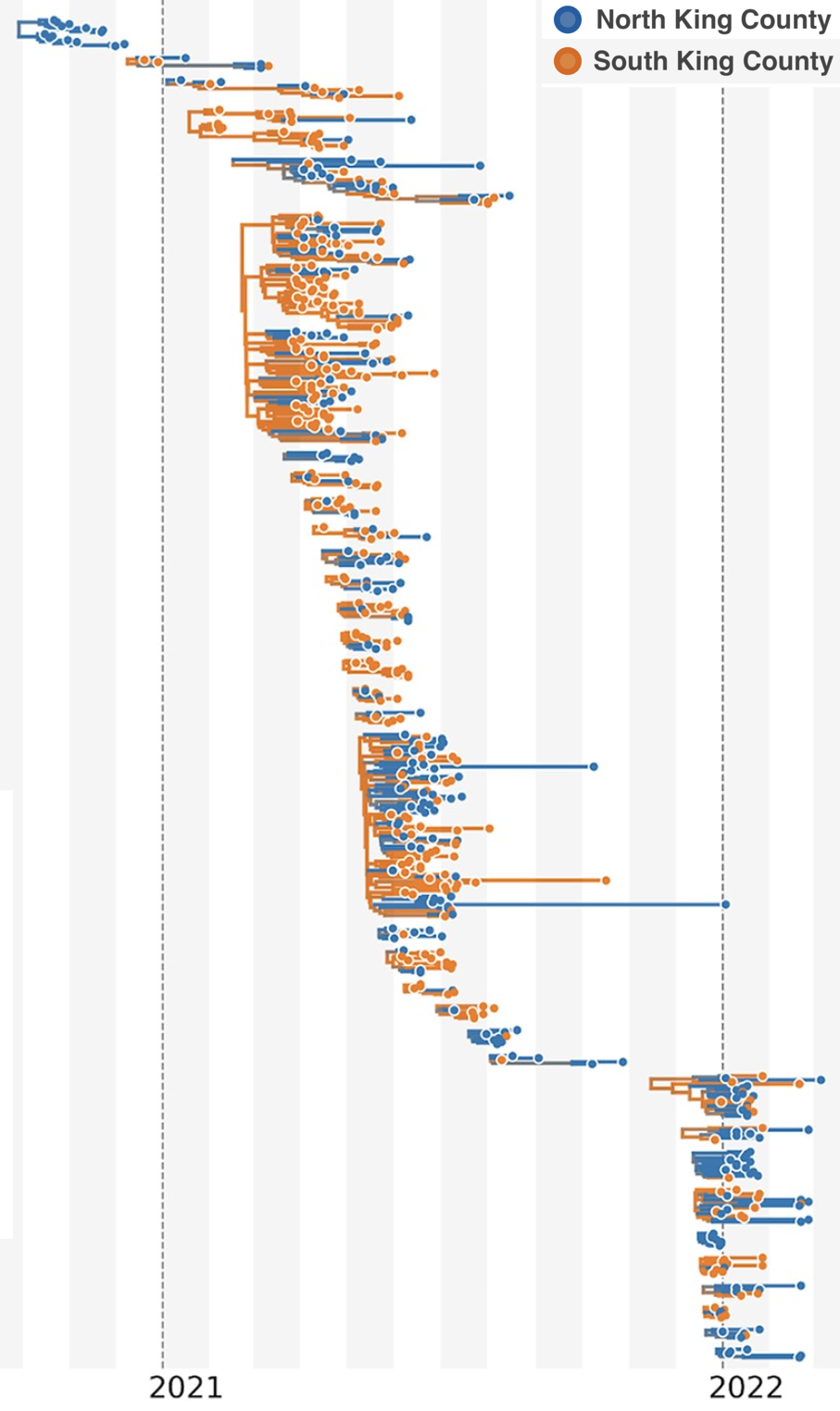

After initial wave, with mitigation
efforts and decreased travel,
regional clades emerge

Emergence and spread of initial VOC viruses

Alpha described in Rambaut et al. 2020. Figure from
Gamma described in Faria et al. 2021. Science. Figure from

Similar story for other emerging pathogens

Zika epidemic in the Americas originated ~1.5 years before initial case detection

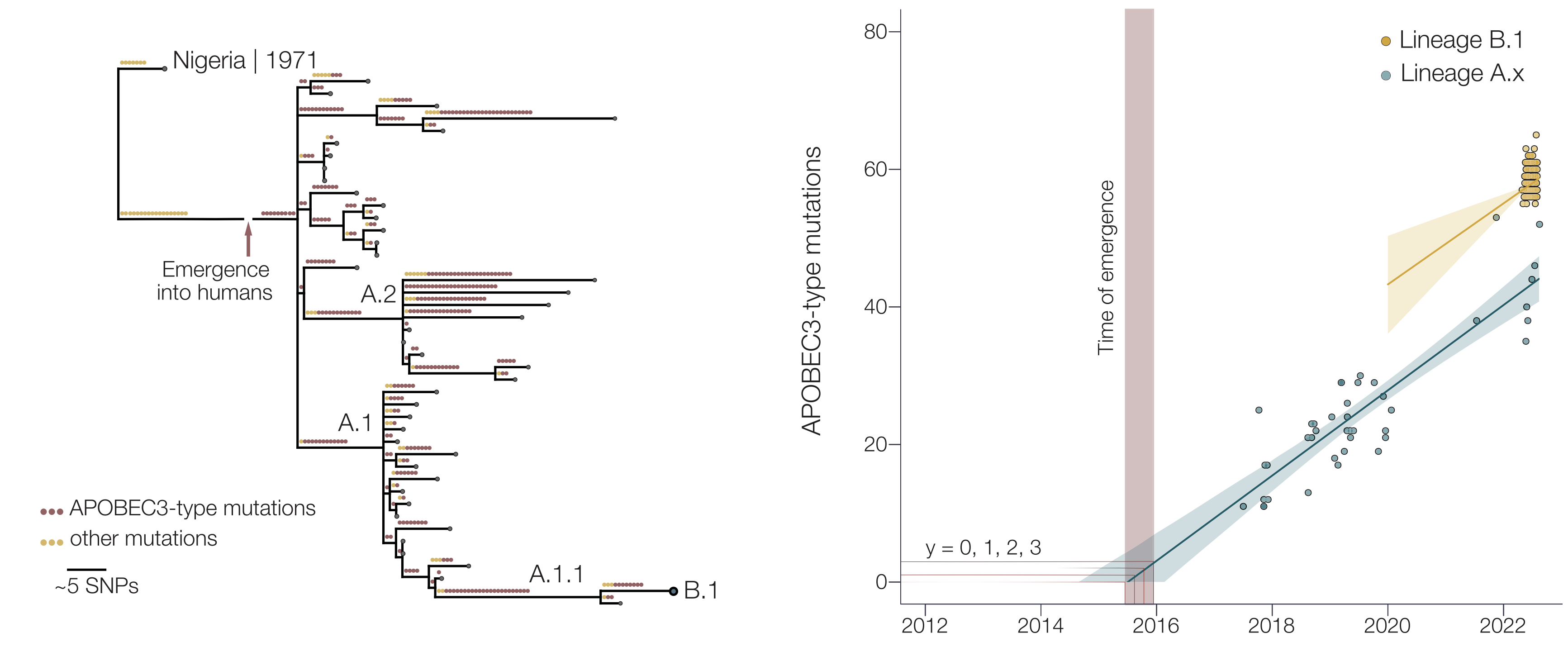

Mpox epidemic of 2022 stems from human-to-human transmission that began in Nigeria in 2016

Ongoing H5N1 epizootic in cattle was spreading for months prior to initial case detection in late March

After initial lag, we've seen ramp up of molecular diagnostics and sequencing

The COVID-19 pandemic pushed the field perhaps ~5 years into the future

2013-16 Ebola in West Africa 29k confirmed cases 1610 genomes
2015-17 Zika in the Americas 223k confirmed cases 942 genomes
2018-19 seasonal flu in US 290k confirmed cases 8864 genomes
2020-22 COVID-19 pandemic 732M confirmed cases 14.5M genomes

Scalable approaches to genomic epidemiology

  • Determinants of transmission: Use high volume sequencing datasets to reconstruct transmission dynamics across (spatial) compartments
  • Evolutionary forecasting: Use high volume sequencing datasets to track fine-scale lineage frequencies and infer selective dynamics

Determinants of transmission

Phylogeography infers migration matrix via phylogeny

Phylogeography infers migration matrix via phylogeny

However, this approach faces significant issues with scalability and sampling bias

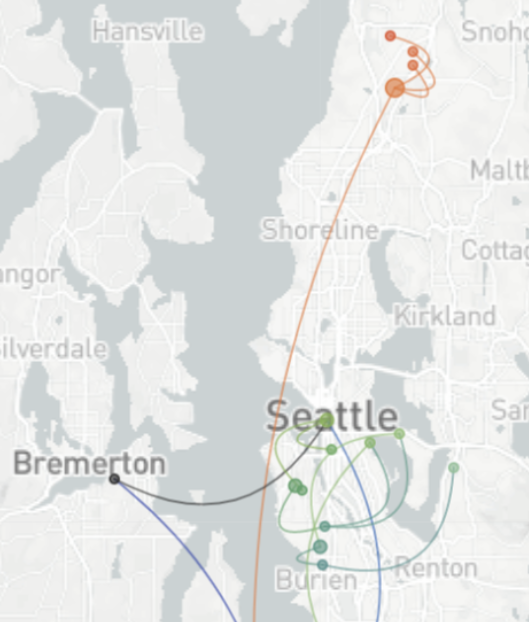

Model emergence, spread and dissolution of clusters of identical sequences

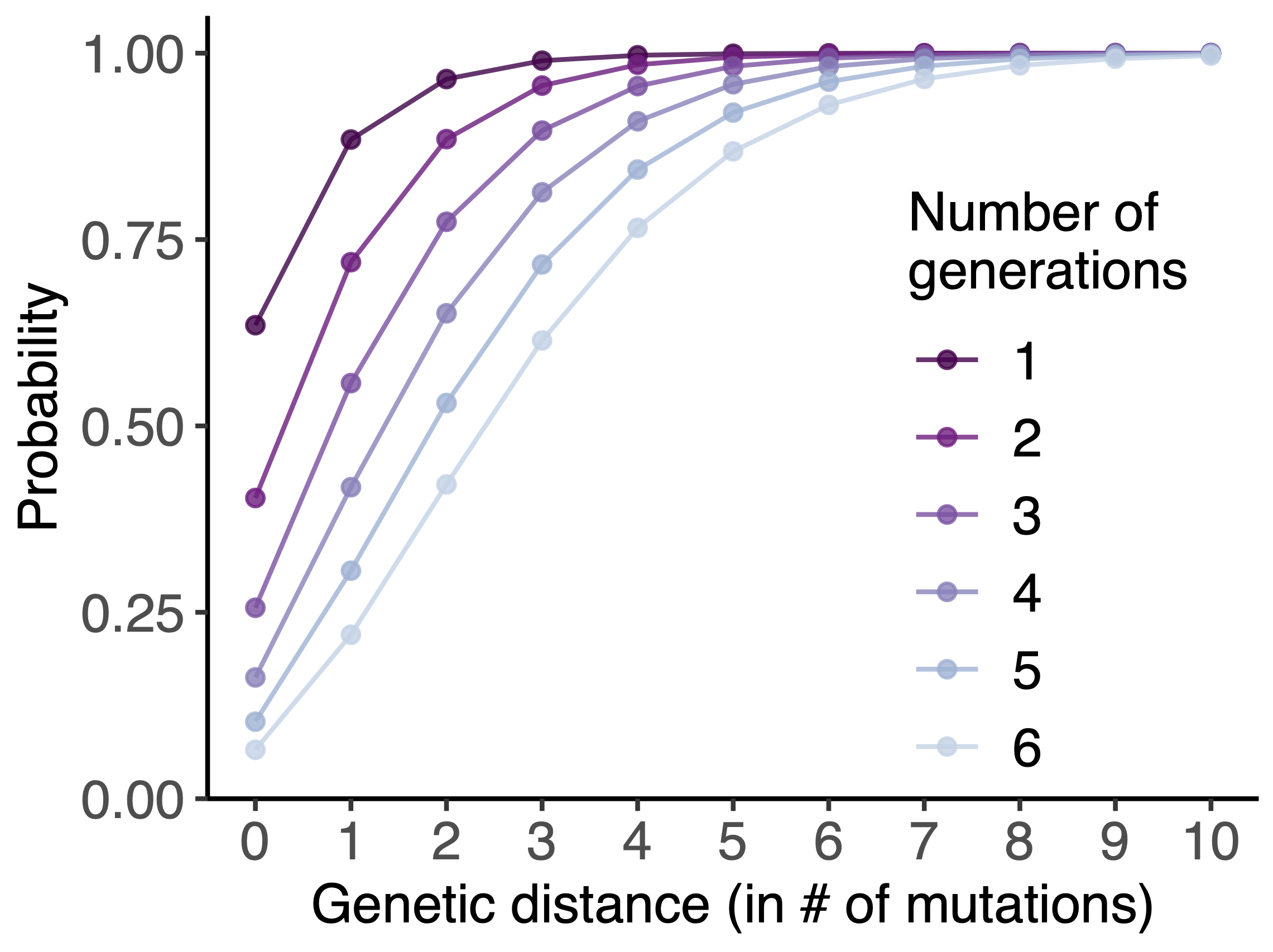

Identical sequences generally closely linked

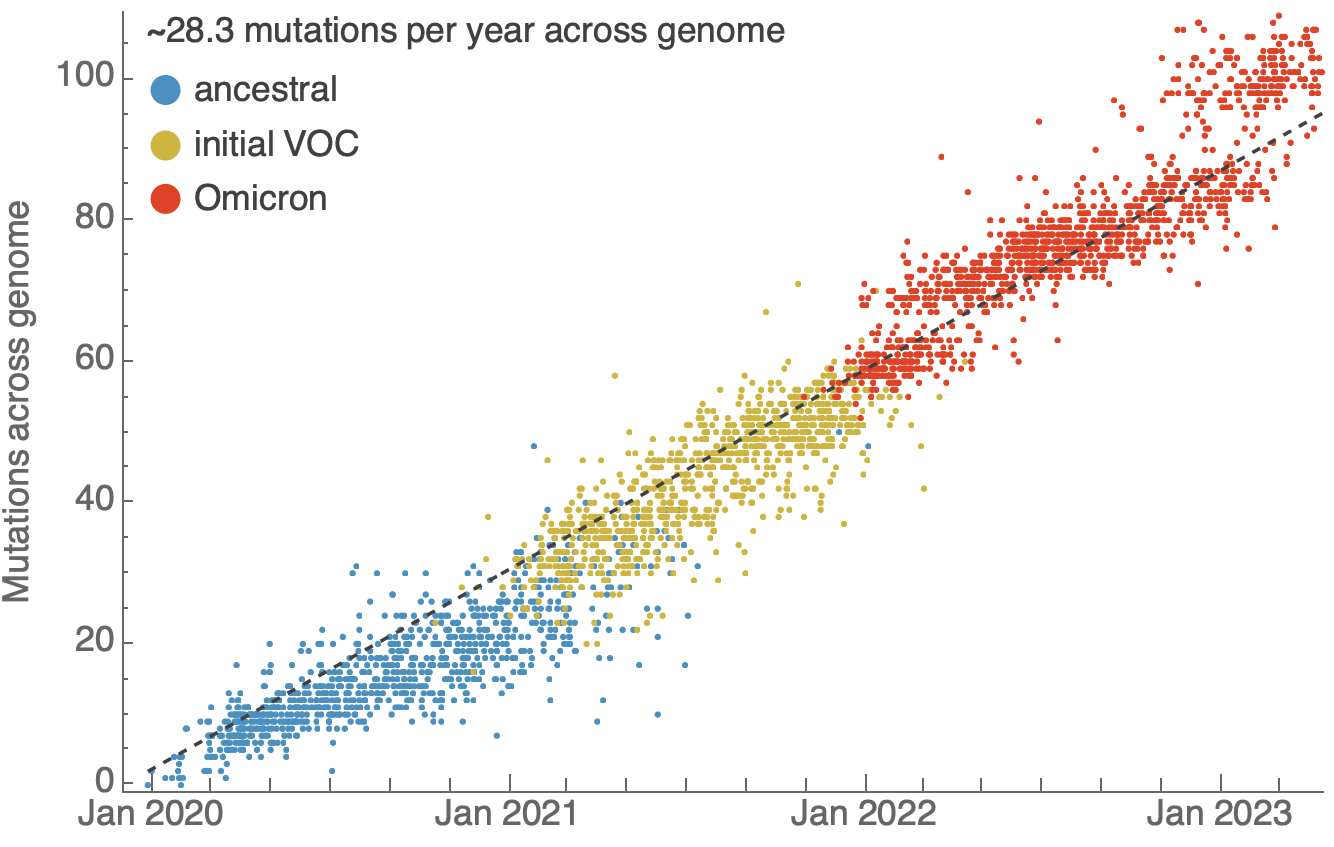

One mutation every ~13 days vs duration of infection of ~5 days

Spatial and social determinants of transmission from clusters of identical sequences

114k SARS-CoV-2 genomes from Washington State sentinel surveillance annotated with
geographic location and age

Pairs of identical sequences 5.1 times more likely to come from same county

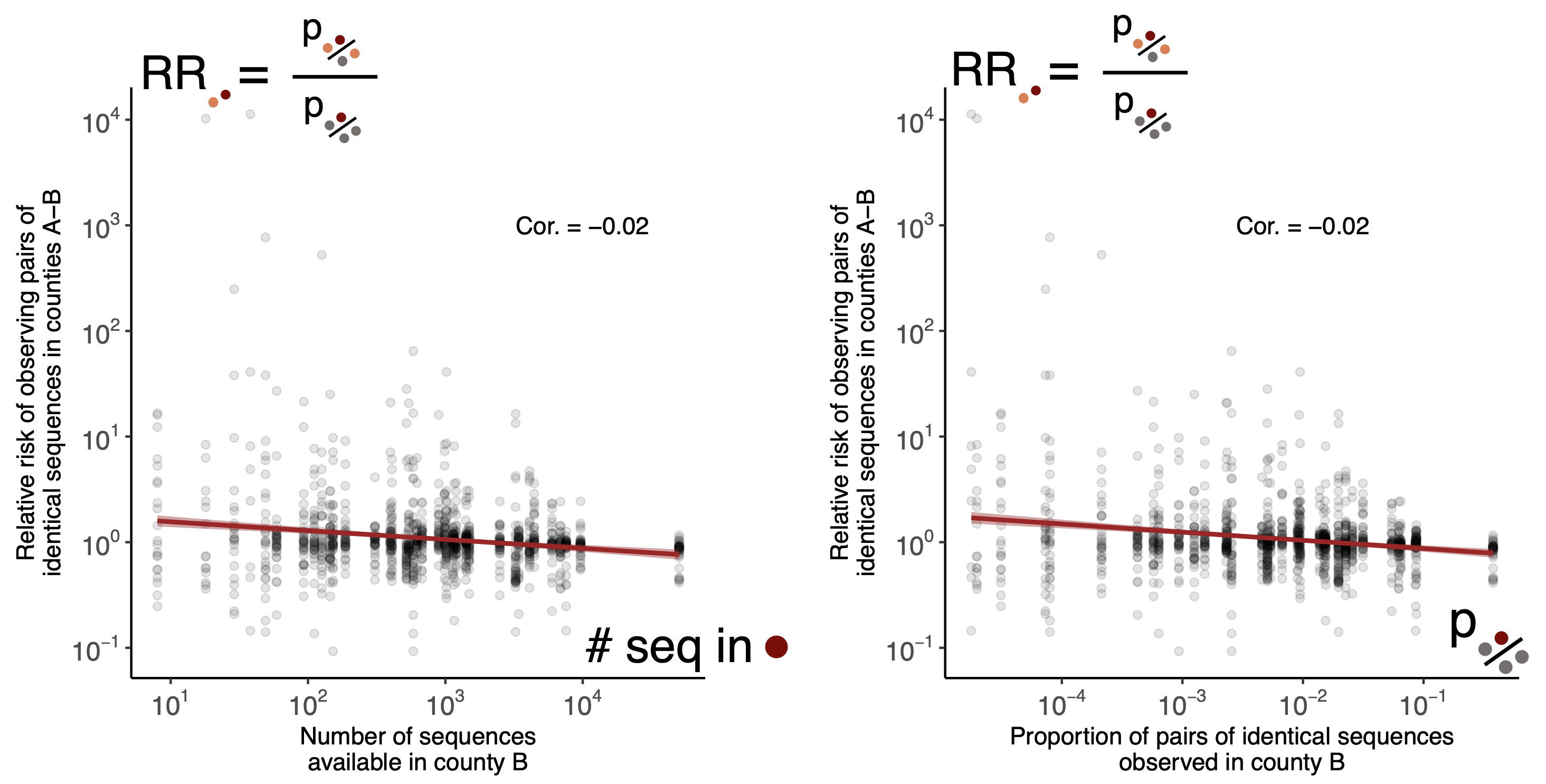

Relative risk score robust to sampling intensity

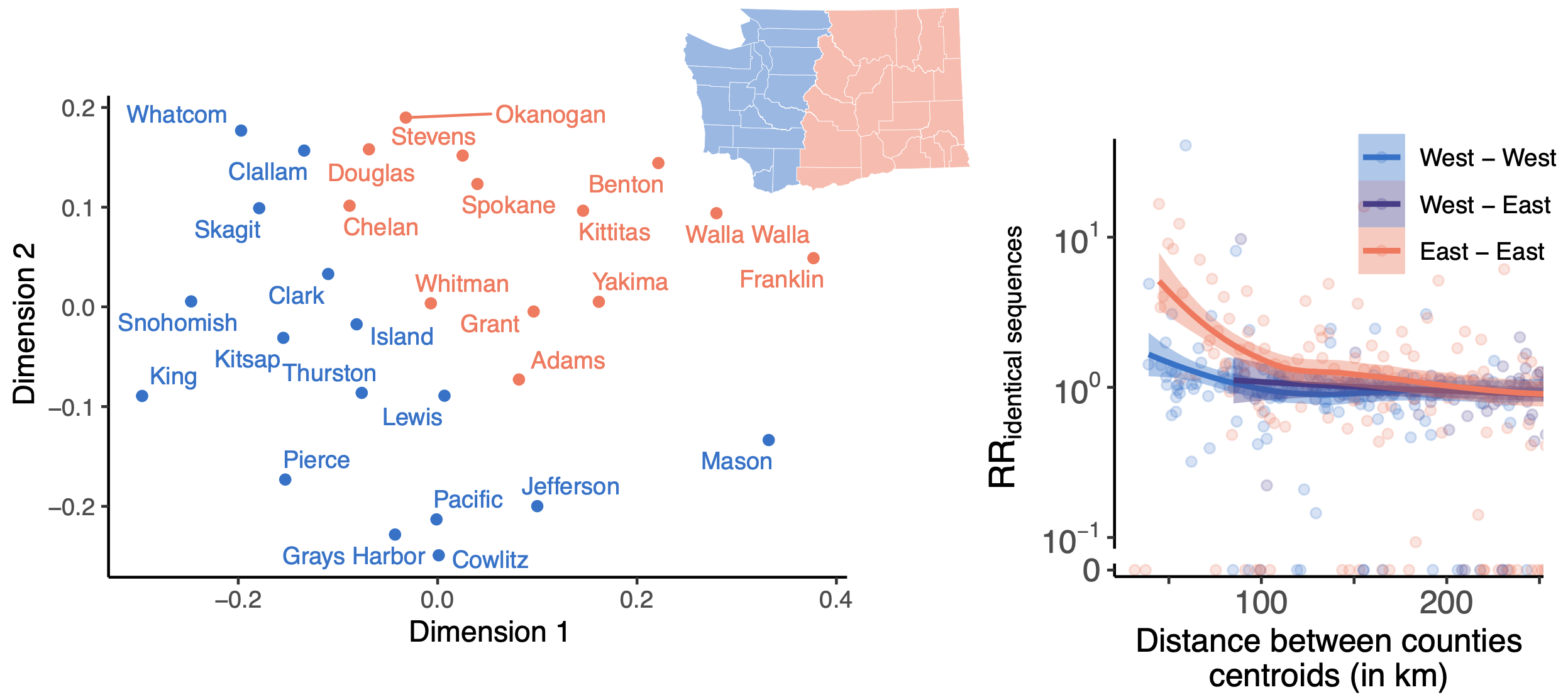

Between county enrichment corresponds well with geography

East-vs-west split due to geographic barrier in Washington State

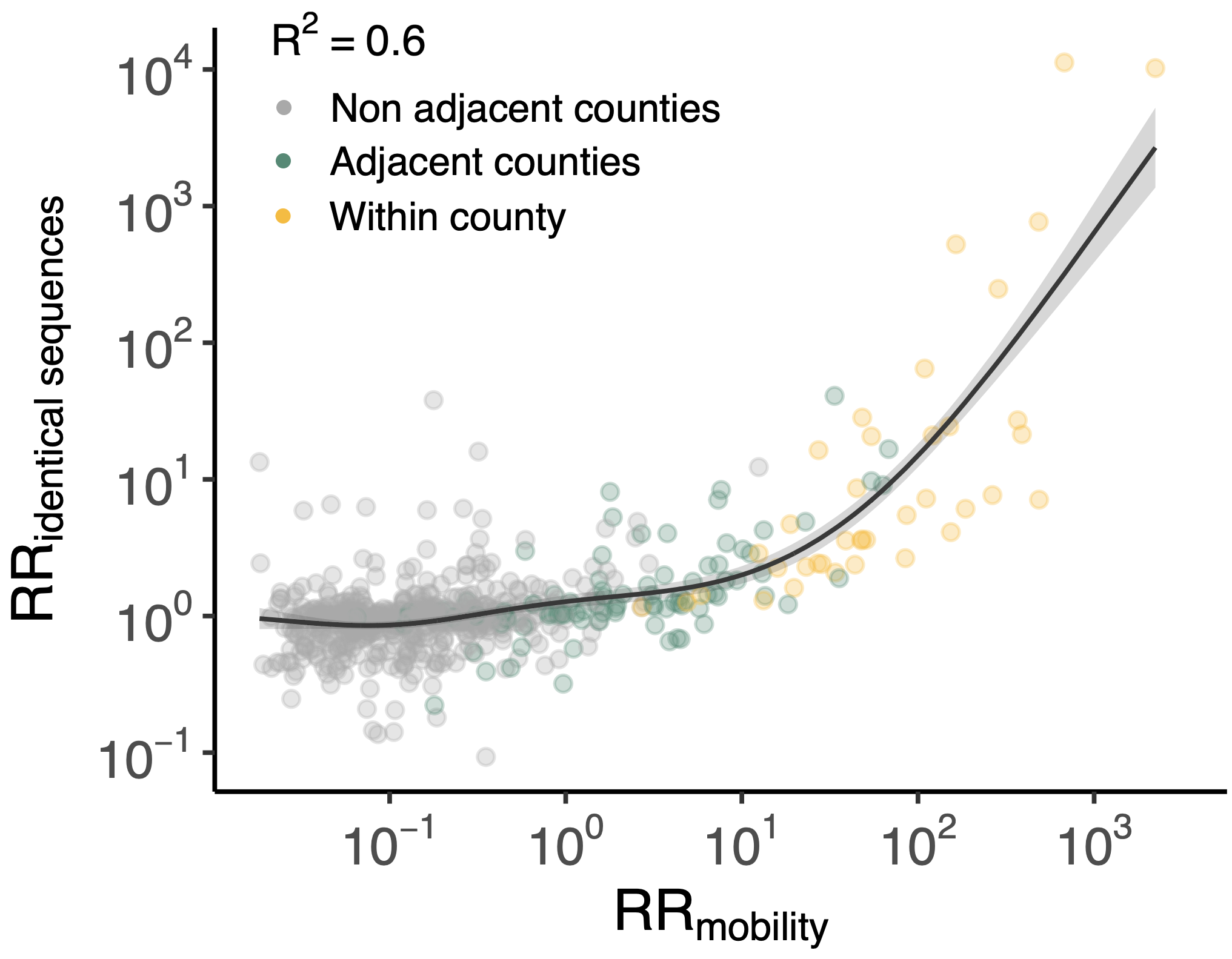

Sequence-derived mixing patterns correlate with cell-phone mobility data

Between age group enrichment shows social mixing patterns

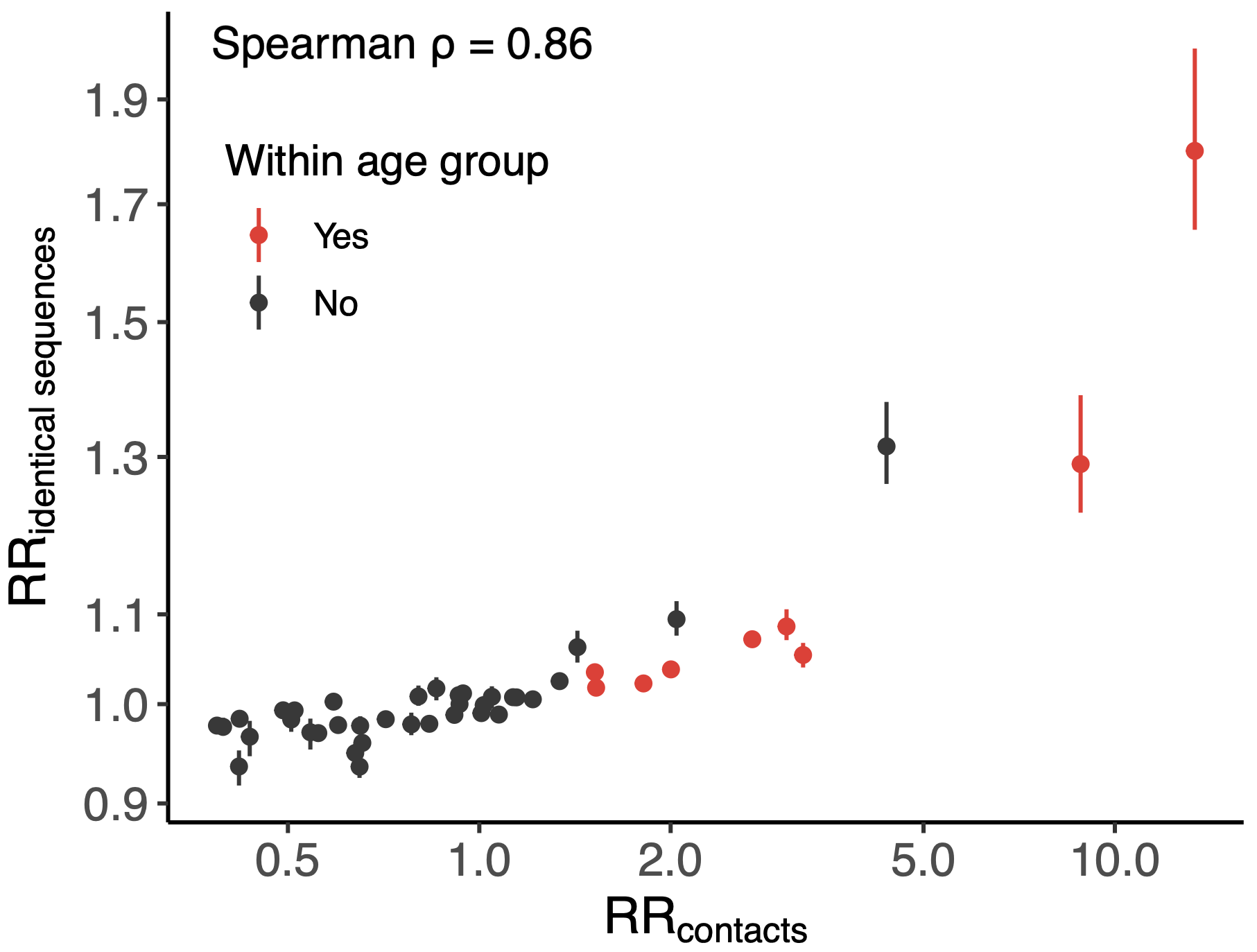

Sequence-derived mixing patterns correlate well with expectations from journaling studies

Signal for differential local vs long-distance age mixing

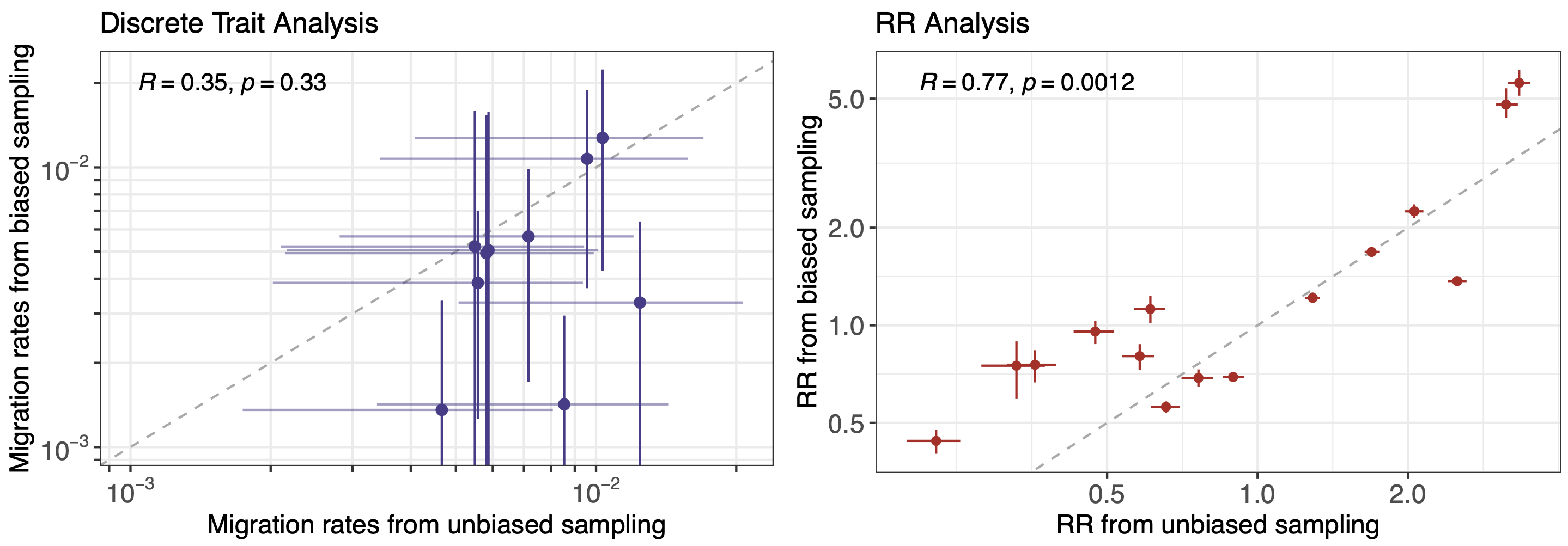

More methods development to be done, but accuracy compared to traditional discrete traits phylogeography is promising

Future work

  1. Incorporate assymetry in transmission direction between groups
  2. Estimate group-level contributions to epidemic growth
  3. Apply more broadly

Evolutionary forecasting

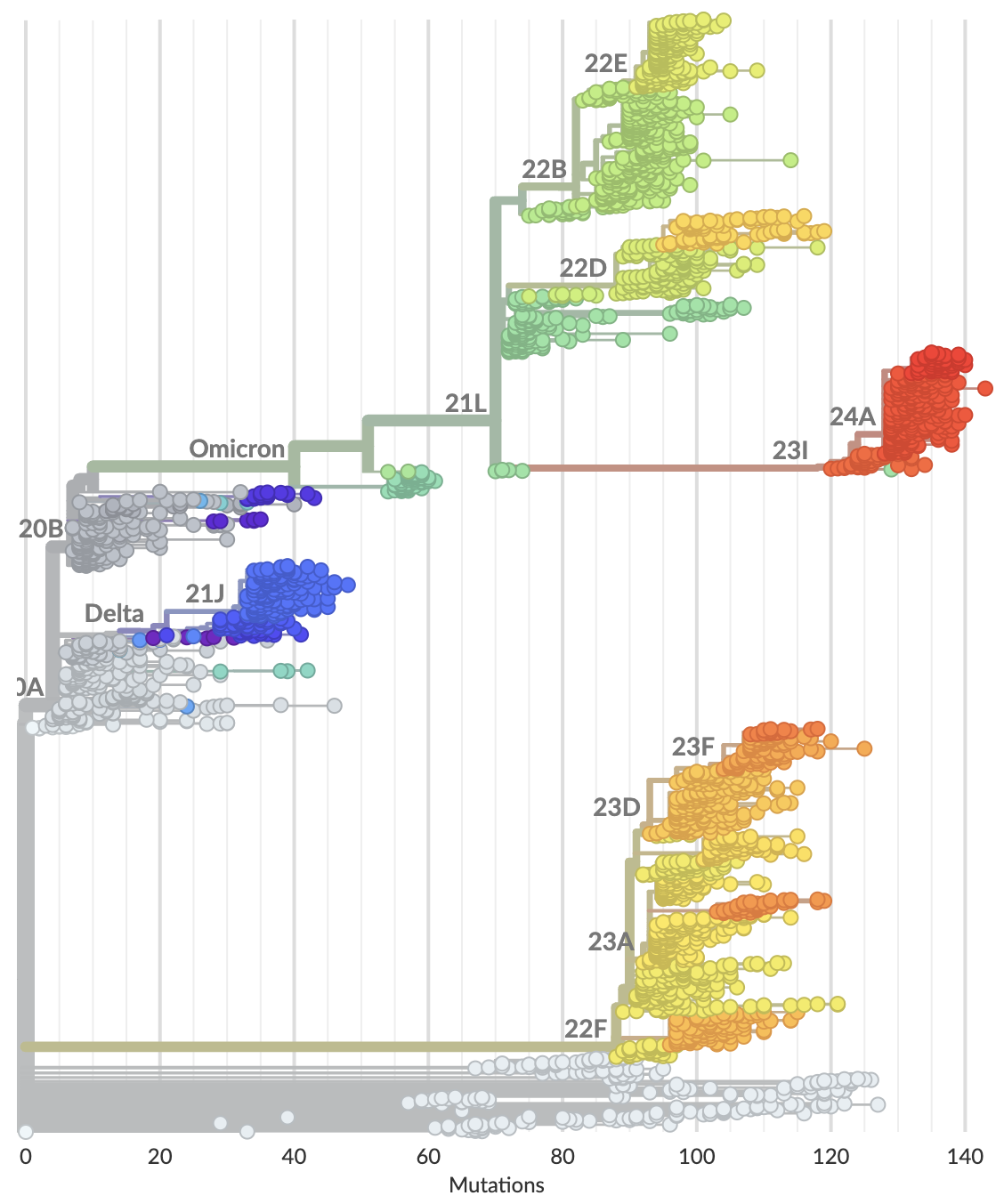

SARS-CoV-2 evolution since 2020

Recent advances

  1. Granular nomenclature and rapid classification
  2. Detailed frequency data allowing direct models of selection

Currently 3188 Pango lineages with rapid assignment of samples to lineages by Nextclade or UShER

Variants that are just 1-2 mutations different will get a label

Population genetic expectation of variant frequency under selection

$x' = \frac{x \, (1+s)}{x \, (1+s) + (1-x)}$ for frequency $x$ over one generation with selective advantage $s$

$x(t) = \frac{x_0 \, (1+s)^t}{x_0 \, (1+s)^t + (1-x_0)}$ for initial frequency $x_0$ over $t$ generations

Trajectories are linear once logit transformed via $\mathrm{log}(\frac{x}{1 - x})$

Consistent frequency dynamics in logit space (BA.2 Mar 2022)

Consistent frequency dynamics in logit space (BA.5 Jul 2022)

Consistent frequency dynamics in logit space (JN.1 Dec 2023)

Multinomial logistic regression

Multinomial logistic regression across $n$ variants models the probability of a virus sampled at time $t$ belonging to variant $i$ as

$$\mathrm{Pr}(X = i) = x_i(t) = \frac{p_i \, \mathrm{exp}(f_i \, t)}{\sum_{1 \le j \le n} p_j \, \mathrm{exp}(f_j \, t) }$$

with $2n$ parameters consisting of $p_i$ the frequency of variant $i$ at initial timepoint and $f_i$ the growth rate or fitness of variant $i$.

Original VOC viruses had substantially increased transmissibility

Clade success from 2022 to 2024 driven by antigenic evolution

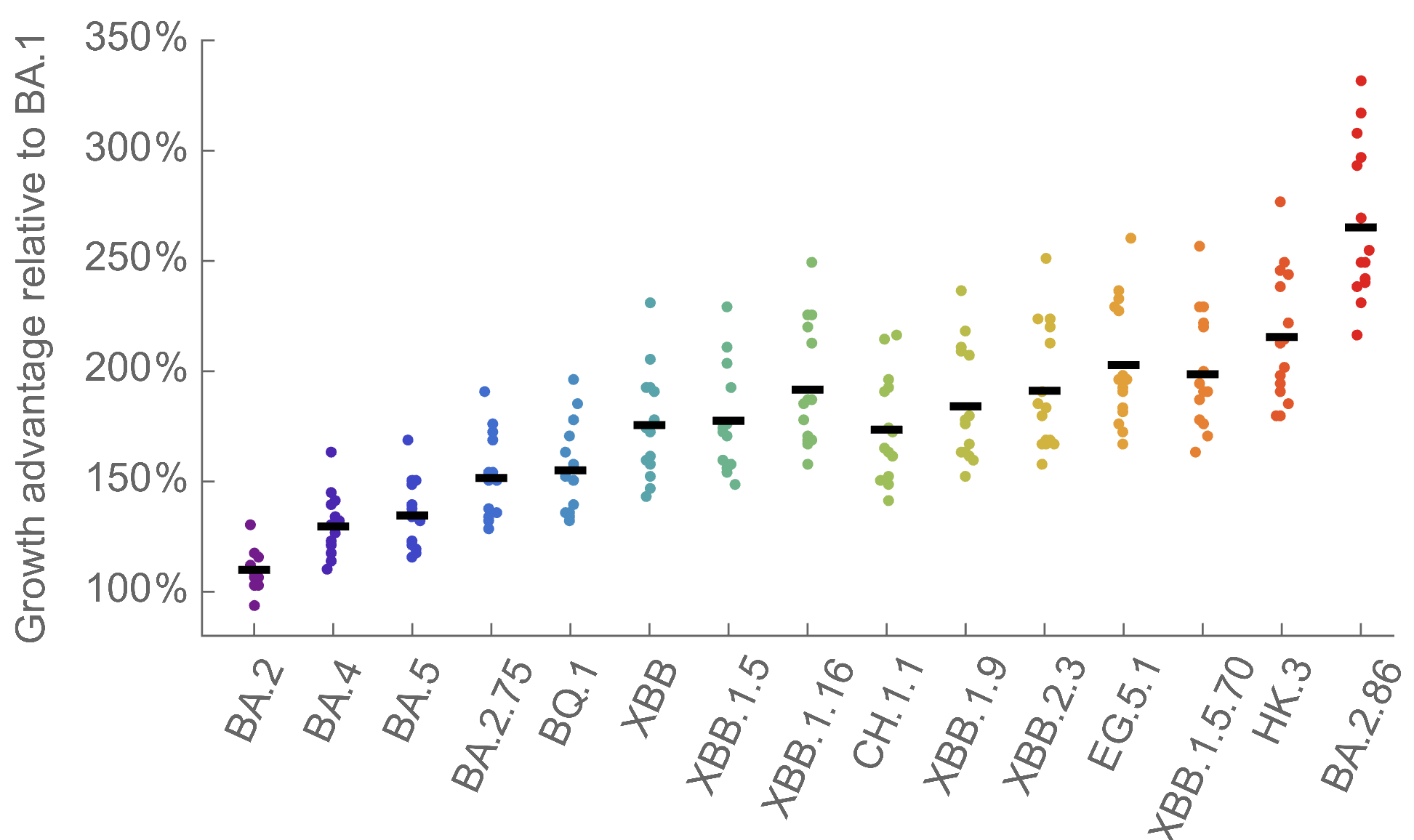

We find that recent variants are ~250% fitter than original Omicron BA.1

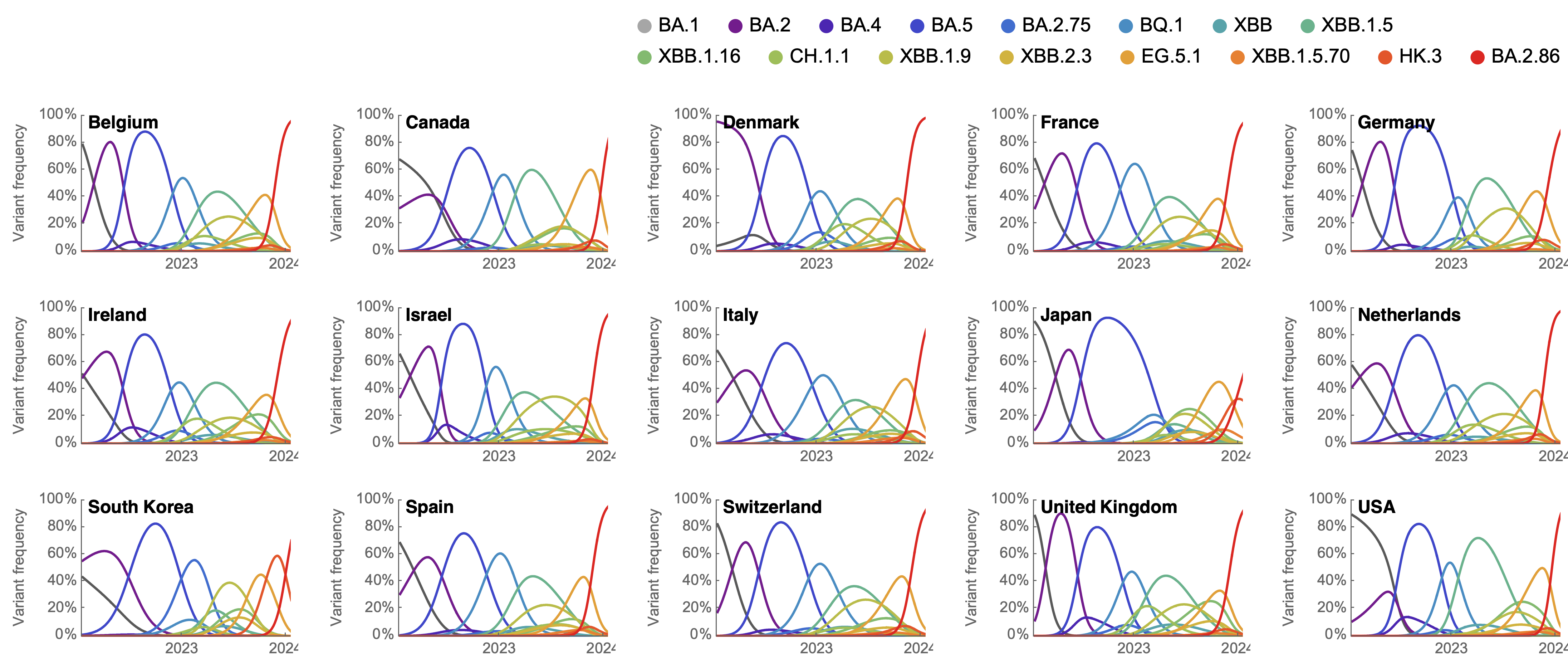

Assessing MLR models for short-term frequency forecasting

Retrospective projections twice monthly during 2022

+30 day short-term forecasts across different countries

MLR models generate accurate short-term forecasts

30 days out, countries range from 6 to 10% mean absolute error

Clade and lineage forecasts continuously updated at

The global sweep of JN.1 is basically complete

Eventual lineage success determined by initial fitness

Eventual lineage success determined by initial fitness

Multinomial logistic regression should work well for SARS-CoV-2 prediction, except new variants have been emerging fast enough that the prediction horizon is limited to 2-3 months

Ongoing work to lengthen prediction horizon by incorporating high-throughput experimental measurements of ACE2 binding and immune escape

Continued research

  • Application of MLR models to seasonal influenza and other pathogens
  • Assessing and improving accuracy of "live" models at
  • Implementing DMS priors to predict fitness of emerging and yet-to-emerge lineages
