Phylogenetics

Phylogeny describes evolutionary relationships

Phylogeny is usually a hypothesis based on characteristics of sampled taxa

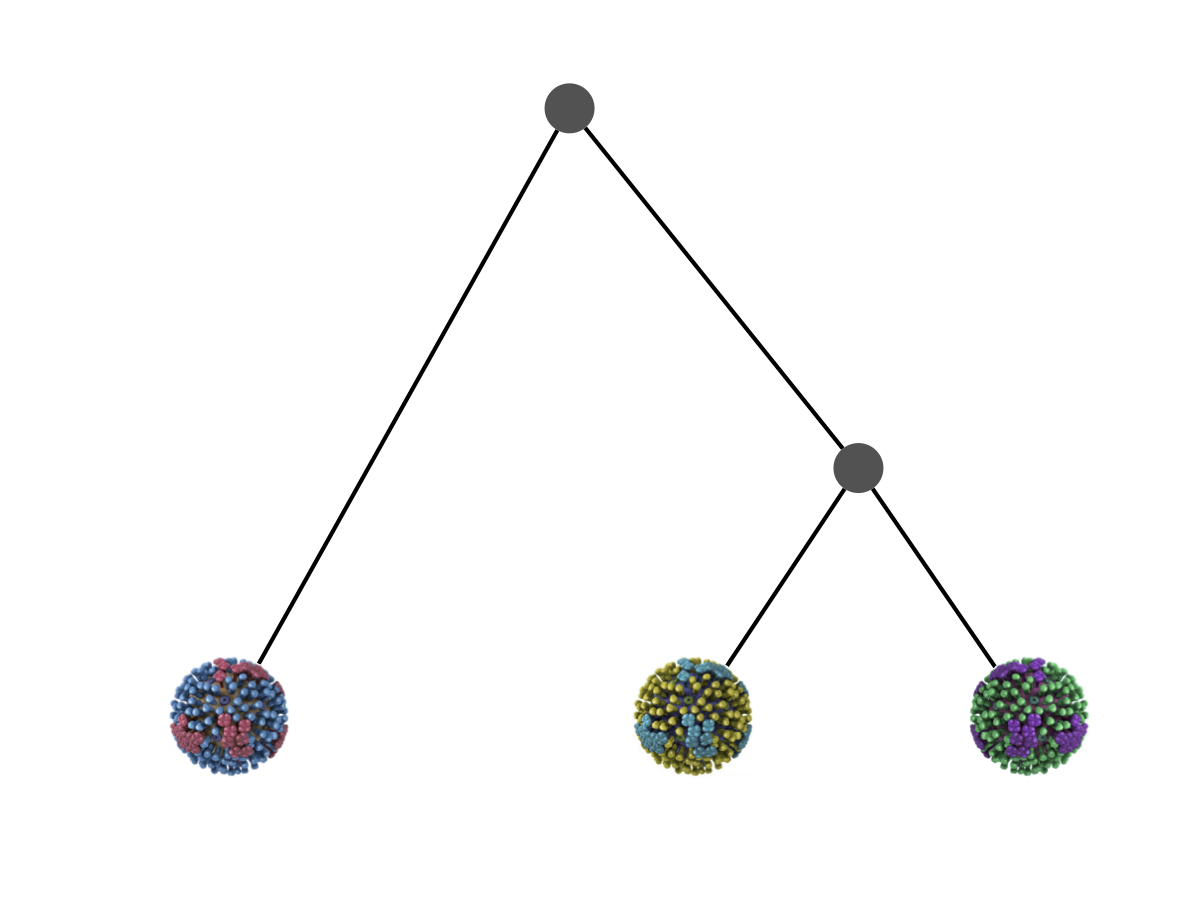

Phylogeny implies a series of mutational events leading to observed tip states

Parsimony is based on Occam's razor

Among competing hypotheses that predict equally well, the one with the fewest assumptions should be selected.

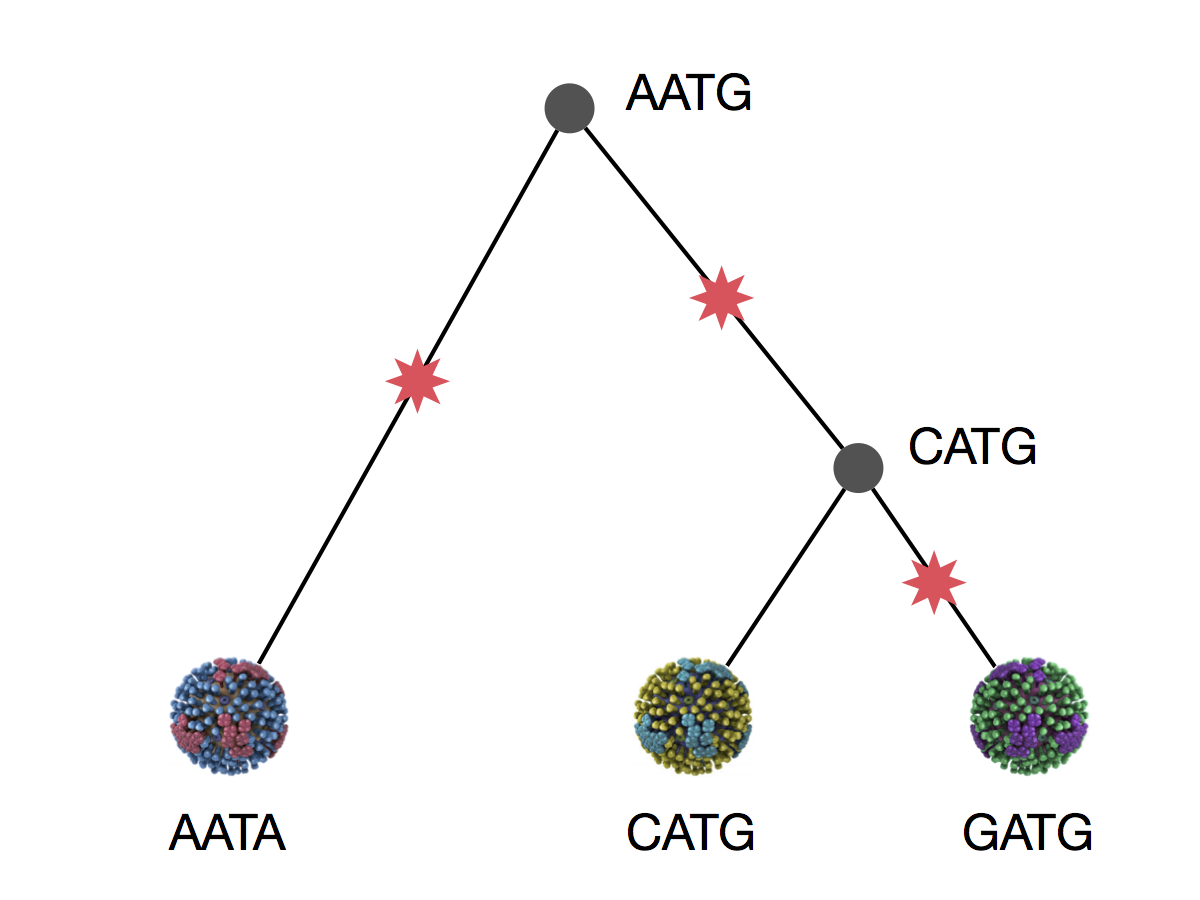

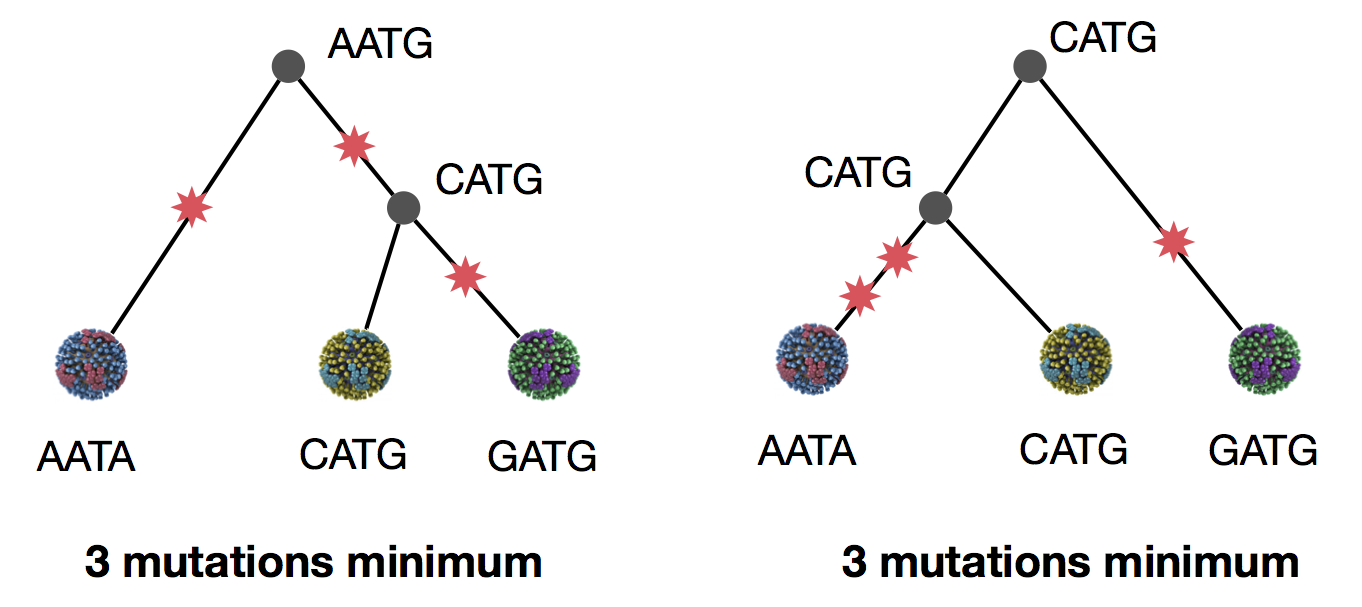

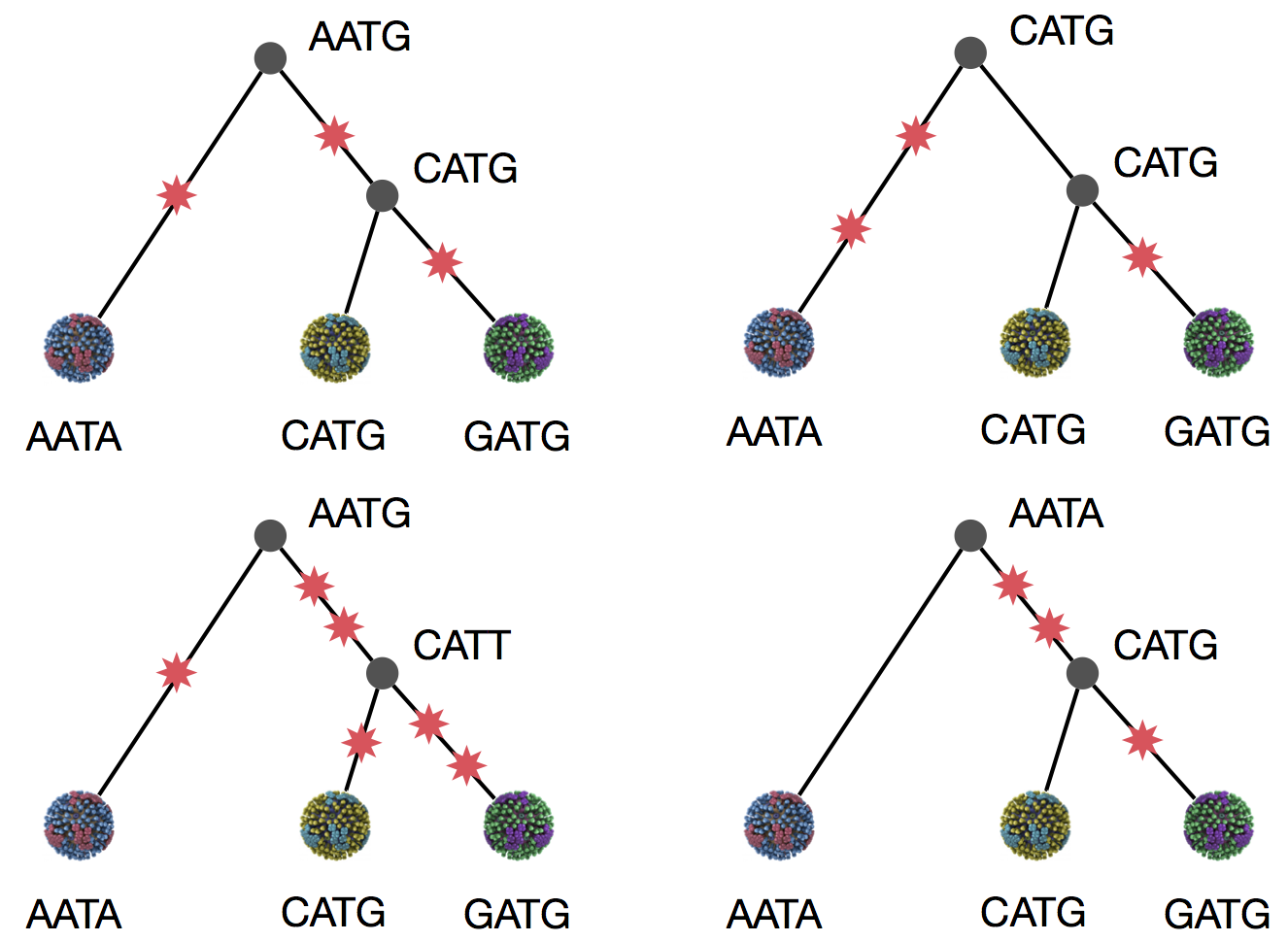

Parsimony suggests this topology requires 3 mutations at minimum

Parsimony suggests both topologies equally tenable

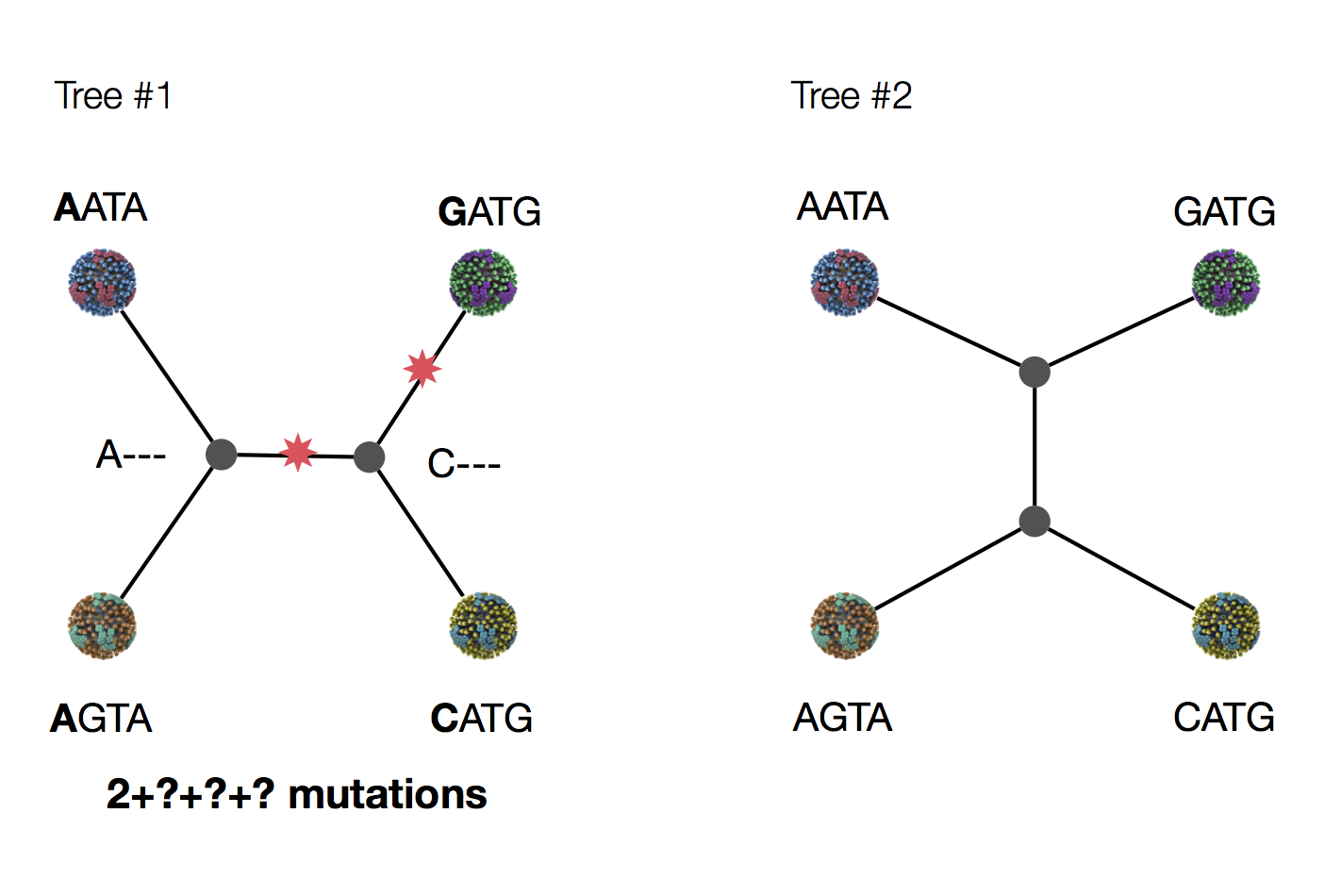

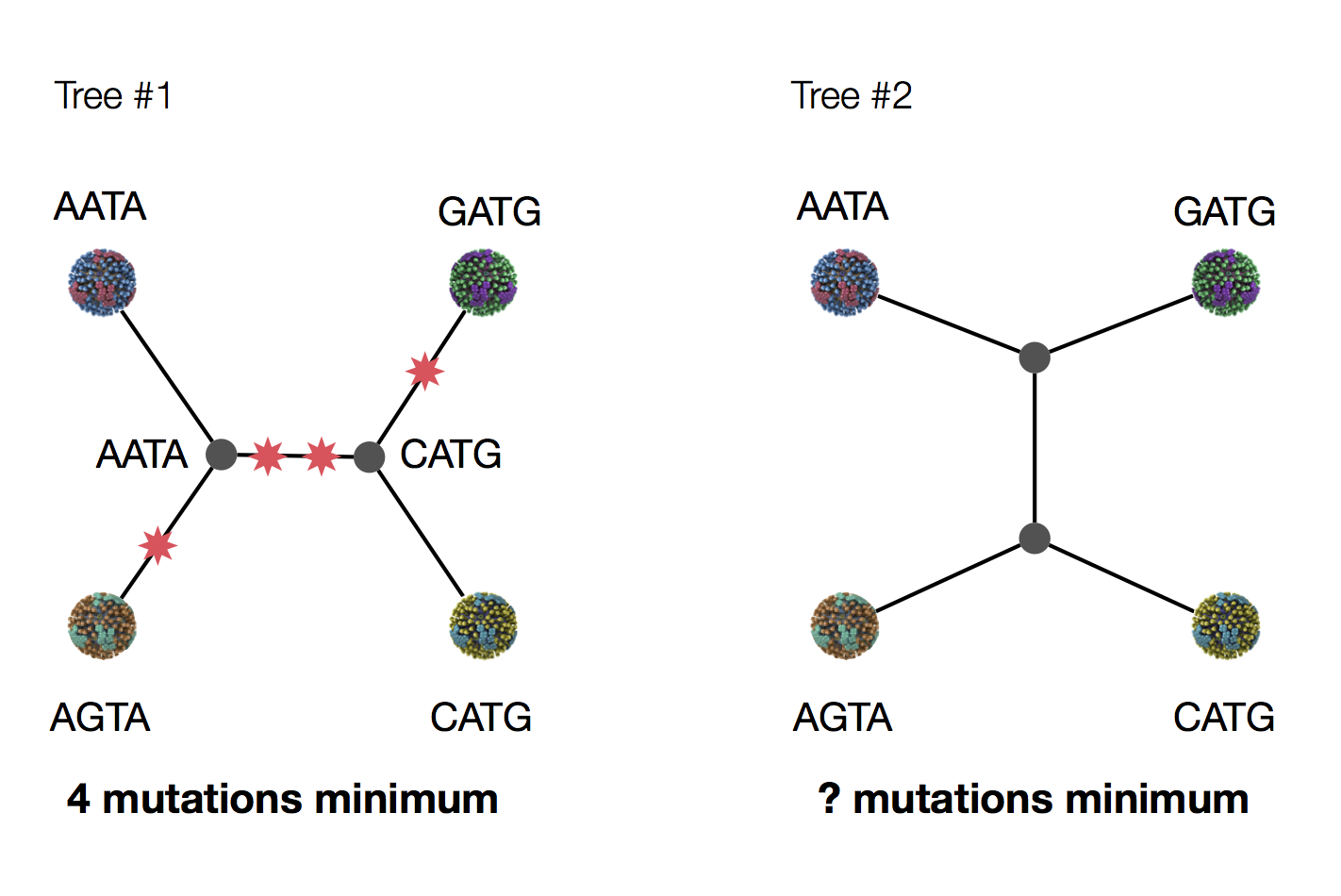

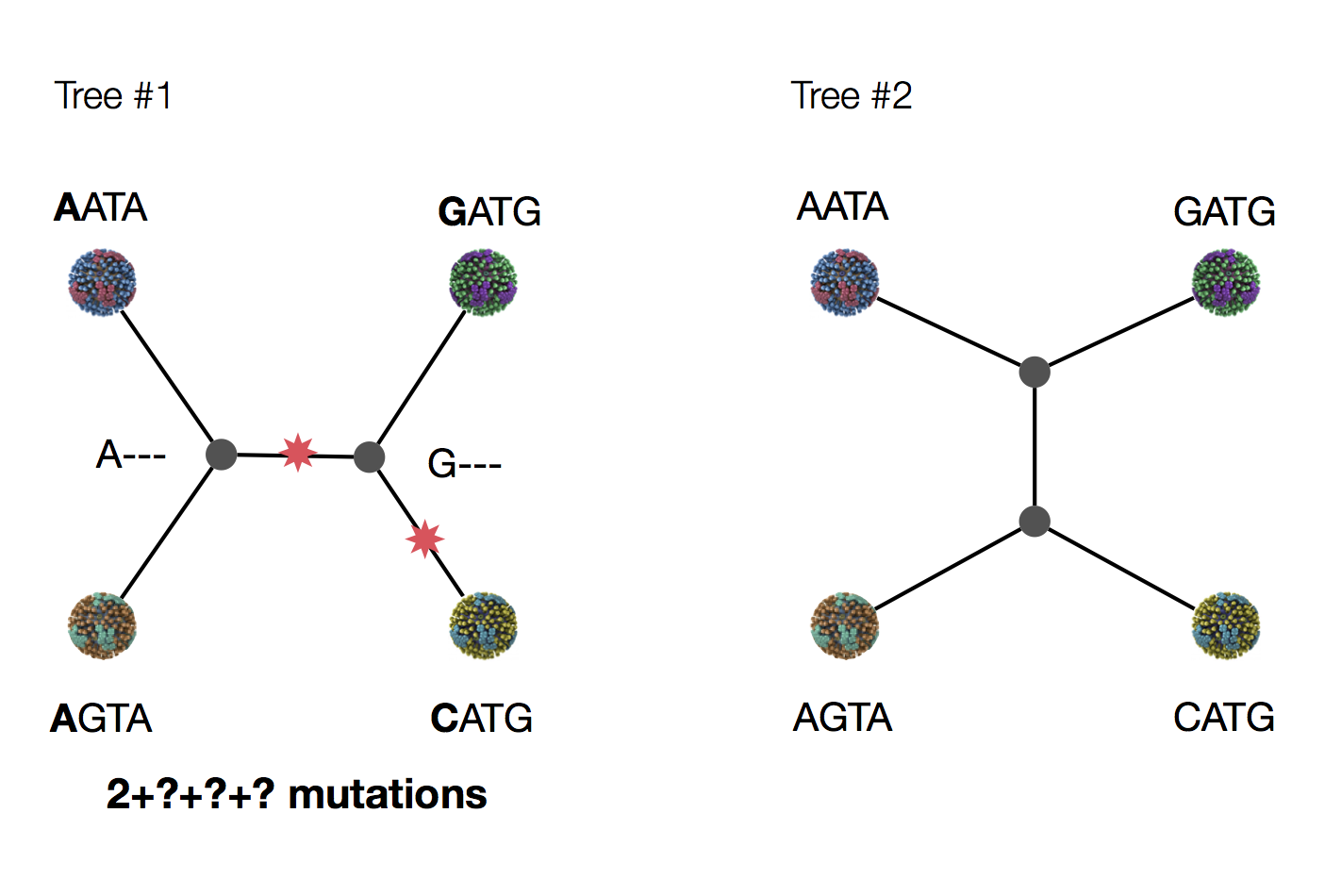

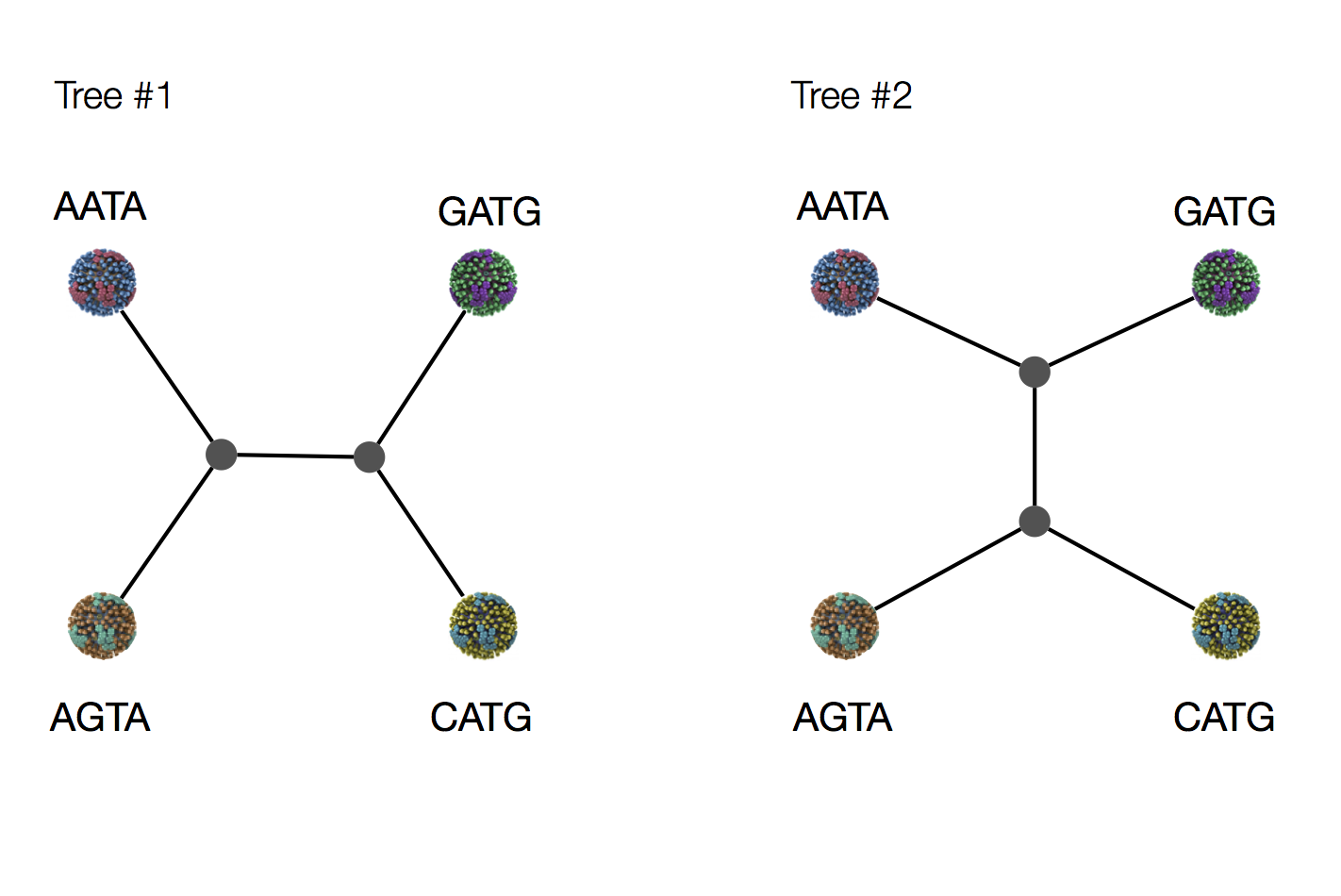

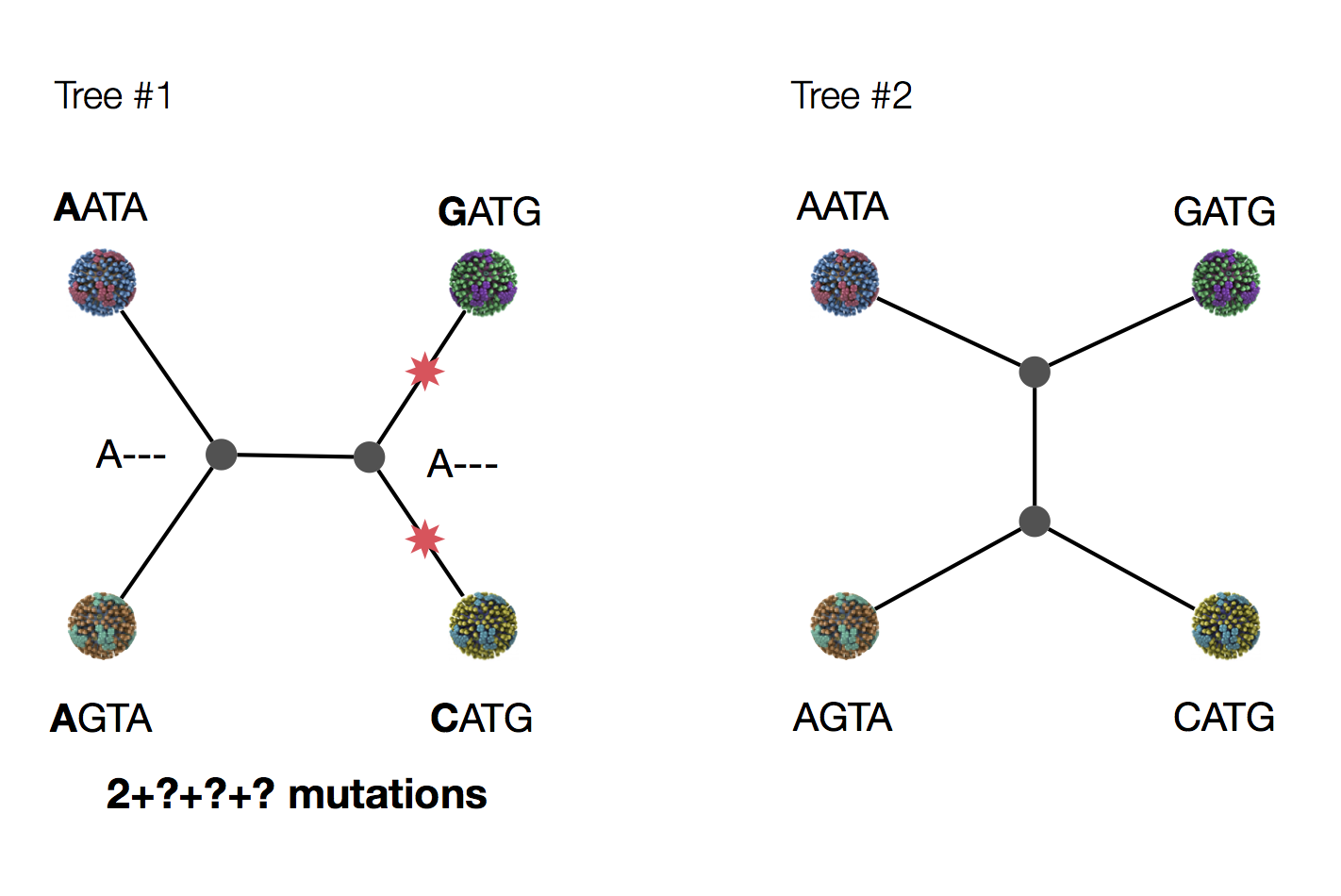

Exercise: which topology is more likely under parsimony?

Exercise: which topology is more likely under parsimony?

Exercise: which topology is more likely under parsimony?

Exercise: which topology is more likely under parsimony?

Exercise: which topology is more likely under parsimony?

Exercise: which topology is more likely under parsimony?

Exercise: which topology is more likely under parsimony?

Exercise: which topology is more likely under parsimony?

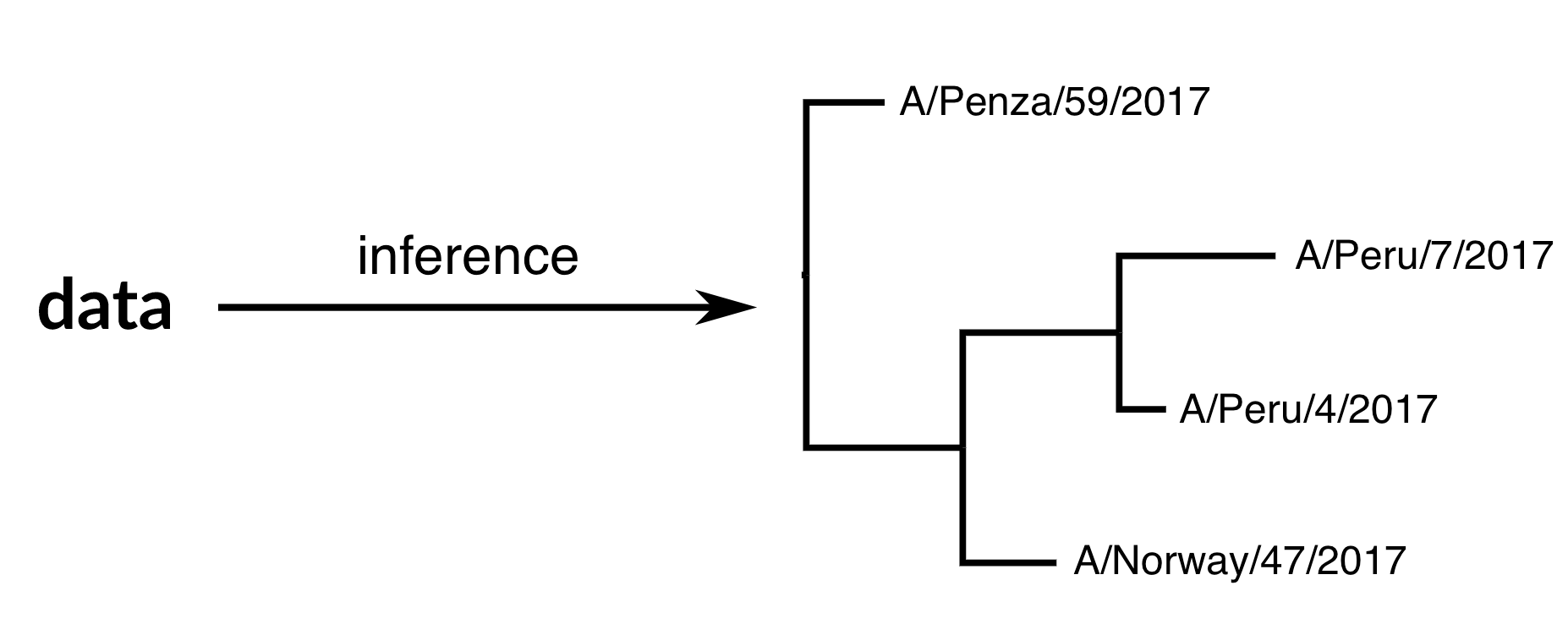

Phylogenetic inference

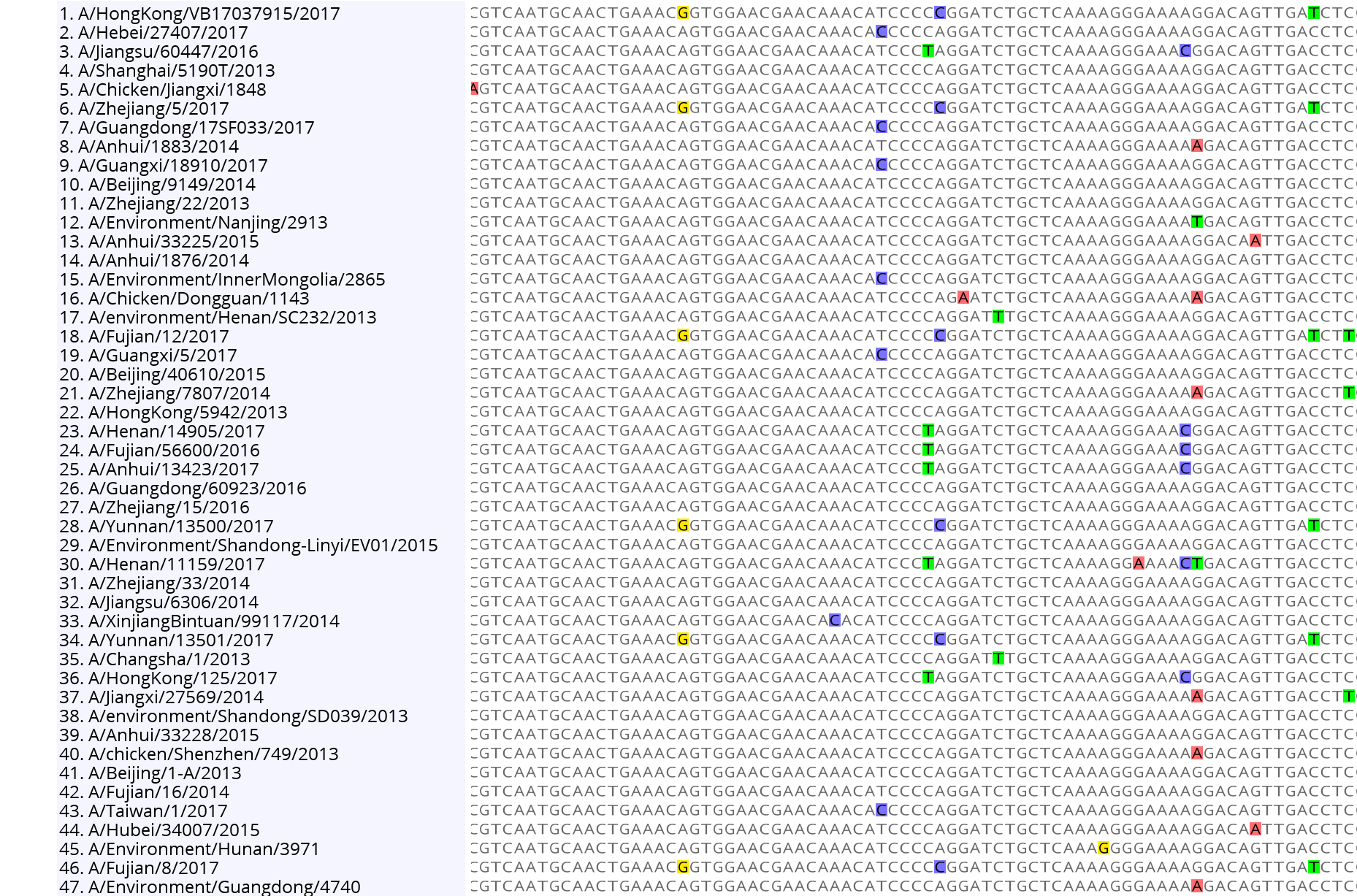

"Data" is generally a sequence alignment

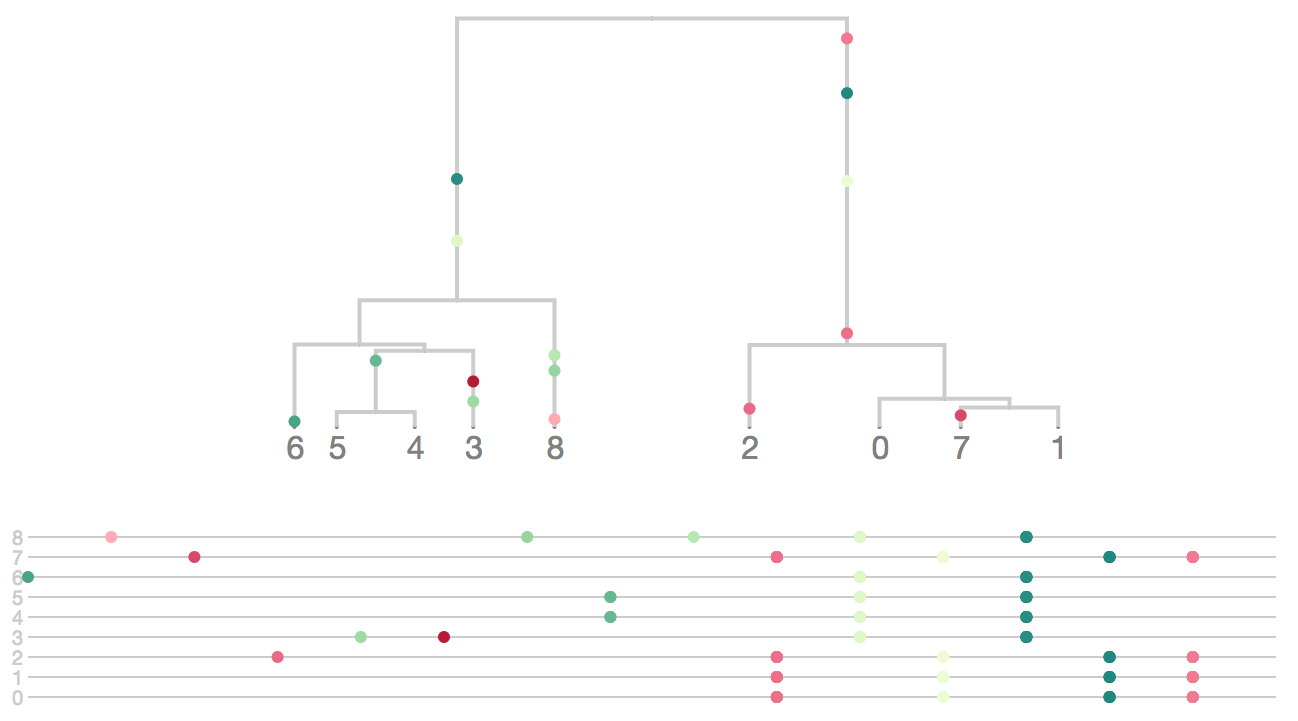

Phylogeny structures site patterns

Tree space is vast

There are (2n-3)!! rooted trees for n taxa

• 3 taxa: 3 trees
• 5 taxa: 105 trees
• 10 taxa: 34,459,425 trees
• 20 taxa: 8.2 × 10²¹ trees
• 50 taxa: 2.8 × 10⁷⁶ trees
• 100 taxa: 3.3 × 10¹⁸⁴ trees

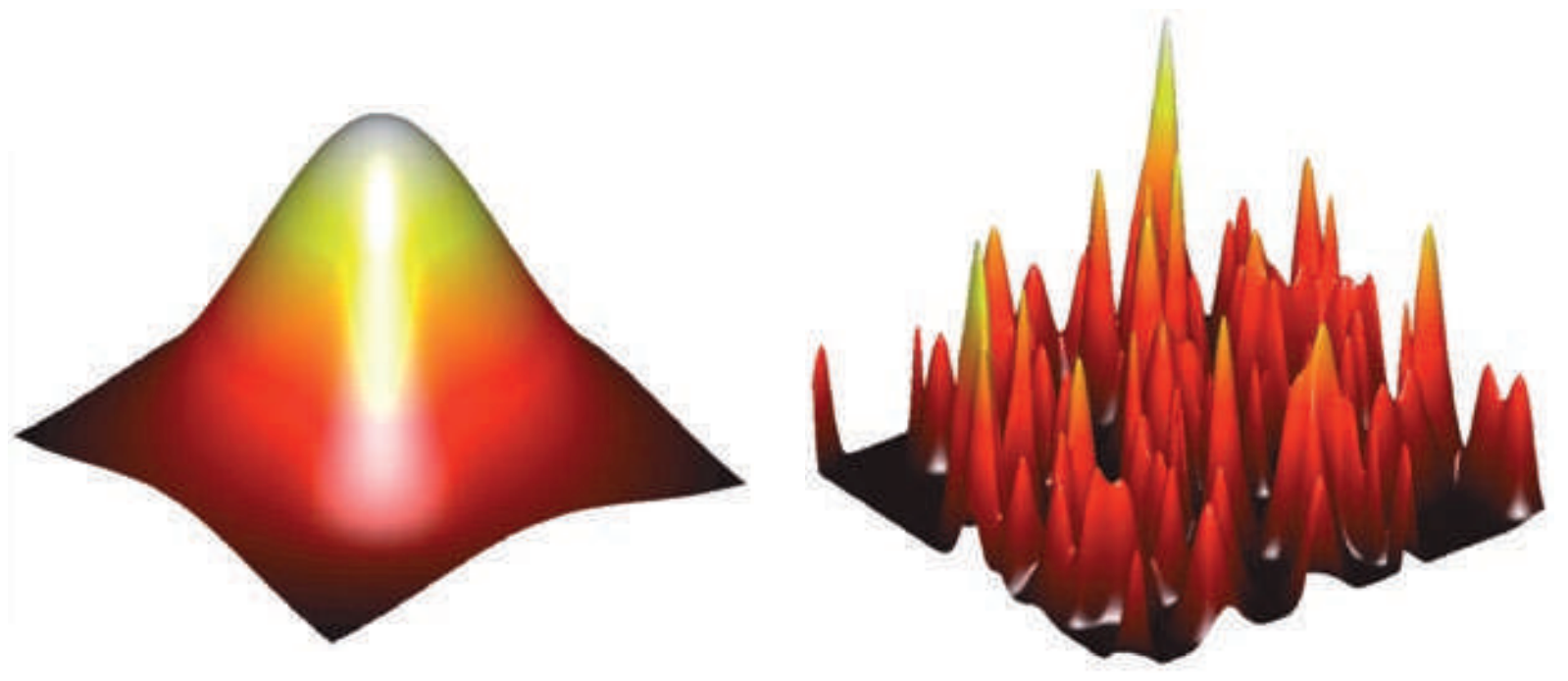

Solution space is rugged

Types of phylogenetic inference methods

• Distance-based (neighbor-joining, fast, heuristic)
• Parsimony (fast, "model-free")
• Maximum likelihood (infers model of mutation, accurate, examples: FastTree, RAxML, IQTREE)
• Bayesian (like ML, but requires prior, produces estimates of uncertainty, examples: MrBayes, BEAST)

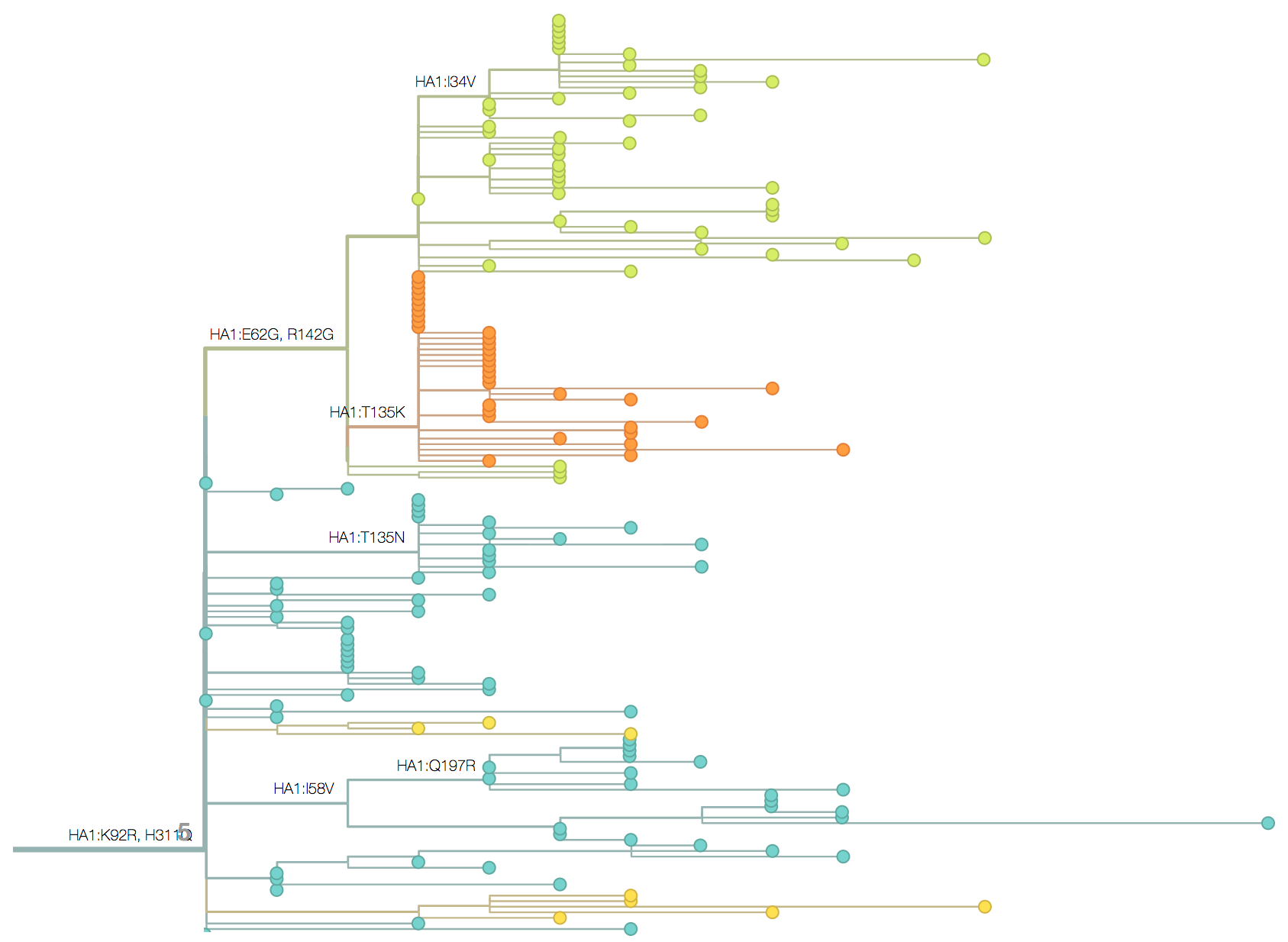

Inference is a tree topology, branch lengths and ancestral states

Molecular clocks and dated phylogenies

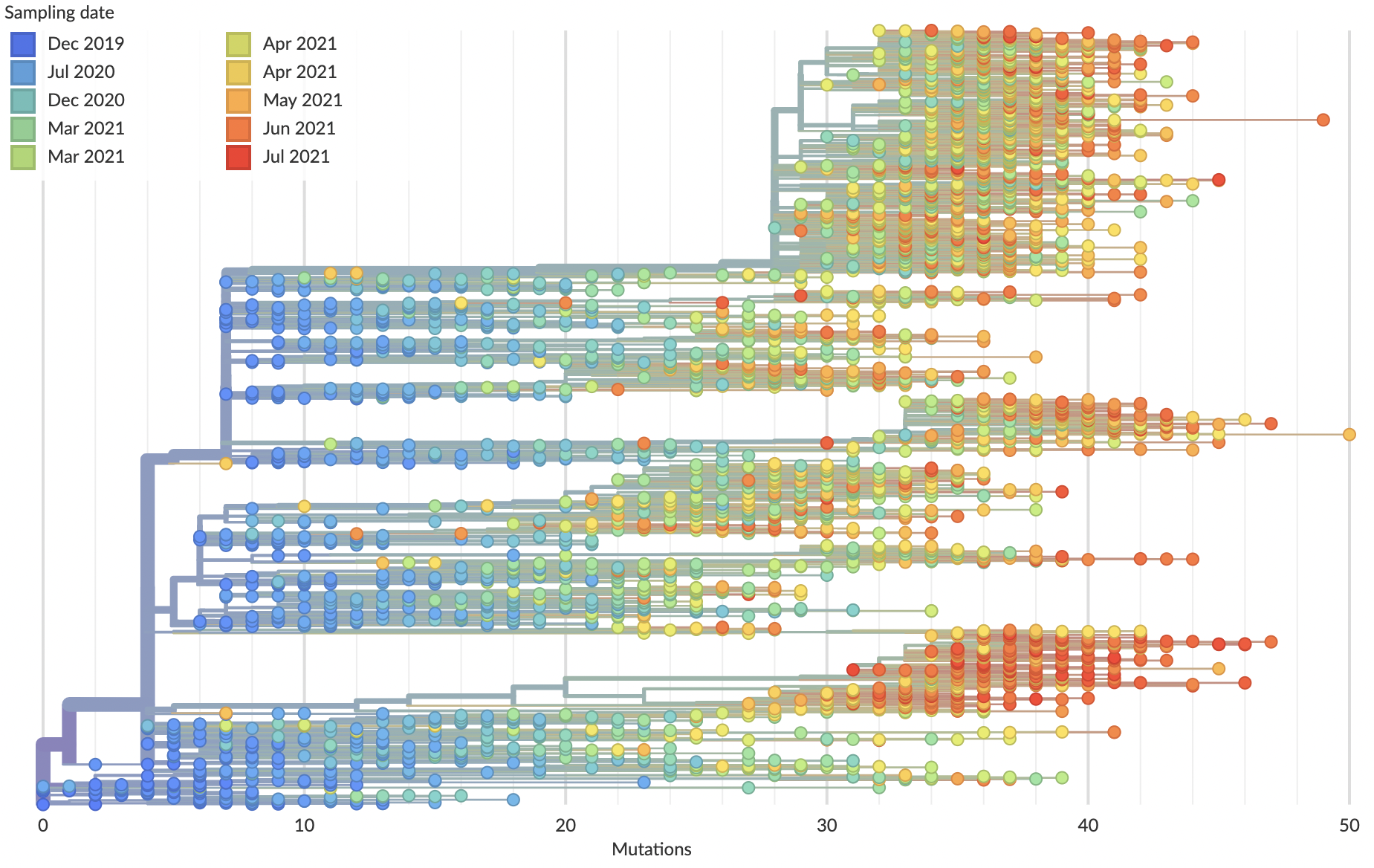

Mutations tend to accumulate in a clock-like fashion

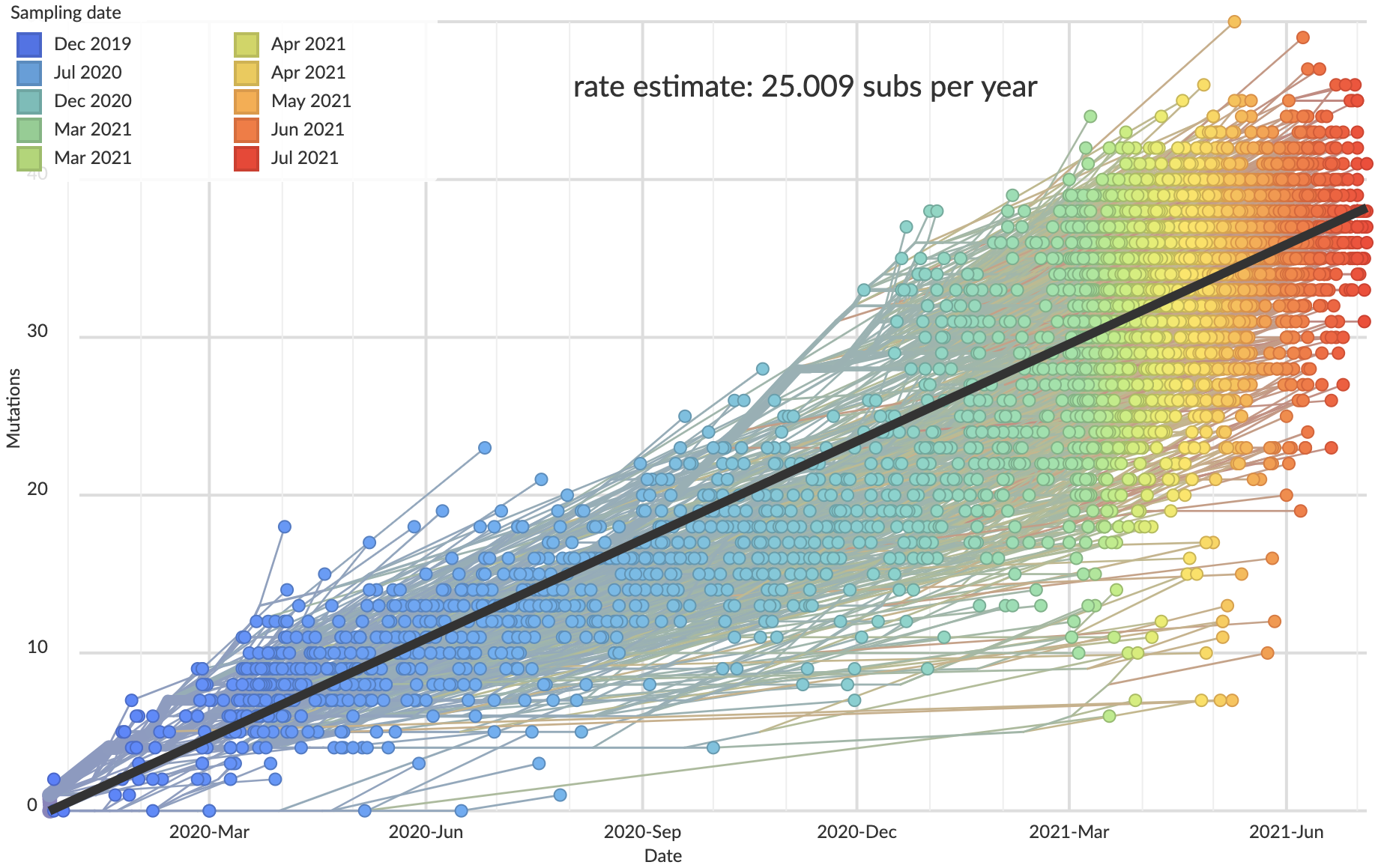

"Root-to-tip" plots show temporal signal

Allows conversion between branch length and time

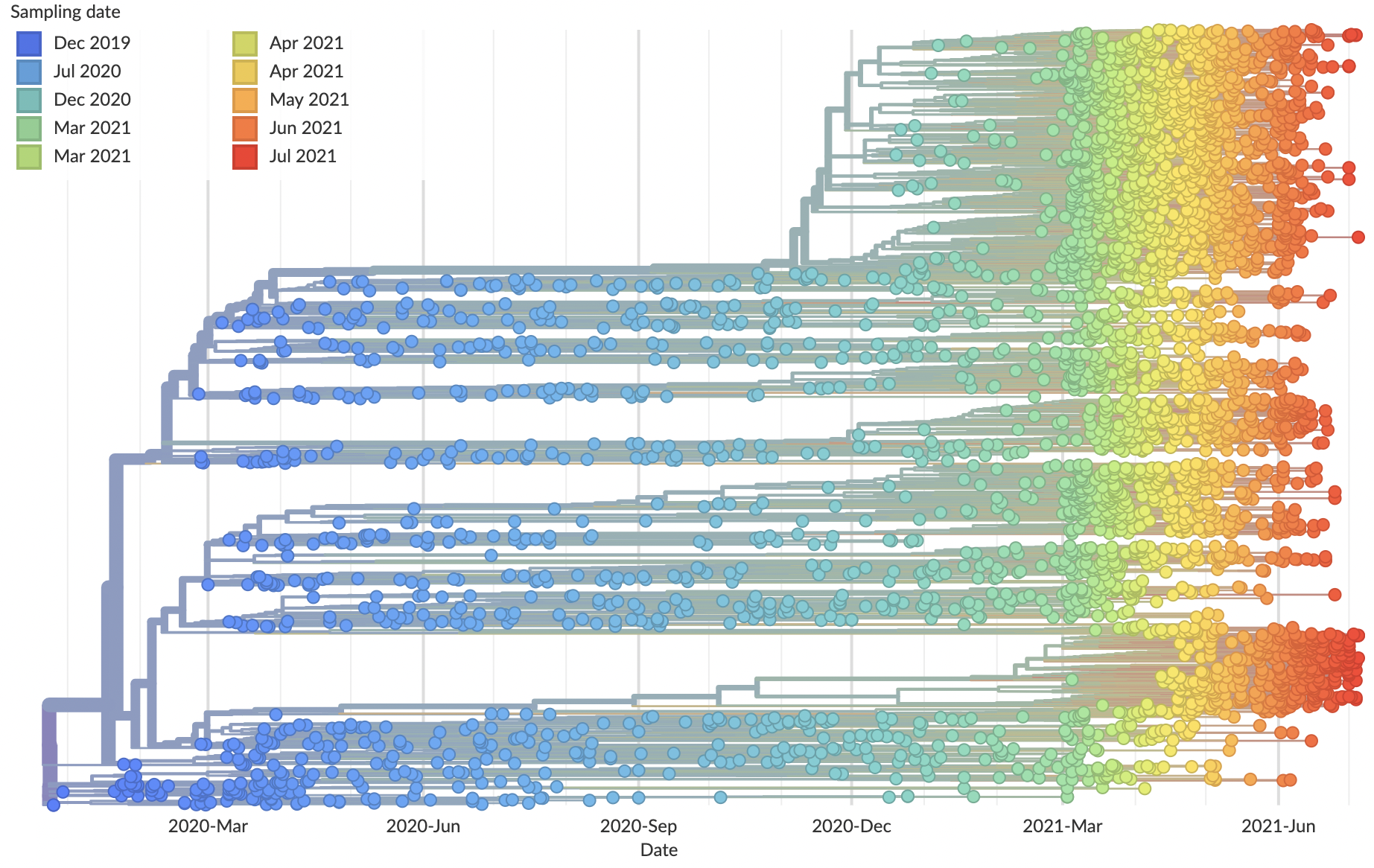

Dated phylogenies provide real-world context

Inference of discrete traits

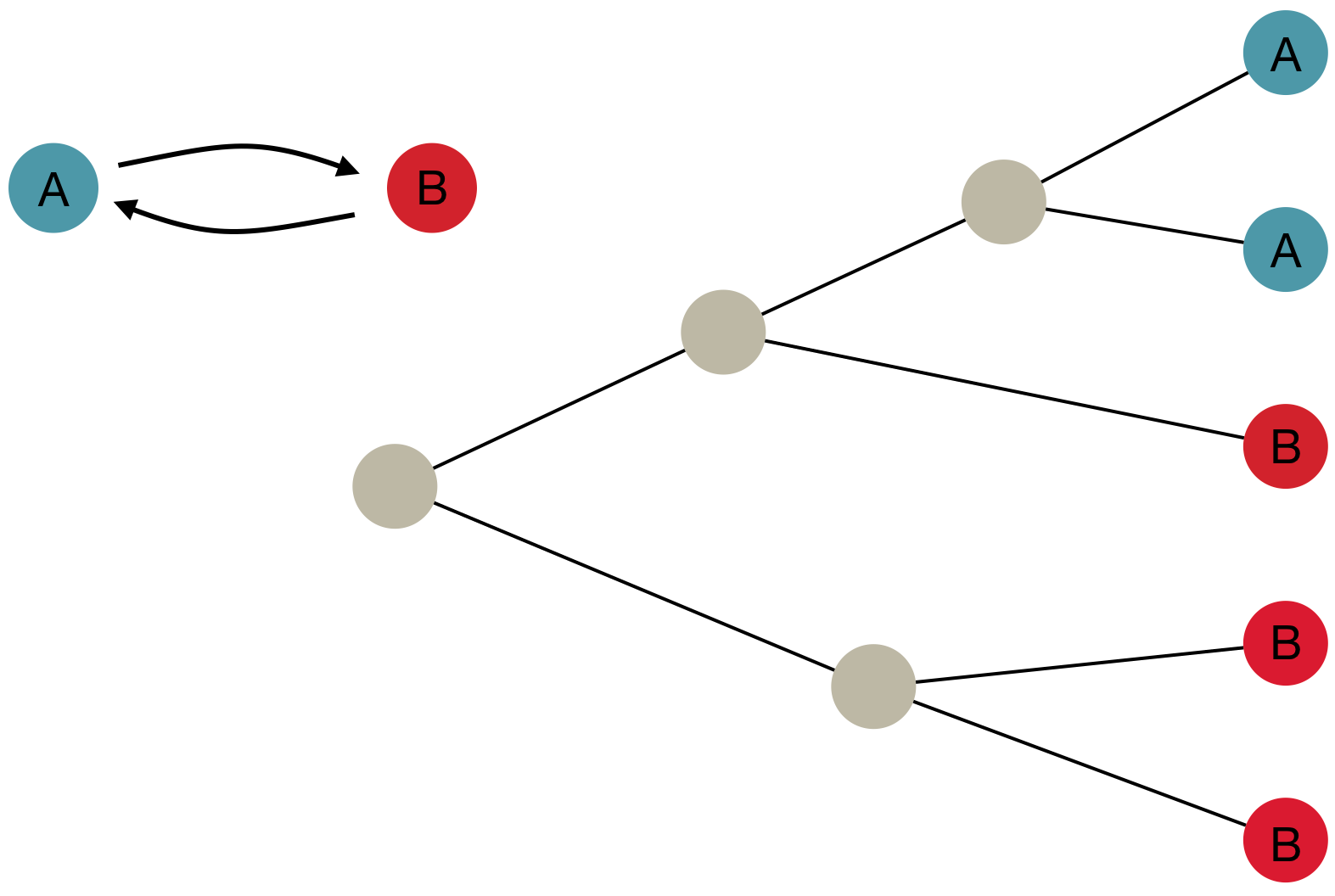

"Data" is a phylogeny and tip states

States include nucleotides, amino acids, geo locations, hosts, etc...

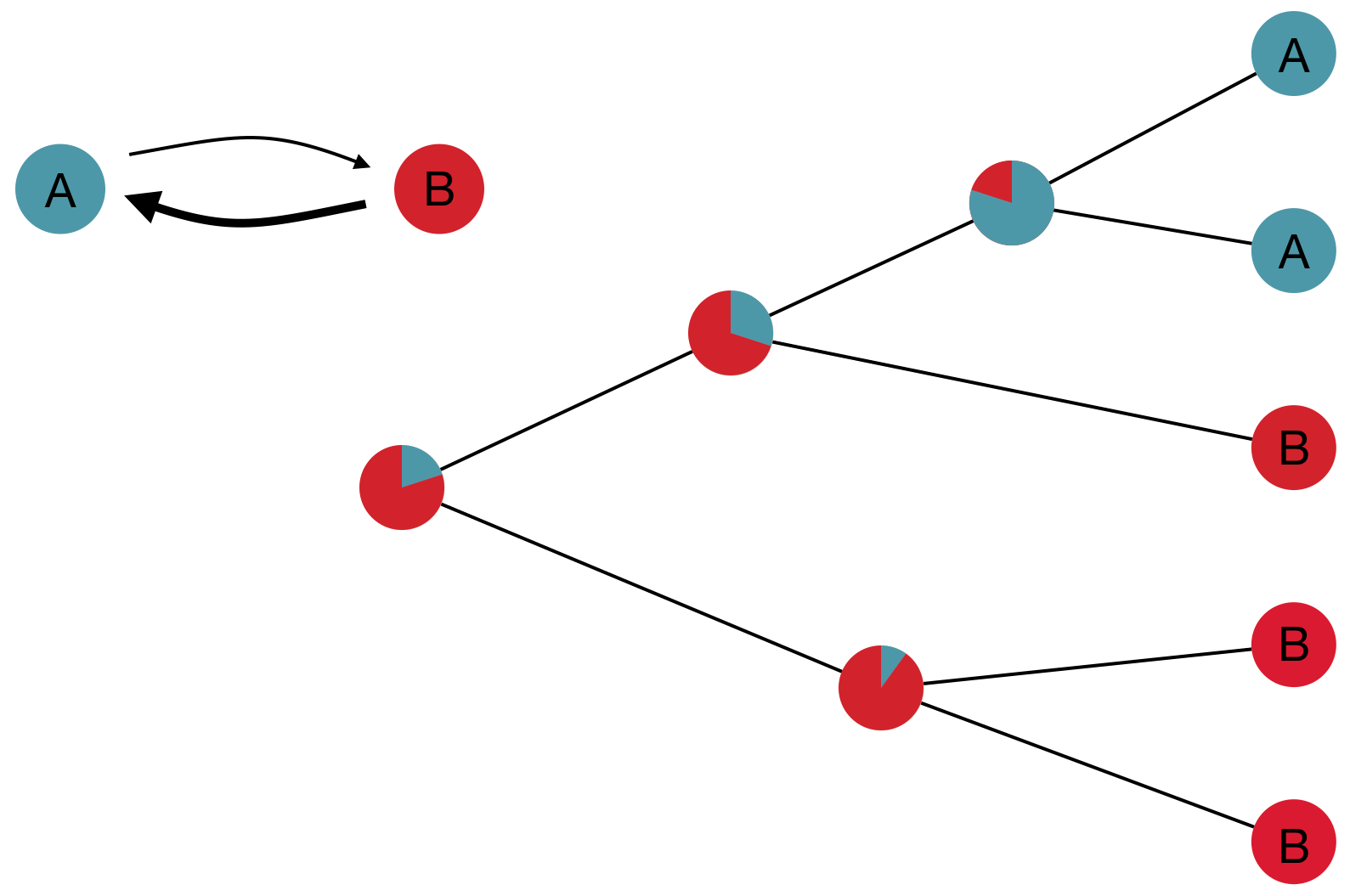

Model infers transition matrix and ancestral states

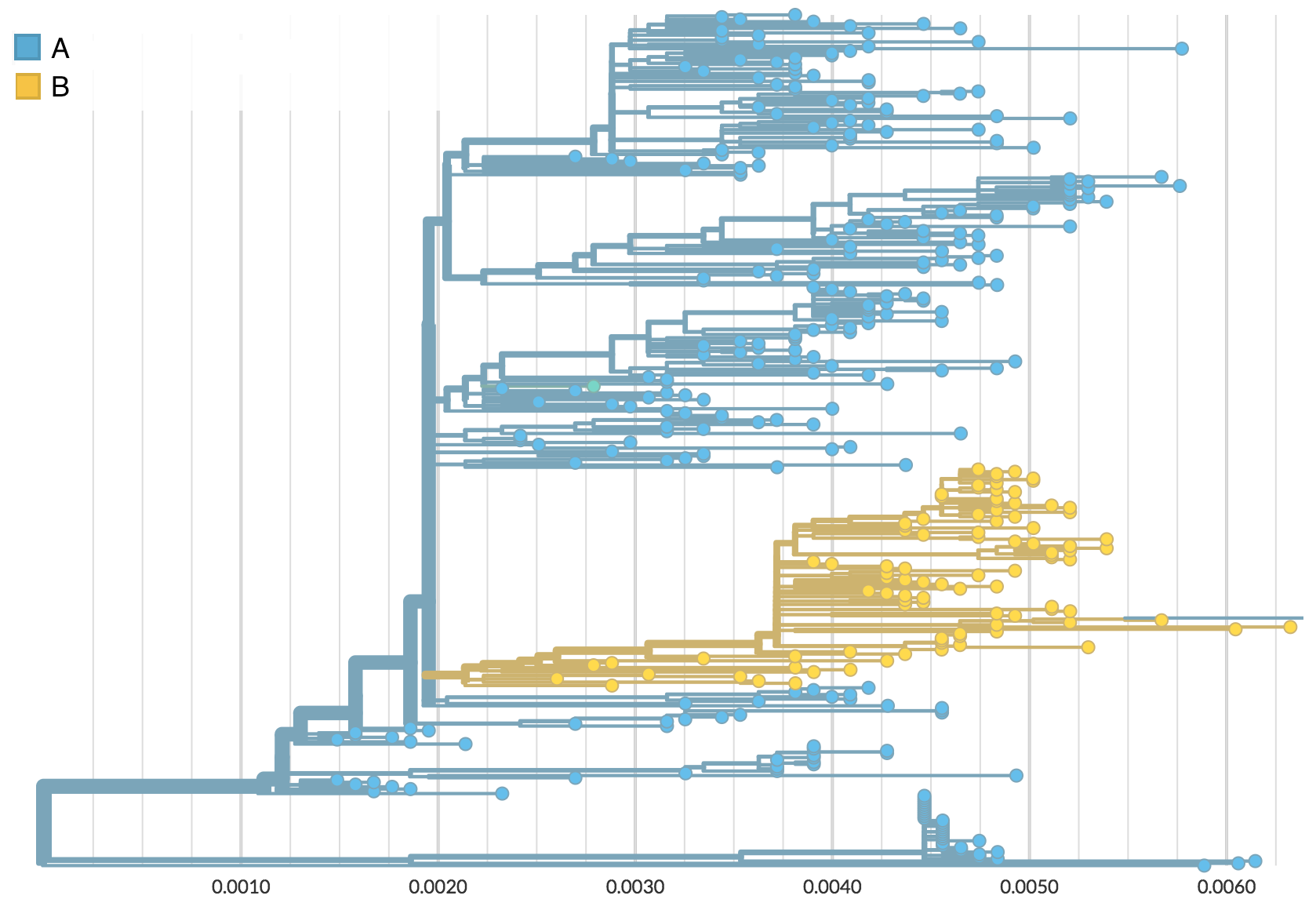

Rare transitions, short branches and many taxa increase confidence

Phylogeography

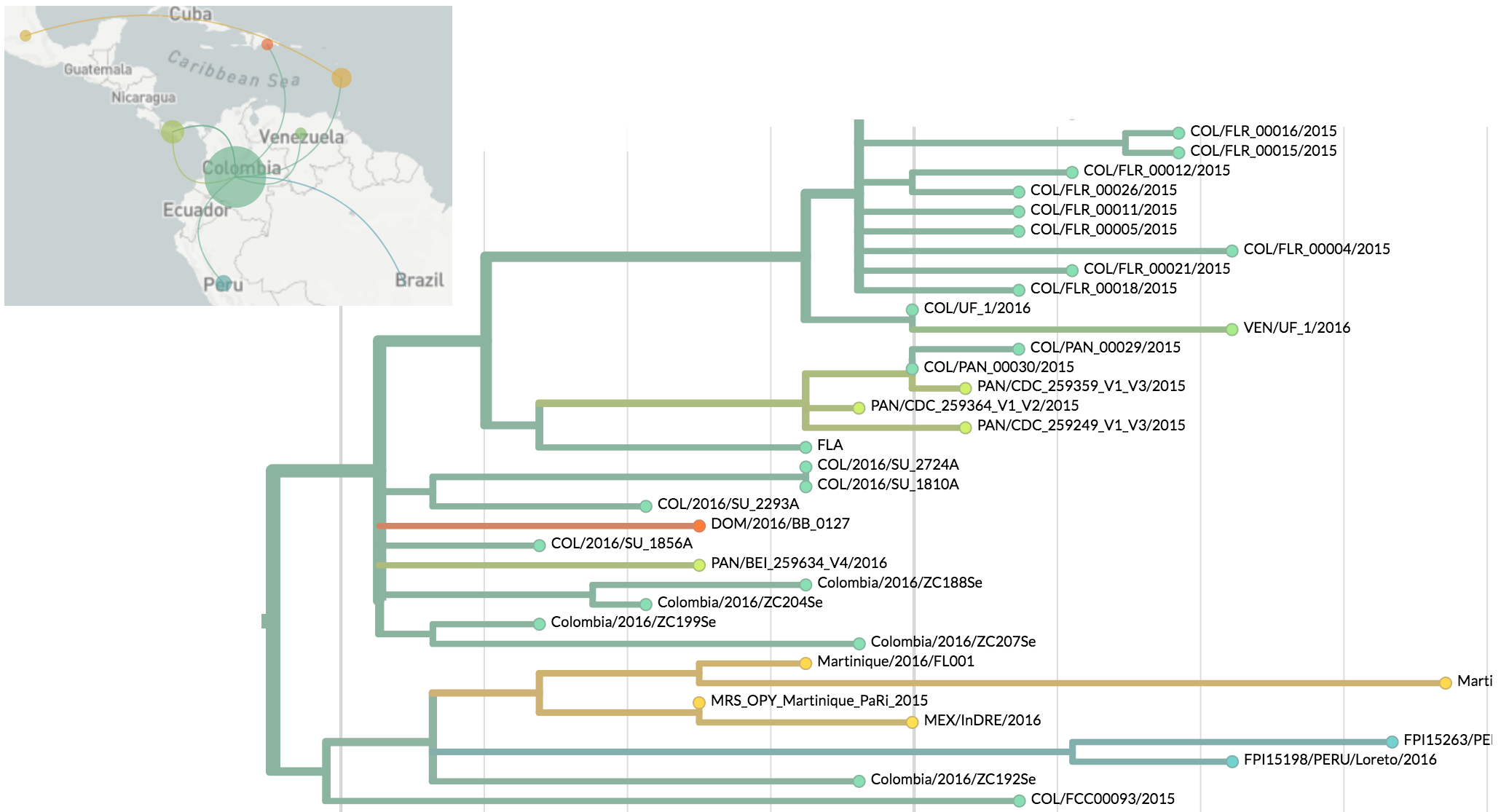

Nesting patterns are informative

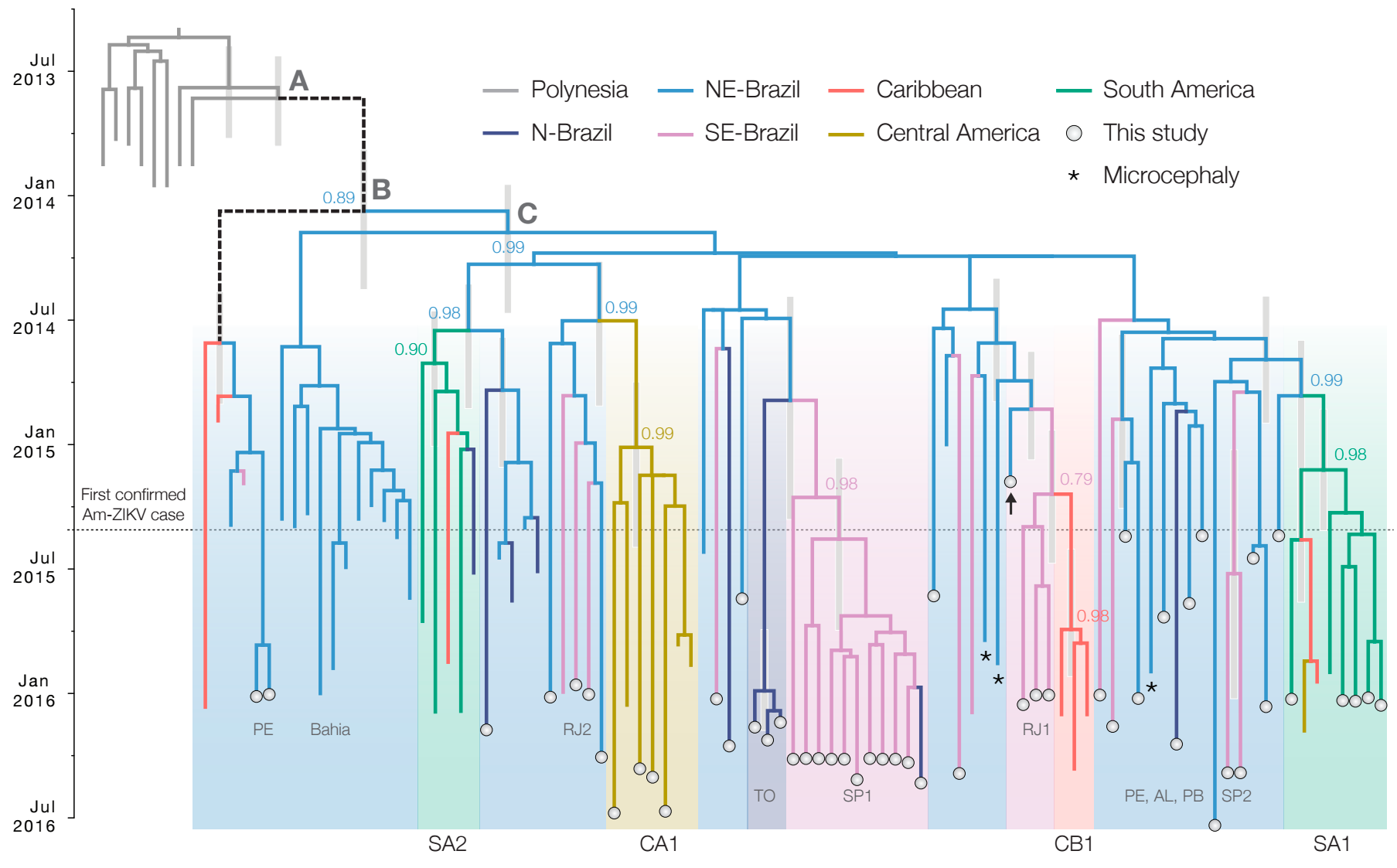

Zika phylogeny infers an origin in northeast Brazil

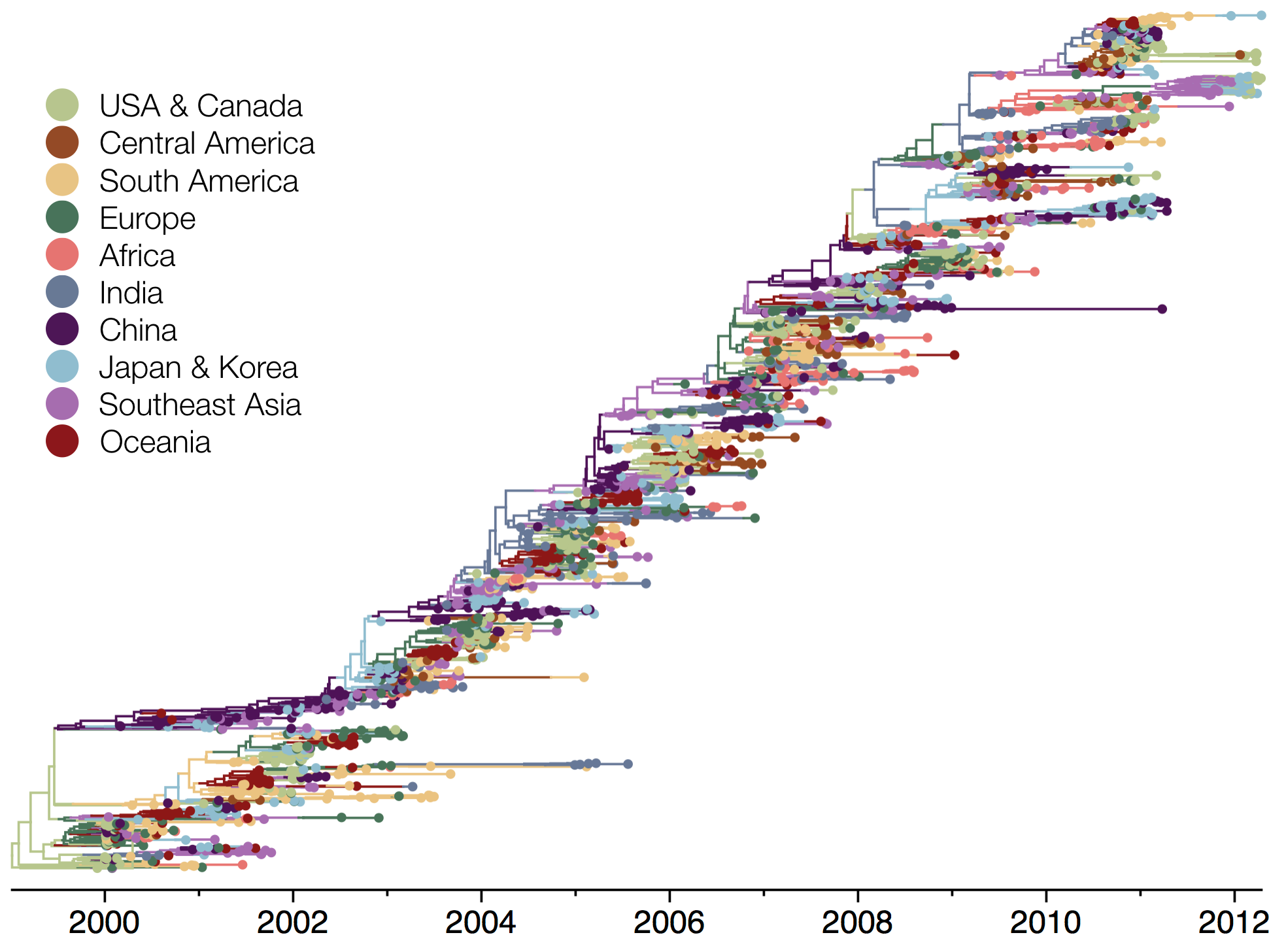

Influenza phylogeny shows repeated spread from E-SE Asia

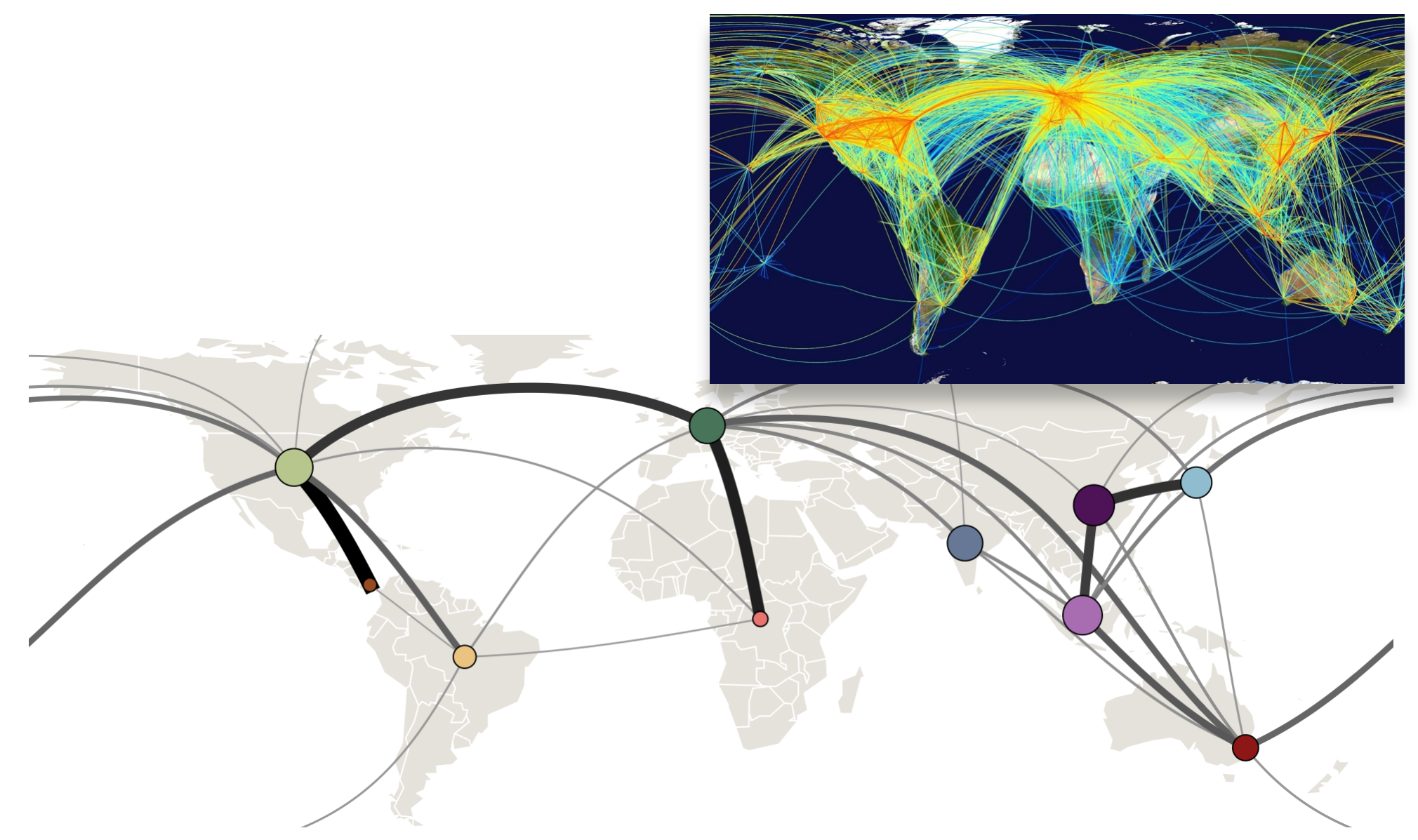

Influenza transitions mirror air travel network

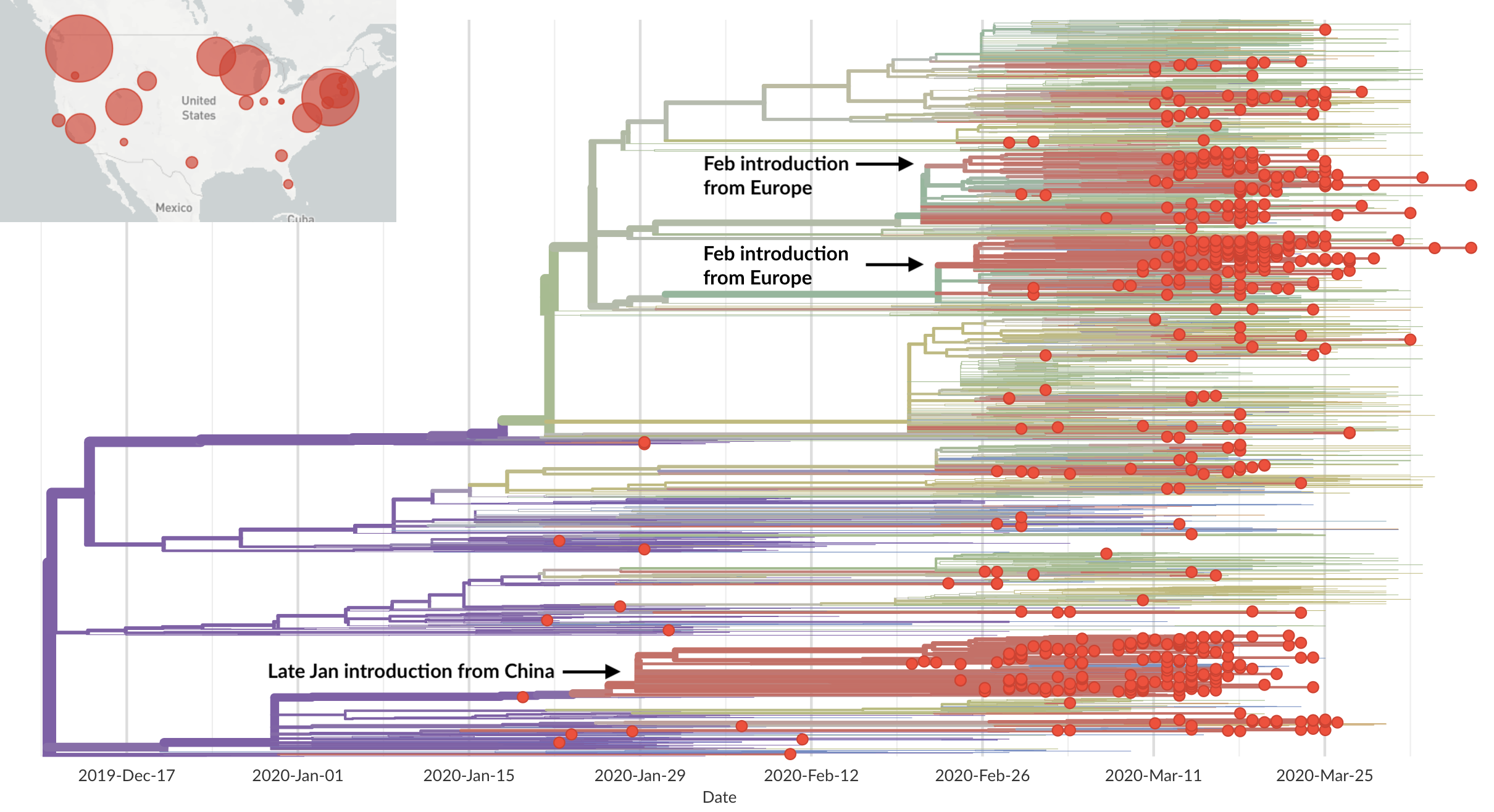

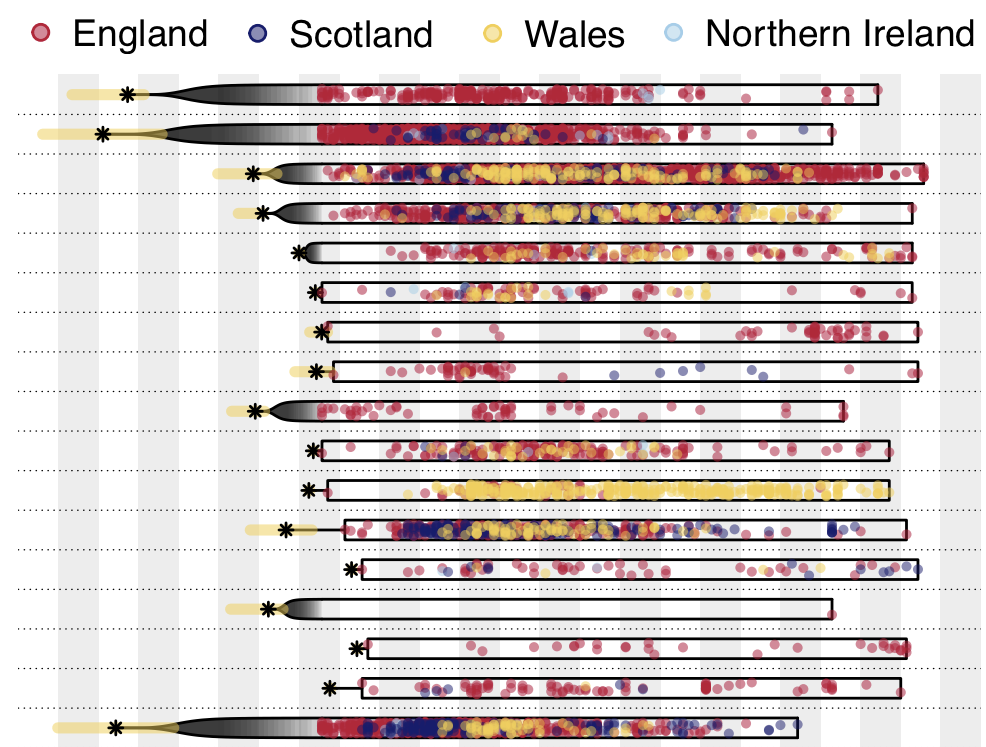

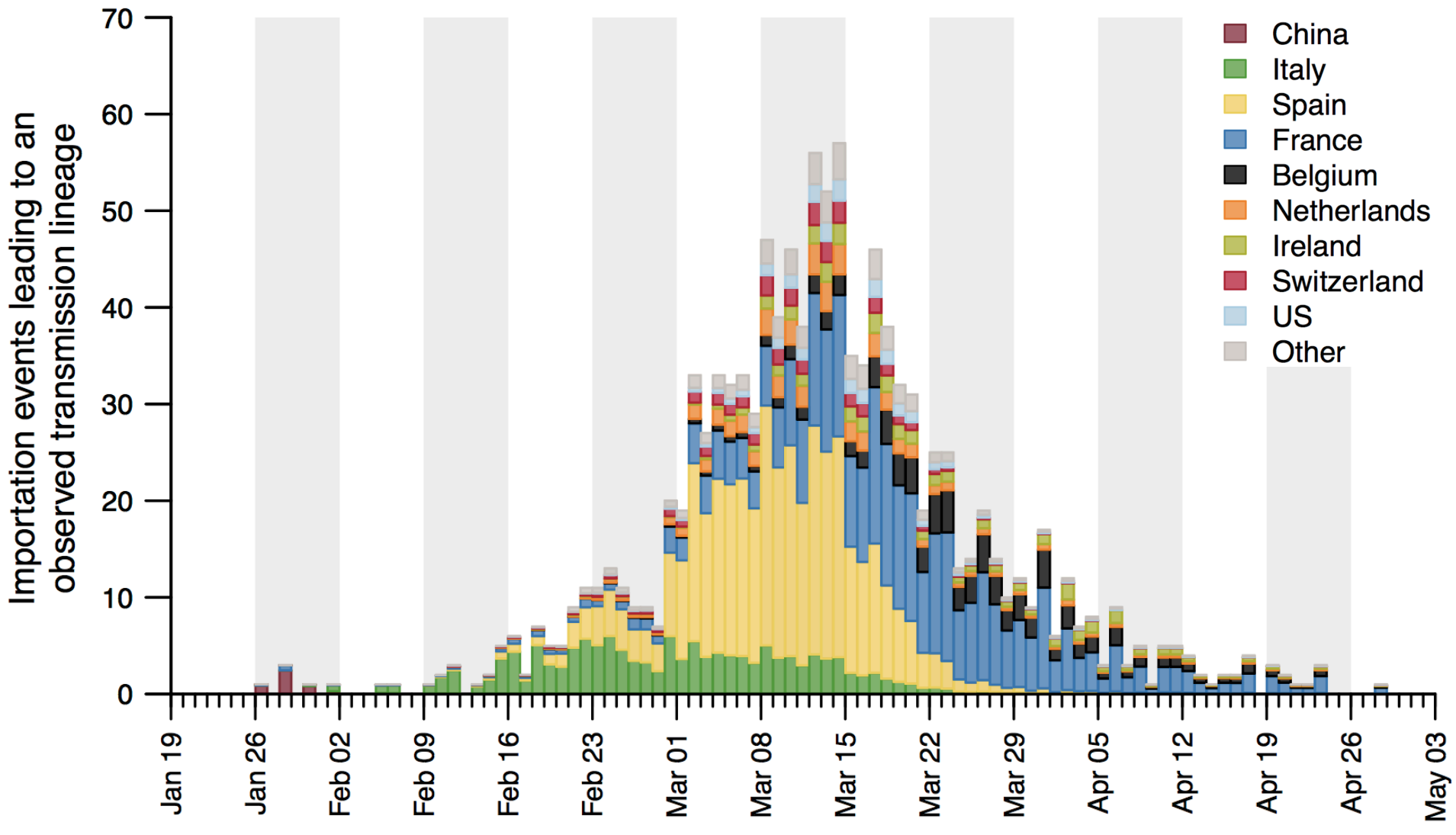

Detailed inference of SARS-CoV-2
introductions into the UK



Reservoir species and host jumps

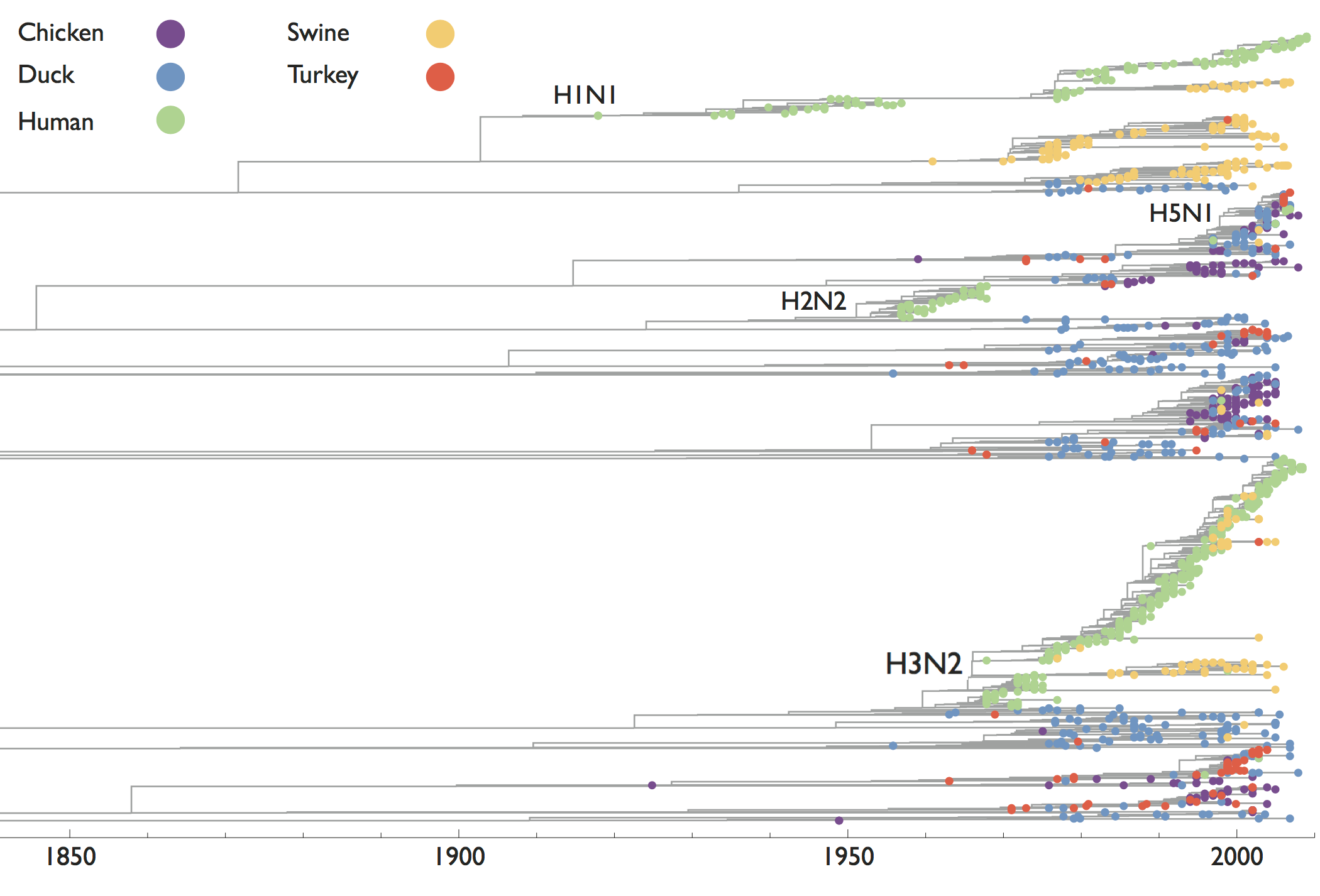

Influenza has a reservoir in wild birds, spillovers sometimes become endemic

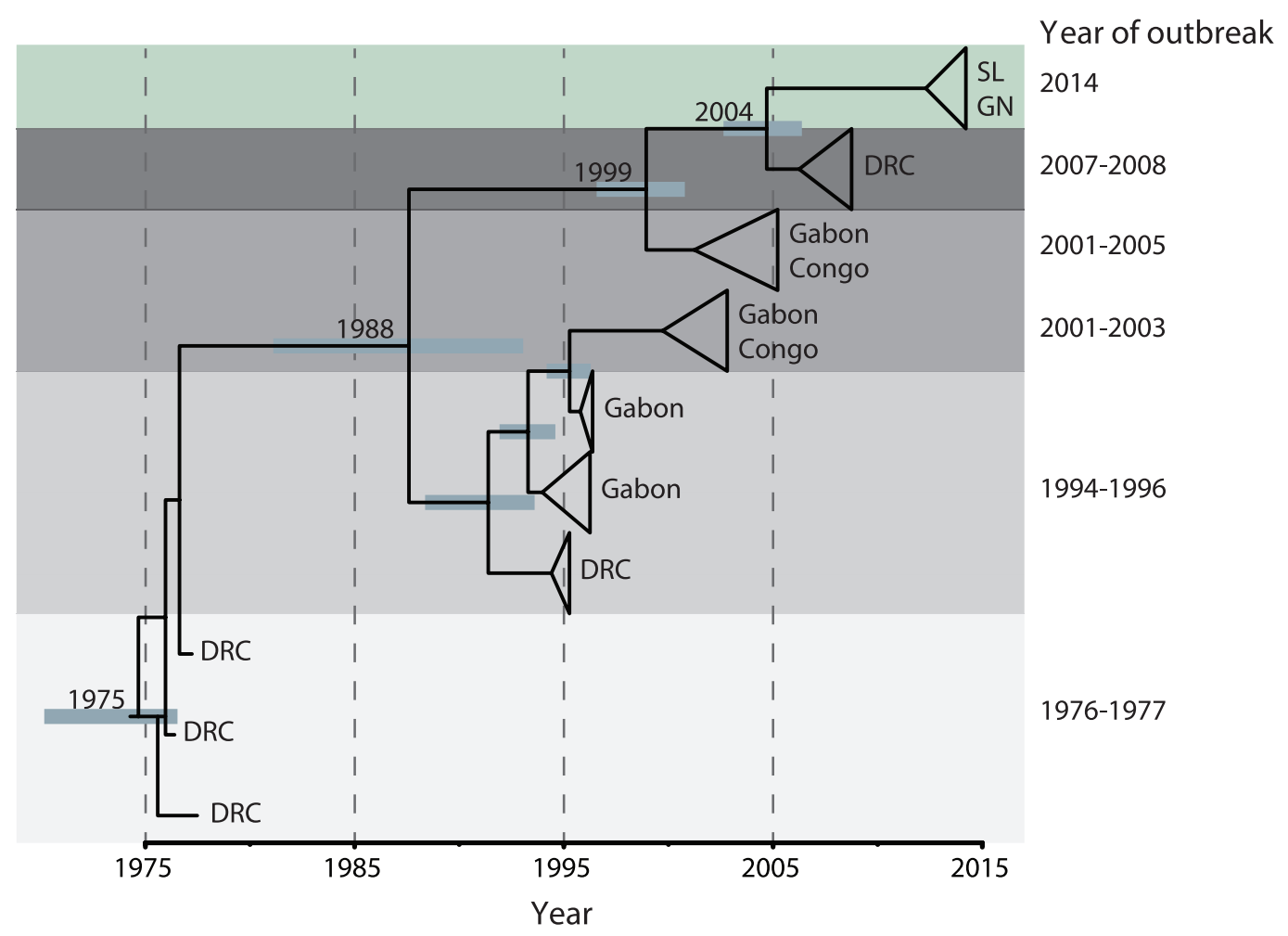

Each Ebola outbreak derives from a separate spillover event

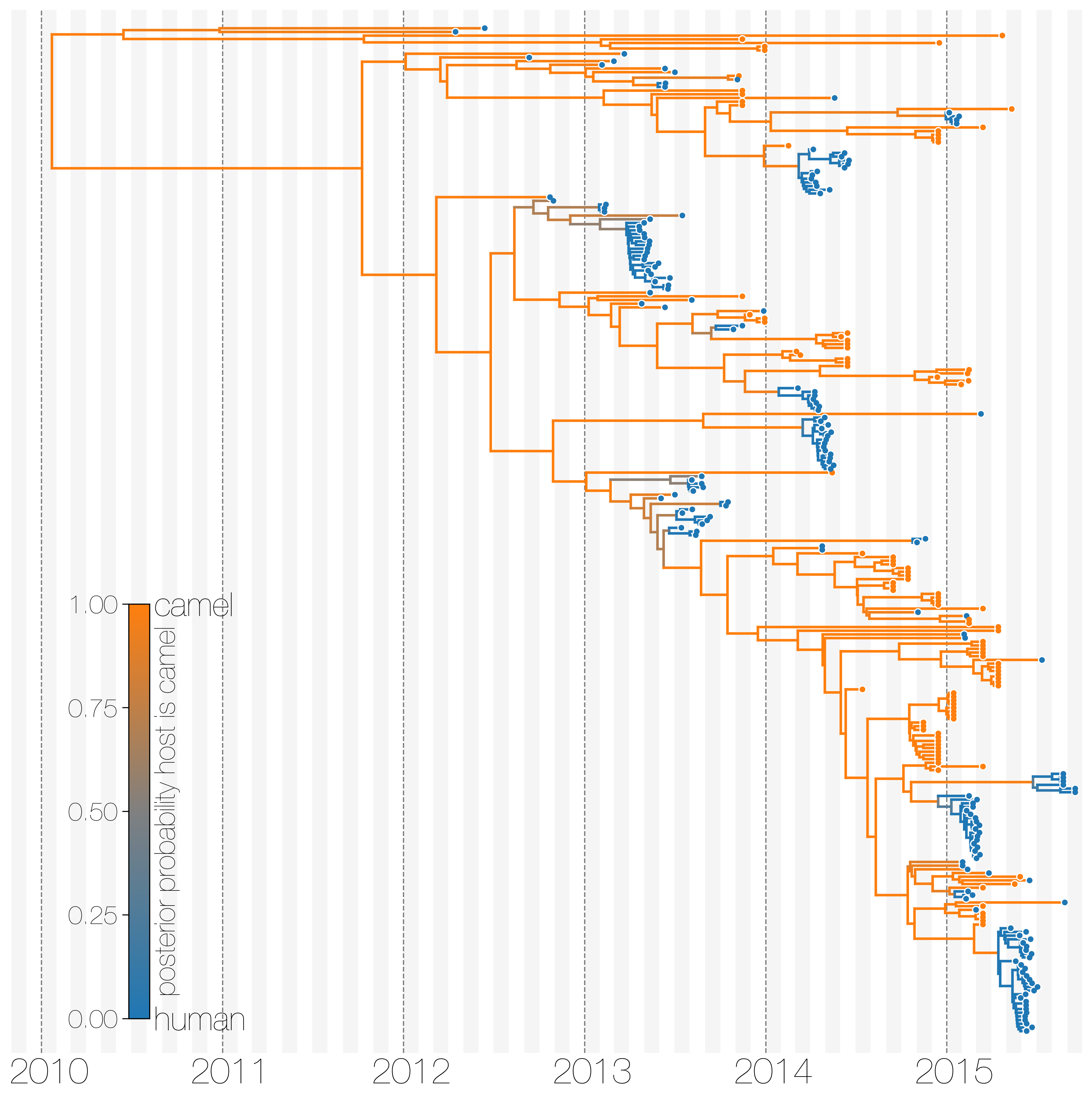

MERS-CoV has frequent spillover events, but limited human-to-human transmission

Reassortment and recombination

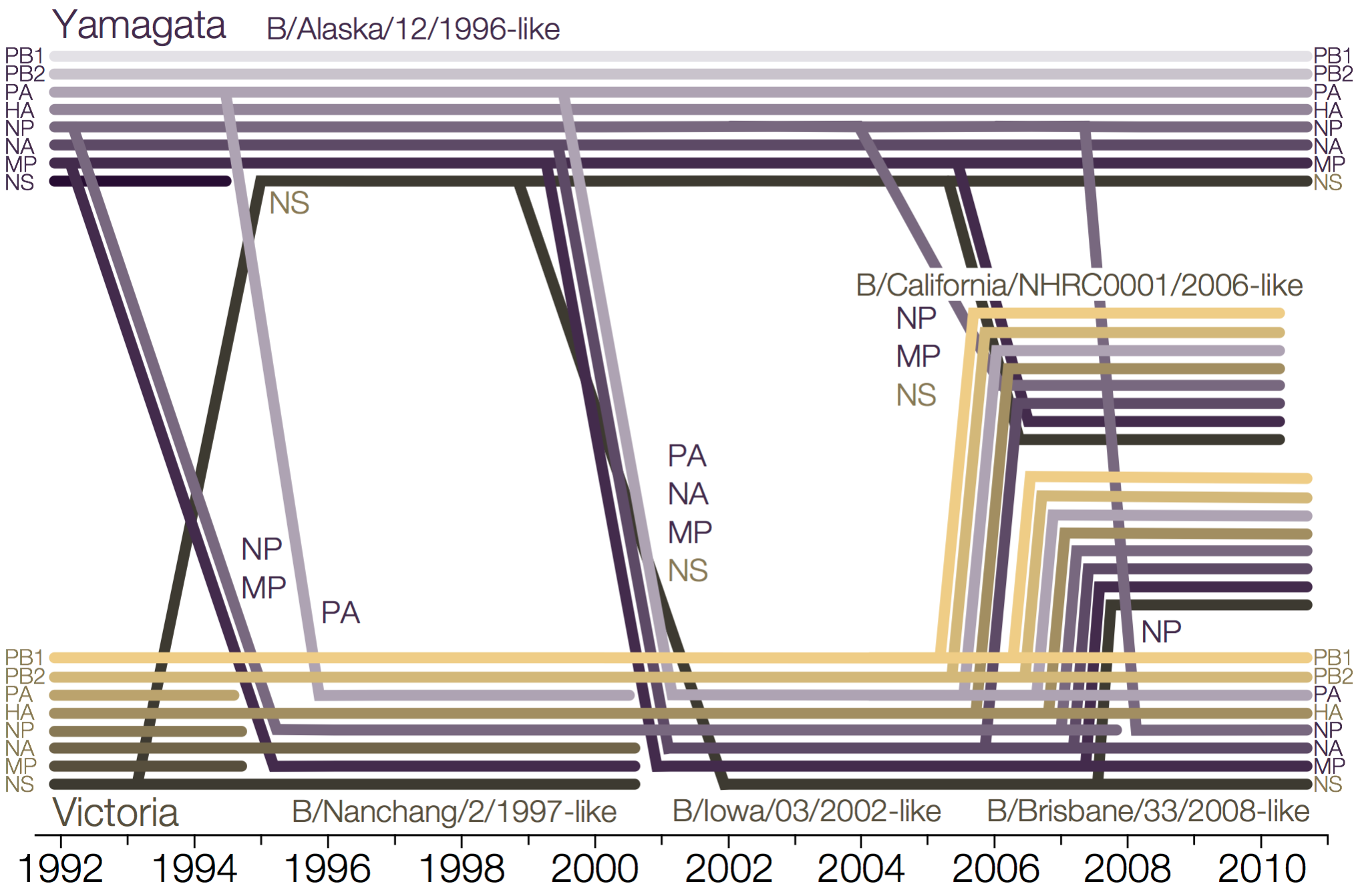

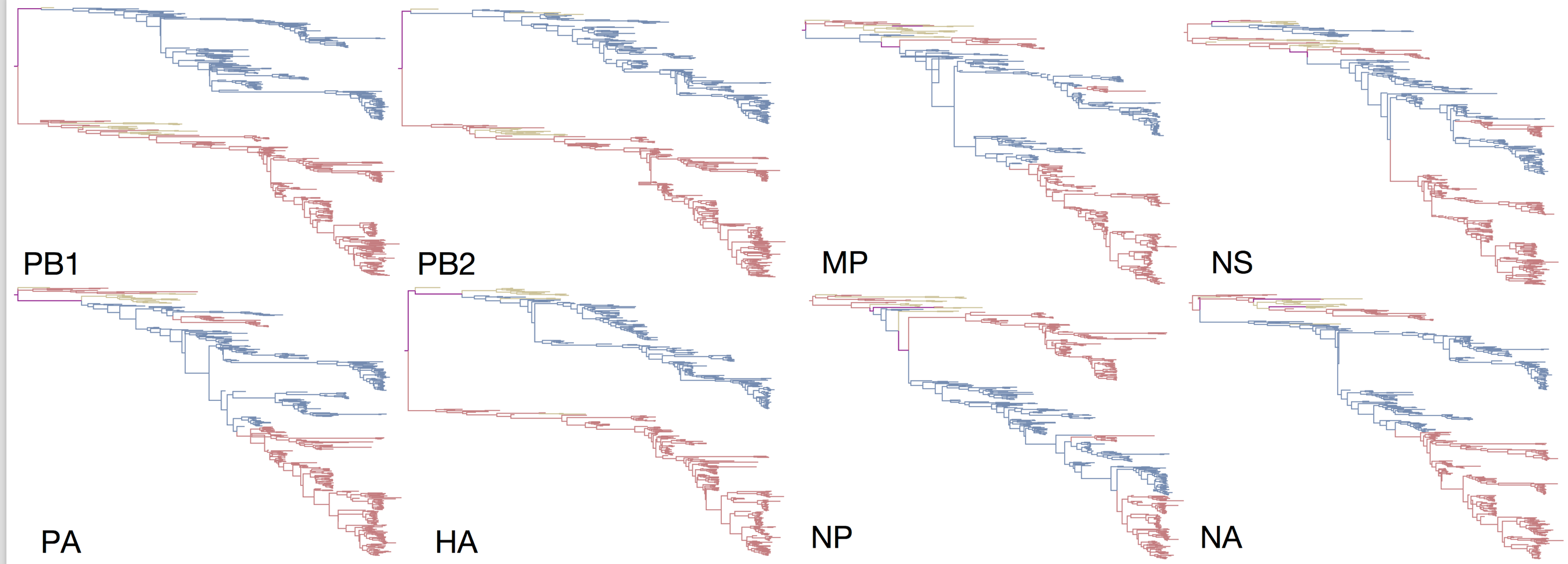

Influenza B reassorts across segments

Reassortment splits gene constellations

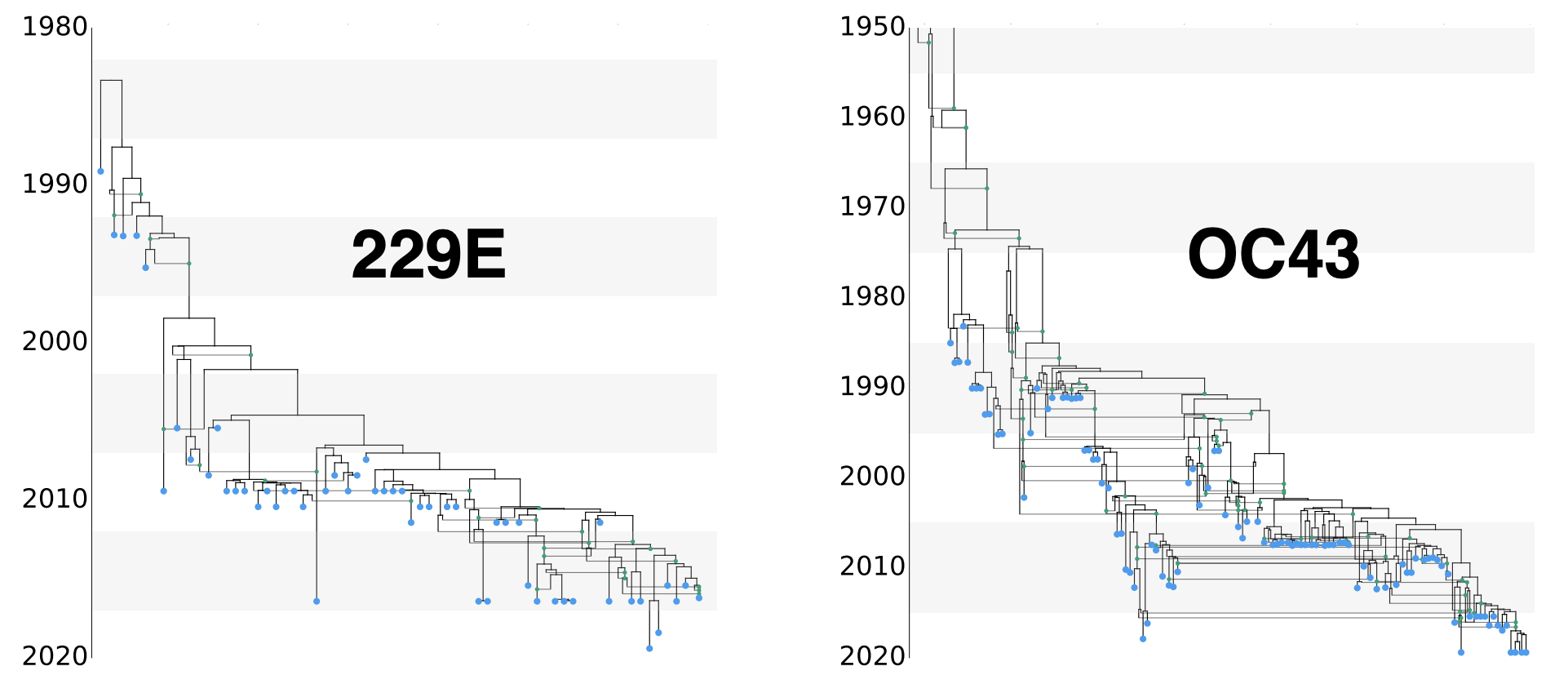

Recombination in seasonal coronaviruses

Summary

• Phylogenetics uses sequence data to infer trees along with ancestral states
• Molecular clocks provide a real-world context to evolutionary events
• Phylogeny reveals behavior of discrete traits, like geographic location and host state

Active research

• How to effectively utilize large sequence datasets?
• How to combat sampling bias?
• How to deal with recombination?
