B cells, antibodies, and vaccination

Antibodies co-evolve with pathogens

B cells determine antibody diversity

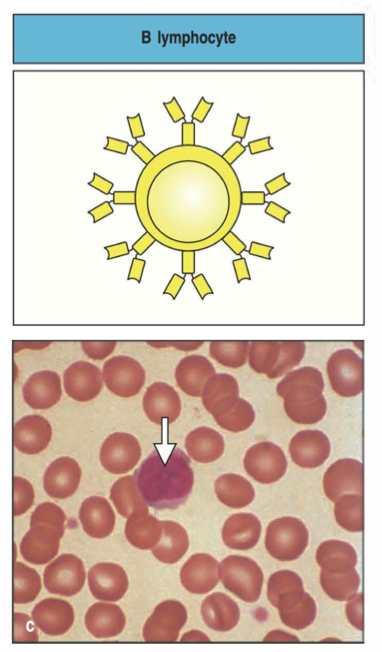

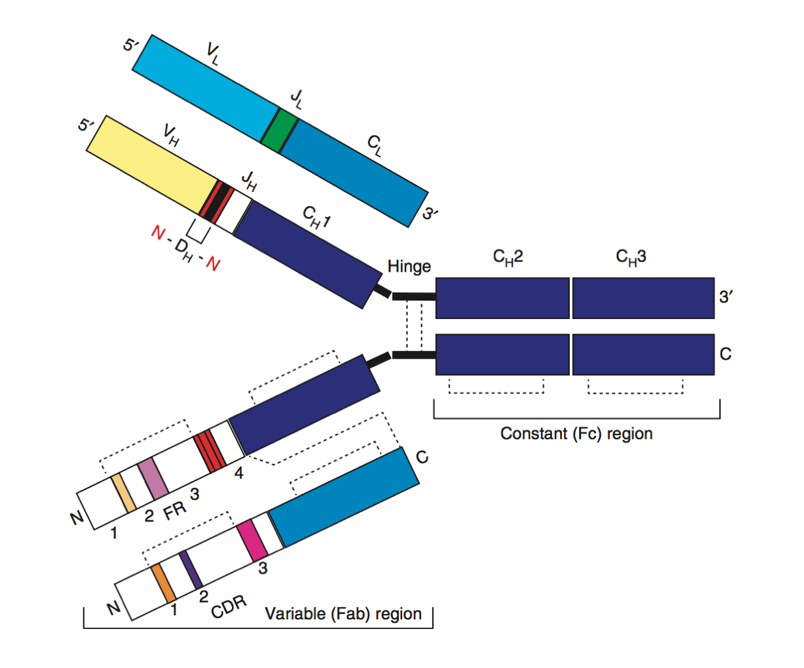

Structure of a B cell receptor

Origins of B cell receptor diversity

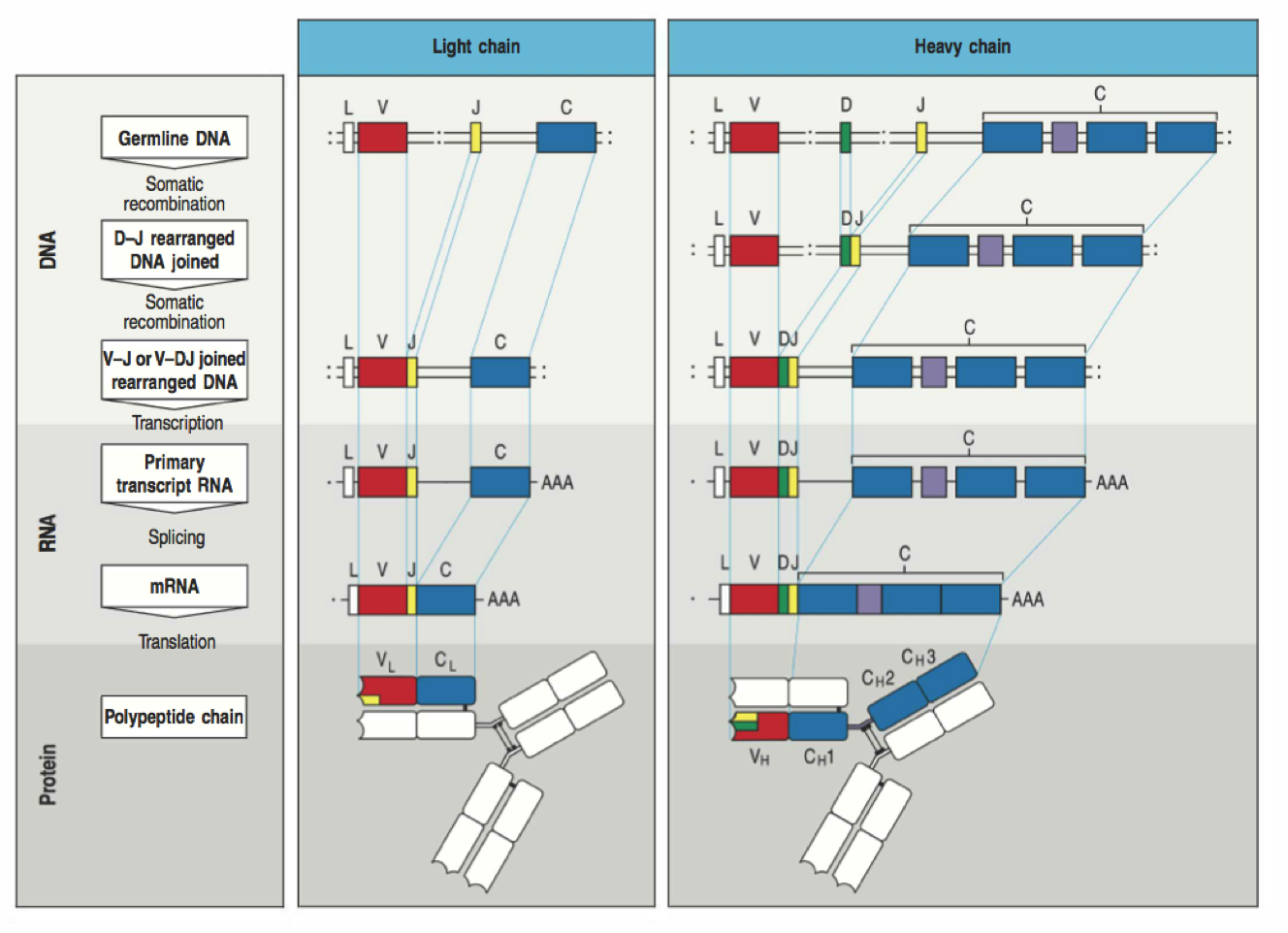

VDJ recombination

Affinity maturation

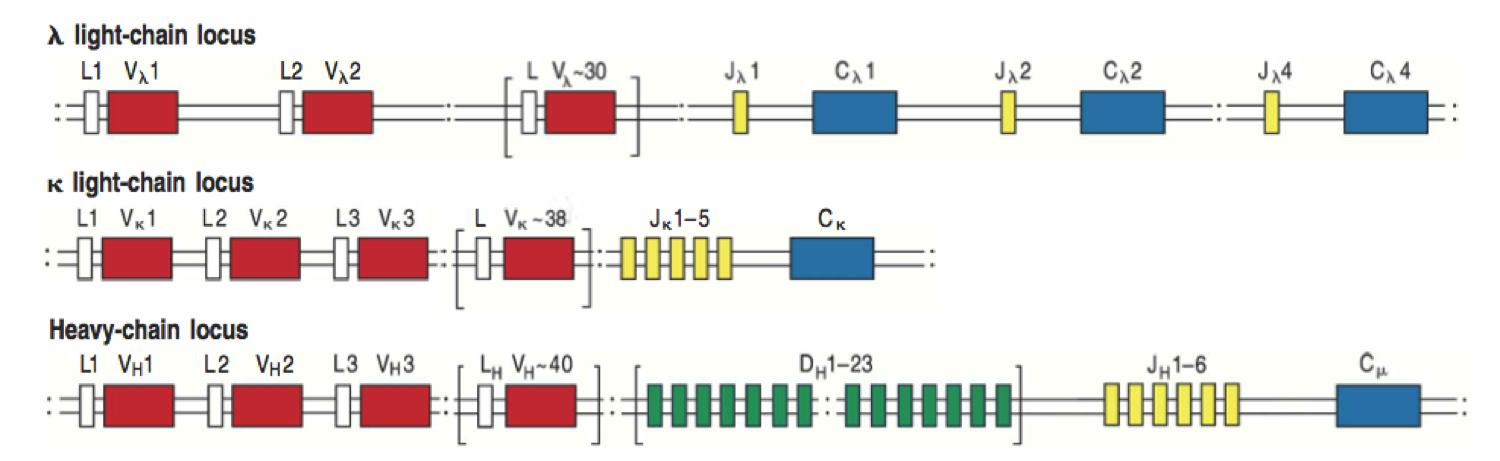

VDJ loci

VDJ recombination

Selection on naive repertoire

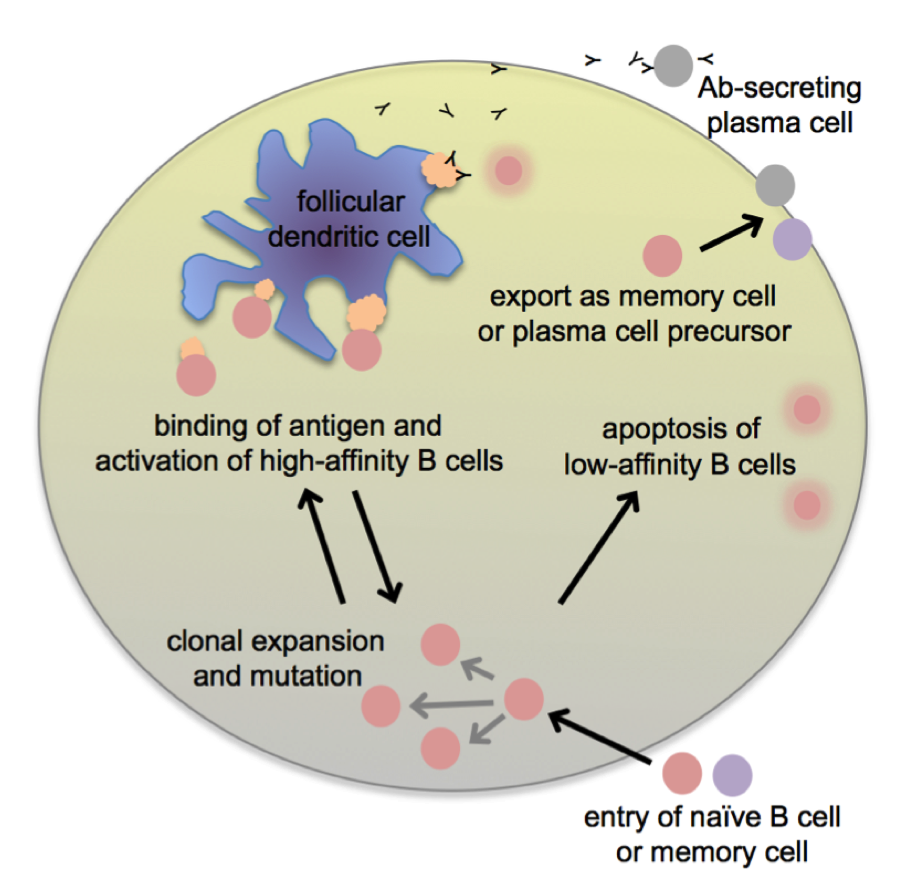

Germinal centers

Affinity maturation

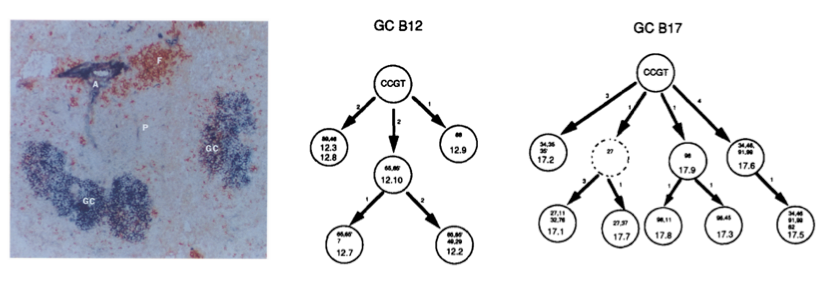

GC B cells evolve

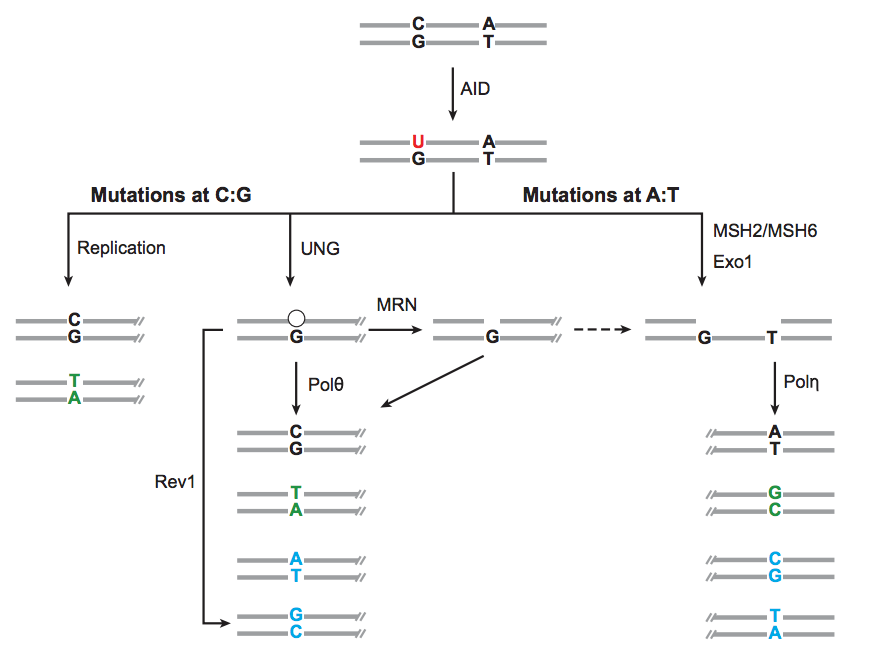

AID induces somatic hypermutation

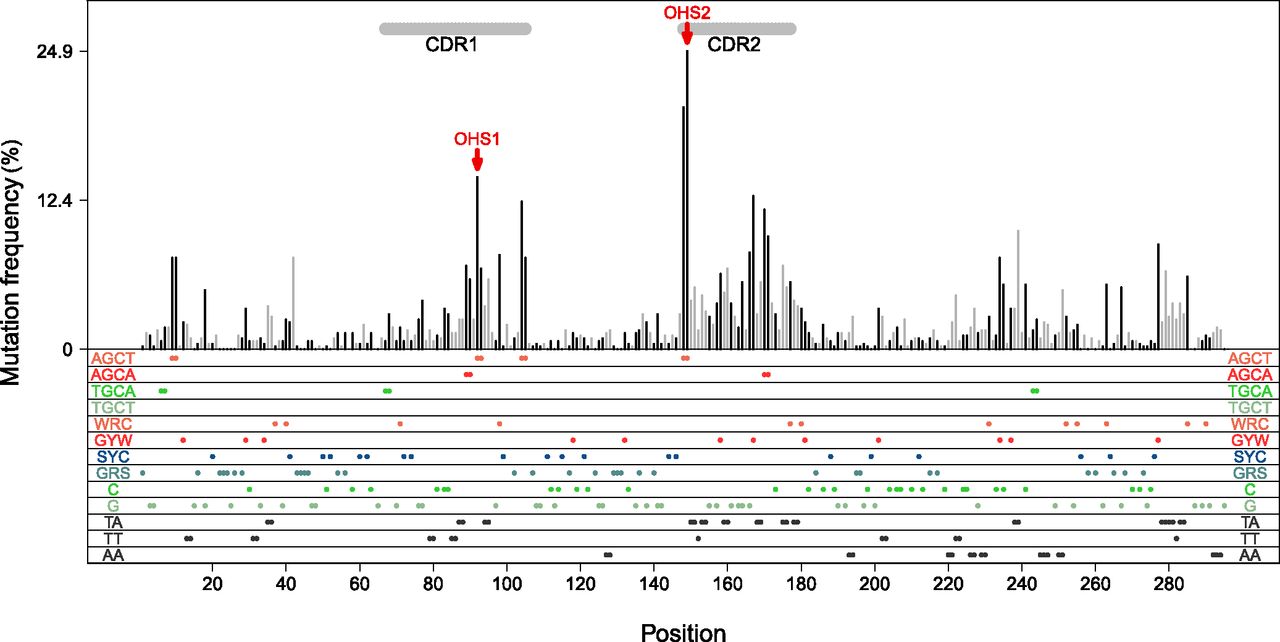

Mutation rate varies over the variable region

GCs produce plasma and memory cells

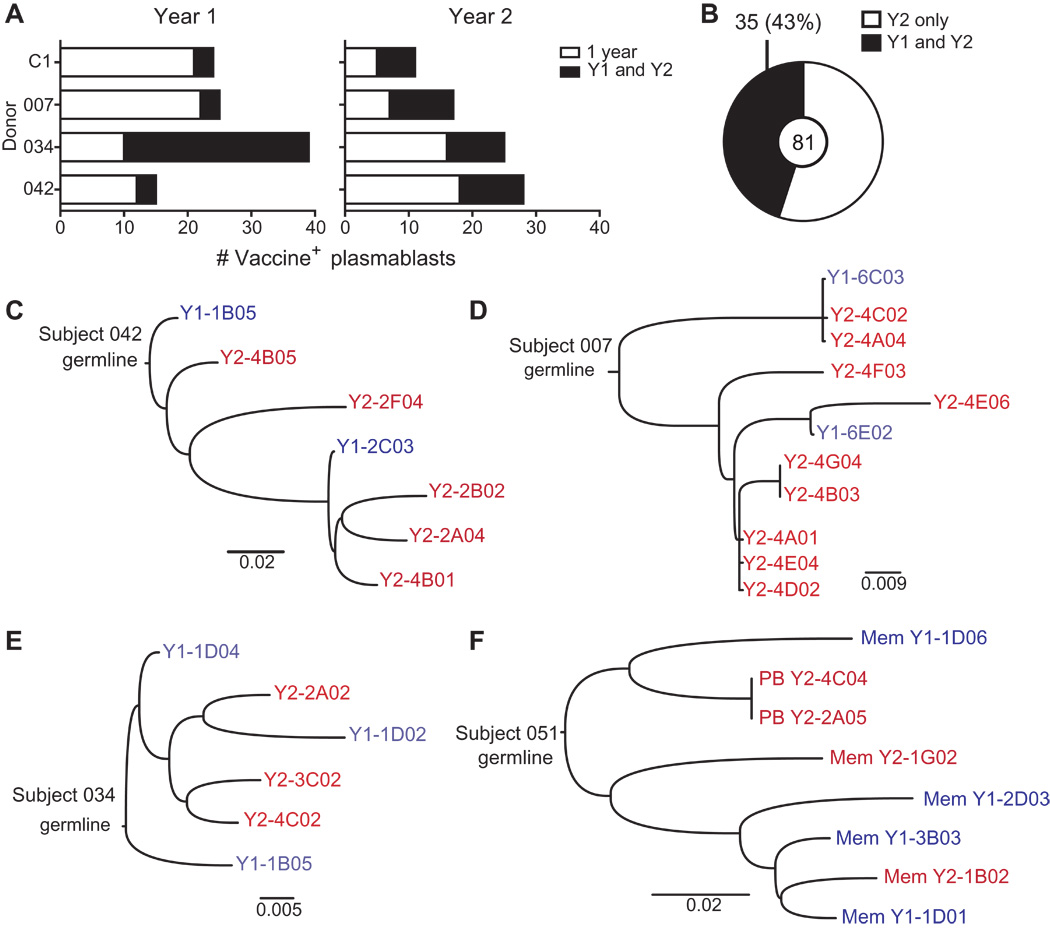

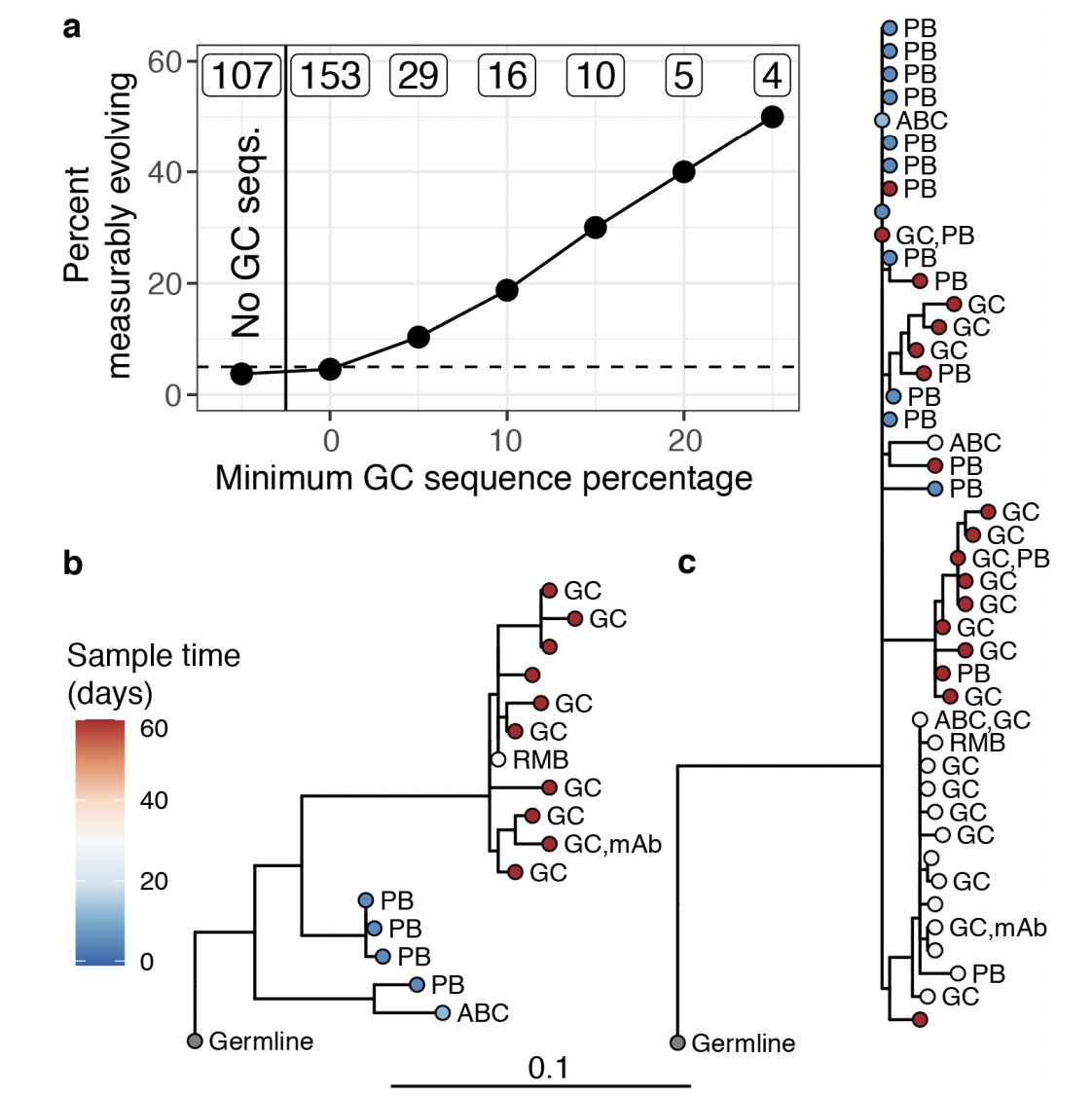

In humans, memory cells evolve further

Evidence from sampling lymph nodes

Clones can be long-lived

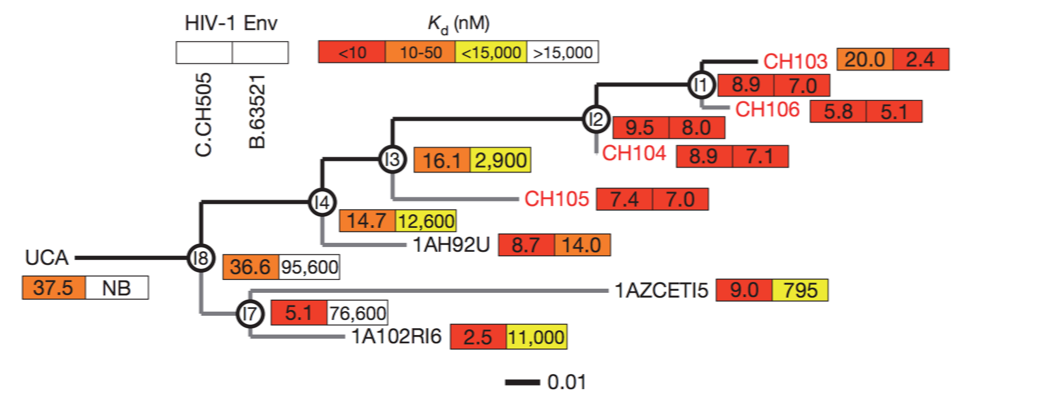

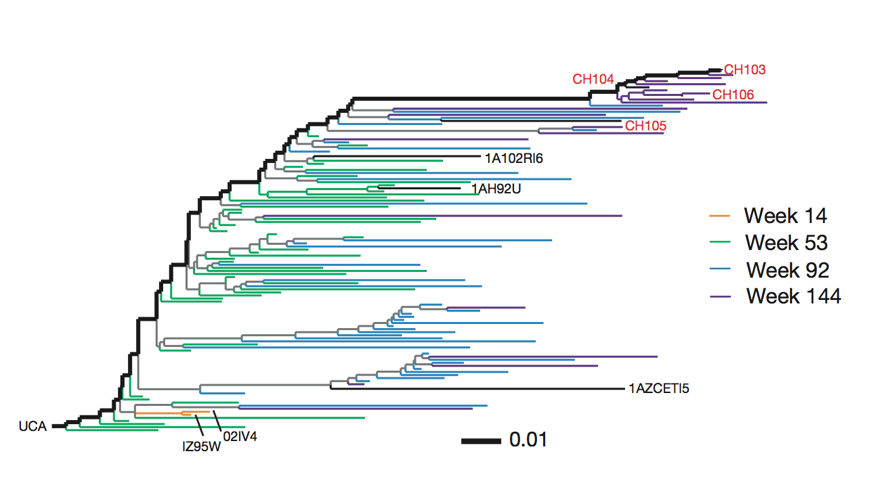

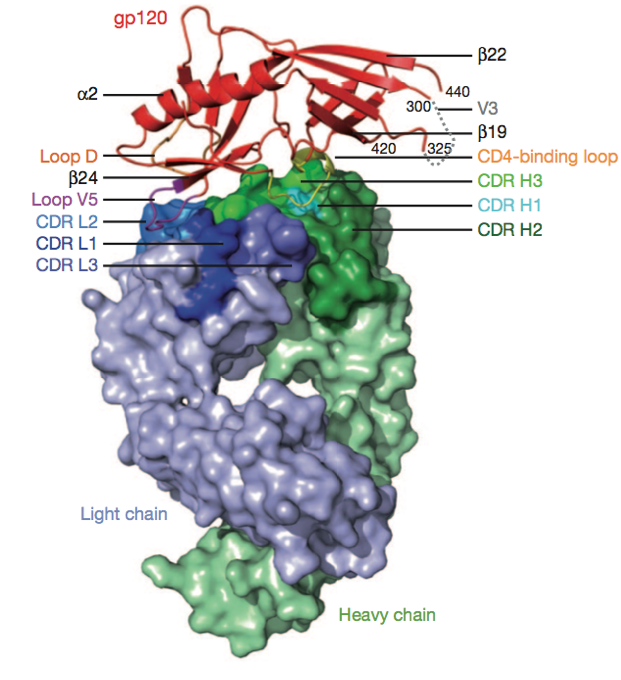

Broadly neutralizing antibodies are often highly diverged

Broadly neutralizing antibodies to flu elusive

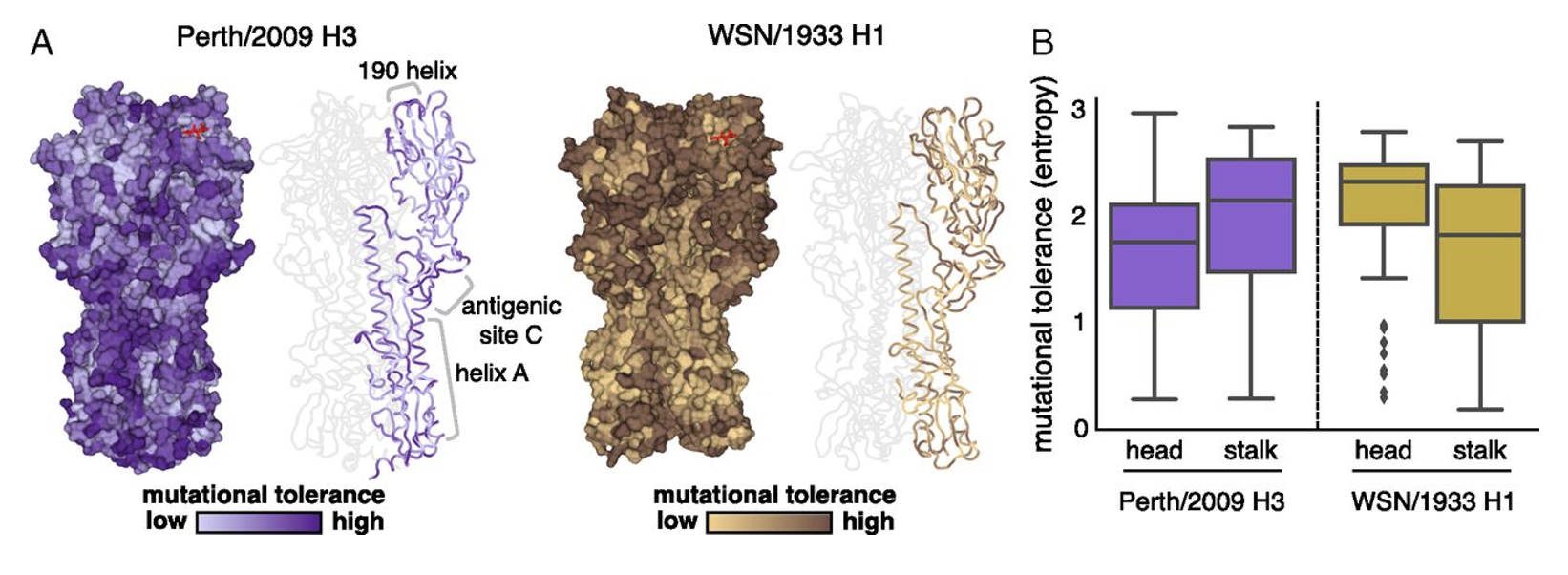

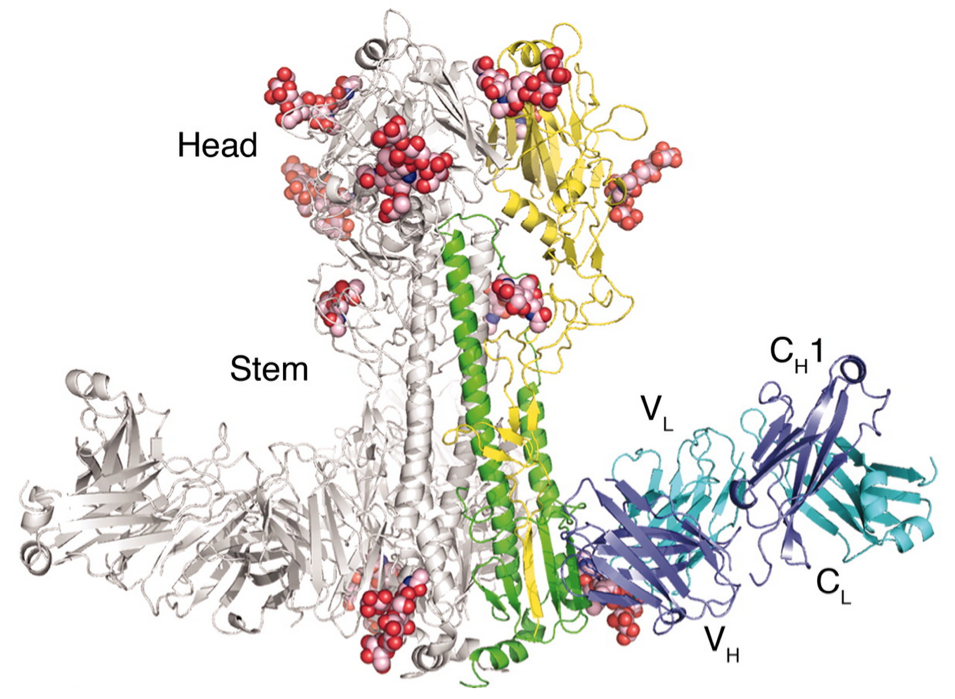

Stalk might not be "evolution-proof"

Historically conserved sites might not be constrained

Why do some people develop more bnAbs?

Can we induce high levels in everyone?

How can we guarantee they will dominate?

"Restricted" responses to epitopes

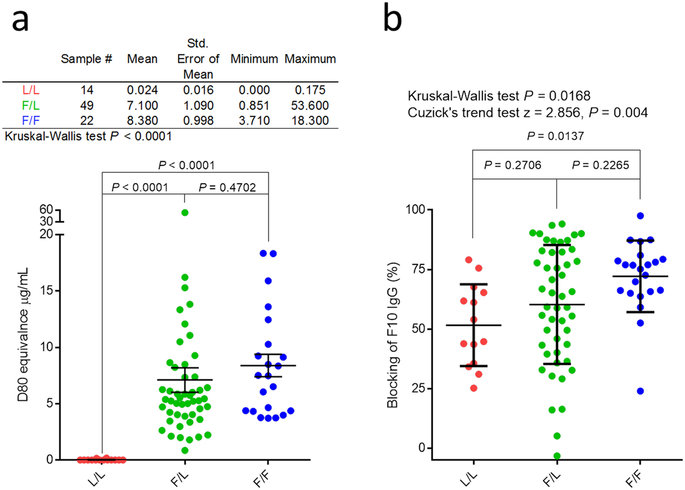

Genotype affects response to H5N1 vaccination

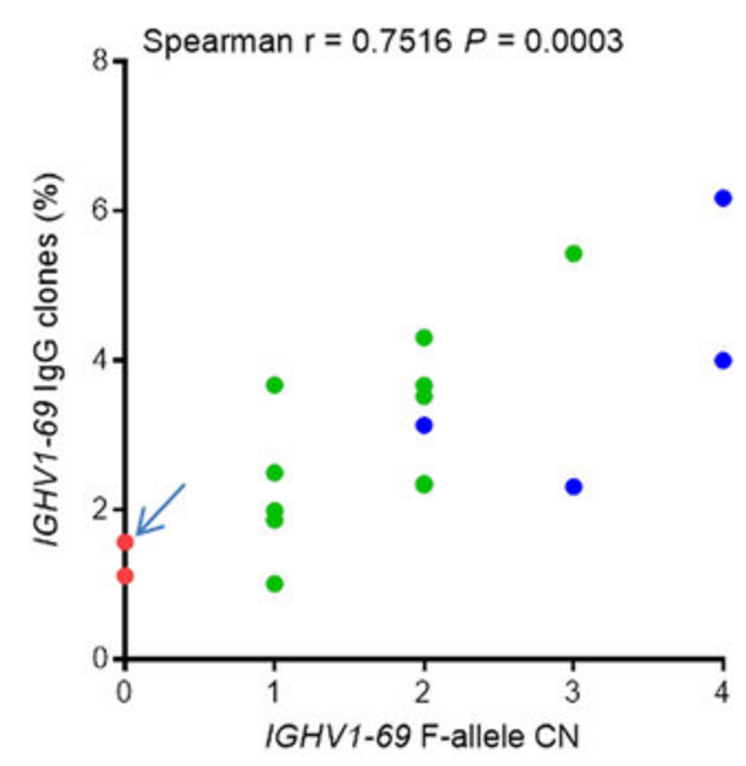

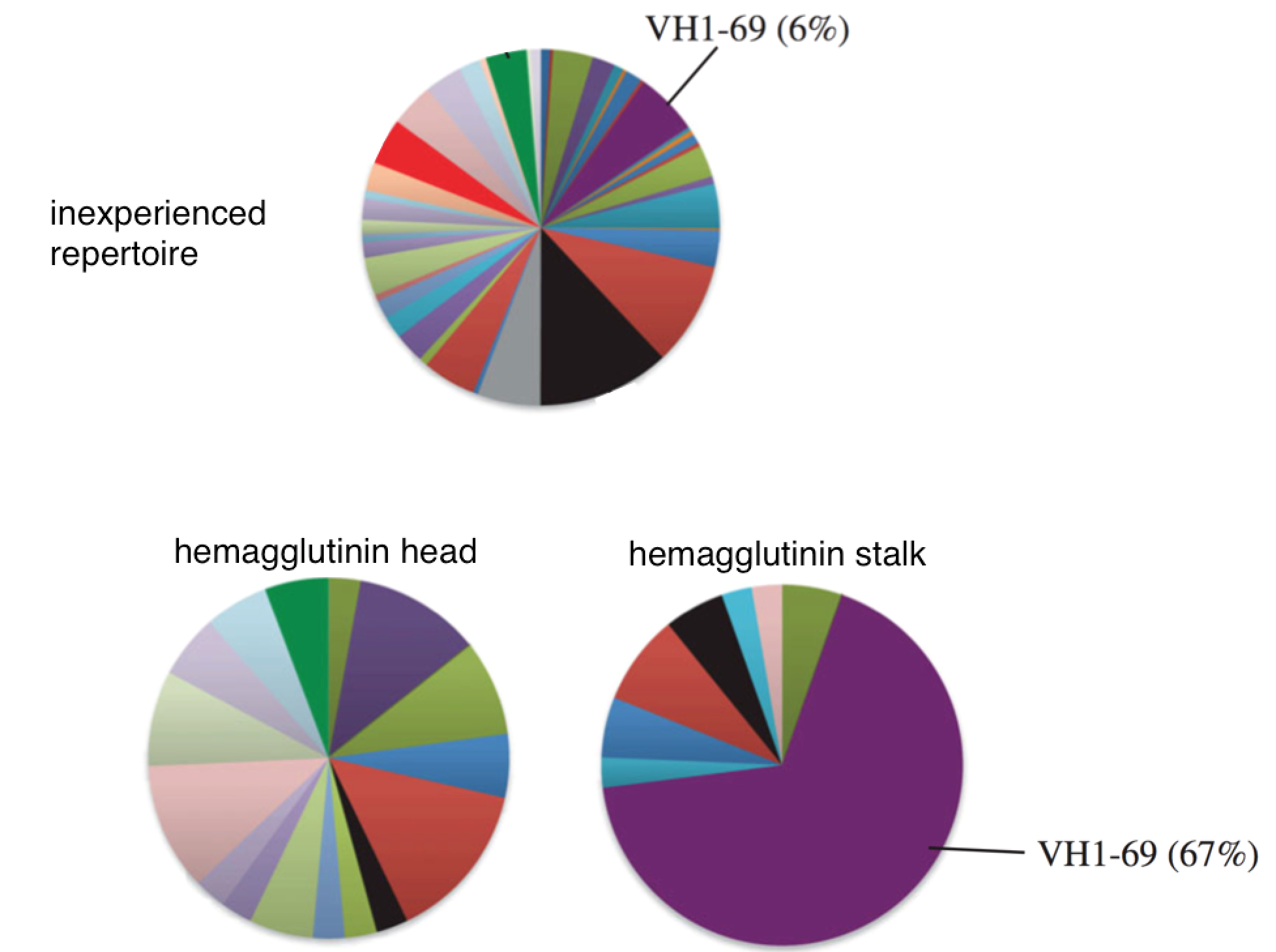

Allele copy number affects clone frequency

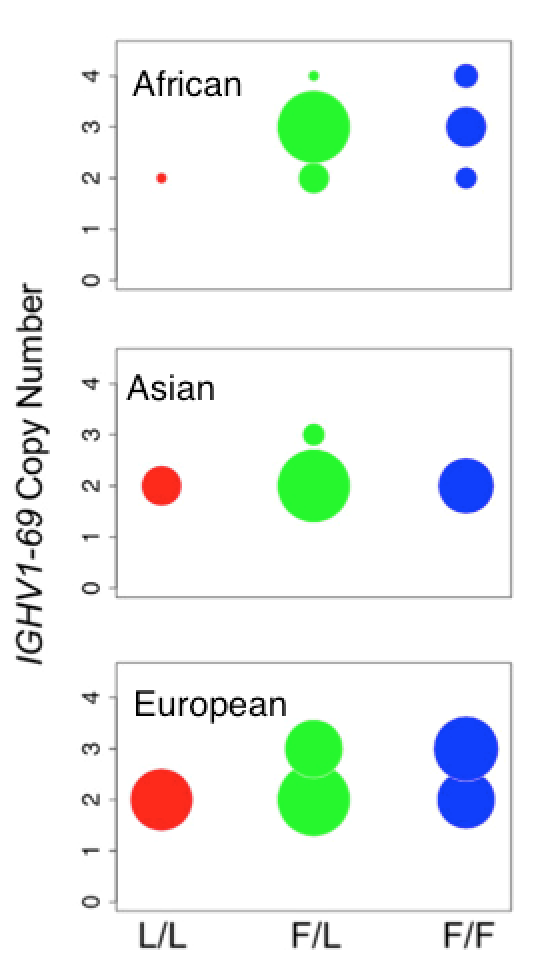

Ethnic differences in copy number

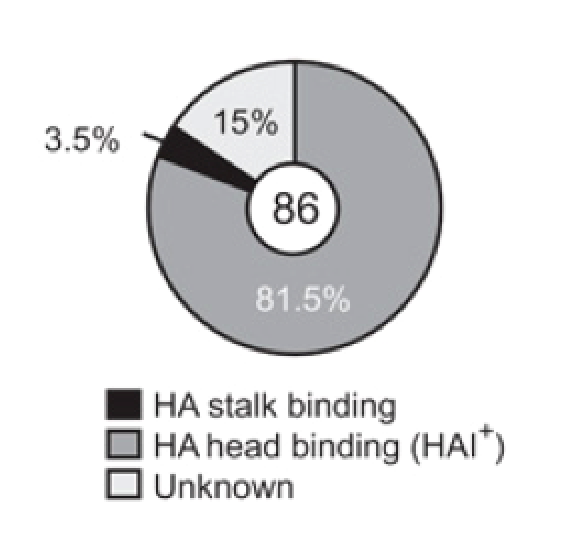

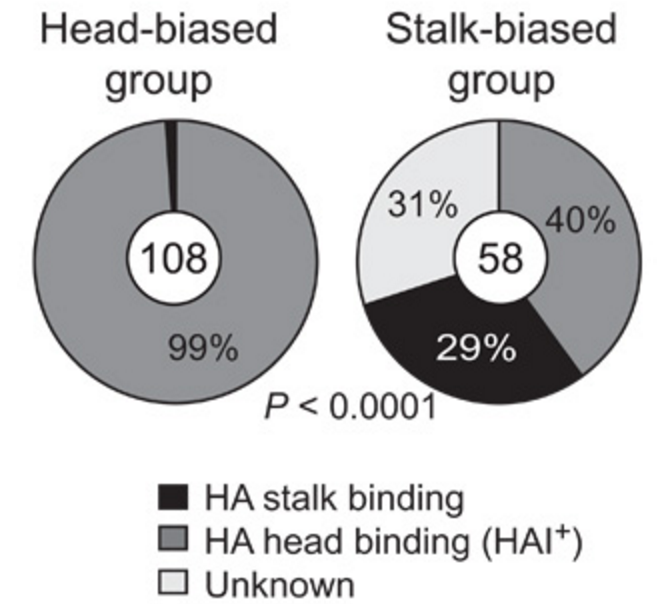

Response to 2009 H1N1 vaccine

Stalk responses can fade

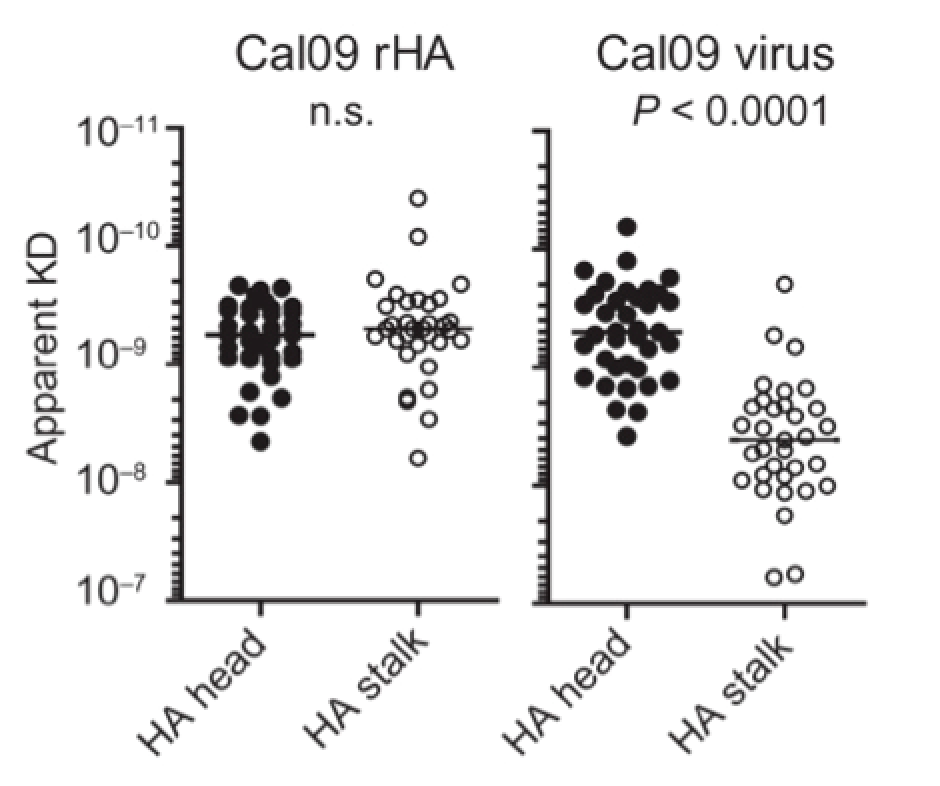

Stalk antibodies bind with lower avidity

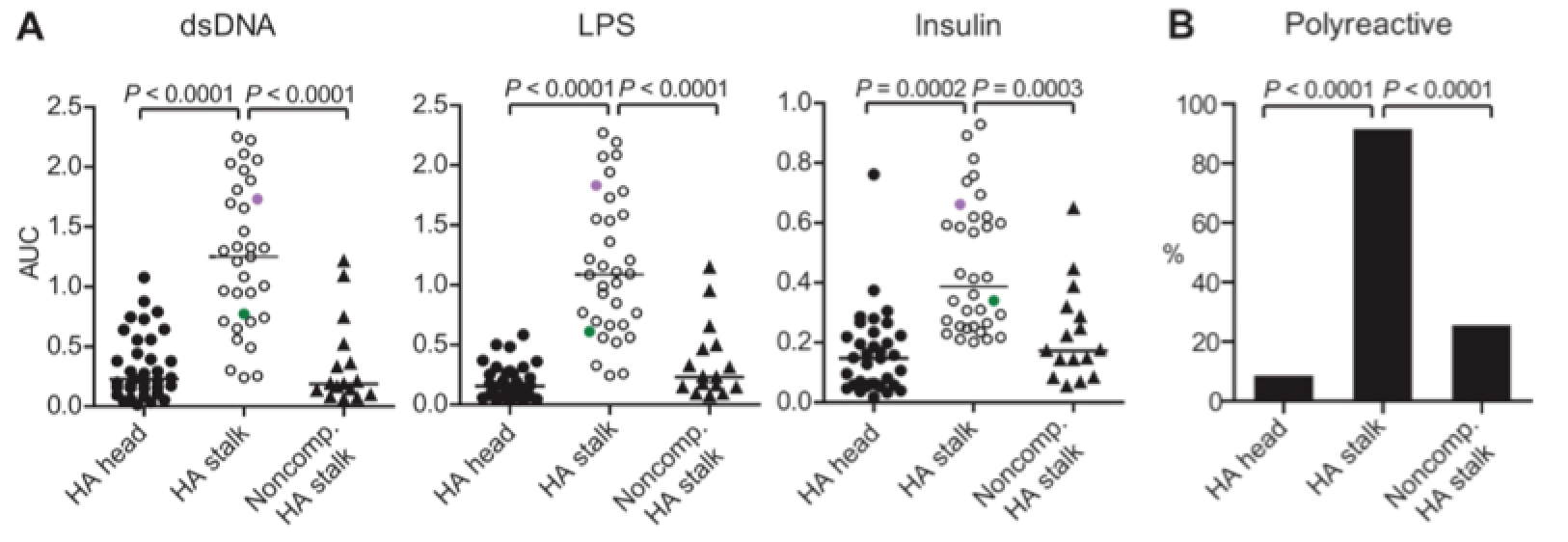

Stalk antibodies are more polyreactive

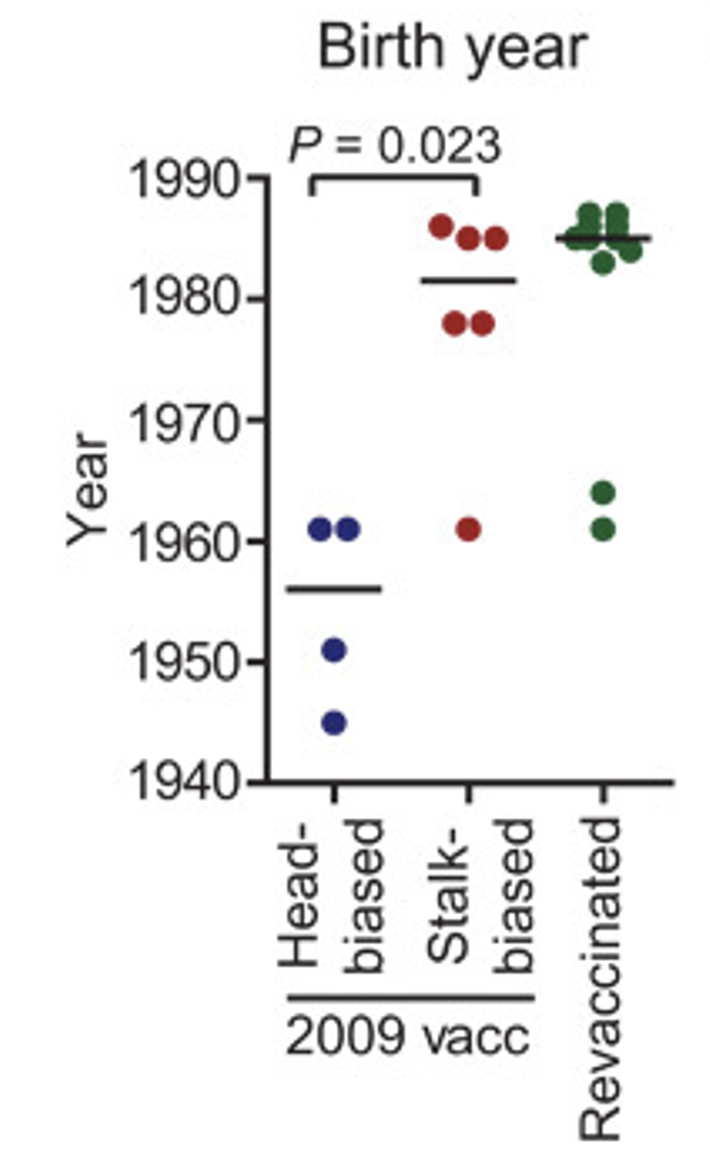

Birth year differences in stalk targeting

Early infections affect vaccine response

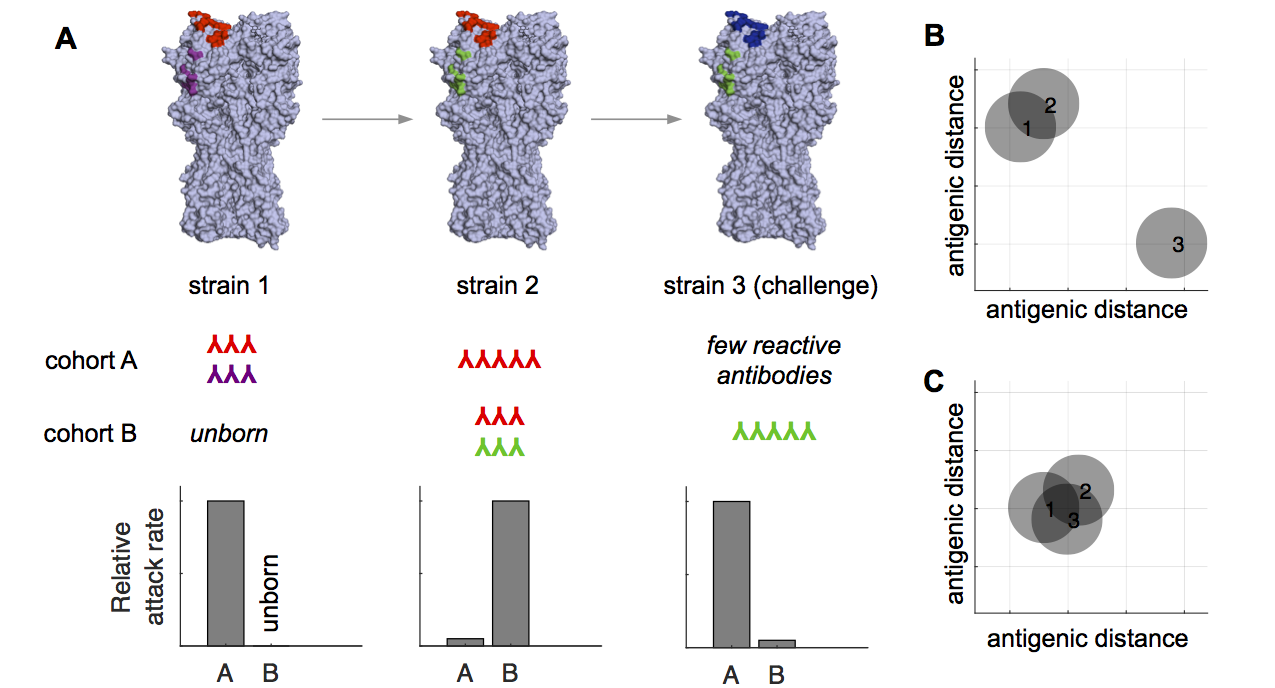

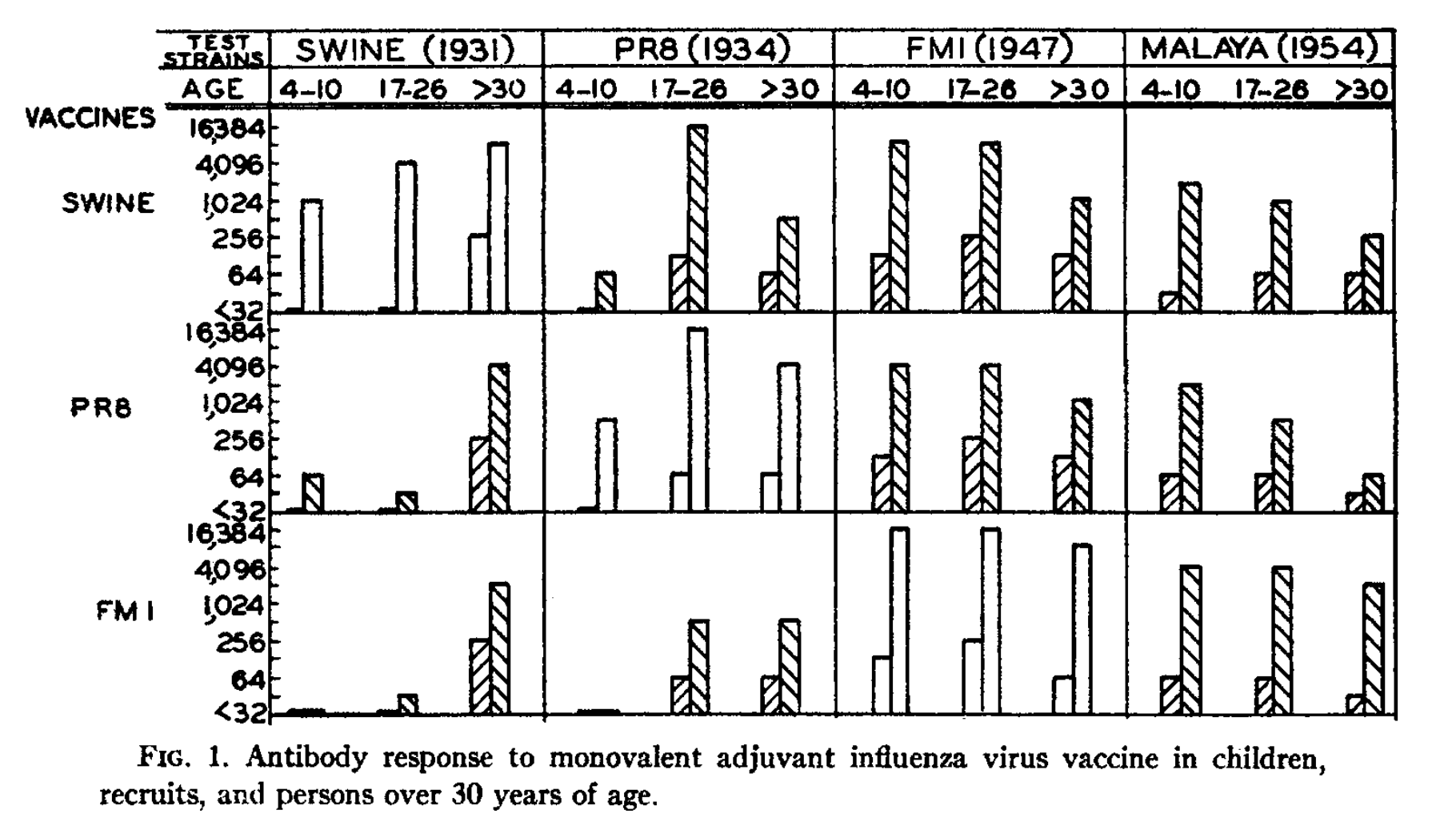

A general model of sin

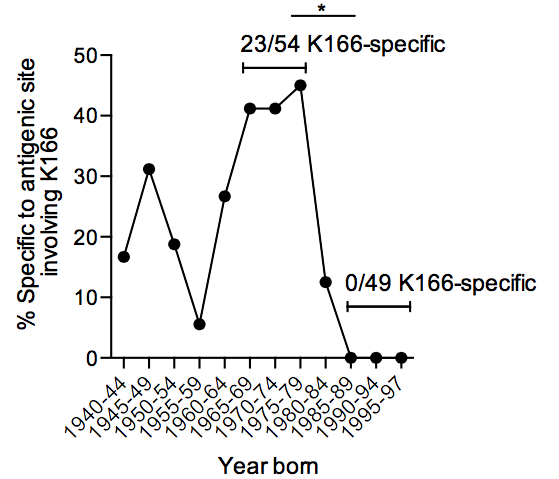

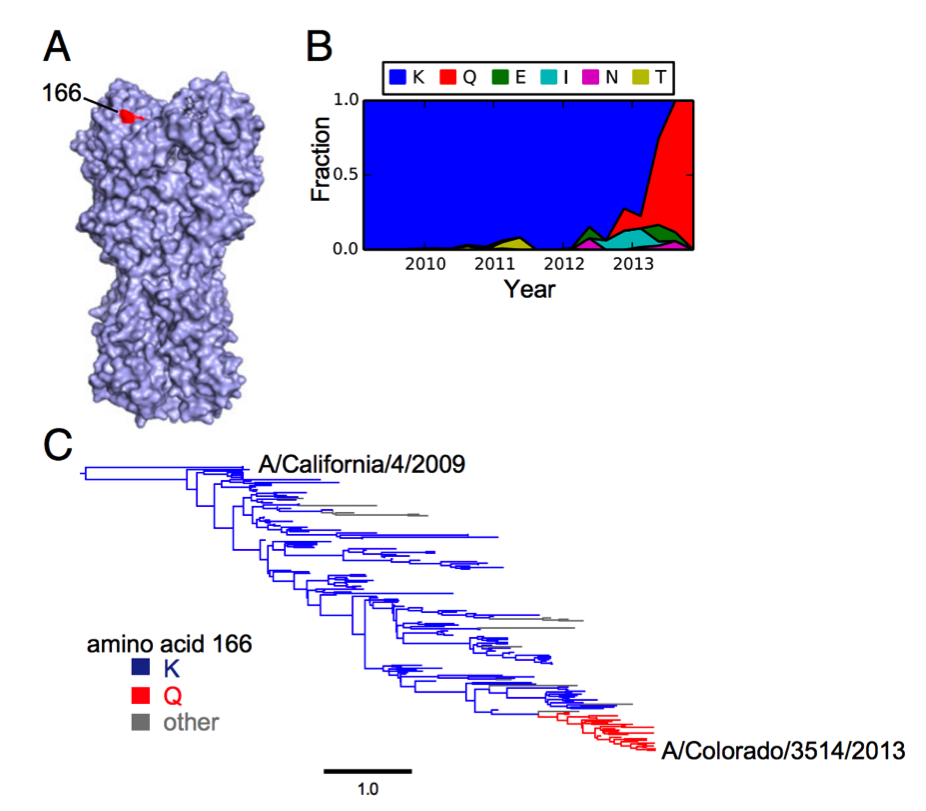

In 2013, H1N1 acquired K166Q

Uneven recognition

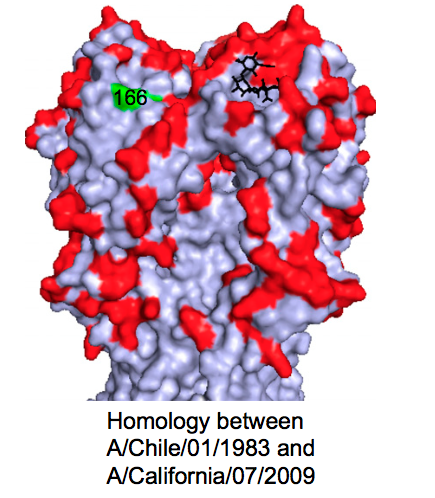

Homology with childhood strain

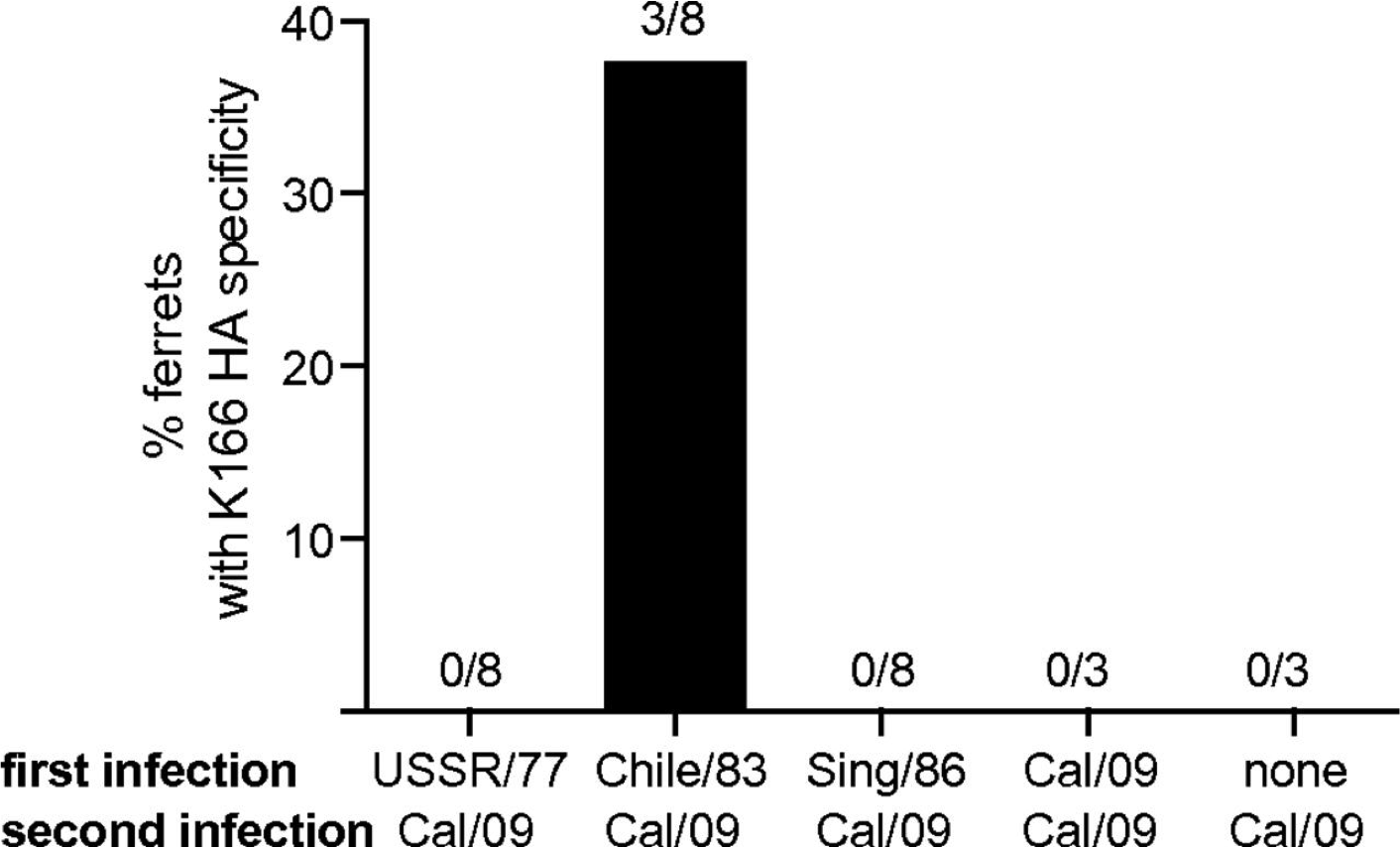

Recapitulation in ferrets

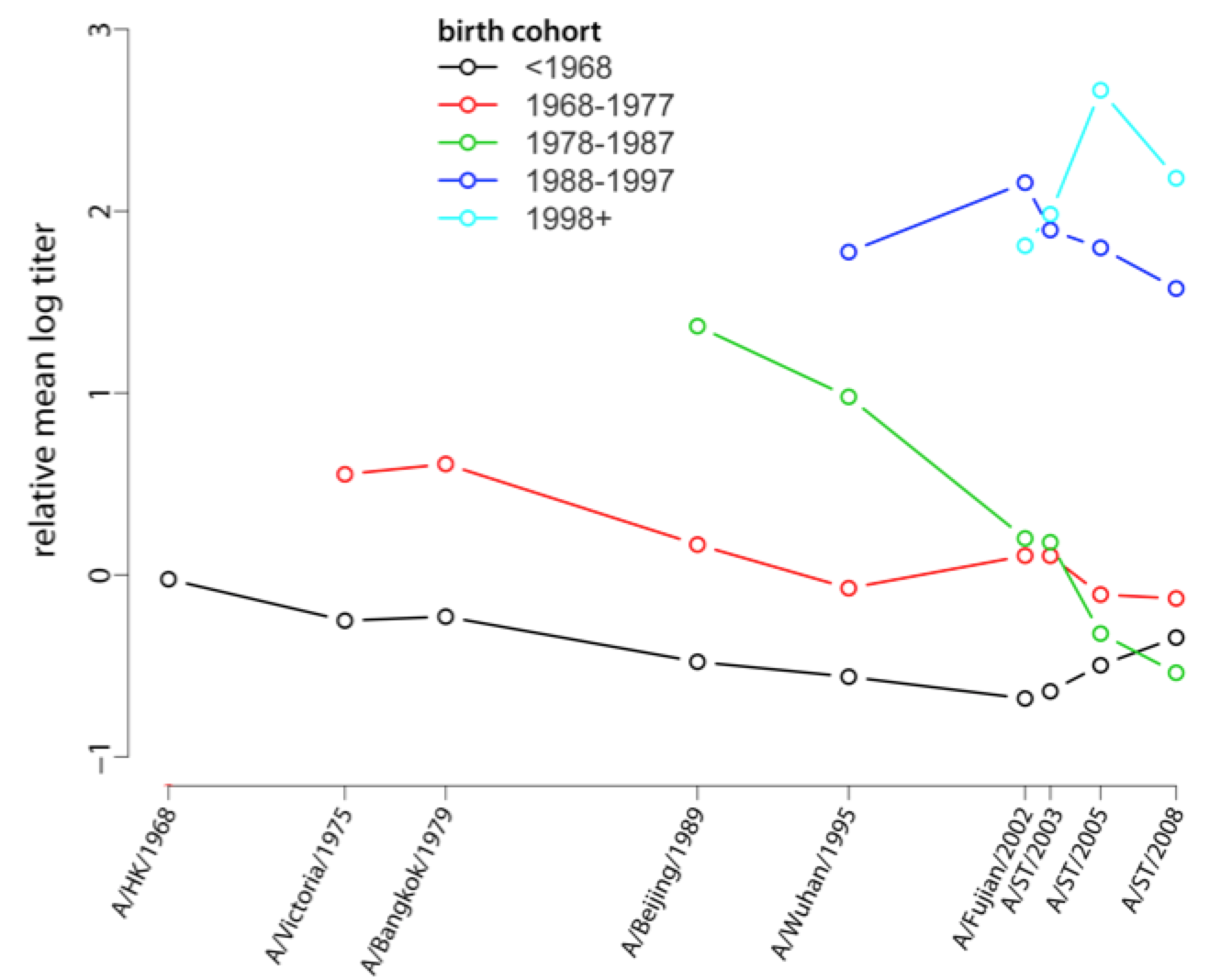

"Antigenic seniority"

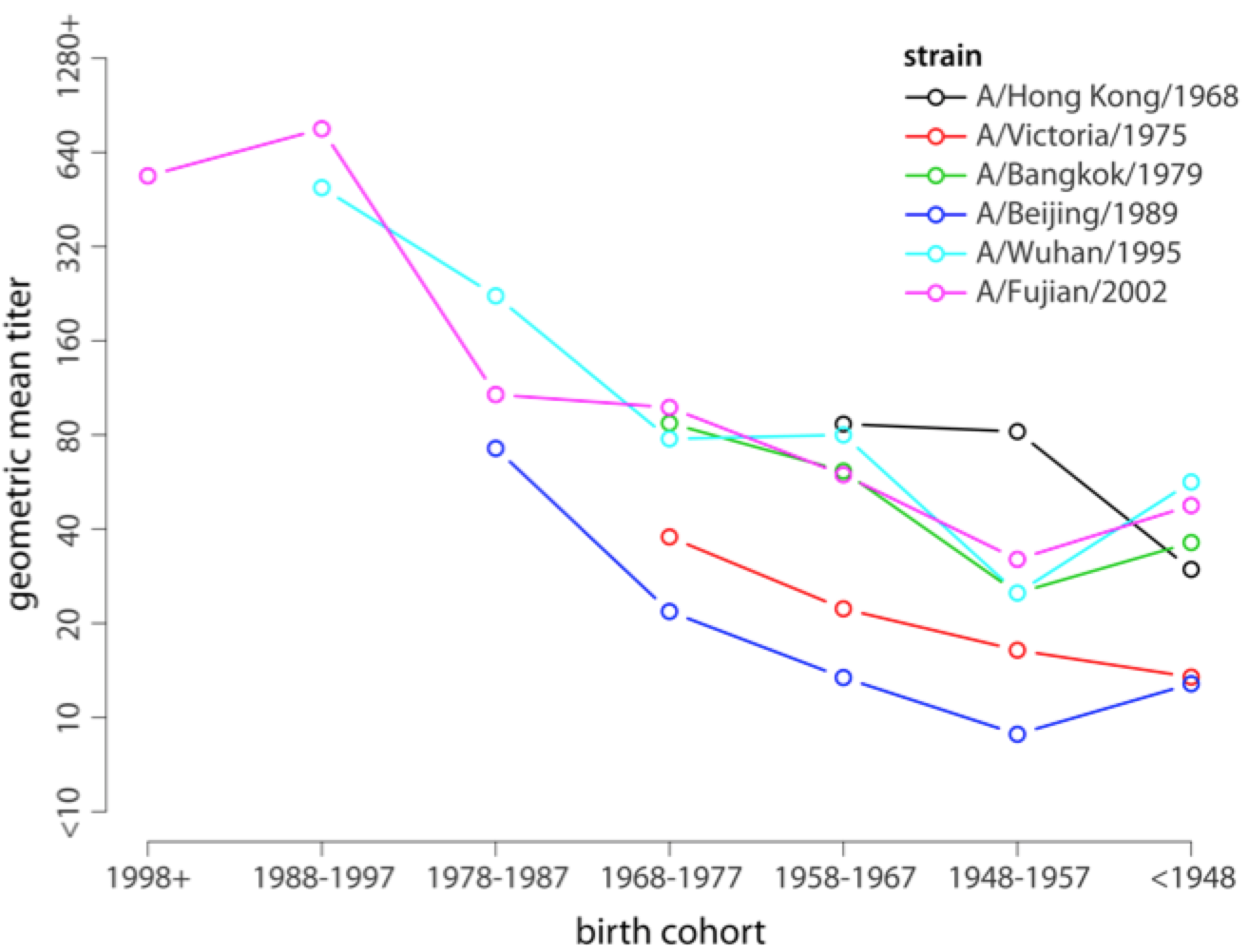

Broad cohort-specific effects

What determines Ab immunodominance?

Host genotype

Order (Age?) of infection

Immunogenicity of antigen (e.g., adjuvanted vaccine vs. mild infection)

Immunogenicity of epitopes


Measuring the impacts of vaccination

Potential impacts of vaccination

"Direct effects" - on the recipient

"Indirect effects" - on non-recipients

Immunological, infection-related, clinical, epidemiological, and evolutionary

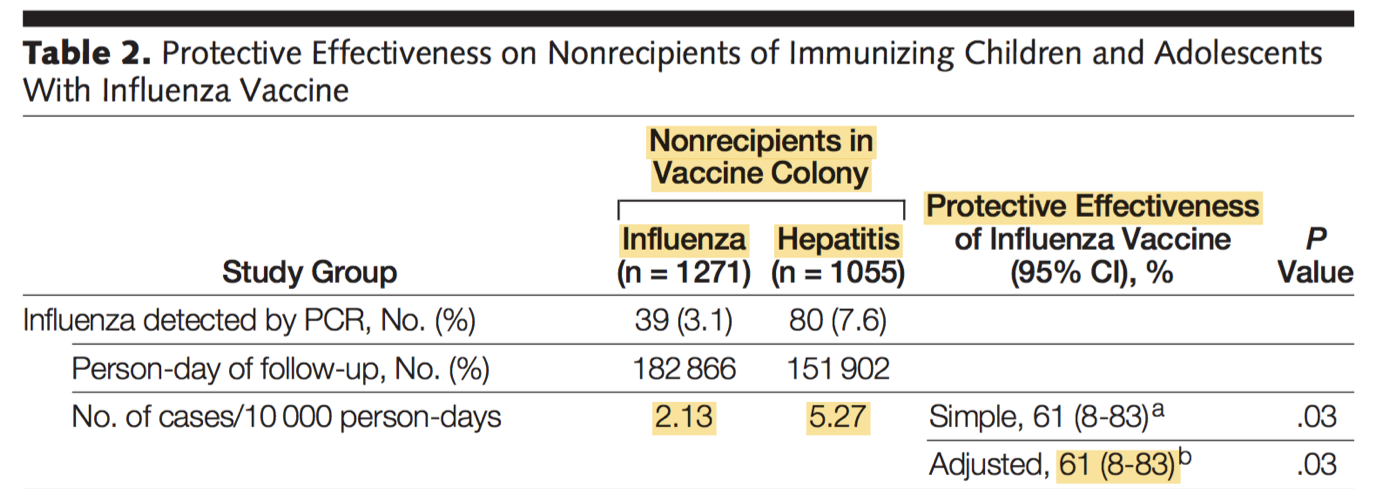

In RCT, vaccine provides indirect protection

Definitions of "VE"

Vaccine efficacy: derived from clinical trial with randomization

Vaccine effectiveness: derived from observational data (no control over who's vaccinated)

This distinction is critical

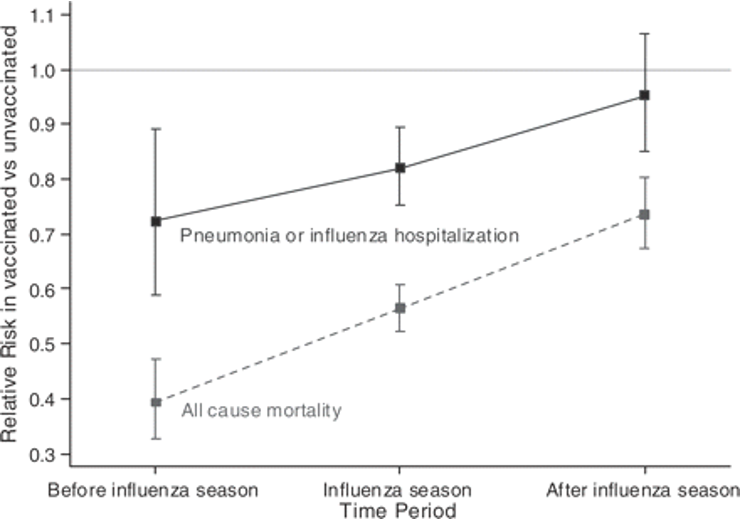

Voluntary vaccinees are very different from non-vaccinees

(also, people who enroll in clinical trials are different from those who don't)

Efficacy (or effectiveness) against what?

VE often comes from observational studies

Trials can be unethical if recommendation in place

Trials can be very expensive

Outpatient and hospitalization data are "convenient"

Common observational study approach: test-negative design

Prospective vs. test-negative design

Some implicit assumptions of TND

Vaccine is not "leaky" (all-or-nothing protection)

Decision to vaccinate is random

We can mitigate a few problems by statistically adjusting for or stratifying by comorbidities, age, risky behavior, etc., so we can estimate their effects (purely associational) separately---but we still can’t measure critical things, and we don’t know everything we need to measure.

What is the reference group?

Intuitively, "you" without vaccination, but we can't measure that!

Practically, an unvaccinated person (of the same age, health status, risk appetite...)

... who was recently infected?

... an "average" unvaccinated person?

Influenza vaccine effectiveness is low

H3N2: 33% (95% CI: 26-39)

B: 54% (46-61)

pH1N1: 61% (57-65)

H1N1: 67% (29-85)

What's going on?

Poor strain selection (antigenic mismatch)

Egg adaptations (antigenic mismatch)

Interaction with pre-existing immune responses

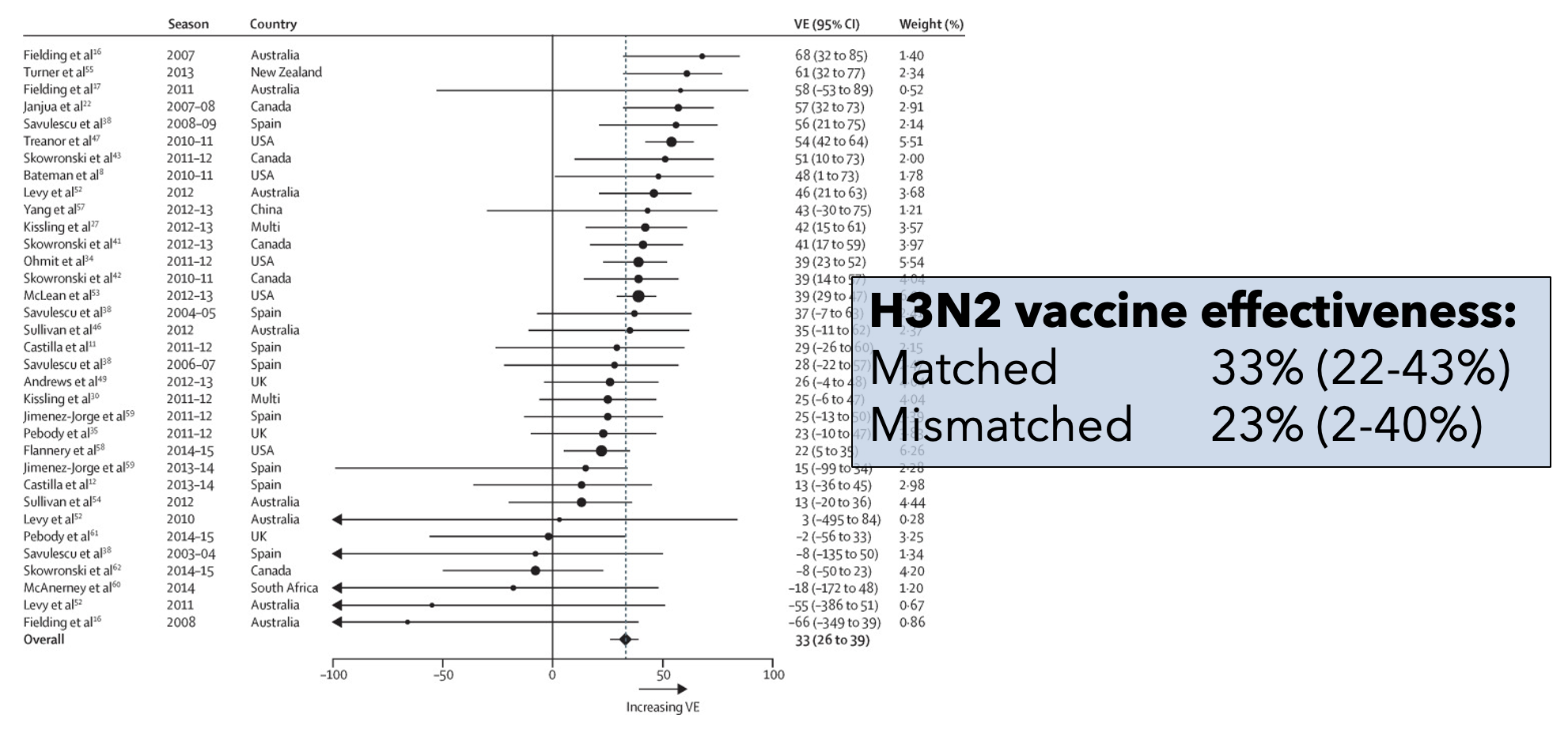

Mismatch does not drive low VE

OAS might "hide" strain updates

VE can be erratic by birth year

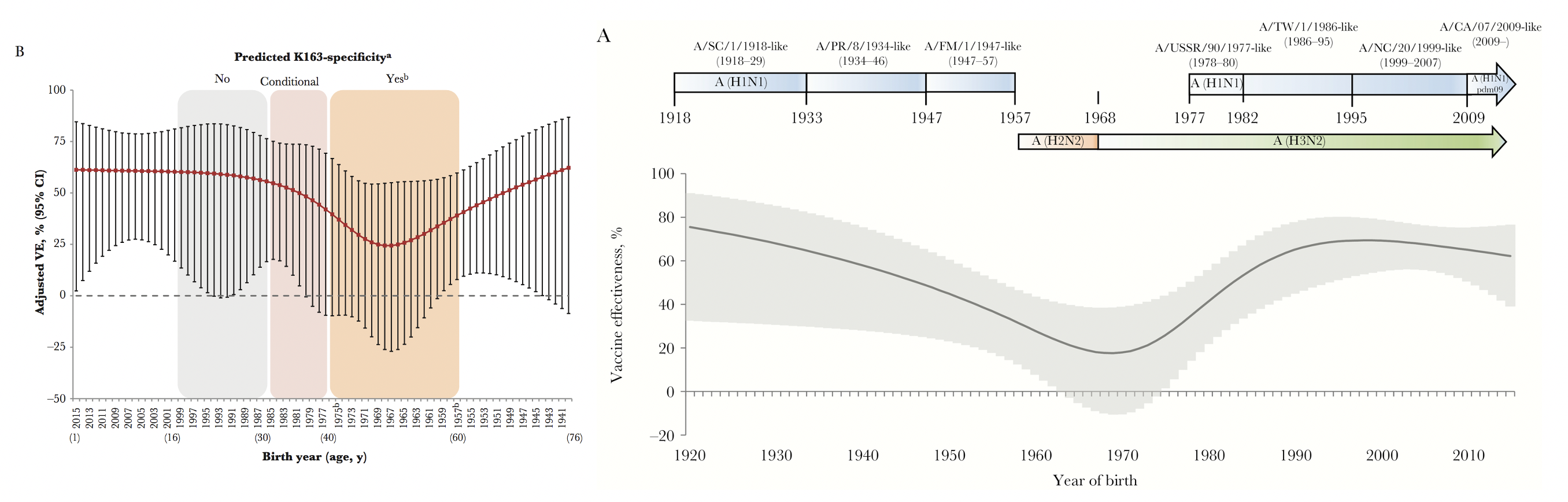

Unexpected drop in VE in middle-aged in 2015-2016 in the U.S. and Canada

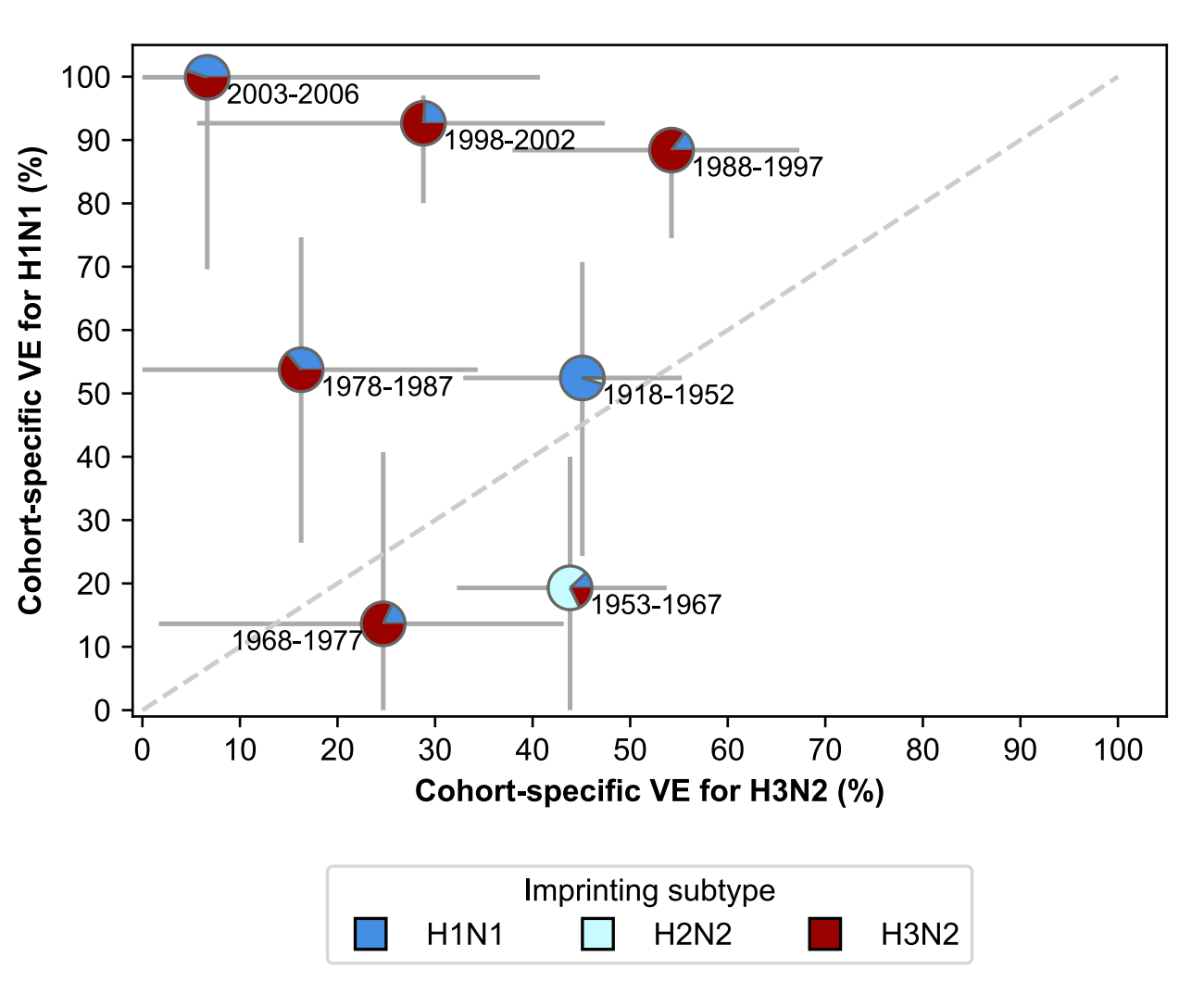

Vaccine effectiveness tracks cohorts

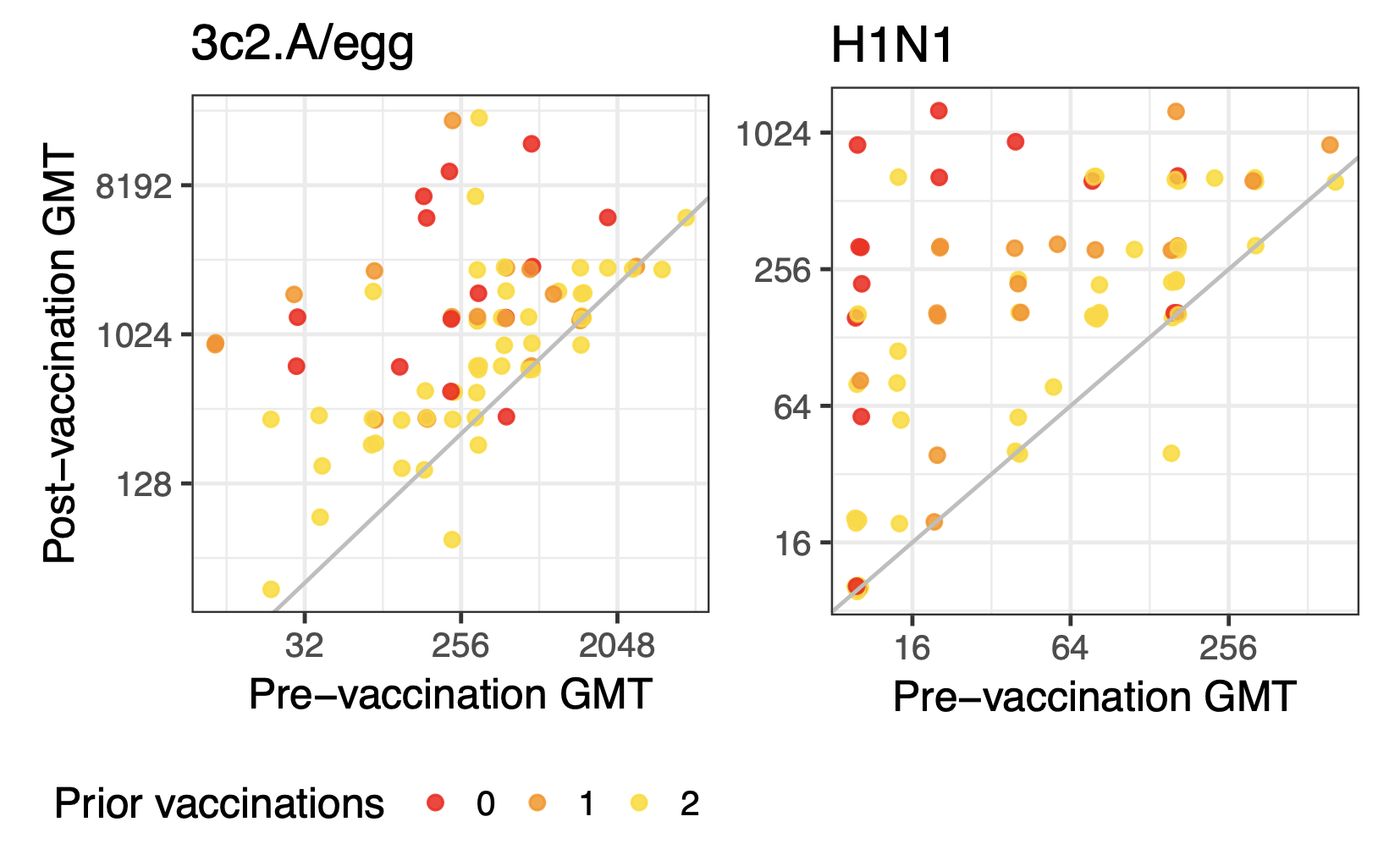

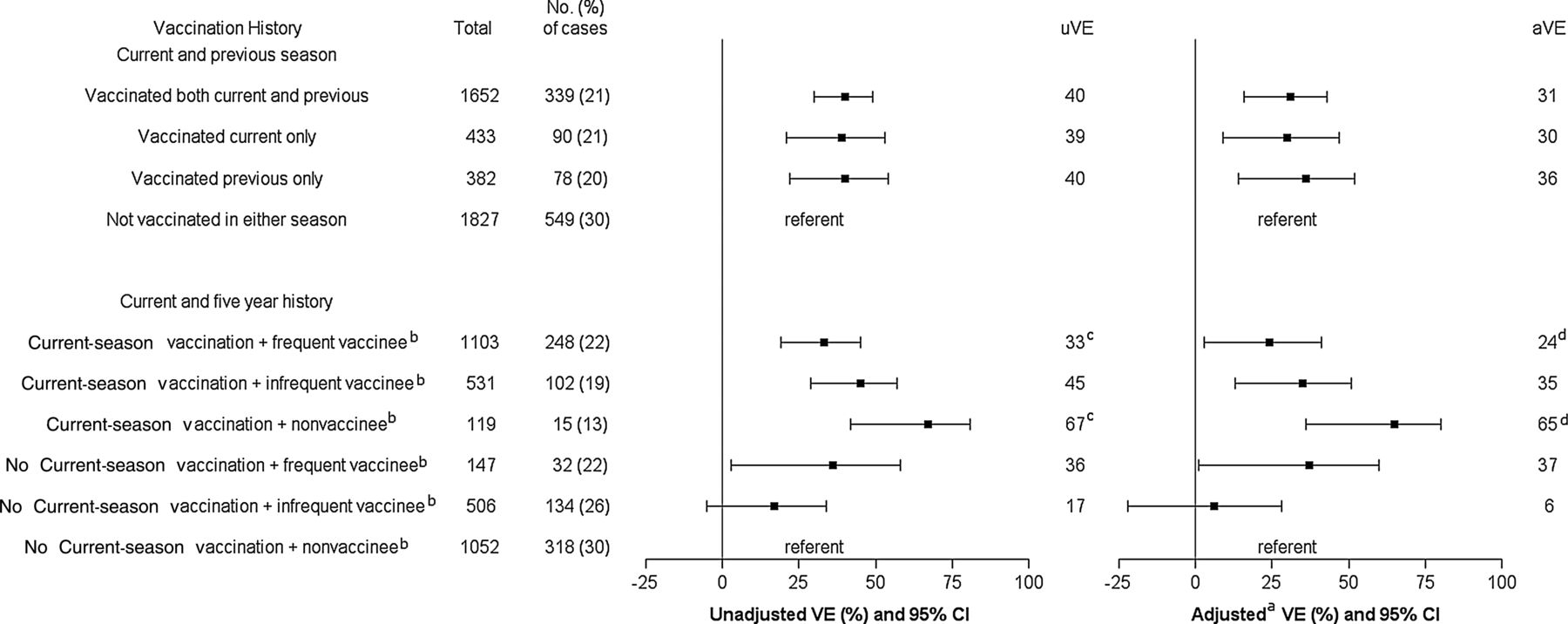

Another curiosity: low VE in repeat vaccinees

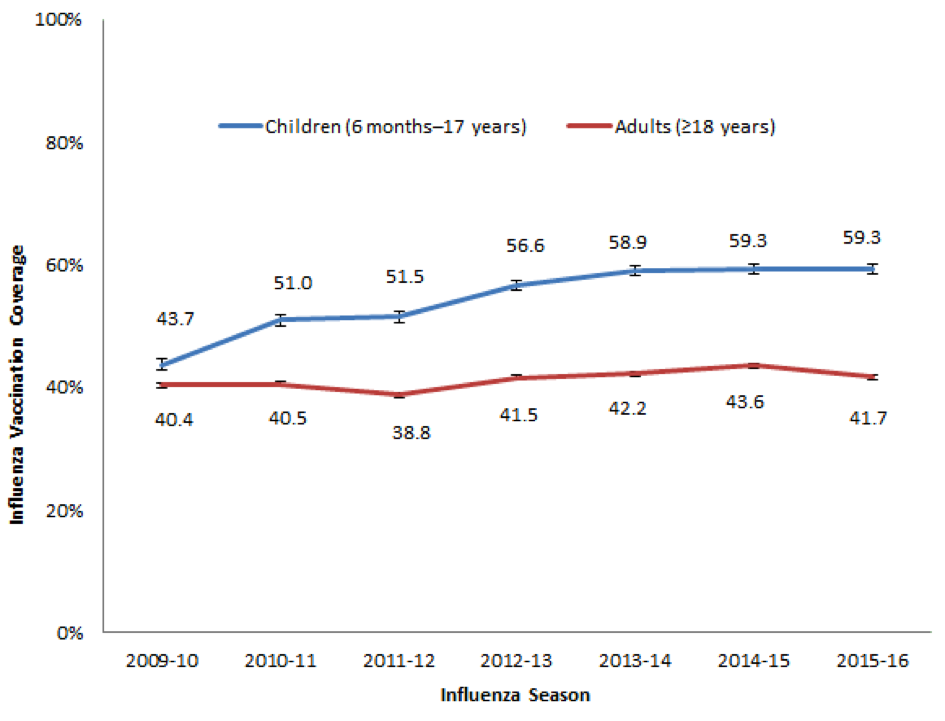

In U.S., flu vaccine coverage is high(-ish)

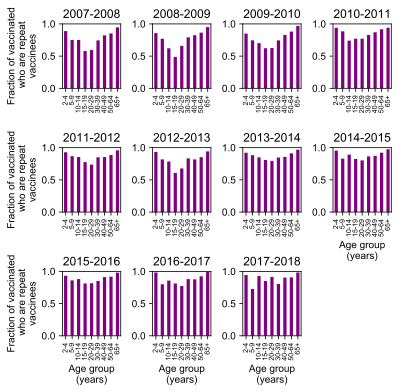

In U.S., most vaccinees are repeat vaccinees

(Vaccinated this year and last year)

Potential explanations for apparent increase in infection risk in repeat vaccinees

  1. Failure to adjust for timing of vaccination + waning: modest effect
  2. Failure to account for nonrandom switching: modest effect, wrong direction.

Prior infection influences vaccine responses

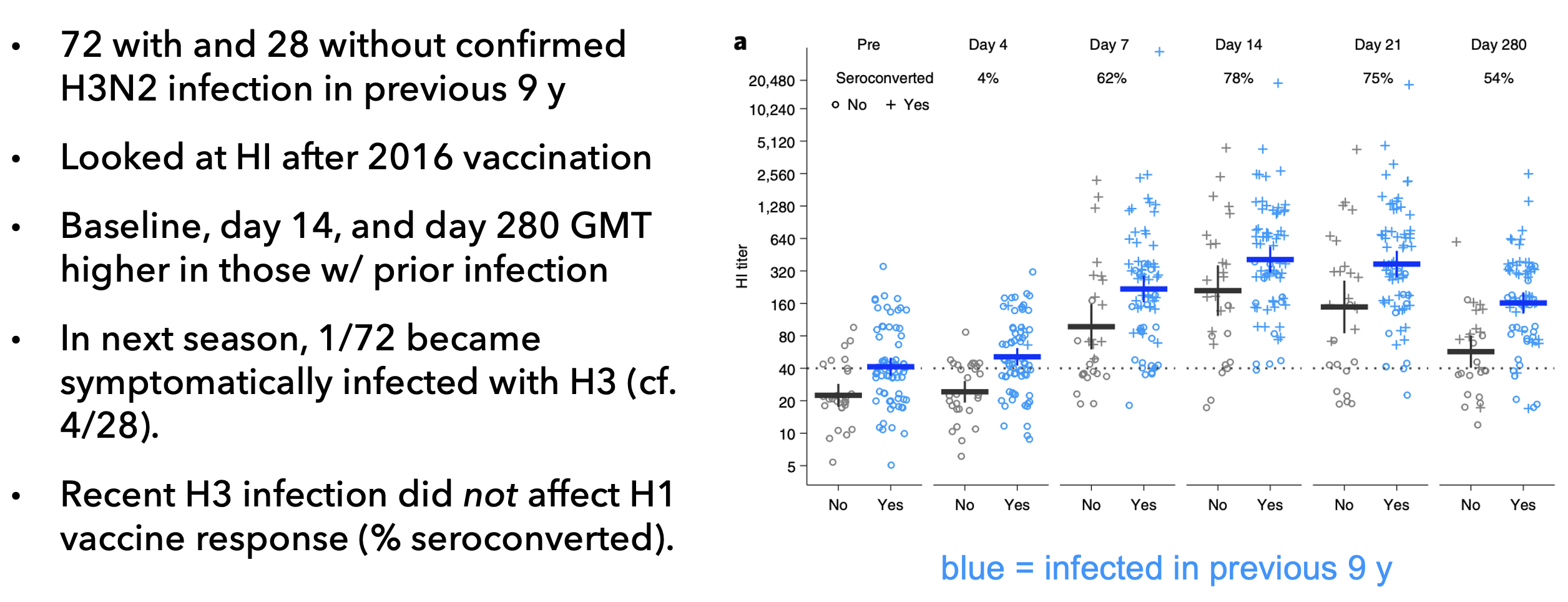

Impact of recent infections in Ha Nam

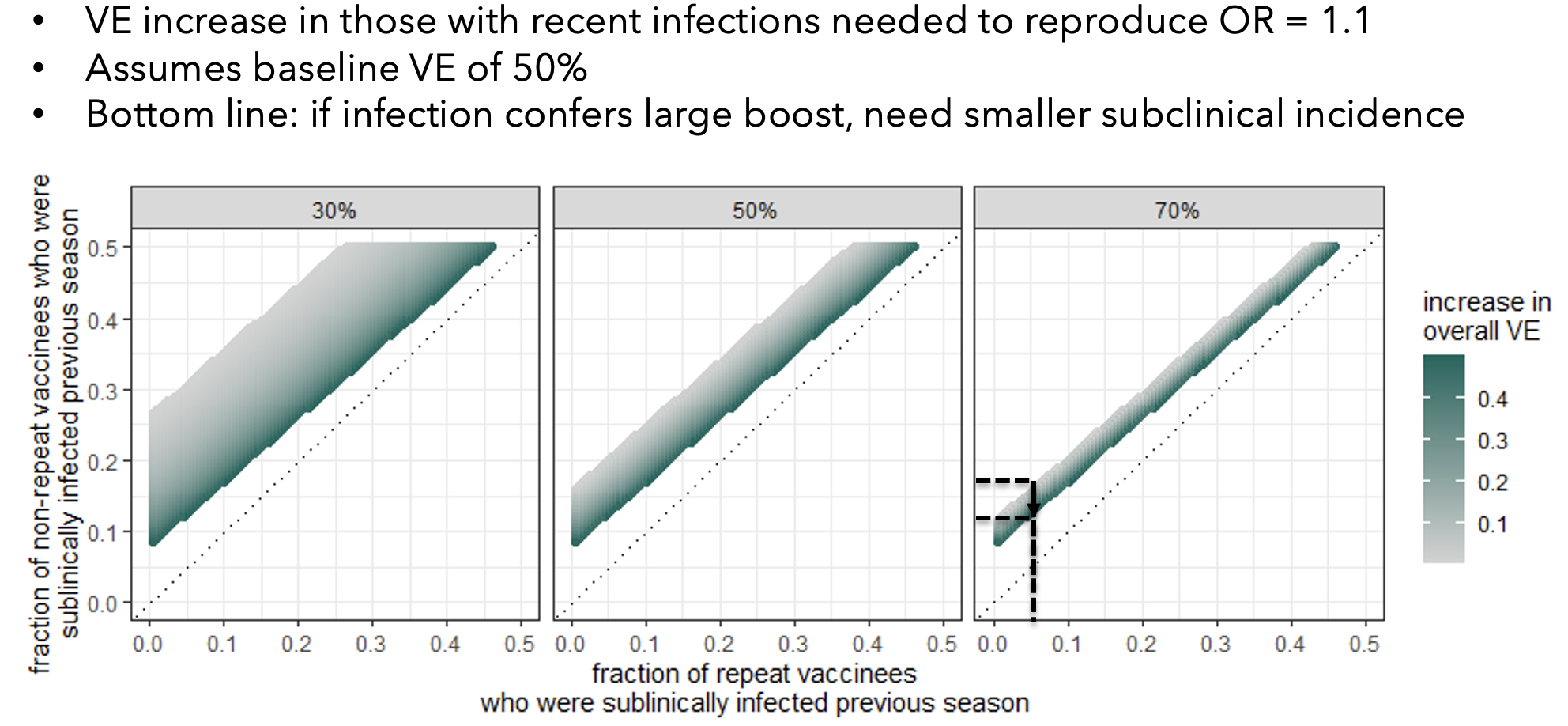

Past infections could explain increased infection risk in repeat vaccinees

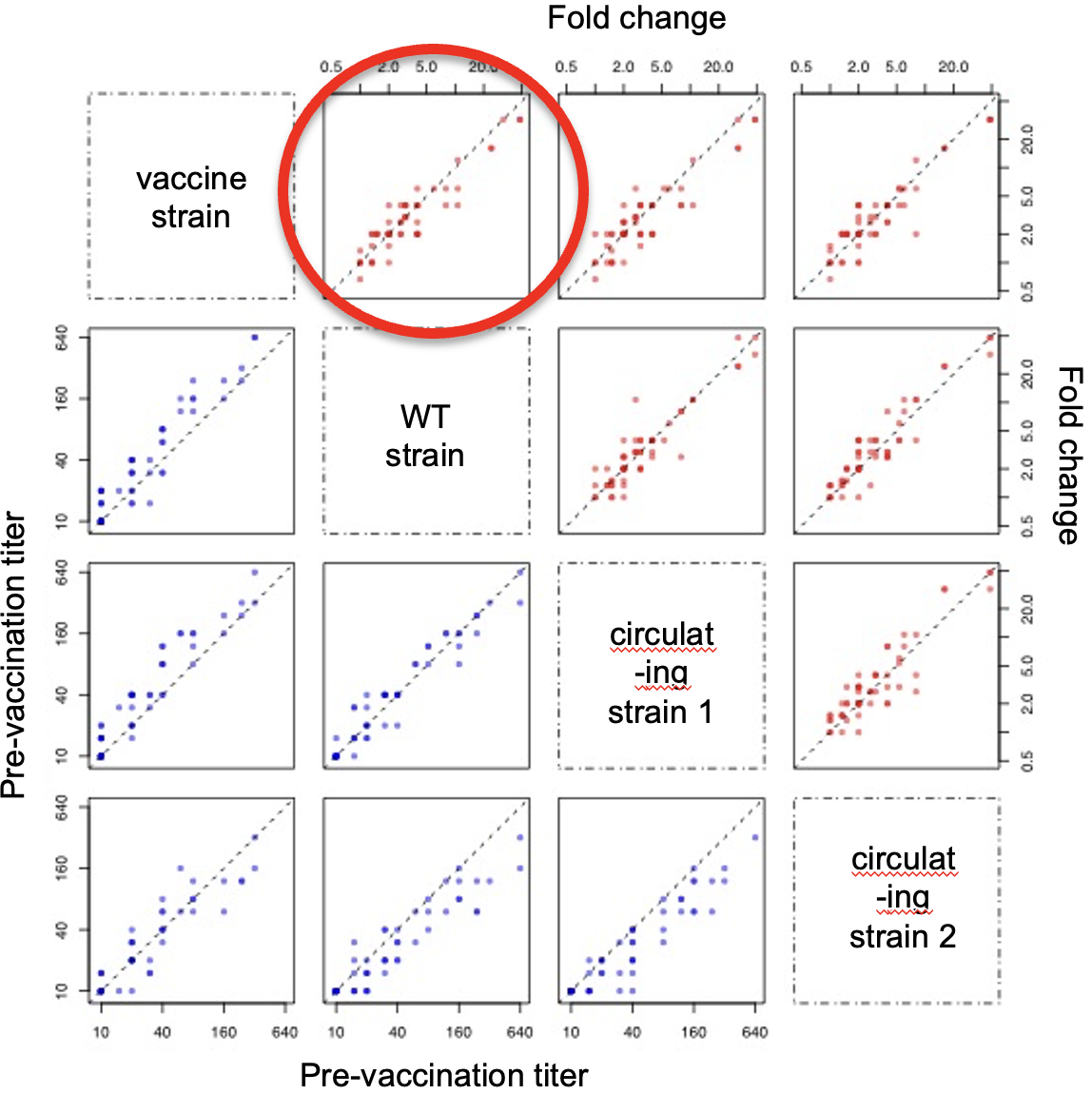

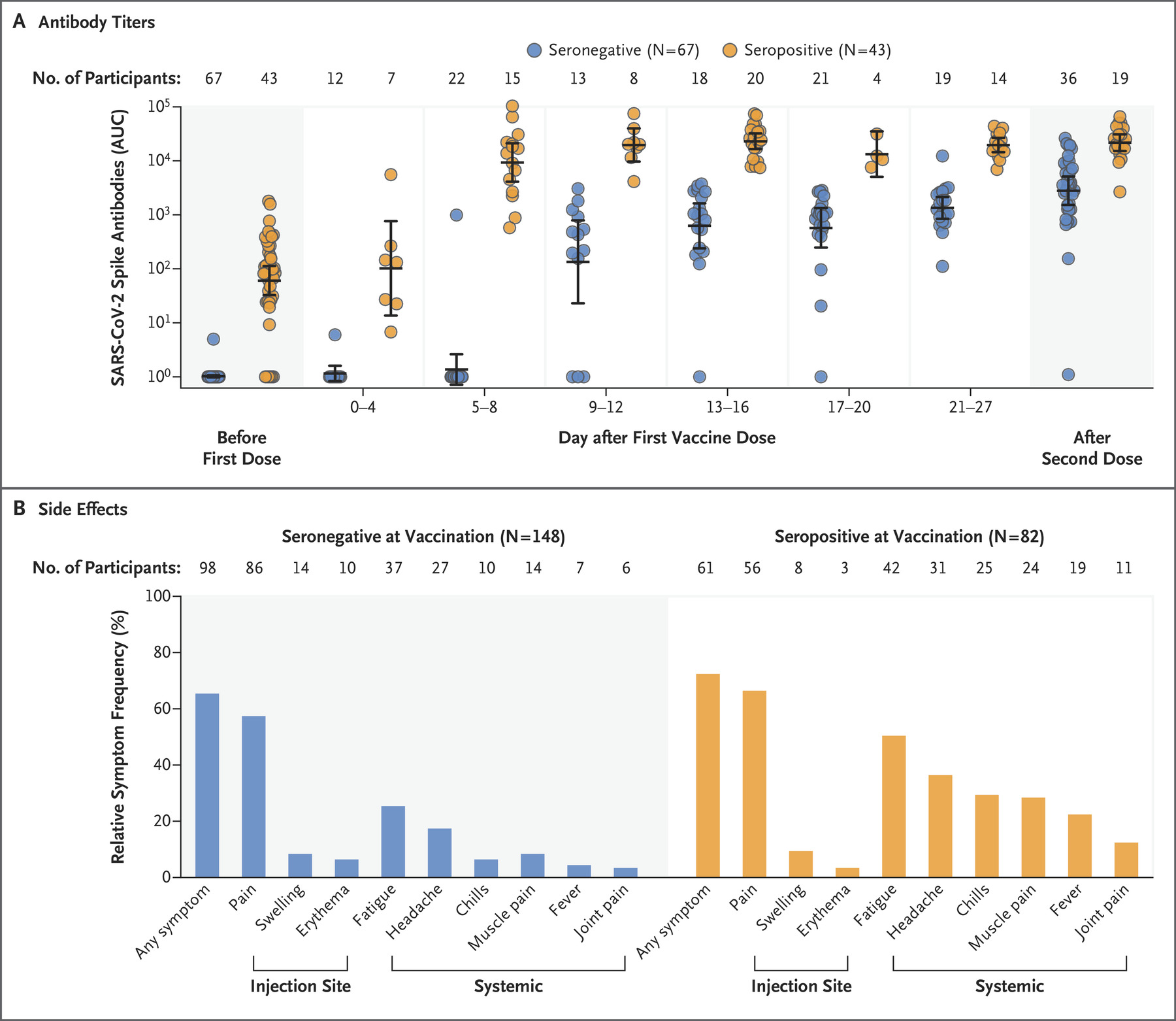

Could this explain differences in immunogenicity?

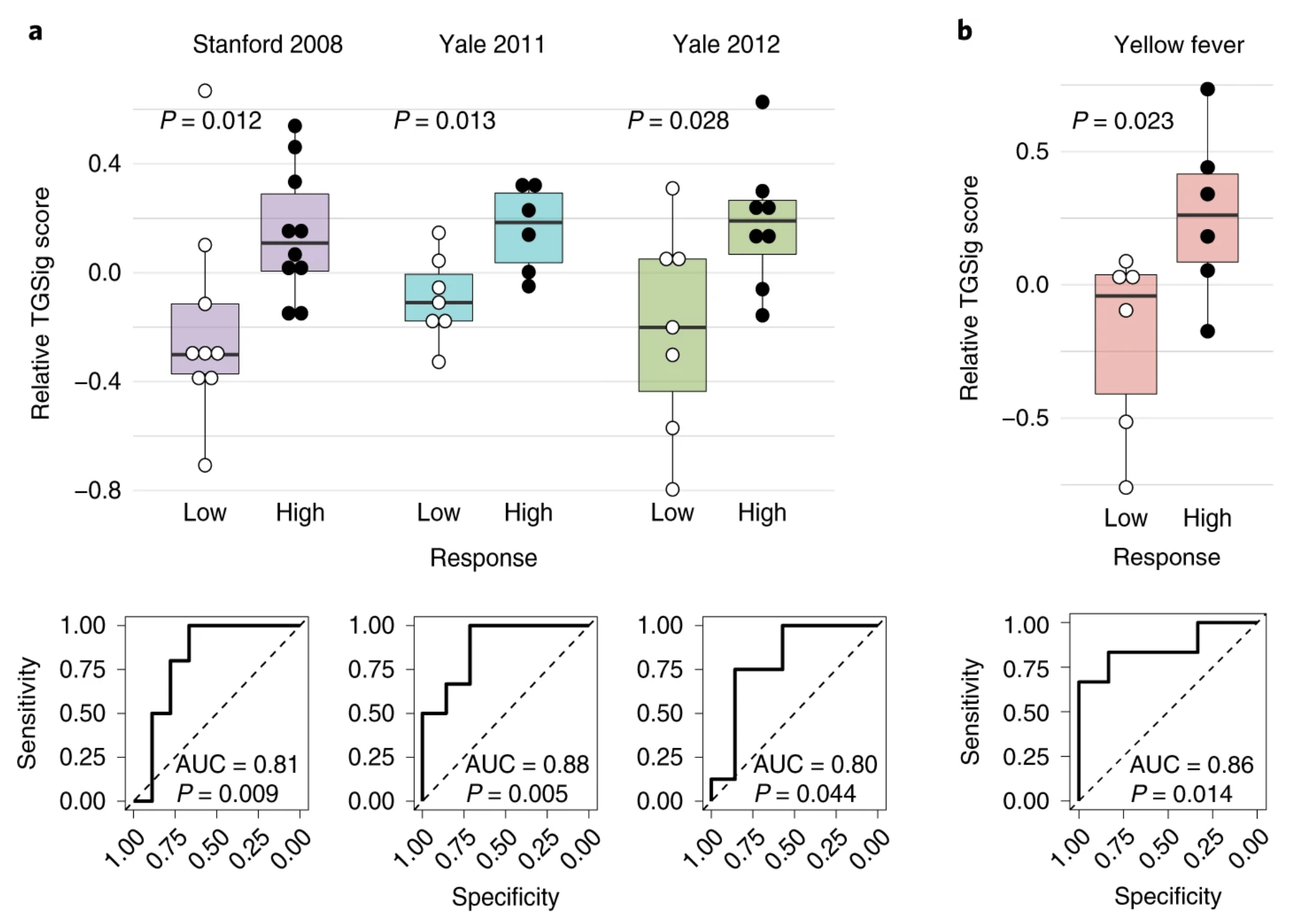

Innate immune signatures of vaccine responses
