Serology

Serological assays measure circulating antibodies that bind to or neutralize a specific antigen

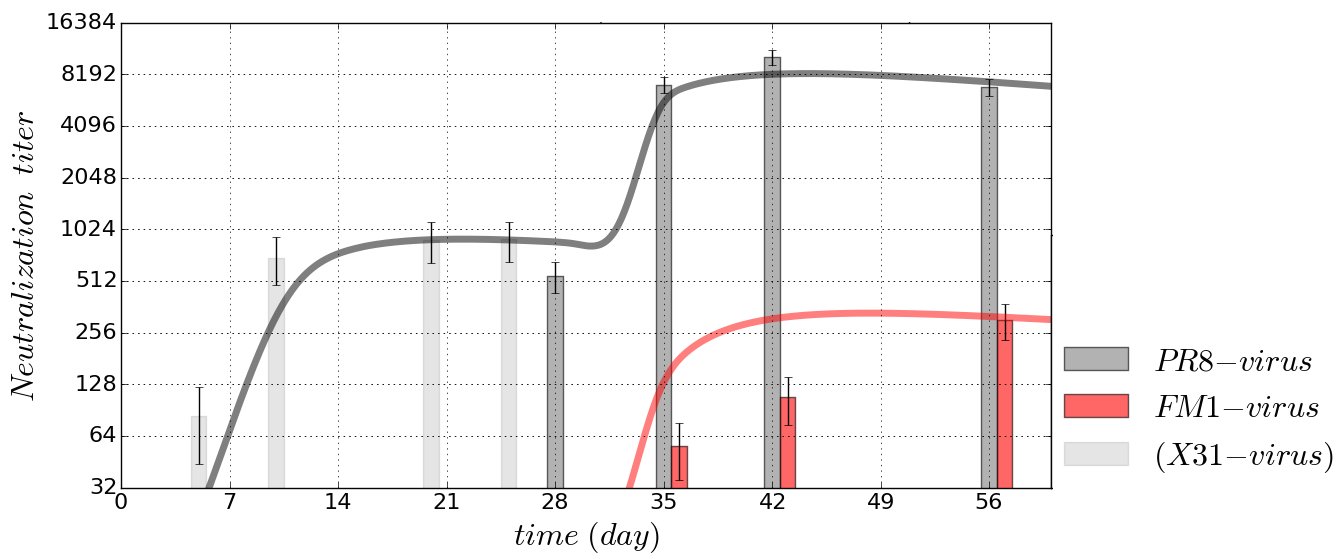

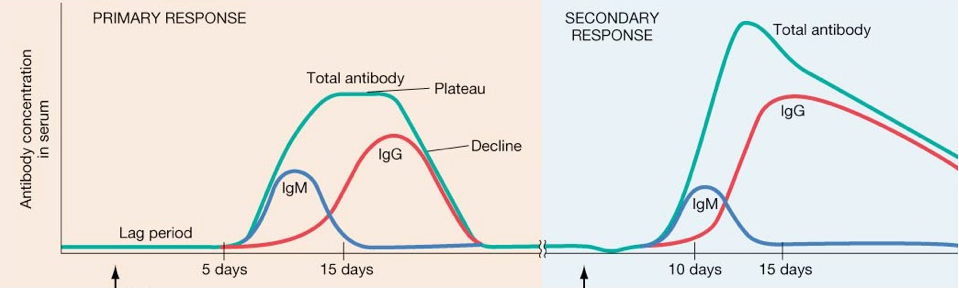

Antibody response curve

Antibody response curve

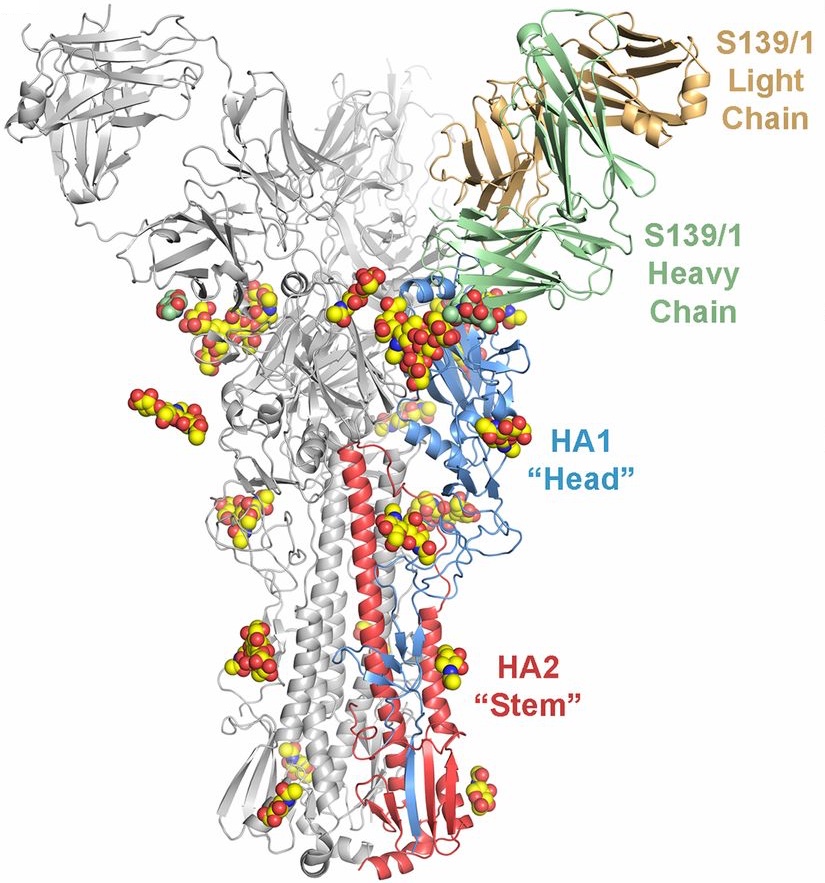

Antibodies bind to virus

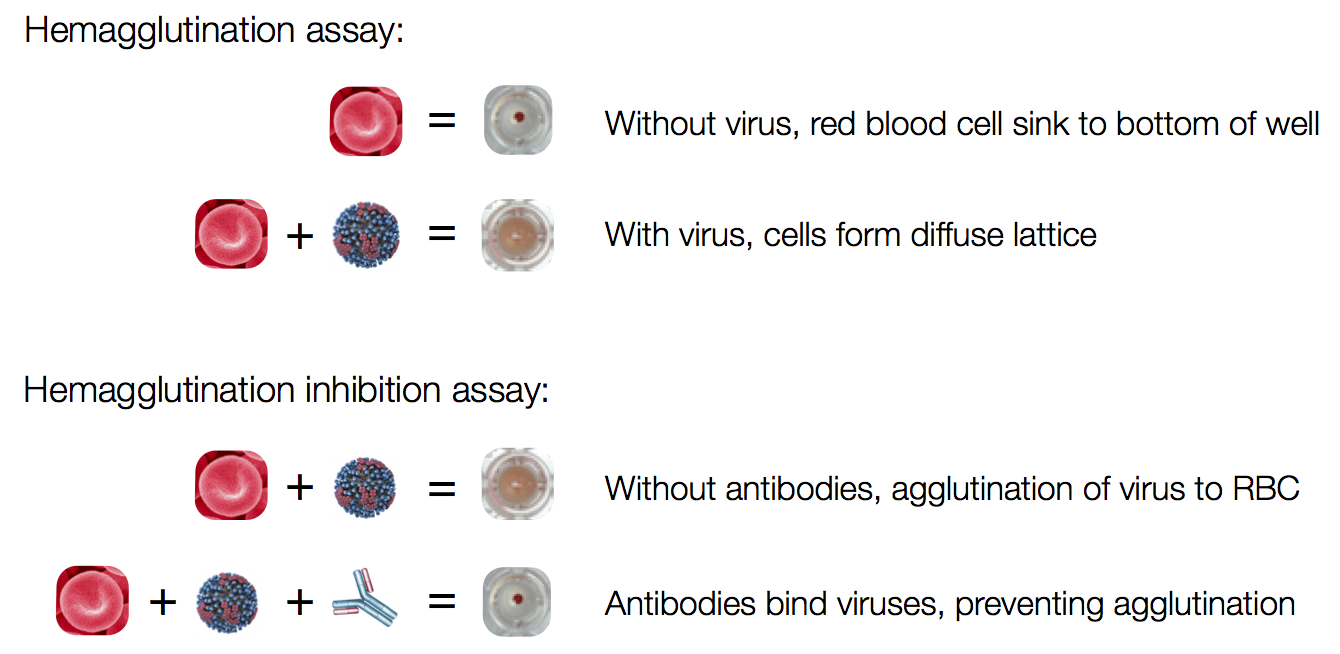

Influenza hemagglutination inhibition (HI) assay

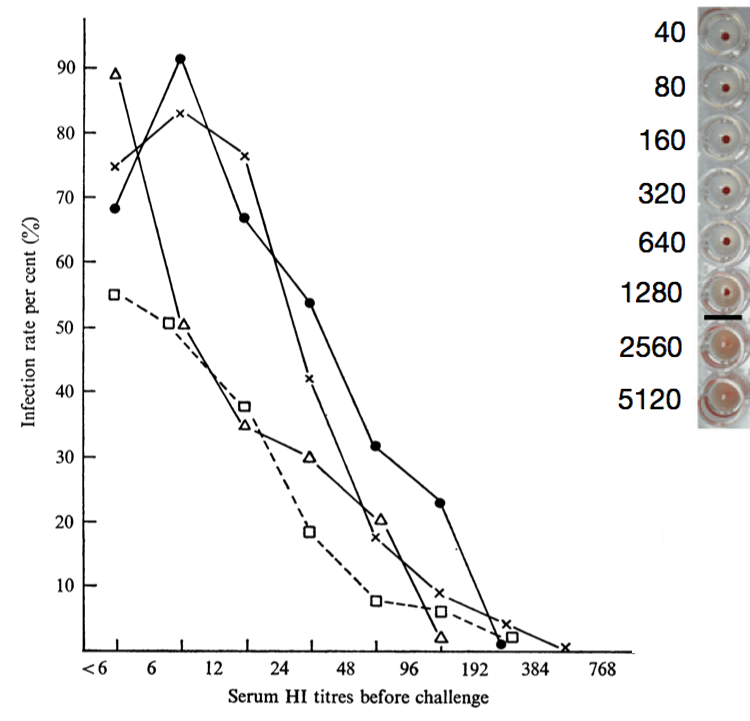

HI titer correlates strongly with protection

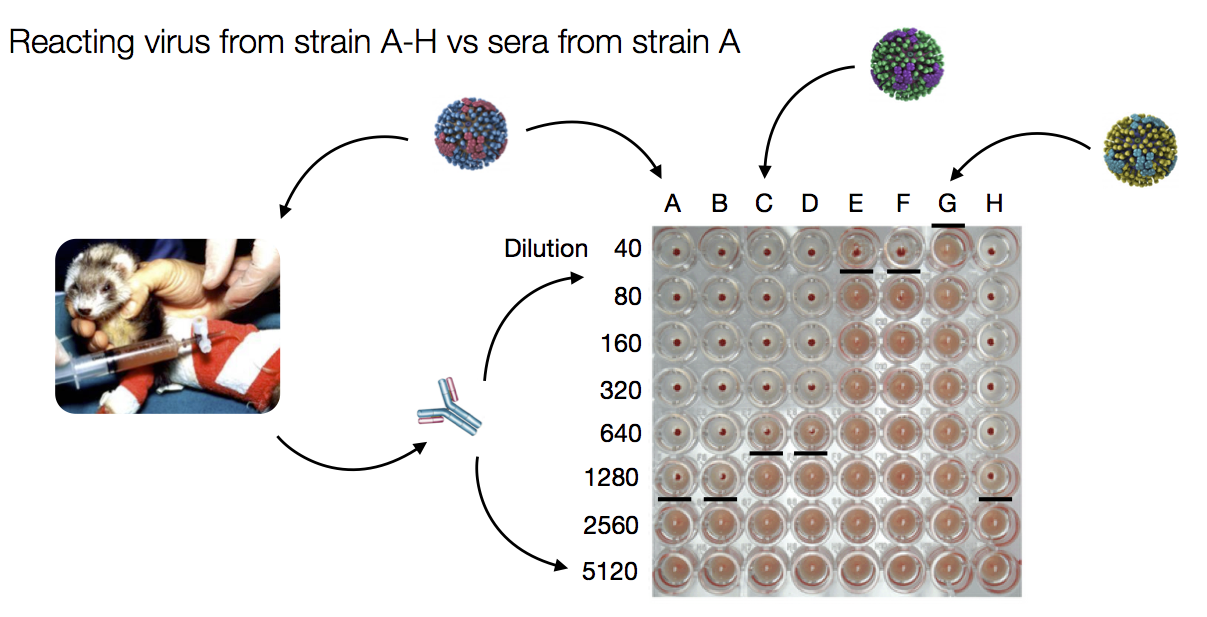

HI assay can measure cross-reactivity

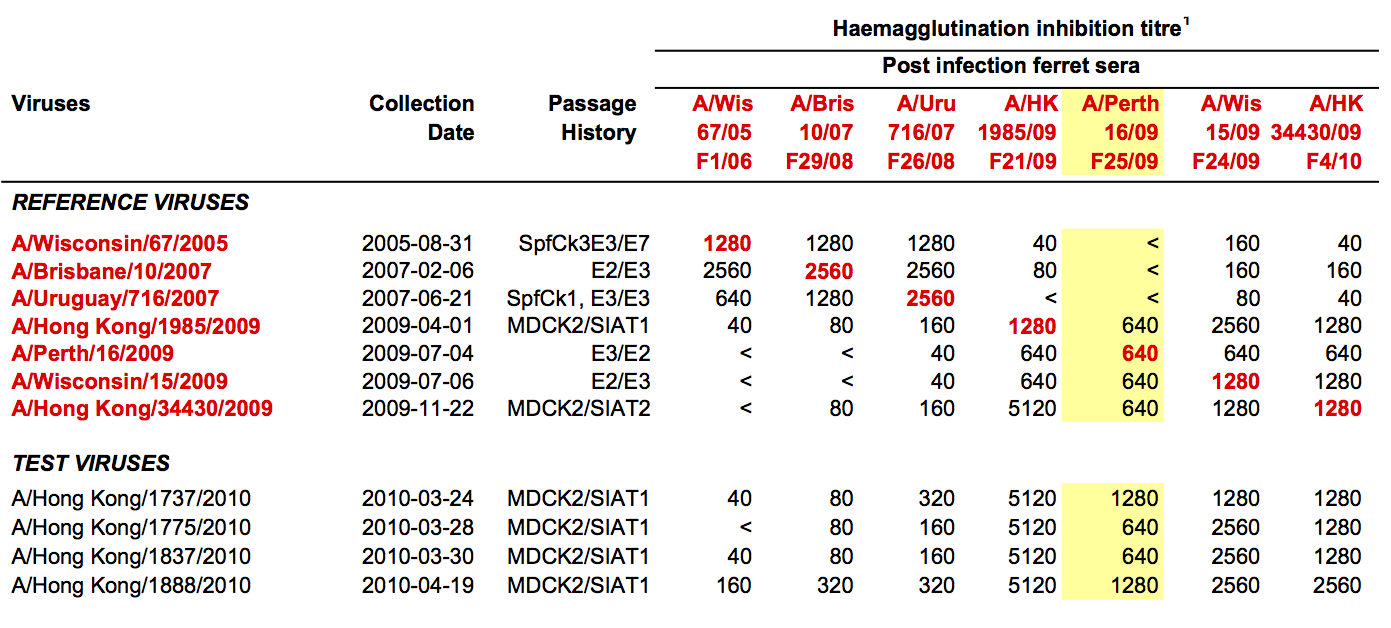

Data presented as pairwise maximum inhibitory titers

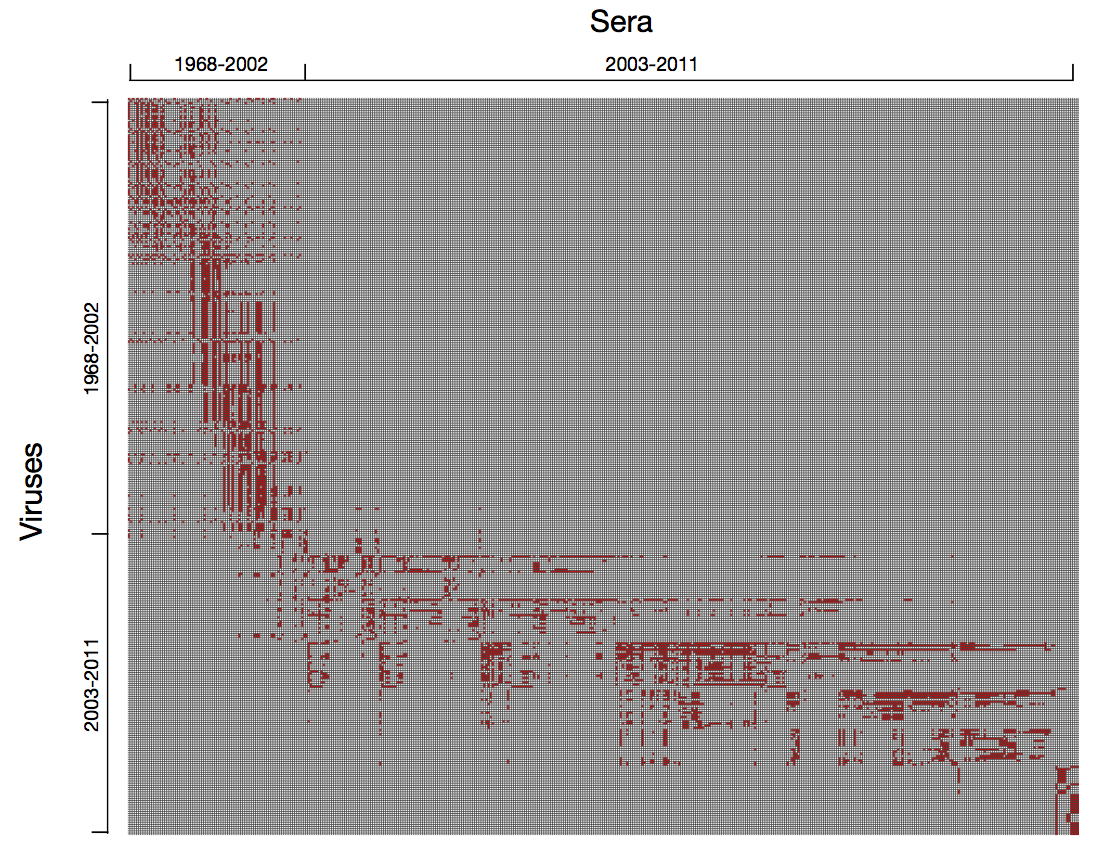

Data from many HI assays are hard to summarize

Antigenic cartography


Uses multidimensional scaling (MDS) to position viruses in 2D space such that the distances in this space best fit the HI titers.

Cartography exercise: example


Pairwise titers:

Serum A Serum B
Virus A 2560 80
Virus B 160 1280

Cartography exercise: example


Convert to distances, based on 2-fold drops in titer from highest titer in a column.

Serum A Serum B
Virus A 0 4
Virus B 4 0

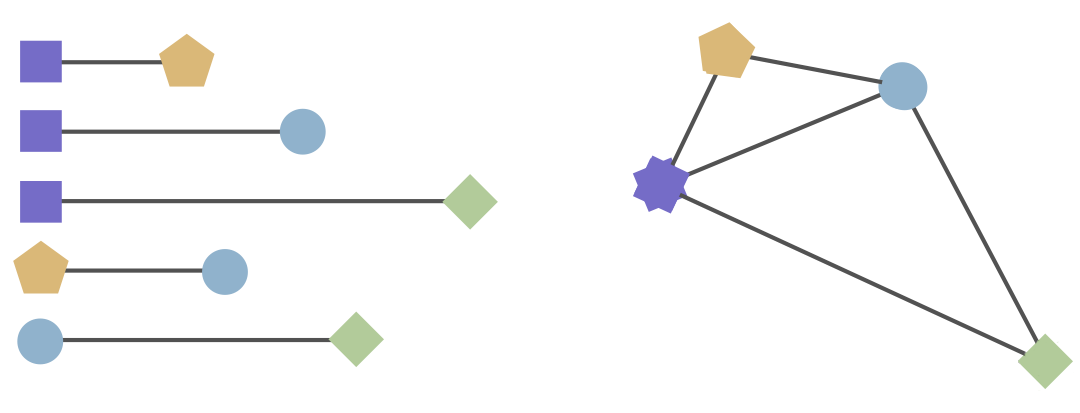

Cartography exercise: example

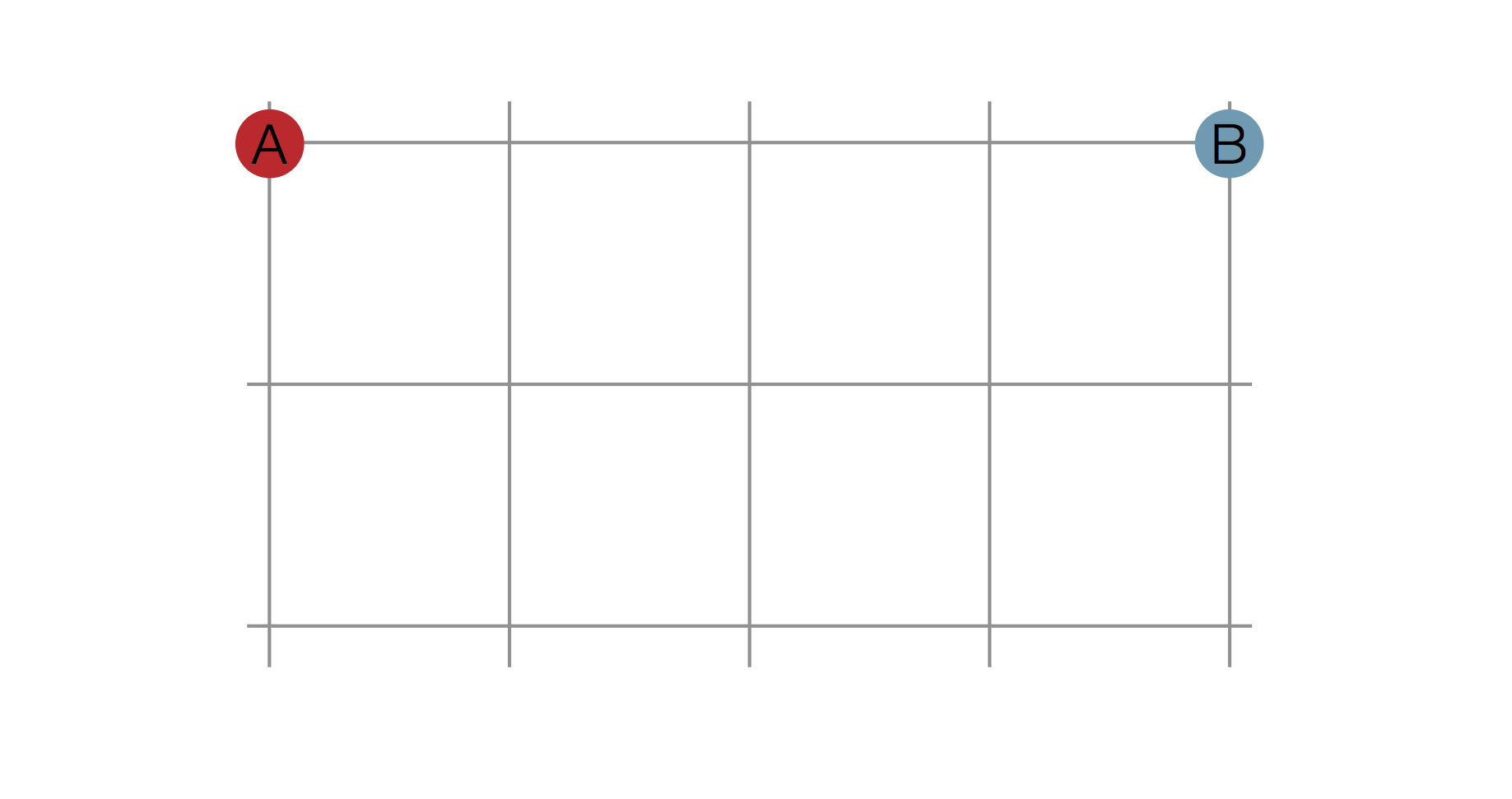

Position elements in 2D space so that distances are recapitulated.

Cartography exercise: data


Serum A Serum B Serum C Serum D
Virus A 2560 80 640 640
Virus B 160 1280 640 640
Virus C 320 160 5120 640
Virus D 640 320 1280 2560

Hints: Titers won't match perfectly, but will match well. All points can fit in previous slide's grid.

Antigenic cartography for H3N2 influenza

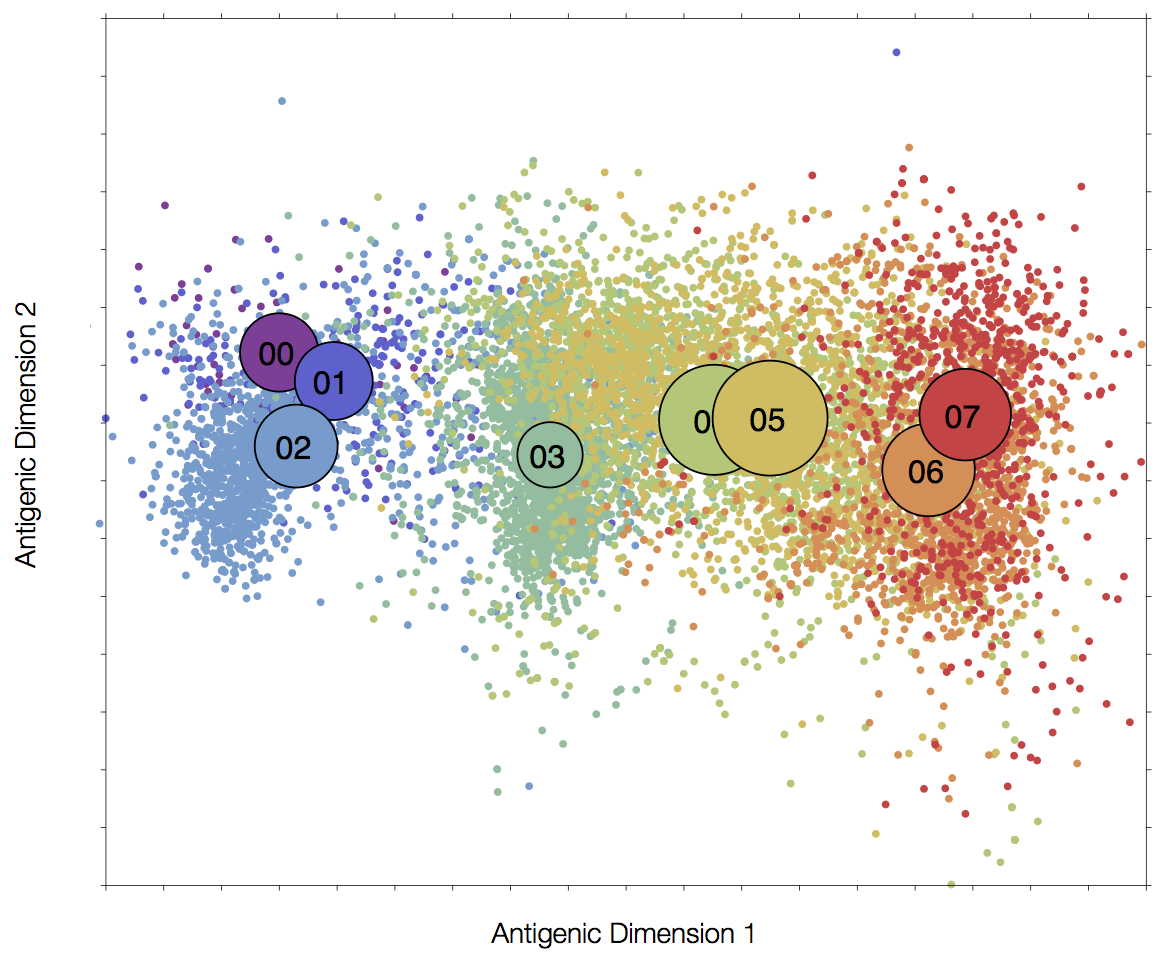

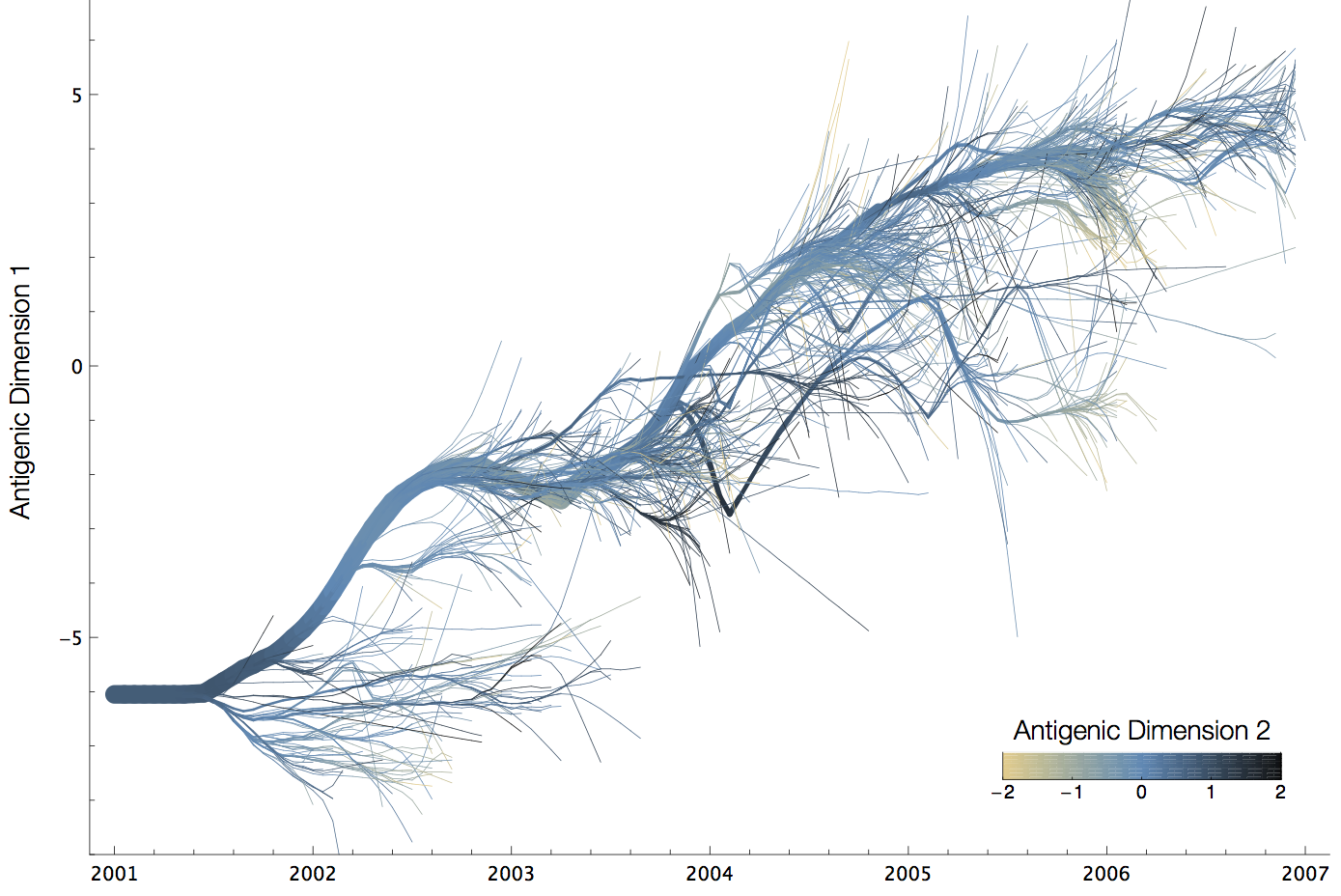

More detailed analysis of H3N2 viruses from 2000 to 2007

Primitive lineages die out, while advanced lineages persist

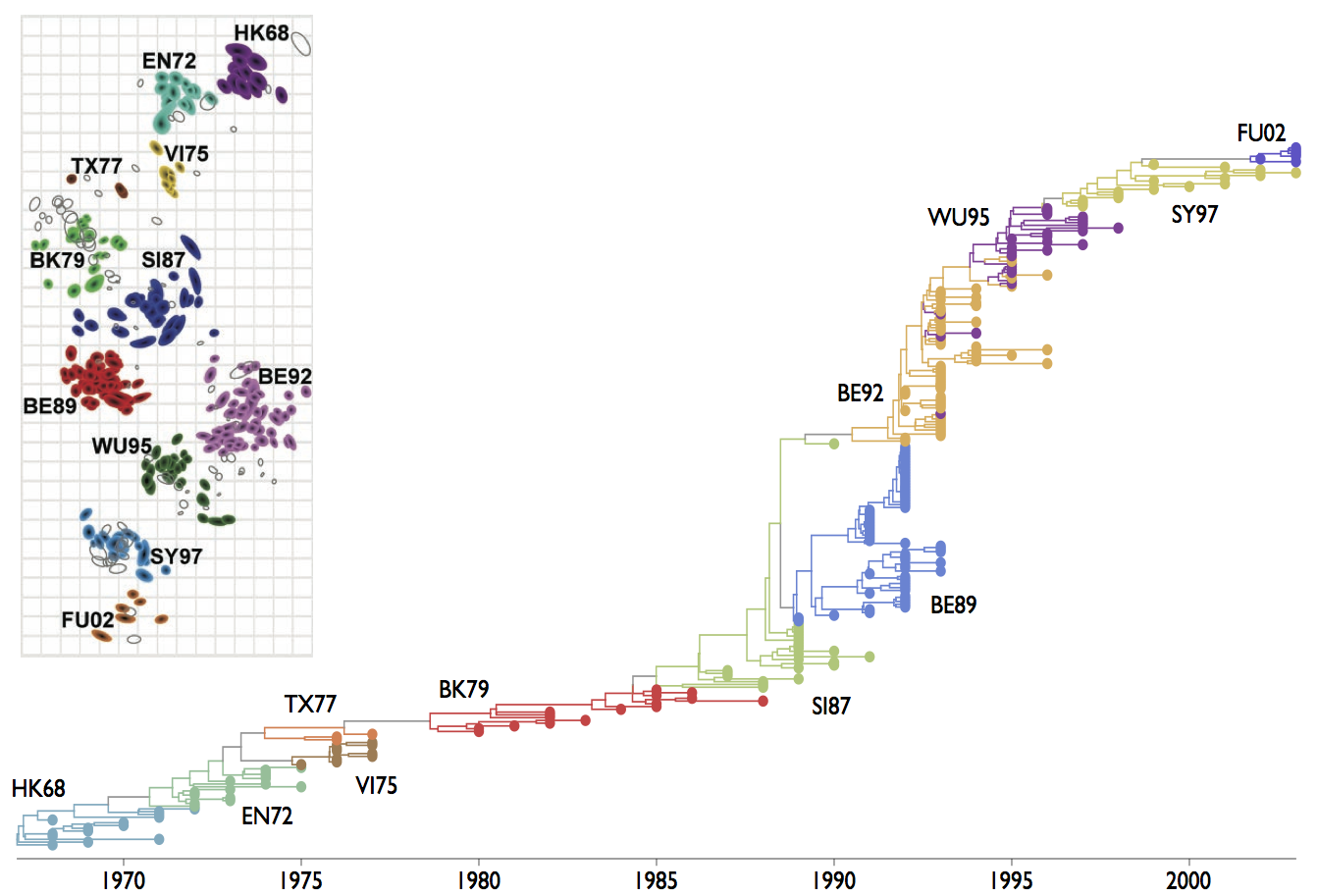

Antigenic evolution leads to clade turnover

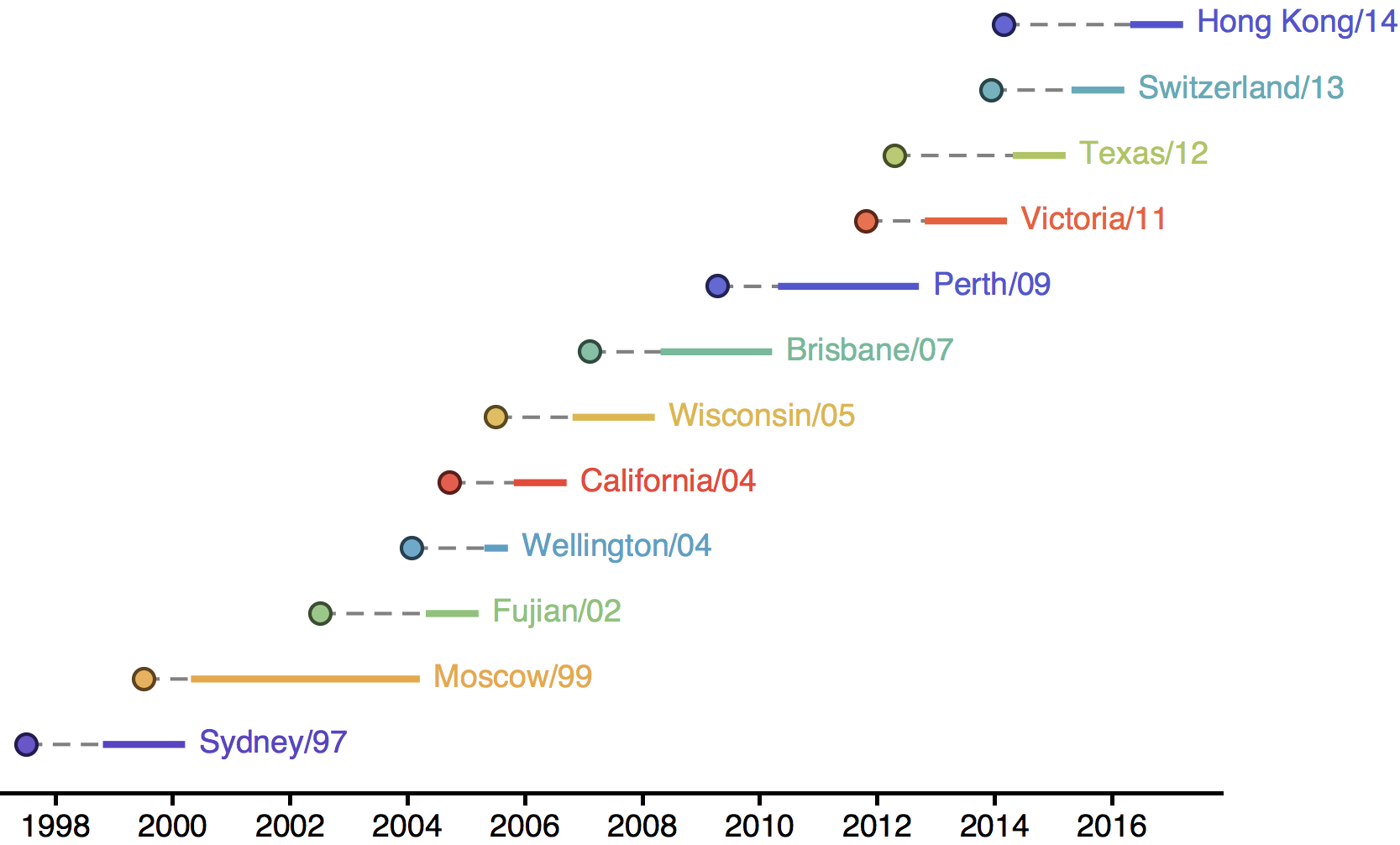

The WHO has to keep updating vaccine strain to keep up with ongoing evolution

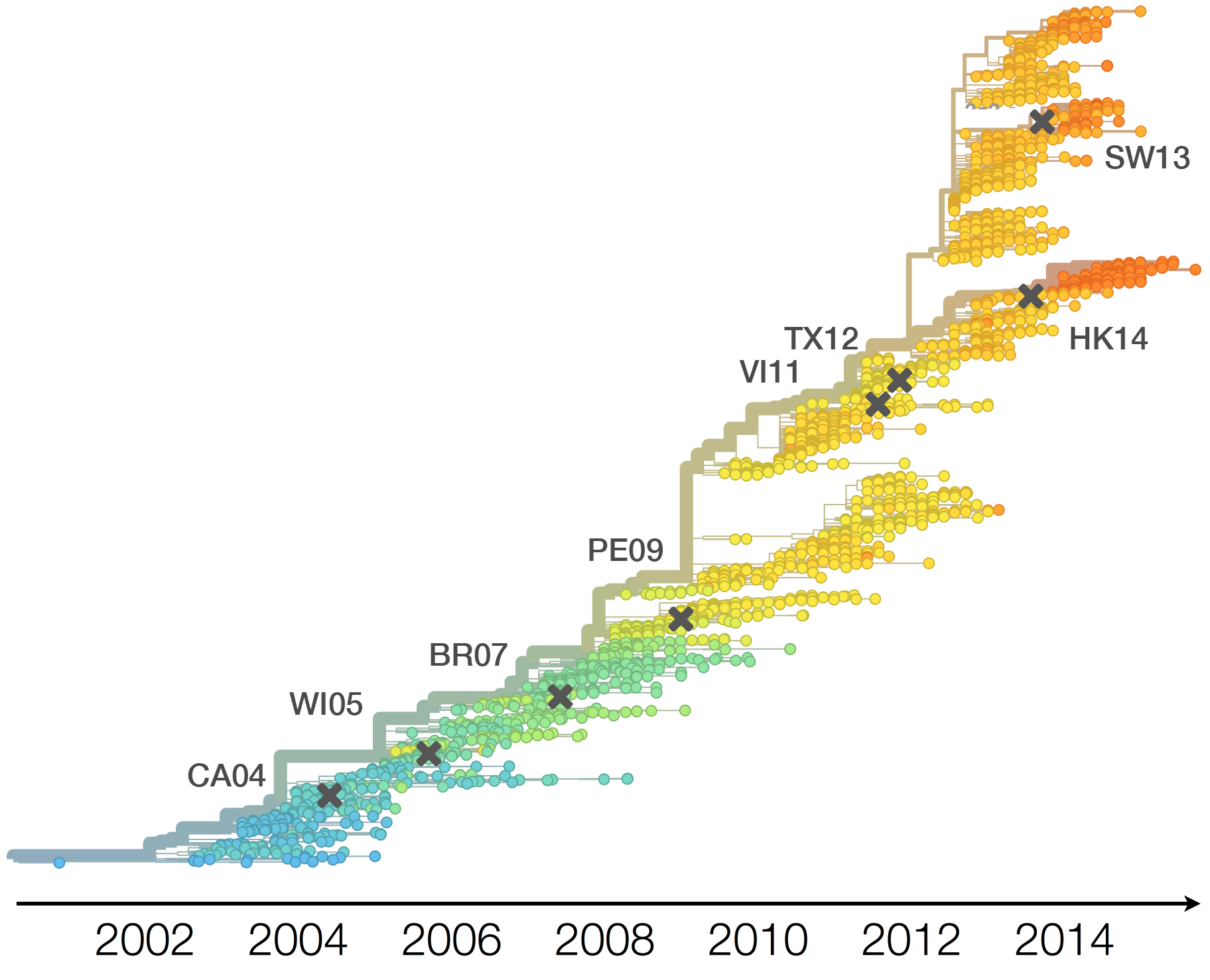

Vaccine strains map to drift events

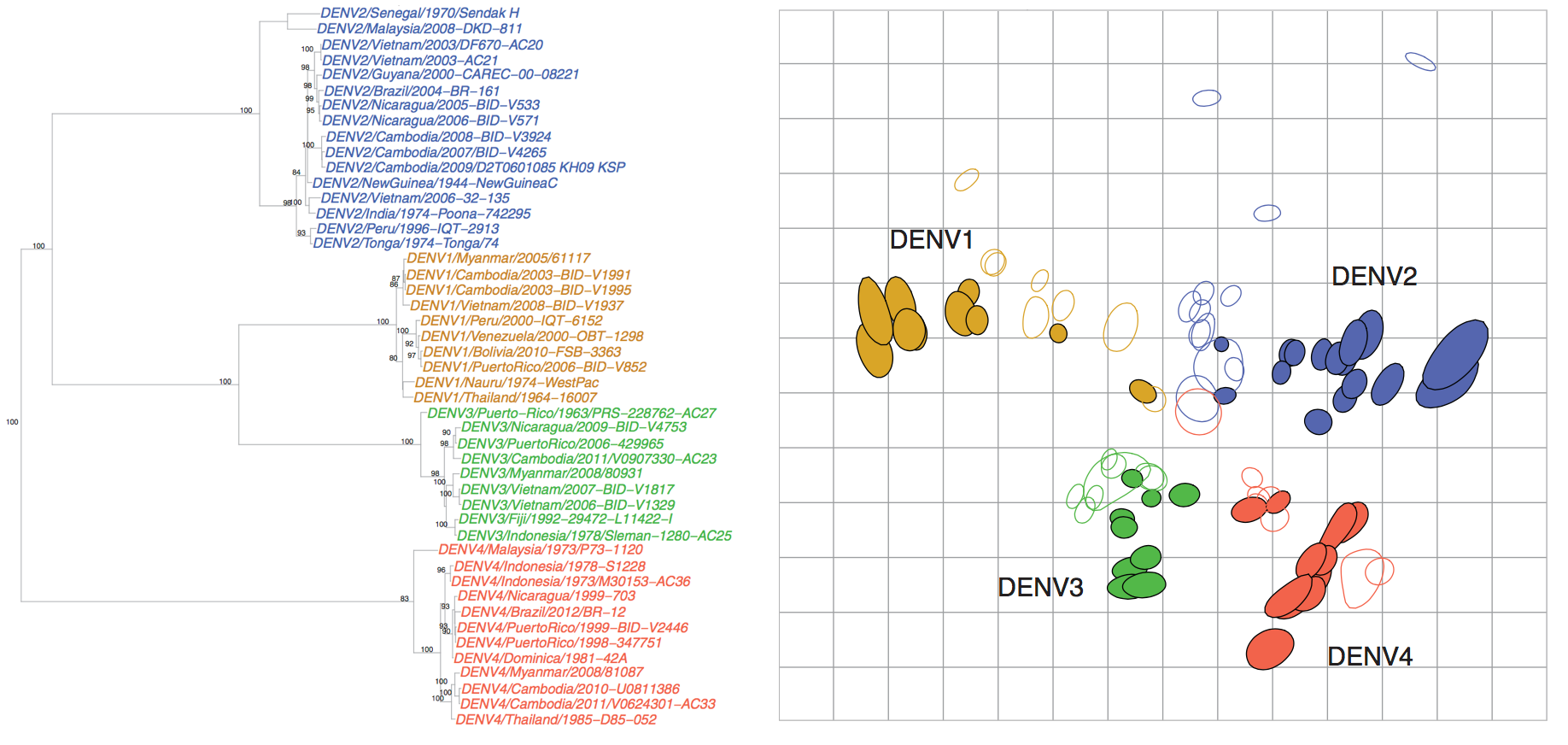

Four circulating serotypes of dengue virus with distinct phenotypes

Katzelnick et al 2015

Original antigenic sin

"Humans vaccinated against influenza produce antibodies against the immunizing antigen, but produce antibodies of higher titer against the antigen that was their first childhood experience of influenza, even if that strain happend to be absent from the vaccine."

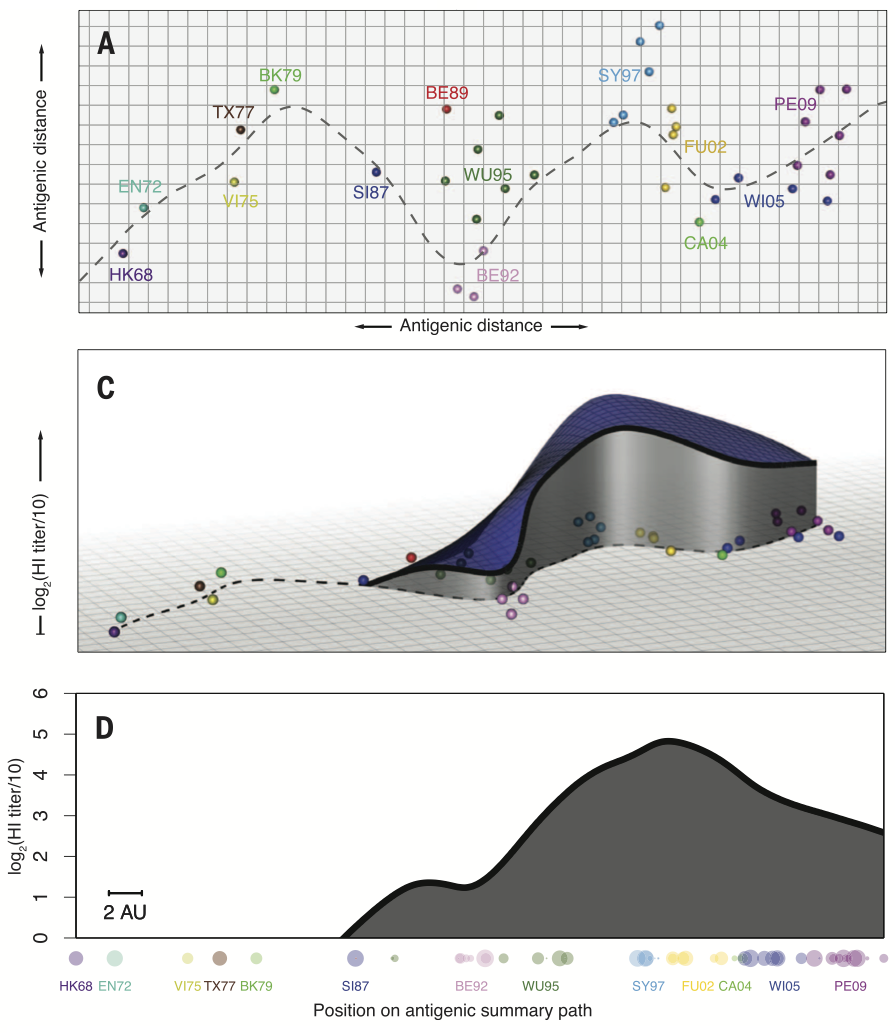

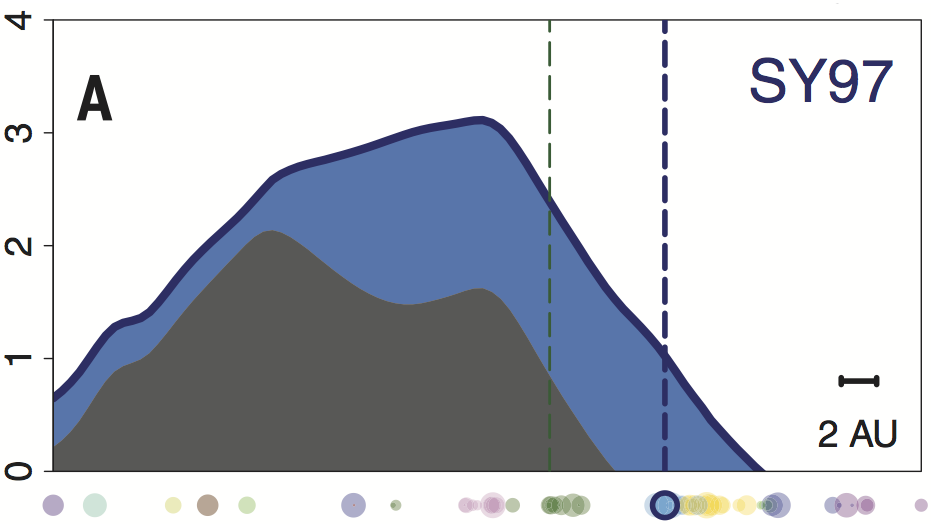

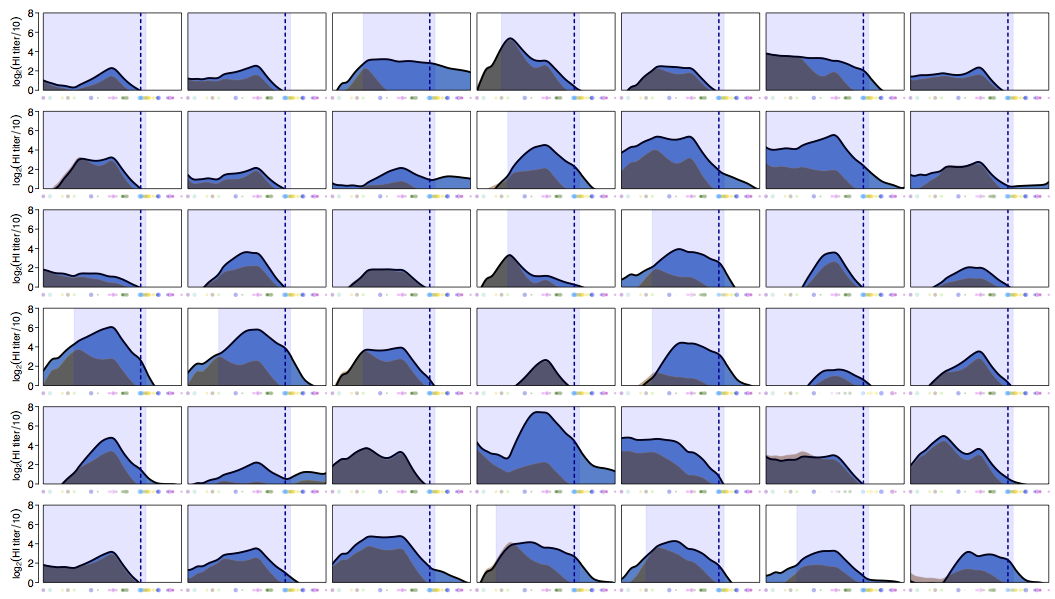

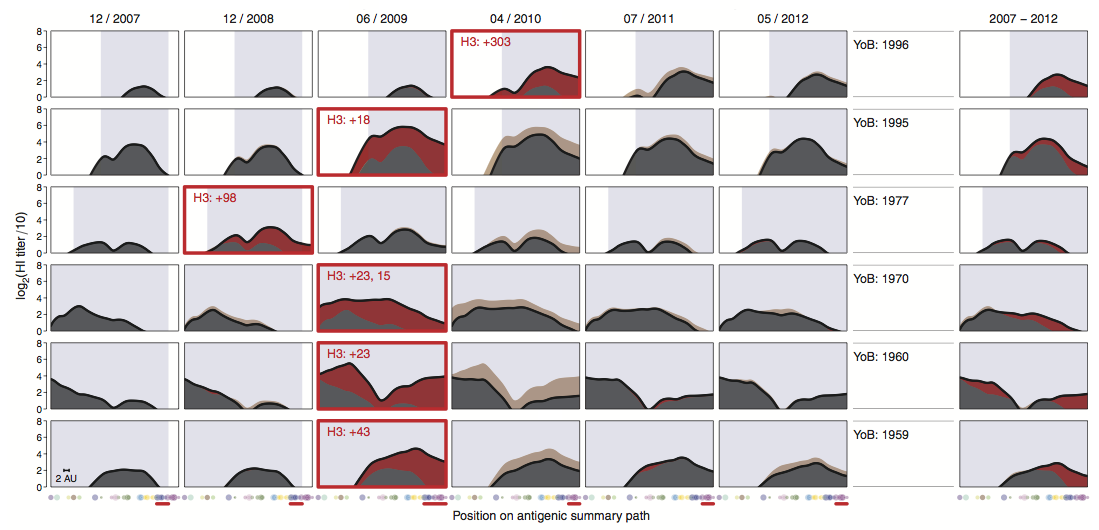

Plotting human HI titers through time

Infection transiently raises titers

Vaccination shows a similar effect

Titers increase more to older viruses, not to antigenically matched viruses
