SARS-CoV-2 variant emergence and spread




Trevor Bedford (@trvrb)
Fred Hutchinson Cancer Center / Howard Hughes Medical Institute
29 Aug 2022
SAVE Early Detection Meeting
NIH NIAID

1. SARS-CoV-2 evolution

2. SARS-CoV-2 variant frequency dynamics

3. BA.2.75 as case study

4. Emerging variants

5. Genomic surveillance

SARS-CoV-2 evolution

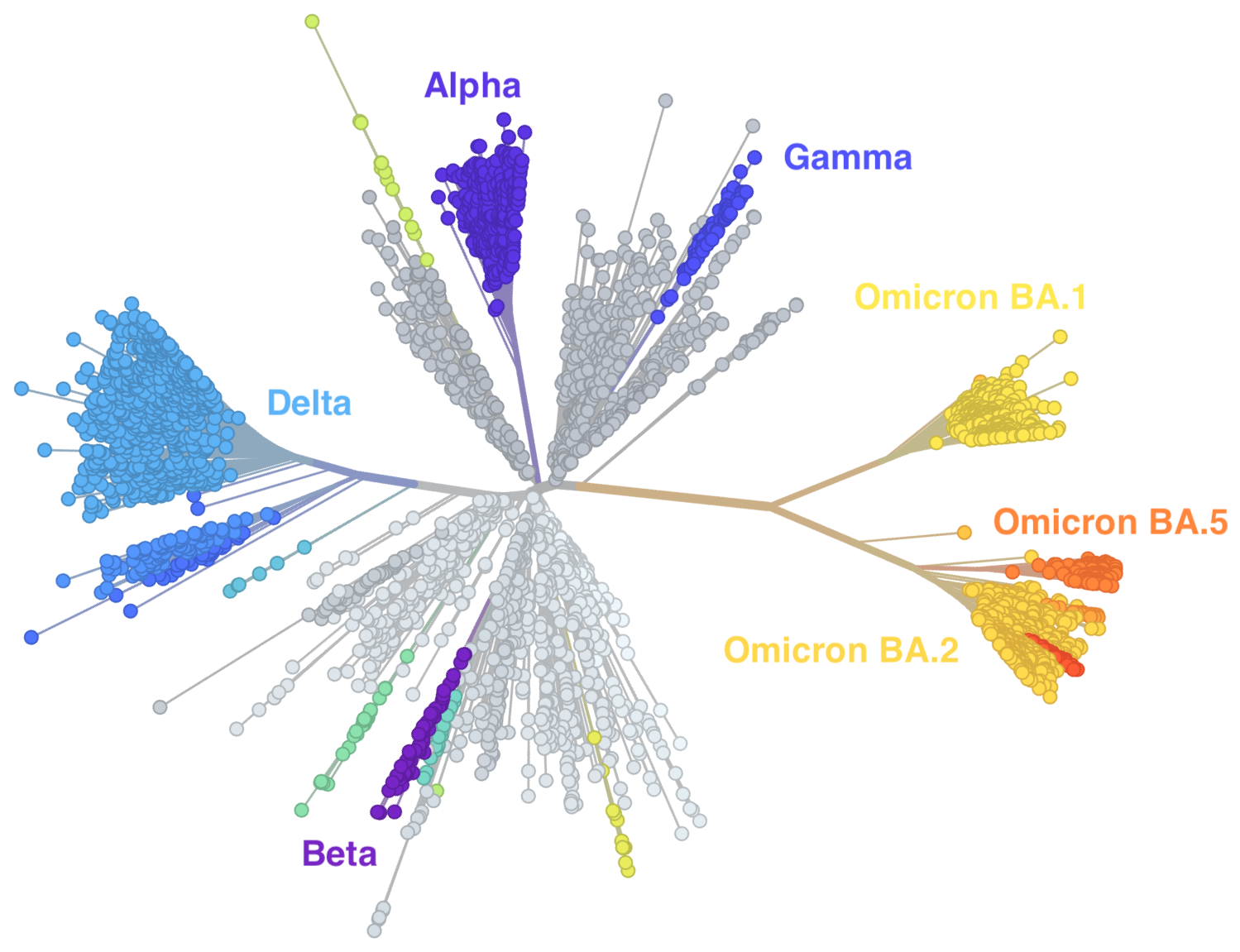

Genetic relationships of globally sampled SARS-CoV-2 to present

nextstrain.org

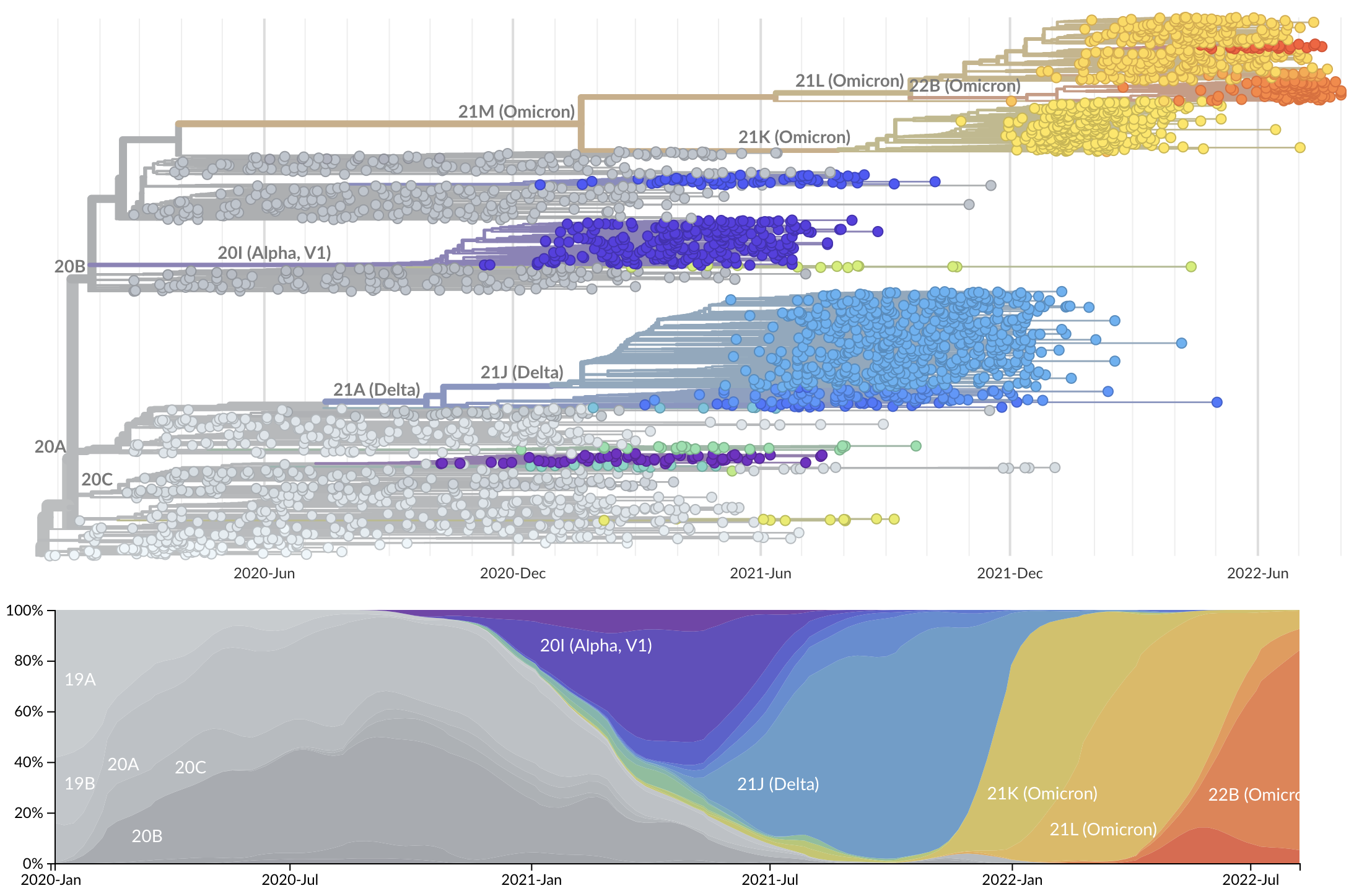

Rapid displacement of existing diversity by emerging variants

nextstrain.org

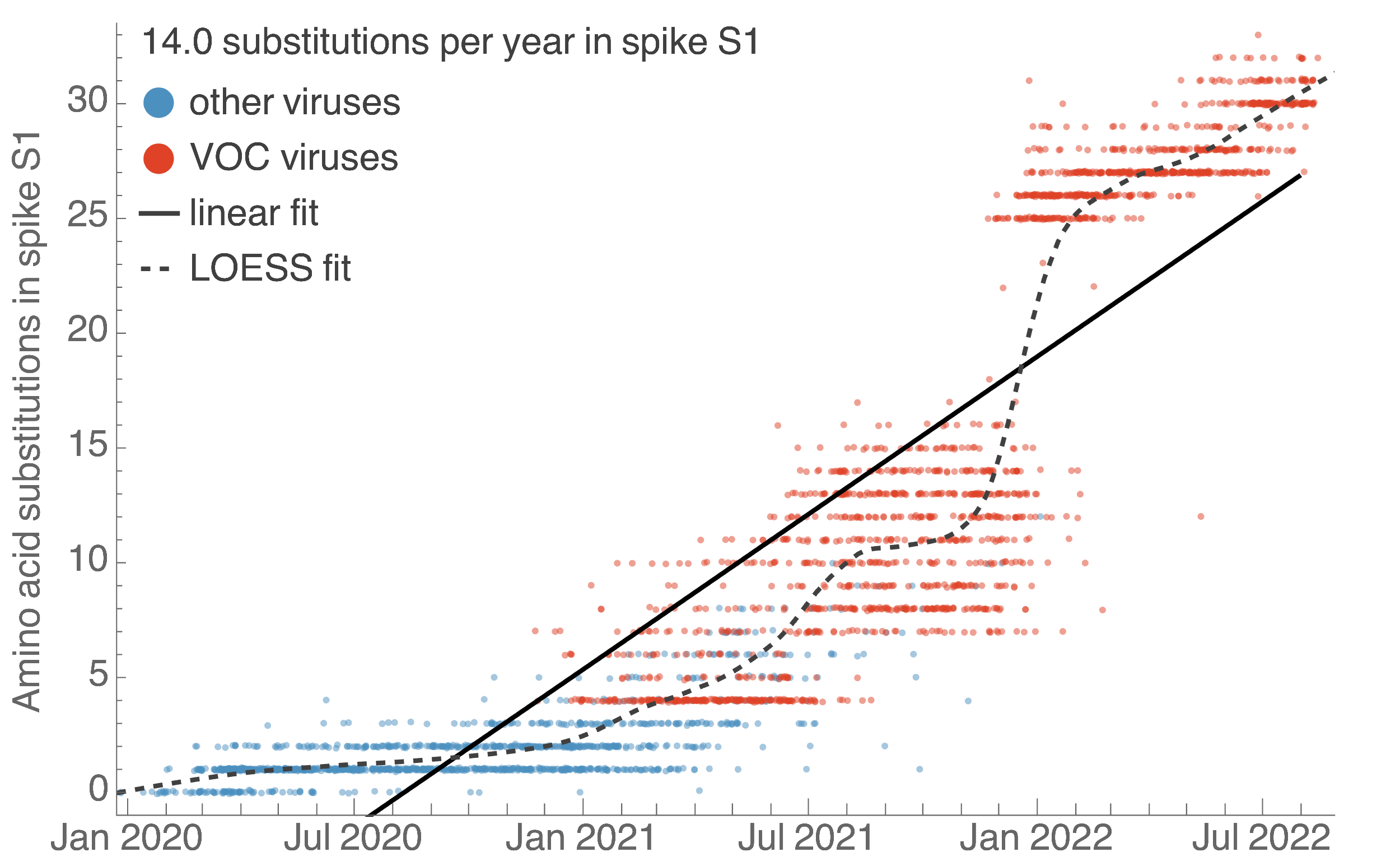

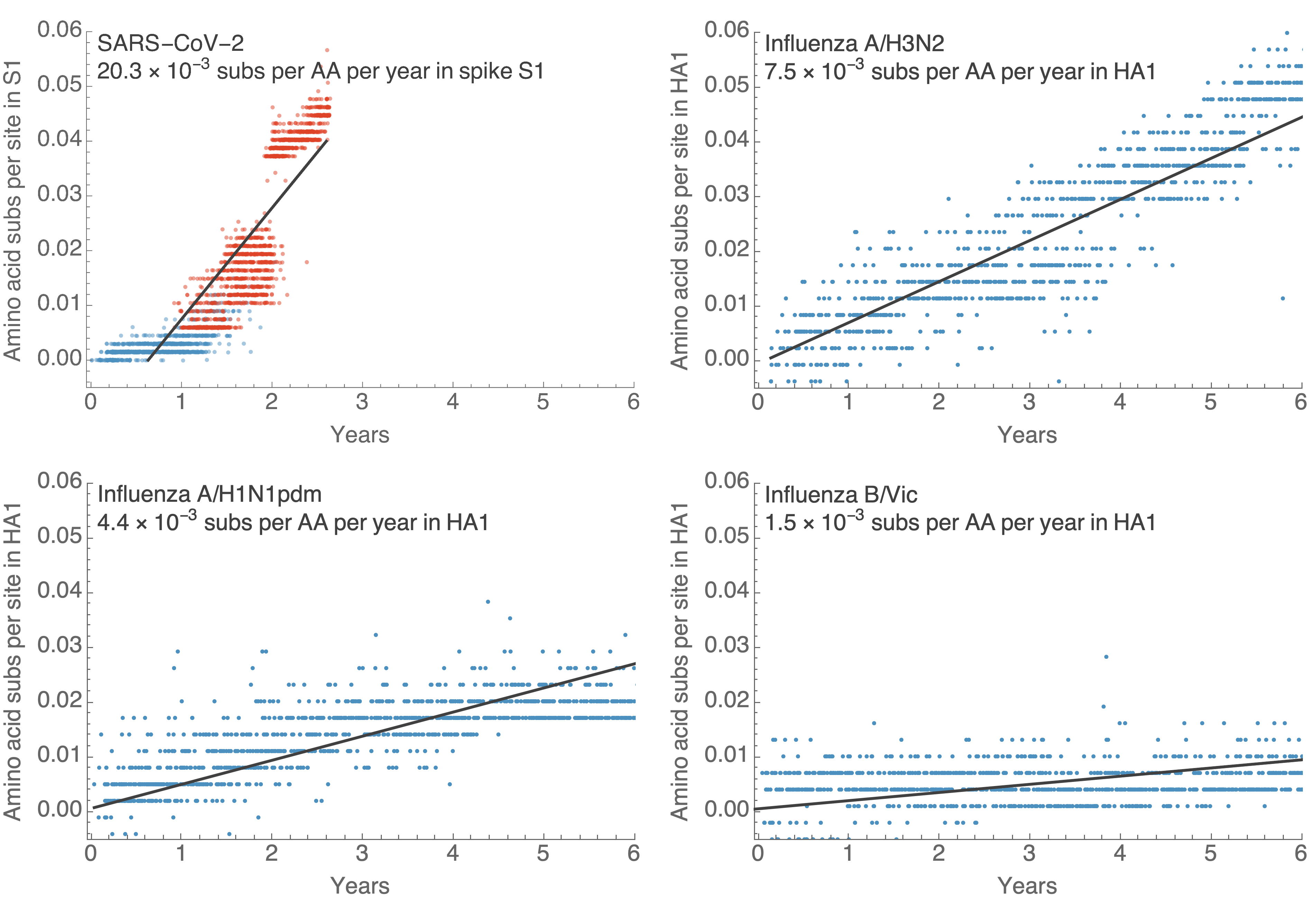

S1 evolved at a rate of 14 amino acid changes per year since pandemic start

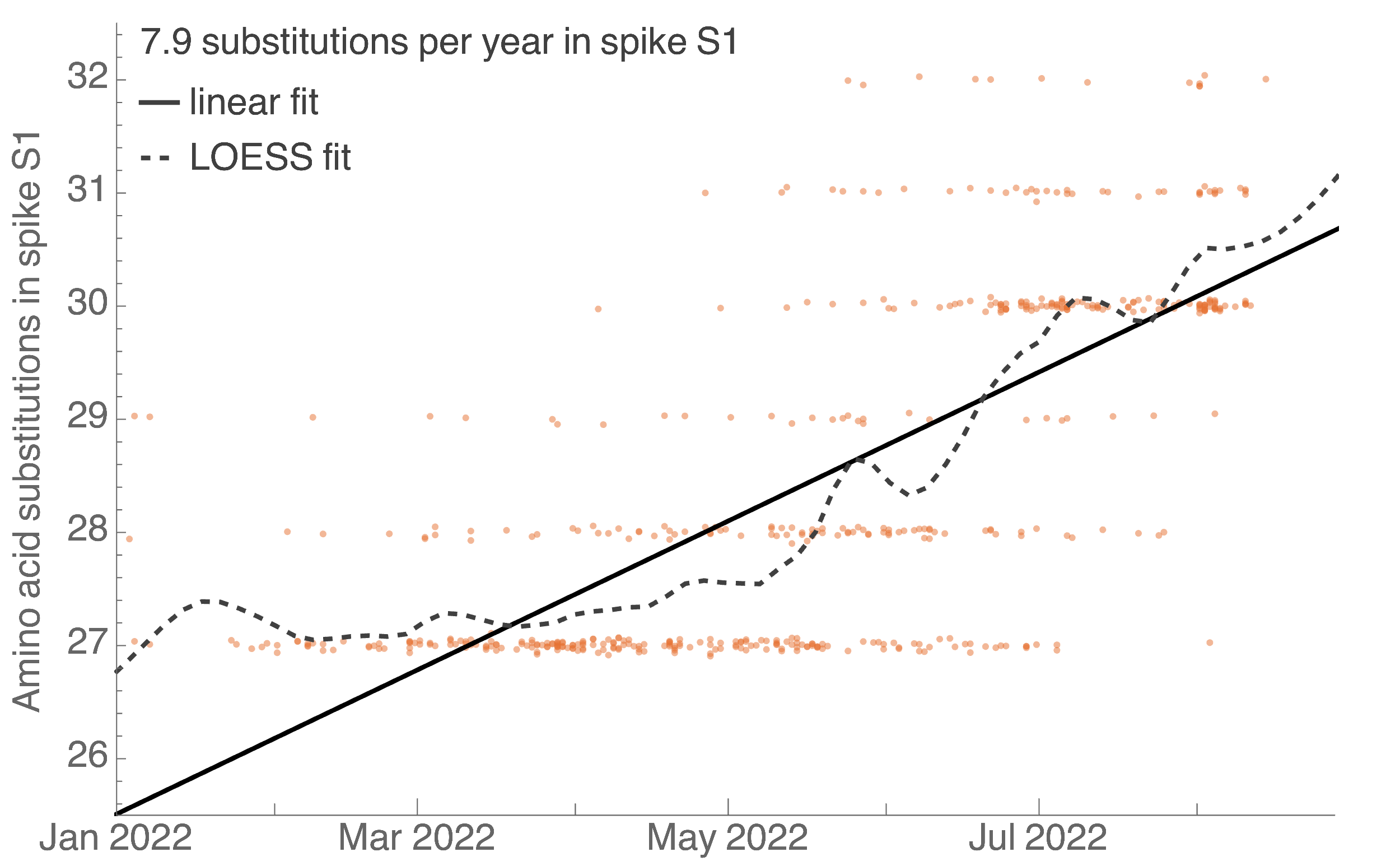

Continued rapid accumulation since BA.2 with 8 amino acid changes per year

S1 evolution remarkably fast relative to seasonal influenza

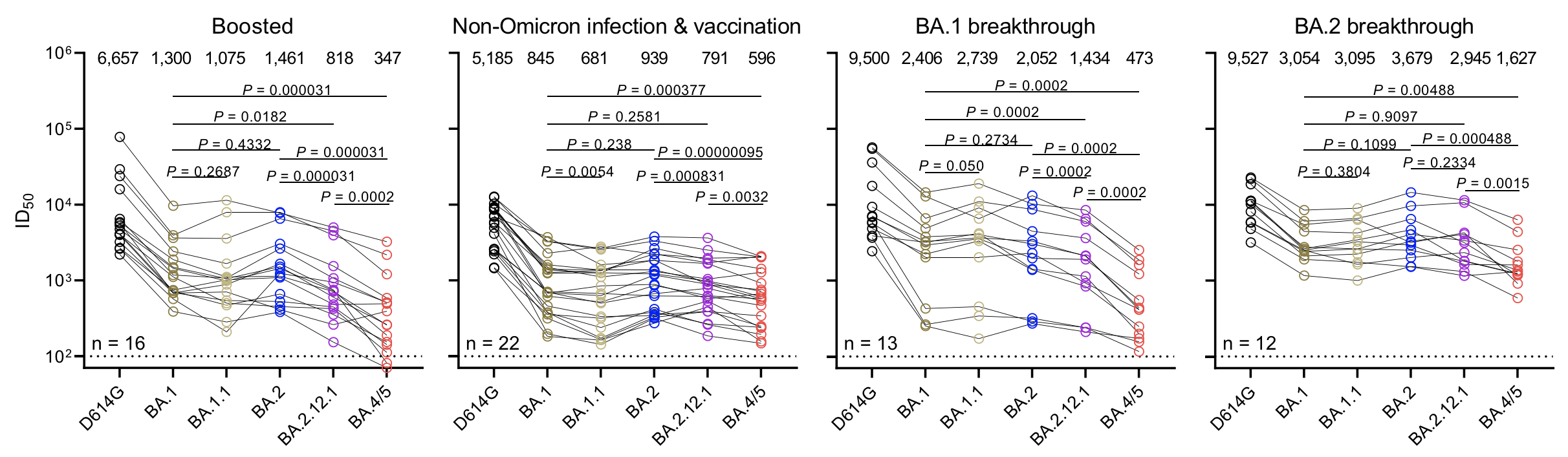

Continued escape from neutralization by existing population immunity

Wang et al. 2022. bioRxiv.

SARS-CoV-2 variant frequency dynamics

Population genetic expectation of variant frequency under selection

$x' = \frac{x \, (1+s)}{x \, (1+s) + (1-x)}$ for frequency $x$ over one generation with selective advantage $s$

$x(t) = \frac{x_0 \, (1+s)^t}{x_0 \, (1+s)^t + (1-x_0)}$ for initial frequency $x_0$ over $t$ generations

Trajectories are linear once logit transformed via $\mathrm{log}(\frac{x}{1 - x})$

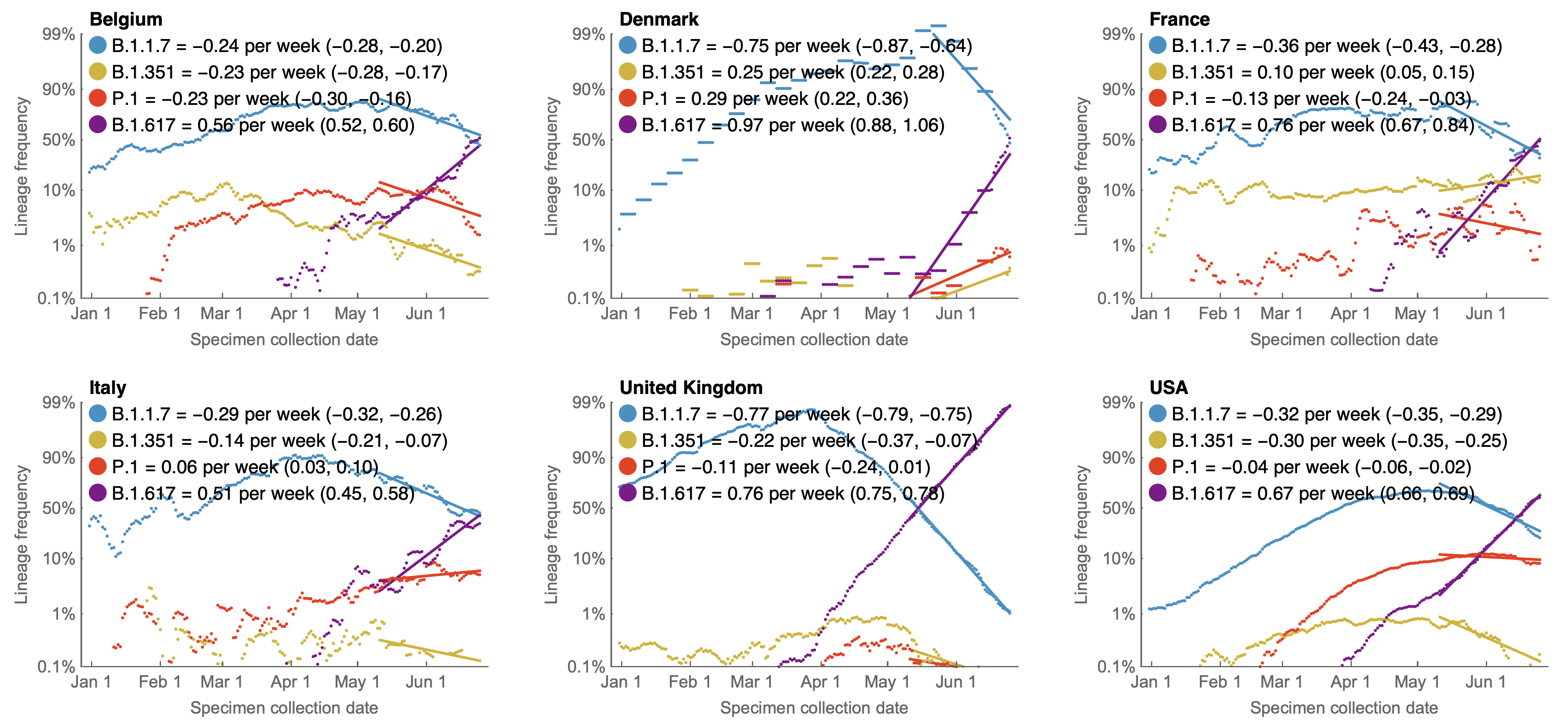

Variants show consistent frequency dynamics in logit space

Variants show consistent frequency dynamics in logit space

Multinomial logistic regression

Multinomial logistic regression models the probability of a virus sampled at time $t$ belonging to variant $i$ as

$$\mathrm{Pr}(X = i) = x_i(t) = \frac{p_i \, \mathrm{exp}(f_i \, t)}{\sum_{1 \le j \le n} p_j \, \mathrm{exp}(f_j \, t) }$$

where the model has $2n$ parameters consisting of $p_i$ the frequency of variant $i$ at initial timepoint and $f_i$ the growth rate or fitness of variant $i$ for $n$ variants.

The model is fit to minimize "log loss" of predicted variant vs observed variant across observations in dataset.

Multinomial logistic regression fits variant frequencies well

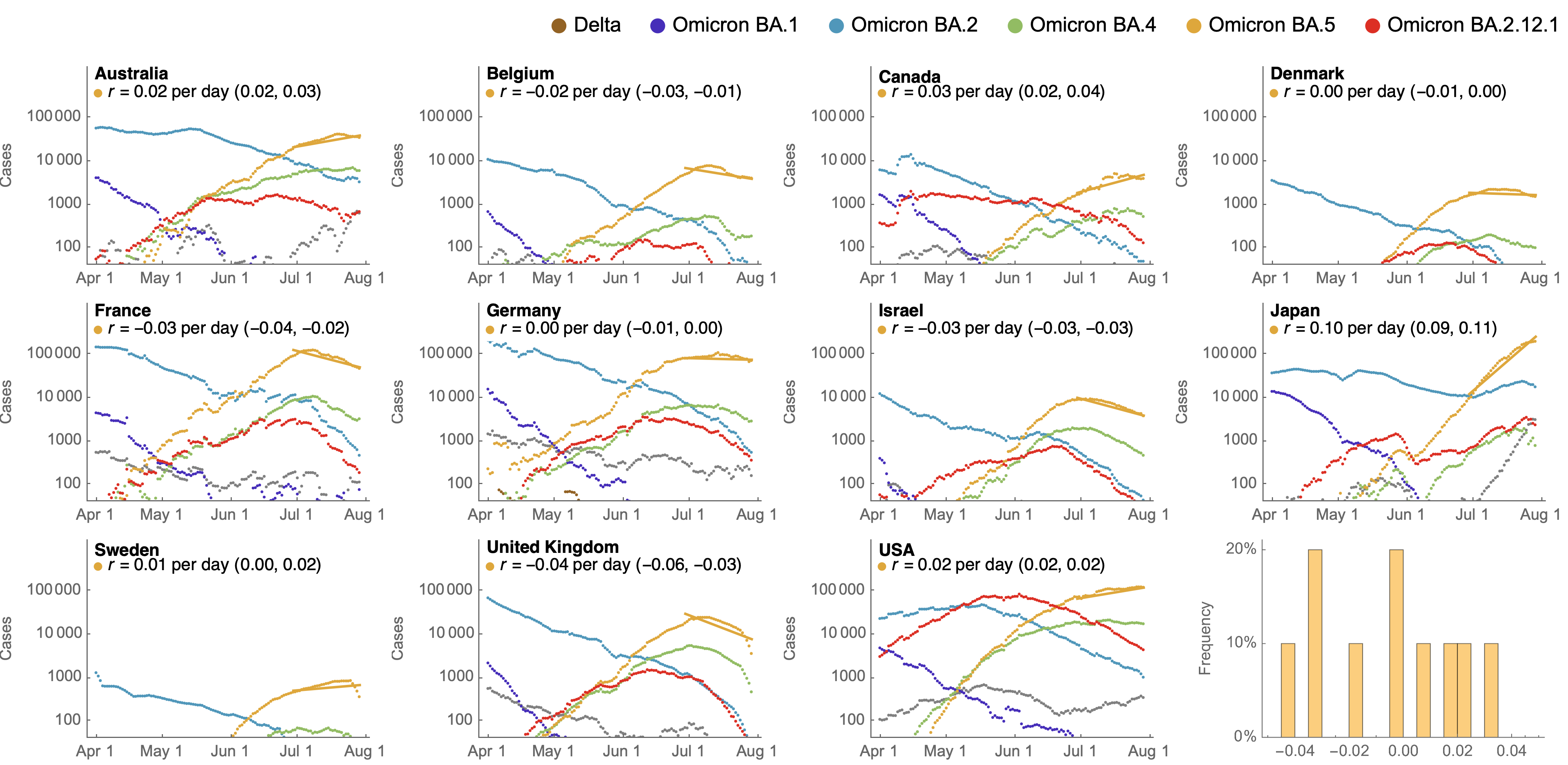

Consistent fitness advantage of BA.5 across countries

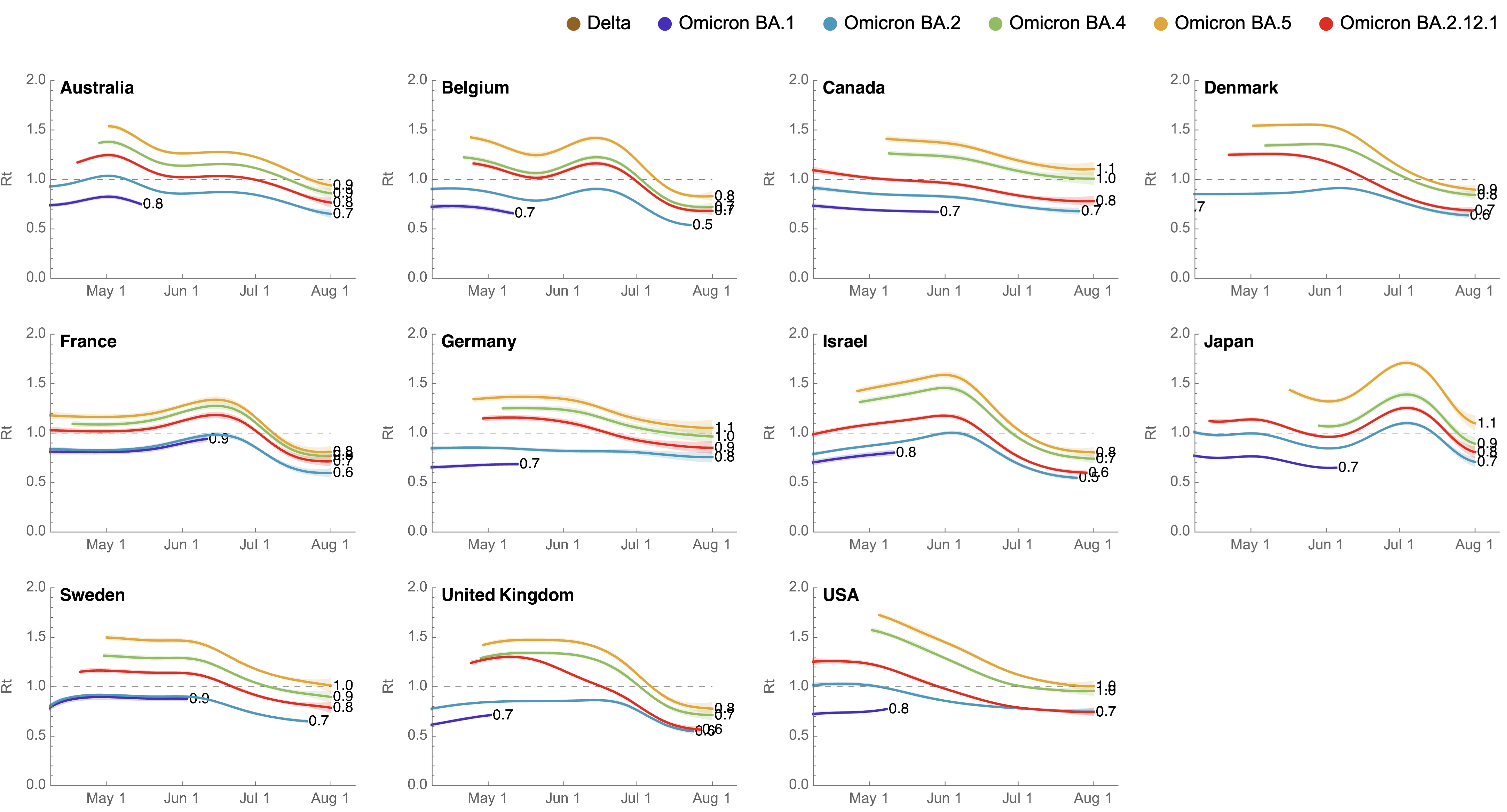

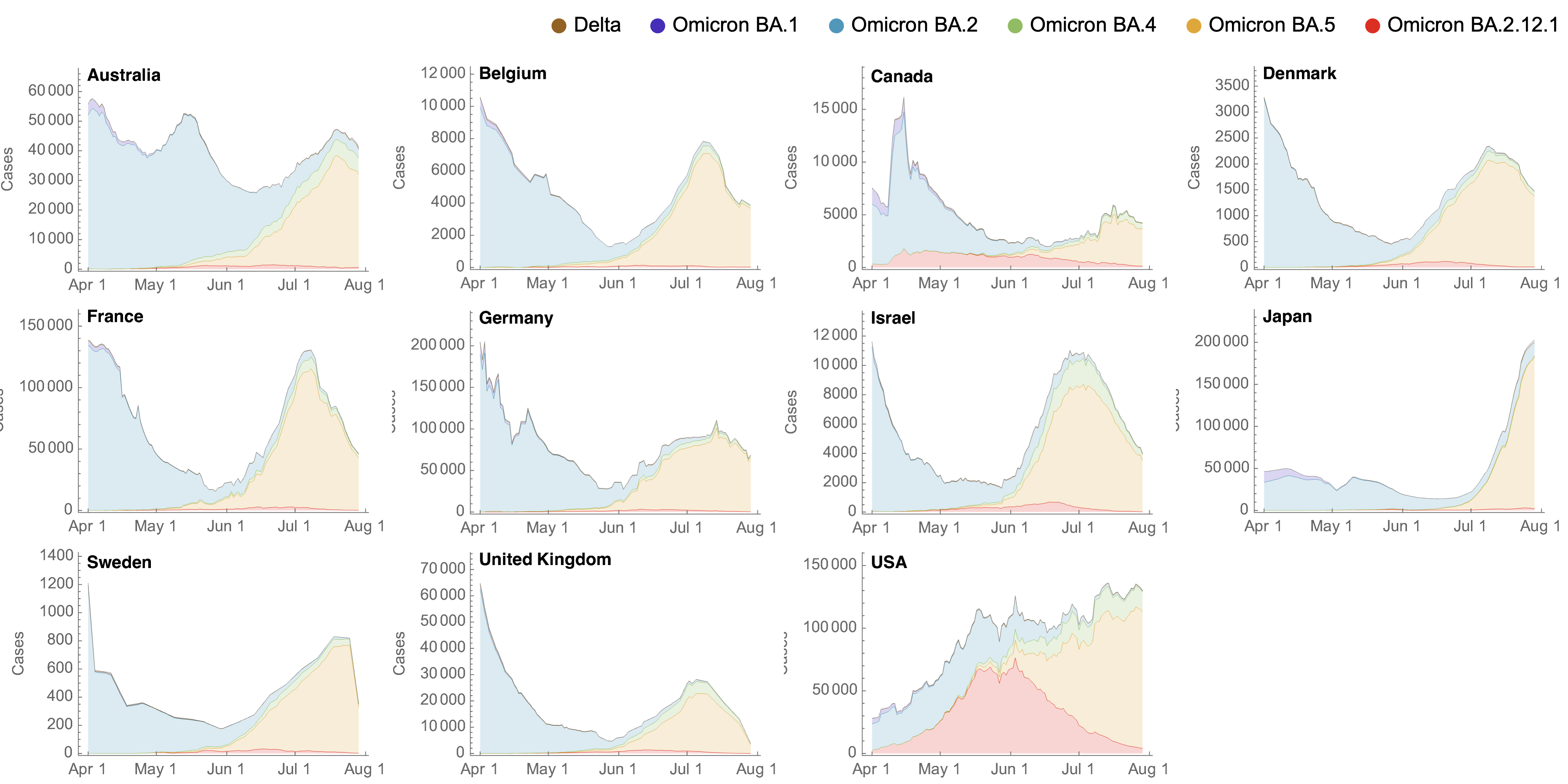

Despite similar rates of displacement, BA.5 epidemics vary

Despite similar rates of displacement, BA.5 epidemics vary

These differences can be explained by consistent growth advantage of BA.5, but different baseline Rt across countries

Model from Figgins and Bedford. 2022. medRxiv.

Multinomial logistic regression should work well for SARS-CoV-2 prediction, except new variants have been emerging fast enough that the prediction horizon is really quite short

BA.2.75 as case study

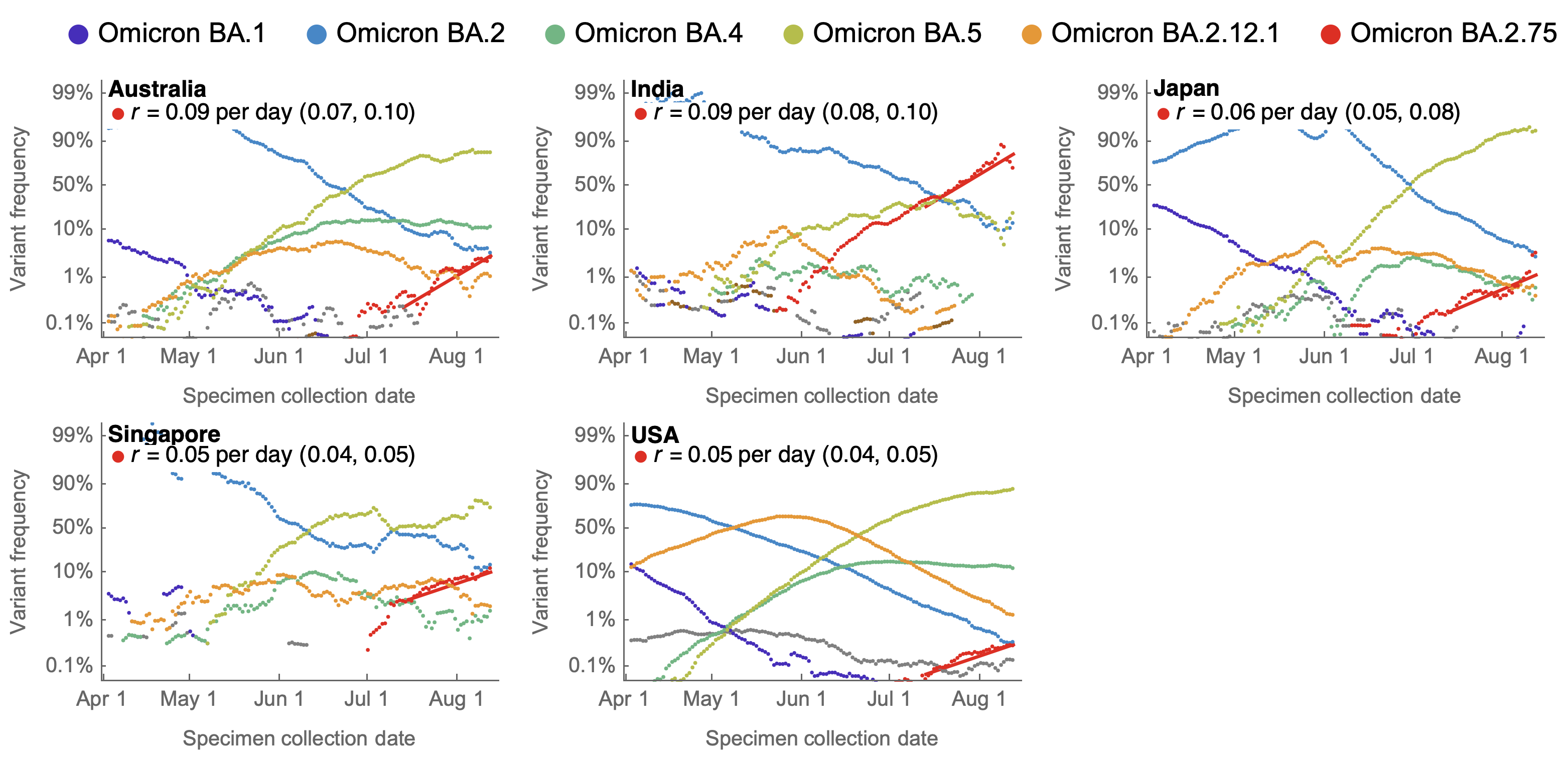

BA.2.75 shows consistent selective advantage across countries

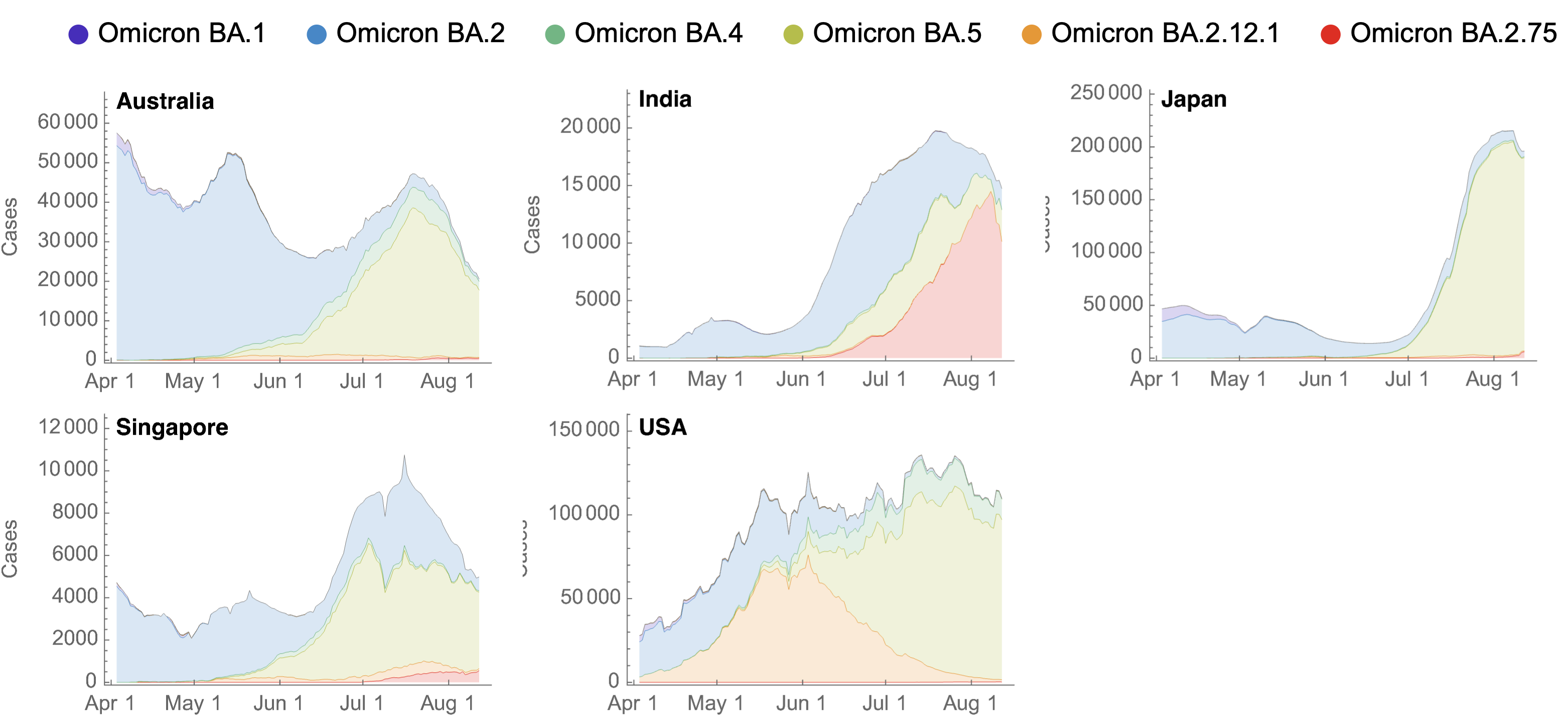

BA.2.75 did not drive large increase in total case loads in India

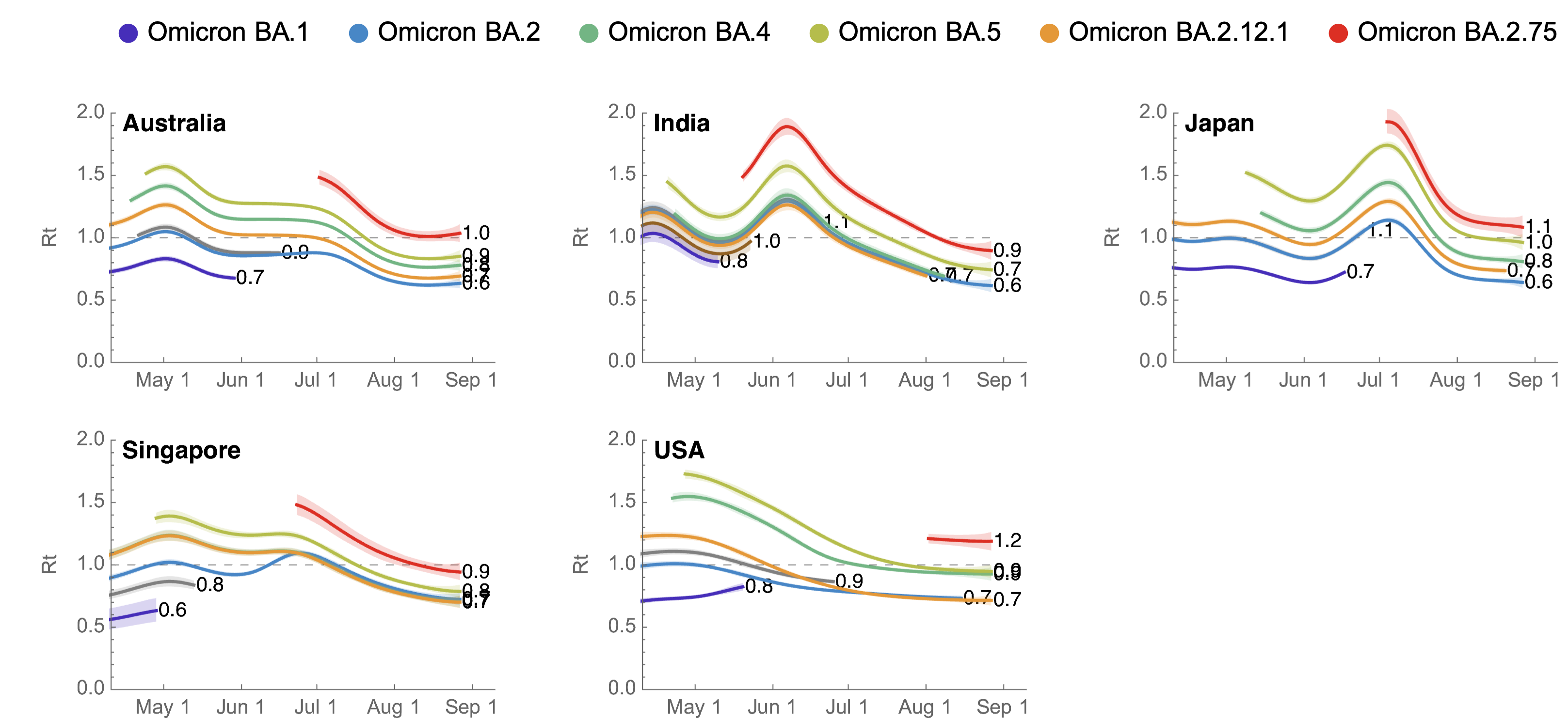

BA.2.75 current Rt greater than 1 in the US, but lower than initial Rt of BA.5

Model from Figgins and Bedford. 2022. medRxiv.

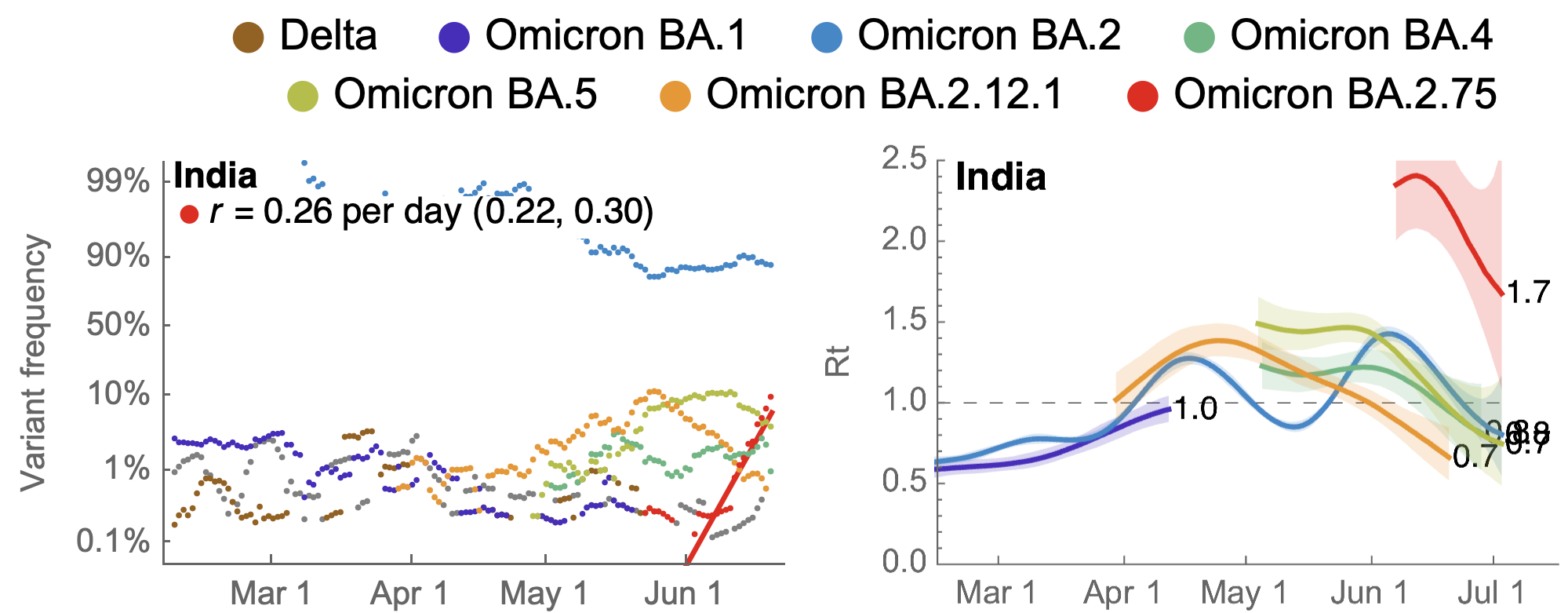

July 4: Initial frequency data from India were quite alarming

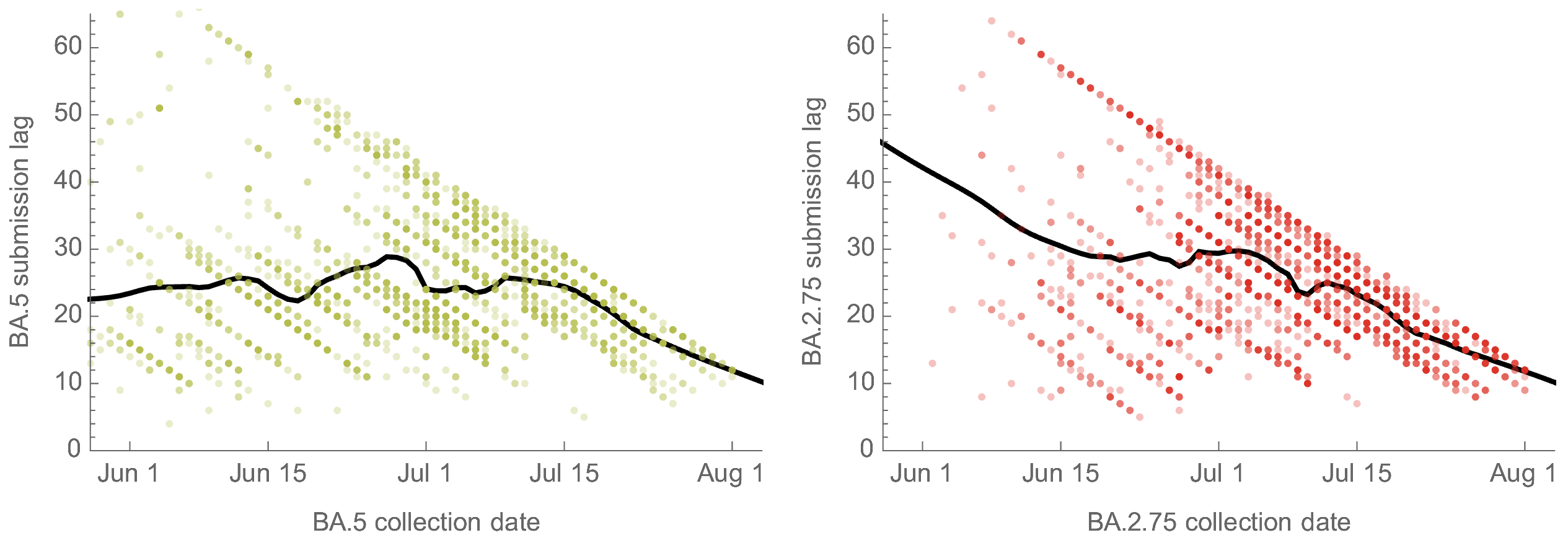

Differential submission lags don't explain discordance

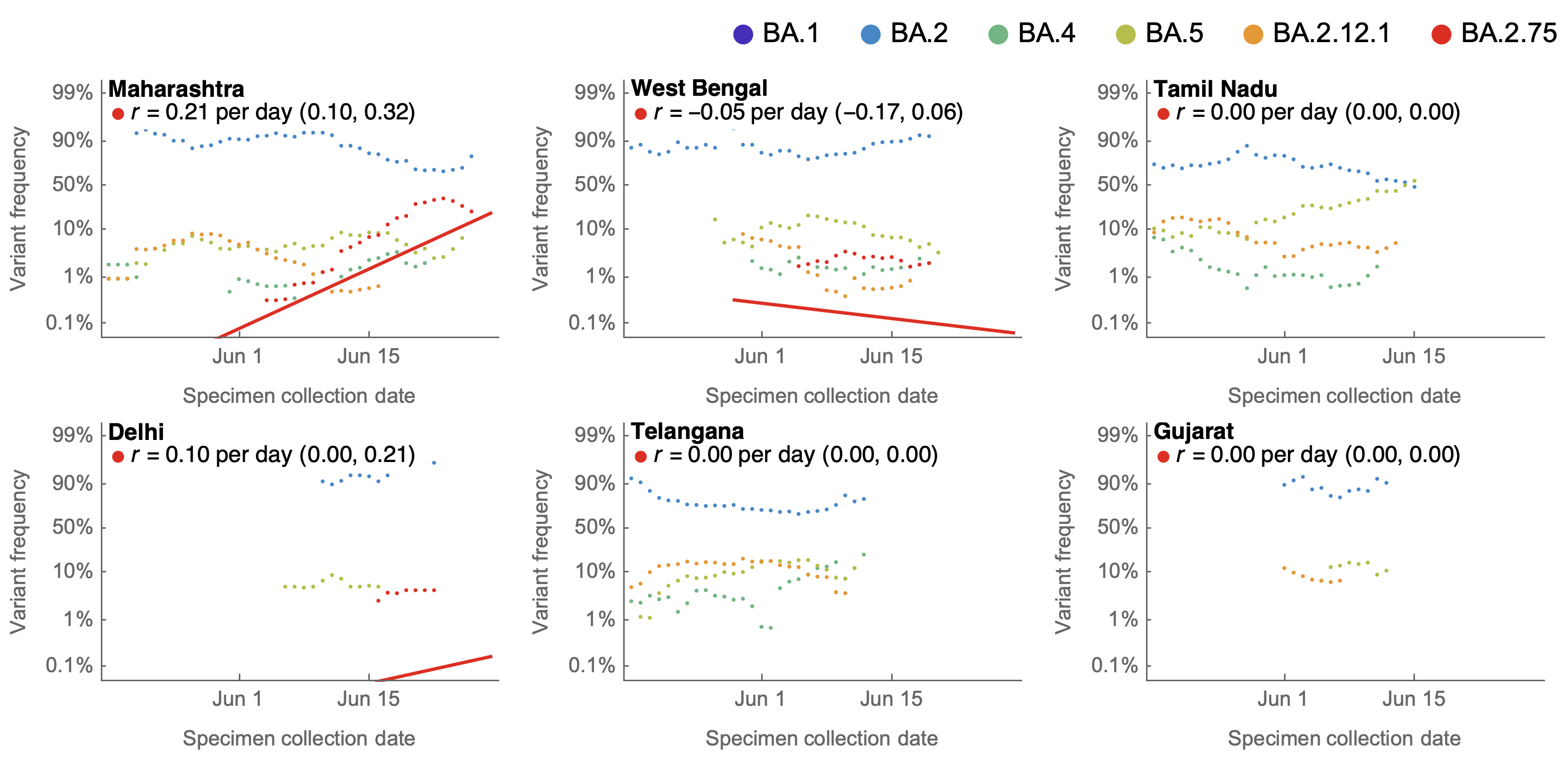

July 4: Early data is geographically focused on Maharashtra

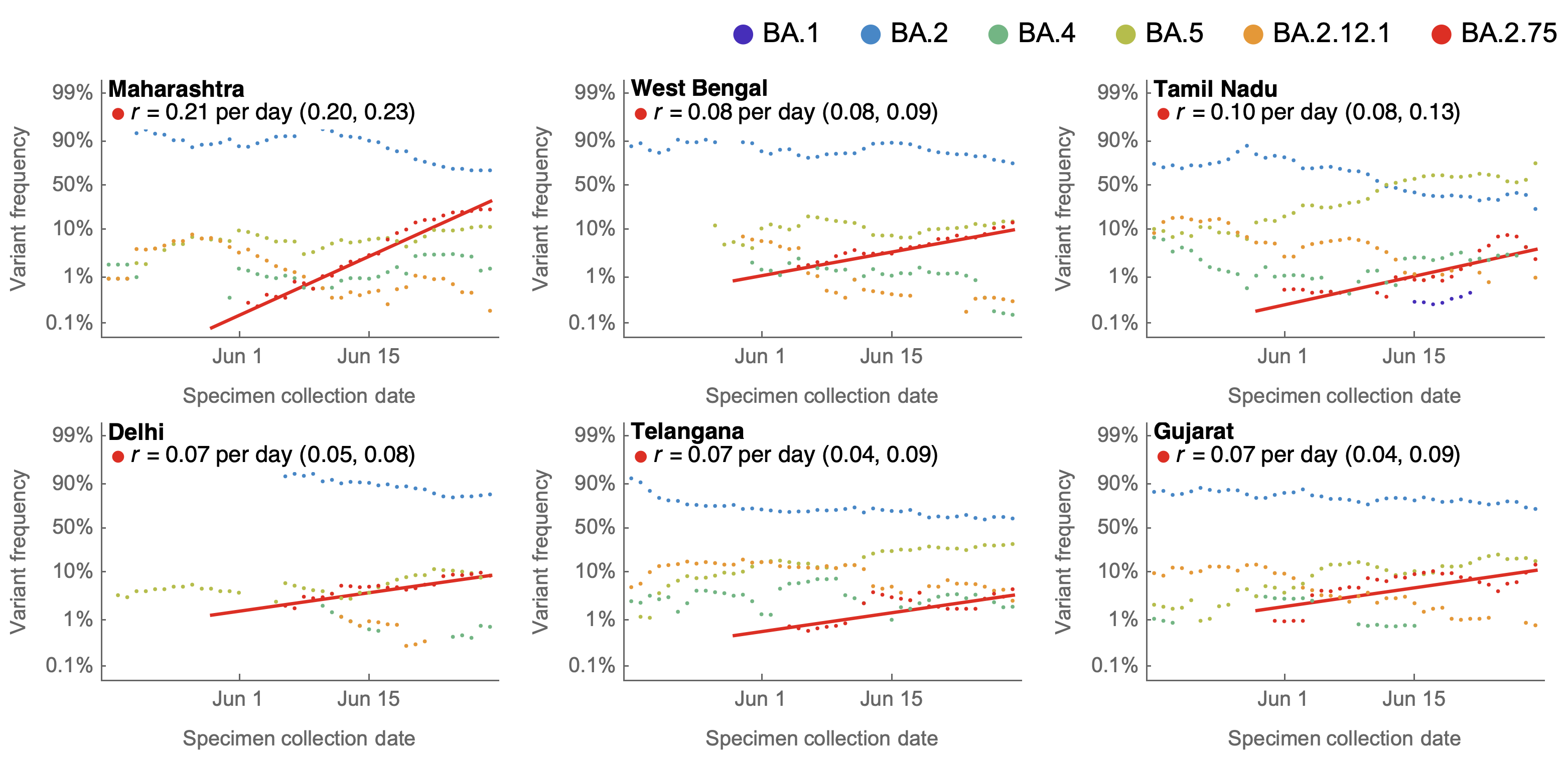

Aug 27: Further sequencing fills out geography

Emerging variants

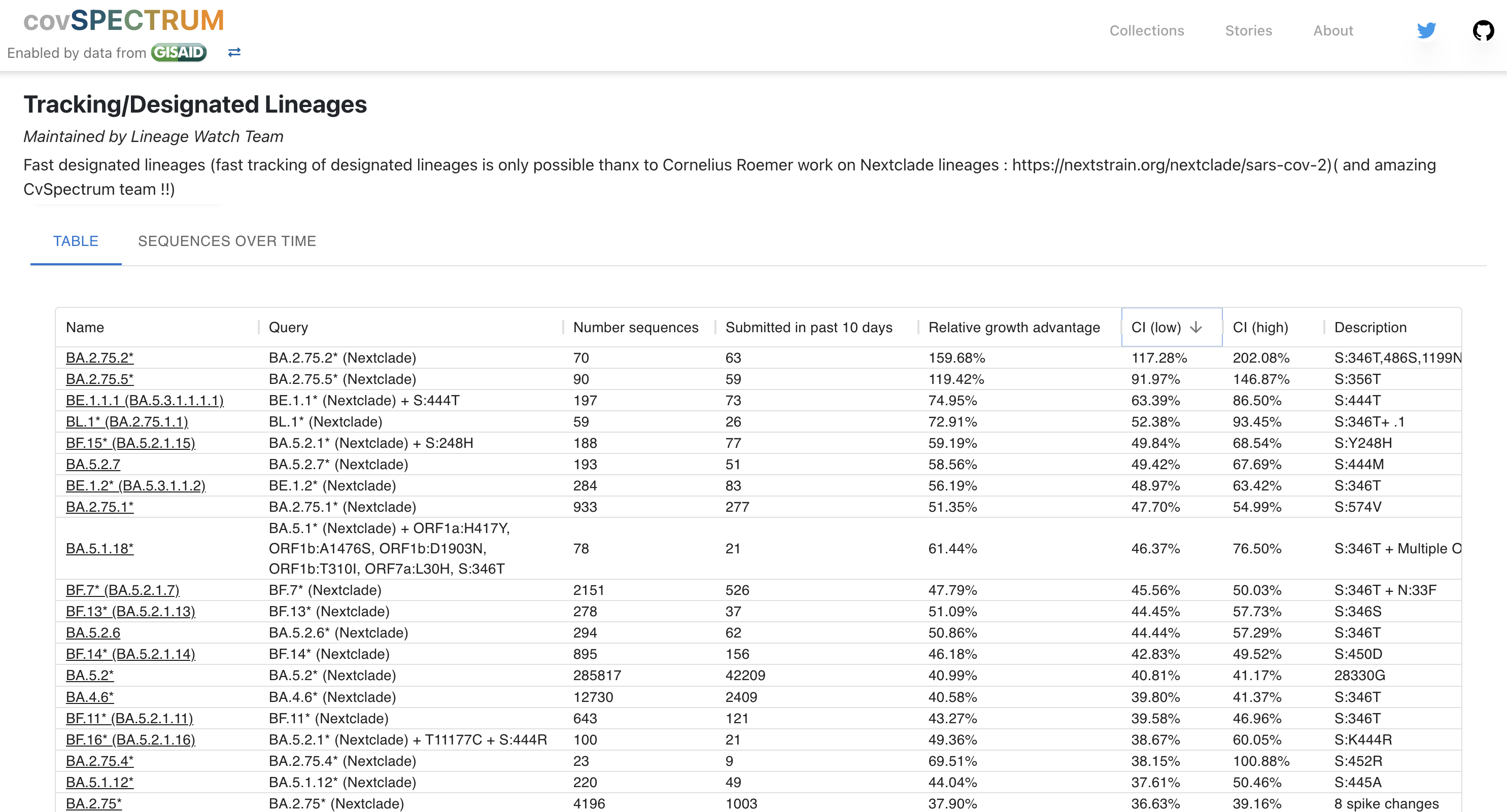

Watch lists for new Pango lineages rising quickly in frequency

CoV-Spectrum.org

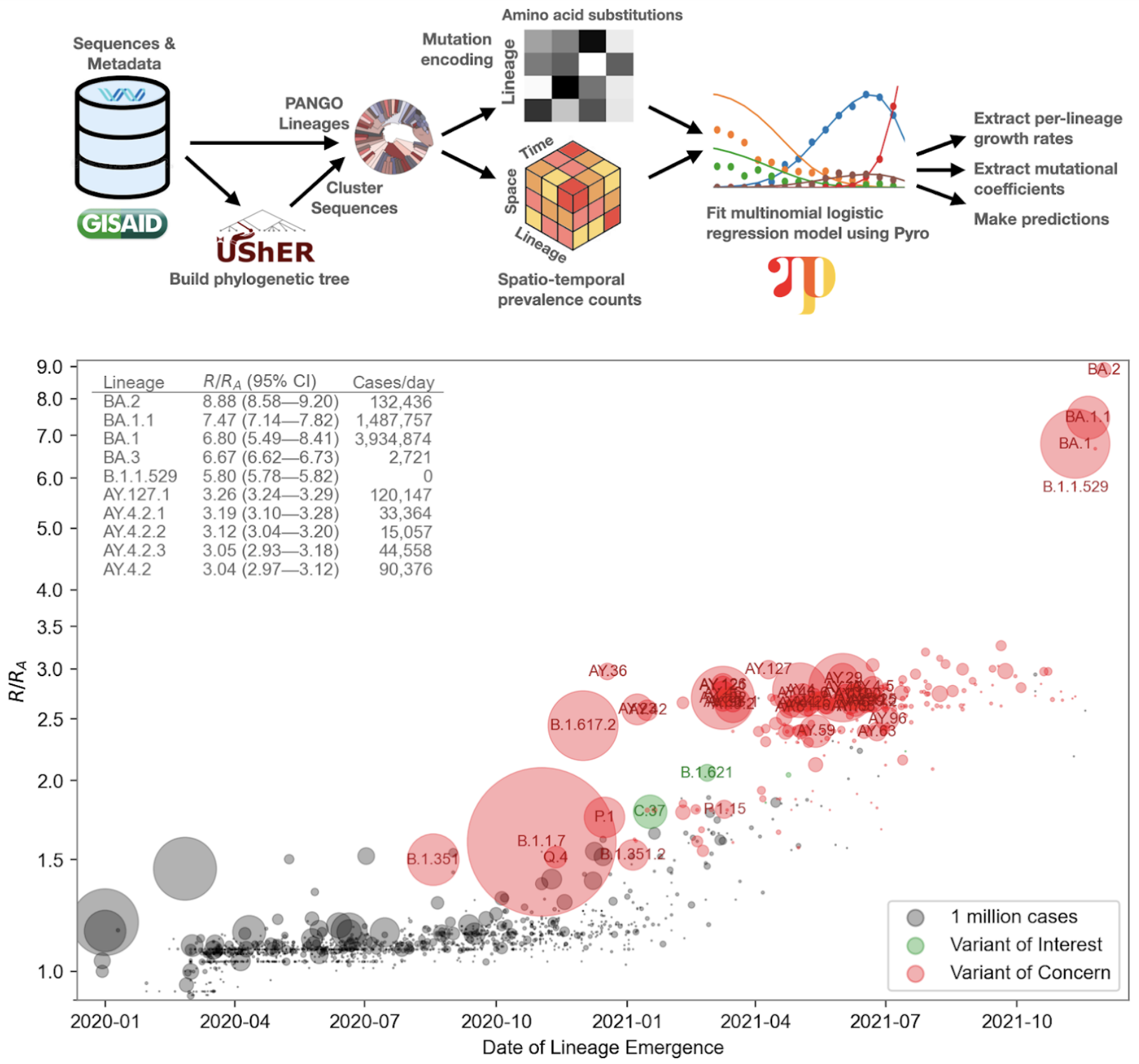

Hierarchical MLR models should work well to regularize and pool data

Obermeyer et al. 2022. Science.

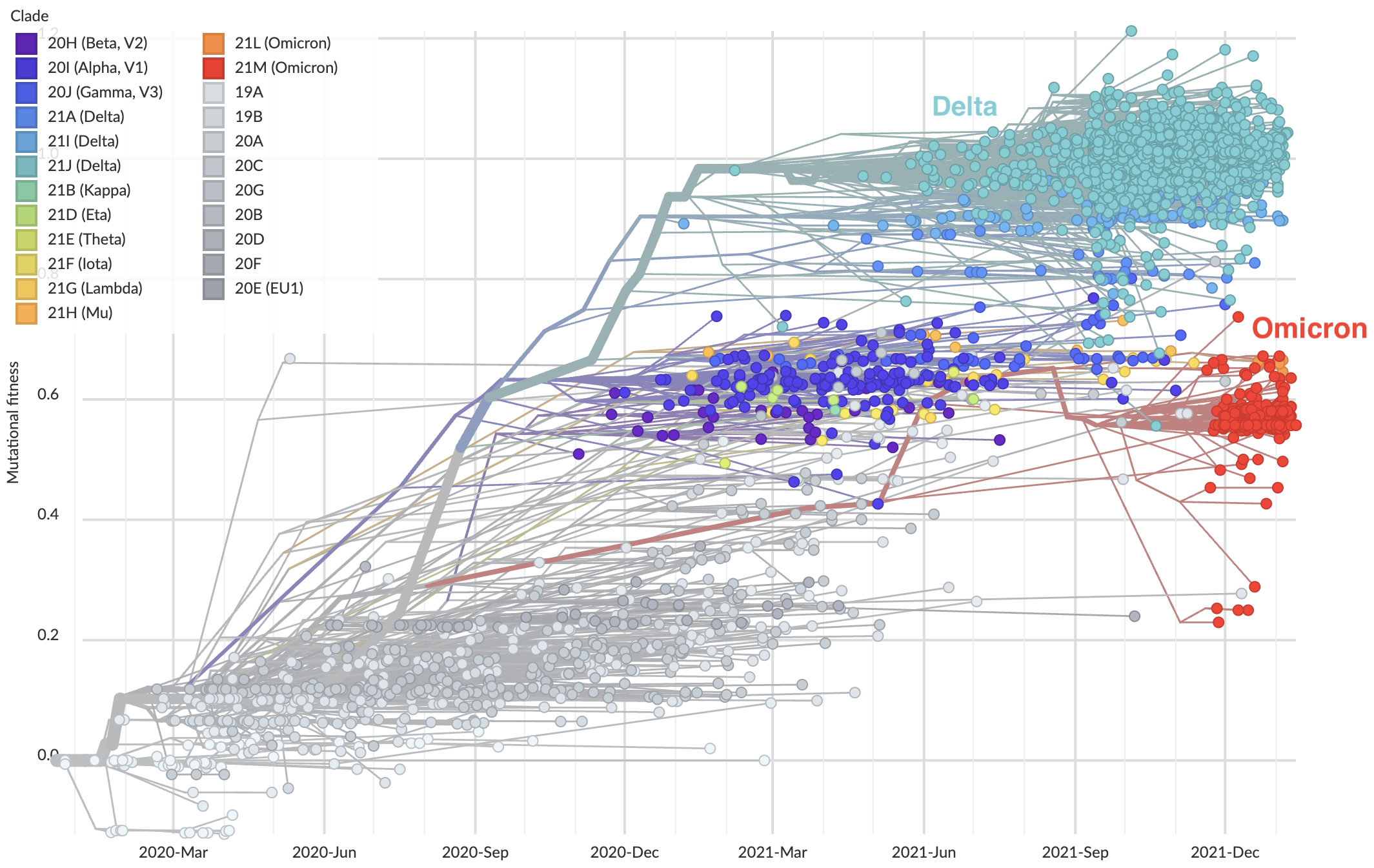

However, mutational makeup did not predict Omicron fitness

Model from Obermeyer et al. 2022. Science. Figure from nextstrain.org

Genomic surveillance

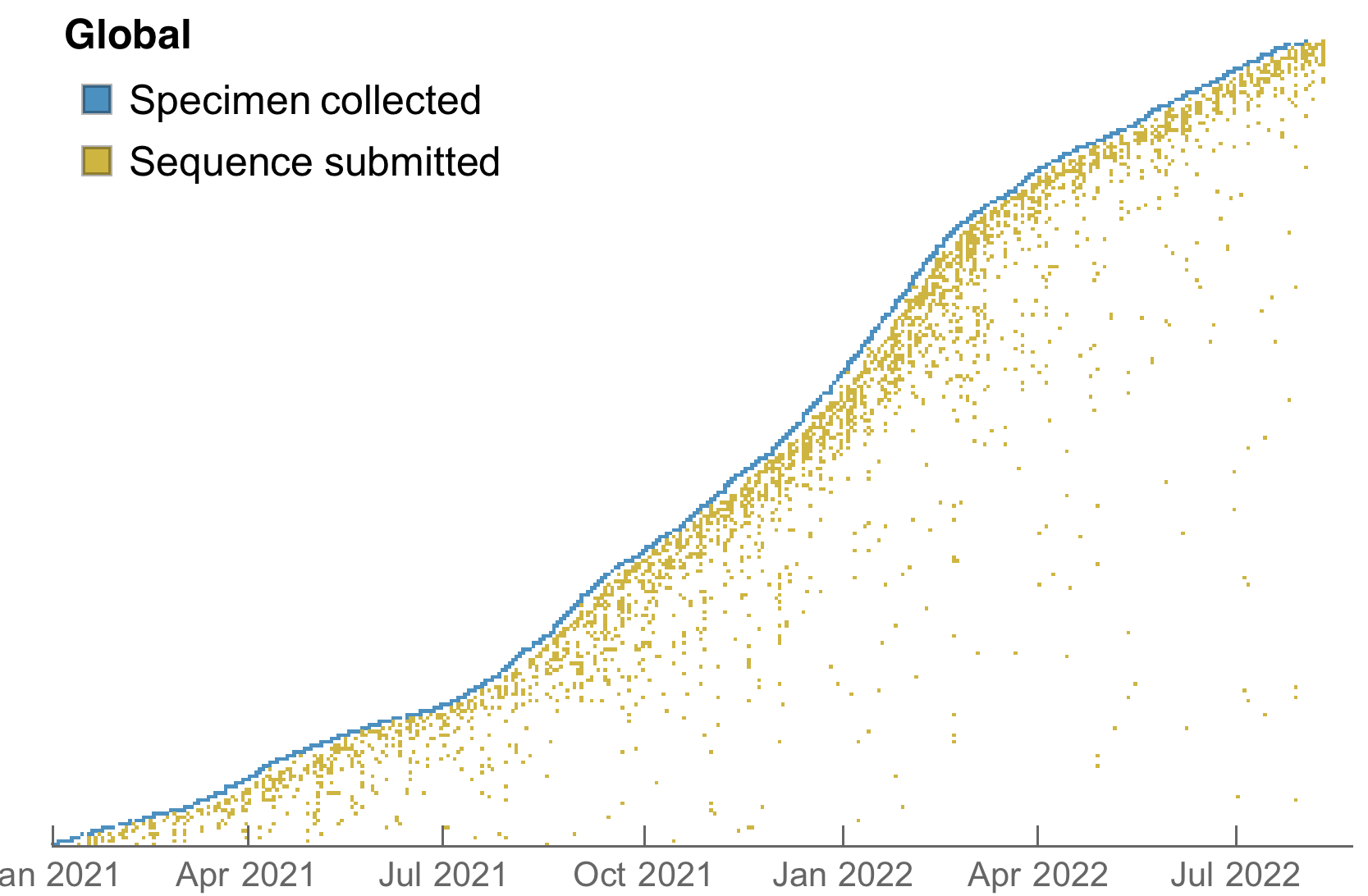

Sequences generated and shared at an unprecedented pace with >5M in 2022 (compare to 8k flu genomes in 2022)

Data from gisaid.org

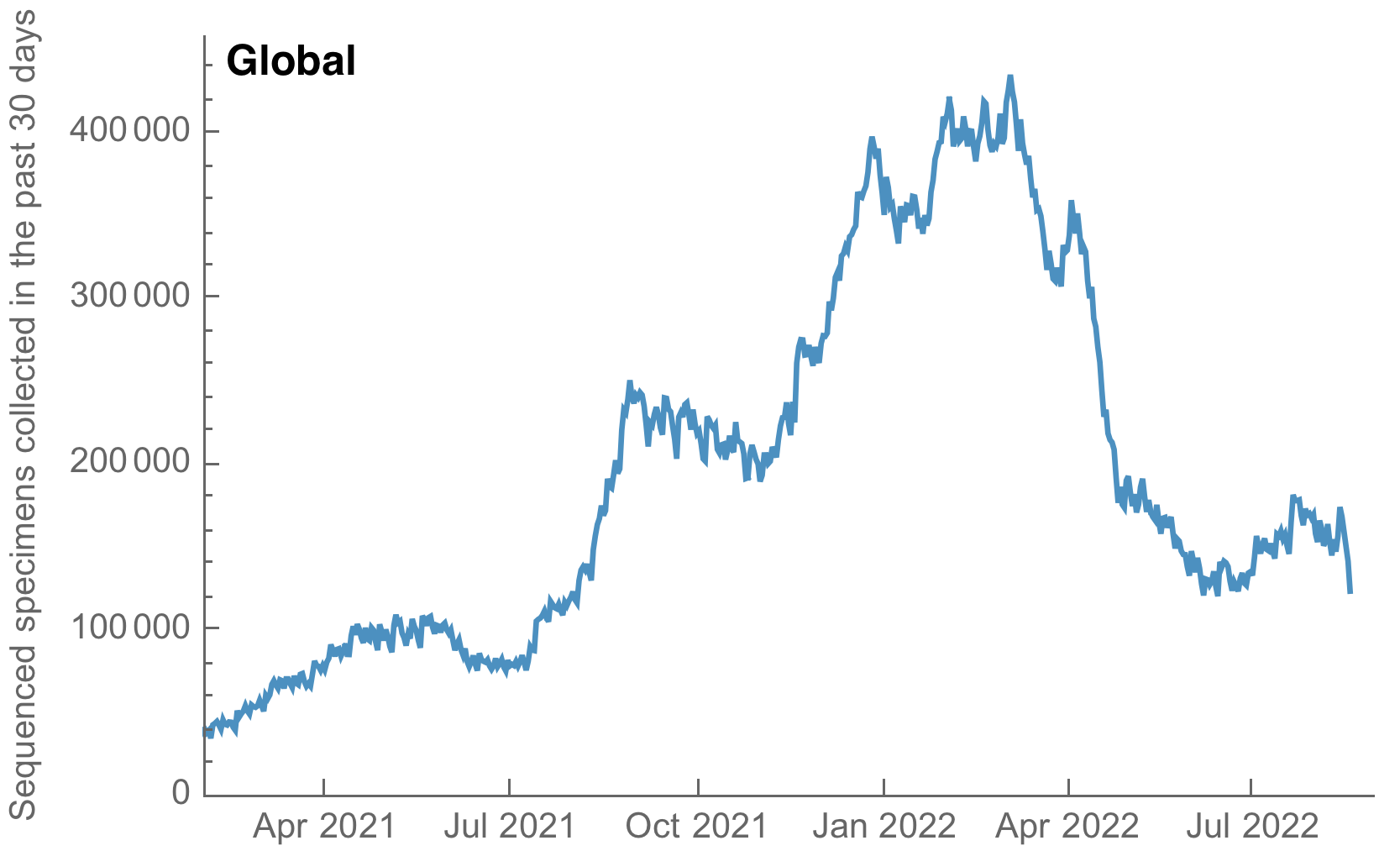

My favorite metric is number of sequences available from samples collected in the past 30 days

Data from gisaid.org

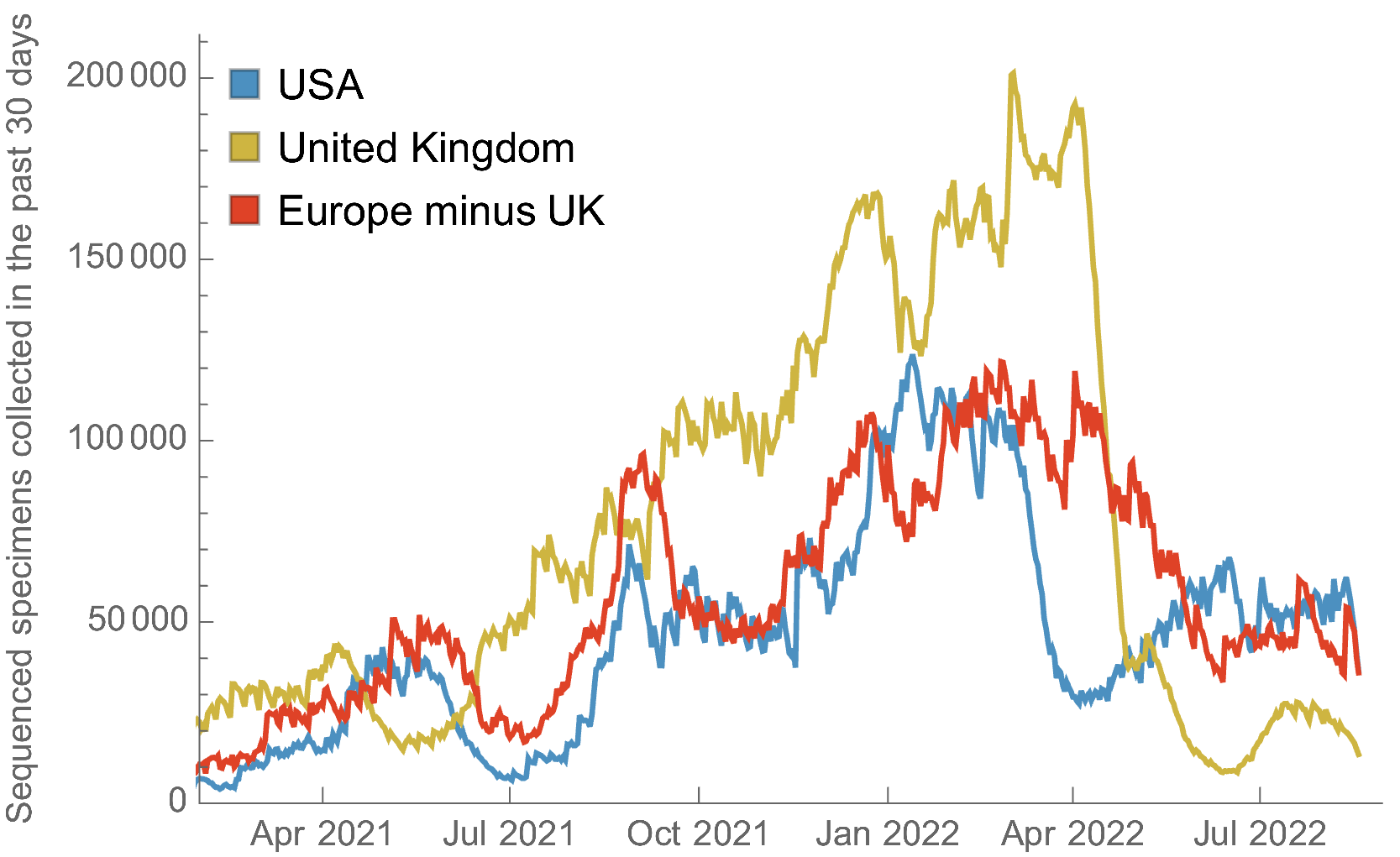

Largely consistent sequence counts for US and Europe, though recent decline in UK

Data from gisaid.org

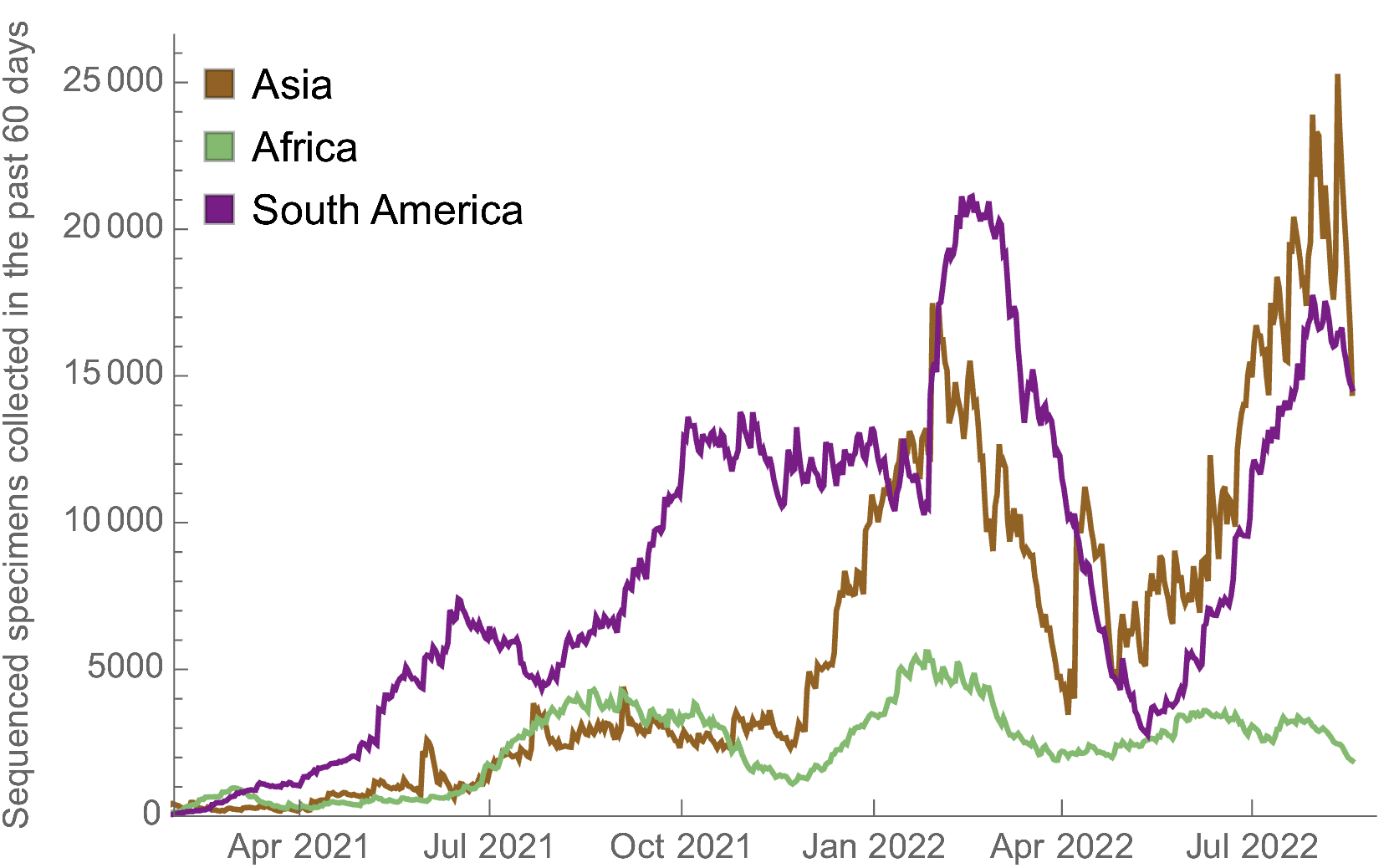

Investments in genomic surveillance should focus on improving latency and throughput in LMICs

Data from gisaid.org

Genomic surveillance and modeling to track SARS-CoV-2 variants

  1. Global genomic surveillance with rapid turnaround times essential, as this allows spotting variant early and provides geographic replication
  2. With detailed frequency data, MLR models work well to estimate local growth rates
  3. Fitness estimates become more reliable with multiple geographies
  4. Automated systems for near-term fitness estimation and forecasting should be continued research priority

Acknowledgements

SARS-CoV-2 genomic epi: Data producers from all over the world, GISAID and the Nextstrain team

Bedford Lab: John Huddleston,   James Hadfield,   Katie Kistler,   Louise Moncla,   Maya Lewinsohn,   Thomas Sibley,   Jover Lee,   Cassia Wagner,   Miguel Paredes,   Nicola Müller,   Marlin Figgins,   Denisse Sequeira,   Victor Lin,   Jennifer Chang
