SARS-CoV-2 evolutionary dynamics




Trevor Bedford (@trvrb)
Associate Professor, Fred Hutchinson Cancer Research Center
20 Oct 2021
2021 Stetten Lecture
NIH NIGMS

Slides at: bedford.io/talks

1. Real-time tracking of SARS-CoV-2 evolution

2. Emergence of variants of concern

3. Current circulation patterns

4. Assessing adaptive evolution

5. Variant transmission dynamics

6. Genomic surveillance

7. Future perspectives

Real-time tracking of SARS-CoV-2 evolution

Over 4.4M SARS-CoV-2 genomes shared to GISAID and evolution tracked in real-time at nextstrain.org


Richard Neher, Emma Hodcroft, James Hadfield, Thomas Sibley, John Huddleston, Ivan Aksamentov, Moira Zuber, Eli Harkins, Jover Lee, Cassia Wagner, Louise Moncla, Misja Ilcisin, Allison Black, Miguel Paredes, Sidney Bell, Denisse Sequeira, Cornelius Roemer

SARS-CoV-2 lineages establish globally in February and March

Limited early mutations like spike D614G spread globally during initial wave

Spike protein is critical for cell invasion by the virus and is the primary target for human immune response

After initial wave, with mitigation
efforts and decreased travel,
regional clades emerge

Mutations in summer and fall 2020 were confined to regional dominance

Emergence of variants of concern

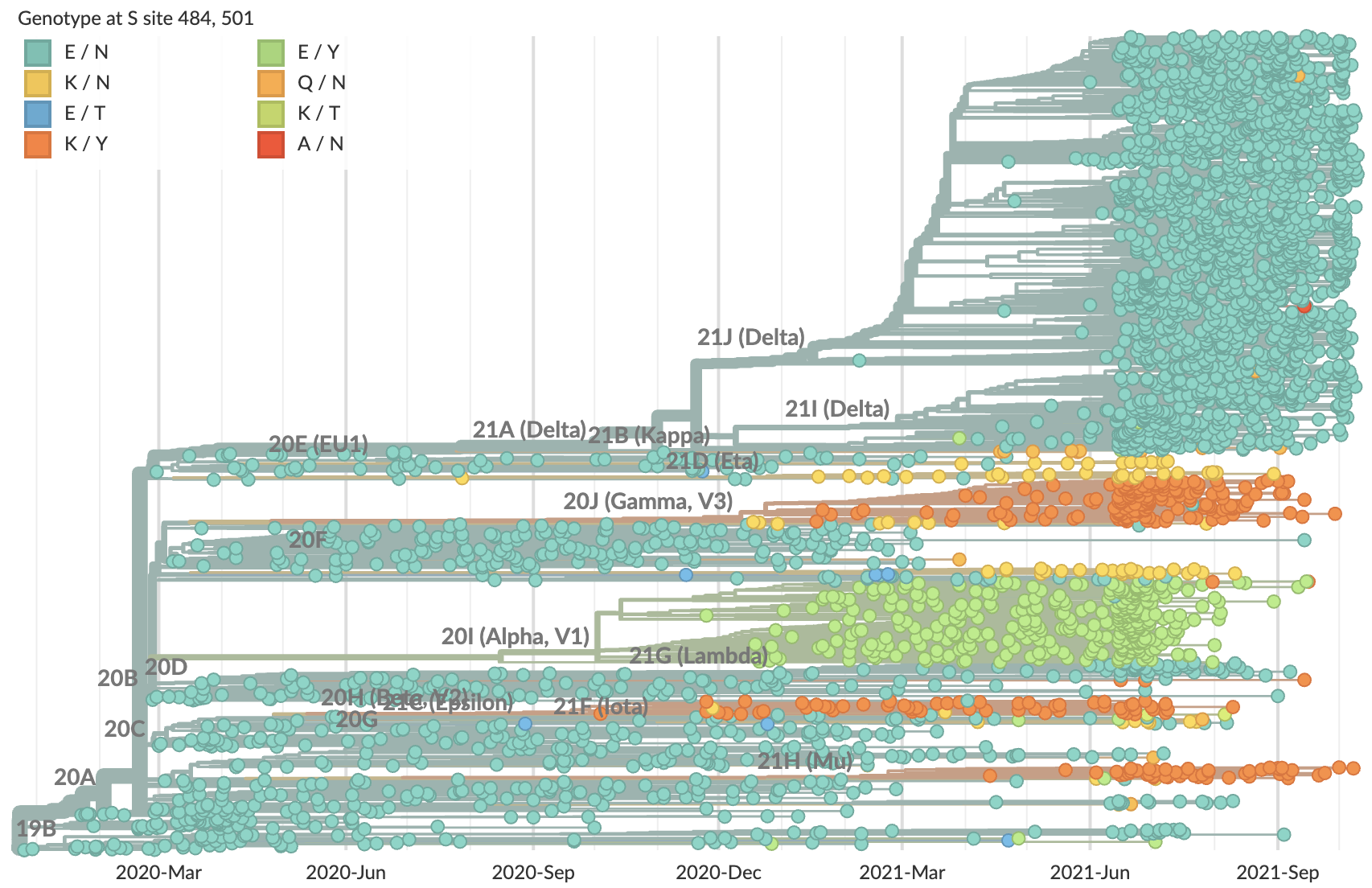

Repeated emergence of 484K and 501Y across the world

Emergence of Alpha (B.1.1.7) in the UK

Emergence of Beta (B.1.351) in the South Africa

Emergence of Gamma (P.1) in the Brazil

Working hypothesis of within-host evolution occurring during infection, driven by natural selection against host immunity

Rapid within-host evolution during persistent infection

484K and 501Y observed during this evolution

Current circulation patterns

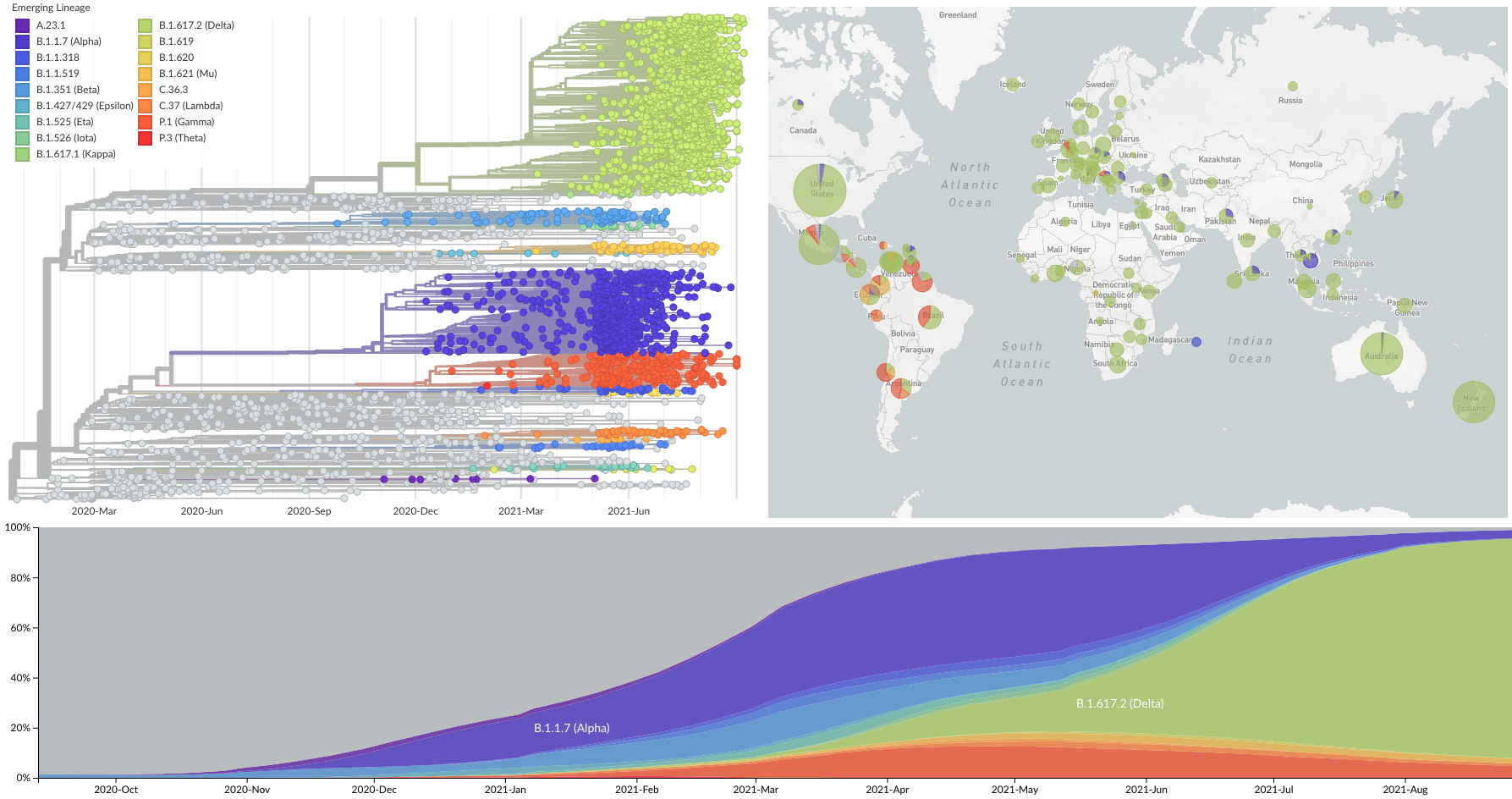

Spread of VOC / VOI lineages across the world

Delta is outcompeting other variants and is on track to sweep

Variants show excess mutations across the genome

But show most substantial excess in the S1 domain of spike

Assessing adaptive evolution

Rapid and parallel adaptive mutations in spike S1 drive clade success in SARS-CoV-2

Katie Kistler,   John Huddleston



Phylogeny of 10k genomes equitably sampled in space and time

Measure clade growth as a proxy for viral fitness

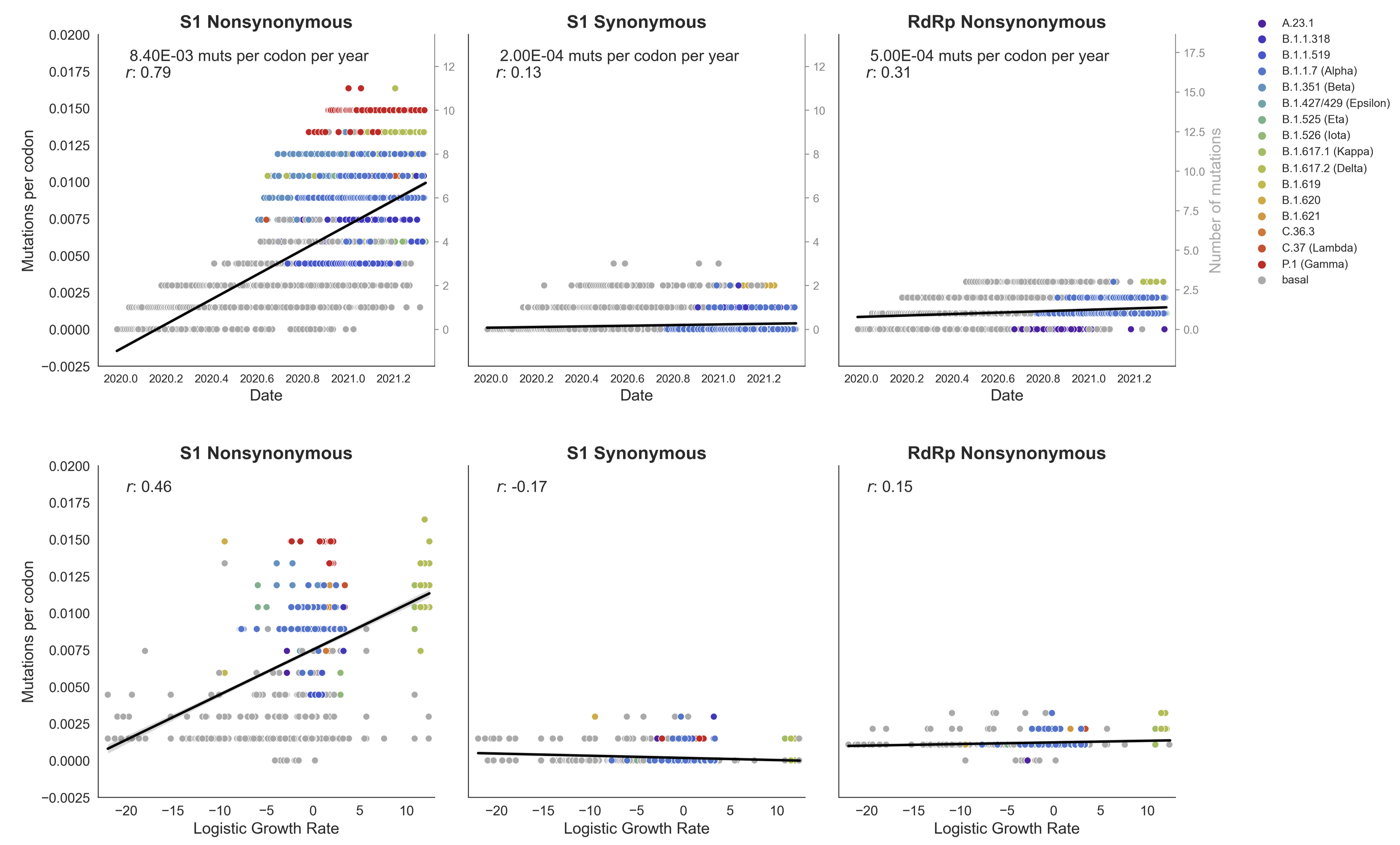

Clades with more S1 nonsynonymous mutations grow faster

This correlation is absent in control regions

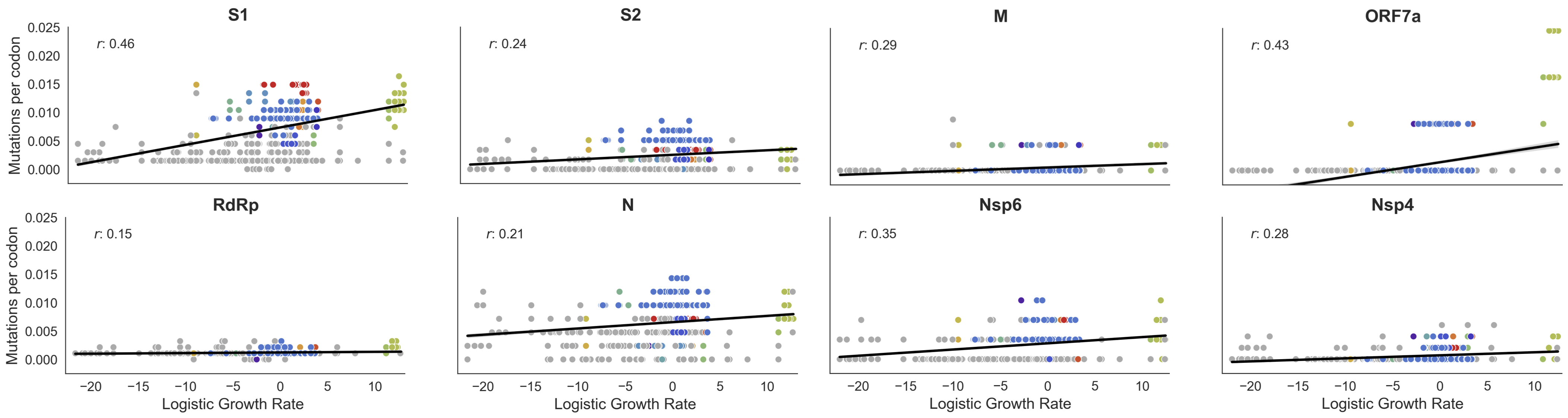

This correlation is stronger in S1 than other genes

S1 is quickly evolving and highly correlated with clade growth

dN/dS through time further highlights adaptive evolution

Rapid pace of adaptive evolution relative to H3N2 influenza

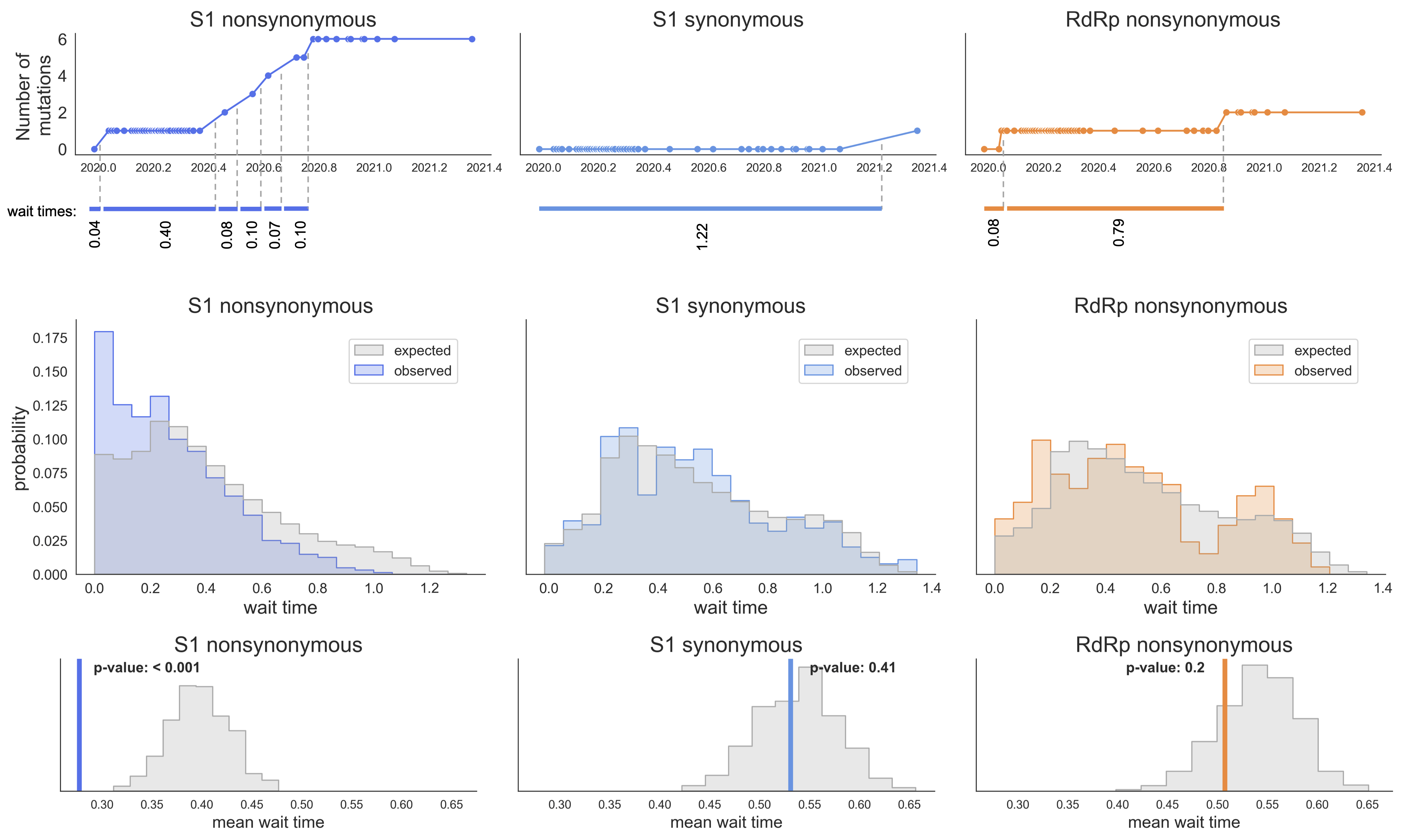

S1 mutations cluster phylogenetically, suggesting bursts of evolution

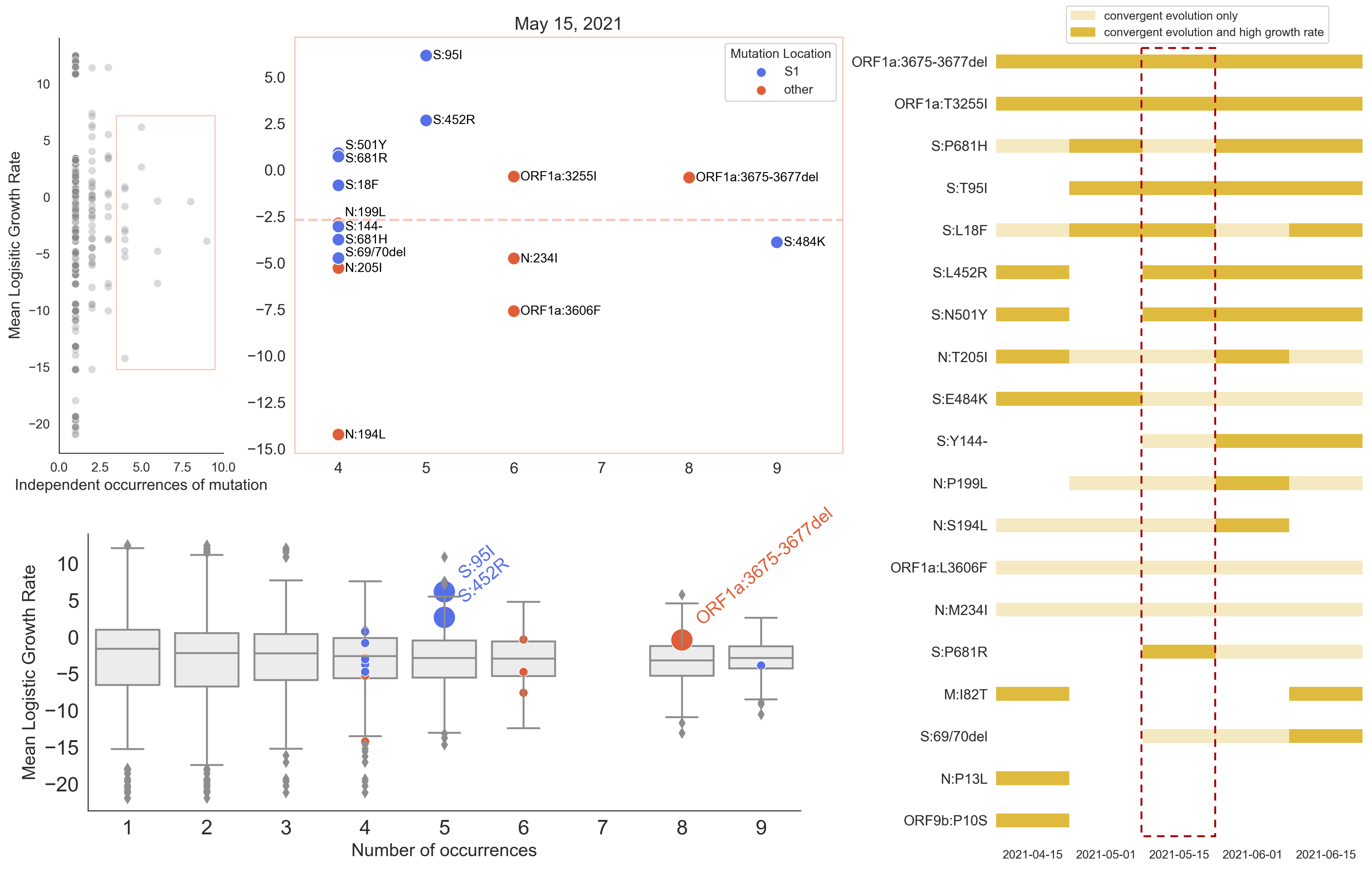

Many S1 mutations show strong convergent evolution

Mutations in S1 arising via within-host pressures result increase viral fitness and are enriched in the viral population by natural selection


Although selection has not been primarily for antigenic drift, observed level of adaptability suggests its potential

Variant transmission dynamics

Multiple approaches to modeling fitness differences between circulating variants

Multinomial logistic regression models work well on frequencies

However, frequency of a variant may rise while cases fall

SARS-CoV-2 variant dynamics across US states show consistent differences in transmission rates

Marlin Figgins



Estimation of variant-specific Rt through time using state-level data

State-level case counts are partitioned based on frequencies of sequenced cases

Figgins and Bedford. Unpublished.

Differences in intrinsic Rt across variants, but all trending downwards

Figgins and Bedford. Unpublished.

Consistent differences in variant-specific transmission rate across states

Figgins and Bedford. Unpublished.

Consistent reductions in variant-specific Rt from vaccination

Figgins and Bedford. Unpublished.

Future work would ideally tie together granular empirical estimates of viral fitness from frequency data together with mutational and phenotypic predictors to learn what is driving variant success

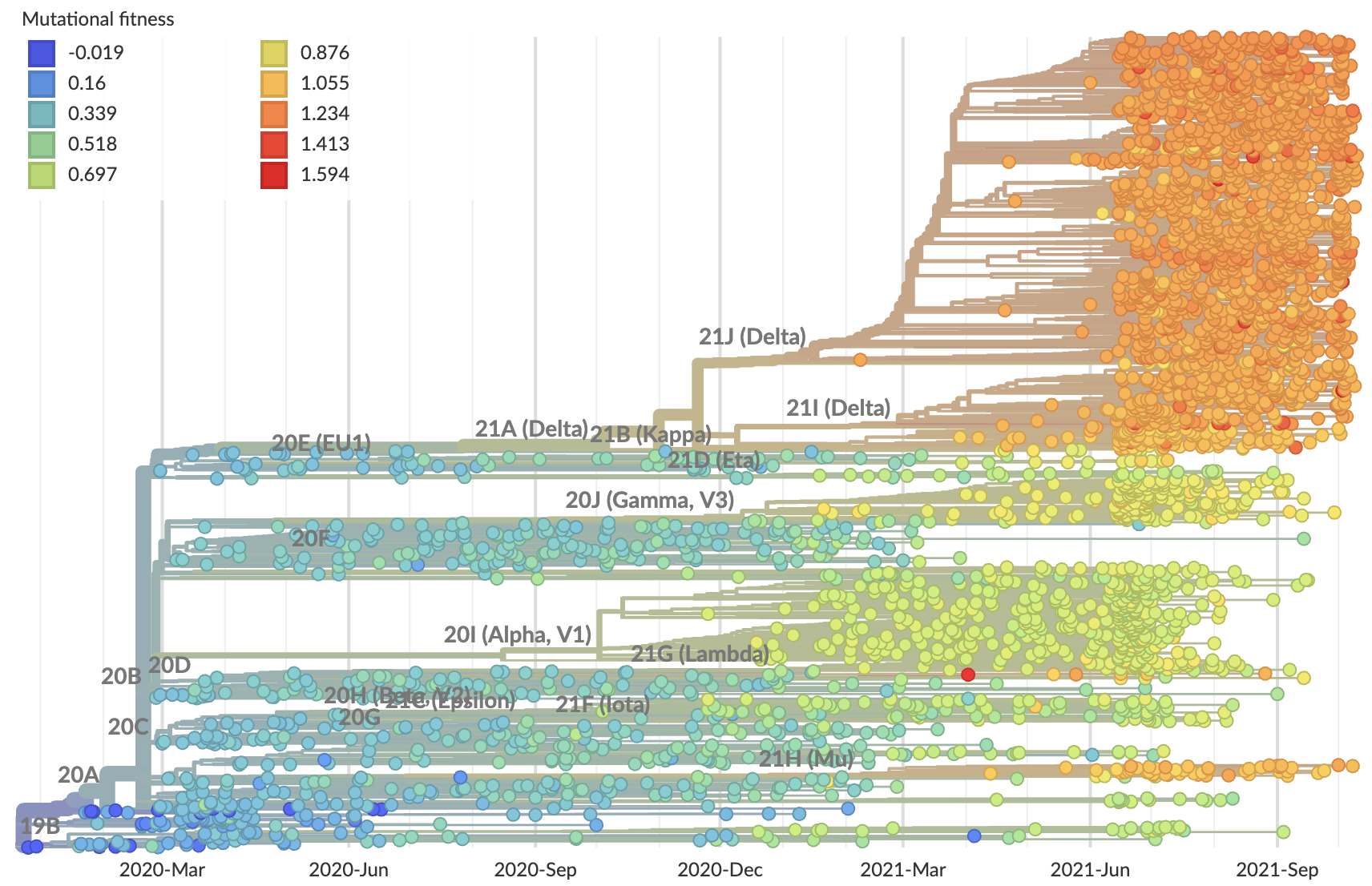

Model of additive effects of individual mutations shows little fitness variation within Delta

Mutations at spike 484 and 501 perhaps less fit on Delta background

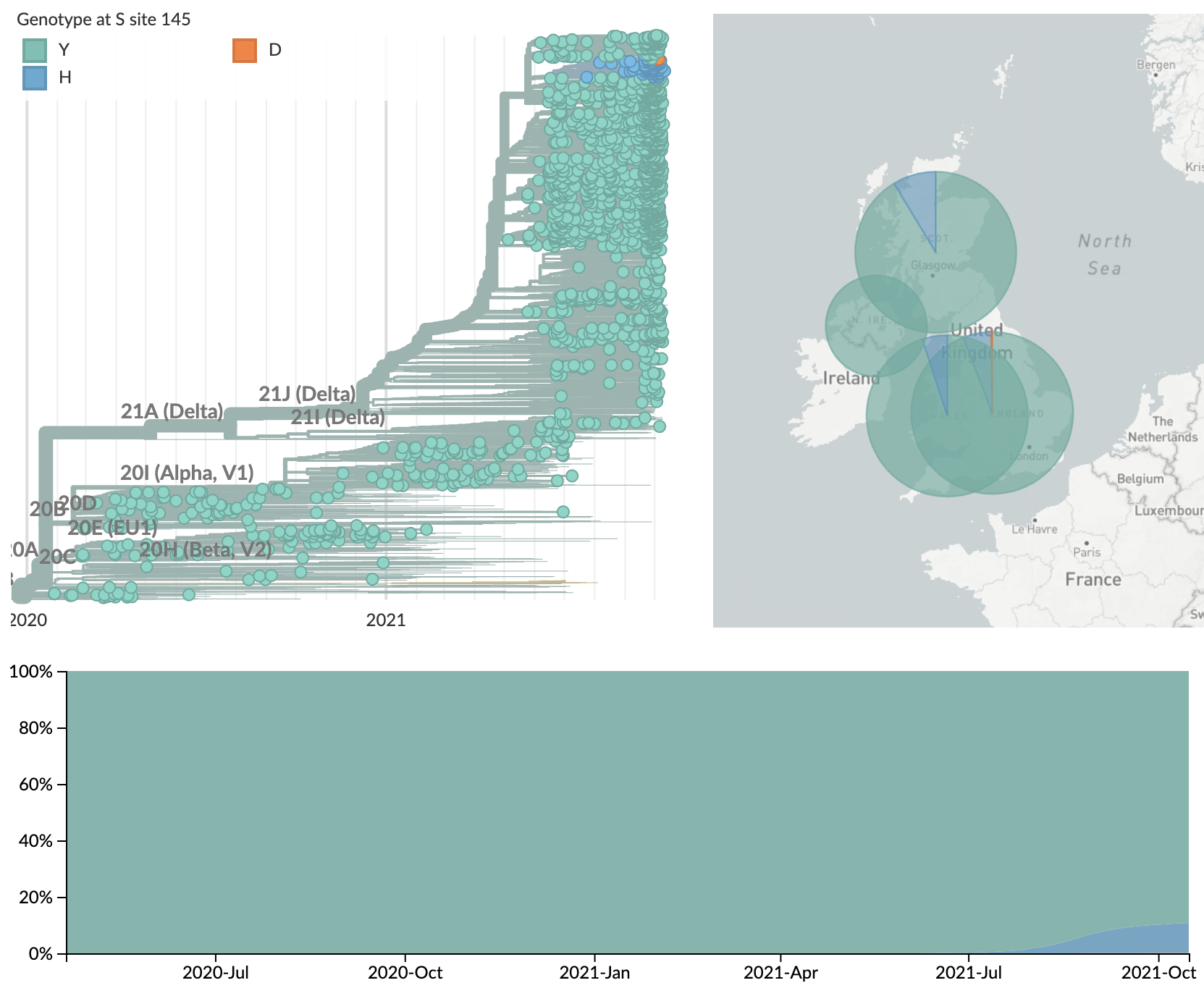

Locally emerging sublineages such as AY.4.2 with spike mutations 145H and 222V

Genomic surveillance

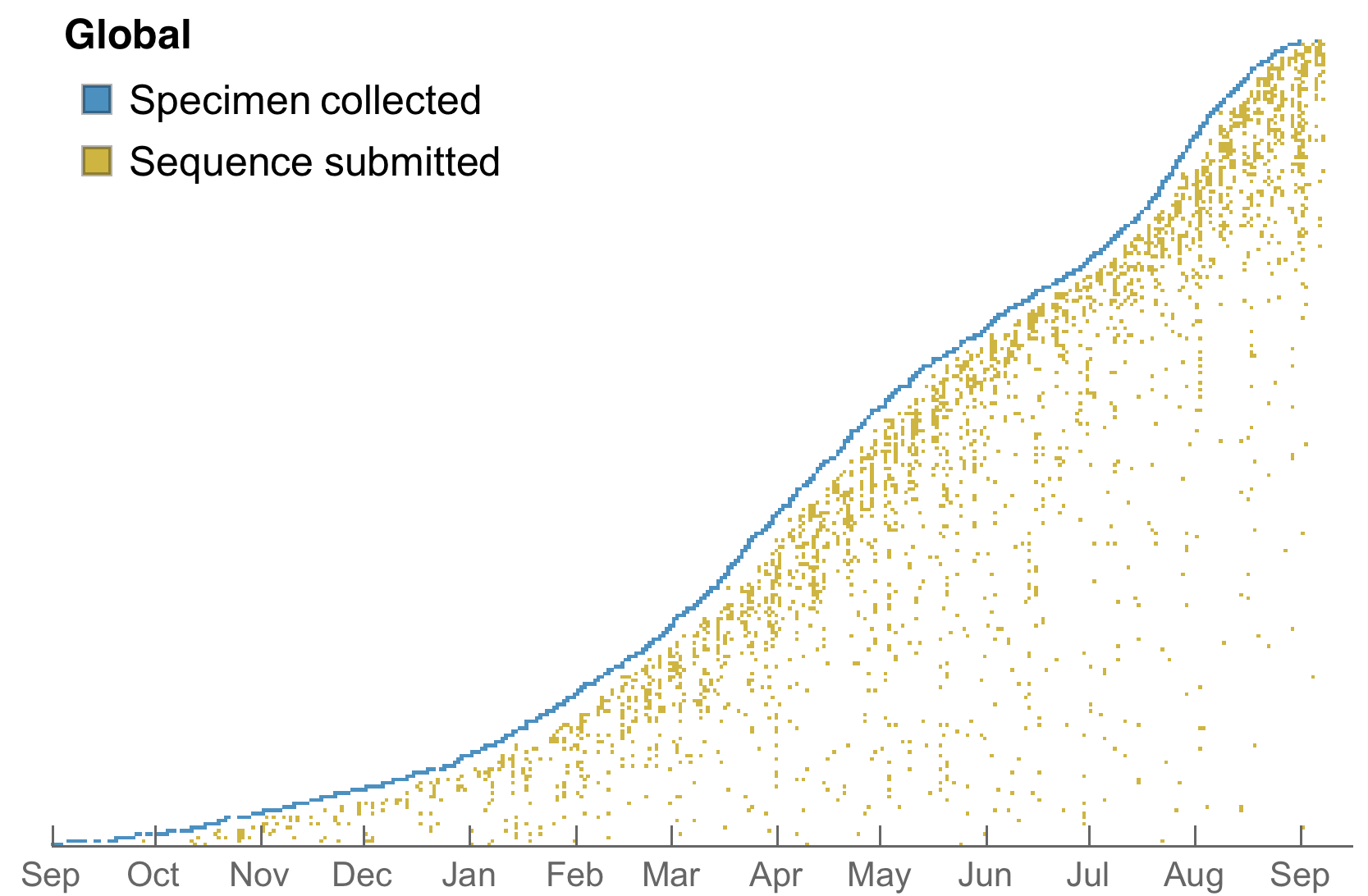

Sequences generated and shared at an unprecedented pace with 630k genomes shared in Aug 2021 alone

Data from gisaid.org

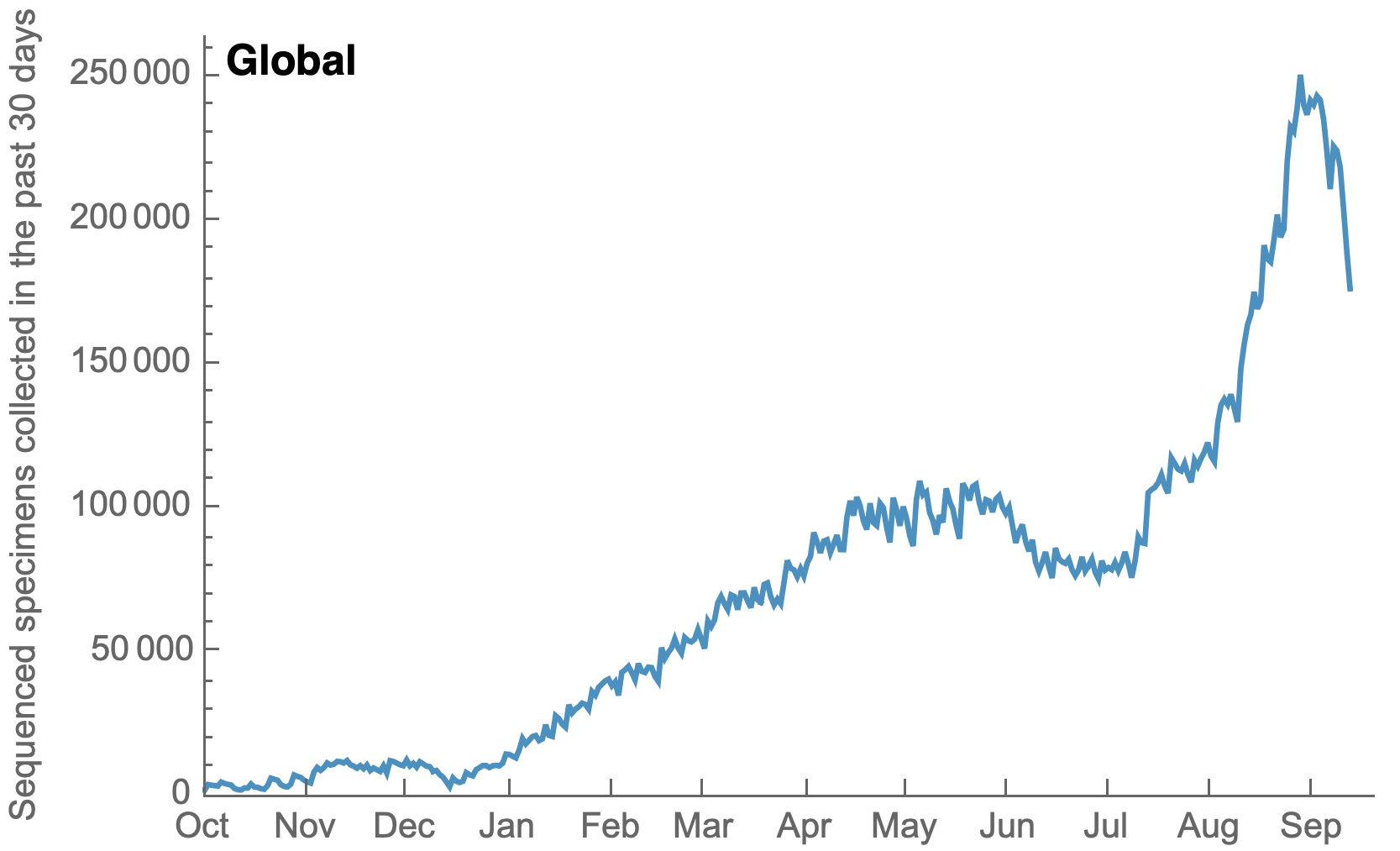

My favorite metric is number of sequences available from samples collected in the past 30 days

Data from gisaid.org

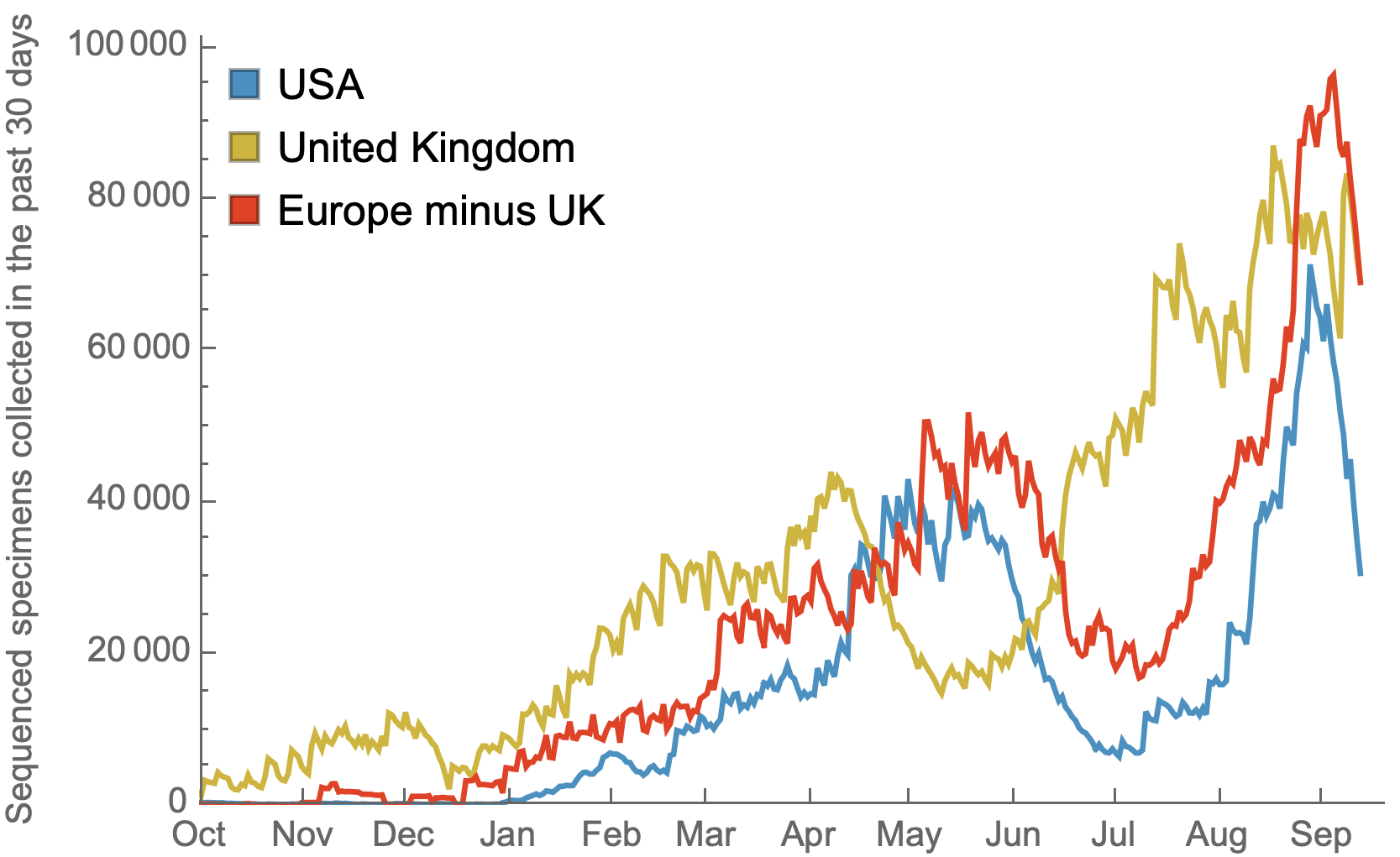

US, UK and Europe all have stunning genomic surveillance programs

Data from gisaid.org

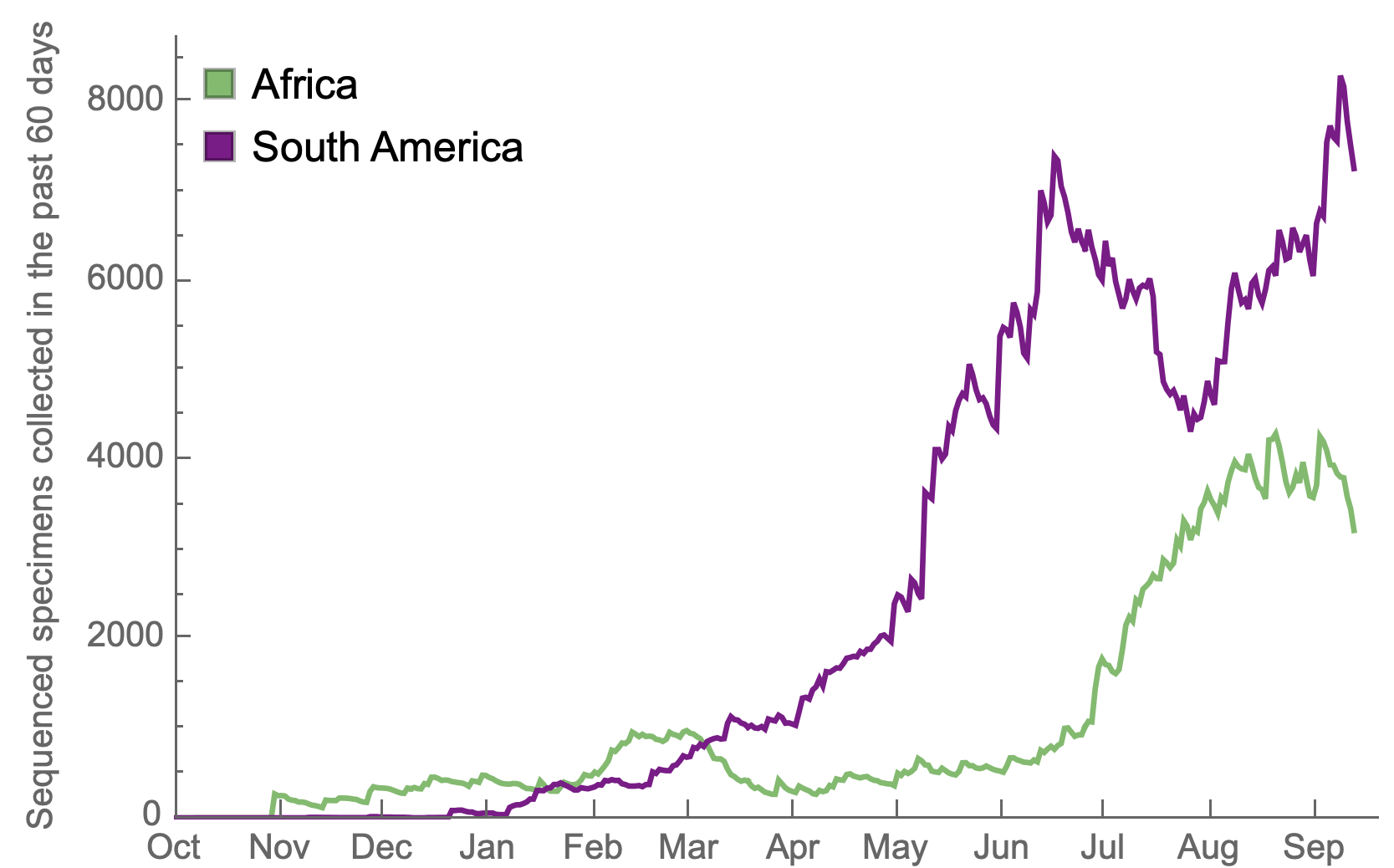

Africa and South America have picked up dramatically but there are still geographic gaps

Data from gisaid.org

Global genomic surveillance aimed at rapid turnaround times important to catch new variants early


In depth genomic surveillance tied to data systems allows investigation of variant severity, secondary attack rate, etc...

Future perspectives

Broad expectations based on comparison with flu

  1. R0 of Delta is perhaps ~5 compared to R0 of flu of ~2. At same rates of evolution and waning expect more COVID circulation.
  2. Rates of adaptive sequence evolution in SARS-CoV-2 have been about ~5X that of H3N2 flu. Expect this to slow down, but suggests that virus will be generally quite adaptable.
  3. IFR of COVID is roughly comparable to flu once you have prior immunity granting durable memory responses.

1, 2 and 3 suggest a virus that circulates like flu does at perhaps higher levels (given R0), but individual infections aren't much more severe in terms of mortality than H3N2 influenza. Expect perhaps 50-100K deaths in the US each year.

SARS-CoV-2 scientific (and prosaic) priorities

  1. Forecasting evolution and ensuring vaccine updates match circulating viruses
  2. Universal vaccine to engender broader immune response and/or to target more conserved epitopes
  3. Plentiful testing, contact tracing and a public health apparatus
  4. Treatments, ventilation, etc...

Acknowledgements

SARS-CoV-2 genomic epi: Data producers from all over the world, GISAID and the Nextstrain team

Bedford Lab: John Huddleston, James Hadfield, Katie Kistler, Louise Moncla, Maya Lewinsohn, Thomas Sibley, Jover Lee, Cassia Wagner, Miguel Paredes, Nicola Müller, Marlin Figgins, Eli Harkins, Denisse Sequeira
