Real-time tracking of virus evolution


Trevor Bedford (@trvrb)
20 Feb 2018
EPI 583 Seminar
University of Washington

This talk

We work at the interface of virology, evolution and epidemiology

Methods focus on sequencing to reconstruct pathogen spread

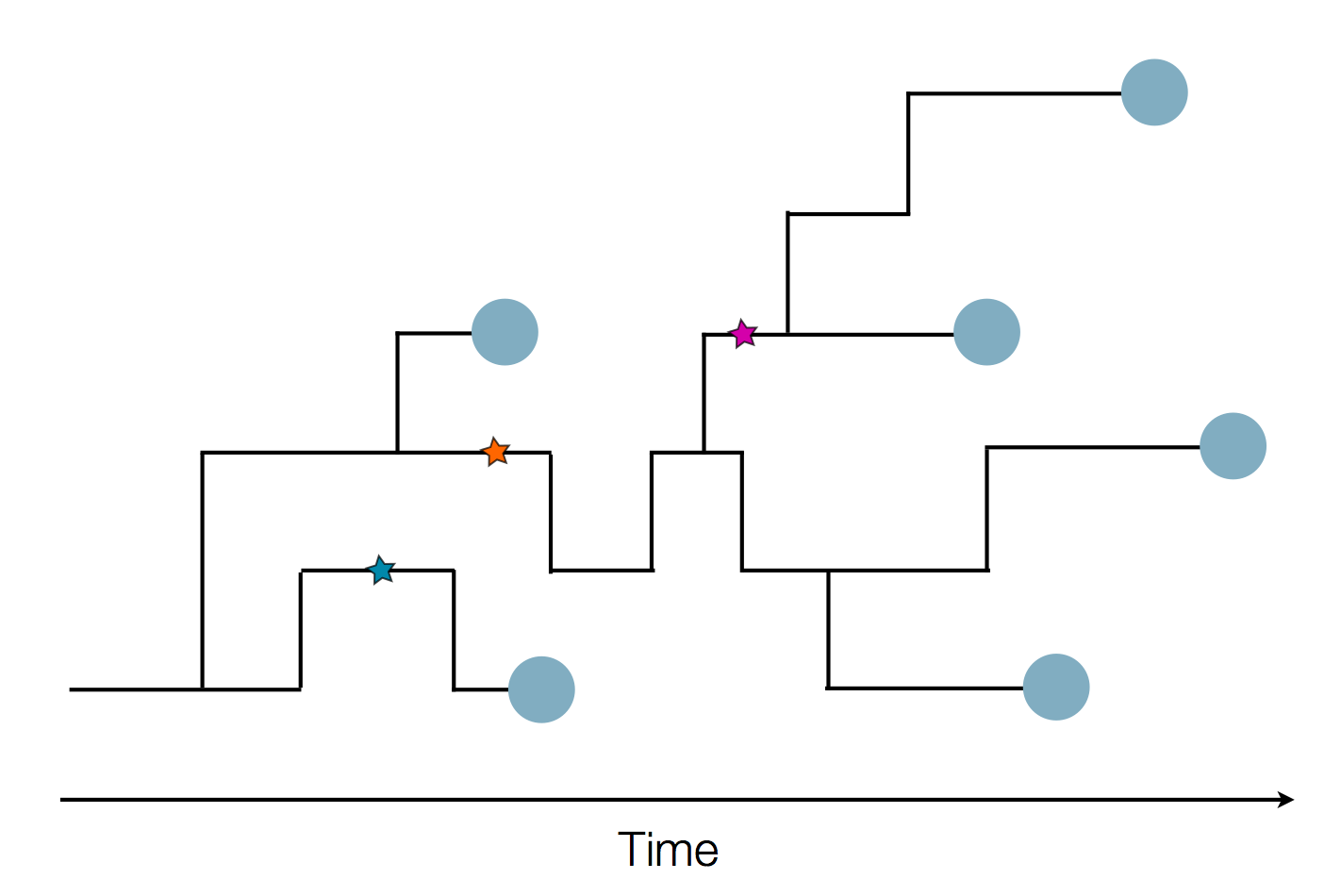

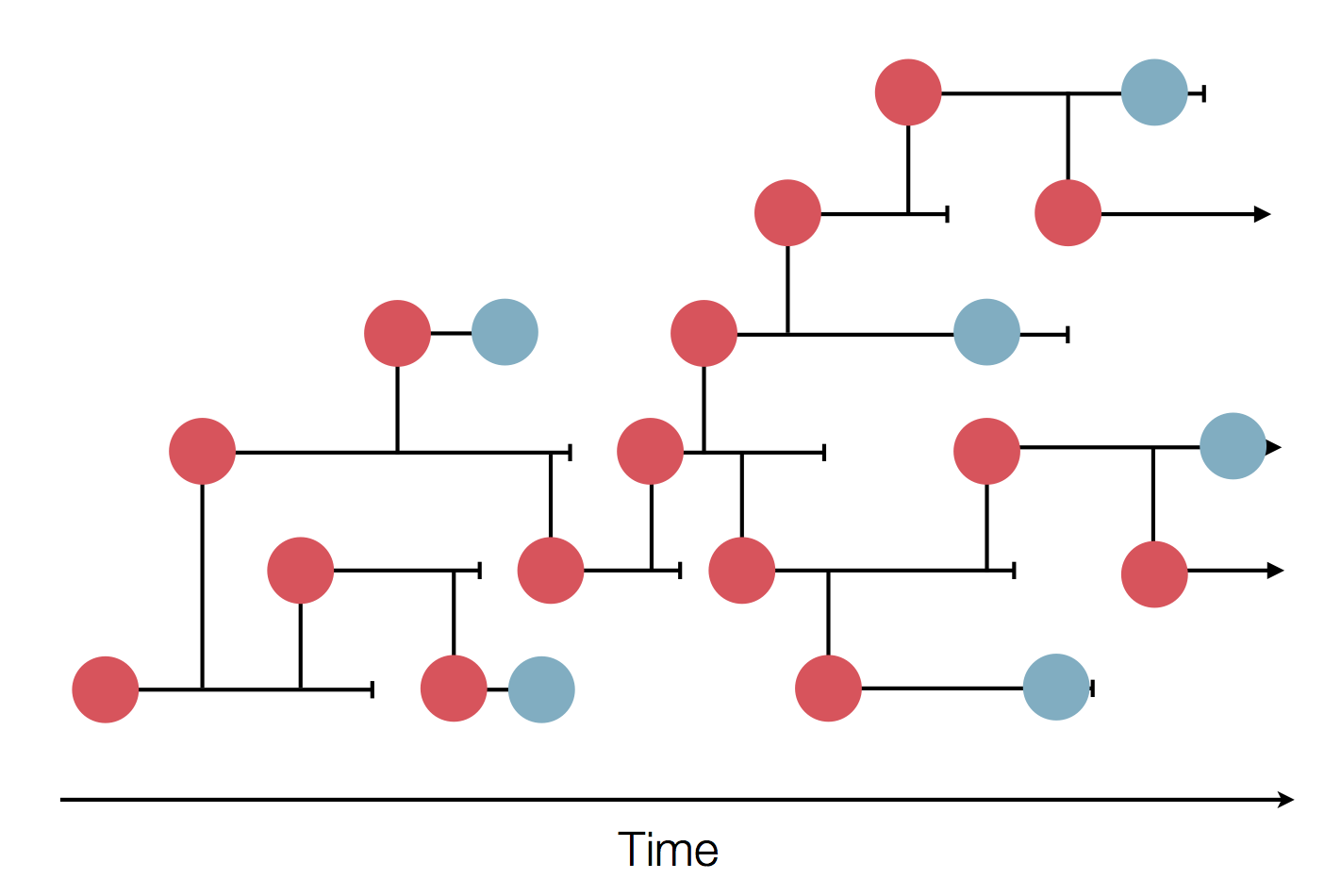

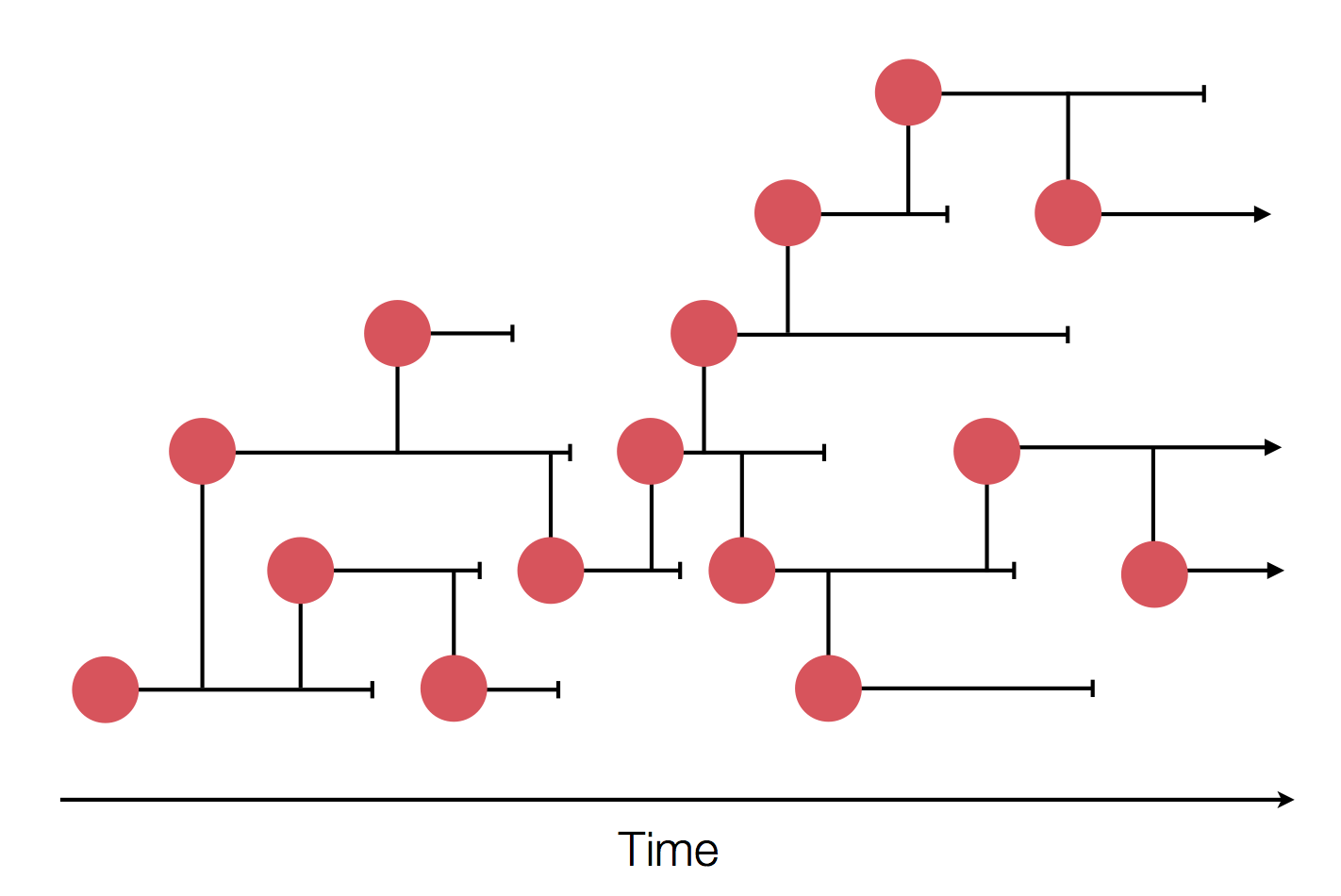

Epidemic process

Sample some individuals

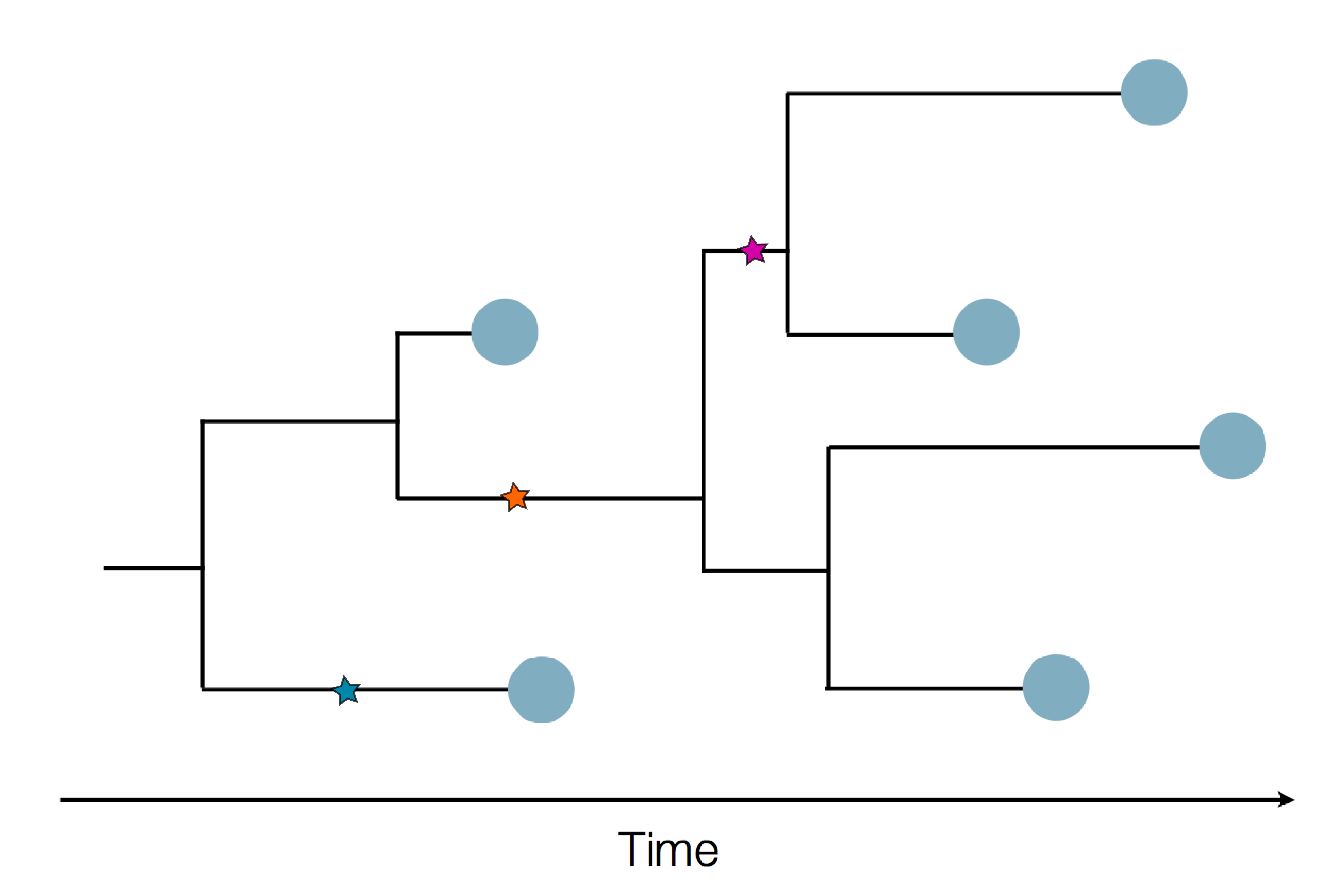

Sequence and determine phylogeny

Sequence and determine phylogeny

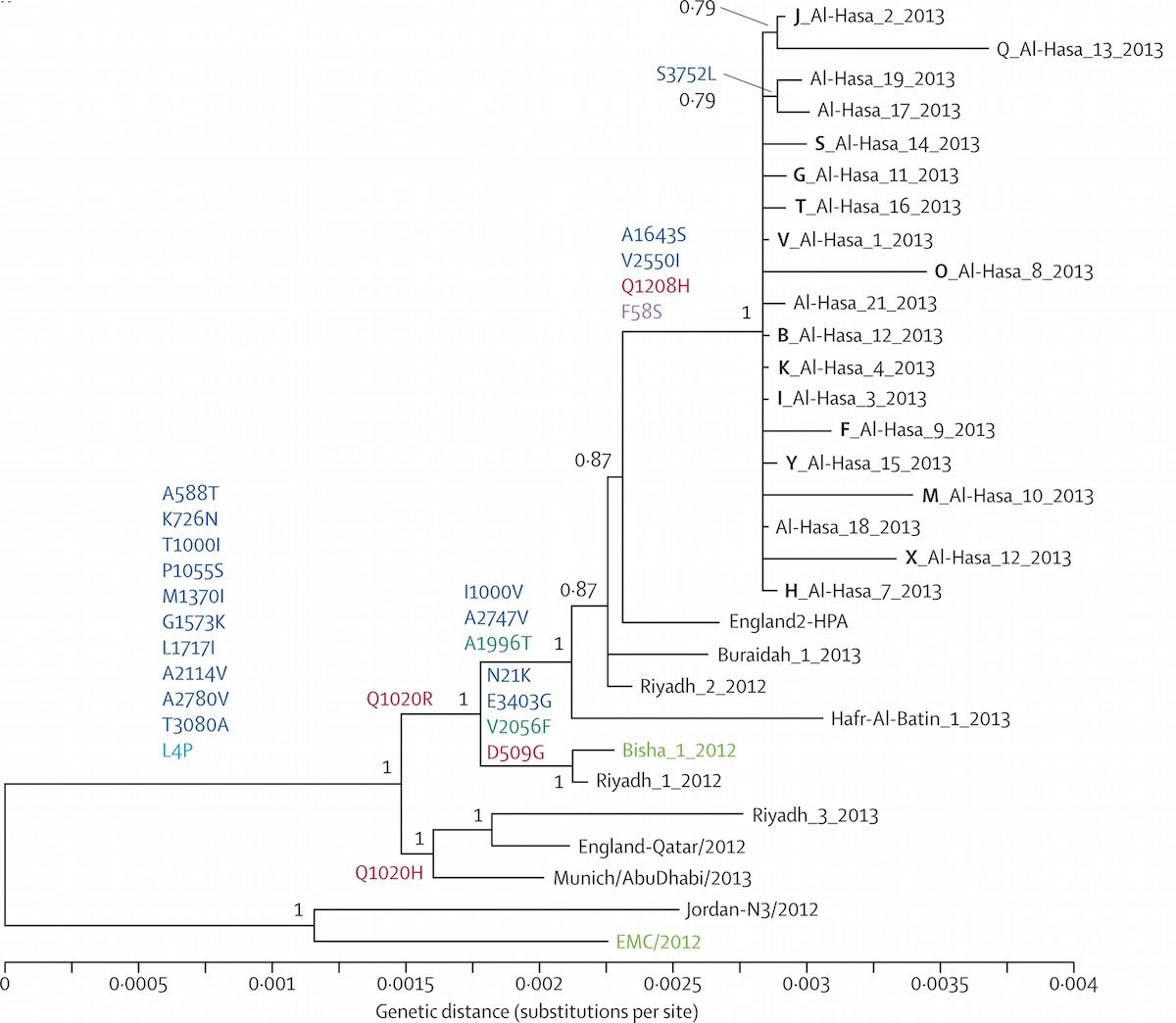

Localized Middle Eastern MERS-CoV phylogeny

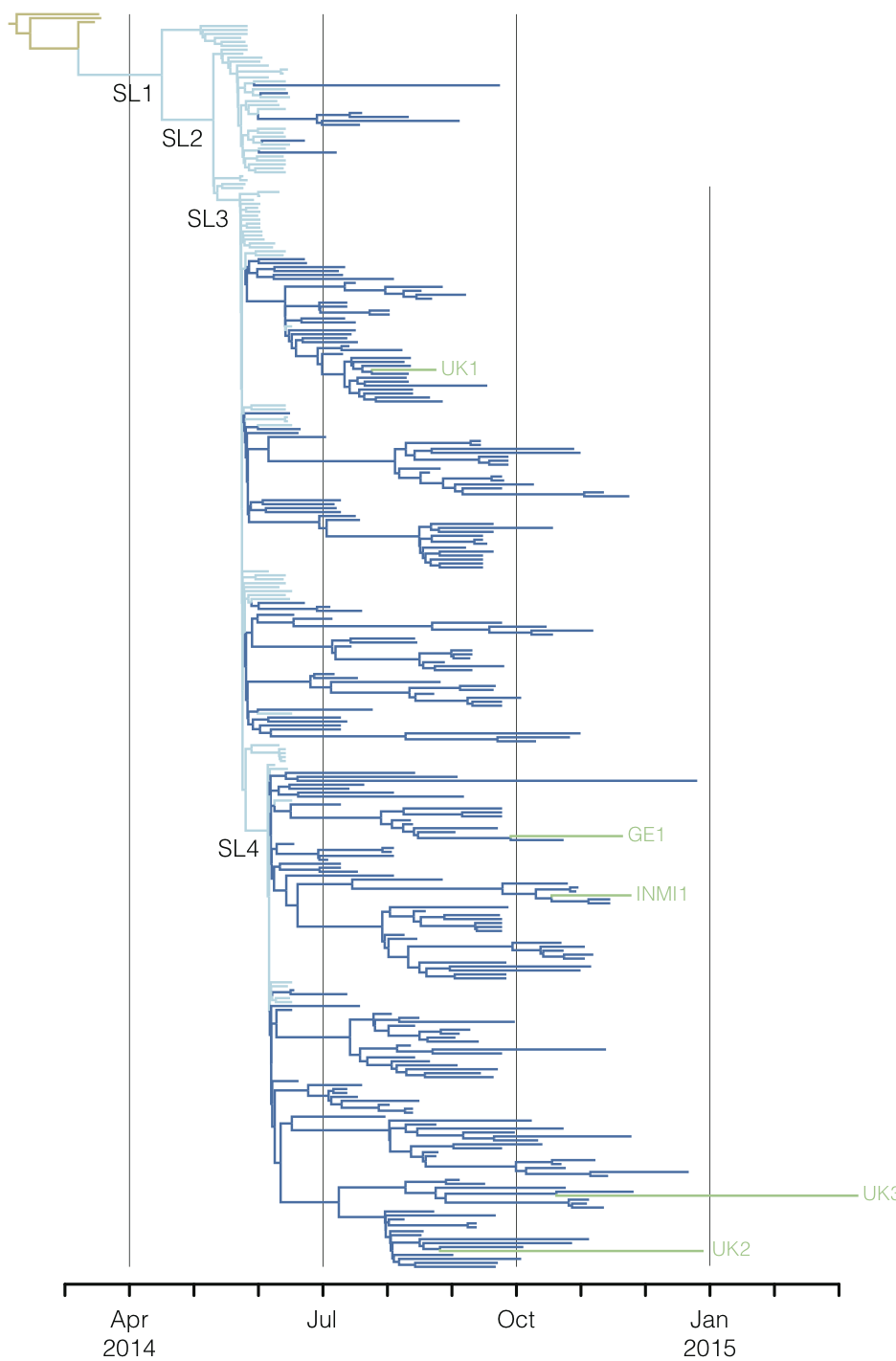

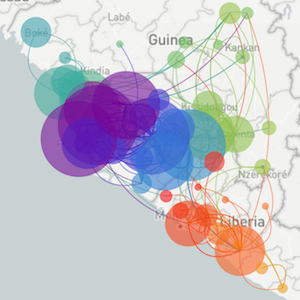

Regional West African Ebola phylogeny

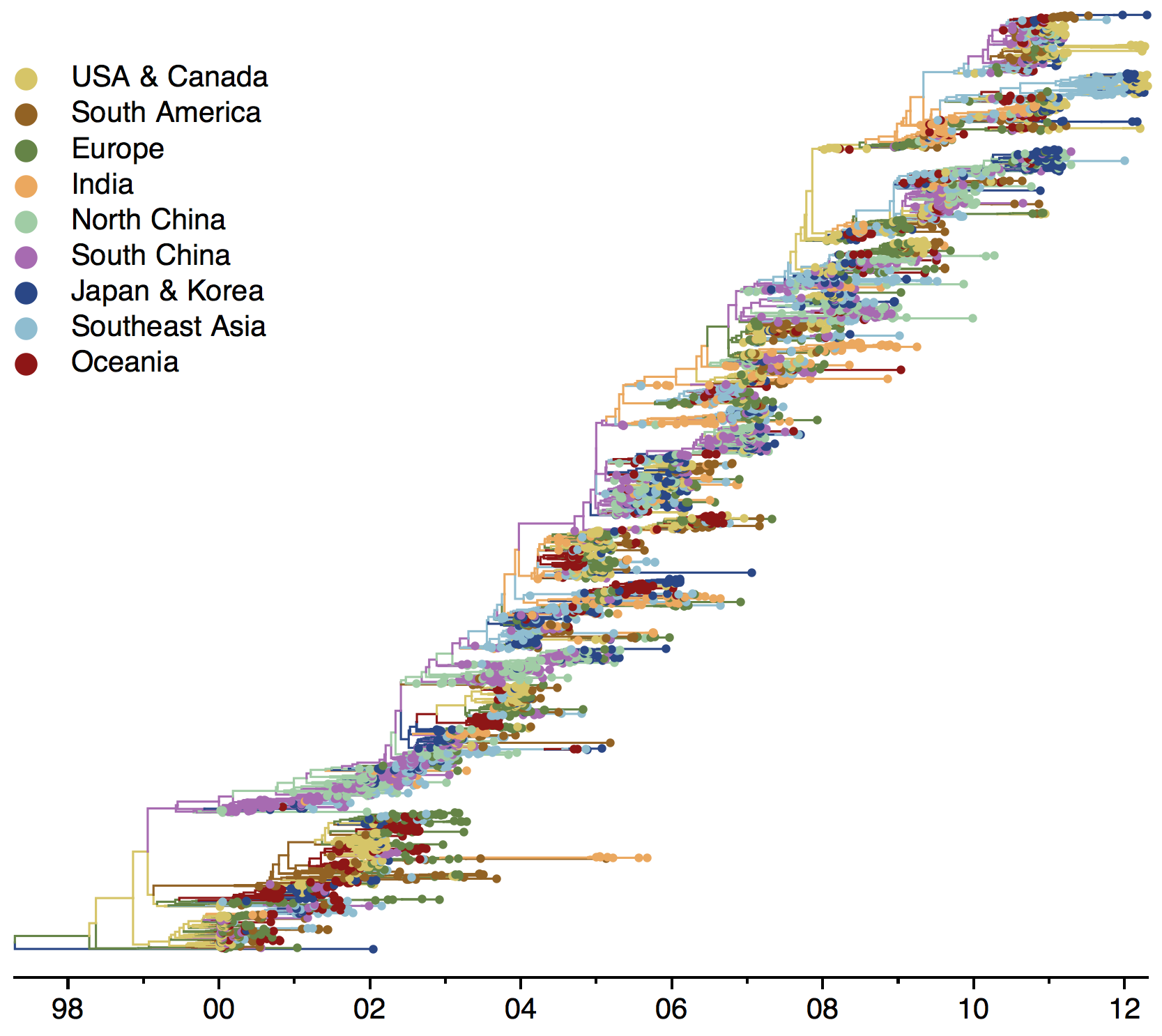

Global influenza phylogeny

Phylogenetic tracking has the capacity to revolutionize epidemiology

Outline

  • Influenza circulation and antigenic drift
  • Ebola spread in West Africa
  • Zika spread in the Americas
  • "Real-time" analyses

Influenza

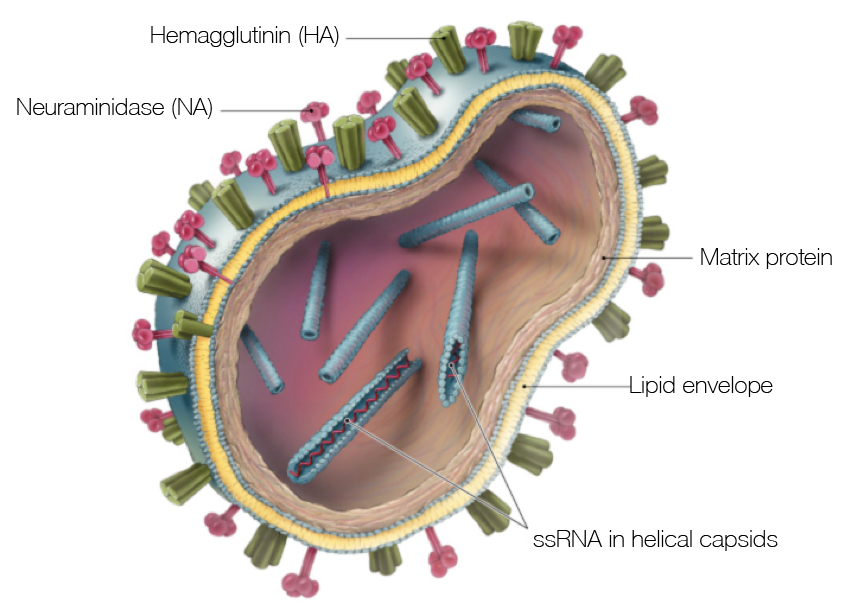

Influenza virion

Population turnover (in H3N2) is extremely rapid

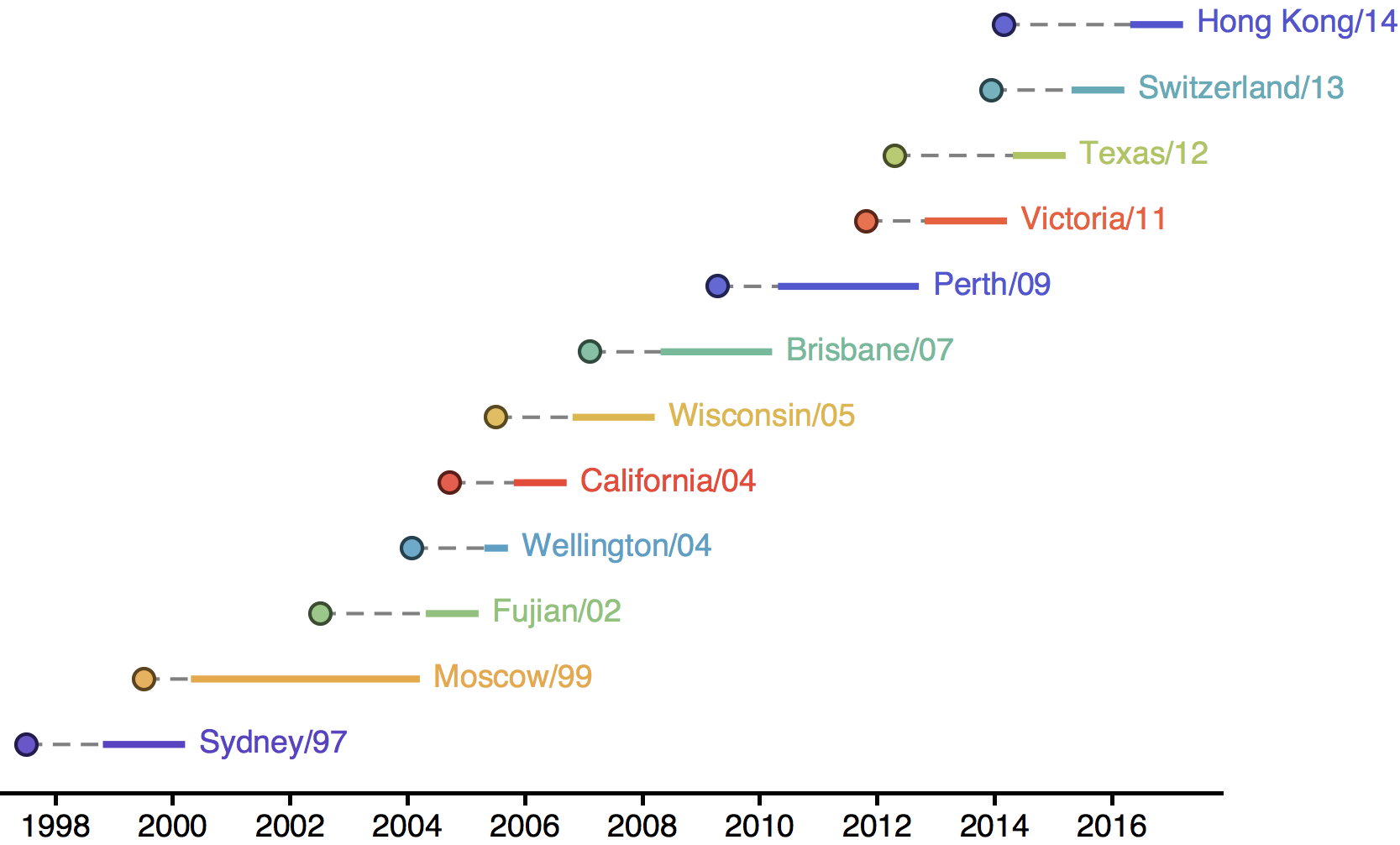

Antigenic drift necessitates frequent H3N2 vaccine updates

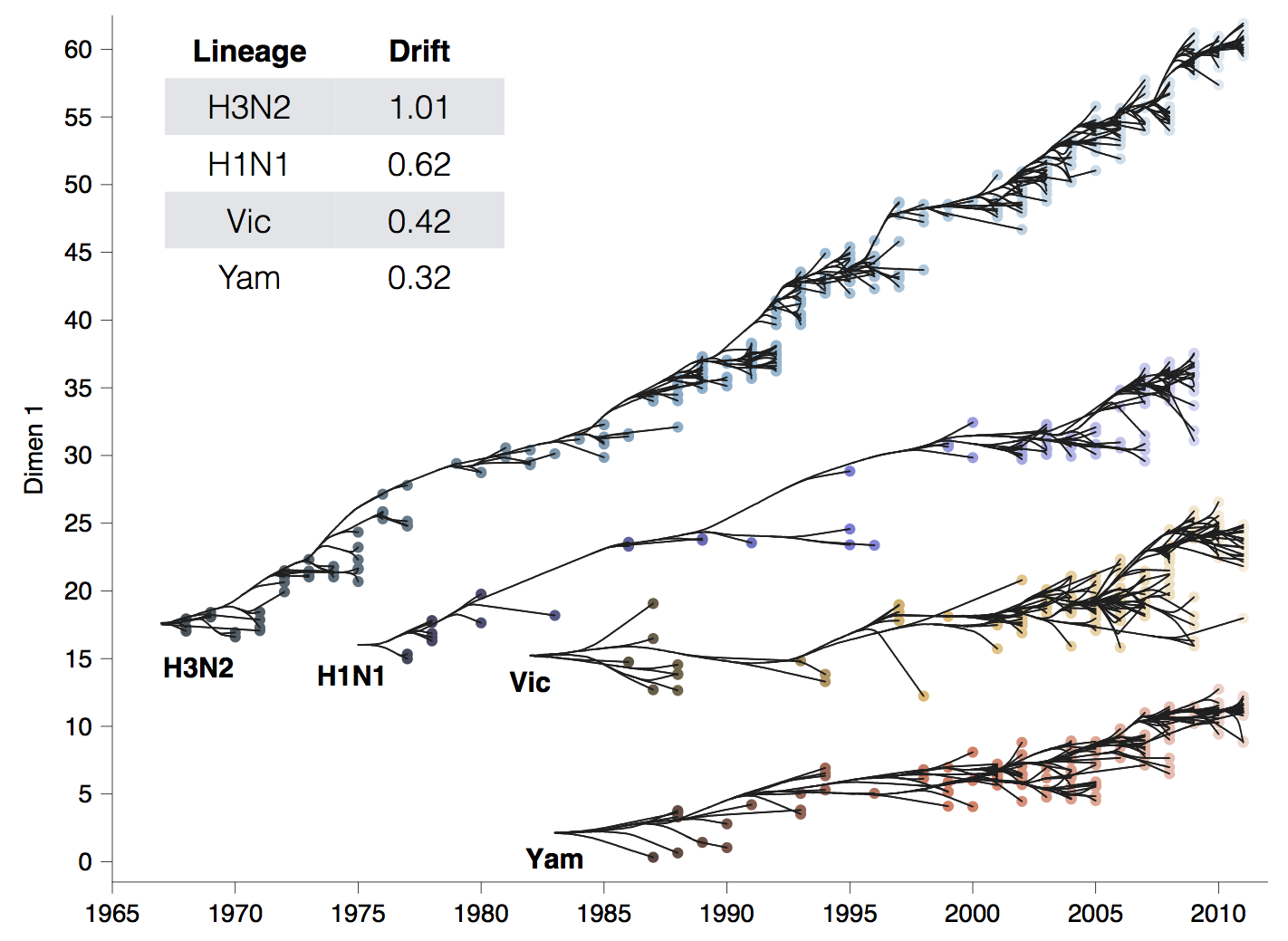

Integrating influenza antigenic dynamics with molecular evolution

with Andrew Rambaut, Marc Suchard, Philippe Lemey and others

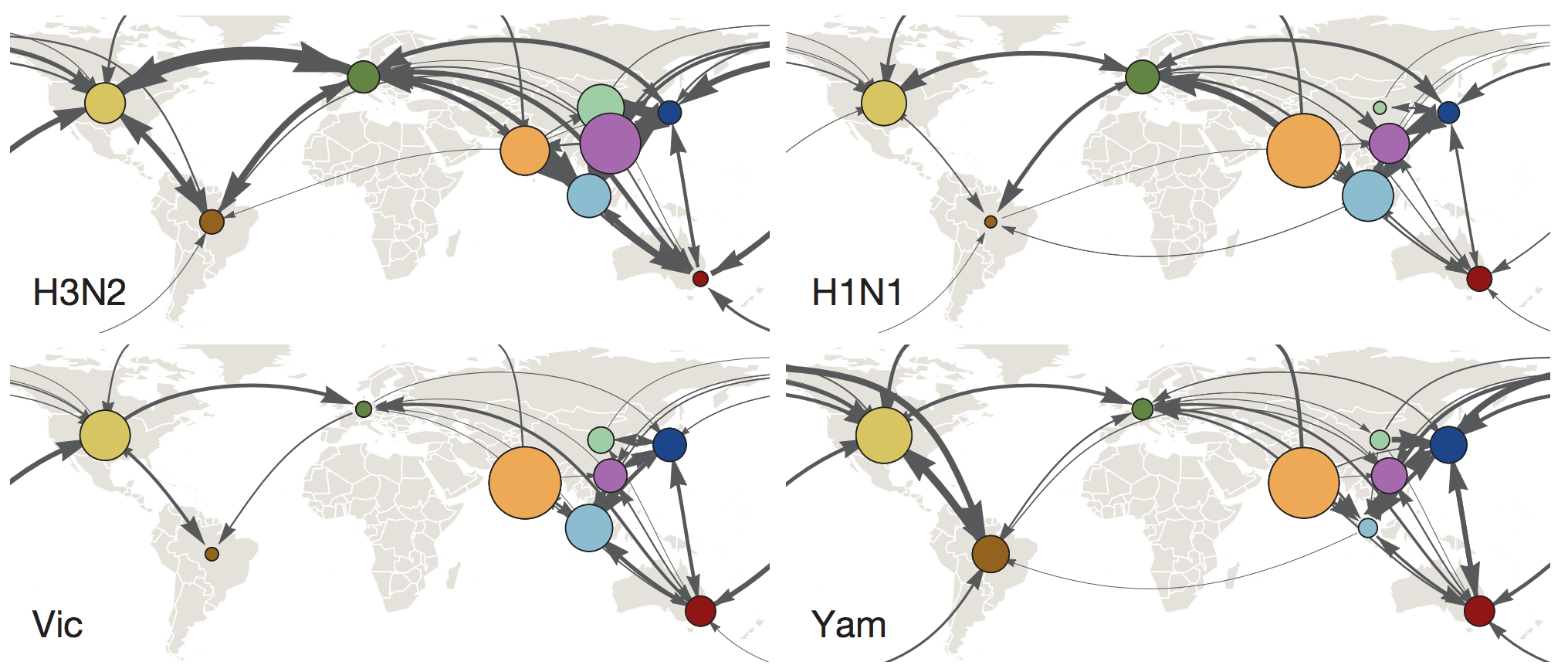

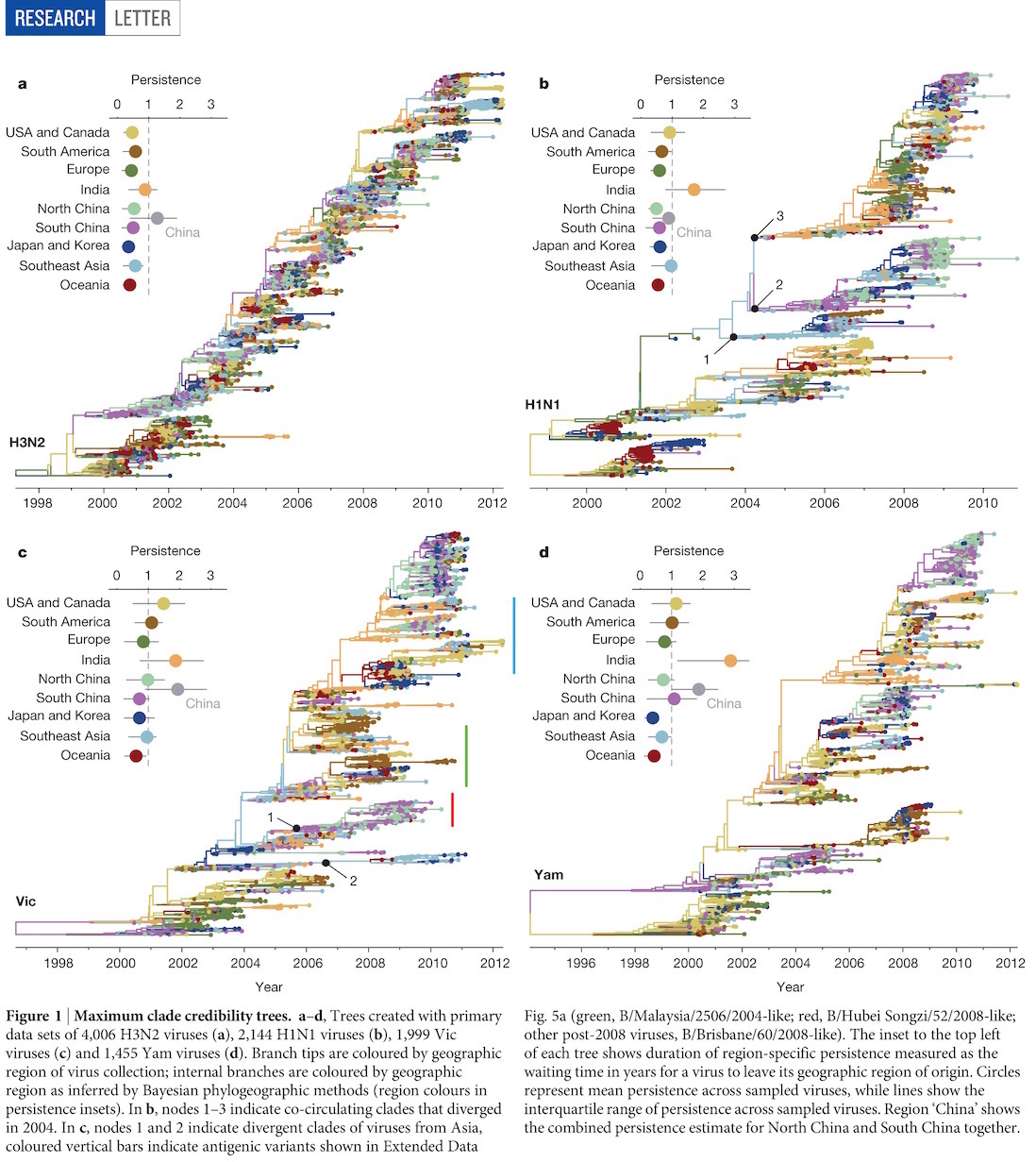

Global circulation patterns of seasonal influenza viruses vary with rates of antigenic drift

with Colin Russell, Philippe Lemey, Steven Riley and many others

Scientific publishing practices vs
a fast evolving virus

Vaccine strain selection timeline

nextflu

Project to provide a real-time view of the evolving influenza population

nextflu

Project to provide a real-time view of the evolving influenza population

All in collaboration with Richard Neher

nextflu pipeline

  1. Download all recent HA sequences from GISAID
  2. Filter to remove outliers
  3. Subsample across time and space
  4. Align sequences
  5. Build tree
  6. Estimate clade frequencies
  7. Infer antigenic phenotypes
  8. Export for visualization

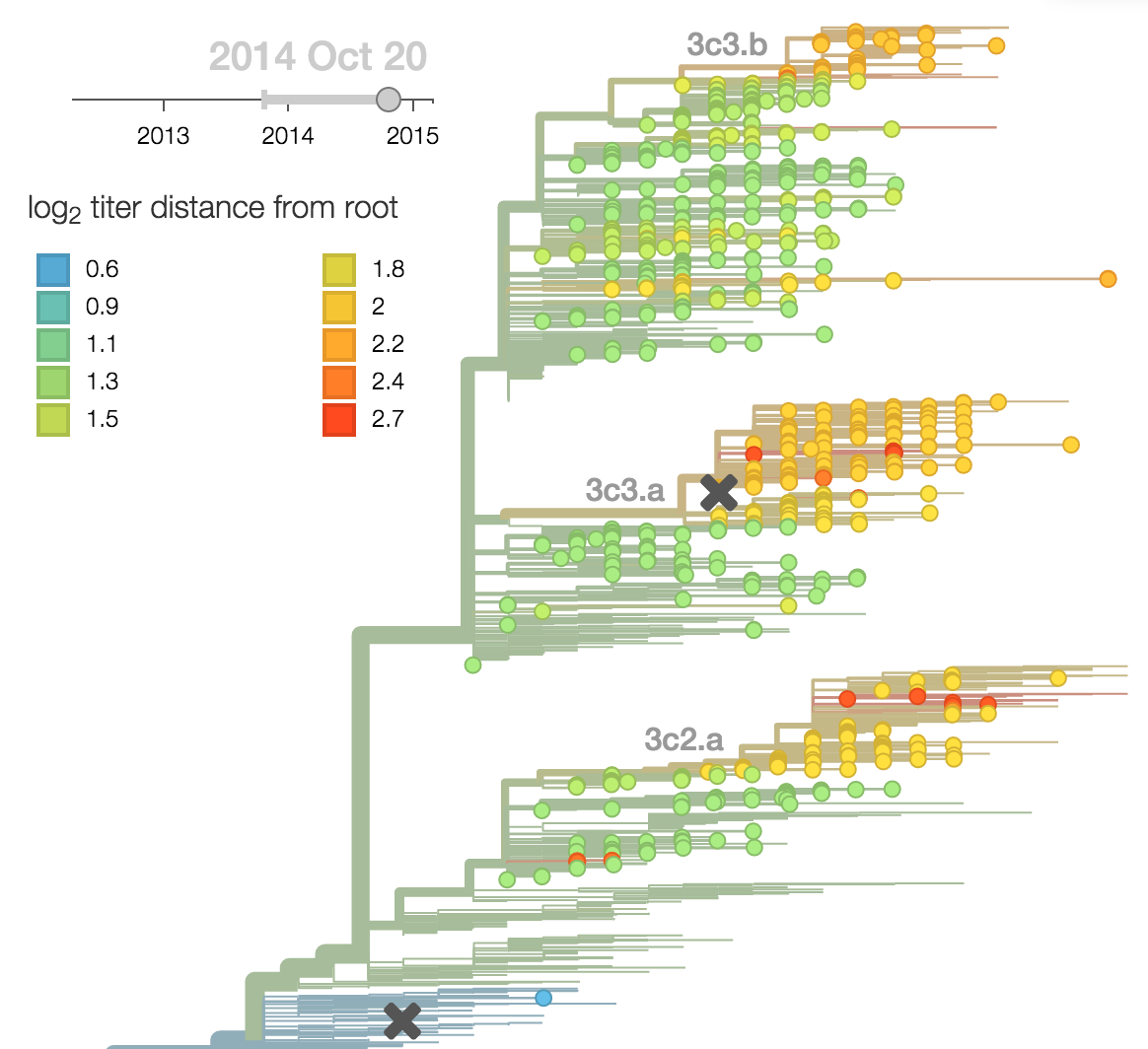

Phenotypic assay data used to directly infer titer drops on the phylogeny

Antigenic drift drives population turnover

Antigenic drift drives population turnover

nextflu.org

Forecasting

"The future is here, it's just not evenly distributed yet"
— William Gibson

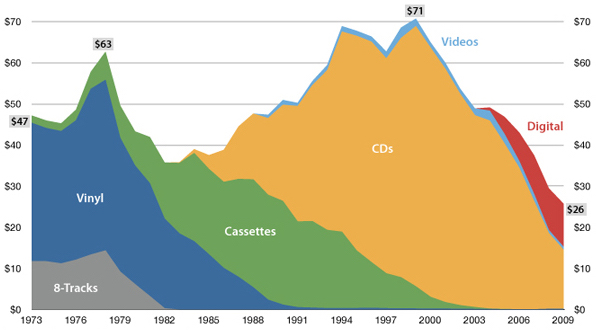

USA music industry, 2011 dollars per capita

Influenza population turnover

Vaccine strain selection timeline

Seek to explain change in clade frequencies over 1 year

Fitness models can project clade frequencies


Clade frequencies $X$ derive from the fitnesses $f$ and frequencies $x$ of constituent viruses, such that

$$\hat{X}_v(t+\Delta t) = \sum_{i:v} x_i(t) \, \mathrm{exp}(f_i \, \Delta t)$$

This captures clonal interference between competing lineages

The question of forecasting becomes: how do we accurately estimate fitnesses of circulating viruses?

Fortunately, there's lots of training data and previously successful strains have had:


  1. Amino acid changes at epitope sites
  2. Antigenic novelty based on HI
  3. Rapid phylogenetic growth

Predictor: calculate HI drop from ancestor,
drifted clades have high fitness

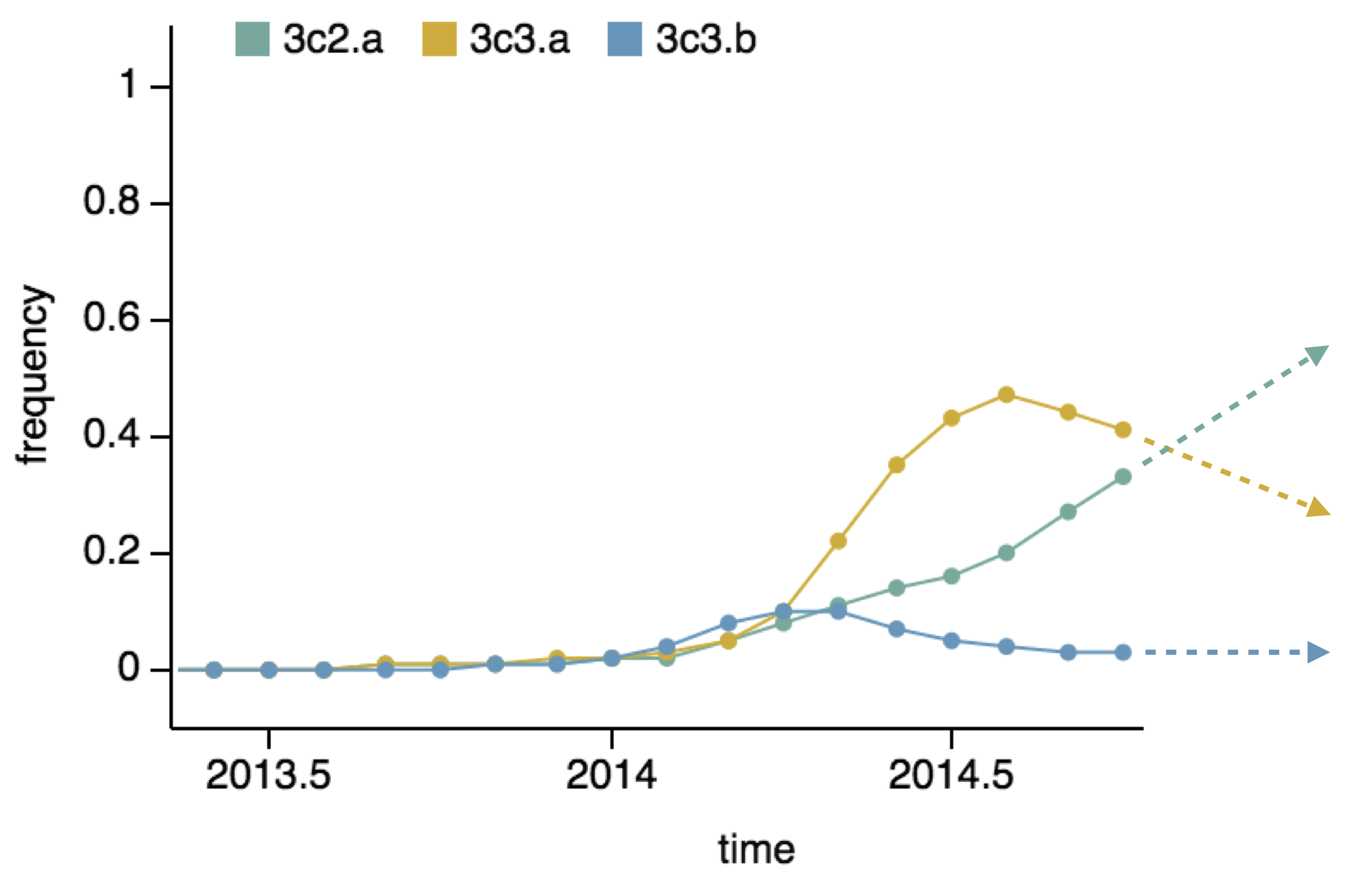

Predictor: project frequencies forward,
growing clades have high fitness

We predict fitness based on a simple formula


where the fitness $f$ of virus $i$ is estimated as

$$\hat{f}_i = \beta^\mathrm{HI} \, f_i^\mathrm{HI} + \beta^\mathrm{freq} \, f_i^\mathrm{freq}$$

where $f_i^\mathrm{HI}$ measures antigenic drift via HI and $f_i^\mathrm{freq}$ measures clade growth/decline

We learn coefficients and validate model based on previous 15 H3N2 seasons

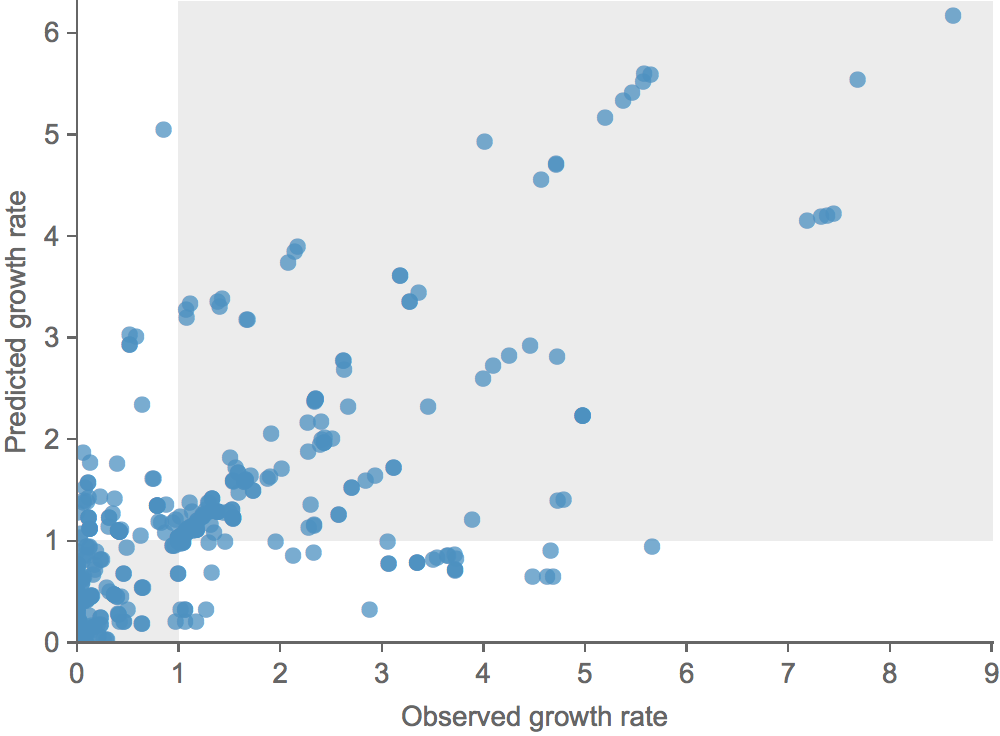

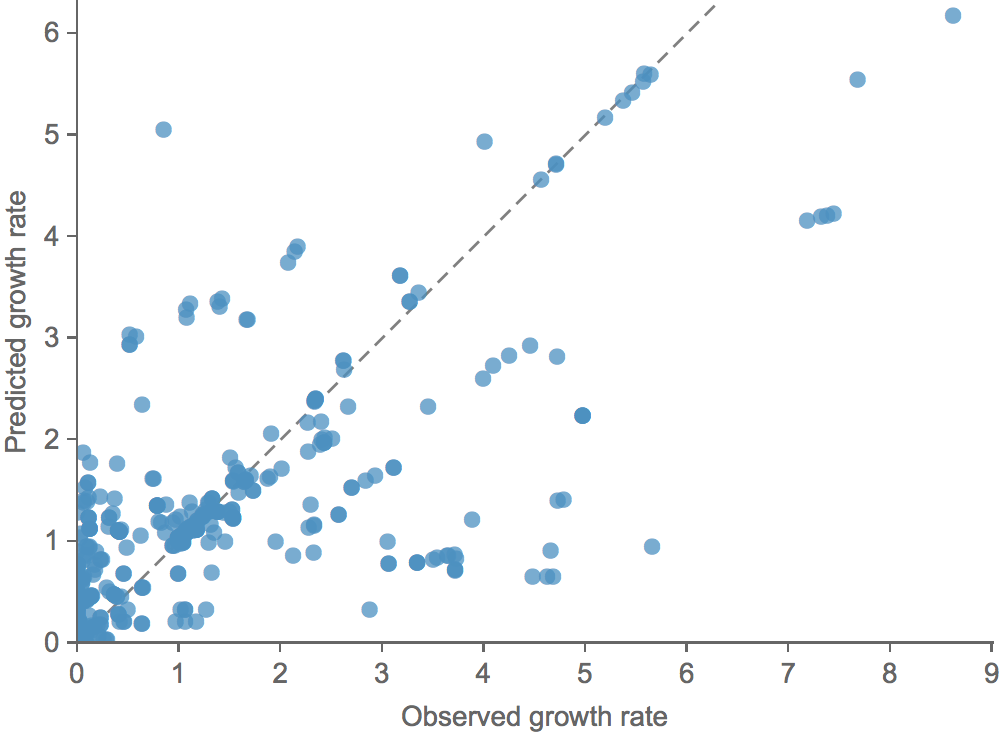

Clade growth rate is well predicted (ρ = 0.66)

Growth vs decline correct in 84% of cases

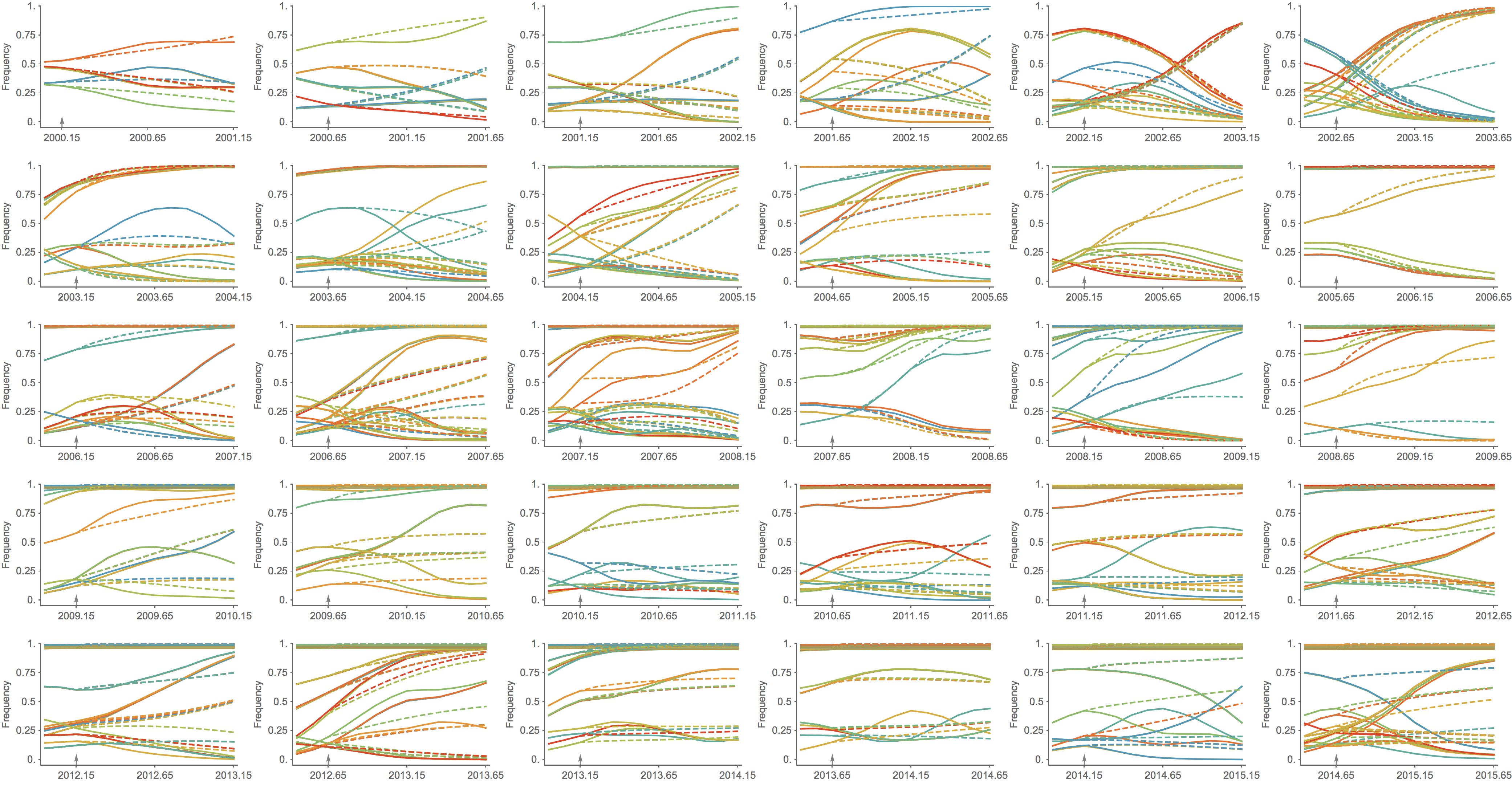

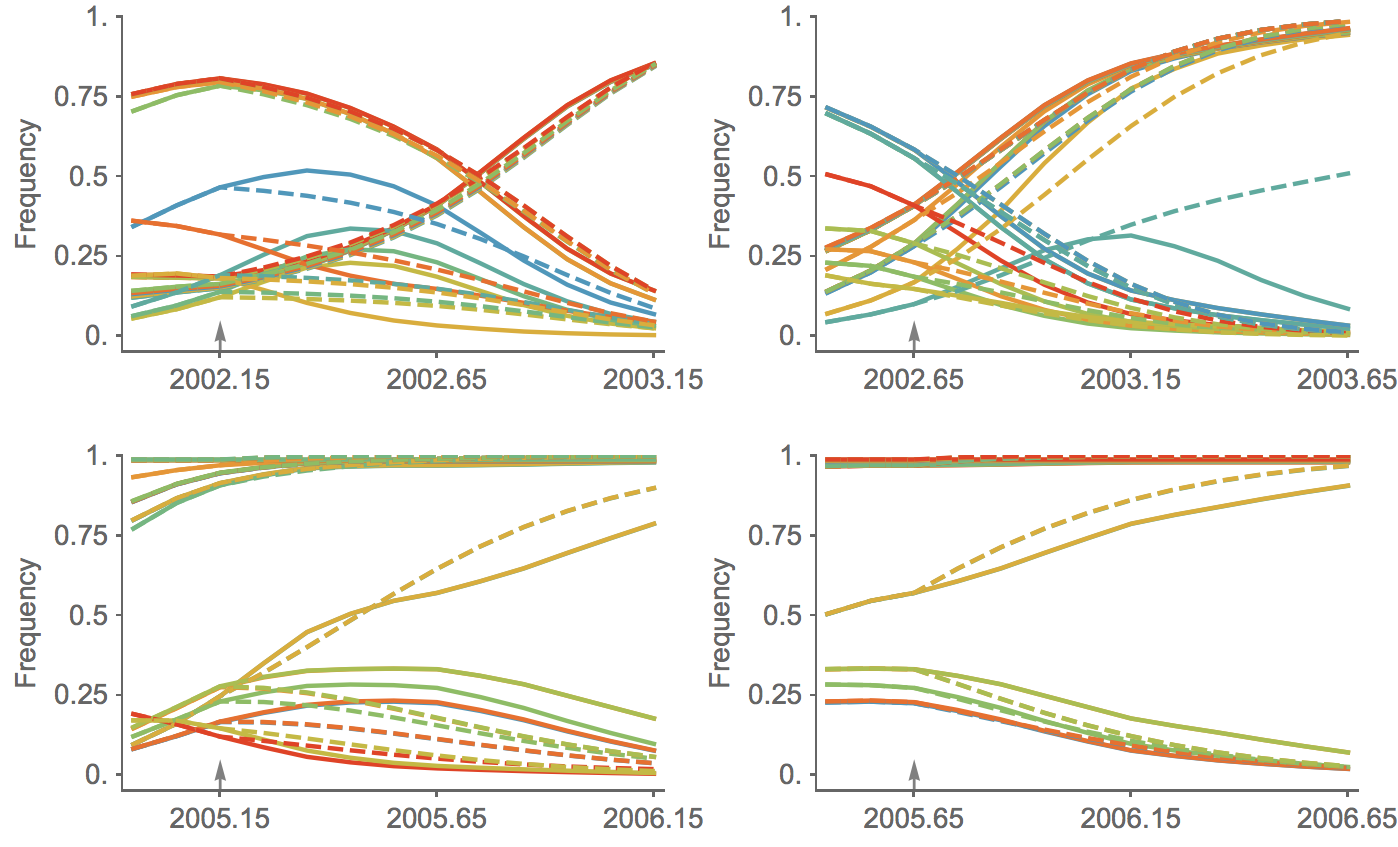

Trajectories show more detailed congruence

Trajectories show more detailed congruence

Working directly with CDC to provide analytics and the WHO to provide technical reports

Ebola

Virus genomes reveal factors that spread and sustained the Ebola epidemic

with Gytis Dudas, Andrew Rambaut, Luiz Carvalho, Marc Suchard, Philippe Lemey,
and many others

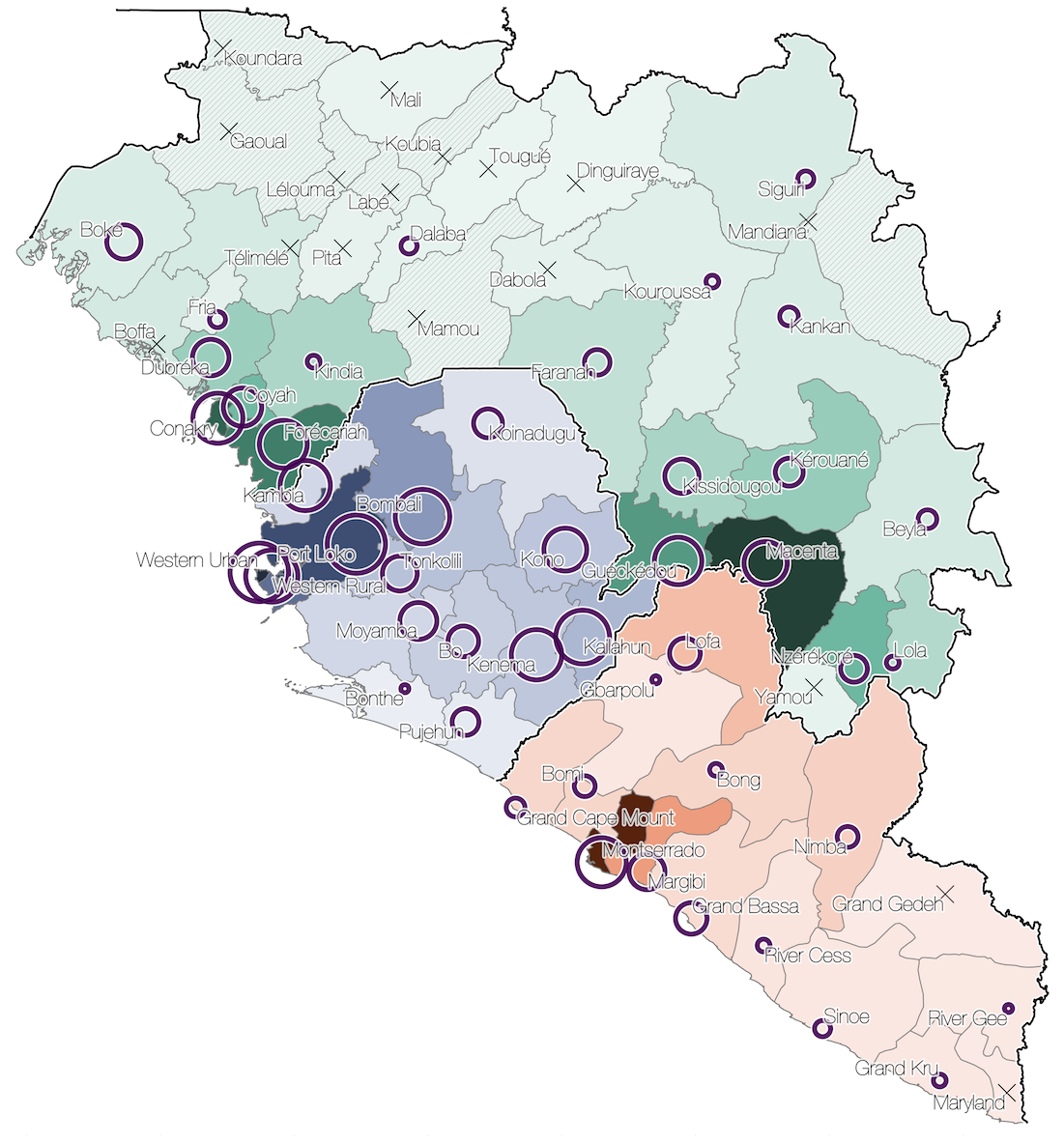

Sequencing of 1610 Ebola virus genomes collected during the 2013-2016 West African epidemic

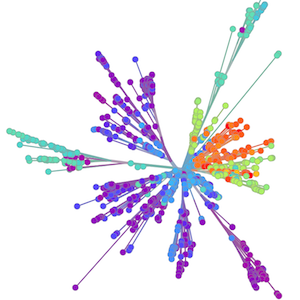

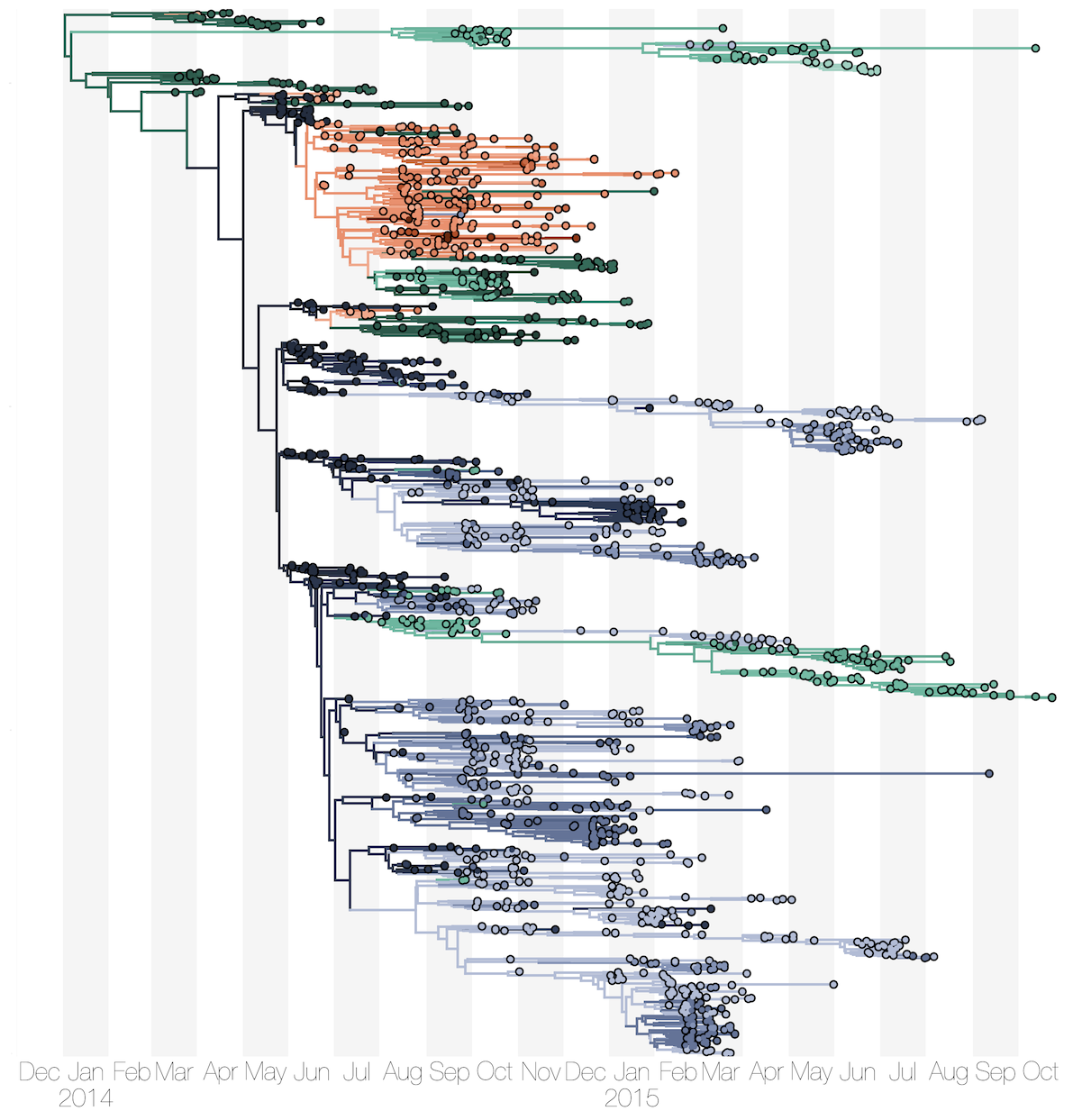

Phylogenetic reconstruction of evolution and spread

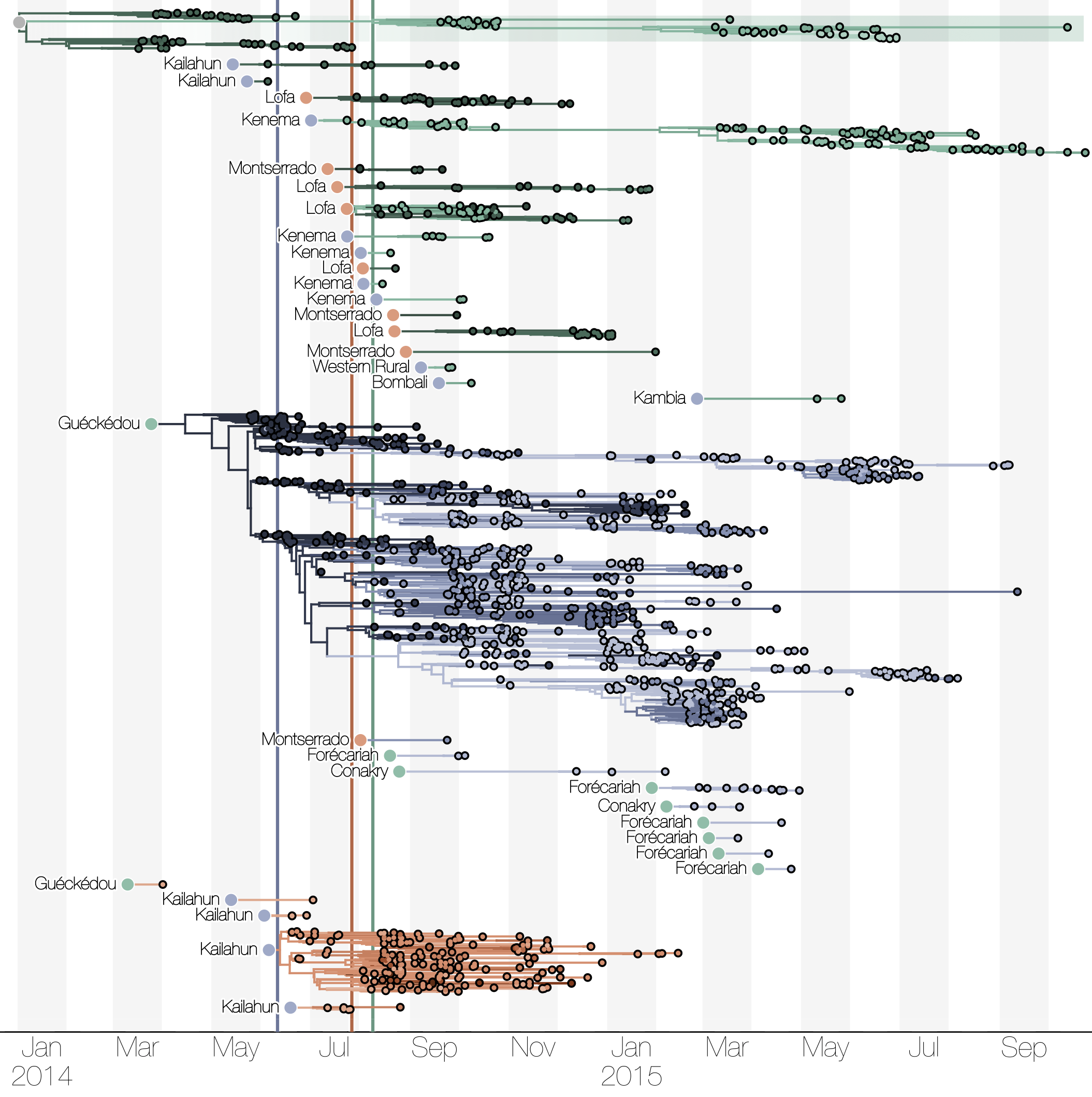

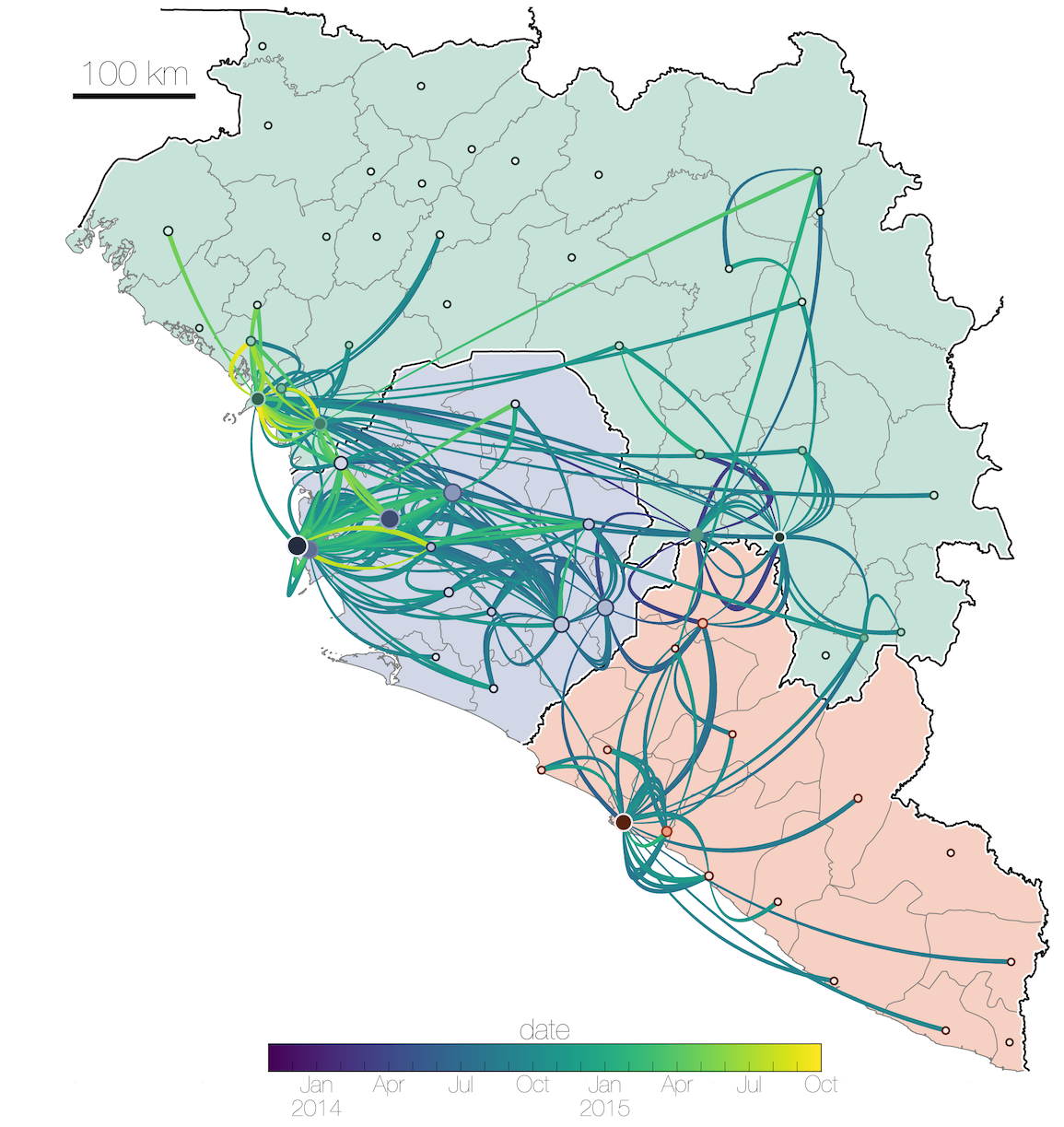

Tracking migration events

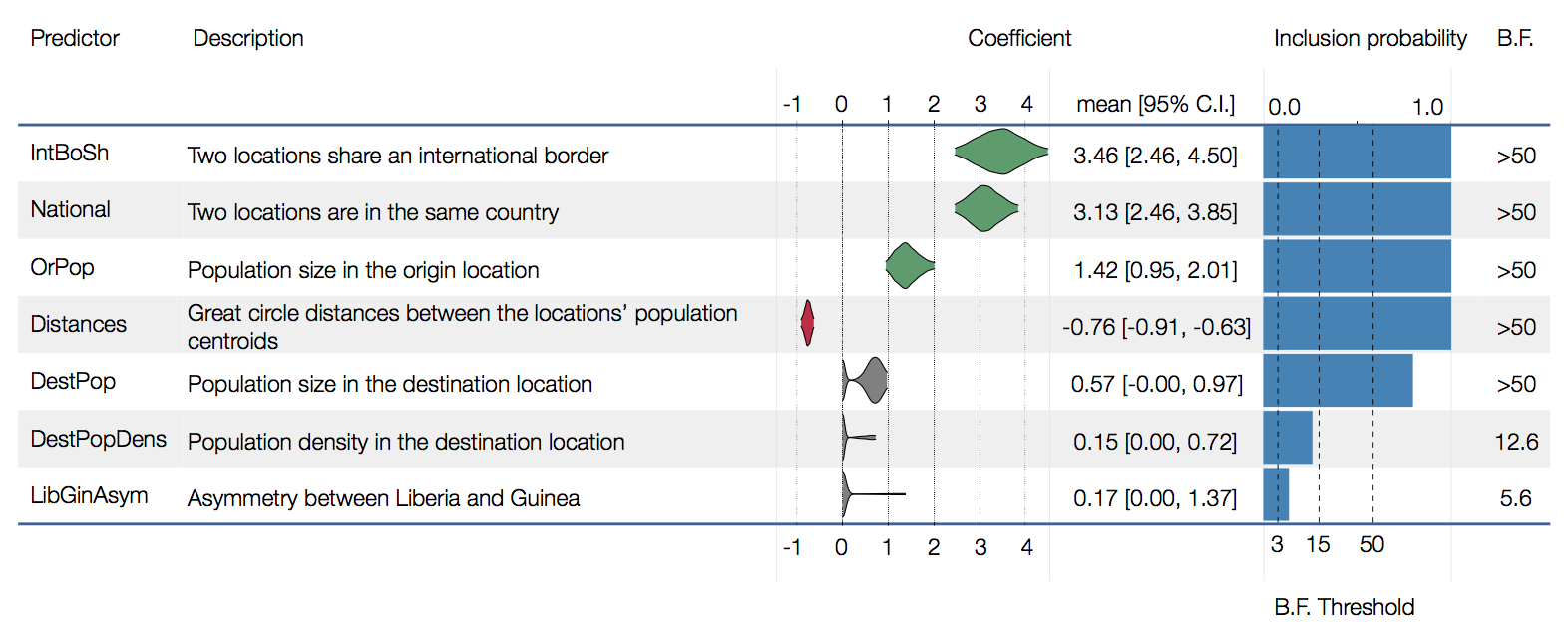

Factors influencing migration rates

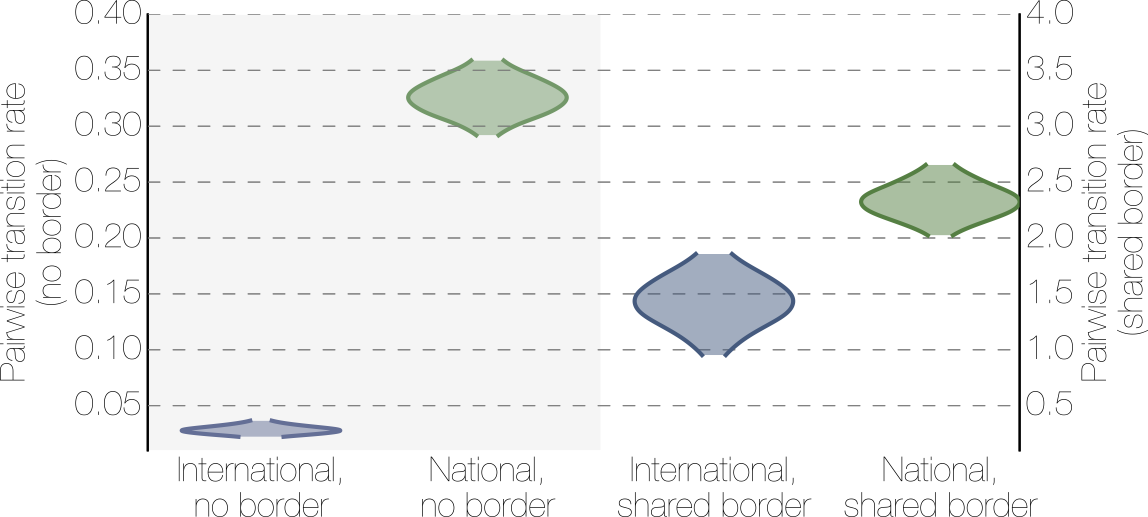

Effect of borders on migration rates

Spatial structure at the country level

Substantial mixing at the regional level

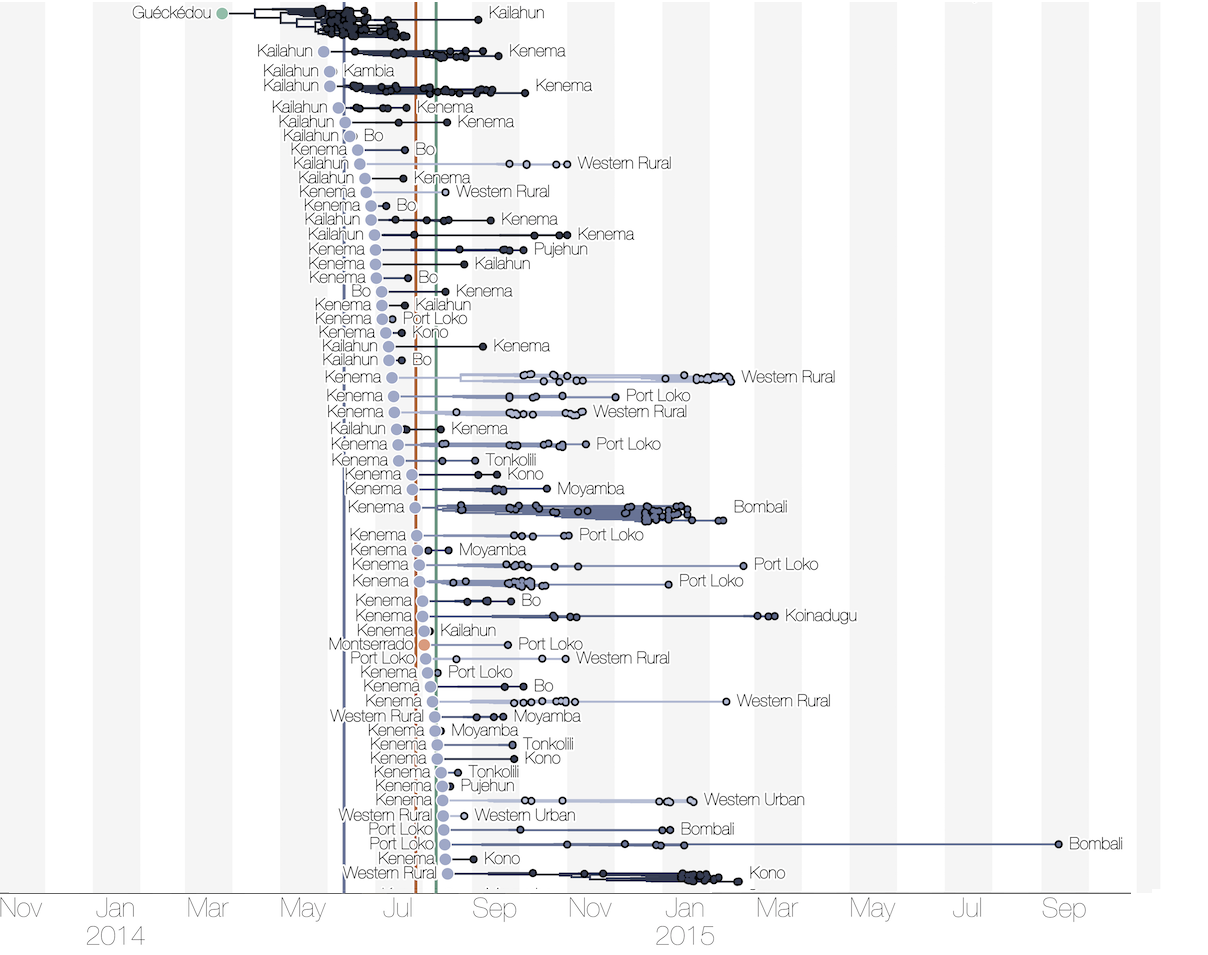

Regional outbreaks due to multiple introductions

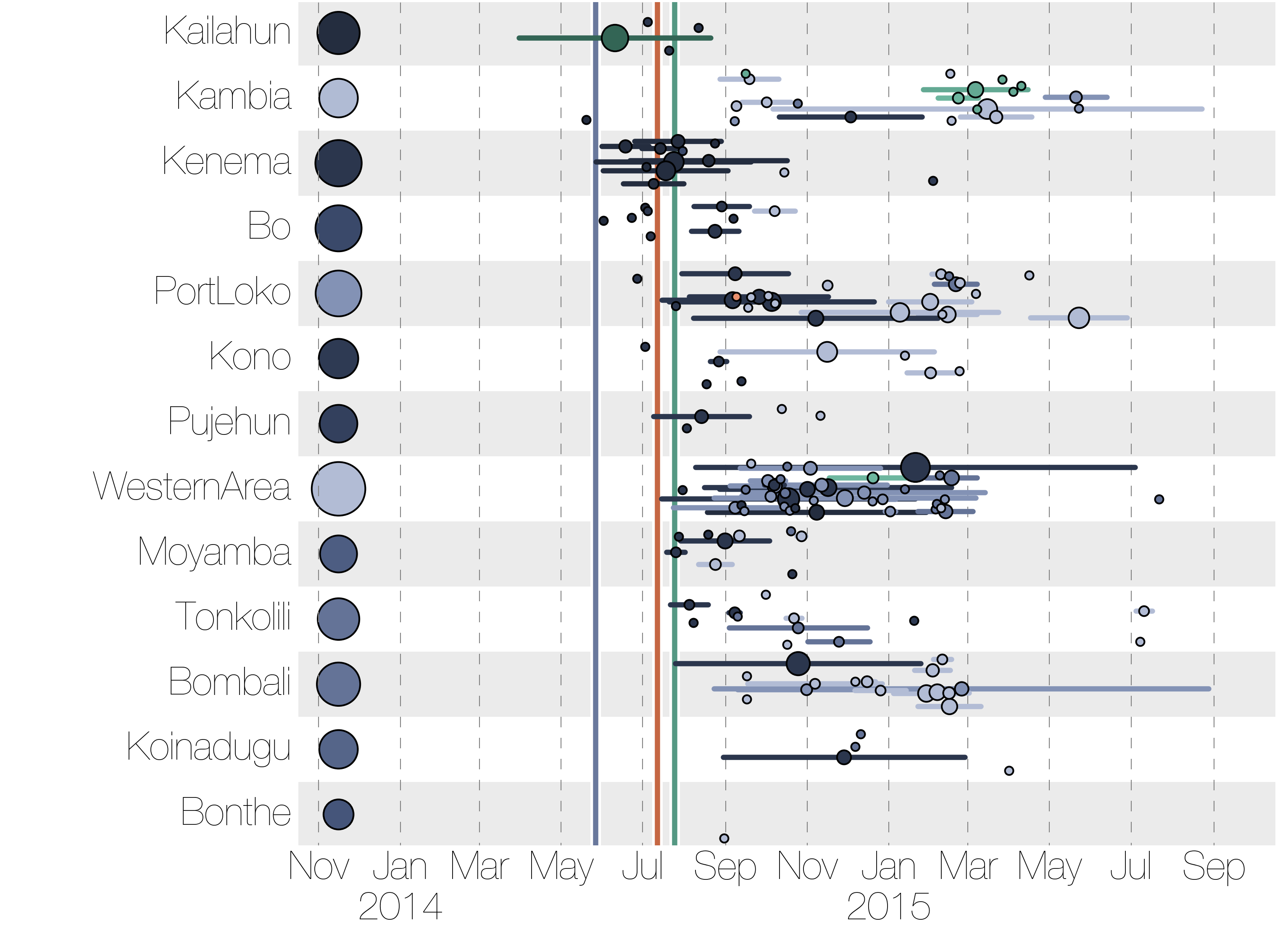

Each introduction results in a minor outbreak

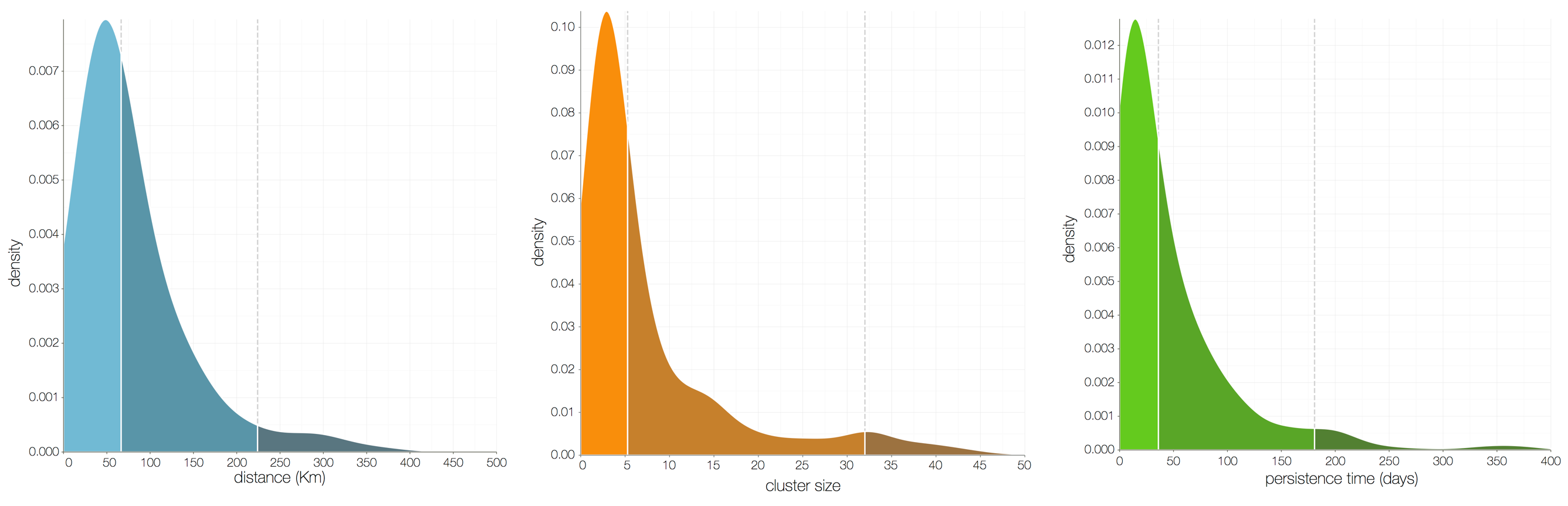

Ebola spread in West Africa followed a gravity model with moderate slowing by international borders, in which spread is driven by short-lived migratory clusters

Zika

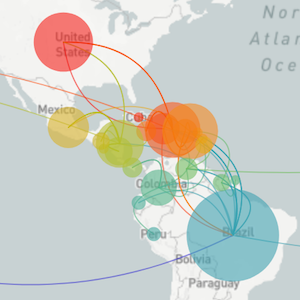

Zika's arrival and spread in the Americas

Establishment and cryptic transmission of Zika virus in Brazil and the Americas

with Nuno Faria, Nick Loman, Oli Pybus, Luiz Alcantara, Ester Sabino, Josh Quick,
Alli Black, Ingra Morales, Julien Thézé, Marcio Nunes, Jacqueline de Jesus,
Marta Giovanetti, Moritz Kraemer, Sarah Hill and many others

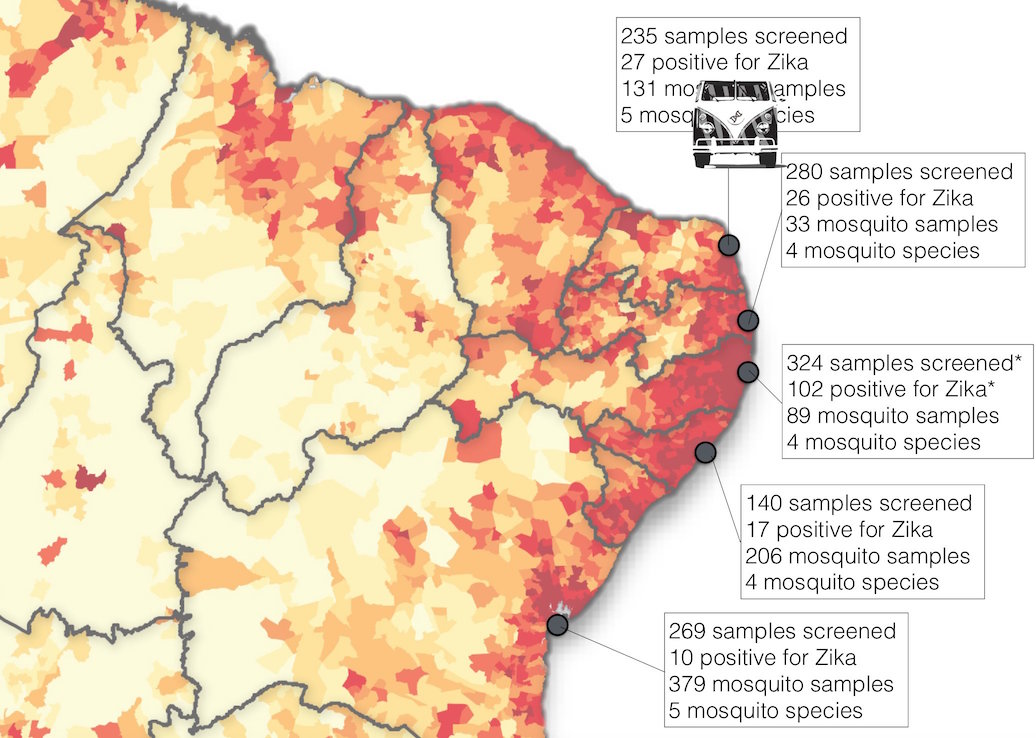

Road trip through northeast Brazil to collect samples and sequence

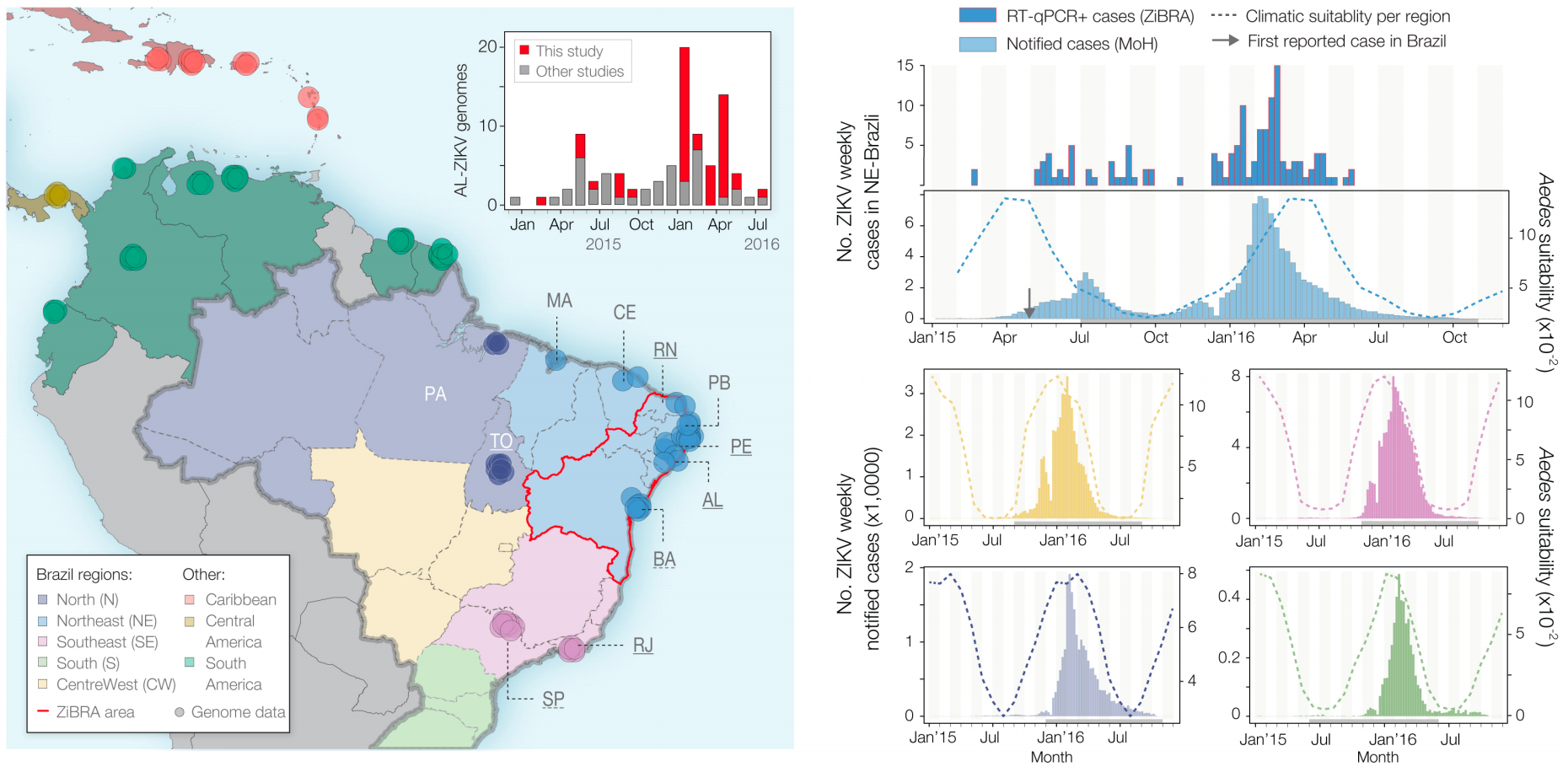

Case reports and diagnostics suggest initiation in northeast Brazil

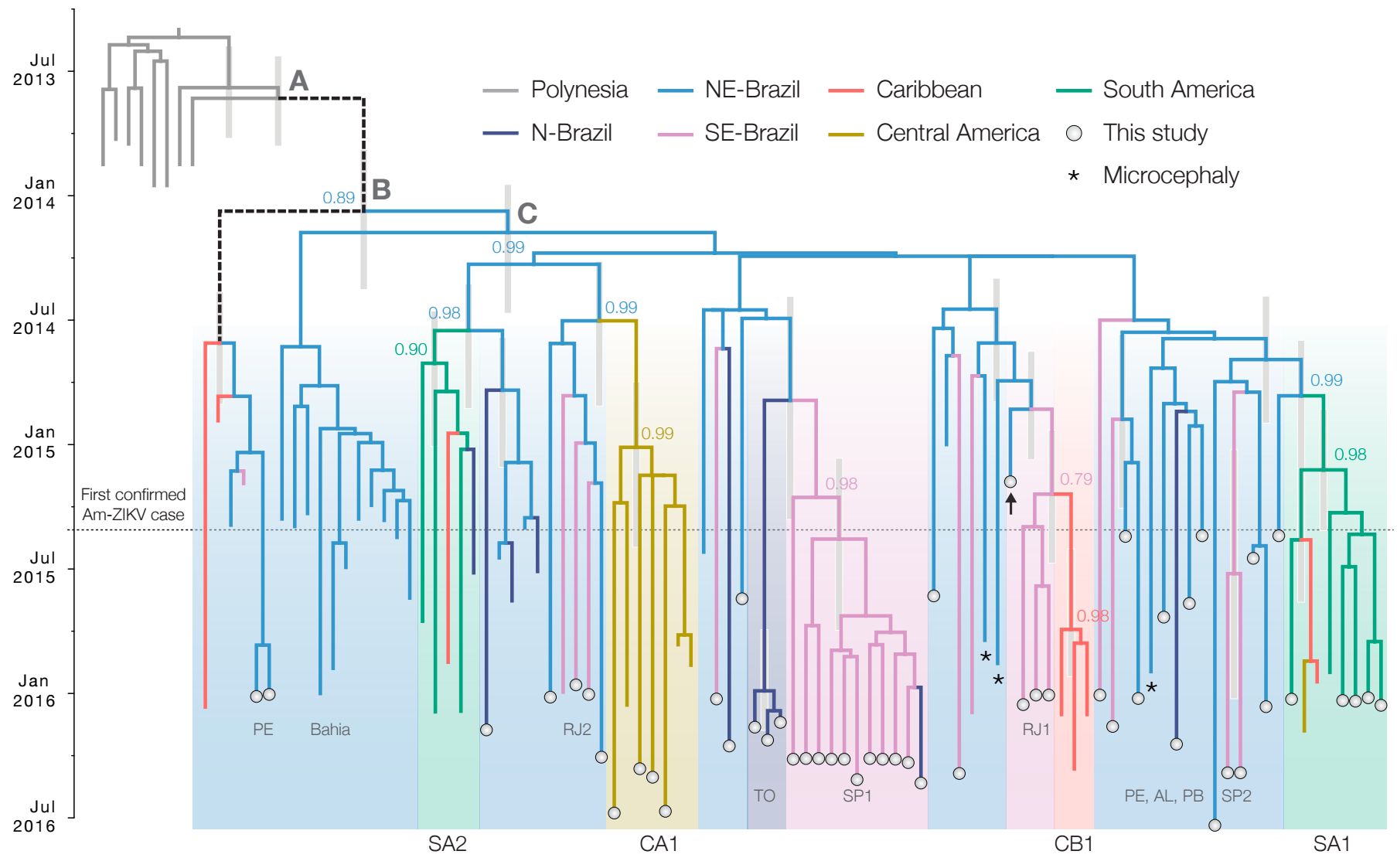

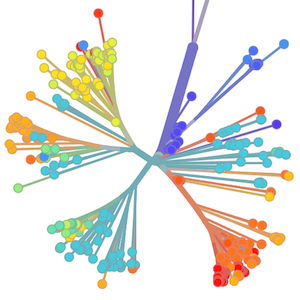

Phylogeny infers an origin in northeast Brazil

Genomic epidemiology reveals multiple introductions of Zika virus into the United States

with Nathan Grubaugh, Kristian Andersen, Jason Ladner, Gustavo Palacios, Sharon Isern, Oli Pybus, Moritz Kraemer, Gytis Dudas, Amanda Tan, Karthik Gangavarapu, Michael Wiley, Stephen White, Julien Thézé, Scott Michael, Leah Gillis, Pardis Sabeti, and many others

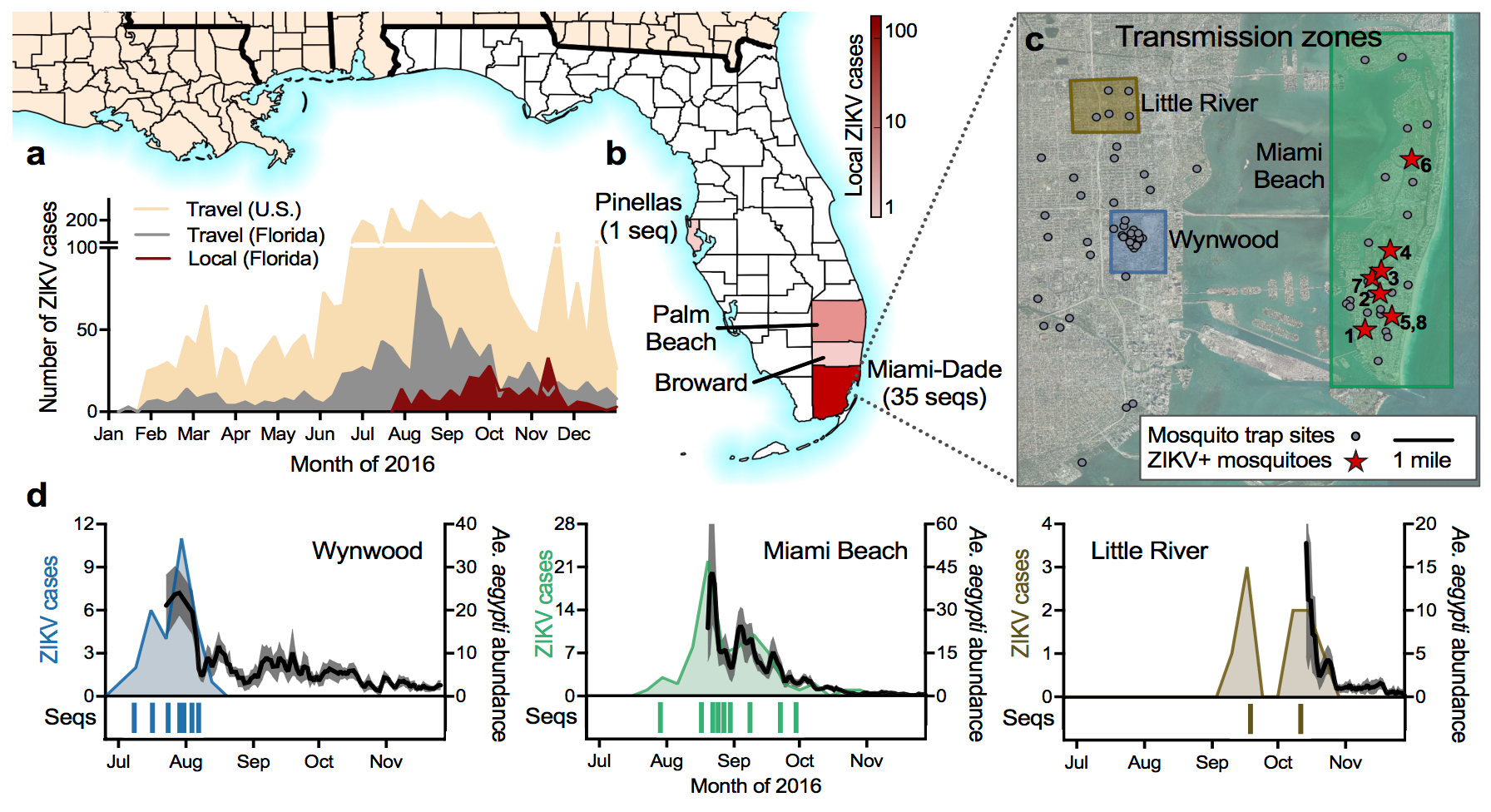

Outbreak of locally-acquired infections focused in Miami-Dade county

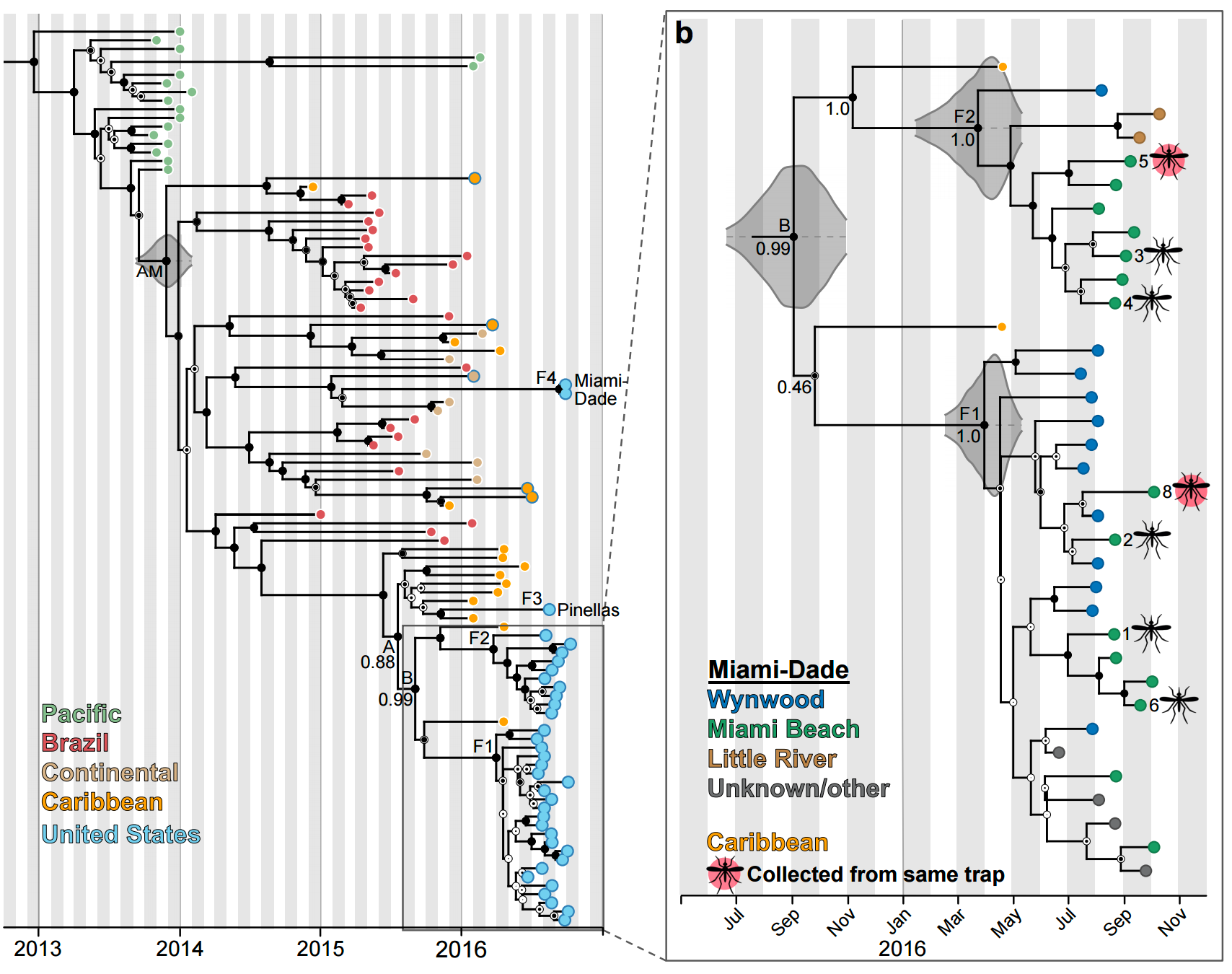

Phylogeny shows introductions from the Caribbean and a surprising degree of clustering

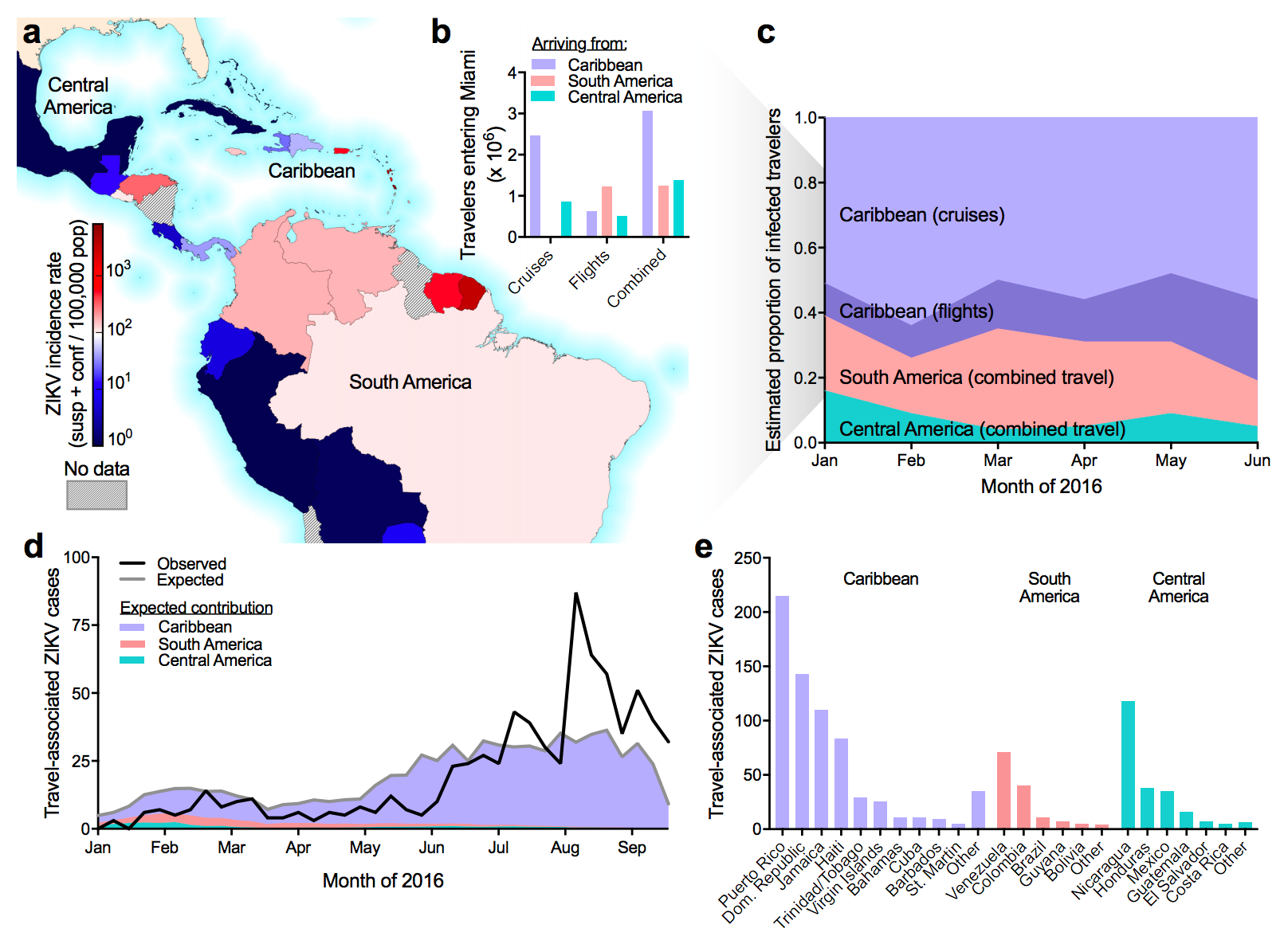

Flow of infected travelers greatest from Caribbean

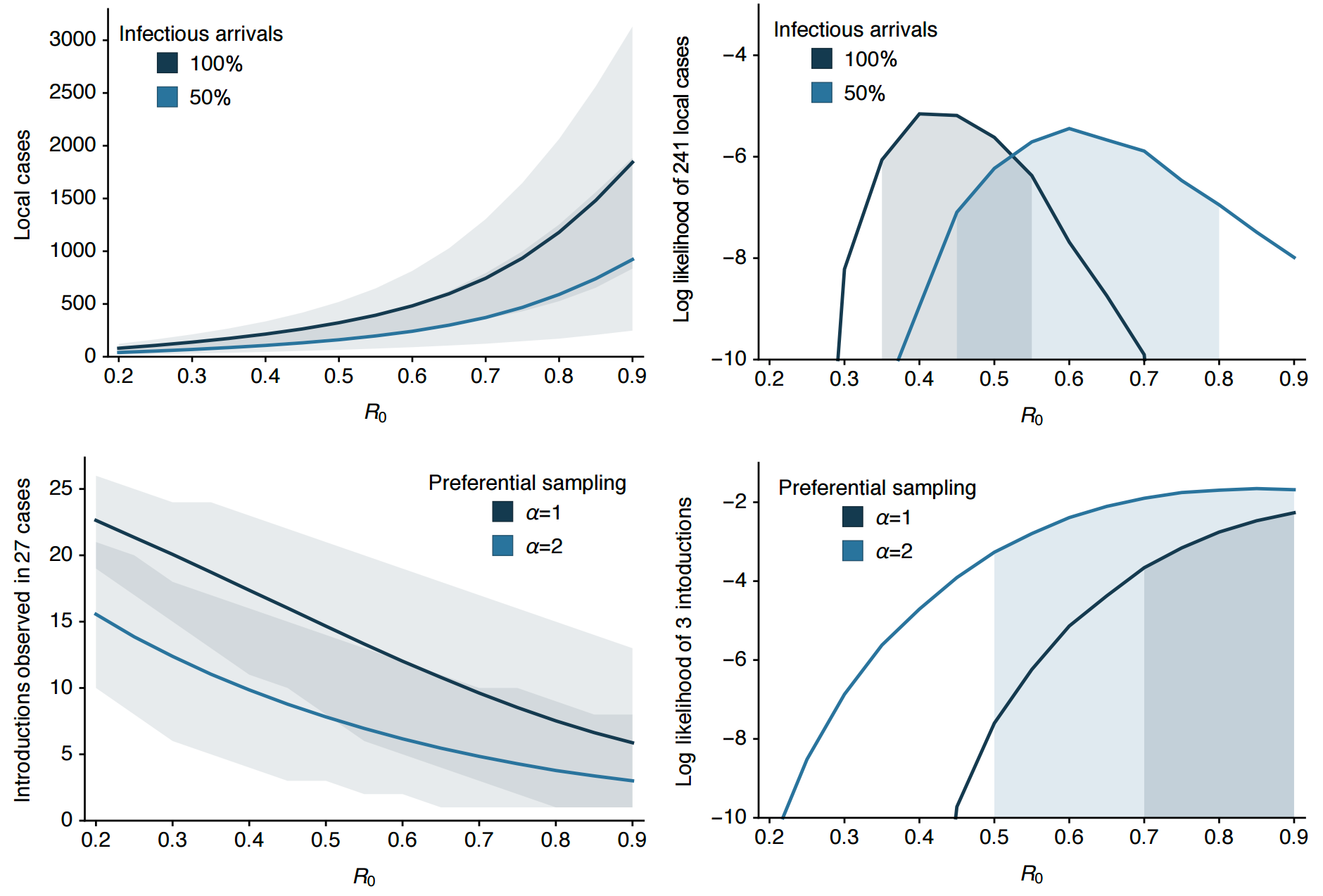

Clustering suggests fewer, longer transmission chains and higher R0

Genomic epidemiology of Zika in the US Virgin Islands

with Alli Black, Barney Potter, Gytis Dudas, Esther Ellis, Brett Ellis,
Kristian Andersen, Nathan Grubaugh, Leora Feldstein, and others
(and special thanks to Adam Geballe)

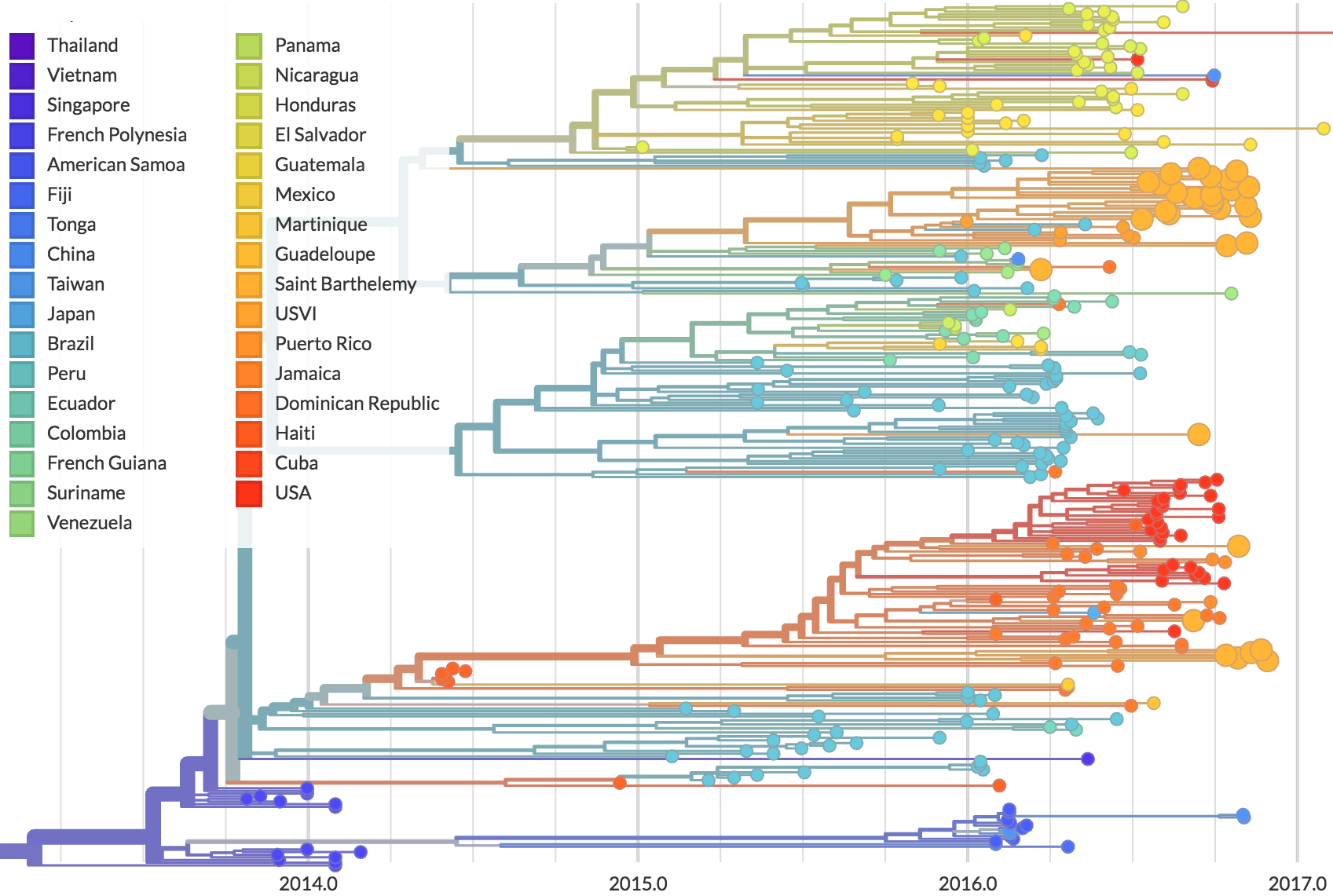

Preliminary analysis of 31 genomes shows multiple introductions to USVI

Important analyses, let's make them more rapid and more automated

Key challenges

  • Timely analysis and sharing of results critical
  • Dissemination must be scalable
  • Integrate many data sources
  • Results must be easily interpretable and queryable

nextstrain

Project to conduct real-time molecular epidemiology and evolutionary analysis of emerging epidemics


with Richard Neher, James Hadfield, Colin Megill,
Sidney Bell, Charlton Callender, Barney Potter,
and John Huddleston

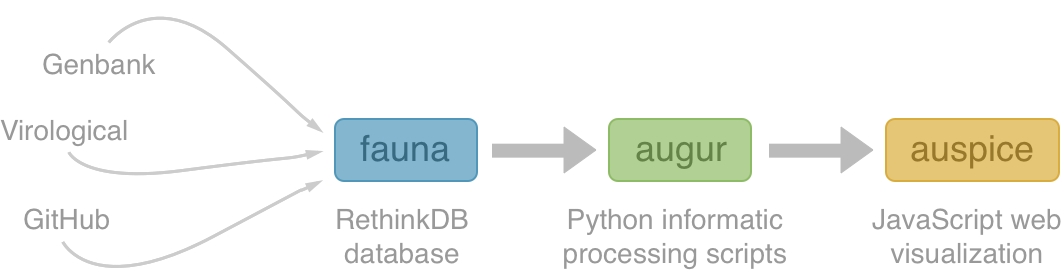

Nextstrain architecture

All code open source at github.com/nextstrain

Fauna

Rethink database of virus and titer data

  • Harmonizes data from different sources
  • Integrates different types of data (serology, sequences, case details)
  • Provides an interface for downstream analysis

Augur

Build scripts to align sequences, build trees and annotate

  • Flexible build scripts to incorporate different viruses and analyses
  • Constructs time-resolved phylogenies
  • Annotates with geographic transitions and mutation events

Example augur pipeline for 1600 Ebola genomes

  • Align with MAFFT (34 min)
  • Build ML tree with RAxML (54 min)
  • Temporally resolve tree and geographic ancestry with TreeTime (16 min)
  • Total pipeline (1 hr 46 min)

Auspice

Web visualization of resulting trees

  • Interactive data exploration and filtering
  • Framework through React / D3
  • Connects phylogeny, geography and genotypes

nextstrain.org

Rapid on-the-ground sequencing by Ian Goodfellow, Matt Cotten and colleagues













Build out pipelines for different pathogens, improve databasing and lower
bioinformatics bar

Acknowledgements

Bedford Lab: Alli Black, Sidney Bell, Gytis Dudas, John Huddleston,
Barney Potter, James Hadfield, Louise Moncla

Influenza: WHO Global Influenza Surveillance Network, GISAID, Richard Neher, Colin Russell, Andrew Rambaut, Marc Suchard, Philippe Lemey, Steven Riley

Ebola: Gytis Dudas, Andrew Rambaut, Luiz Carvalho, Philippe Lemey, Marc Suchard, Andrew Tatem

Zika: Nick Loman, Nuno Faria, Oli Pybus, Josh Quick, Kristian Andersen, Nathan Grubaugh, Jason Ladner, Gustavo Palacios, Sharon Isern, Gytis Dudas, Alli Black, Barney Potter, Esther Ellis

Nextstrain: Richard Neher, James Hadfield, Colin Megill, Sidney Bell, Charlton Callender, Barney Potter, John Huddleston
