Inferring spatiotemporal dynamics of the H1N1 influenza pandemic from sequence data

Prepare a logistic growth analysis

We saw that the skyline analysis suggested that virus population size started off very small near the beginning of 2009 and increased throughout the year, though slowing its rate of increase closer to Sep 2009. A parametric model of logistic growth fits this pattern nicely. In this model, exponential growth occurs with rate r, but is damped as the population size N approaches carrying-capacity K. The instantaneous rate of change in population size is:

logistic_rate

If we start with some initial population size N0 then we can solve for N at an arbitrary time t:

logistic_n0

However, because TMRCA is constantly varying over the course of the MCMC, BEAST parameterizes logistic growth not in terms of N0, but instead in terms of t50, that is the time back from the “present” (in this case 2009.75) when the population is at half its carrying capacity:

logistic_t50

Thus, to model logistic growth, we need to estimate r, K and t50.

To prepare this XML, start as before, by importing sequence data in the ‘Partitions’ panel and adding tip dates in the ‘Tips’ panel.

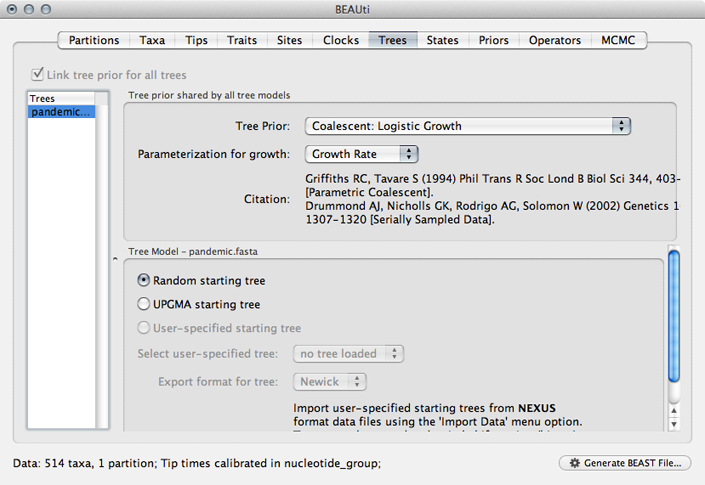

Select the ‘Trees’ panel and choose ‘Logistic Growth’ from the ‘Tree Prior’ dropdown.

This will setup a demographic function based on the above outlined logistic growth model.

beauti_trees_logistic

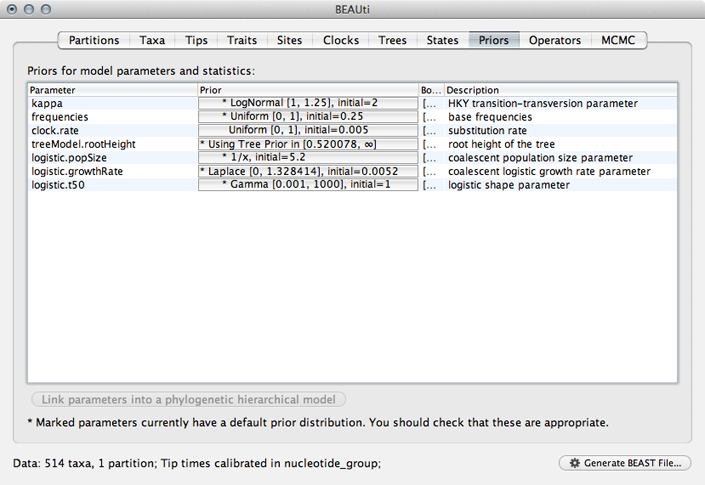

Select the ‘Priors’ panel and choose a Uniform(0,1) prior for ‘clock.rate’.

beauti_priors_logistic

The use of a Gamma prior for ‘logistic.t50’ is rather strange and I believe exists as a holdover from a previous parameterization using a shape parameter to define timescale rather than ‘logistic.t50’. We’ll fix this by editing the raw XML later.

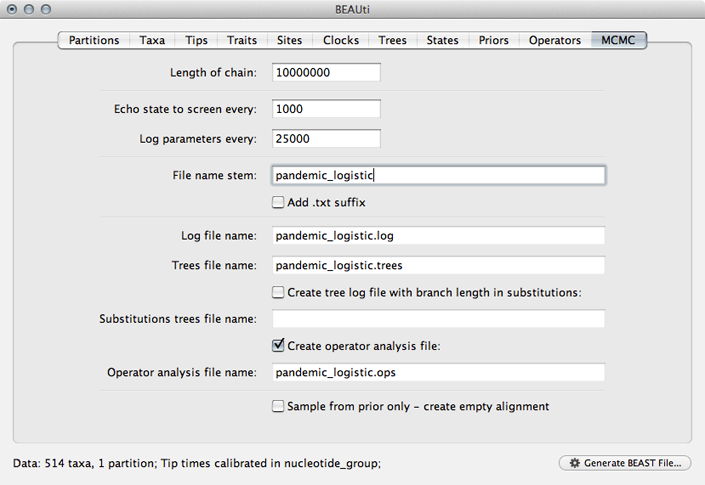

Select the ‘MCMC’ panel, set the length of the chain to 50000000, set logging of parameters every 25000 steps and set the file name stem to pandemic_logistic.

This will log parameters and trees to pandemic_logistic.log and pandemic_logistic.trees.

beauti_mcmc_logistic

Save the XML file as pandemic_logistic.xml.

Open the resulting file in a text editor and delete the ‘trait’ block from the the ‘logTree’ block as before.

We will also manually set the prior on ‘logistic.t50’ by replacing the ‘gammaPrior’ with:

<uniformPrior lower="0.0" upper="1.0">
	<parameter idref="logistic.t50"/>
</uniformPrior>

With this completed, we are ready to run this analysis in BEAST.
